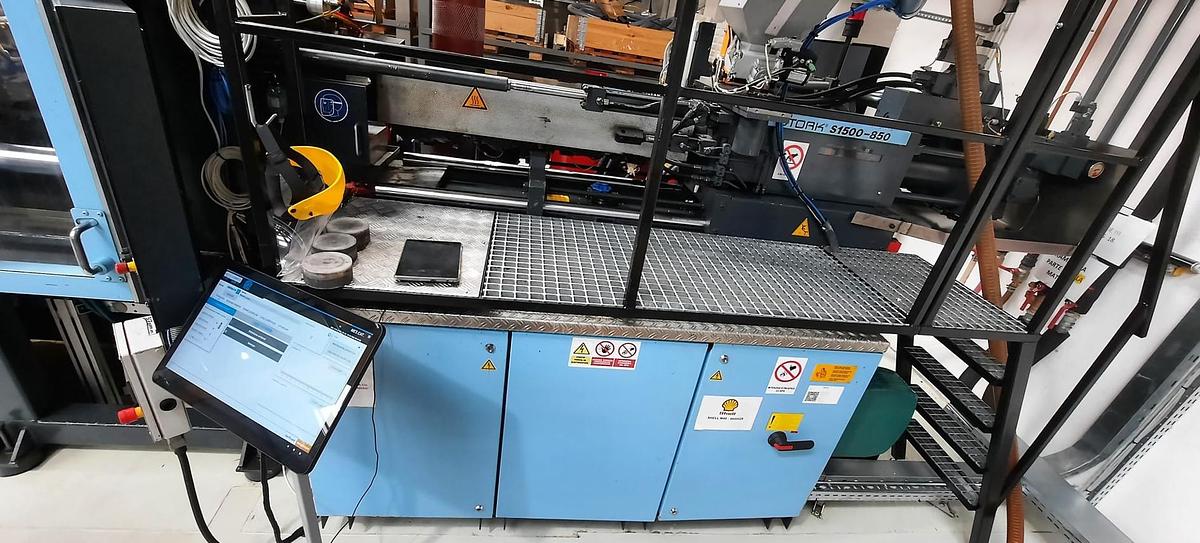

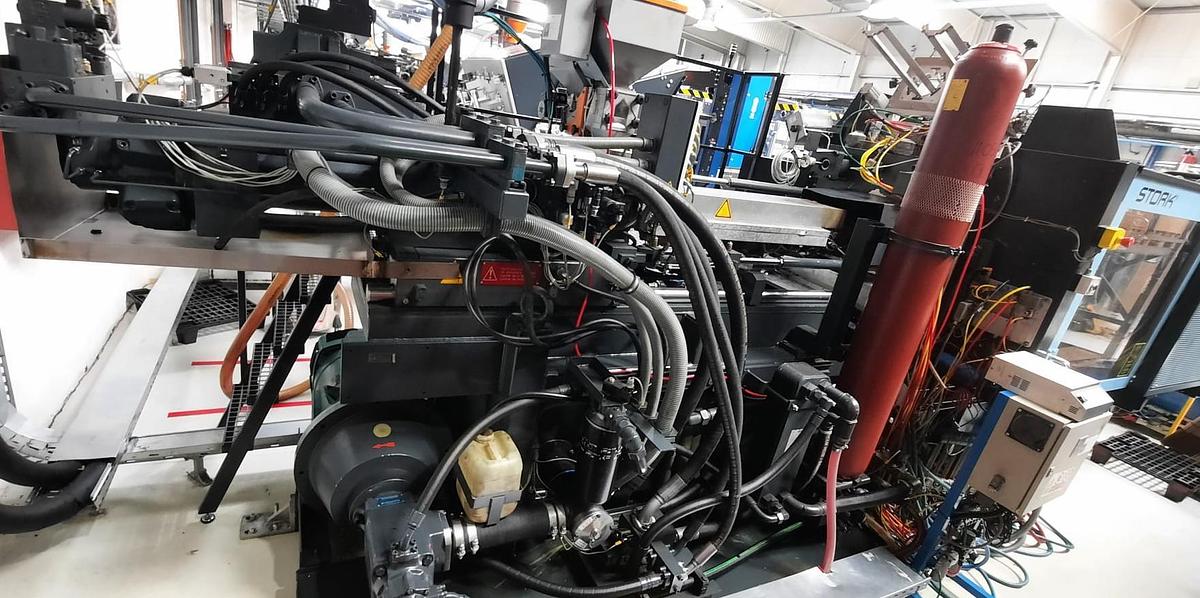

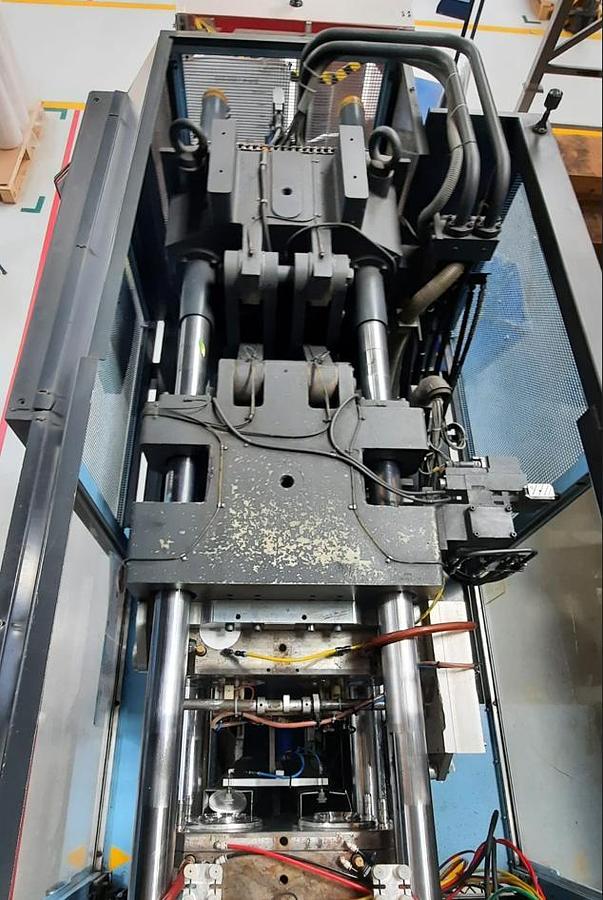

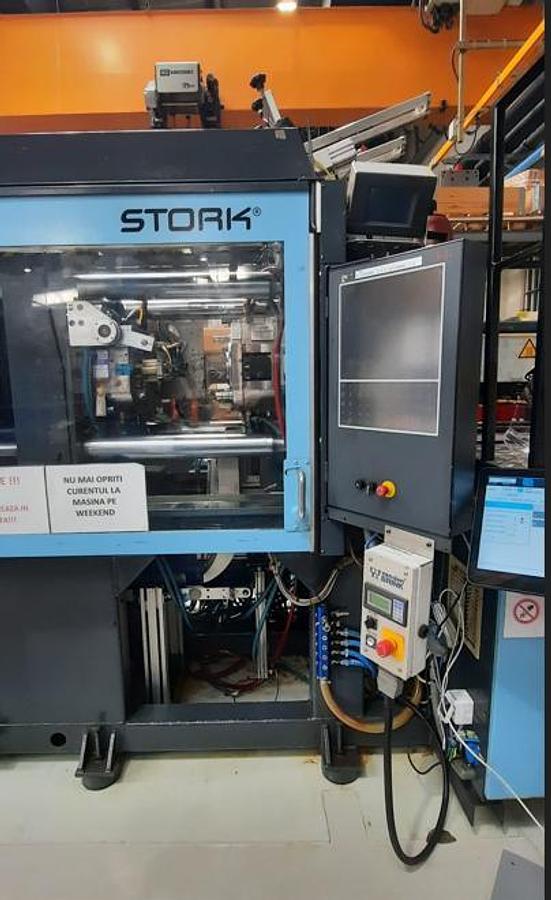

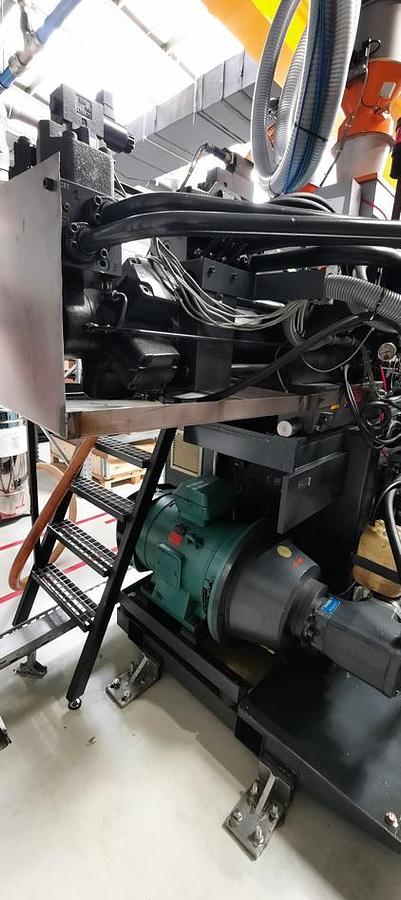

2007 Stork S-1500-850 Injection Molding Machine
2007 Stork S-1500-850 Injection Molding Machine
Contact us for price
Location:Romania
Description
Specifications
| Manufacturer | Stork |
| Model | S-1500-850 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 758868 |
| Year of Manufacture | 2007 |
| Control System | CDS600 |
| IML Robot | Brink IML robot, 2 cav for lid |
| Clamping Force | 1500 kN |
| Holding Force | 1650 kN |
| Opening Force (0 to 10 mm) | 66 kN |
| Opening Stroke (max.) | 480 mm |
| Mould Diameter (min.) | 270 mm |
| Max. Mould Weight | 950 kg |
| Max. Daylight | 1030 mm |
| Mould Height | 150 - 550 mm |
| Distance Between Tie Bars | 470 x 470 mm |
| Tie Bar Diameter | 90 mm |
| Ejector Force | 22 kN |
| Ejector Stroke (max.) | 150 mm |
| Dry Cycle Time (Euromap 6 - 1994) | 1.35 s (329 mm) |
| Weight Clamping Unit | 6400 kg |
| Screw | A |
| Screw Diameter | 45 mm |
| Screw L/D Ratio | 25.0 |
| Injection Pressure (max.) | 2200 bar |
| Screw Stroke (max.) | 235 mm |
| Calculated Swept Volume (max.) | 374 cm3 |
| Shot Weight PS (max.) | 355 g |
| Injection Rate (max.) | 1590 cm3/s |
| Plasticizing Capacity PE | 42 g/s |
| Plasticizing Capacity (PE-II Screw) | 51 kg/h |
| Hydromotor | MR 350 |
| Screw Speed (max.) | 427 min-1 |
| Screw Torque | 916 Nm |
| Heating Zones | 7 |
| Heating Capacity | 18 kW |
| Nozzle Contact Force | 49 kN |
| Nozzle Stroke (max.) | 290 mm |
| Rating of Electromotor | 55 kW |
| Noise Level | 72 dBA |
| Oil Reservoir Capacity | 675 l |
| Weight Injection Unit | 4000 kg |
