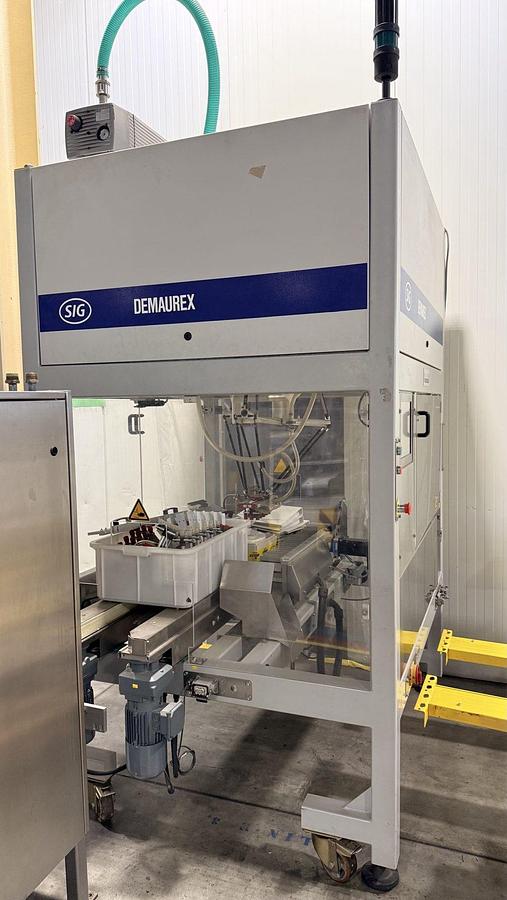

2001 SIG Demaurex MIDAS Delta Robot Packaging Cell
2001 SIG Demaurex MIDAS Delta Robot Packaging Cell
Contact us for price
Location:Bern, Switzerland
Available quantity:1
Description
Specifications
| Manufacturer | SIG Demaurex |
| Model | MIDAS |
| Year | 2001 |
| Condition | Used |
| Stock Number | 758887 |
| Year of Manufacture | 2001 |
| Machine Type | MIDAS Presto cell, mono-cell (Machine 2) |
| Application | Pick & place / display packer for bars and single products into cartons and displays |

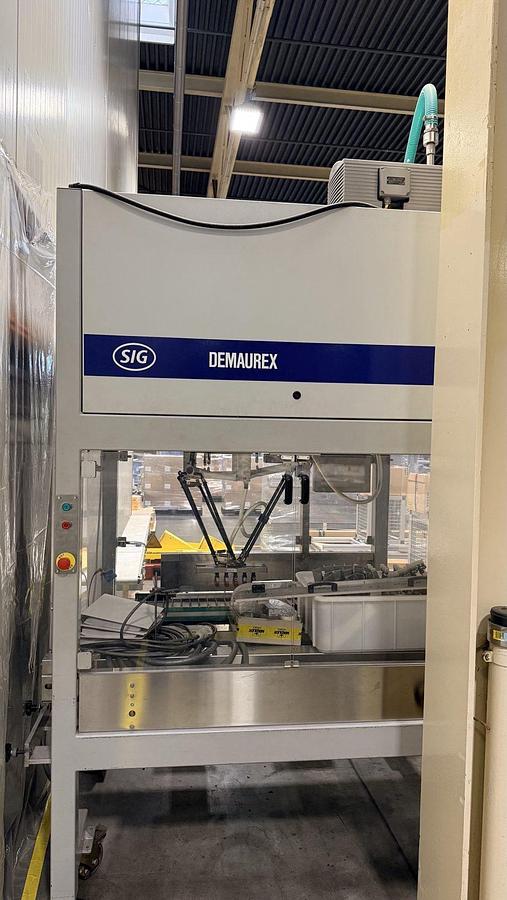

| Robot | Delta robot C23, Lb570 / Rb40, brushless servo motors 420 W |
| Number of Axes | 4 |

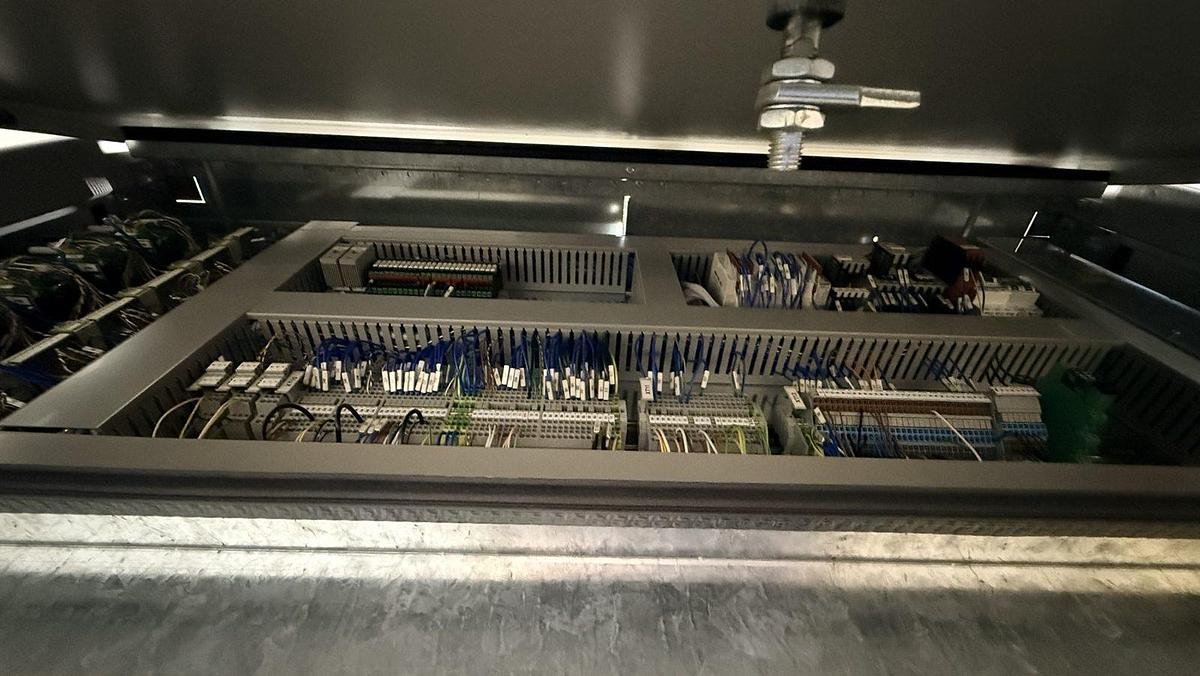

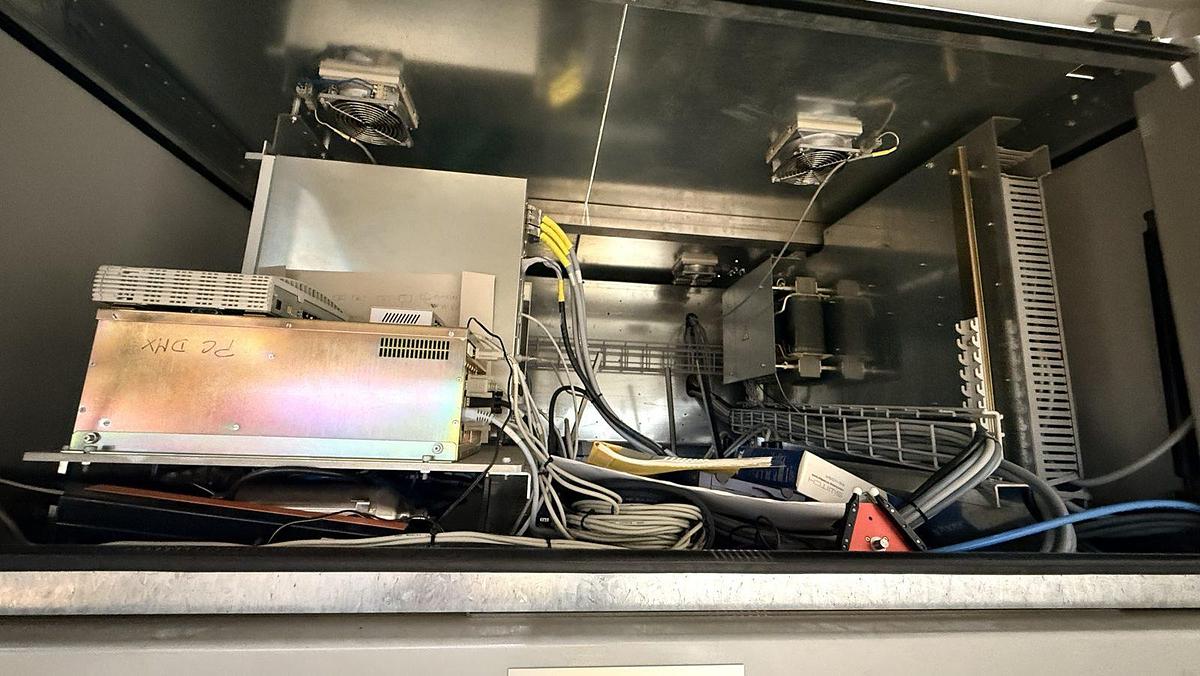

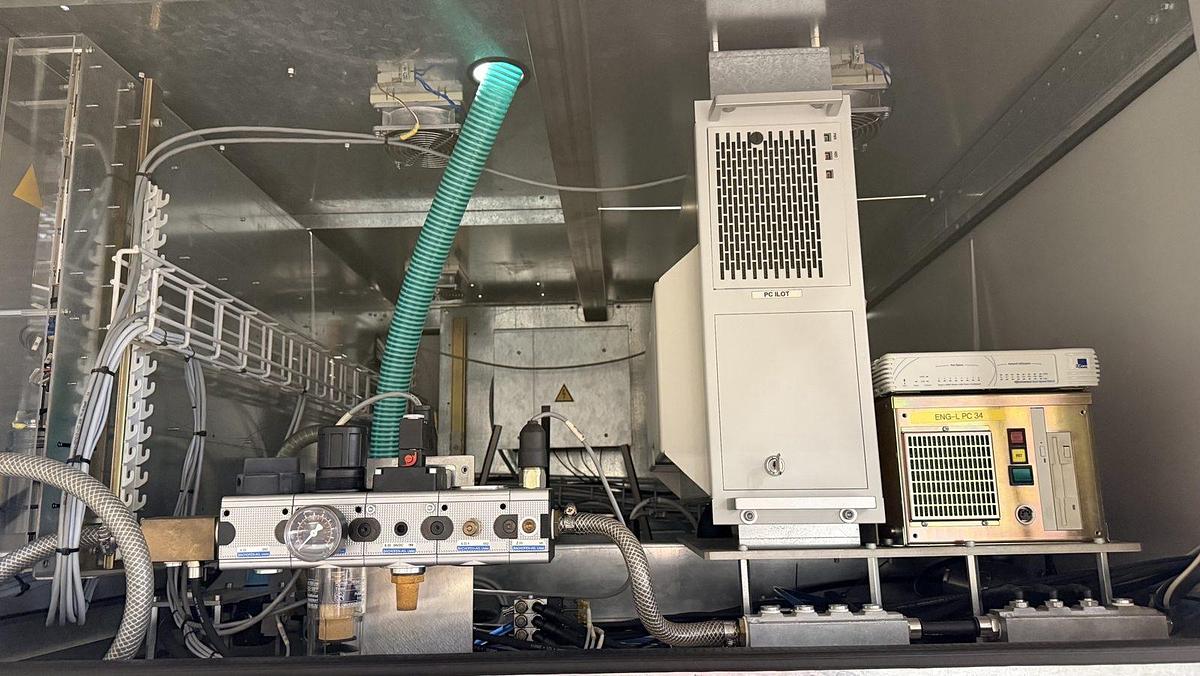

| Control System | Industrial PC "PC ILOT", robot control PC, network hub, control cabinet with terminal strips and relay modules |
| Operator Interface | Touch control panel in stainless steel frame, ON/OFF button, emergency stop, signal tower, main switch |
| Vacuum Pump | Becker VT 4.40, 1.25 kW, mounted on the machine roof |
| Pneumatics | Bachofen maintenance unit with pressure regulator, pressure gauge and valves, 24 VDC |
| Conveyor Technology | Chain bucket elevator (product infeed), acceleration conveyor, carton conveyor with indexing device, pneumatic ejection system |
| Power Supply | 3 x 400 VAC, 9 A, 50 Hz |
| Connections | Harting plug connectors for line integration |
| Frame and Guarding | Closed frame with polycarbonate safety doors, safety-monitored door switches |

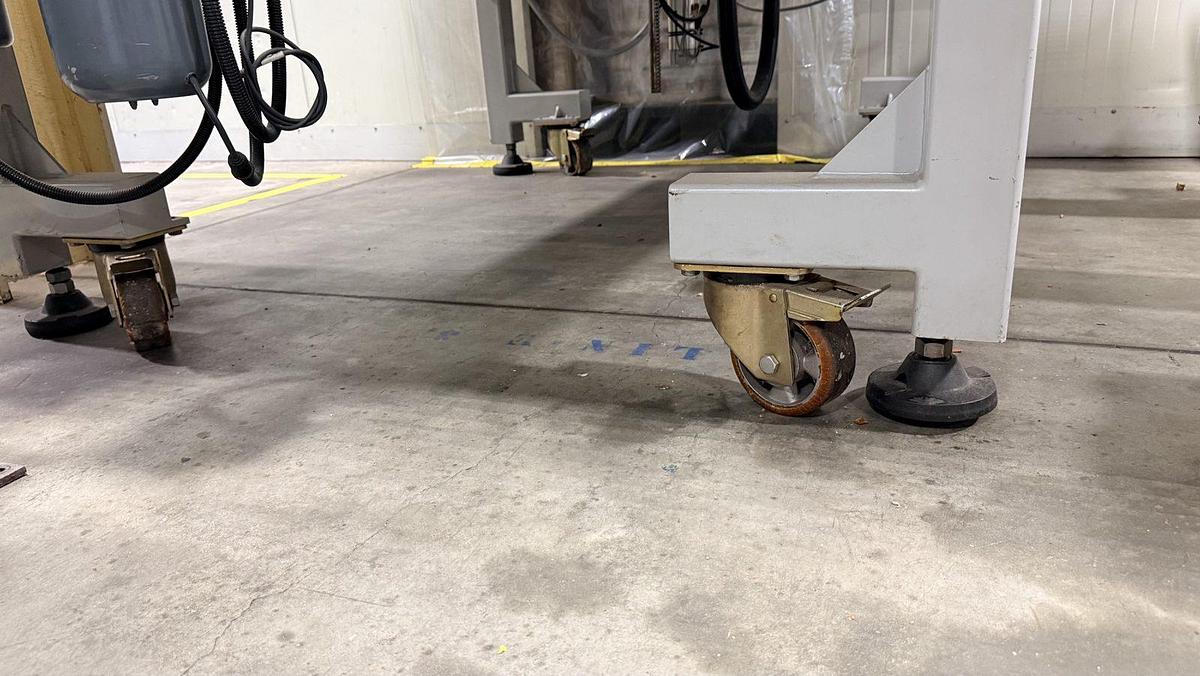

| Mobility | Castors with locking brake and height-adjustable levelling feet |
| Integrator Marking | Zellweger (Zellwag) |

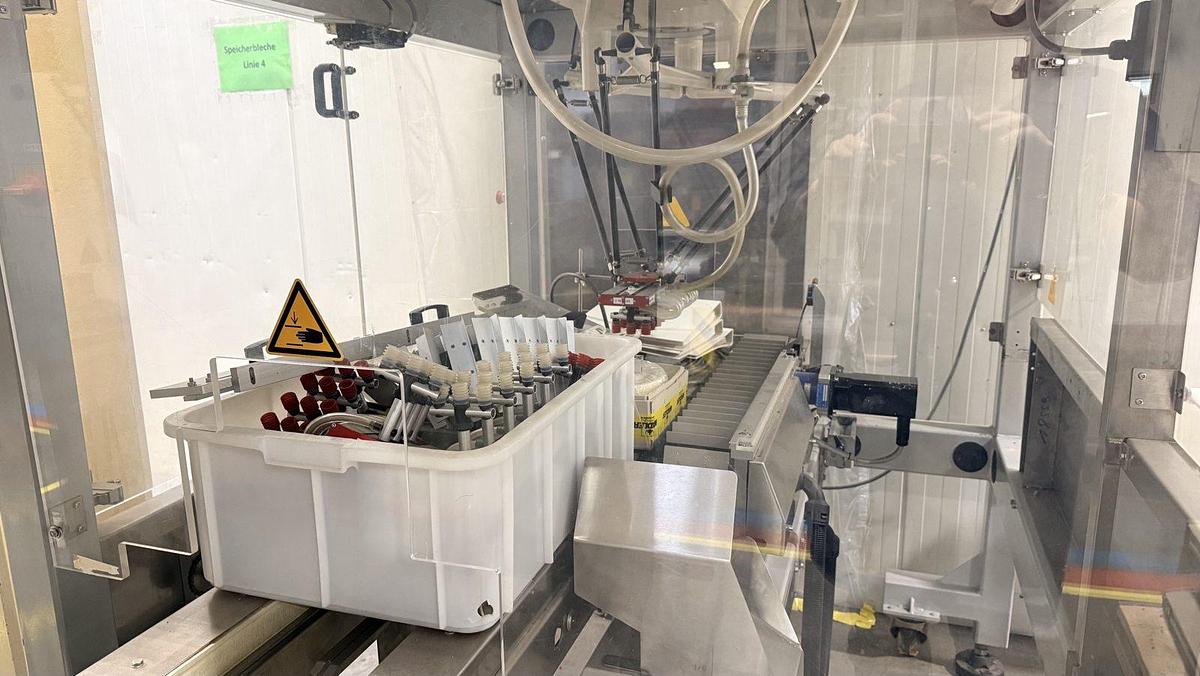

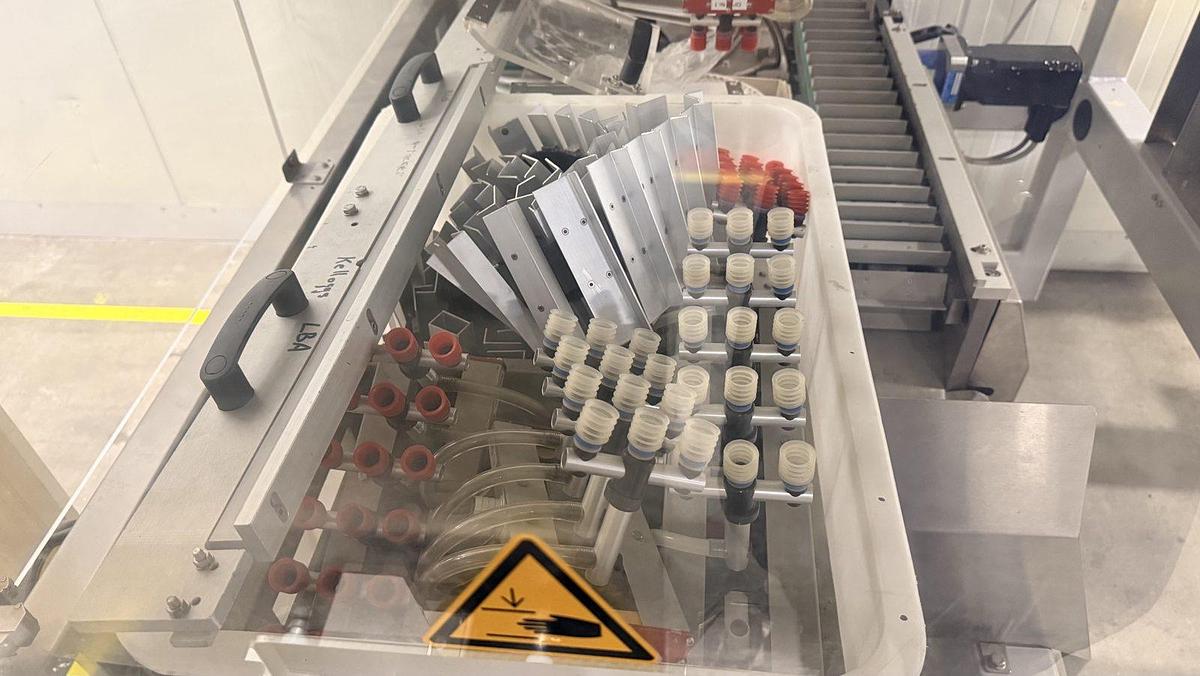

| Scope of Delivery | Complete robot cell as shown incl. vacuum pump and signal tower, format parts (gripper heads with vacuum suckers, guide and format plates), technical manual (German), mechanical parts list with assembly drawings, electrical schematic (46 pages) |
