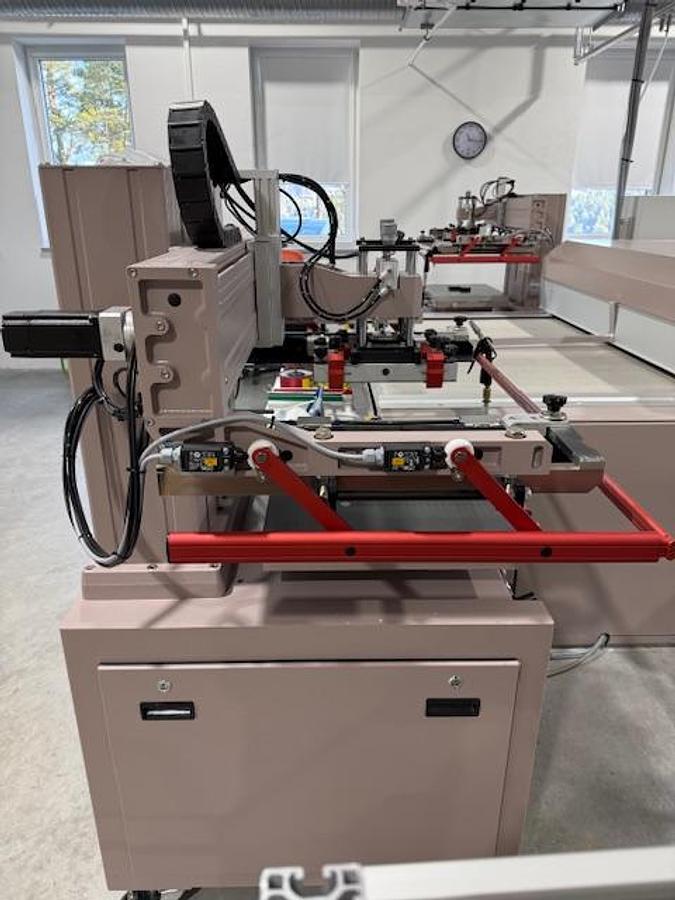

ESC ESC-AT-60PD

Manufacturer: ESC

Model: ESC-AT-60PD

Type of Machine : Screen Printing Machine

Semi-automatic, universal, digitally controlled precision screen printing machine for flexible and rigid materials up to 200 mm material thickness

STANDARD EQUIPMENT/FEATURES

• Programmable PLC control system
• User-friendly operation via touch screen
• High-quality linear guides for smooth, low-noise motion
• Vertical, motor-driven screen frame lifting with synchronized stripping motion
• Precision print head with pneumatic lift for screen change and cleaning
• Digital input of desired print parameters:
• Speed for print and flood squeegee
• Print height
• Print stroke length
• Neutral position for print and flood squeegee
• Single-function control for setup operation
• Single-cycle operation via foot switch and automatic cycle mode
• Extremely short setup times without the need for tools
• Pneumatic screen frame locking
• Metal vacuum base plate with micrometric fine adjustment in X and Y direction
• Pneumatically adjustable squeegee pressure
• Adjustable squeegee angle, readable via scale
• Squeegee tilt adjustment (snowplow system)
• Pneumatically retractable registration pins
• Pneumatic ejection pin

TECHNICAL DATA

• Maximum print format: 400 x 600 mm
• Vacuum plate size: 500 x 700 mm
• Vacuum area: 405 x 600 mm
• Maximum screen frame size: 700 x 940 mm
• Screen frame profile: 25 – 47 mm
• Maximum material thickness: 0 – 200 mm
• Working height: 960 mm
• Screen lift height: 270 mm
• Adjustable print speed: 125 – 750 mm/sec
• Maximum output: 600 prints/hour
• Micrometric fine adjustment: ±10 mm
• Squeegee angle adjustment: ±9°
• Electrical connection: 400 V, 50/60 Hz
• Operating air pressure: 5 – 7 bar

DIMENSIONS & WEIGHT

• Width: 1300 mm
• Depth: 1060 mm
• Height: 1600 mm
• Weight: approx. 485 kg
