Complete Cold-Cut Granulation Line (Fully Operational)

The line consists of the following components:

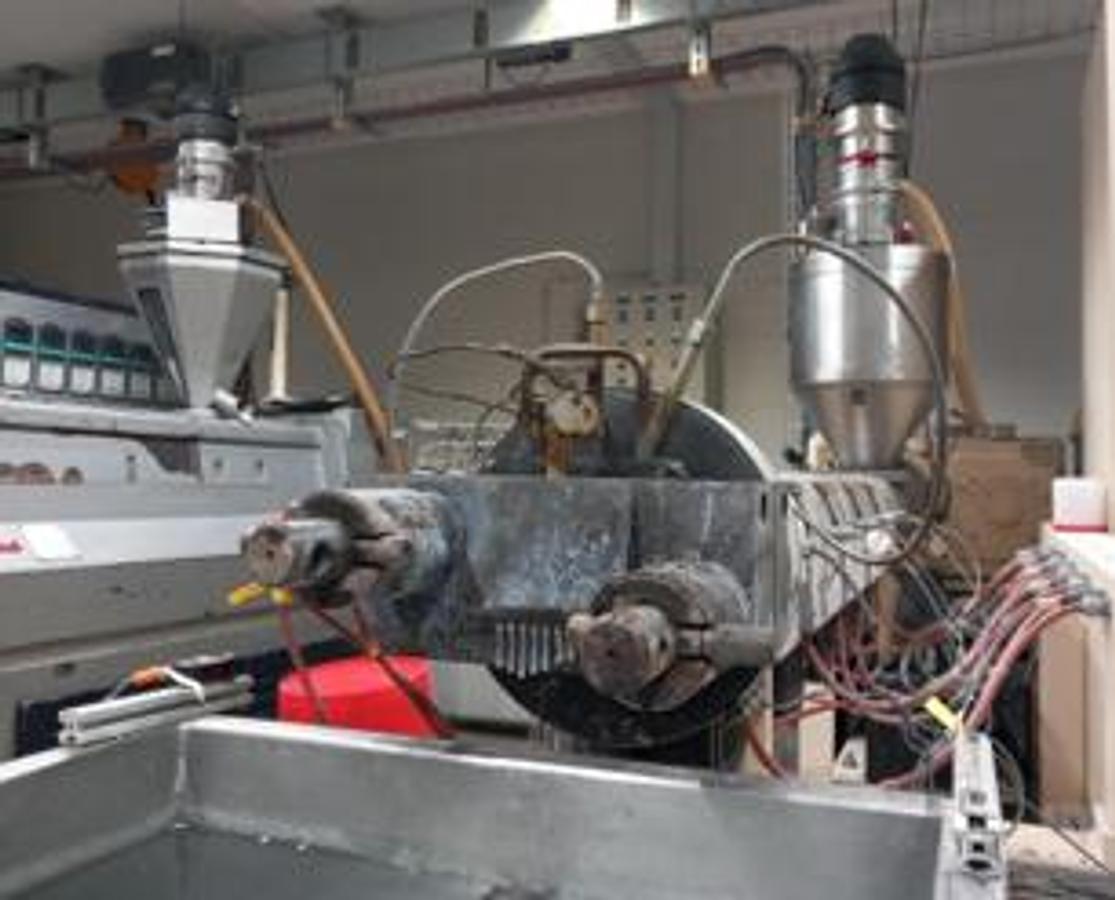

1 - Single-Screw Extruder (Ankle)

• Type :Single-screw extruder (Ankle)
• Description : Gentle compression through optimized screw design. Output up to 120 kg per hour. Original manufacturer drawings available.
• L/D Ratio : 60/30
• Motor Type MDFQARS 132-32 with insulated B bearing
• Gearbox Type : FZ 600.2-Z-ED 60
• Control System: EXTRUSION PACK control unit by RESOTEC. Has functioned very well in operation.

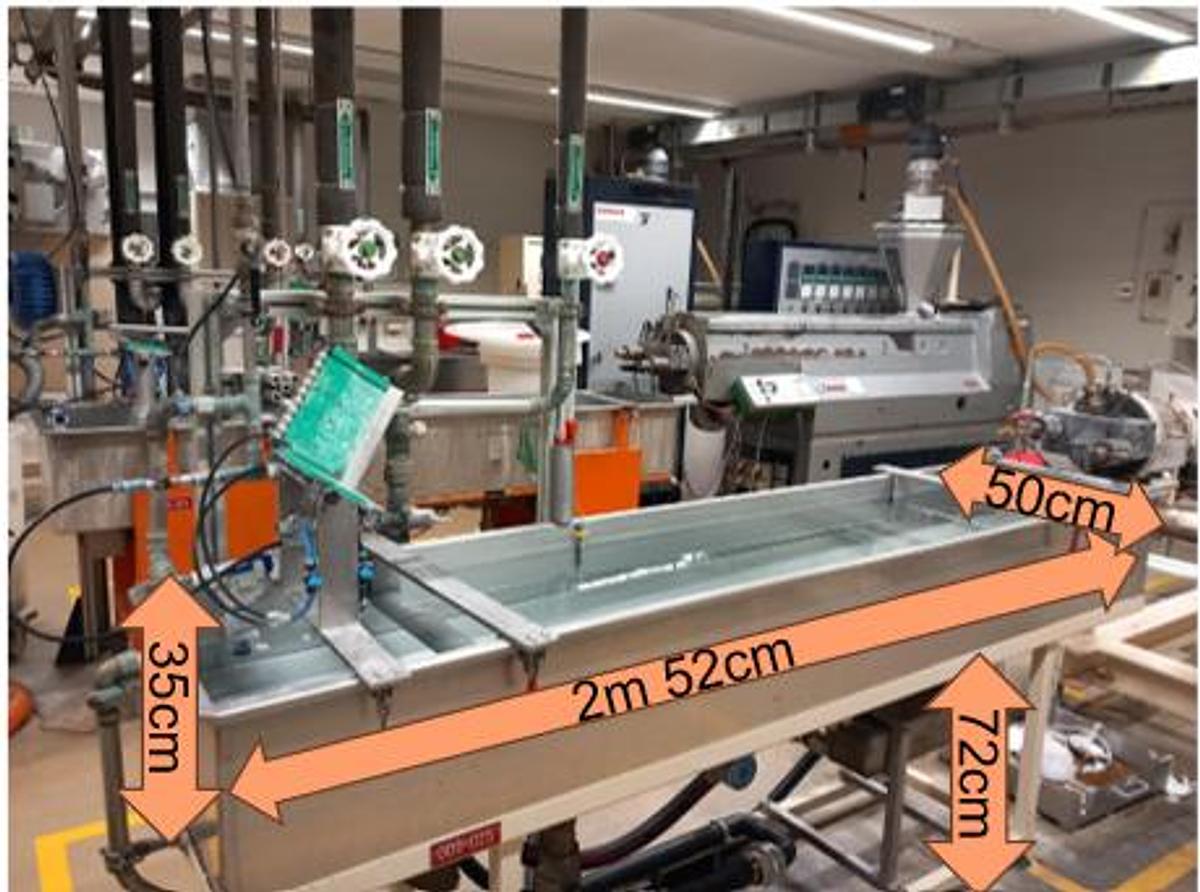

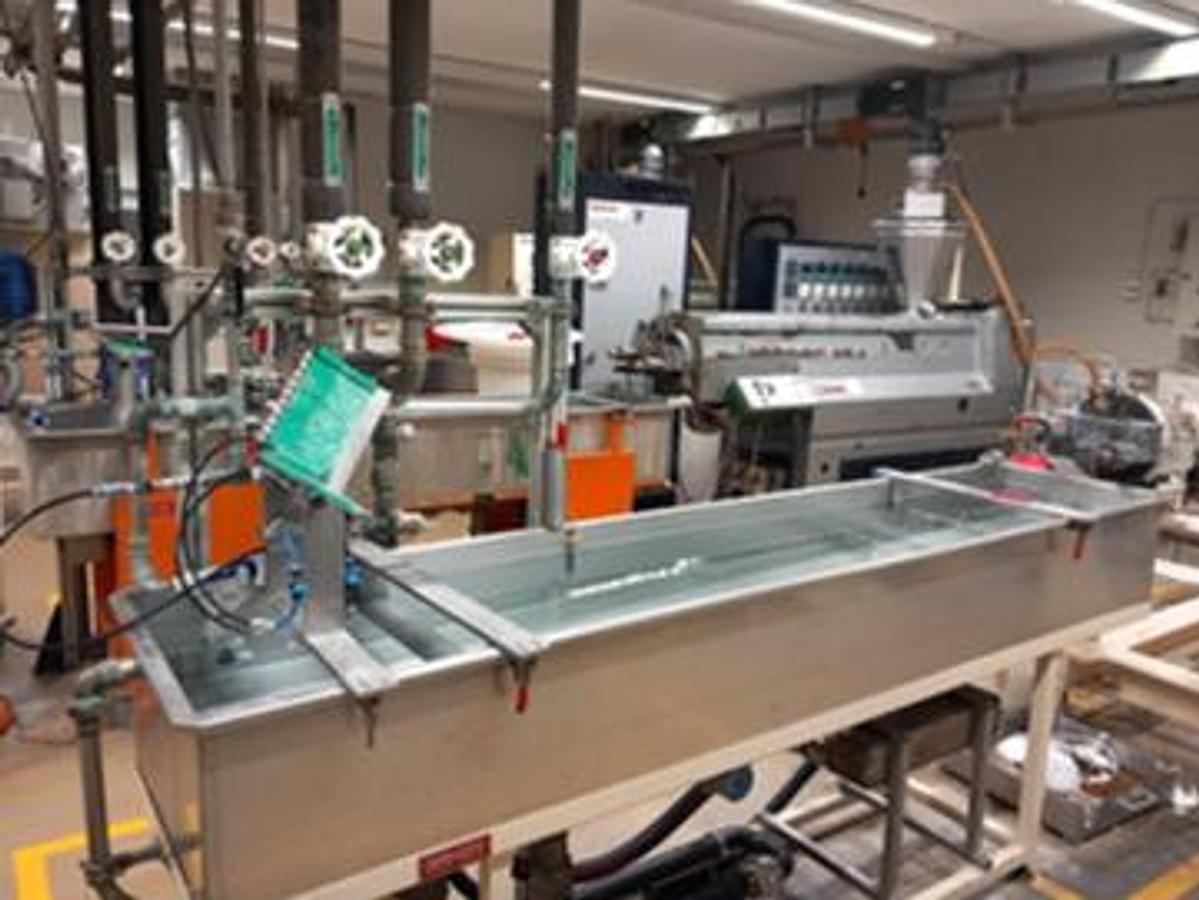

2 - Water Cooling Bath

• Description :Water bath cooling line with continuous cooling water supply. High-capacity plate heat exchanger included.
• Tank Capacity : 440 liters (at full fill)
• Cooling Control :Controlled via continuous cooling water feed
• Width : 50 cm
• Depth : 35 cm
• Length : 252 cm
• Height-Adjustable Feet (current setting) : 72 cm

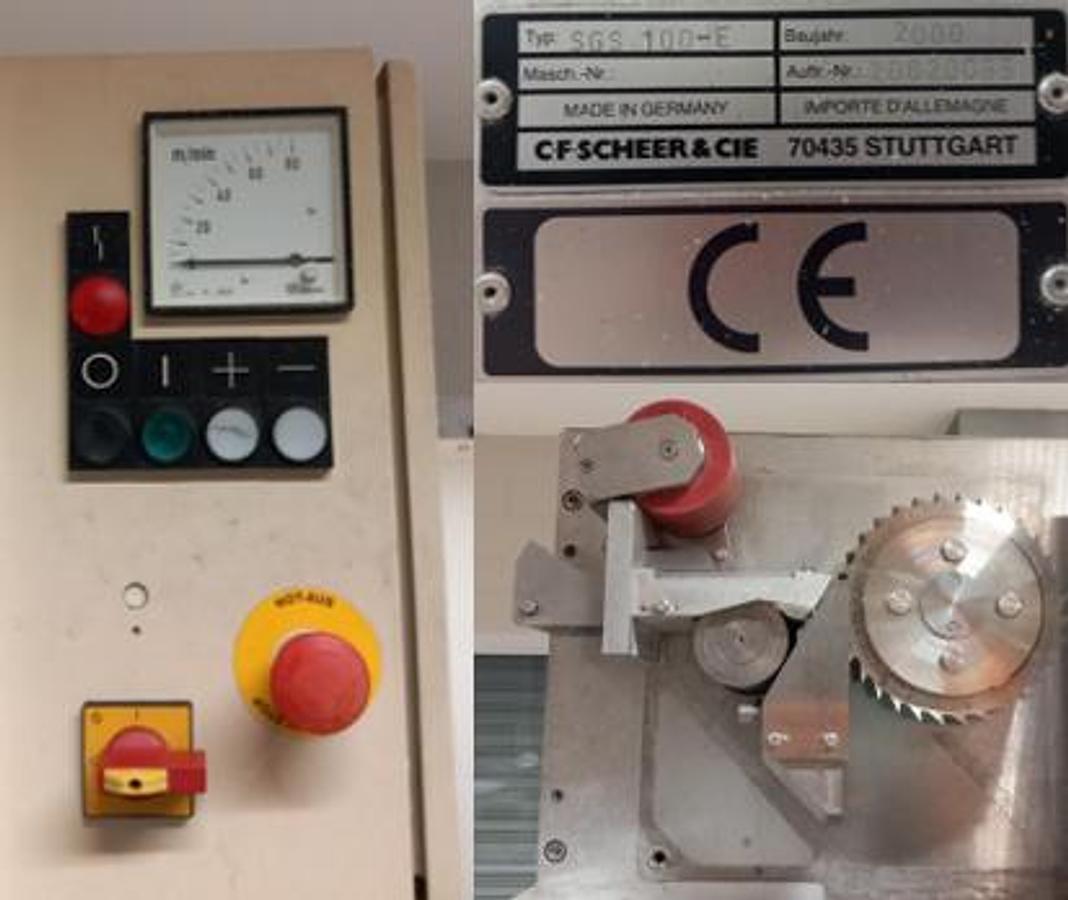

3 - Granulator

• Manufacturer : C.F. Scheer and Cie - 70435 Stuttgart, Germany
• Model : SGS 100-E
• Year of Manufacture : 2000
• Certification : CE
• Spare Parts : Many new spare parts available on request.

4 - Granulate Mixer (Cyclone Type)

• Manufacturer : Zyklos by Schwelm
• Type : Cyclone granulate mixer
• Capacity : 0.5 tonne (500 kg)
• Description :Fast and reliable mixing of large quantities of granulate.

5 - Steel Containers and Plastic Pallets with Lids

• Frame Material : Stainless steel, suitable for production use
• Lid Material : Impact-resistant polypropylene (PP), custom designed and manufactured for these frames
• Suction Lance Opening Closable
