Barsanti Tile Cutting LIne

Manufacturer: Barsanti

Type of machine: Tile cutting line

• Slab material: Marble and Granite
• Slab length max: 3500mm
• Slab width max: 2100mm
• Slab thickness max: 50mm
• Tile size min: 300mm x 300mm
• Tile size max: To slab size
• Tile thickness max: 50mm
• Production capacity: Approx. 1 slab per minute
• Cutting method: Cut slabs in one pass or strip by strip

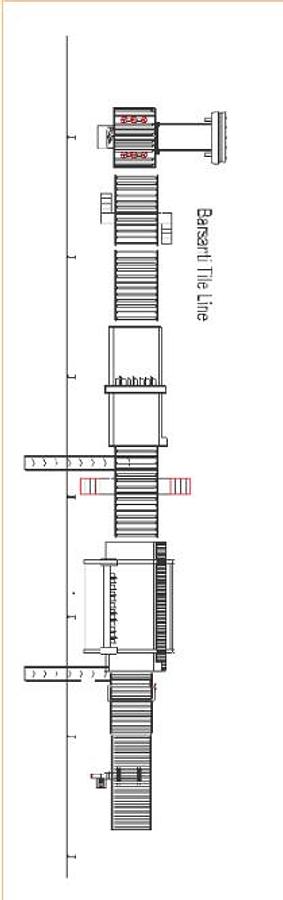

• Overall length of line: 36m
• Main components and their function

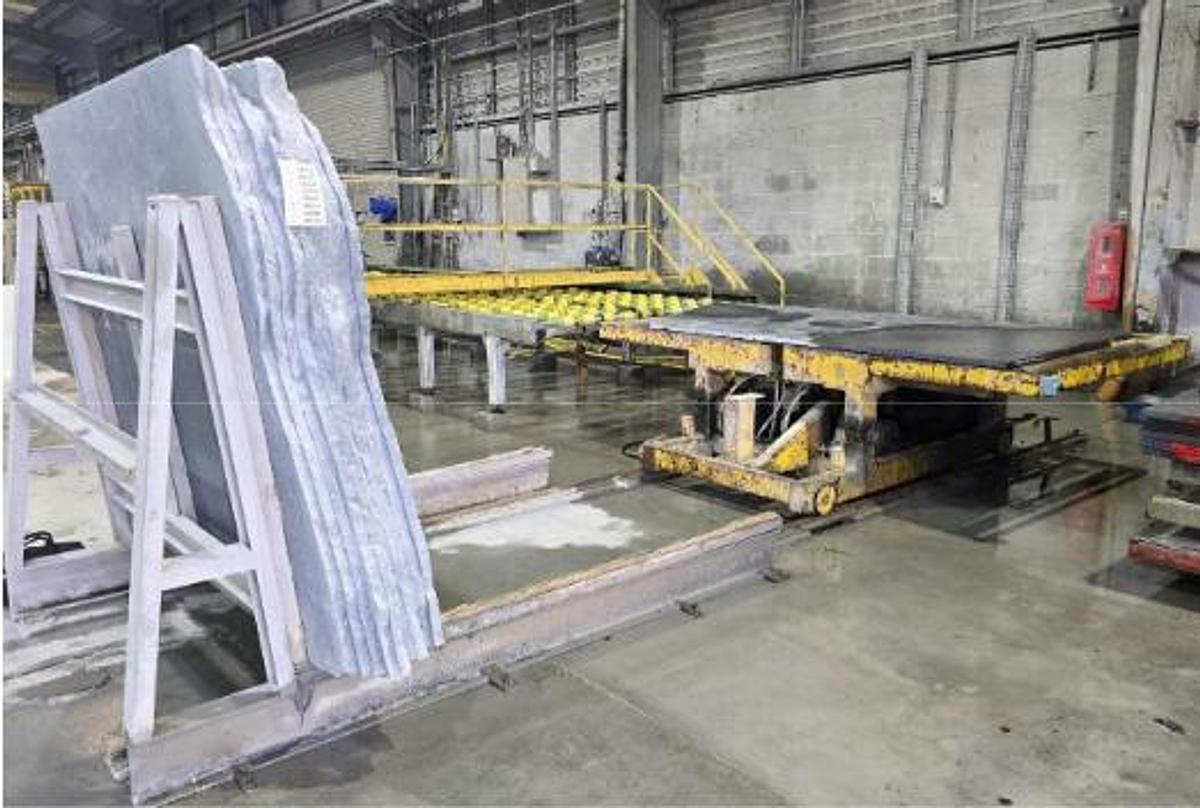

• Automatic Slab Loader: loads slabs into the line

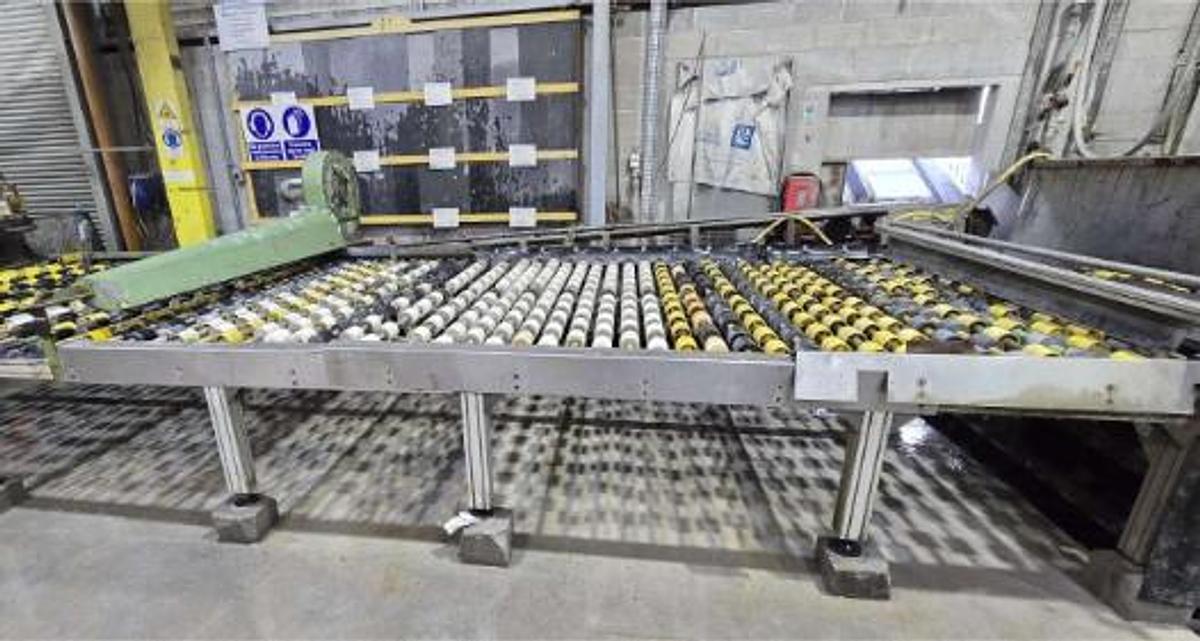

• Feed conveyor 1: conveys slabs into the line

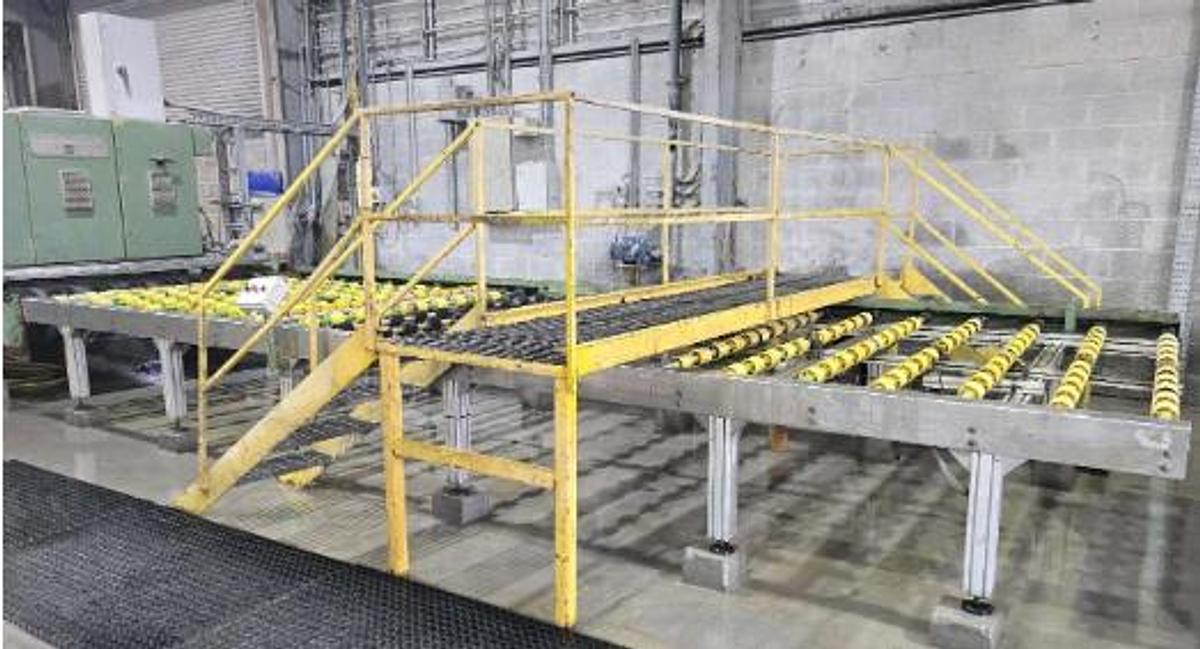

• Pedestrian Bridge 1: walkway across the line
• Feed conveyor 2: conveys slabs toward the long cut saw
• Long cut belt conveyor: conveys slabs through the long cut process

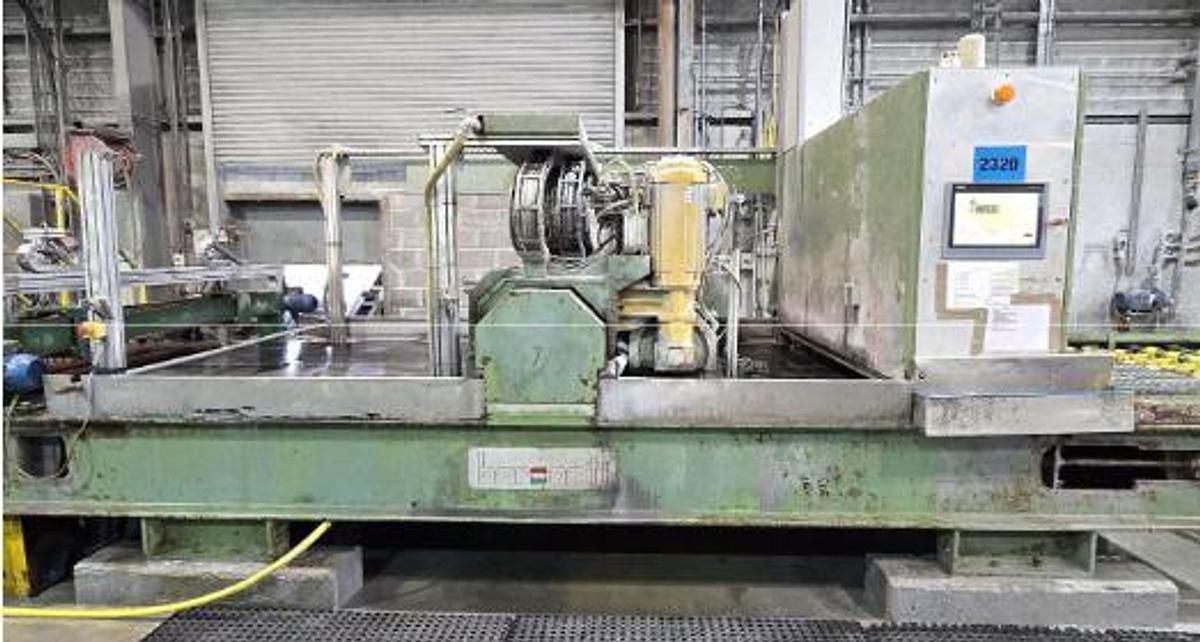

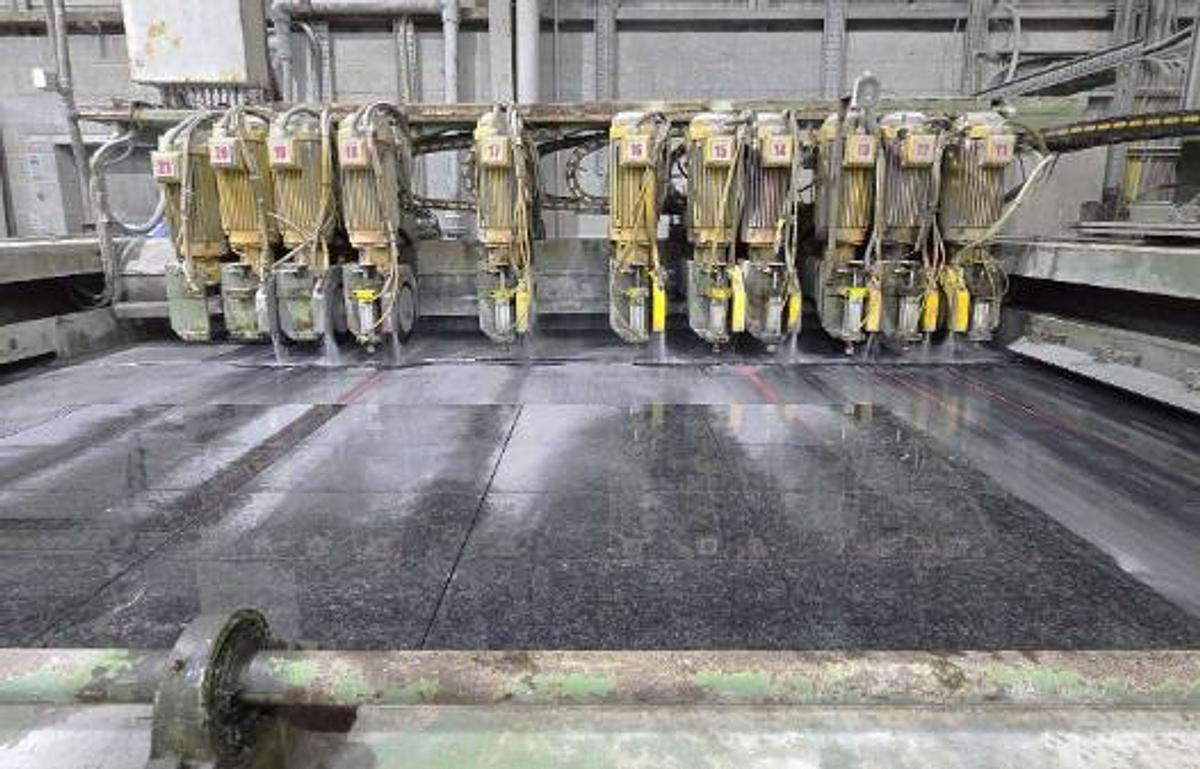

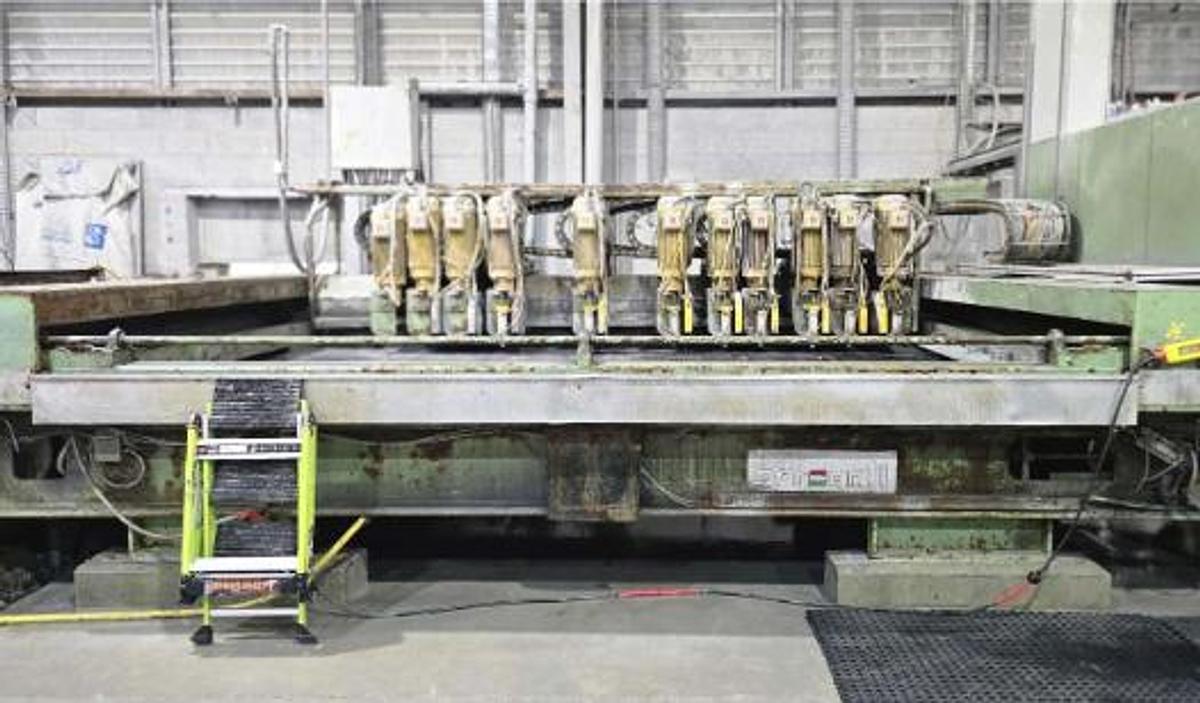

• Long cut bridge saw: 7 blades with electronic positioning, performs the long cut

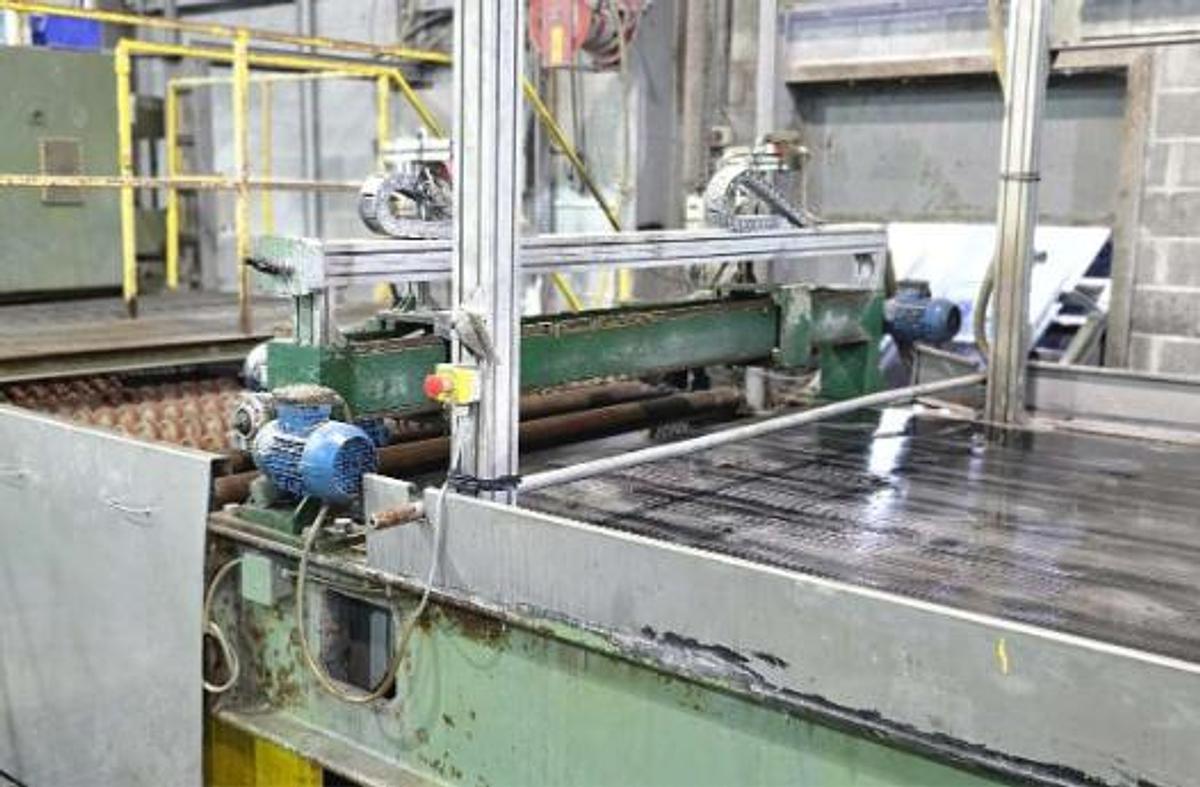

• Side waste breaker: breaks off side waste material
• Side waste conveyor: conveys away side waste material
• Pedestrian Bridge 2: walkway across the line
• Cross cut feed conveyor: feeds strips into the cross cut process
• Strip separator: separates cut strips
• Cross cut belt conveyor: conveys strips through the cross cut process

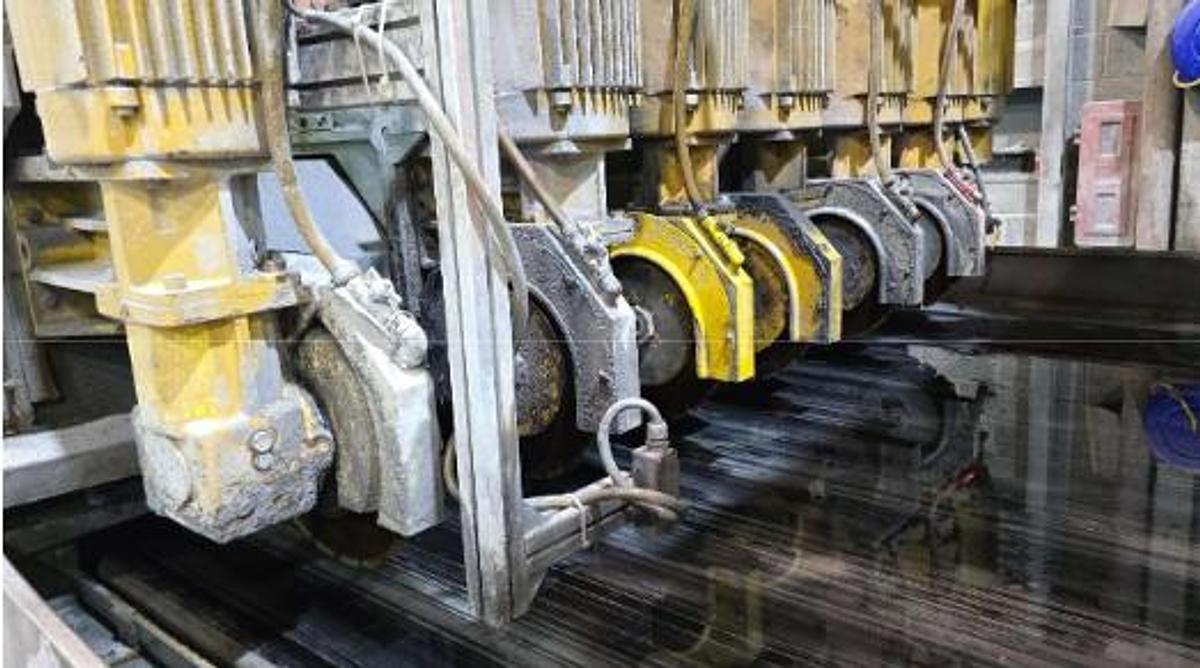

• Cross cut bridge saws: 11 blades with electronic positioning, performs the cross cut into tiles
• Cross cut waste conveyor: conveys away cross cut waste material

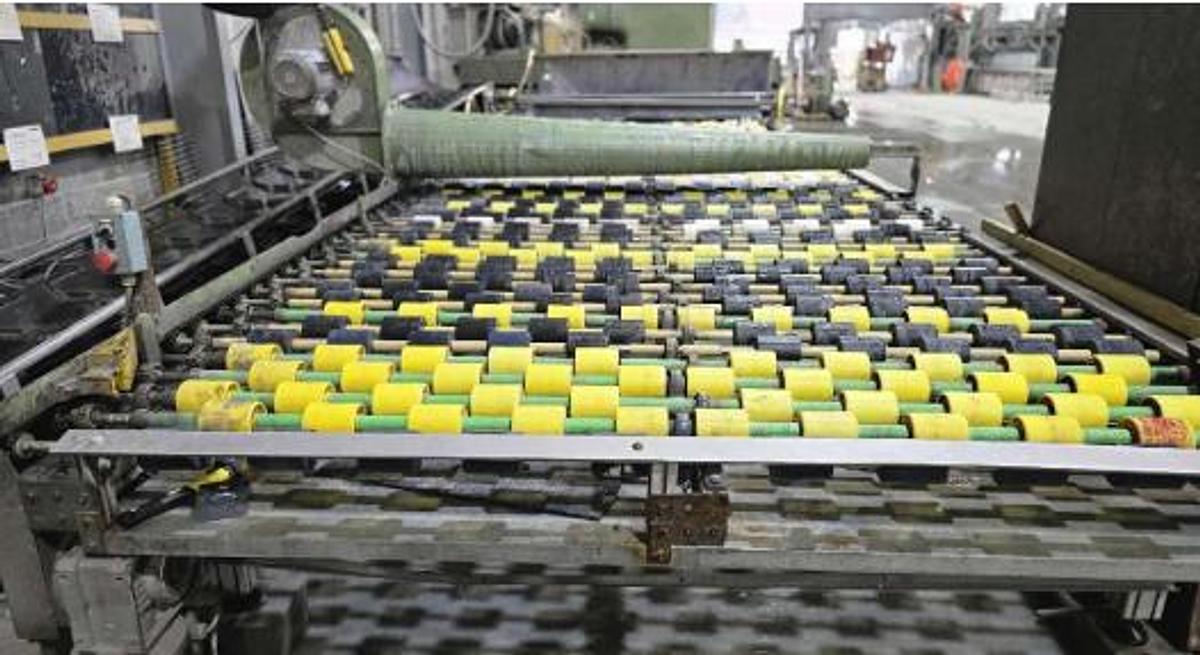

• Outfeed conveyor 1: conveys finished tiles out of the line
• Outfeed conveyor 2: conveys finished tiles out of the line
• Blower Dryer: dries finished tiles
