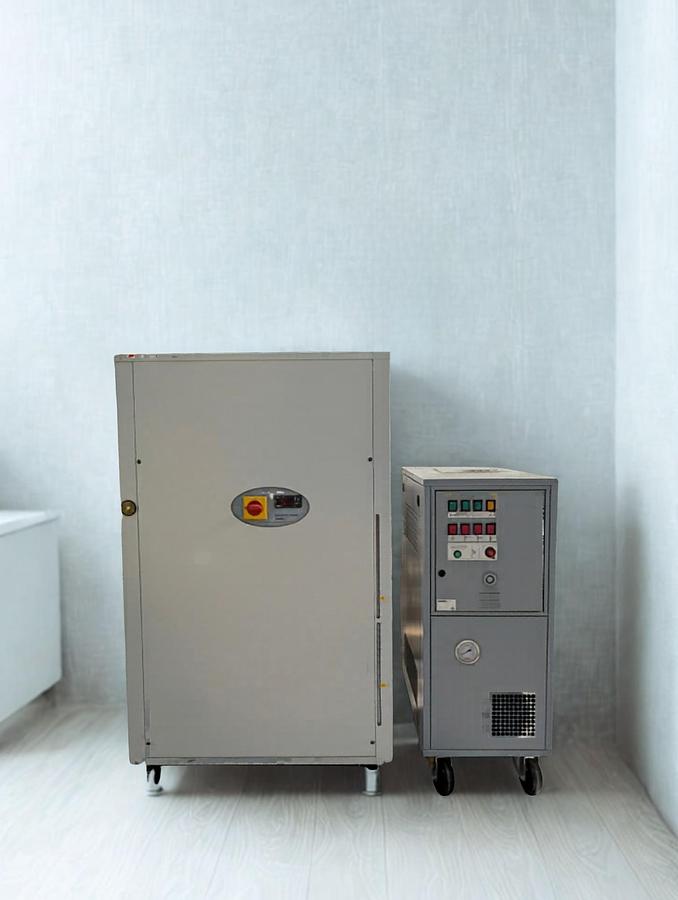

2020 ER INGENIERIE Extraction Skid

Manufacturer: ER INGENIERIE

Type of machine: Extraction skid

Year of manufacture: 2020

Condition: The unit has never been used in production

Certification: EC and ATEX

Technical Details:

• Process: Extraction with supercritical CO2 or subcritical water
• Process equipment: CO2 storage tank / Subcooler exchanger / High pressure diaphragm pump /Hot exchanger / 2 Extractors (1L and 10L) / Back pressure regulator / 2 Separators + Co-solvent line
• Max. operating pressure: 1 000 bar
• Max. operating temperature: 180 °C
• Contact material: 316L stainless steel
• Capacity: E310 Extractor 1L inside basket, E300 Extractor 10L inside basket, CO2 storage tank
• 15 L, Separators 2 x 1,2 L
• HP pump flowrate: 20 kg/h @ 1 000 bar

Main components:

• CO2 storage tank, 15 L, PS 100 bar, TS -20 / 80 °C: CO2 input (primary storage or recycling), CO2 output, cold double jacket, level measurement, pressure measurement, temperature measurement, safety valve calibrated at 90 bar, a flange for maintenance, drain valve

• Subcooler exchanger: counterflow plate heat exchanger

• HP pump: diaphragm metering pump, cooled pump head, variable speed drive and flowmeter for controlling the CO2 flow, pressure switch and safety valve calibrated at 1050 bar, diaphragm rupture indicator

• Hot exchanger: shell and tube heat exchanger

• E310 Extractor: 1L inside basket

• E300 Extractor: 10L inside basket

• Extractors, PS 1 100 bar, TS 0 / 200 °C, opening by bolted flange: double jacket with thermal oil, inlet of CO2 at the bottom allowing homogeneous percolation through the feed bed, CO2 outlet under the top cover, extraction basket equipped with two sintered metal discs of suitable porosity, pressure measurement, temperature measurement, safety valve calibrated at 1 050 bar, hoist for loading and unloading the basket, drain valve

• Separators, 2 x 1,2 L, PS 100 bar, TS 0 / 200 °C: tangential inlet of CO2 / extract mixture from the top, CO2 gas outlet via a central tube from the top of the separator, double jacket with thermal oil, pressure measurement, temperature measurement, safety valve calibrated at 90 bar, opening system by bolted flange, extract collection valve at the bottom of the separator

• Back pressure regulator

• Co-solvent line

• Skid: the process is installed on a framework, and the skid is also equipped with all the required valves and instruments

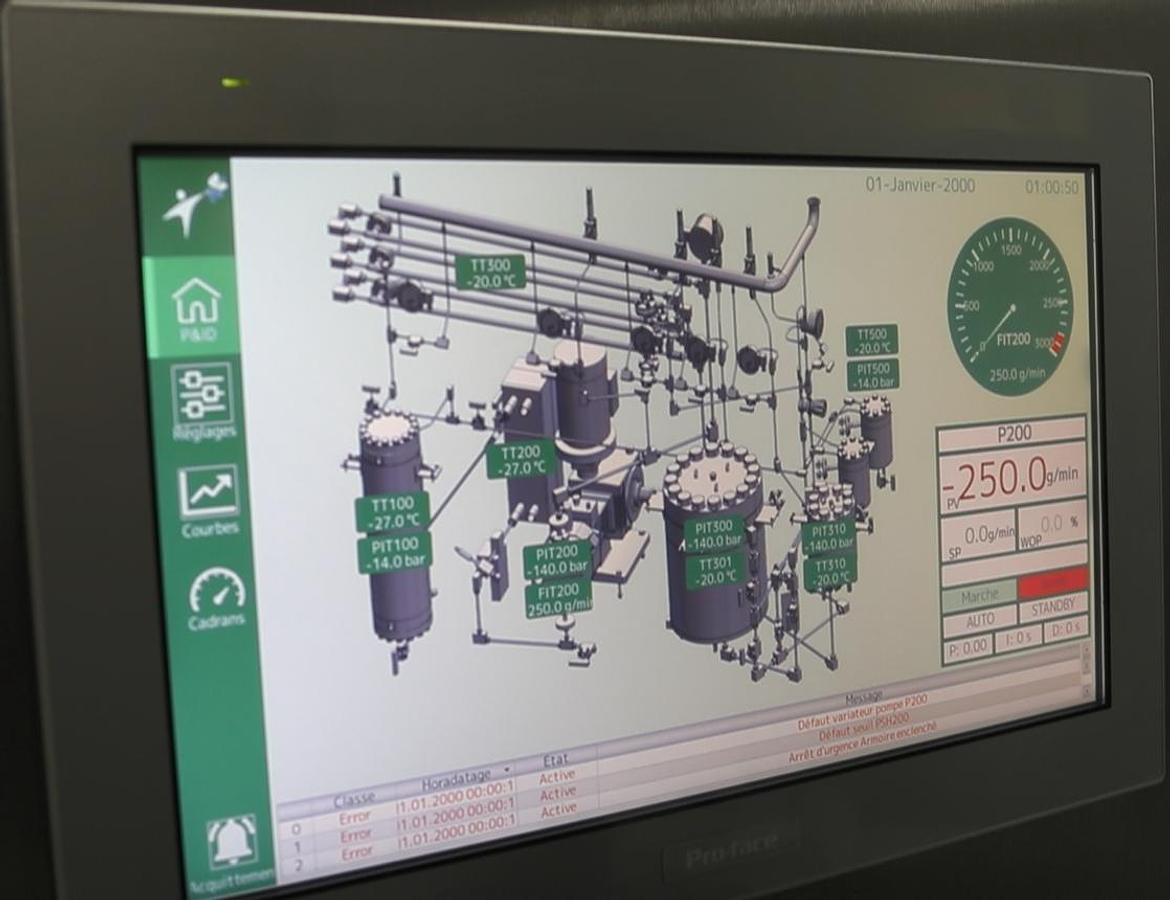

• Automation: control and regulation of CO2 pump for HMI, data recording / display of process parameters in real time / alarm management, valves and temperature regulations are manual

Electricity: Electrical study and skid wiring are already done. From an electricity point of view, it is plug and play.

Required services: Electricity, clean and dry compressed air at 7 bar min., liquid CO2 at 50 bar min. to fill the storage tank.
