2007 Chiron FZ15 S High Speed

Manufacturer: Chiron

Model: FZ15 S High Speed

Year of Manufacture: 2007

Operating Hours: 48,000 h

SINUMERIK 840 D - controlsystem

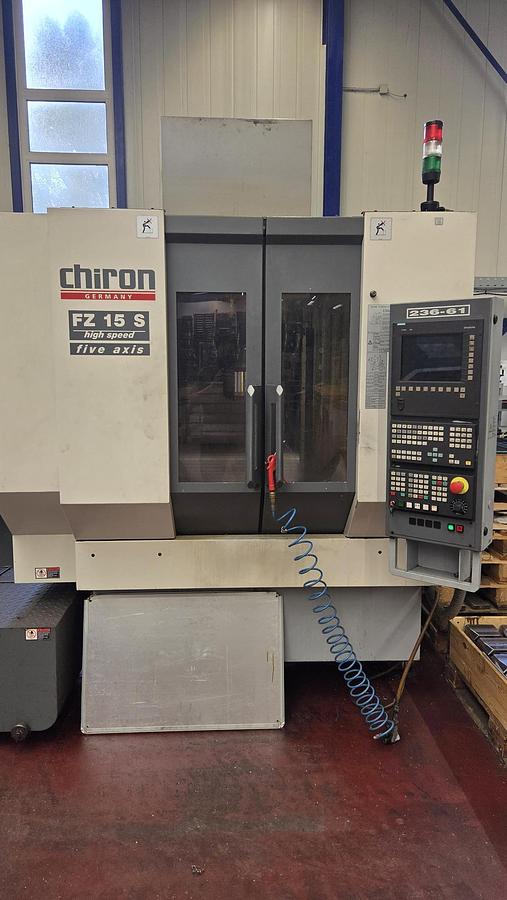

The machine in question is a Chiron FZ15S Five-Axis High-Speed

The machine is essentially in working order, although towards the end of its time with us

it was still running with the handbrake on in set-up mode, as the X and C axes are noisier

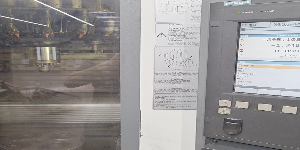

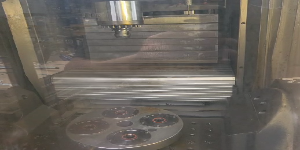

than they should be. Unfortunately, I was only able to provide you with a video of the axes in manual mode

as the Z-axis cover and the Y-axis cover are faulty, and I did not

want to risk the Y-axis cover, in particular, getting caught and causing damage.

The spindle runs perfectly.

No tools are included; the probe is permanently fitted, so it will remain on the machine. There is also a

zero-point clamping system (ZeroClamp by Hoffmann) fitted; we would also leave this

on the machine.

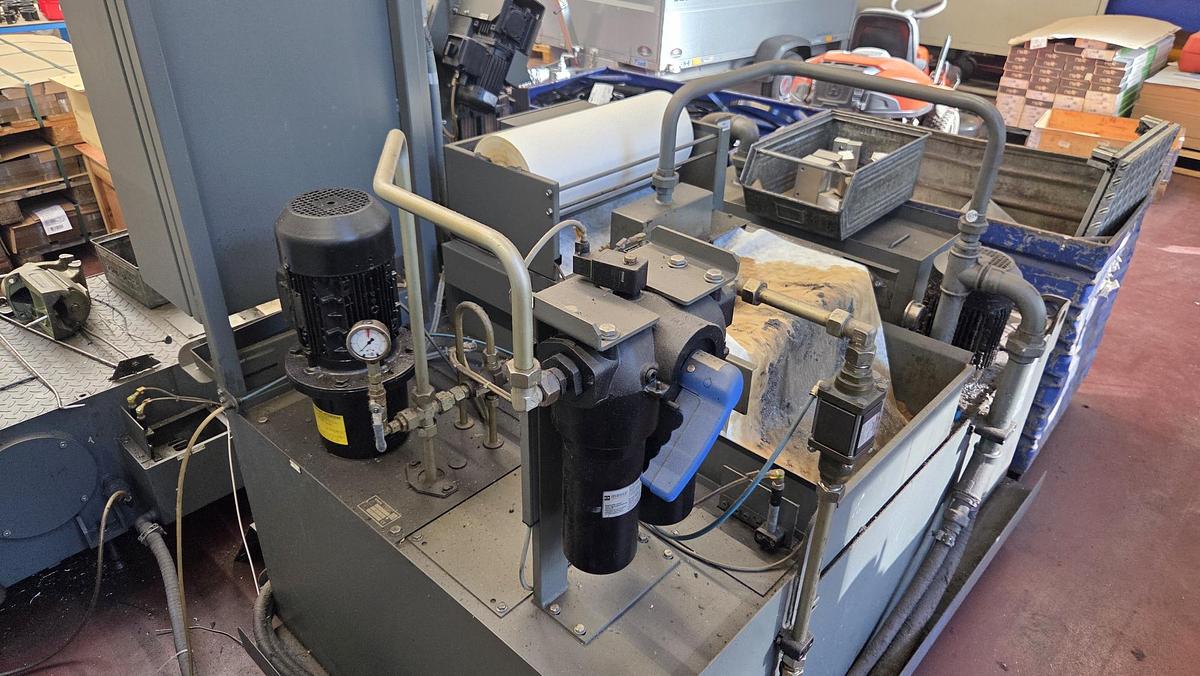

The machine has a 12,000 spindle, a 20-position tool changer (basket) IKZ by Knoll, 40 bar.
