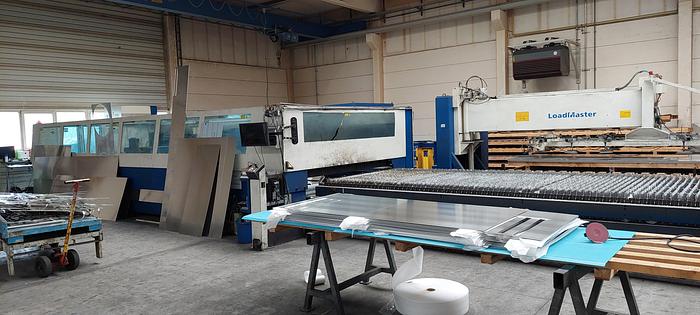

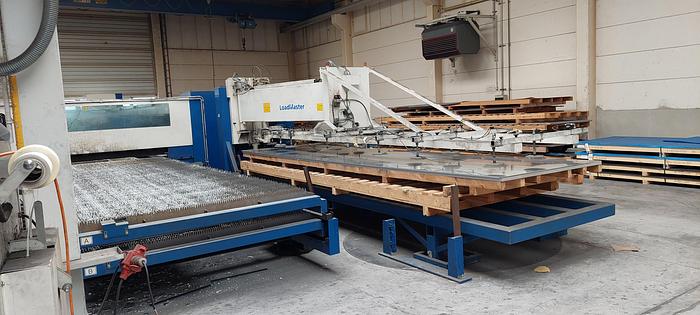

2008 Trumpf Trulaser 5060

Manufacturer: Trumpf

Model: Trulaser 5060

Type of Machine:  CO₂ Laser Cutting Machine

Technical Specifications:

Working Area:

• X-axis: 6000 mm
• Y-axis: 2000 mm
• Z-axis: 115 mm

Max. Workpiece Weight: 2800 kg

Speed:

• Axis-parallel: 200 m/min
• Simultaneous (X and Y): approx. 300 m/min

Accuracy:

• Smallest programmable increment: 0.001 mm
• Position deviation: ±0.1 mm
• Average position scatter: ±0.03 mm

CNC Control:

• Model: Siemens Sinumerik 840D
• RAM: 64 MB
• Monitor: 12" TFT
• Program memory: 500 MB for NC programs
• Disk Drive: 3.5"
• OS Platform: Windows NT
