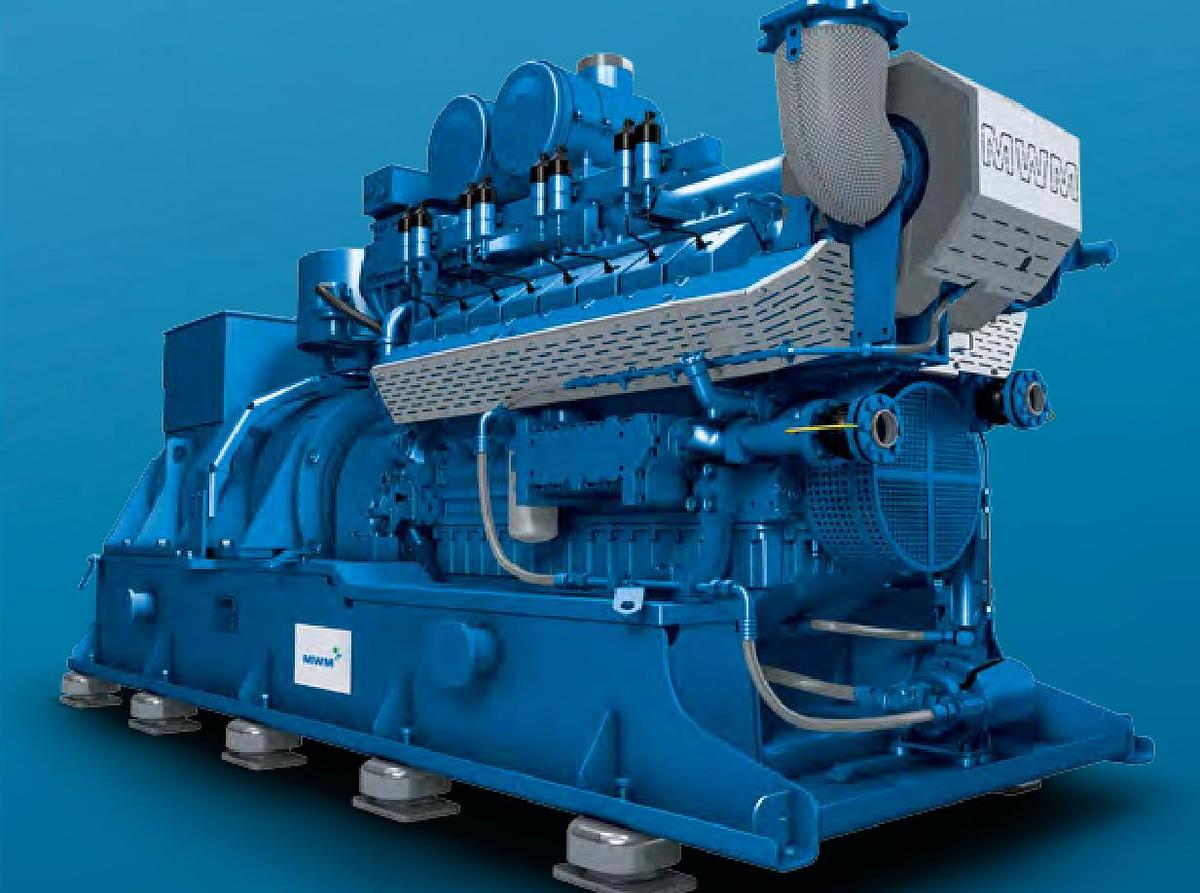

MWM TCG 2016 V8 C Biogas CHP units

Manufacturer: MWM

Model: TCG 2016 V8 C

CHP unit 1 Operating Hours: 22,057 h

CHP unit 2 Operating Hours: 9,112 h

In addition to the two units themselves, the sale also includes exhaust gas heat exchangers, engine and auxiliary drive control systems, visualization, and a comprehensive spare parts package.

Performance Data (Biogas, 50 Hz)

• Electrical Output: 400 kWₑ
• Voltage / Frequency: 400 V / 50 Hz
• Speed: 1500 rpm
• Generator: Marelli MJB 355 MB4
• Motor Management System: TEM EVO

Efficiency

• Electrical Efficiency: 38.0 – 46.4%
• Thermal Efficiency: 40.4 – 43.6%
• Total Efficiency: Up to 84.4%

Engine Configuration

• Type: V8
• Bore / Stroke / Displacement: 132 mm / 160 mm / 17.5 liters
• Fuel Type: Biogas

Heat Recovery (±8%)

• Cooling Water Heat: 2080 kW
• Mixture Cooler Heat: 5340 kW
• Oil Heat: 12000 kW
• Exhaust Heat (at cooling): 1136 kW
• Radiant Heat (Engine/Gen): 179 kW

Emissions & Acoustics

• NOx Emission: within tolerance −8% (exact value not listed)
• Noise Level (LWA):
• Airborne noise: 112.4 dB(A)
• Exhaust noise: 132 dB(A)

Cooling System

• Coolant Volume (engine / mix cooler): 45 / 270 dm³
• Flow rate (engine / mix cooler): 22 / 25 m³/h
• Water Inlet/Outlet Temp (engine): 80 / 90 °C
• Water Inlet/Outlet Temp (mix cooler): 28 / 50 °C
• Glycol content: 30–50%

Dimensions & Weights

• Dry Weight (Engine / Genset): 2080 / 5340 kg
