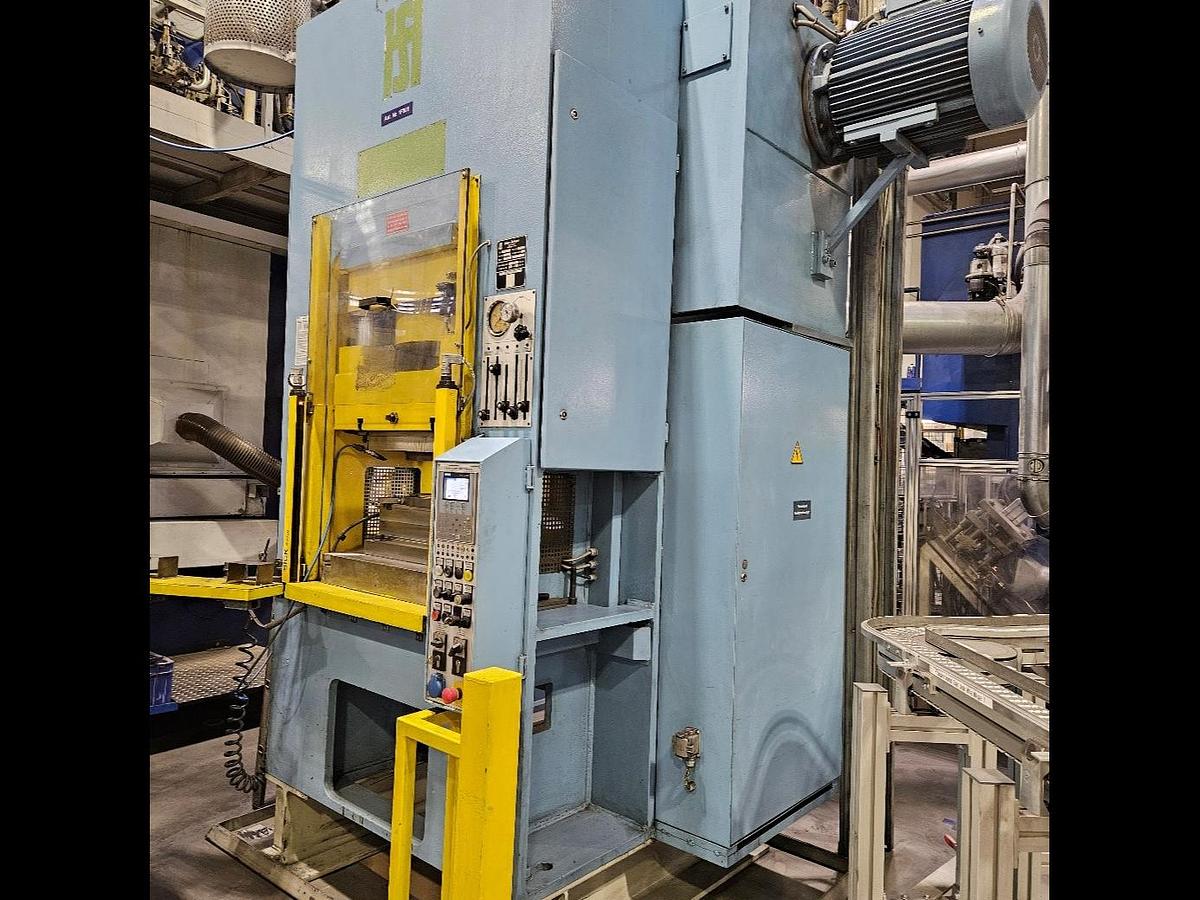

1988 Hans Schoen NH 160

Manufacturer: Hans Schoen

Model: NH 160

Year of Manufacture: 1988 rebuilt in 2016

The press is being sold without tools or spare parts.

Technical Data

Press force max.: 1,600 kN

Main drive power: 30 kW

Speeds

Rapid advance from: 300 mm/sec

Pressing speed: 18 mm/sec

Rapid return: 300 mm/sec

Strokes

Max. stroke: 150 mm

Max. daylight opening: 450 mm

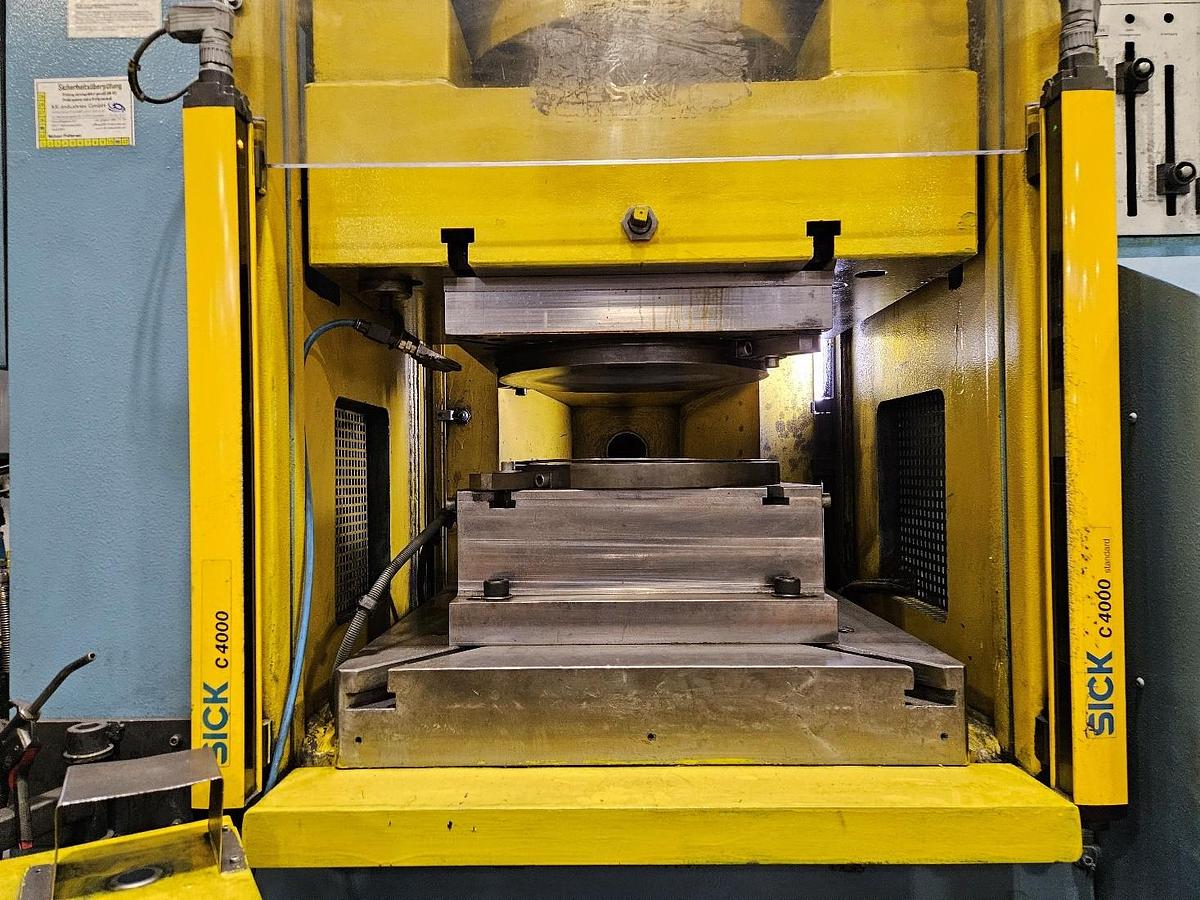

Table and Ram Dimensions

Ram area: 730 × 560 mm

Table area: 650 × 650 mm

Openings

Front vertical opening: 750 mm

Side vertical opening: 250 mm

Heights

Table height above floor: 850 mm

Table bore diameter: 150 mm

Ram bore, Ø H7: 60 mm

T-slots

T-slots in table, DIN 650 H12 diagonal: 22 mm

T-slots in ram, DIN 650 H12: 22 mm

Two pieces, front to back

Machine Dimensions

Machine footprint approx.: 1,850 × 1,500 mm

Machine height approx.: 2,850 mm
