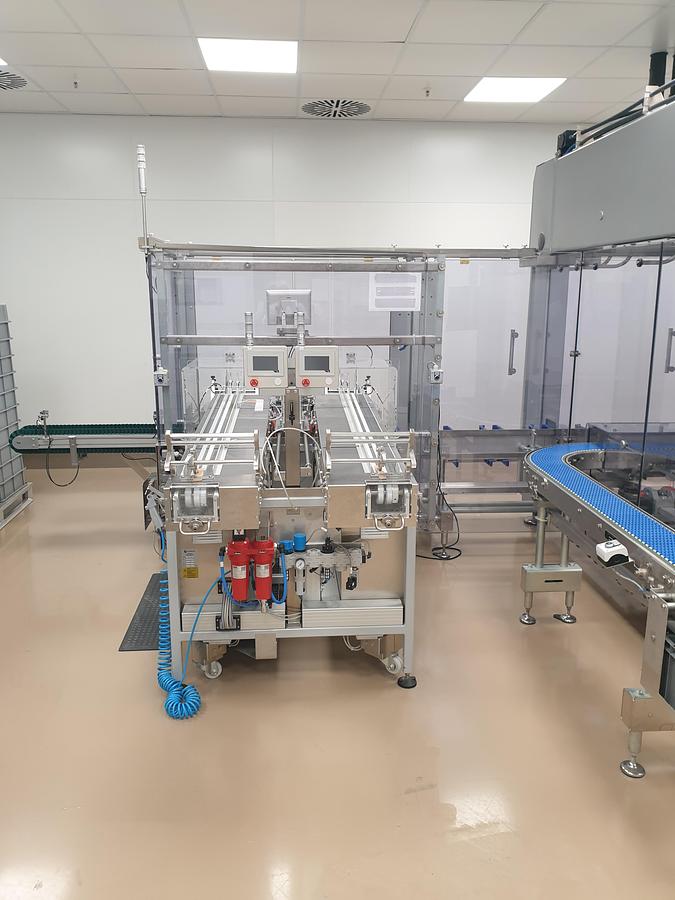

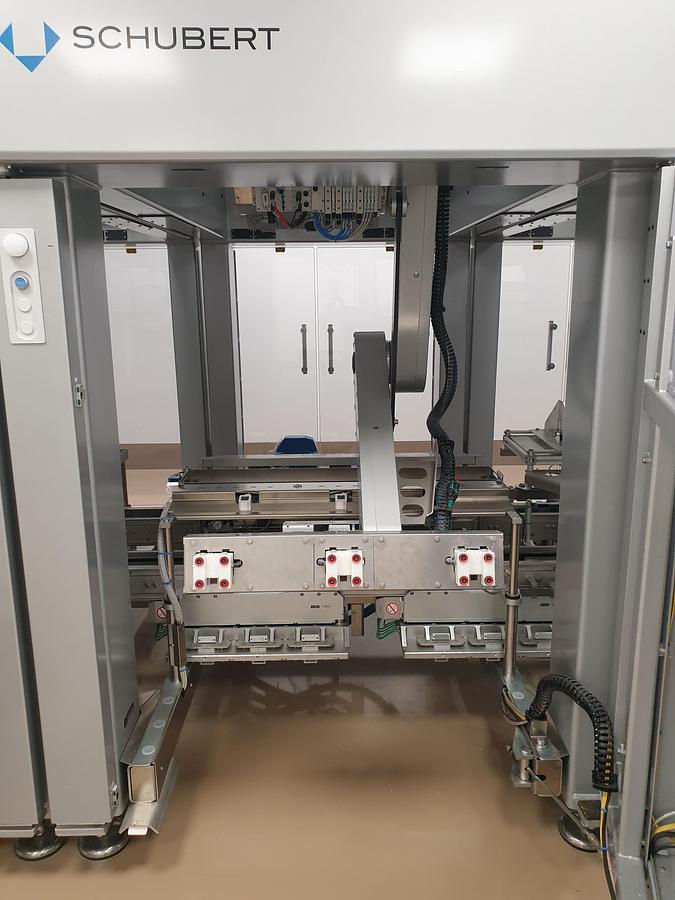

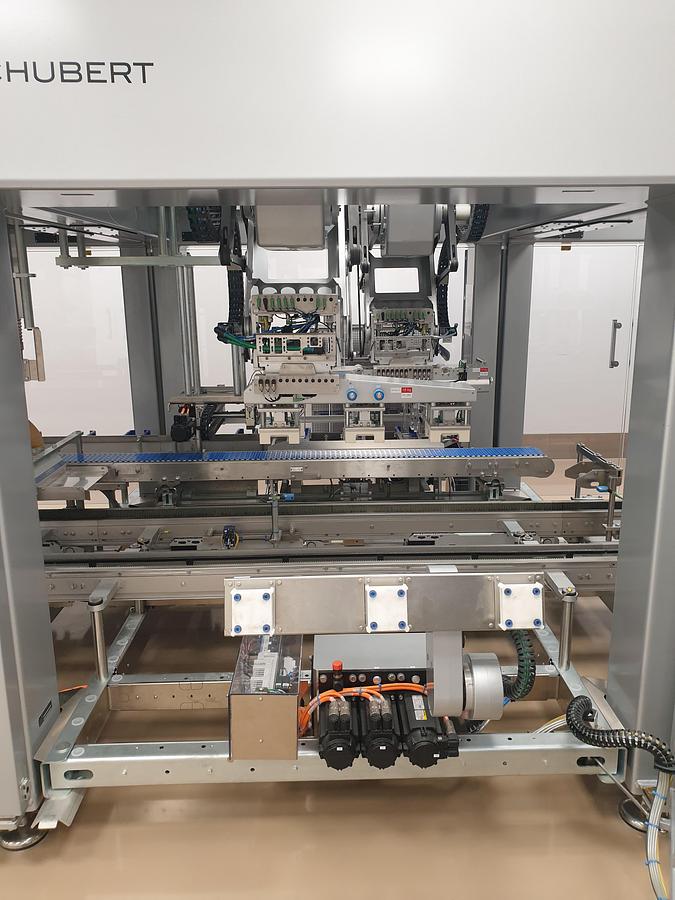

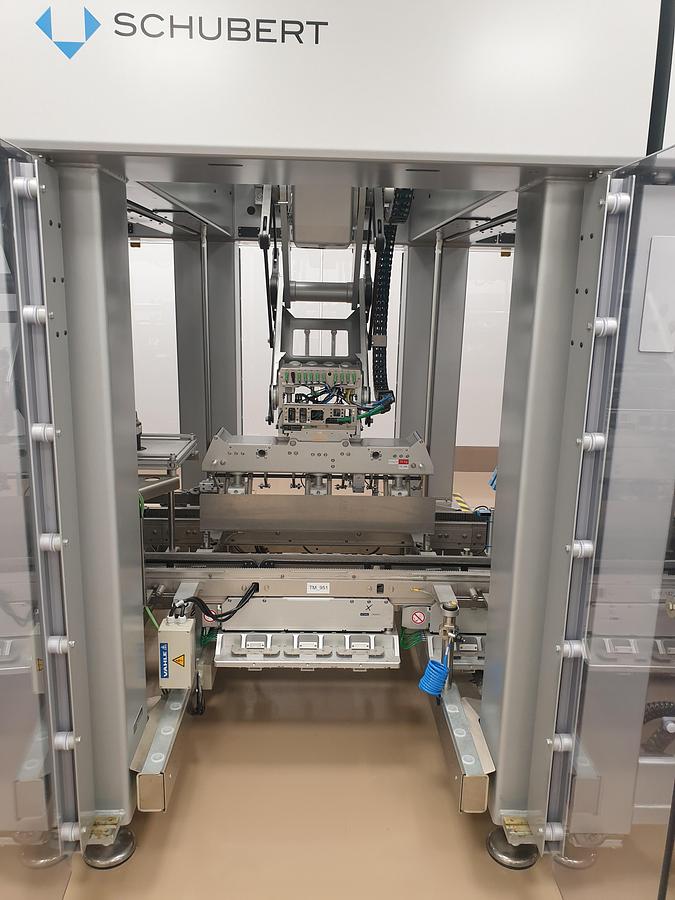

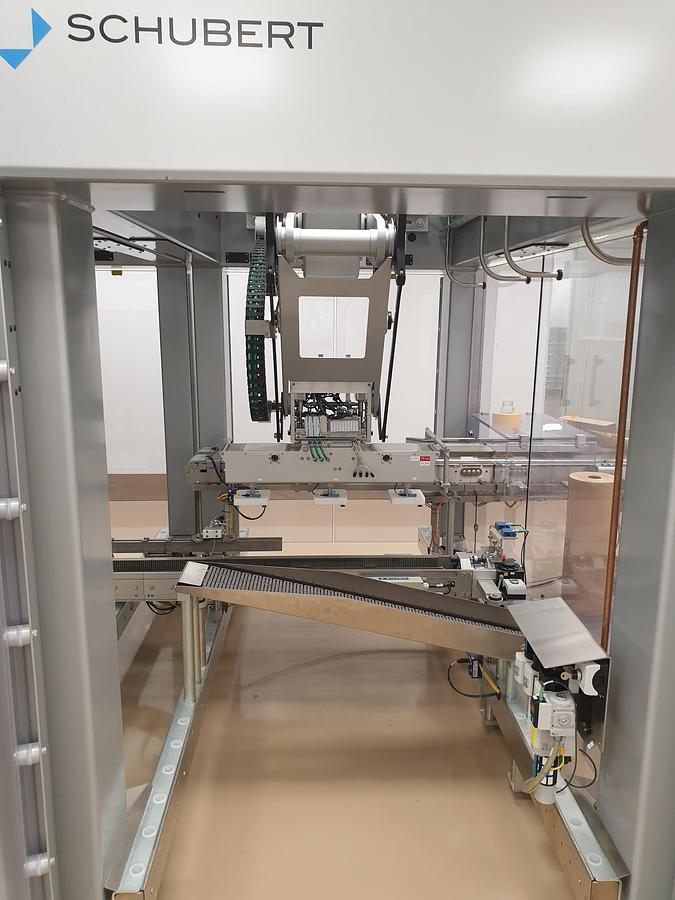

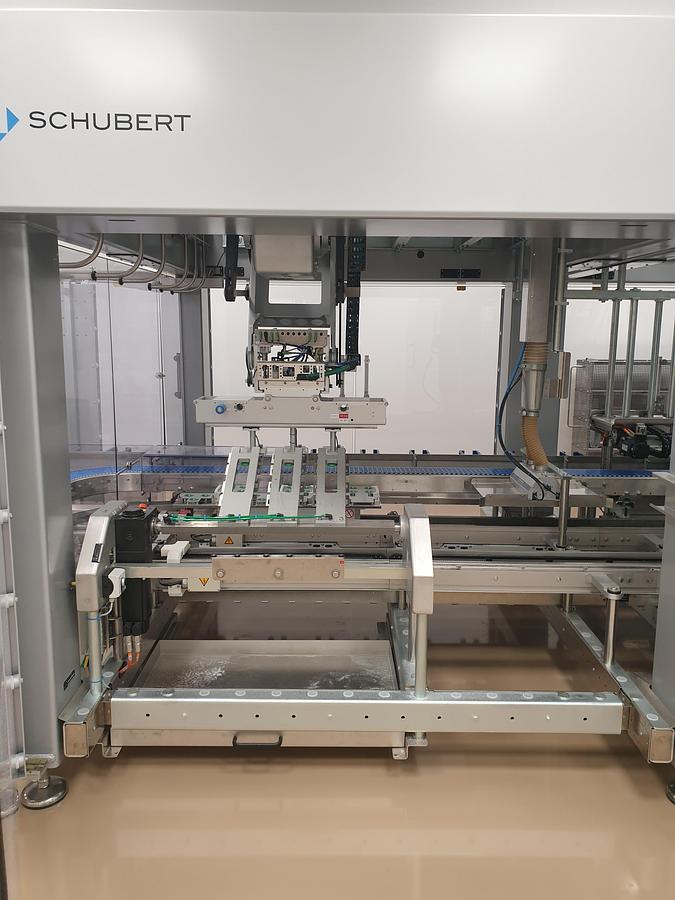

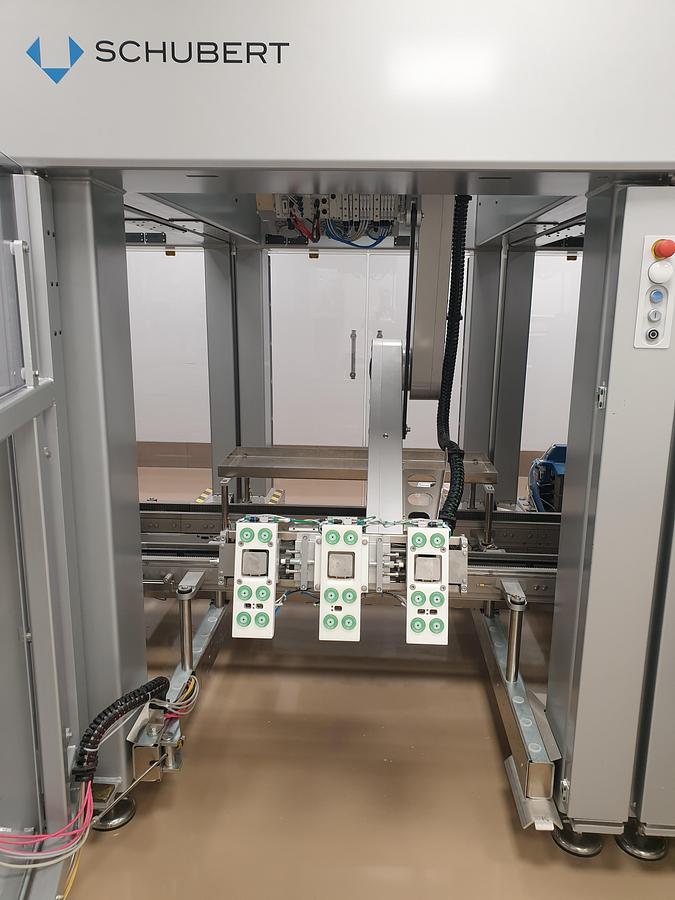

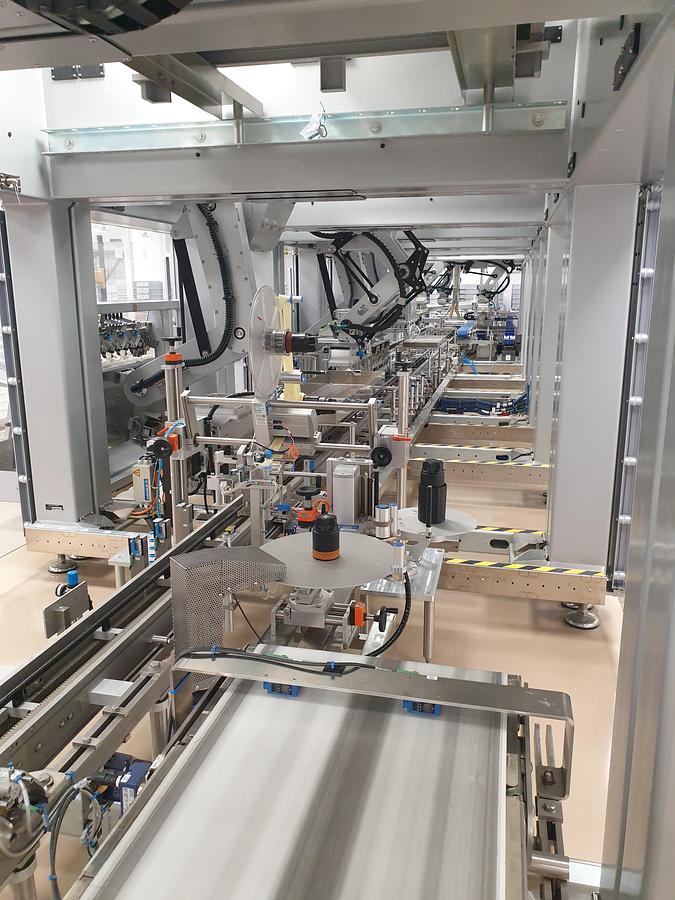

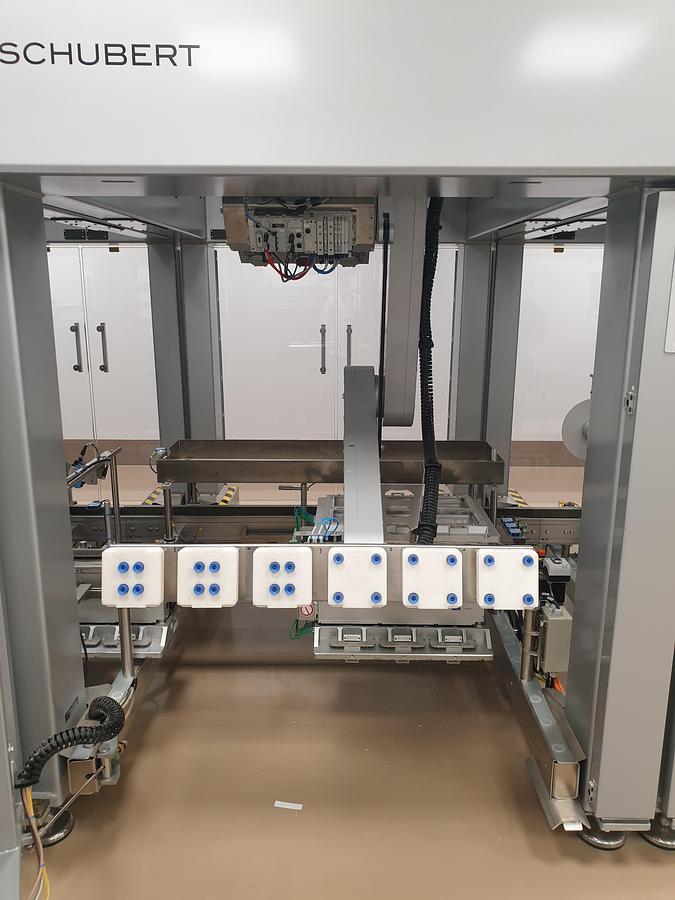

2017 Schubert Packaging TLM

Manufacturer: Schubert Packaging

Machine type: TLM

Year of manufacture: 2017

IBN: January 2, 2018

Condition: Functional, very well maintained

Availability: immediately

1. General

Identification feature

Manufacturer Schubert Packaging Services GmbH

Machine type TLM

Inventory no. 56149

Technical feature Value Unit

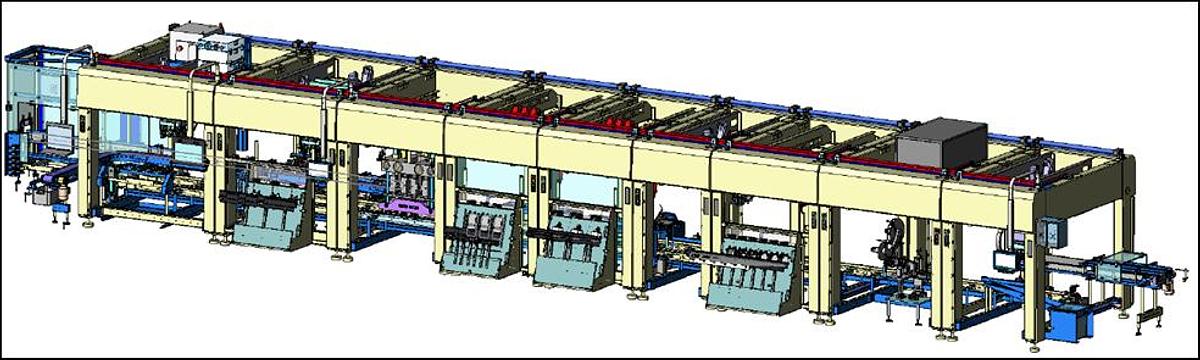

Secondary packaging machine with robots 8 units

Product transport via transmodule

Package production 6 units

Filling and sealing packages 7 units

Machine speed 30–40 1/min

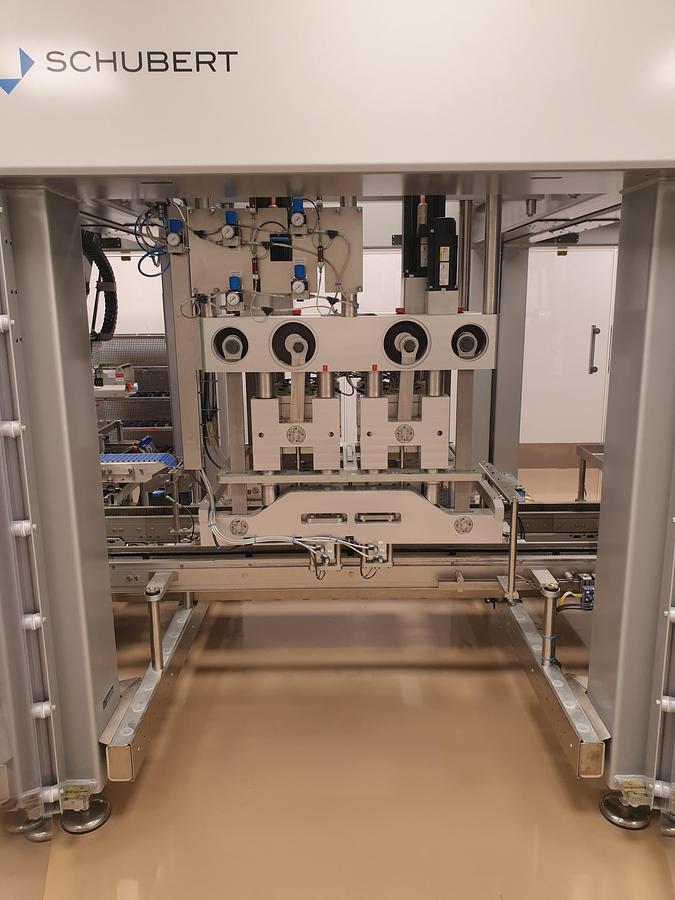

Ultrasonic sealing Sealing packages 1 unit

Mark and verify unit for serialization 1 unit

Operating mode Cyclical, robot per station

Operating side Right in the direction of goods outflow

Drive side Left in the direction of goods outflow

Number of uses 3 per transmodule/cycle

Running performance (max. machine cycle) 30–40 packages/min

2. Energy connections

Technical feature Value Unit

Electrical connection power 70 kW

Compressed air, pressure 6 bar

Compressed air, max. volume flow 0.5 m³/h

Cold water 1/2 inch

Technical data

Secondary packaging

Technical data_56149_00 Status: 02.11.2017 / DP Page 2 of 2

3. Electrical

Technical feature Value Unit

Electrical connection

Voltage 400 / 230 V

Frequency 50 Hz

Current 75 A

Phases 3

Total power 52 kW

Cable cross-section 50 mm2

4. Control / Protection classes

Designation

Control Schubert

Control voltage 24 V

Visualization / Control panel Schubert BFTerminal

IP protection class IP 23 or higher

Production process: secondary packaging

Assembly and filling of plastic trays with sealed edge bags.

                  This includes: feeding, counting, and weighing of sealed edge bags,

                  feeding and sealing of trays and cardboard blanks using ultrasonic sealing,

                  filling the finished trays with the sealed edge bags and a patient information leaflet,

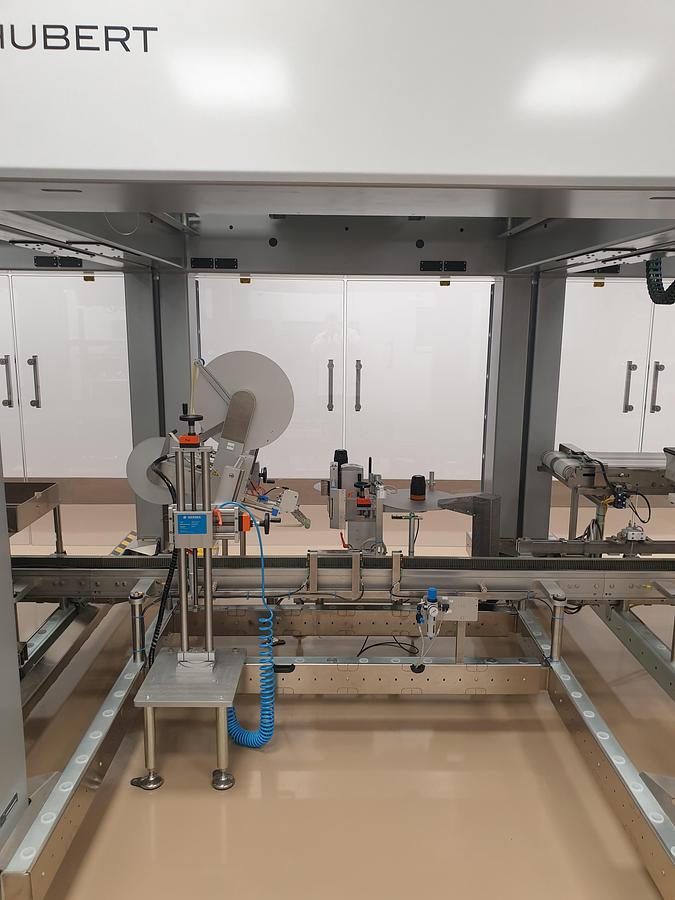

placing a closure lid in the bottom tray, sealing and labeling the finished tray.

The machine was decommissioned due to a product discontinuation.

Complete operating instructions are available.

Viewing is possible by arrangement.
