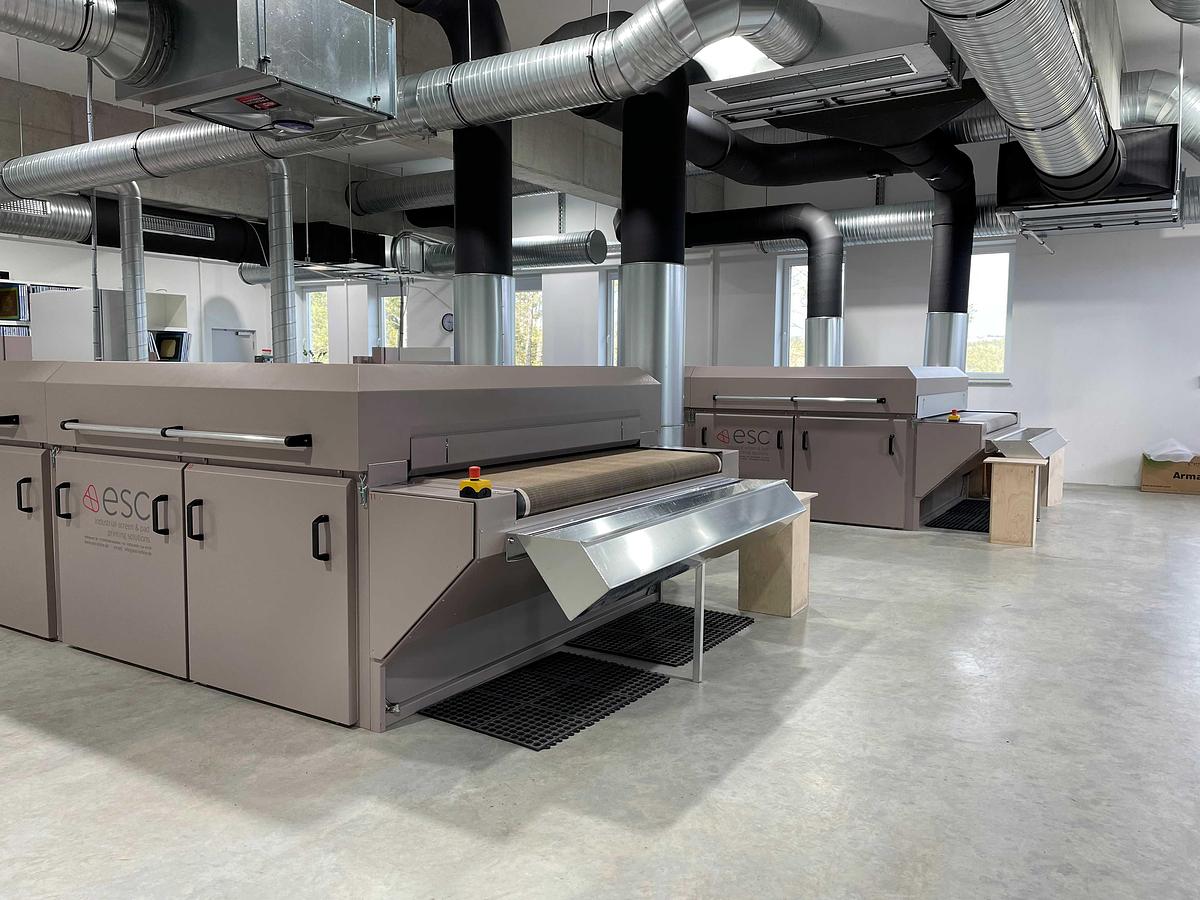

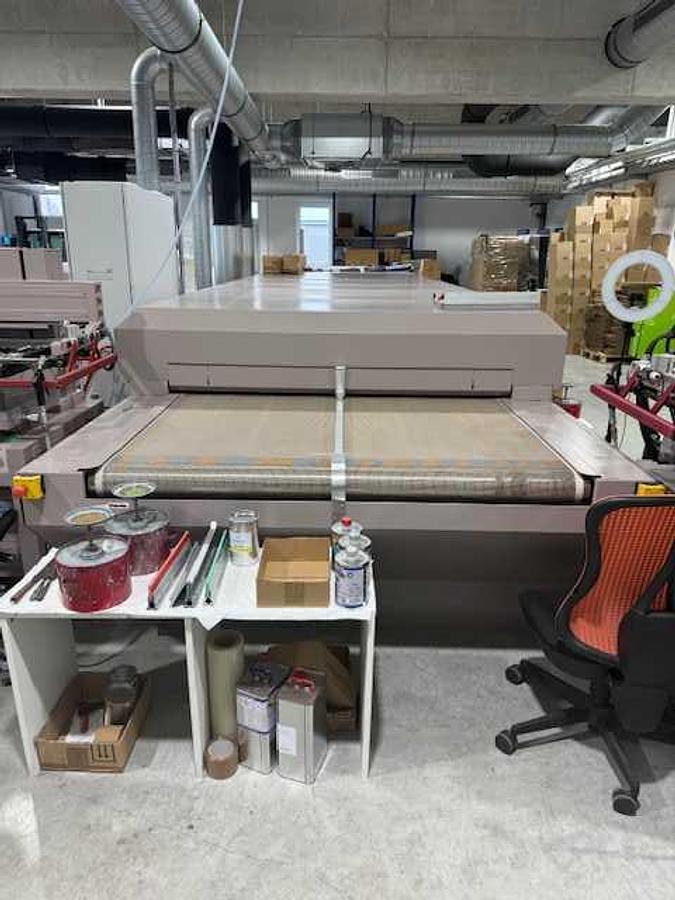

2021 ESC Continuous Dryer Perfecton S

Manufacturer: ESC

Model: Continuous Dryer Perfecton S

Year of Manufacture: 2021

Technical Specifications

Heating Chamber 80°C

• Galvanized nozzle plate
• Process fan TRZ 250-3
• Indirect air intake from process room
• Air circulation volume: 3,400 m³/h at 510 Pa
• Electric heating register: 18 kW at max. 80°C
• Drive motor: 2.2 kW / B3 / 1,410 rpm / ISO F
• Length: 2,000 mm

Cooling Chamber

• Process fan TRE 250-3
• Supply and exhaust air volume: 3,400 m³/h at 800 Pa
• Stainless steel drip tray for process fan
• Drive motor: 2.2 kW / B3 / 1,500 rpm / ISO F
• Without cooling register and chiller
• Length: 2,000 mm

Discharge Element

• Rubber-coated steel drive roller
• Mounting for belt drive
• Length: 500 mm

General Construction

• All hoods and cladding panels made of electro-galvanized steel sheet
• Heating chamber hoods are insulated

DIMENSIONS

• Belt width: 1,700 mm
• Belt height: 900 mm
• Total width: 2,235 mm

Zone Lengths

• Infeed: 1,200 mm
• Zone 1: 2,000 mm
• Zone 2: 2,000 mm
• Zone 3: 2,000 mm
• Zone 4: 2,000 mm
• Outfeed: 500 mm
• Total length: approx. 10,700 mm
