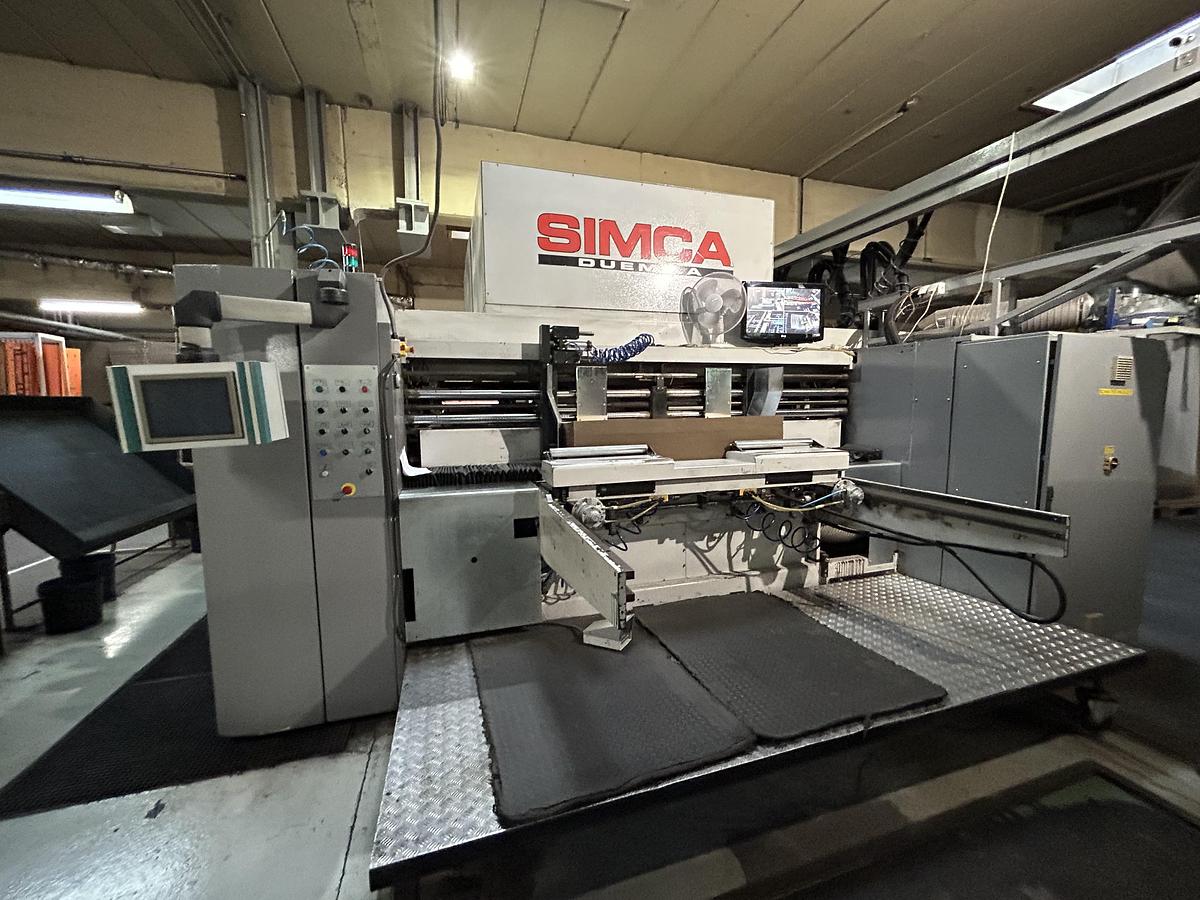

SIMCA SDS 2813

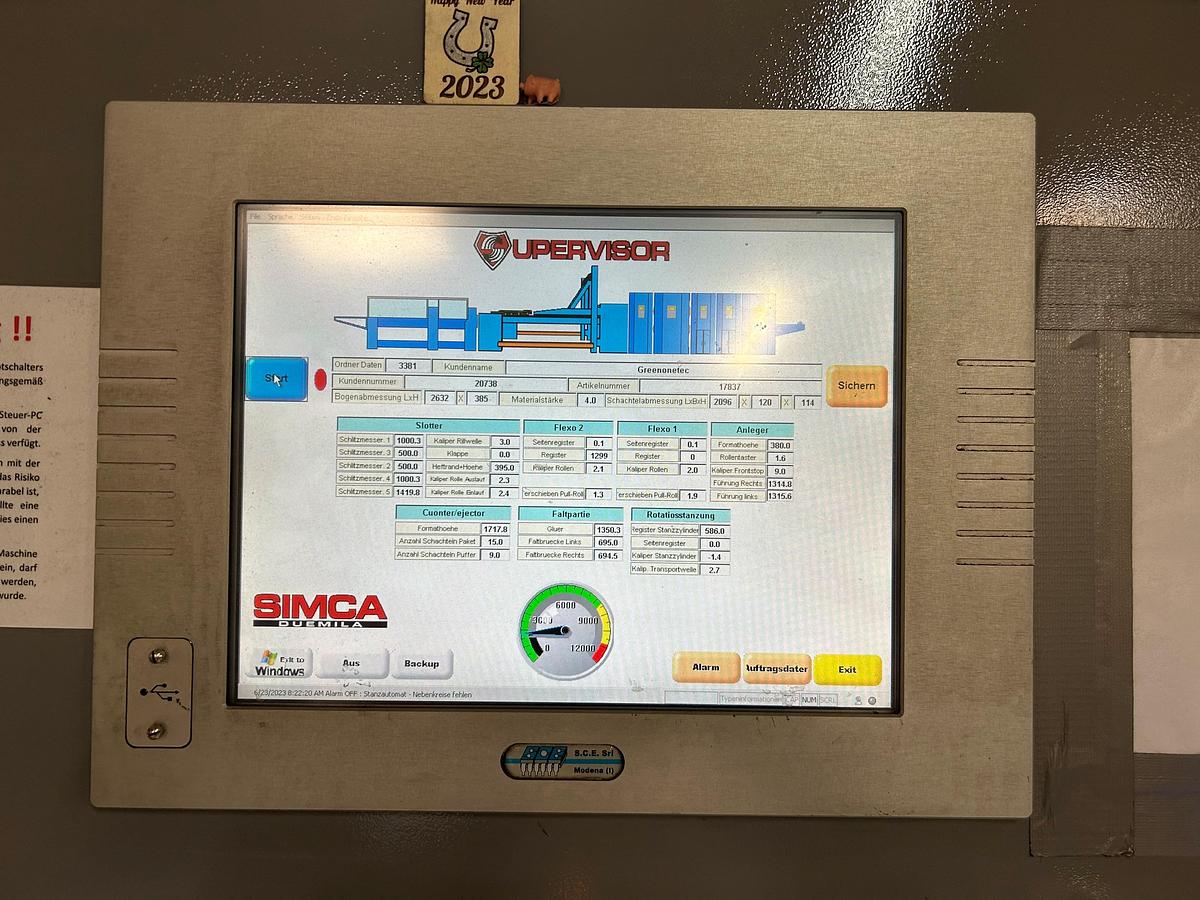

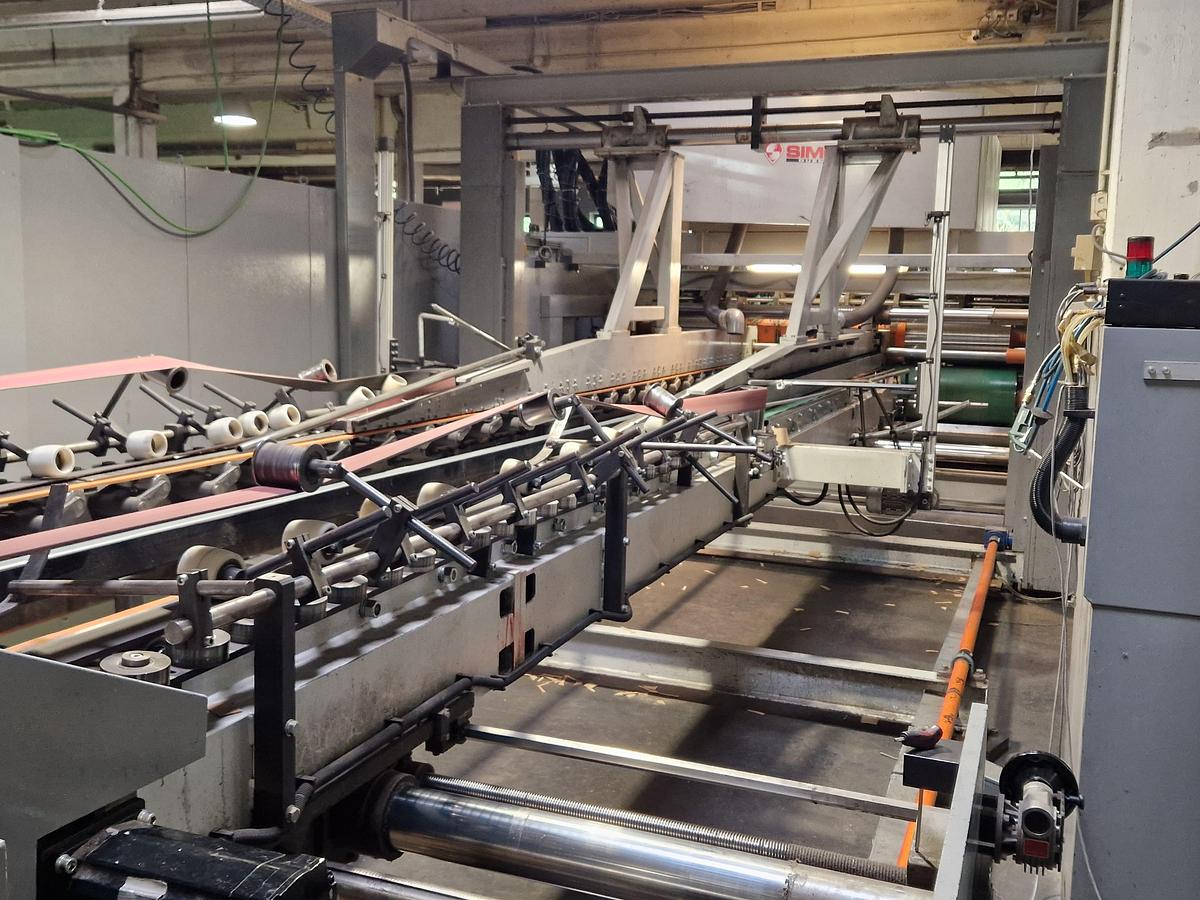

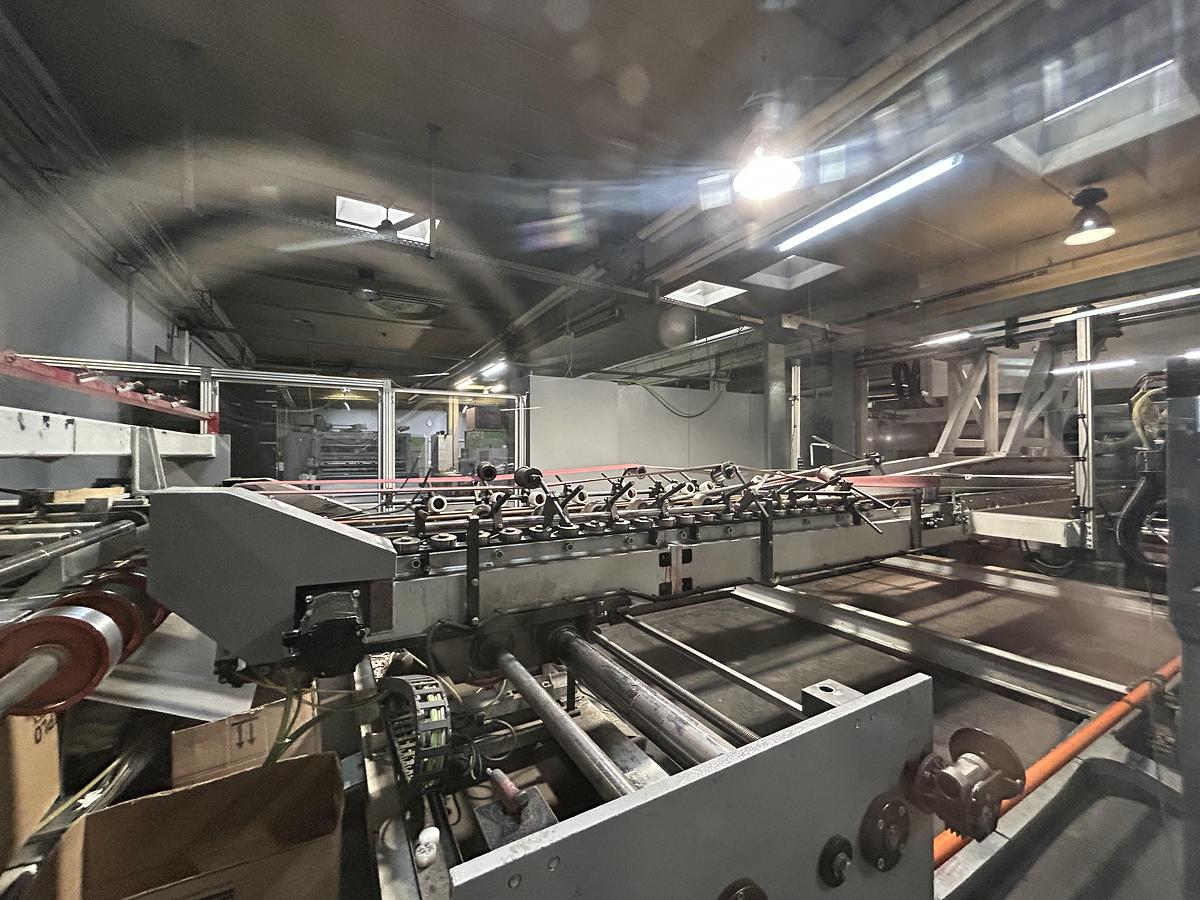

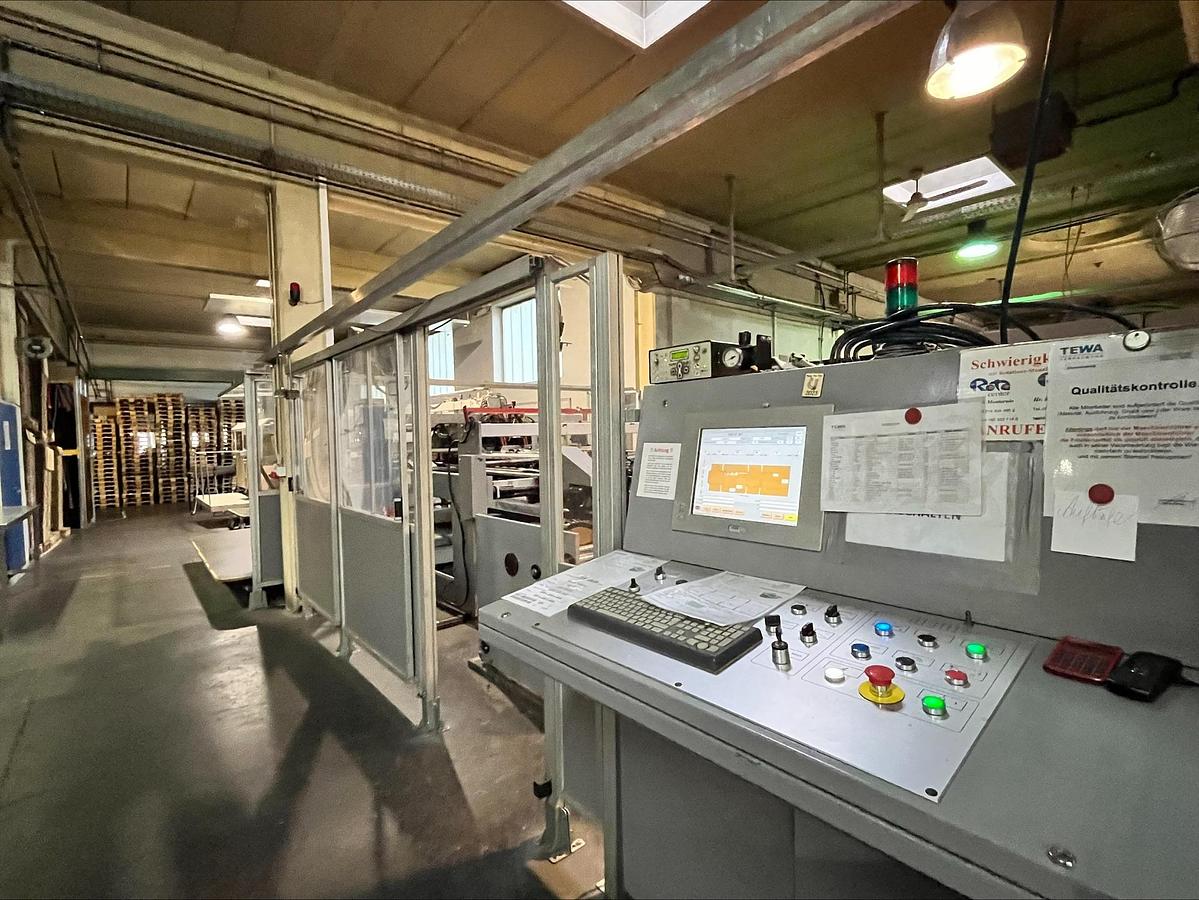

Complete SIMCA SUPERVISOR Automatic Corrugated Box Production Line with A-Print Control System

This advanced production line is engineered for high efficiency manufacturing of corrugated cardboard boxes. The system provides a fully integrated solution that combines feeding, flexographic printing, slotting and creasing, and rotary die cutting operations in a single synchronized platform with digital control interface.

Technical Specifications:

Board Dimensions: Length 1130 millimeters, Width 969 millimeters

Material Thickness: 3.0 millimeters

Box Blank Dimensions: Length 310 millimeters, Width 220 millimeters, Height 220 millimeters

Line Configuration:

Slotter Section:

Slotting Knife 1: 903.8, Caliper Rotary 2.1

Slotting Knife 2: 555.3, Flaps 0.0

Slotting Knife 3: 547.3, Hem and Hook 1000.0, Caliper Rollen 2.7

Slotting Knife 4: 846.3, Caliper Roll Outer 1.0

Slotting Knife 5: 1101.9, Caliper Roll Inner 2.0, Push Roll 2.5

Flexo 2 Printing Unit:

Side Register: 1.0, Register 0

Flexo 1 Printing Unit:

Side Register: 2.0, Register 150, Caliper Rollen 1.8

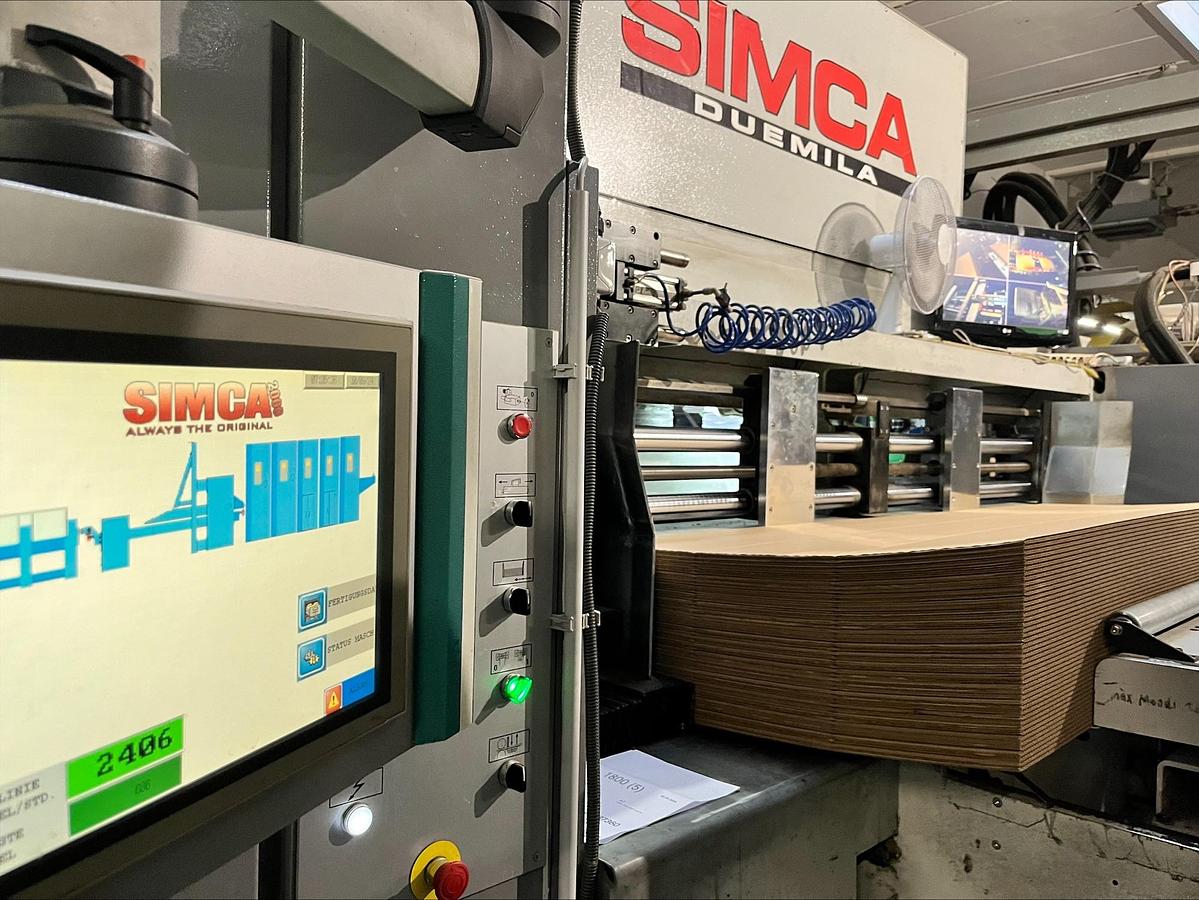

Feeder Section:

Format Width: 957.2, Roller Caliper 3.5, Caliper Front Stop 8.2

Guide Right: 557.2, Guide Left: 566.1

Counter and Ejector System:

Format Width: 600.0, Number of Sheets Pallet: 20.0, Number of Sheets Buffer: 22.0

Folding Section:

Outer: 903.3, Fold Pressure Left: 550.8, Fold Pressure Right: 500.8

Rotary Die Cutting Station:

Register Stamp Model: 1327.0, Side Register: 0.0, Caliper Stamp Cylinder: 1.0, Caliper Transport Rail: 3.1

Maximum Line Speed: 6000 sheets per hour
