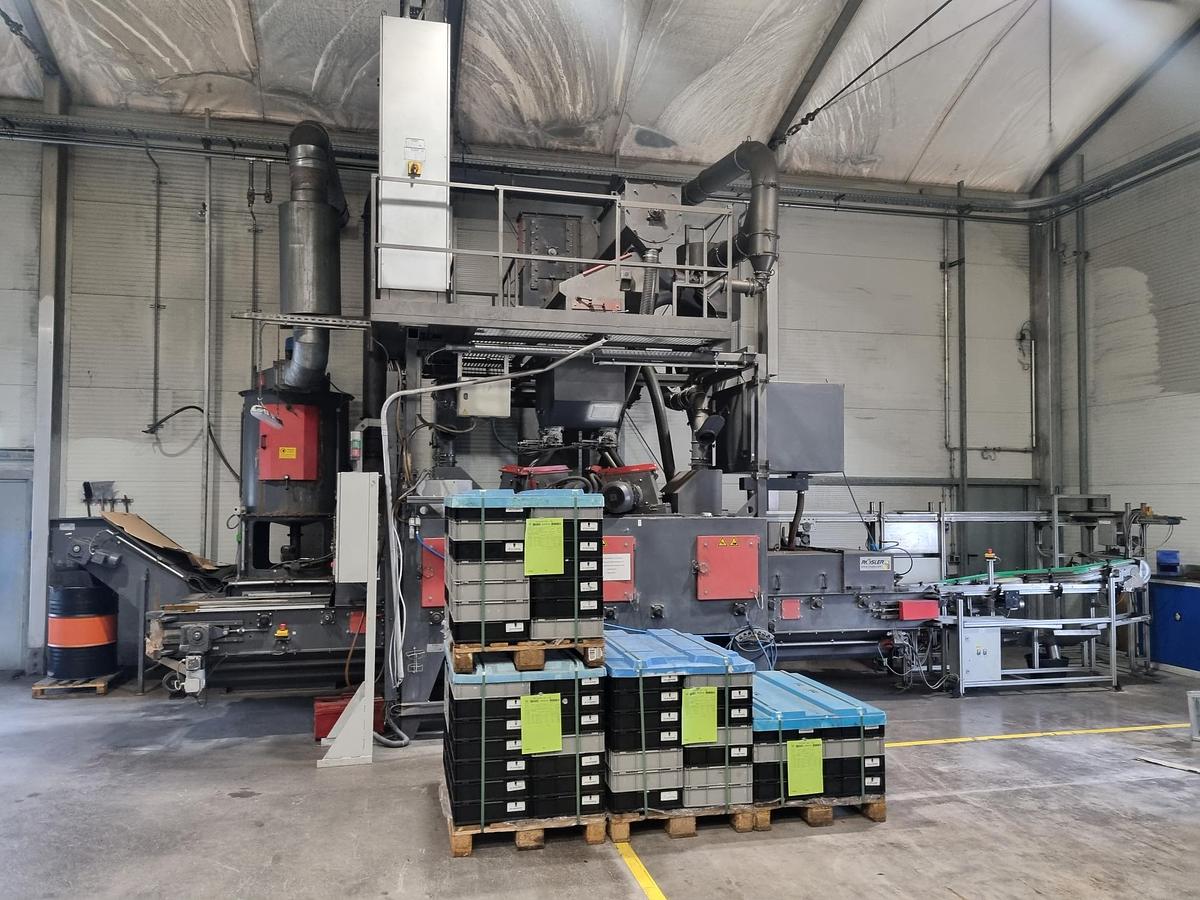

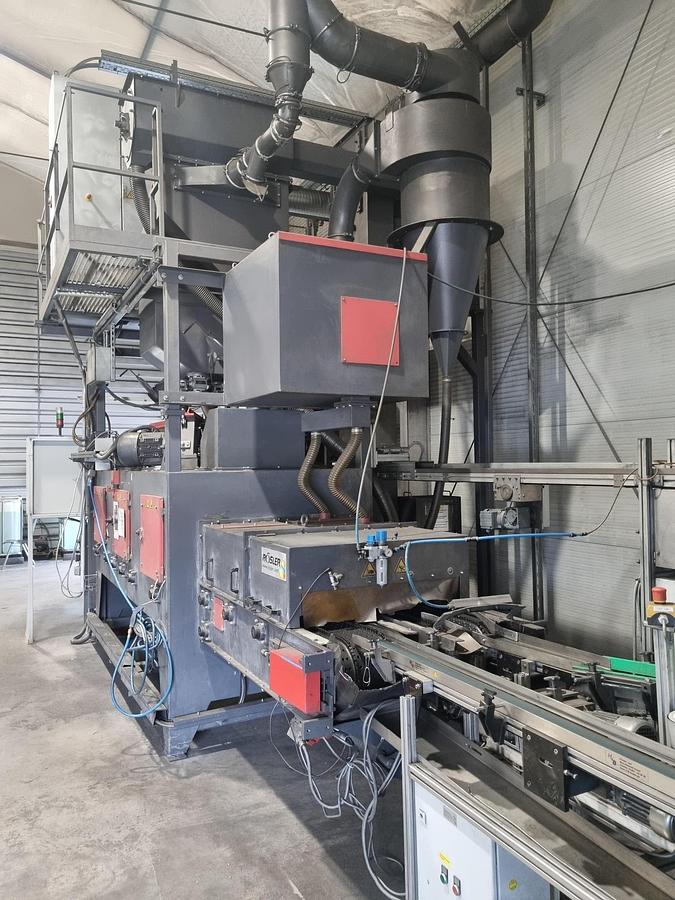

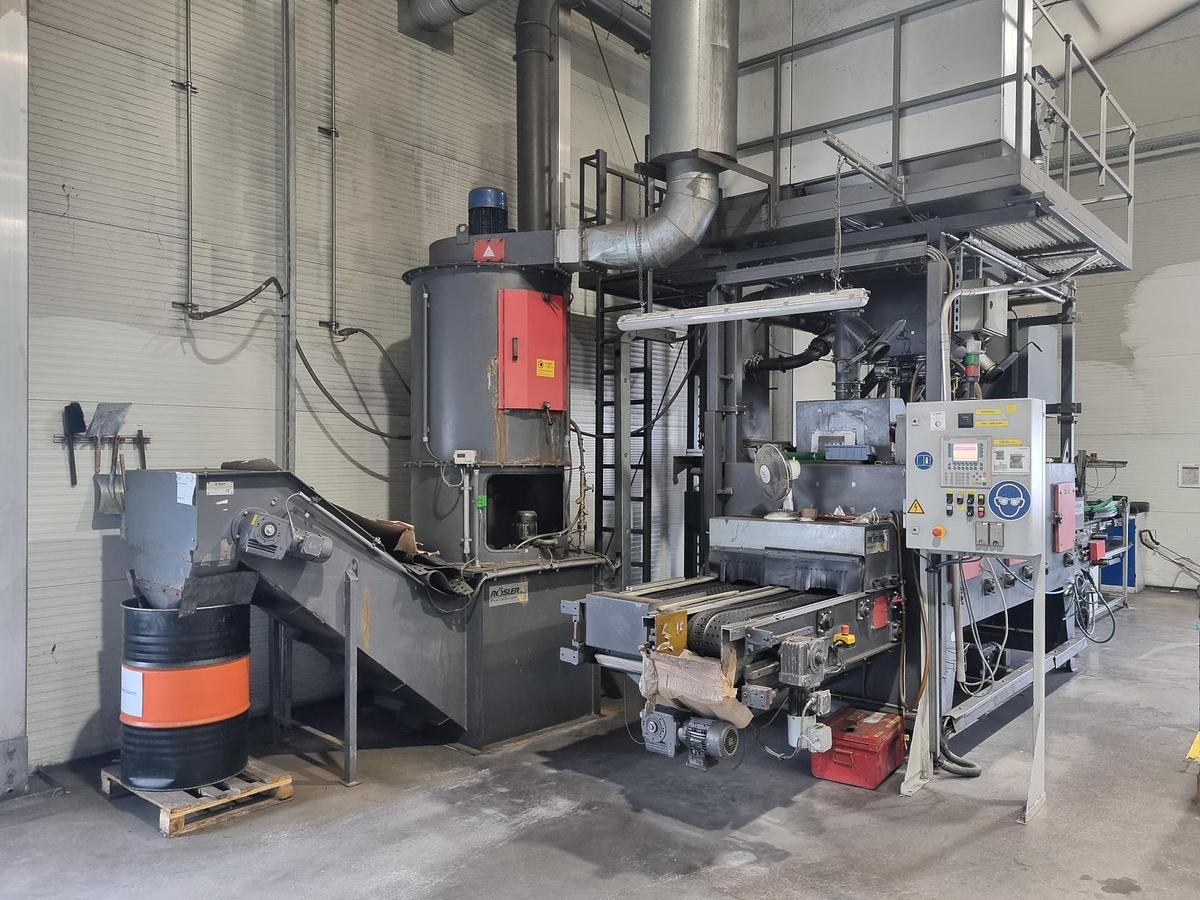

2007 Rösler RBD 600-2/4

Manufacturer: Rösler

Model: RBD 600-2/4

Year of Manufacture: 2007

Technical Data

Connection Values / Power Requirements

• Supply Voltage: 3 x 400 V
• Compressed Air Quality: Cleaned, dried, oil-free, filtered, filter 40 um, residual moisture at 20 C less than 30%
• Ambient Temperature / Humidity: +5 C to +40 C, per DIN 40040 G (annual average less than 65%, within 60 days less than 85%)
• Blast Media Fill Quantity (kg): approx. 1500
• Required Dust Extraction Capacity (m3/h): 5600

Dimensions / Weights

• Length (mm): 12400
• Width (mm): 3800
• Height (mm): 2300
• Weight of Heaviest Single Component (kg): 6000
