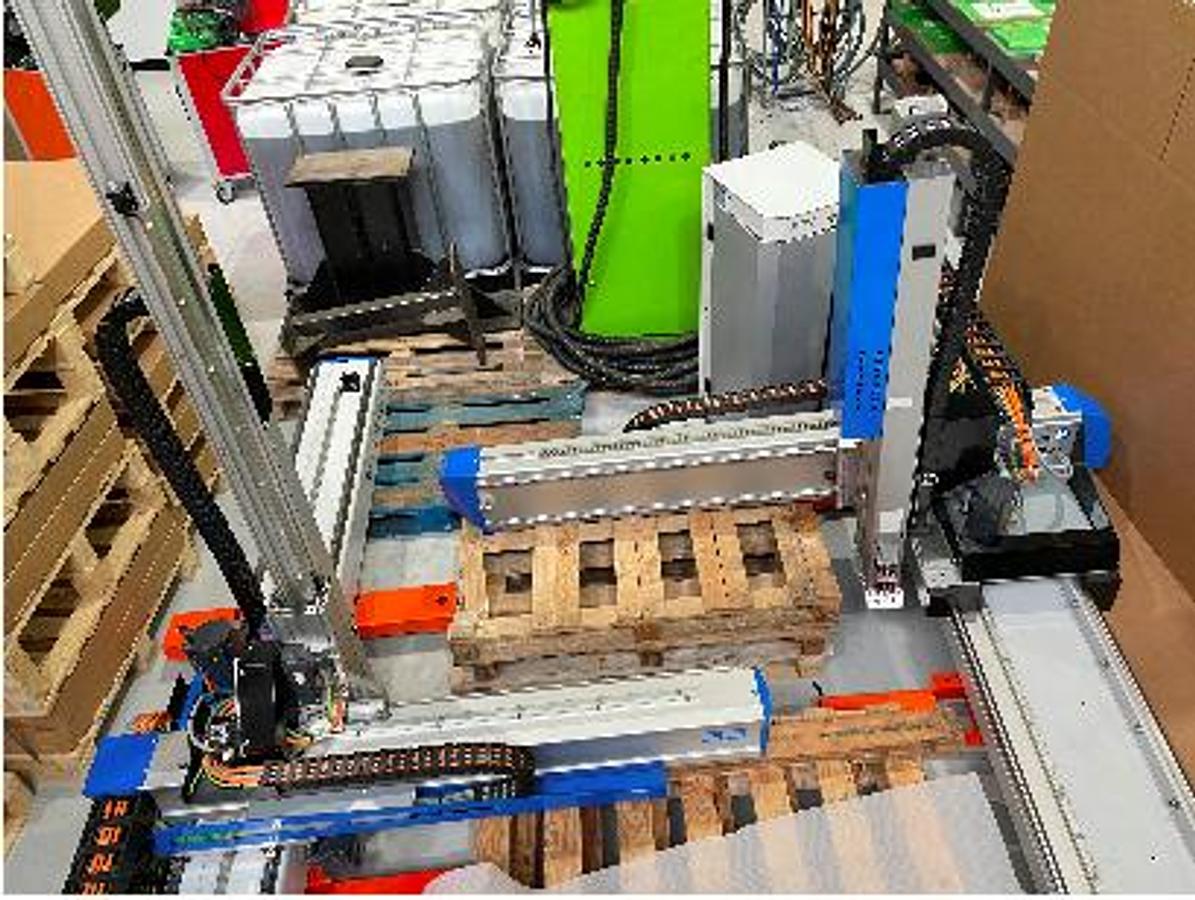

2018 Sepro Success 33 Injection Moulding Robot

Manufacturer:  Sepro

Model: Success 33

Year of Manufacture: 2018

Machine Type :  Injection Moulding Robot

• Mounted on SGM in early 2019
• Production stopped in 2021
• Not frequently used

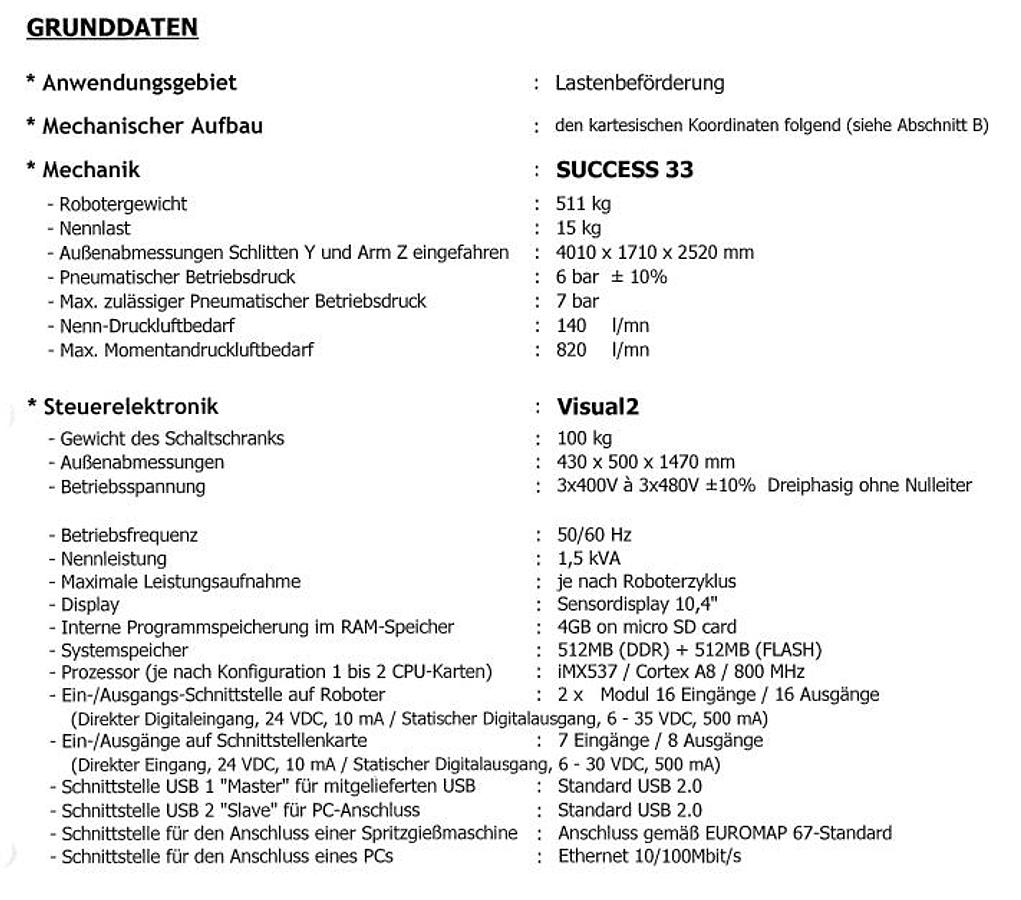

Mechanical Specifications

• Robot weight: 511 kg
• Payload capacity: 15 kg
• Overall dimensions (Y and Z retracted): 4010 x 1710 x 2520 mm
• Pneumatic operating pressure: 6 bar +/- 10%
• Maximum pneumatic pressure: 7 bar
• Nominal air consumption: 140 l/min
• Peak air consumption: 820 l/min

Axis Strokes and Performance

• X-axis (horizontal traverse): 3000 mm stroke, 1.7 m/s speed, positioning accuracy +/- 0.5 mm, repeatability +/- 0.1 mm
• Y-axis (horizontal stripping): 900 mm stroke, 2.0 m/s speed, positioning accuracy +/- 0.5 mm, repeatability +/- 0.1 mm
• Z-axis (vertical): 1600 mm stroke, 3.0 m/s speed, positioning accuracy +/- 0.5 mm, repeatability +/- 0.1 mm
• All axes: brushless servo motors with digital PTP linear numerical control
• Display resolution: 0.1 mm on all axes

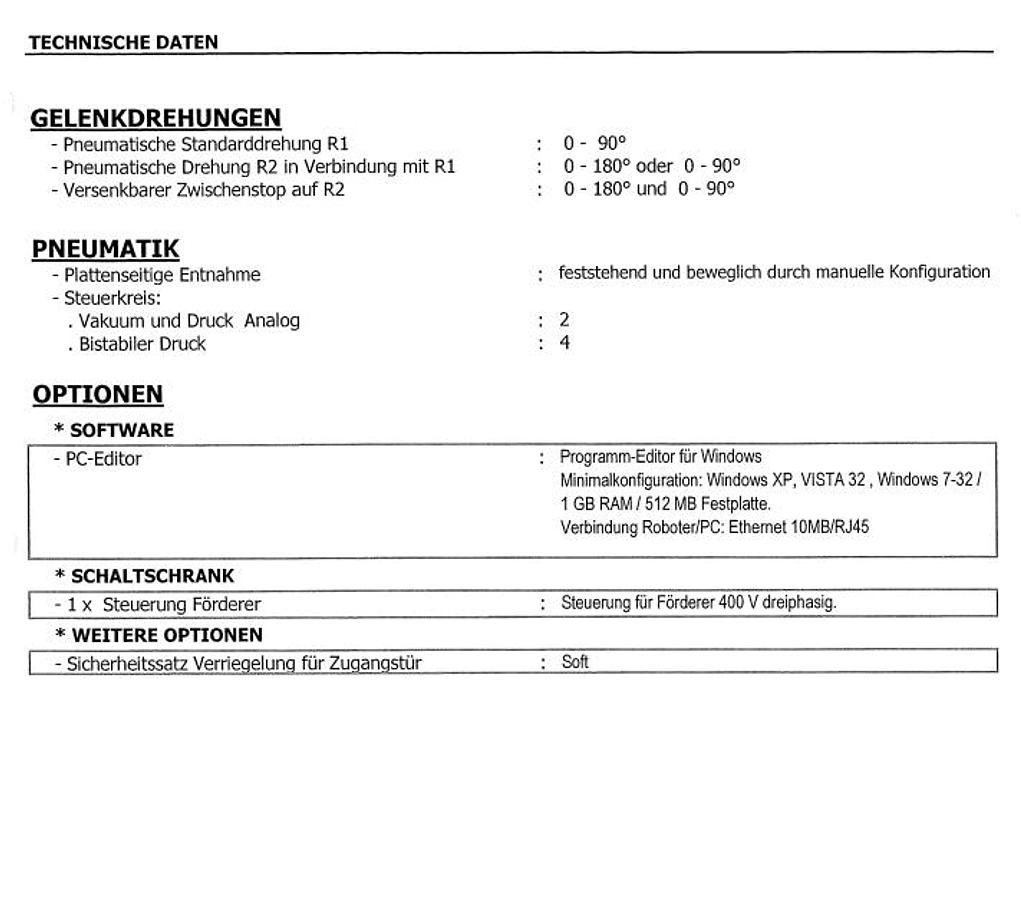

Wrist Rotations

• Standard R1 pneumatic rotation: 0 to 90 degrees
• Pneumatic R2 rotation mounted on R1: 0 to 180 degrees or 0 to 90 degrees
• Retractable intermediate stop on R2: 0 to 180 degrees and 0 to 90 degrees

Control System

• Controller: Sepro Visual2
• Display: 10.4 inch touchscreen
• Program memory: 4 GB on micro SD card
• System memory: 512 MB DDR + 512 MB Flash
• Processor: iMX537 / Cortex A8 / 800 MHz
• I/O on robot: 2 x modules with 16 inputs and 16 outputs each
• I/O on interface card: 7 inputs / 8 outputs
• USB connections: 2 x USB 2.0
• PC connection: Ethernet 10/100 Mbit/s
• Injection moulding machine interface: EUROMAP 67 standard
• PC editor software: Windows compatible

Electrical Specifications

• Supply voltage: 3 x 400 V to 3 x 480 V (+/- 10%), 3-phase, no neutral
• Frequency: 50/60 Hz
• Rated power: 1.5 kVA
• Control cabinet weight: 100 kg
• Control cabinet dimensions: 430 x 500 x 1470 mm
• Conveyor control option: 400 V 3-phase
