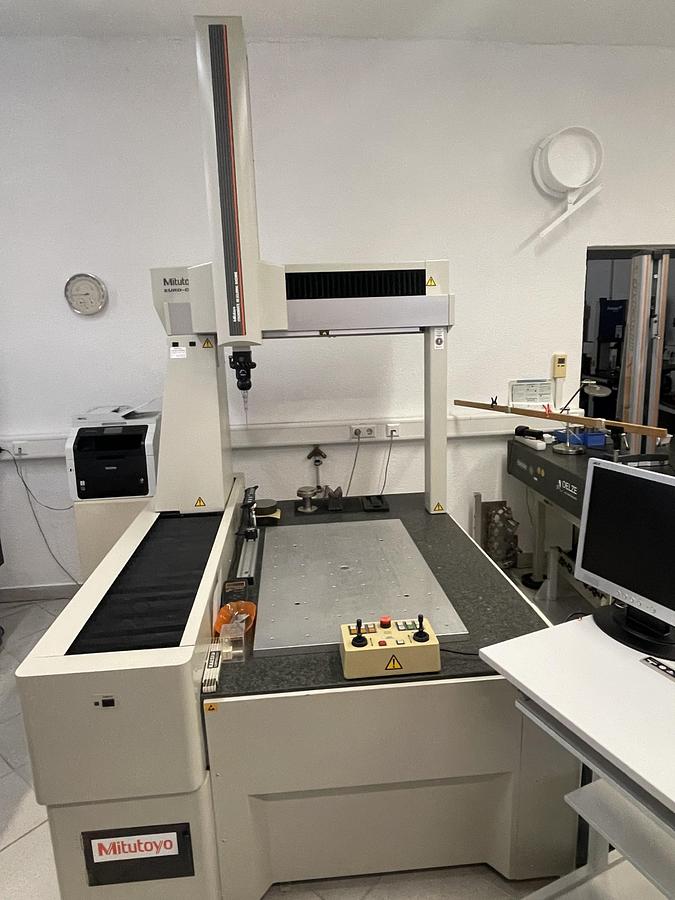

2001 Mitutoyo Euro C-Apex 122010

Machine Details

• Manufacturer: Mitutoyo
• Model: Euro C-Apex 122010
• Year of manufacture: 2001
• Type of Machine : Coordinate Measuring Machine
• The regular factory calibration was last performed in March 2012

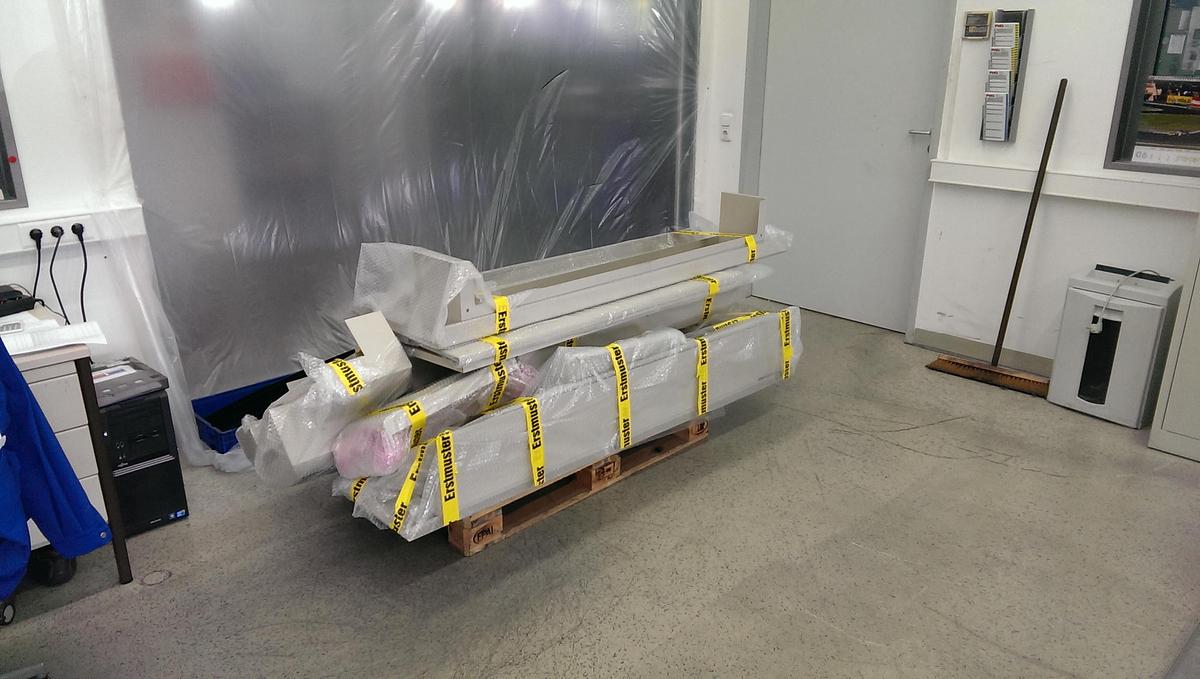

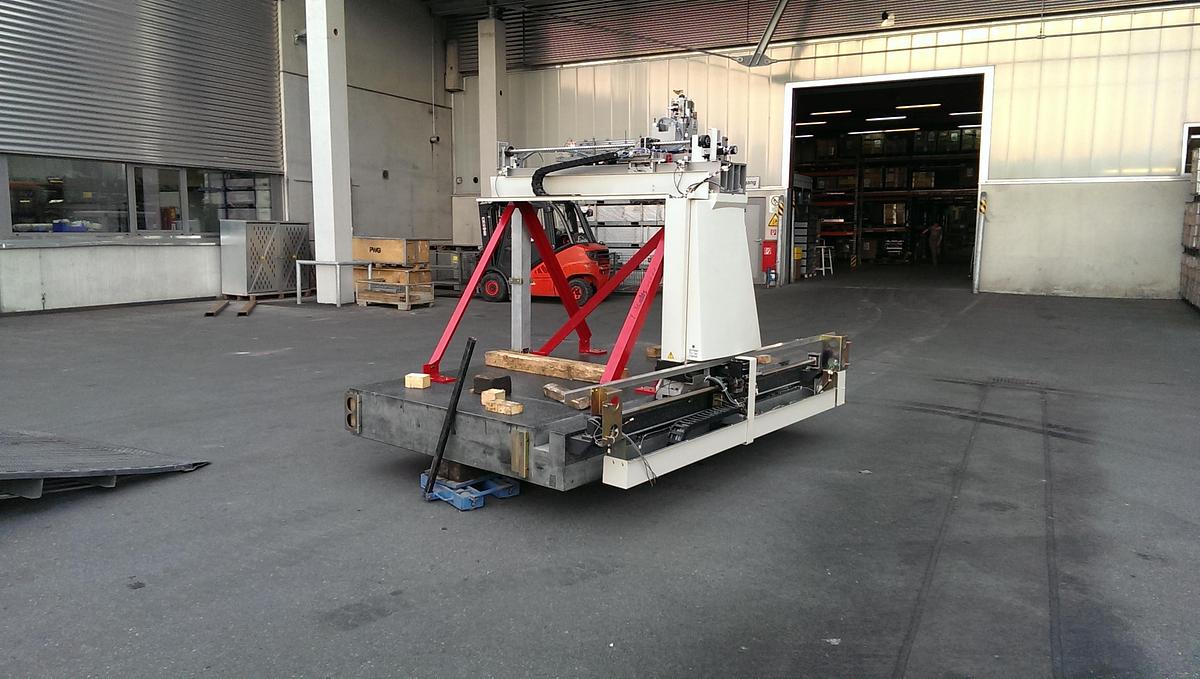

• In operation until 2013. In 2013, it was professionally dismantled by Mitutoyo. It was then stored in an industrial building.

Measuring Range

• X-axis: 2000 mm
• Y-axis: 1200 mm
• Z-axis: 1000 mm

Technical Specifications

• Accuracy (ISO 10360-2): E = 4.9 + 5L/1000 um
• Probing error (ISO 10360-2): R = 5.0 um (TP200)
• Resolution: 0.0001 mm
• Guide system: Air bearing on all axes
• Length standard: Linear encoder
• Measuring table material: Granite
• Maximum workpiece height: 1115 mm
• Maximum workpiece weight: 2000 kg
• CNC measuring speed: 1 to 3 mm/s
• Maximum drive speed: 430 mm/s

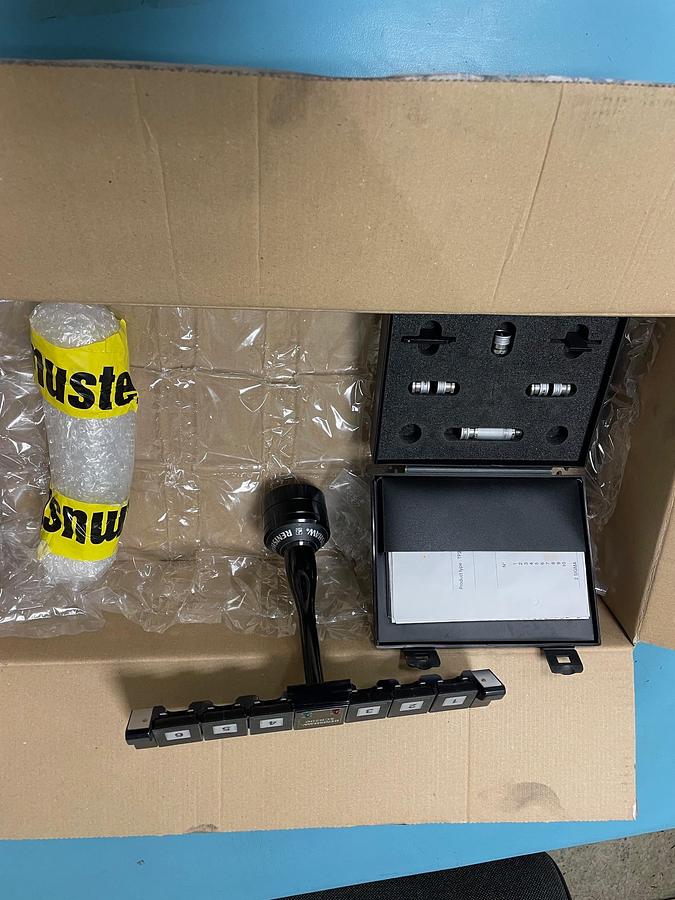

Included Equipment

• Probe head: Renishaw PH 10
• Probe system: TP 200
• Stylus rack: 6-position automatic changer
• Controller: UC220 Apex
• Software: Geopack Cosmos 2.3
