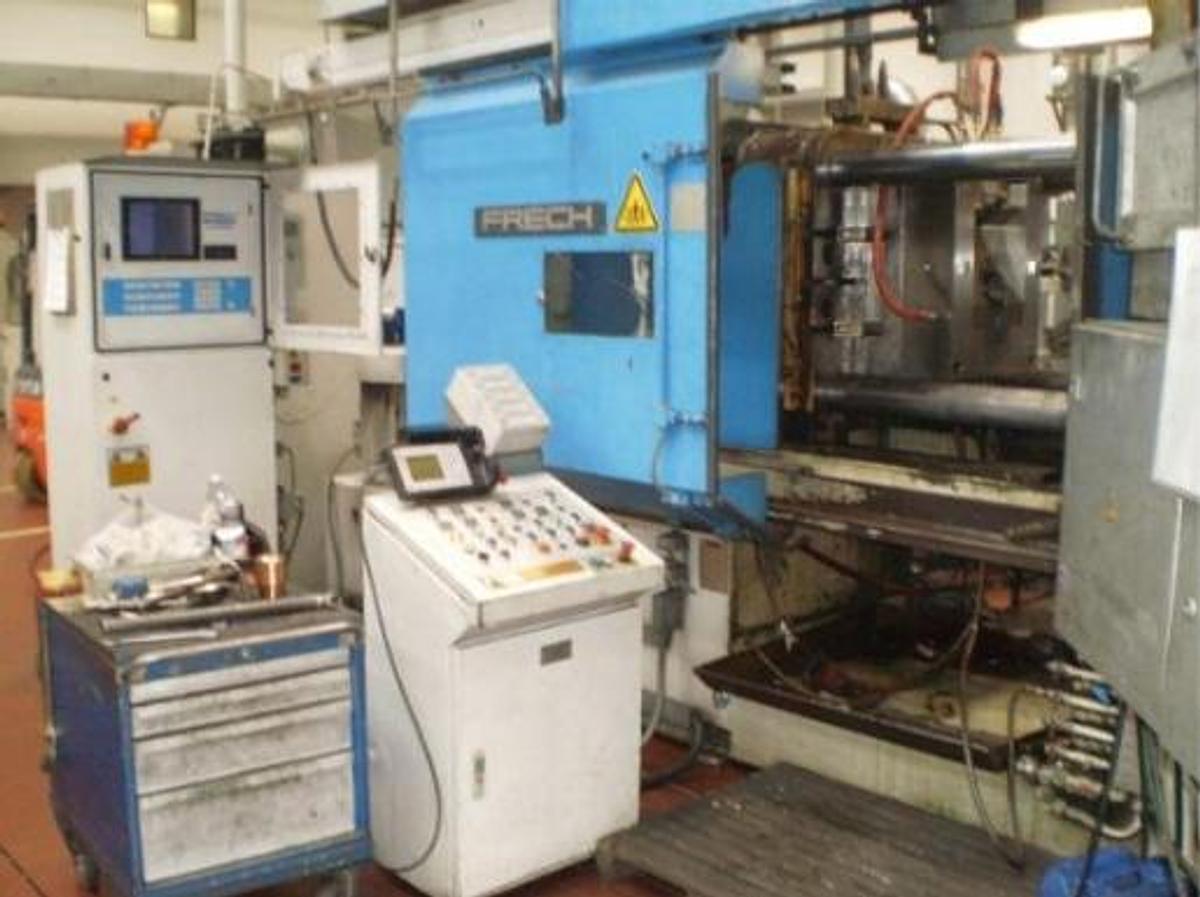

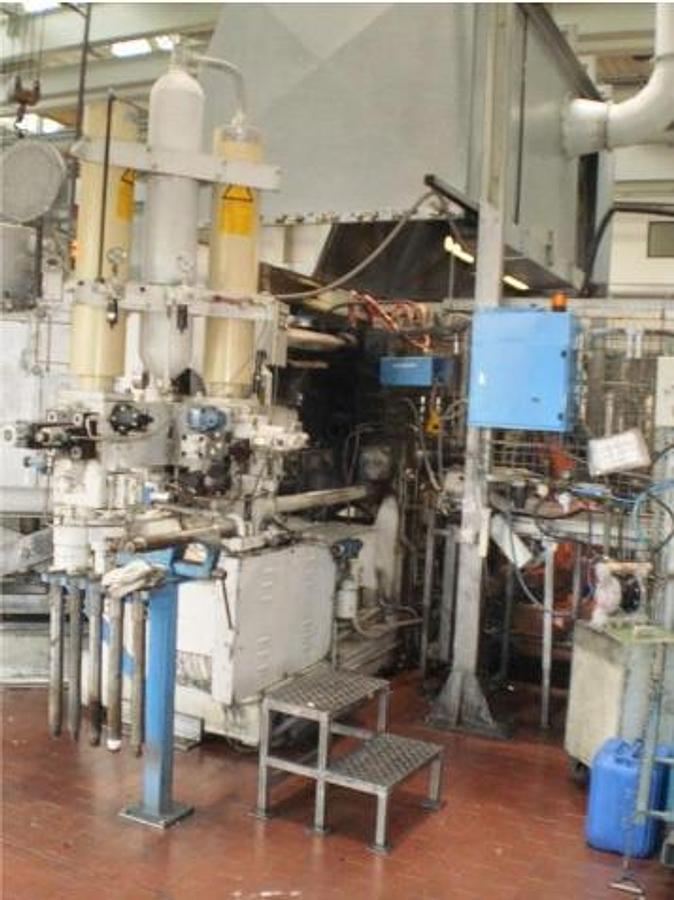

1996 Frech DAK 315S Cold Chamber Die Casting Machine

1996 Frech DAK 315S Cold Chamber Die Casting Machine

Contact us for price

Location:Germany

Description

Manufacturer: Frech

Model:  DAK 315S

Year of Manufacture: 1996

Type of Machine : Cold Chamber Die Casting Machine

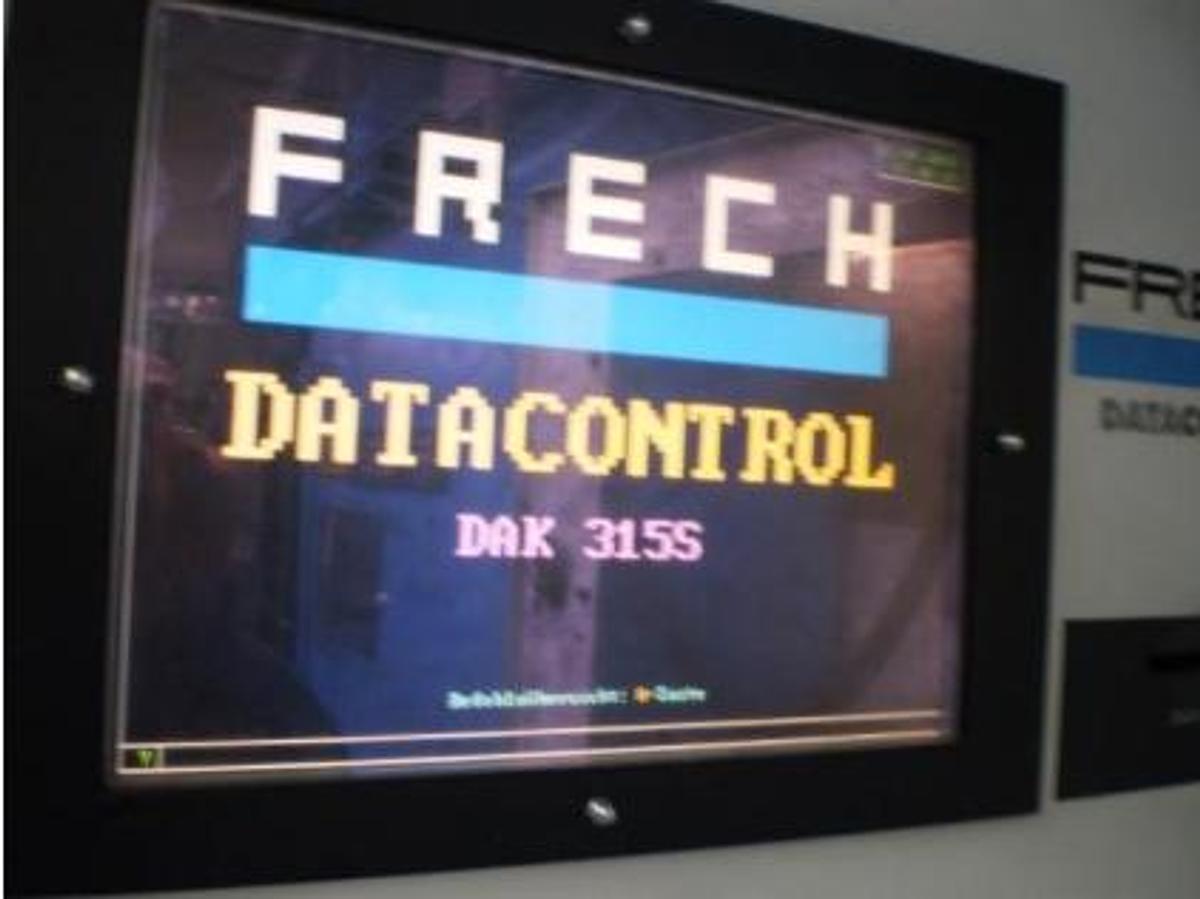

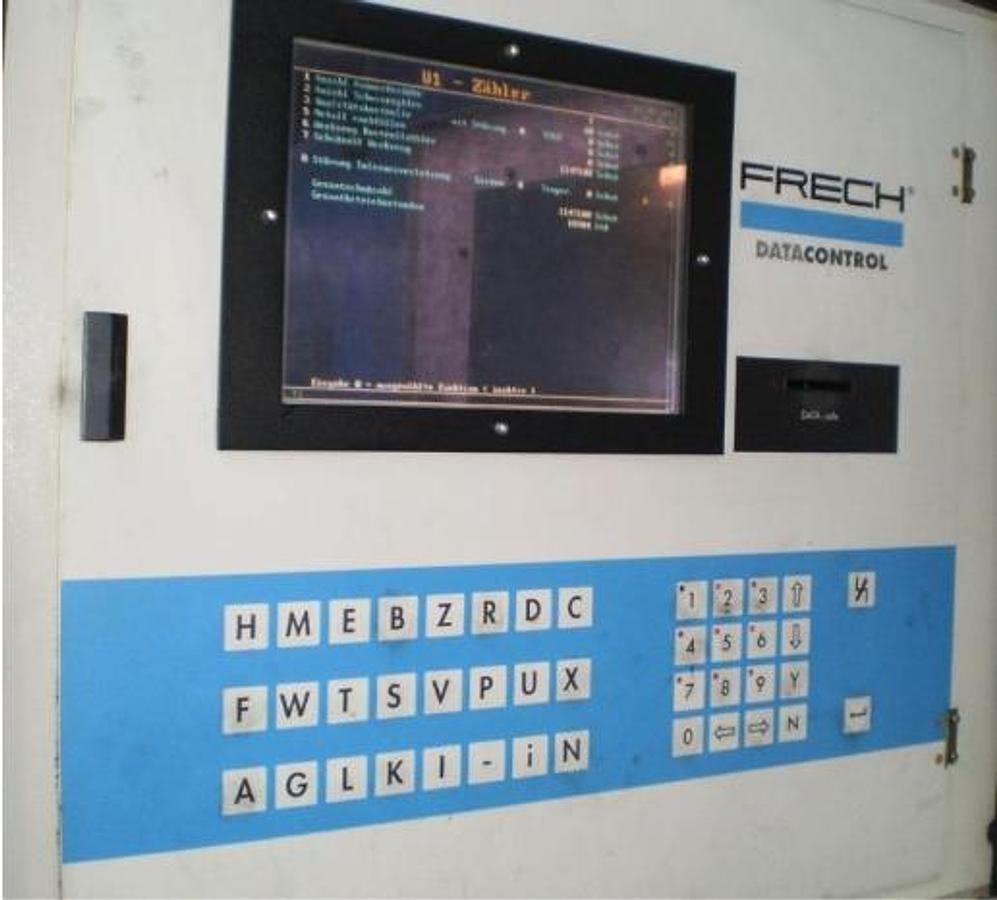

Control System: Frech DataControl

Shot Count: At least 1,147,108 (indicative, hardware change recorded)

Condition: Fully production-ready, currently still connected and operational

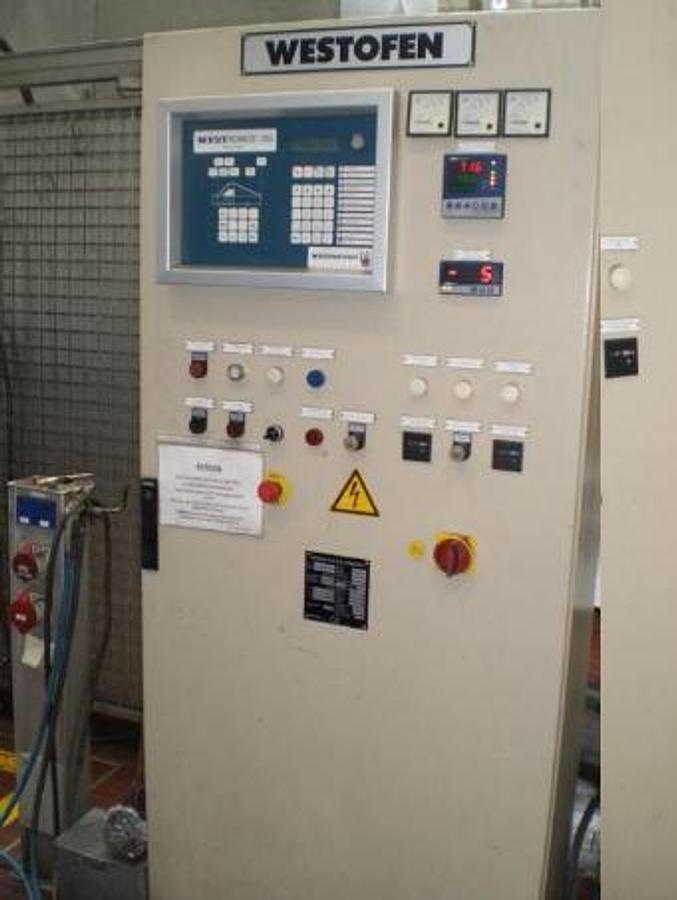

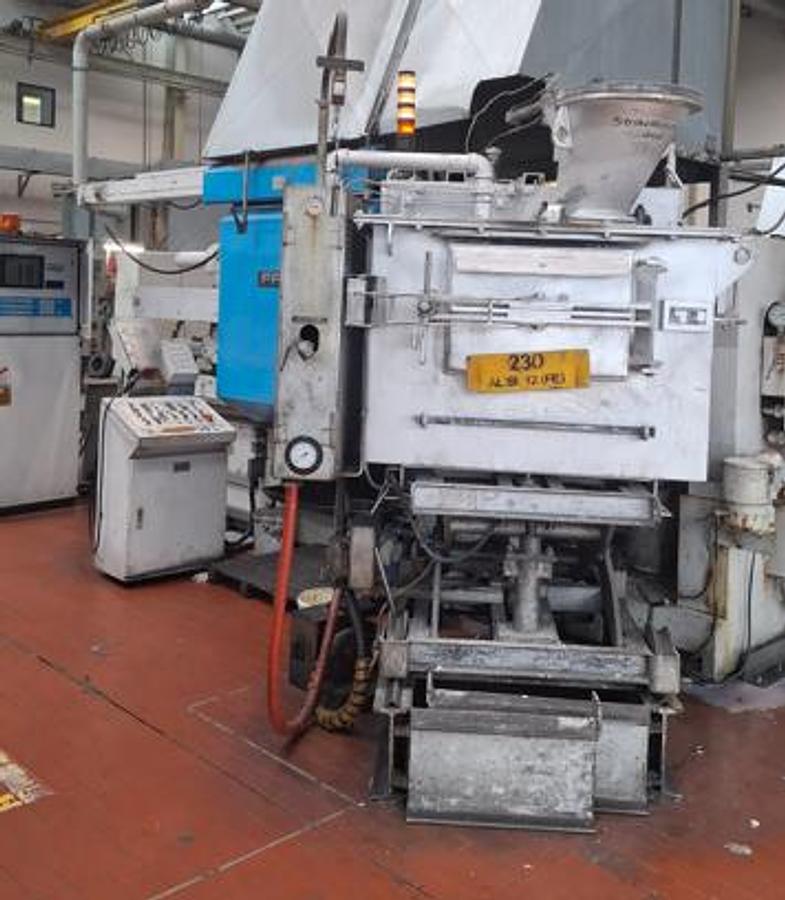

Included: Striko Westofen W455 holding furnace

Technical Specifications

  • Clamping Force: 3,150 kN
  • Opening Force: 10,000 daN
  • Closing Stroke: 500 mm
  • Adjustable Opening Stroke: Yes
  • Ejector Force / Retraction Force: 159 / 82 kN
  • Ejector Stroke: 120 mm
  • Die Height Min-Max: 300 - 700 mm
  • Platen Size: 900 x 900 mm
  • Tie Bar Spacing: 550 x 550 mm
  • Tie Bar Diameter: 110 mm
  • Injection Position: 0 / -80 / -160 mm
  • Maximum Injection Force: 350 kN
  • Injection Stroke: 430 mm
  • Shot Sleeve Diameter: 50 / 60 / 70 / 80 mm
  • Shot Volume: 563 / 811 / 1103 / 1441 cm3
  • Specific Injection Pressure: 1783 / 1238 / 909 / 696 daN/cm2
  • Projected Area (associated): 177 / 254 / 347 / 453 cm2
  • Maximum Projected Area: 1050 cm2 at 300 daN/cm2
  • Hydraulic Operating Pressure: 140 bar
  • Idle Cycles (DIN 24480): 500
  • Drive Motor: 22 kW
  • Machine Weight: 14,000 kg
  • Floor Space Required (L x W x H): 6900 x 2000 x 2800 mm


Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerFrech
ModelDAK 315S
Year1996
ConditionUsed
Stock Number757889
