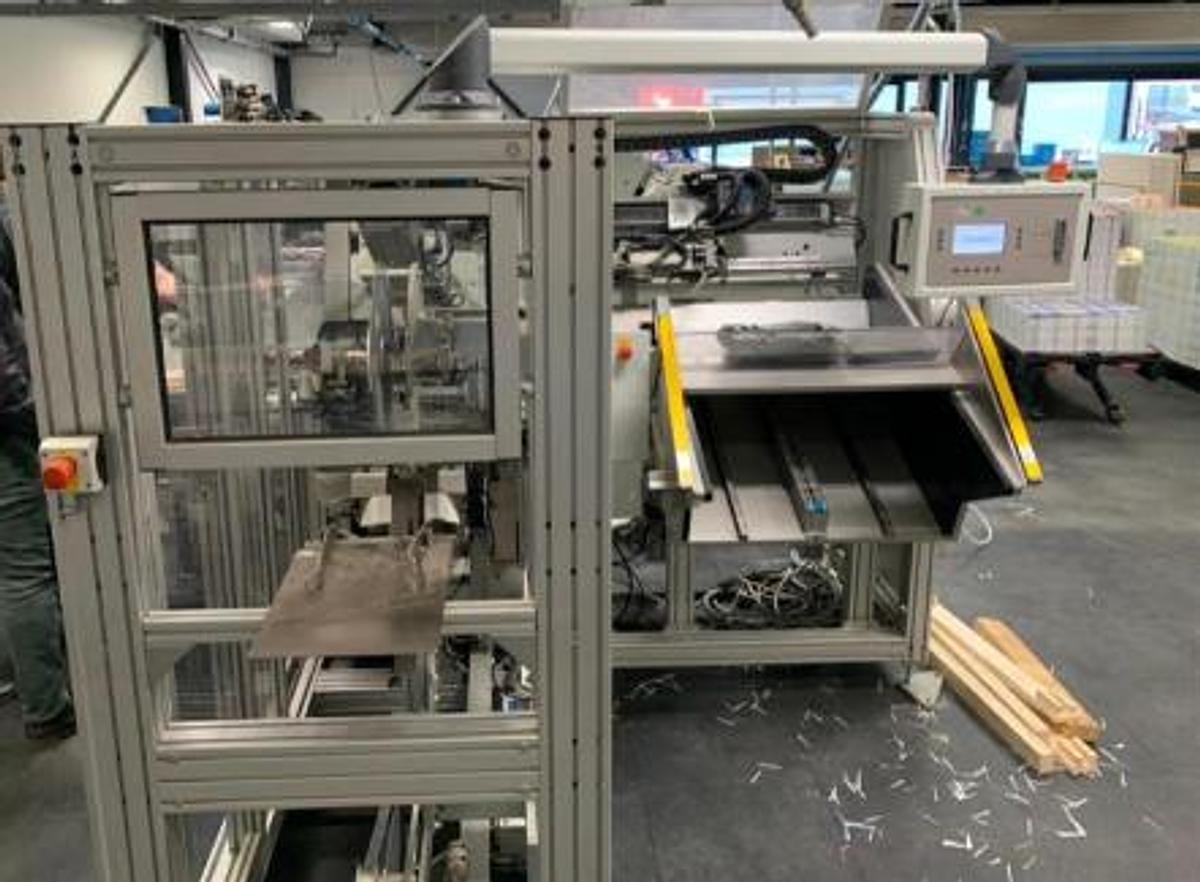

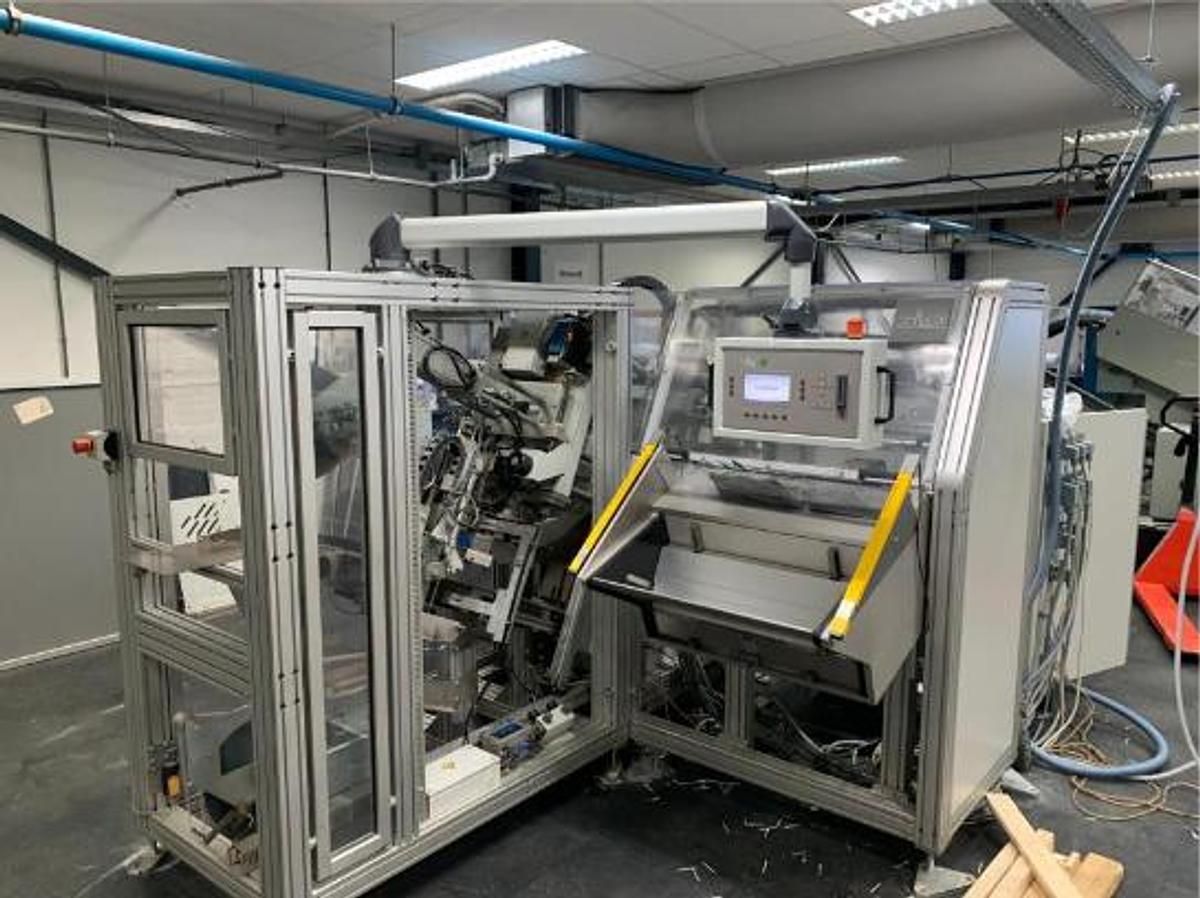

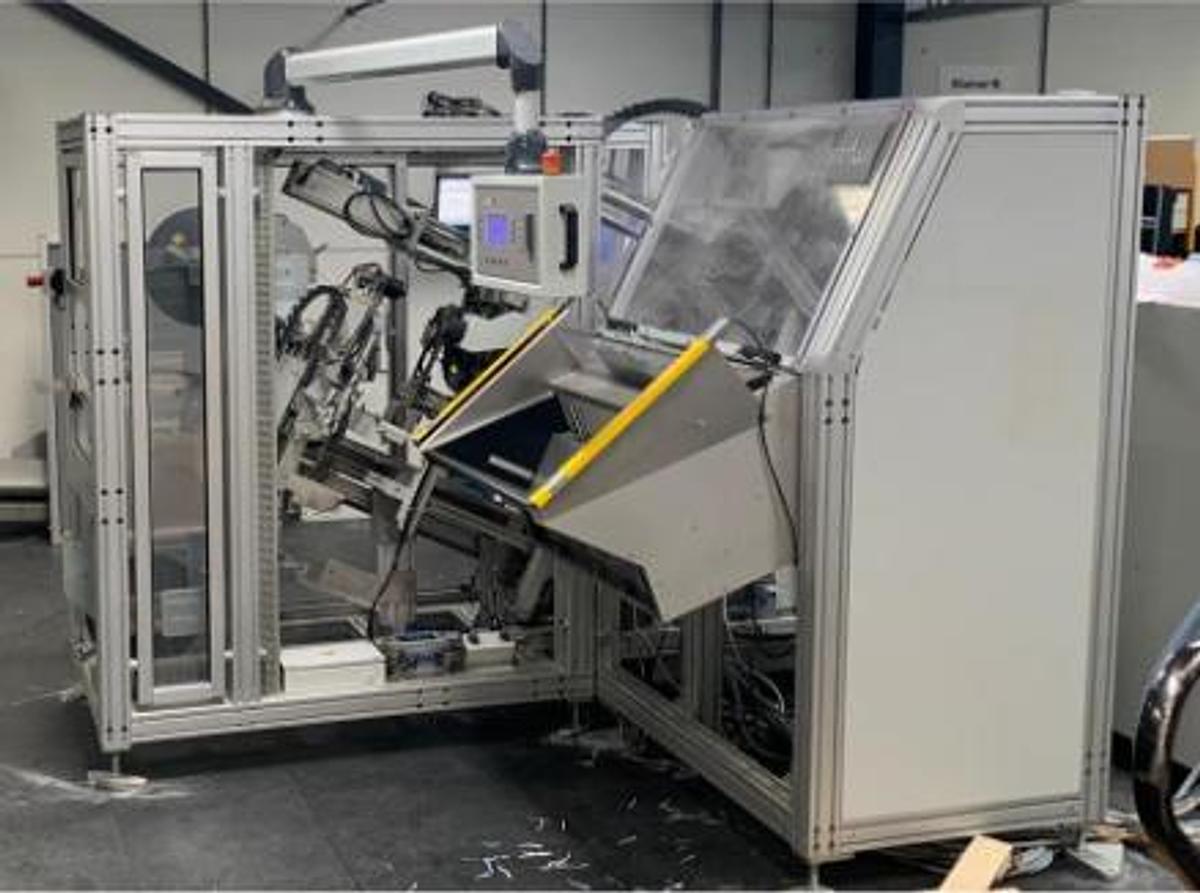

2010 Polar DCM DCC-M Die Cutter with Counter Pressure

2010 Polar DCM DCC-M Die Cutter with Counter Pressure

Contact us for price

Location:Rotterdam, Netherlands

Description

Manufacturer: Polar

Model: DCM DCC-M

Type: Die Cutter with Counter Pressure

Year of Manufacture: 2010

Feeding: Hand feeding per stack

Delivery: Inline banding system

Technical Specifications

  • Minimum format for die cutting: 50 x 50 mm
  • Maximum format for die cutting: 170 x 250 mm
  • Minimum format after die cutting: 46 x 46 mm
  • Maximum format after die cutting: 166 x 246 mm
  • Minimum pile height: 35 mm
  • Maximum pile height: 120 mm
  • Minimum height of punch knife: 65 mm
  • Maximum height of punch knife: 145 mm
  • Maximum power of die cutting: 50 kN
  • Minimum power of die cutting: 7 kN
  • Maximum capacity depending on material: 8 measures per minute
  • Compressed air demand: 670 l/min



Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerPolar
ModelDCM DCC-M
Year2010
ConditionUsed
Stock Number757897
