2021 Brewiks 500 Micro Brewery - Complete Professional Brewing System

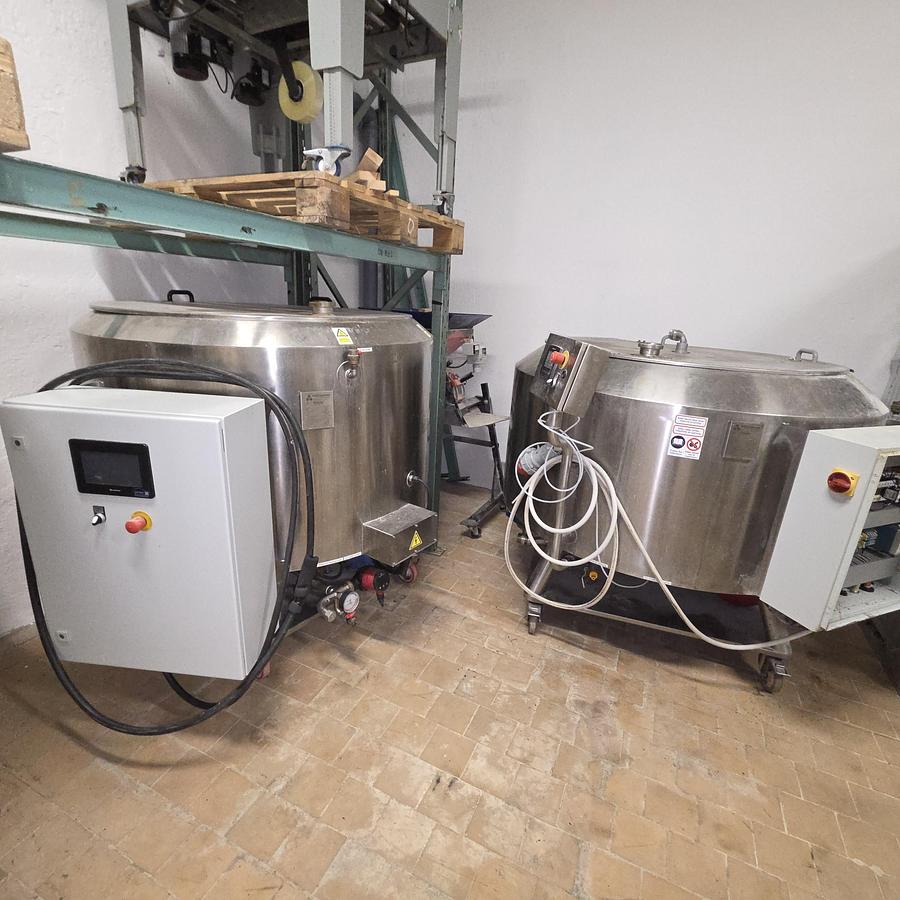

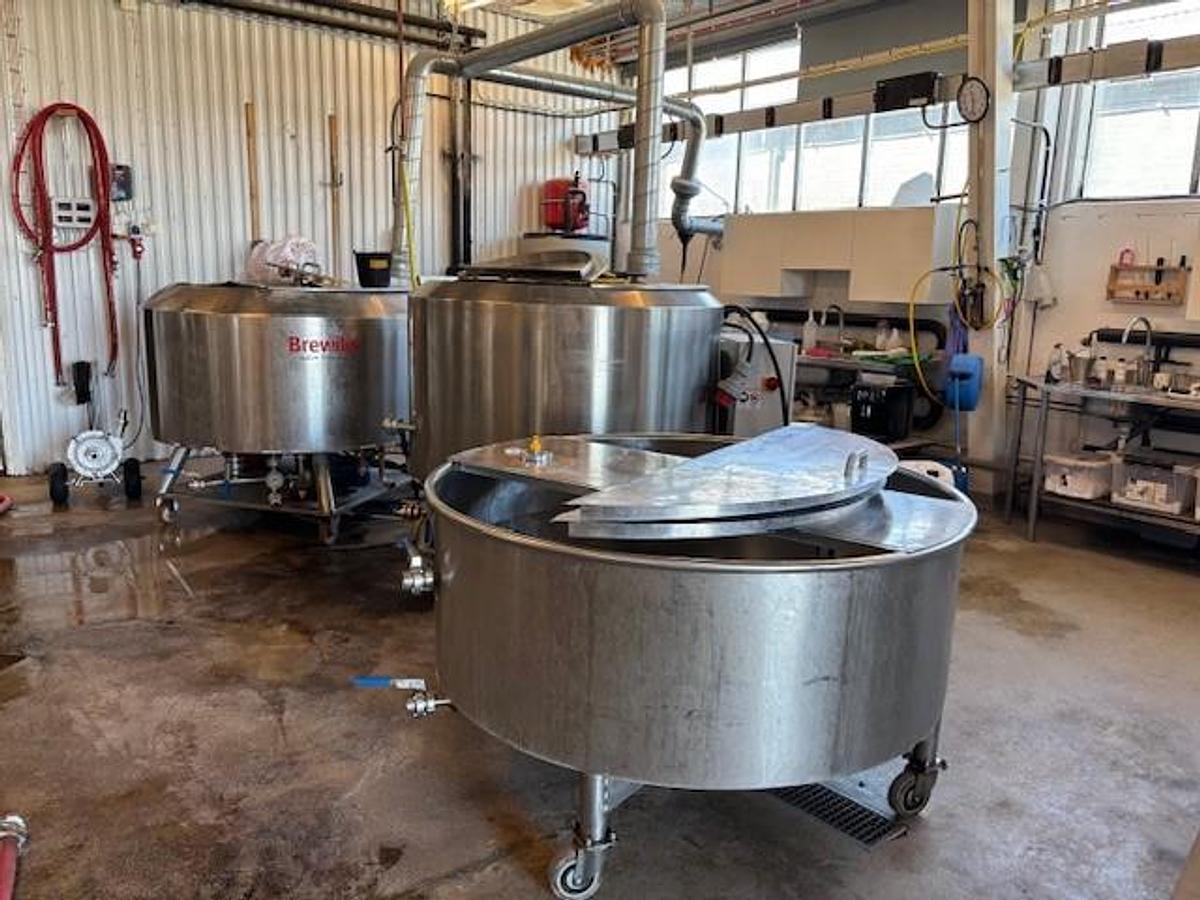

The Brewiks 500 is a two-vessel microbrewery system operating on a plug-and-brew principle. It consists of a mash tun and a lauter tun, both on wheels, which together function as mash tun, filter tun, boiler, and whirlpool. Average output is up to 580 litres of high gravity wort per 6-hour brew

cycle.

Construction and Certification

• The system is manufactured from quality stainless steel AISI 304/316 and carries a CE certificate.
• Both vessels are stone wool insulated and mounted on stands with wheels for easy repositioning.

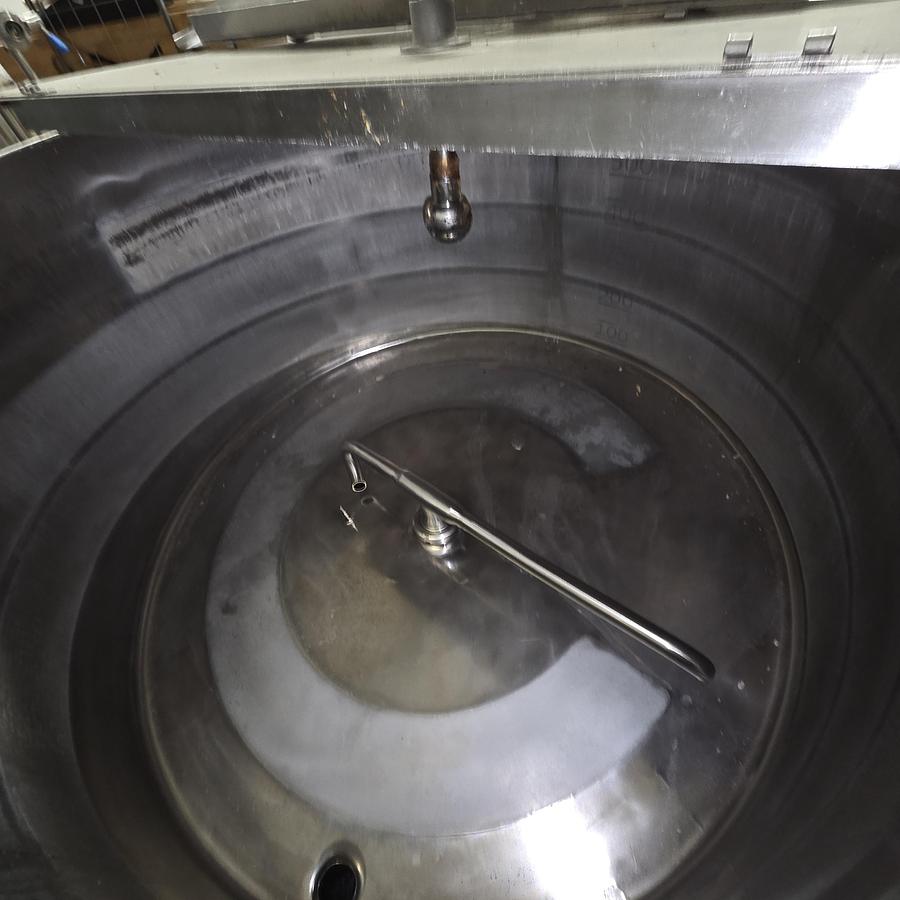

Mash Tun - Included Equipment

• 7-inch touchscreen controller

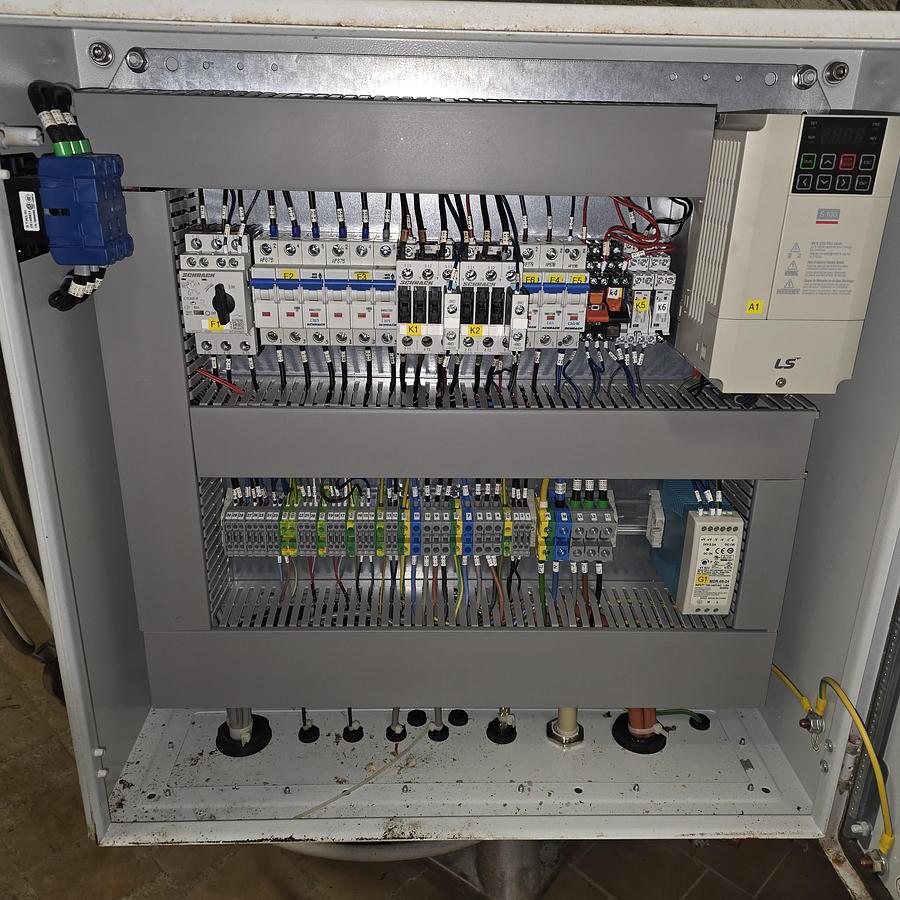

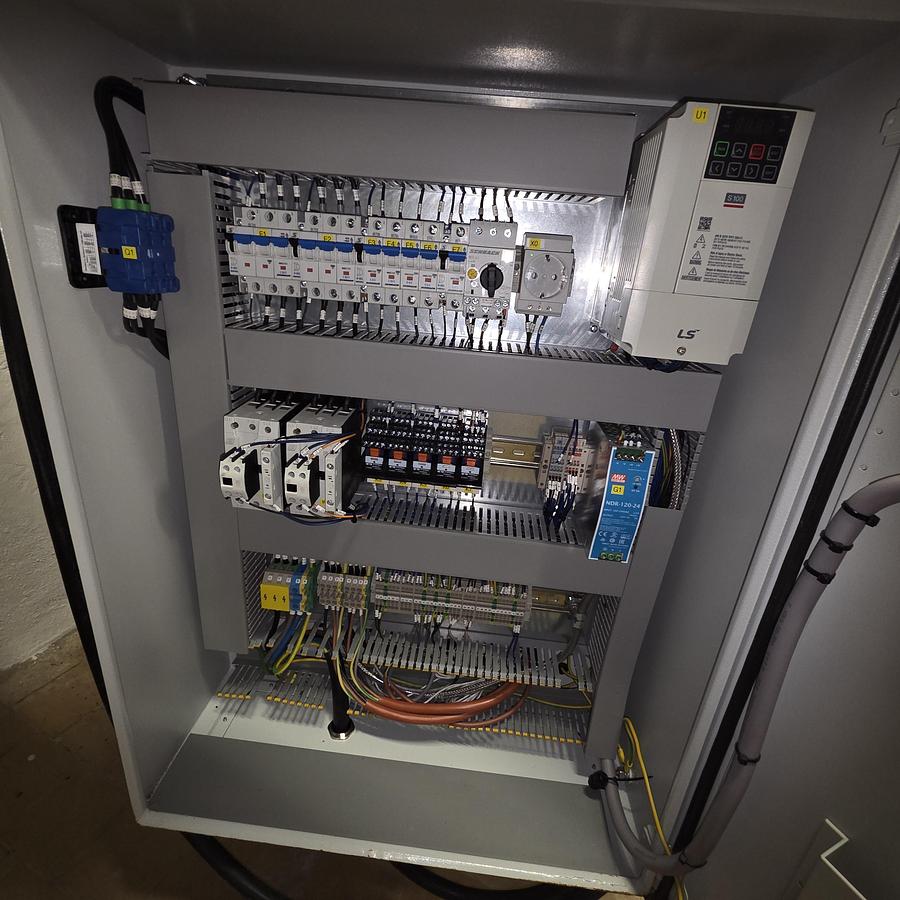

• Electrical installation with 40 kW electrical heaters

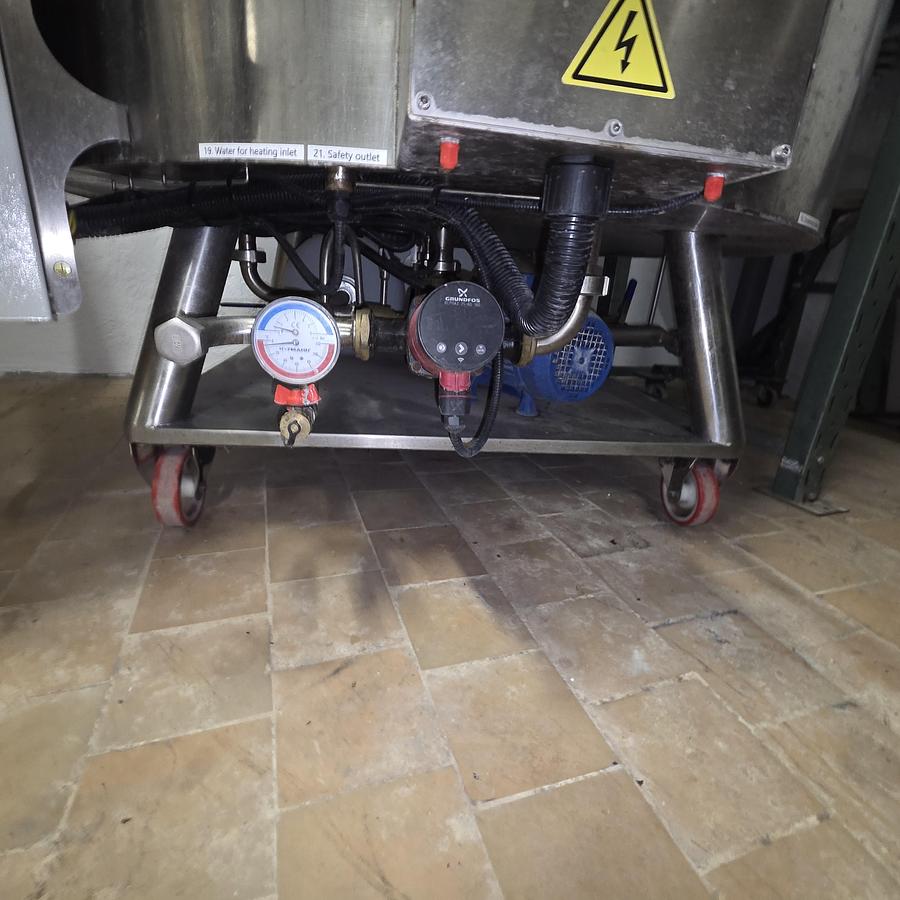

• Hygienic pump
• Water heating system
• Heat exchanger for heating sparging water
• Pipe heat exchanger with hot water recuperation
• Stone wool insulation
• Valves and fittings
• Stand on wheels
• Condensing lid with silicon seal and drain tube

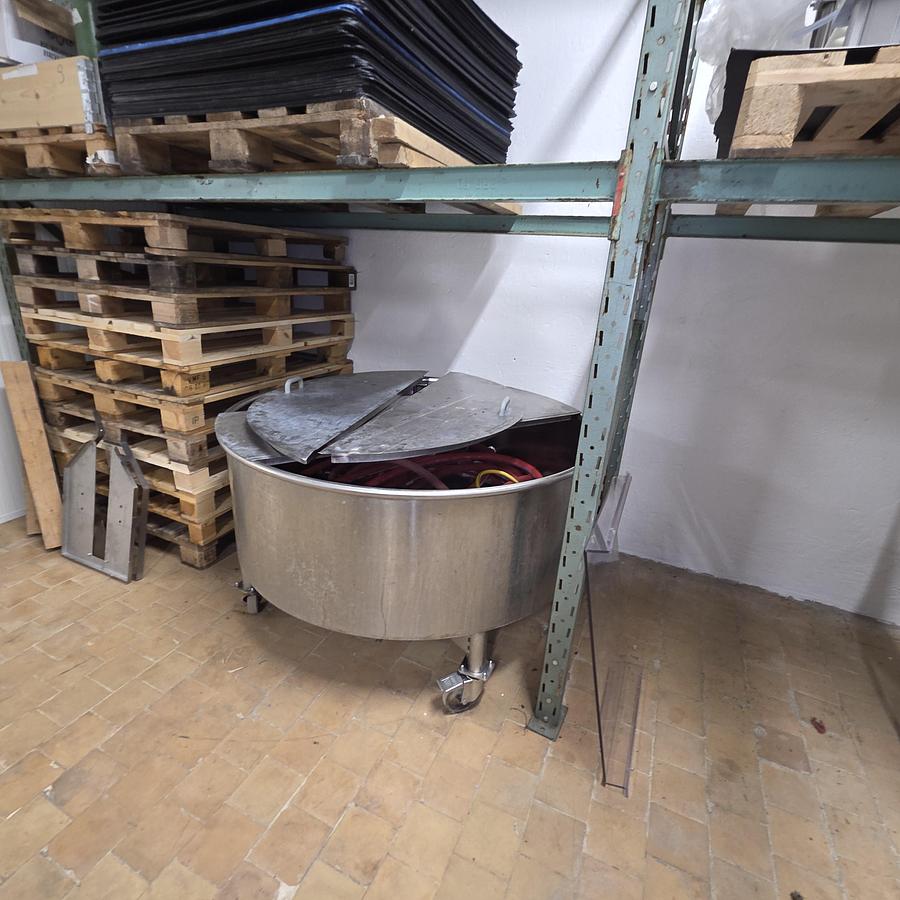

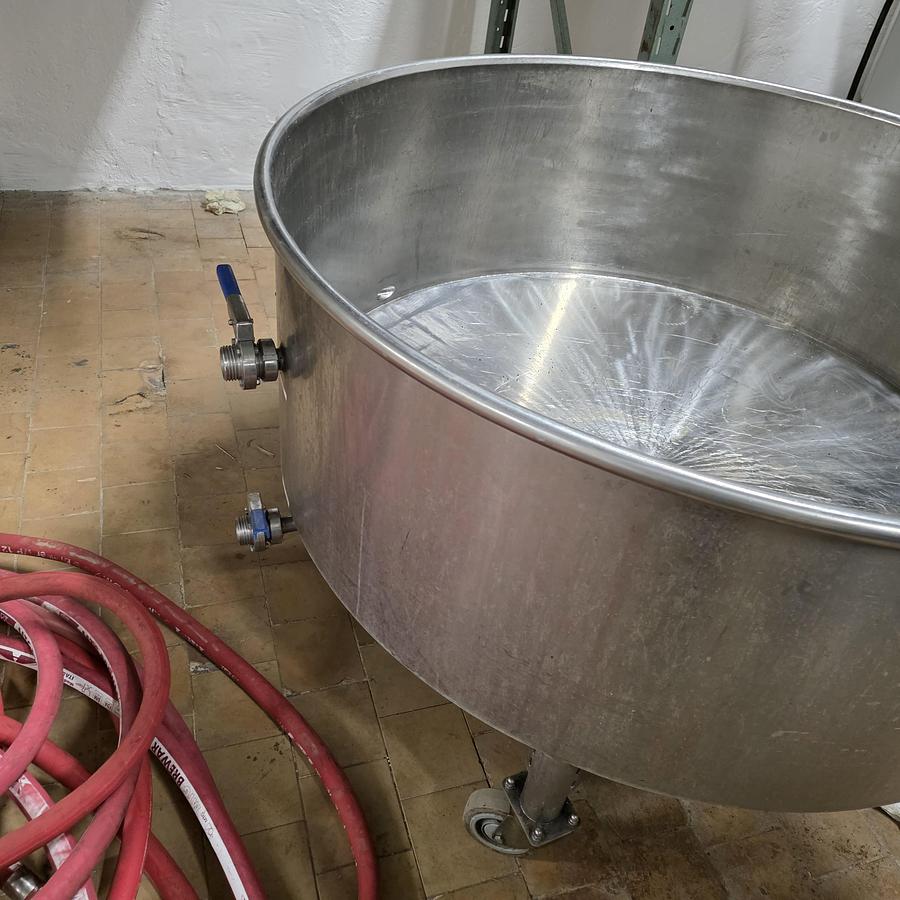

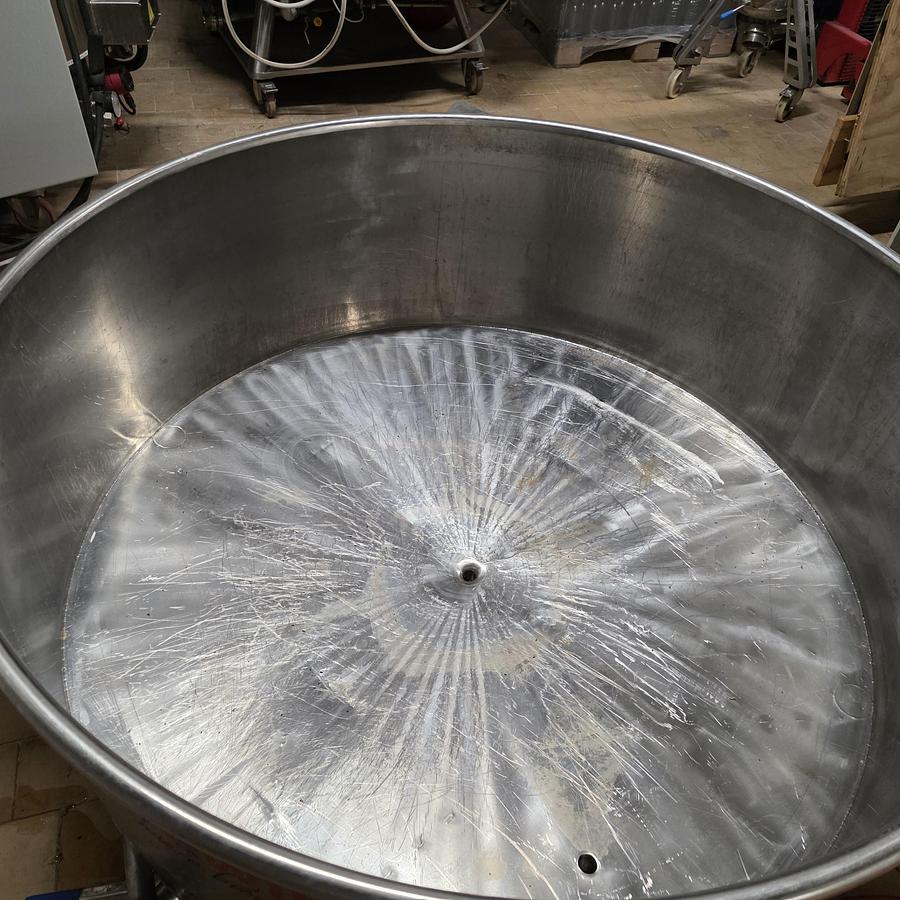

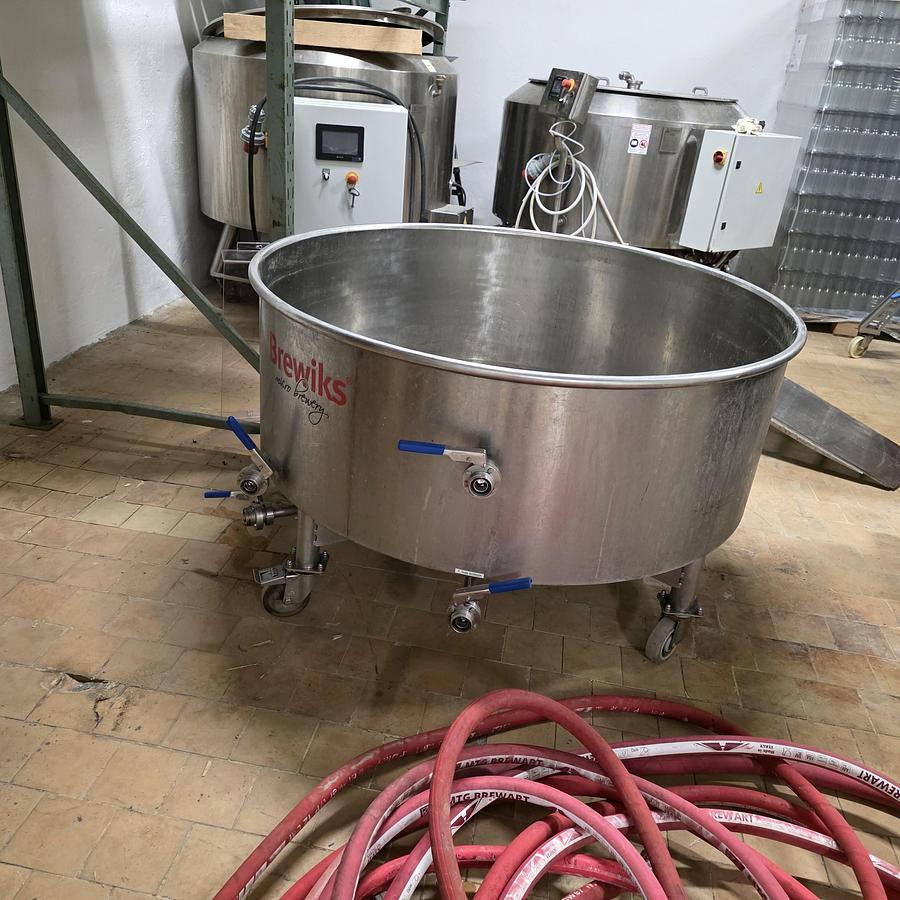

Lauter Tun - Included Equipment

• Whirlpool
• Sparge nozzle
• Valves and connections
• Stand on wheels
• Set of hygienic hoses (5 m, 3 m, 2 m) with hygienic fittings
• Connection to external hot water system

Technical Specifications

• Mash tun weight: 550 kg
• Mash tun dimensions (L x W x H): 1.7 m x 1.7 m x 1.6 m
• Maximum mash tun volume: 730 litres
• Average malt quantity per brew: 190 kg
• Standard connection power: 40 kW
• Lauter tun weight: 100 kg
• Lauter tun dimensions (L x W x H): 1.5 m x 1.5 m x 0.8 m
• Maximum lauter tun volume: 840 litres
