2003 Heiche Complete Aluminium Surface Treatment Line

2003 Heiche Complete Aluminium Surface Treatment Line

Contact us for price

Location:Leipzig, Germany

Description

Manufacturer: Heiche Sachsen GmbH & Co. KG, Leisnig, Germany

Model: HEIS05

Year of manufacture: 2003

Major refurbishment: 2013 to 2018

Status: Fully operational

Control system: Siemens S7-300

Operating software: Ditec

Operating modes: Manual, jog, and fully automatic


Technical Specifications

  • Max. workpiece window: 2,200 x 700 x 350 mm
  • Max. workpiece carrier weight: 750 kg
  • Coating material: Aluminium
  • Noise level: below 85 dB(A)
  • Overall dimensions (L x W x H): 15,000 x 3,000 x 4,000 mm
  • Number of baths: 24
  • Number of dryers: 2
  • Number of loading/unloading stations: 2

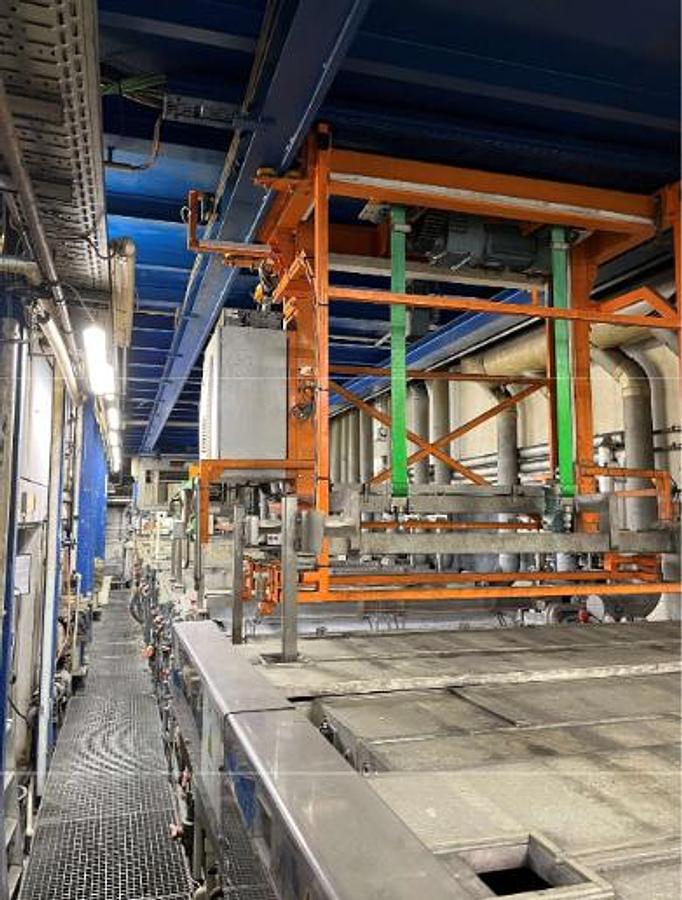

  • Transport system: 2 carriages


Electrical and Utilities Data

  • Supply voltage: 3-phase 230/400 V / 50 Hz
  • Control voltage: 24 V DC
  • Total installed power: 190 kW
  • Total fuse protection: 224 A
  • Pneumatic pressure: 7.5 bar
  • City water consumption: 150 l/h
  • Demineralised water consumption: 150 l/h at 2.5 bar
  • Hot water supply: 85 degrees C, 95 kW, 1.5 bar

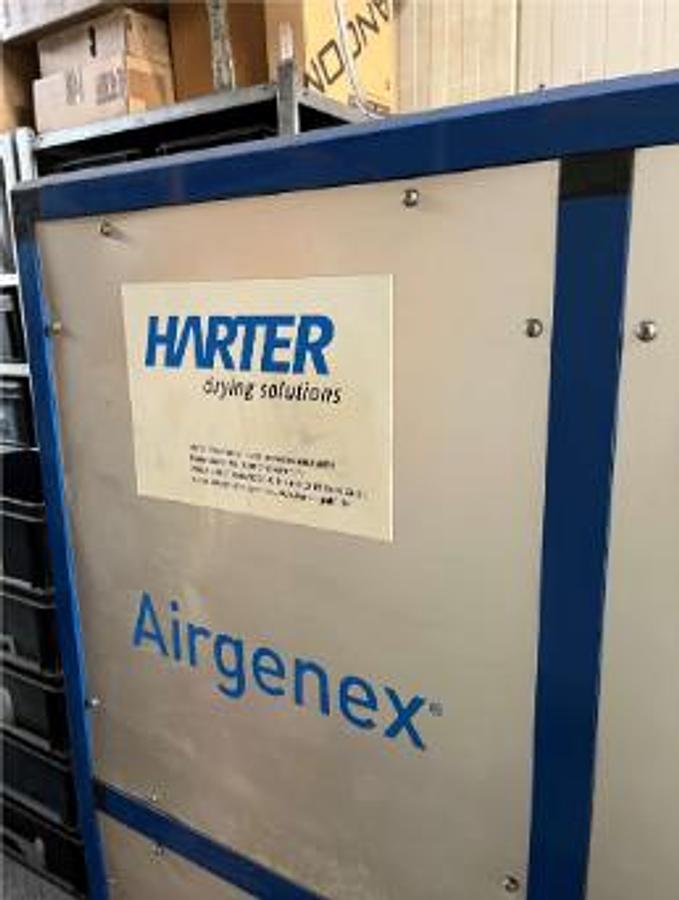

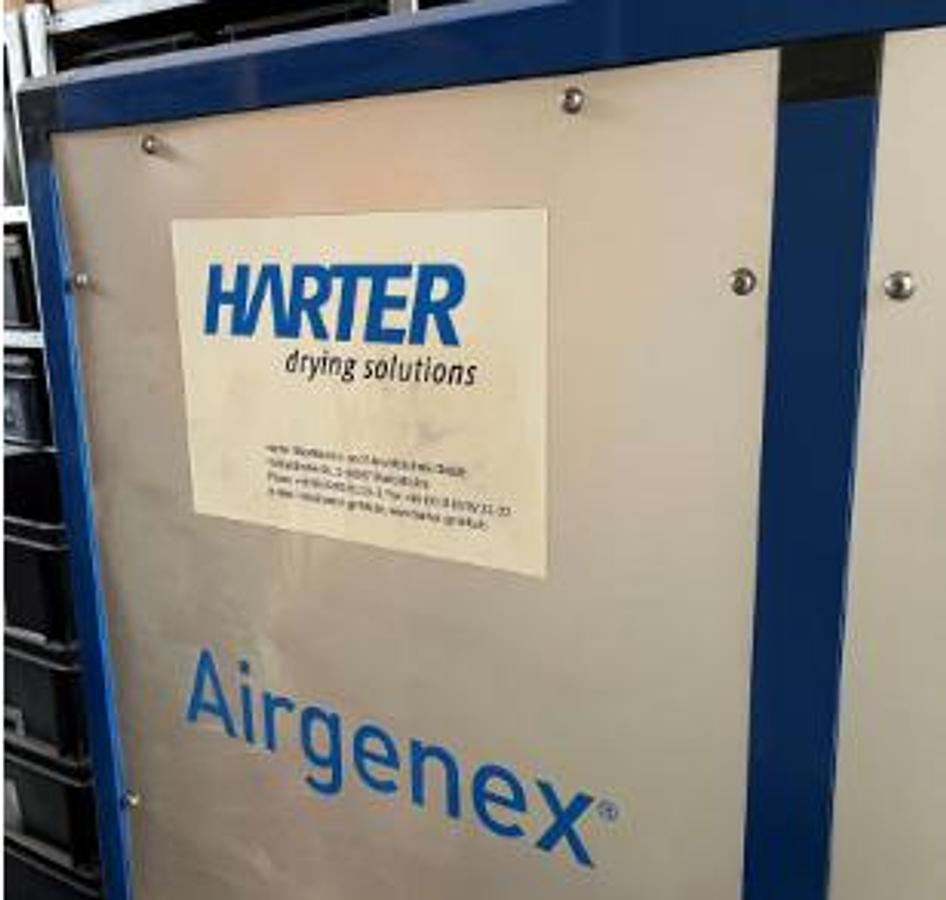

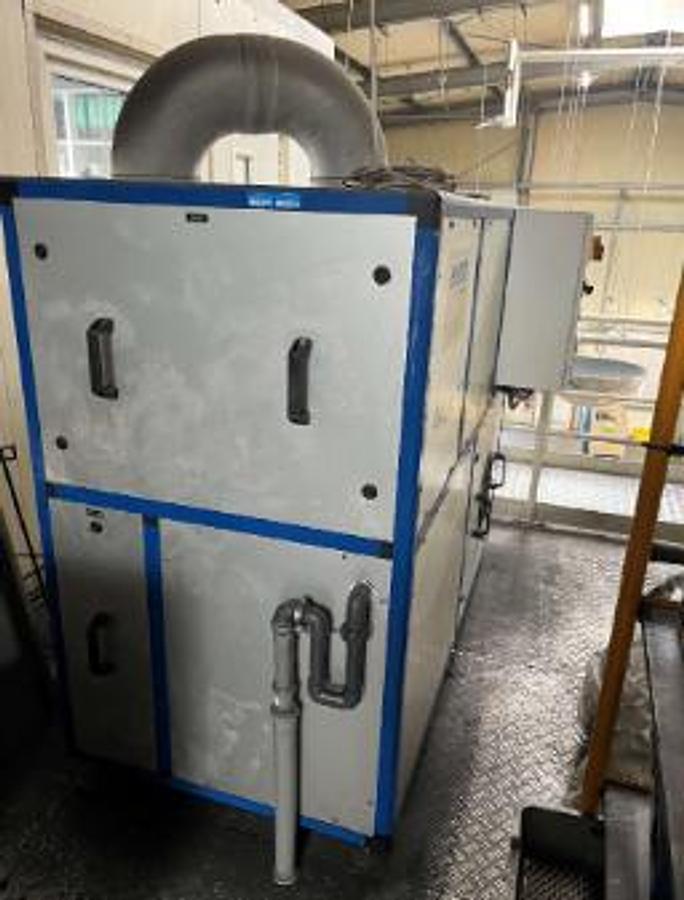

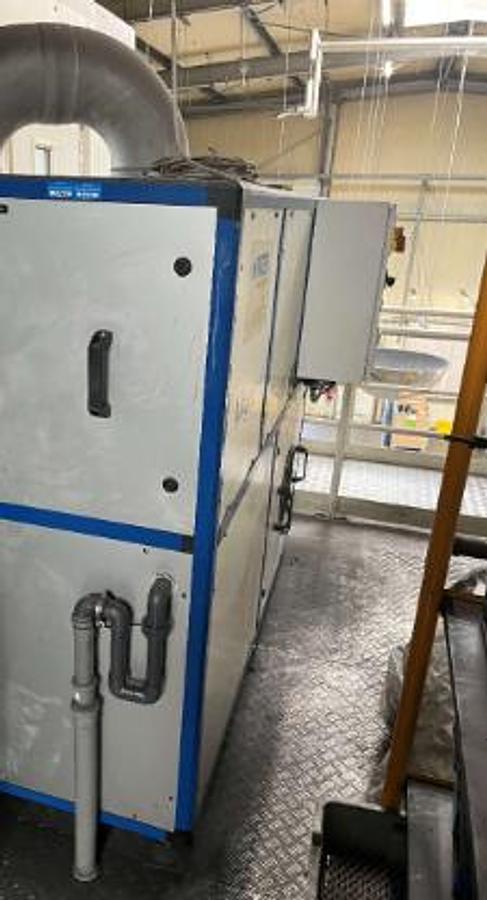

Harter Airgenex Dryer

  • Model: Airgenex 6.000
  • Year: 2016
  • Power: 6.41 kW
  • Voltage: 230/400 V / 50 Hz
  • Air volume flow: 2,000 m3/h
  • Refrigerant: R134a
  • Weight: 650 kg


Complete Package Includes

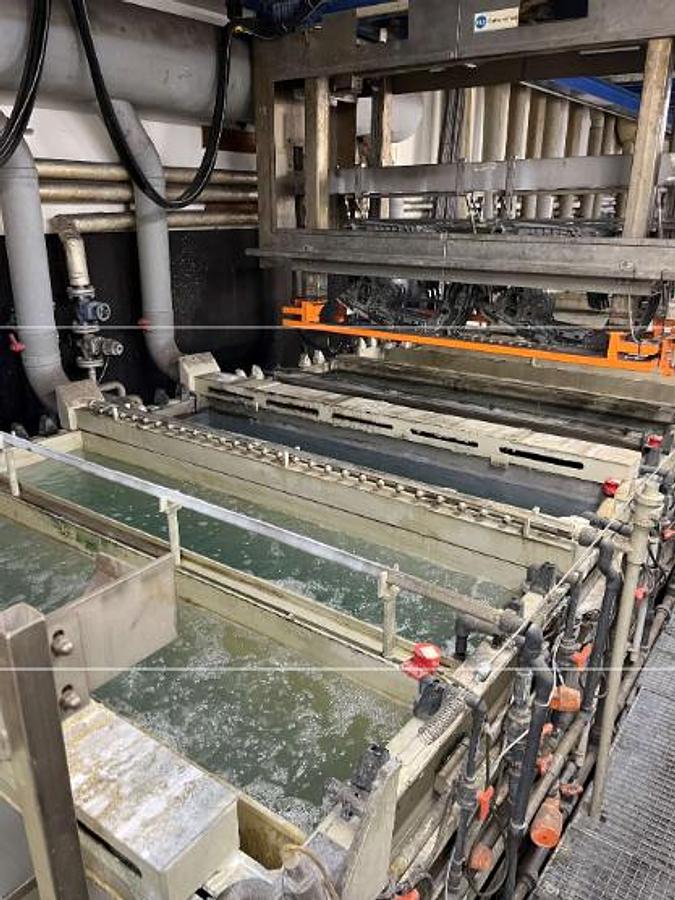

  • Dip bath line with 24 baths

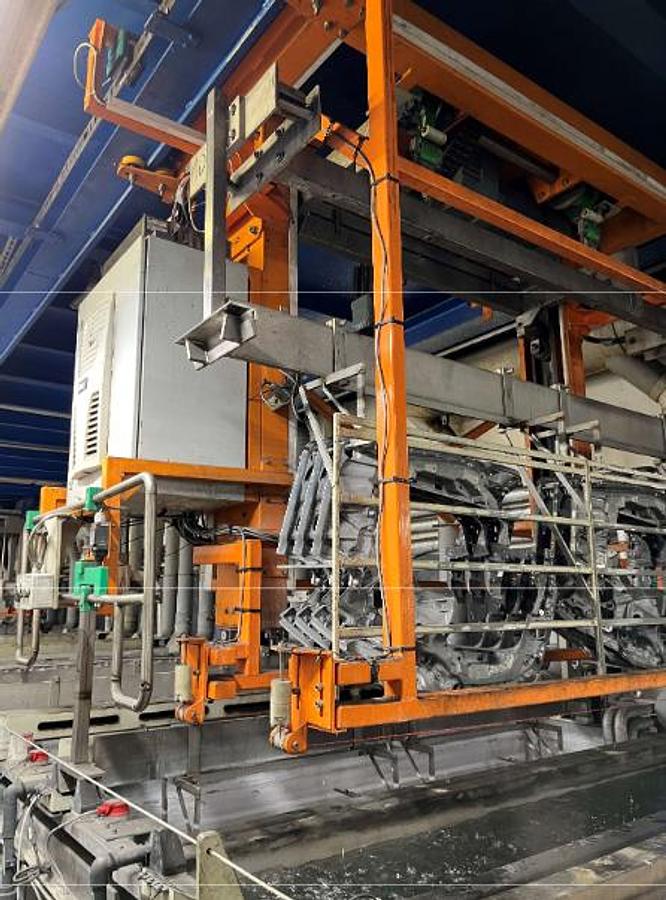

  • 2 transport carriages
  • 2 loading and unloading stations
  • 2 dryers
  • 1 Harter Airgenex 6.000 dryer unit
  • Control cabinets and operator panel

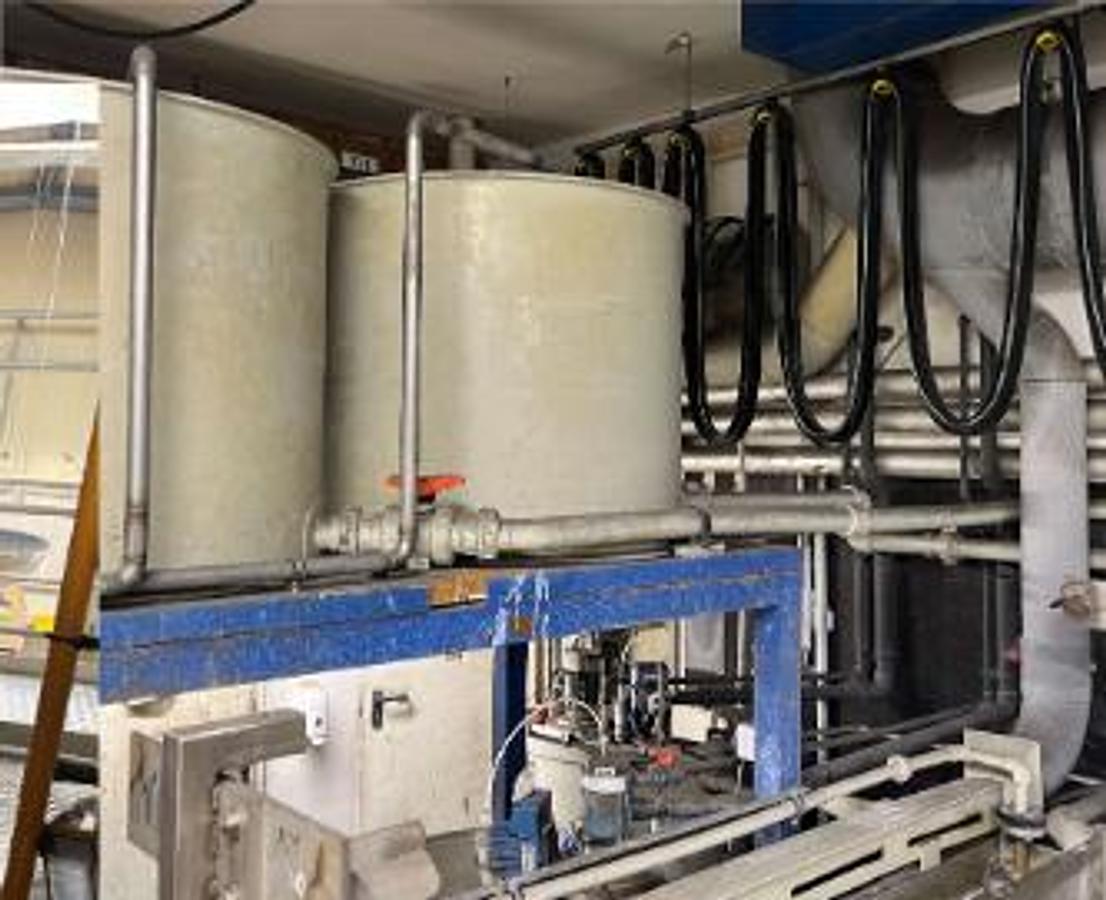

  • 1 supply tank (0.4 m3) for exhaust air scrubber
  • 1 exhaust air scrubber
  • 4 oil separators

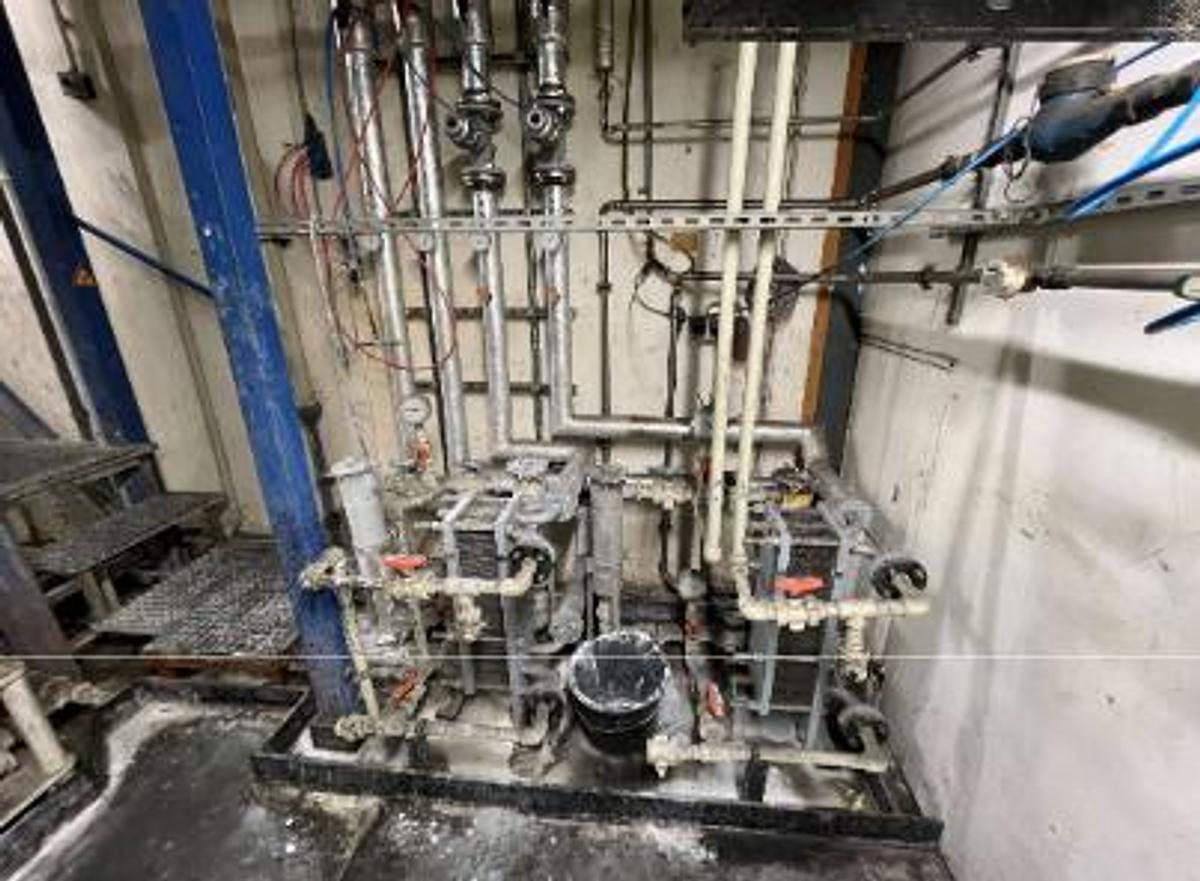

  • Various pumps, filters, and pipework

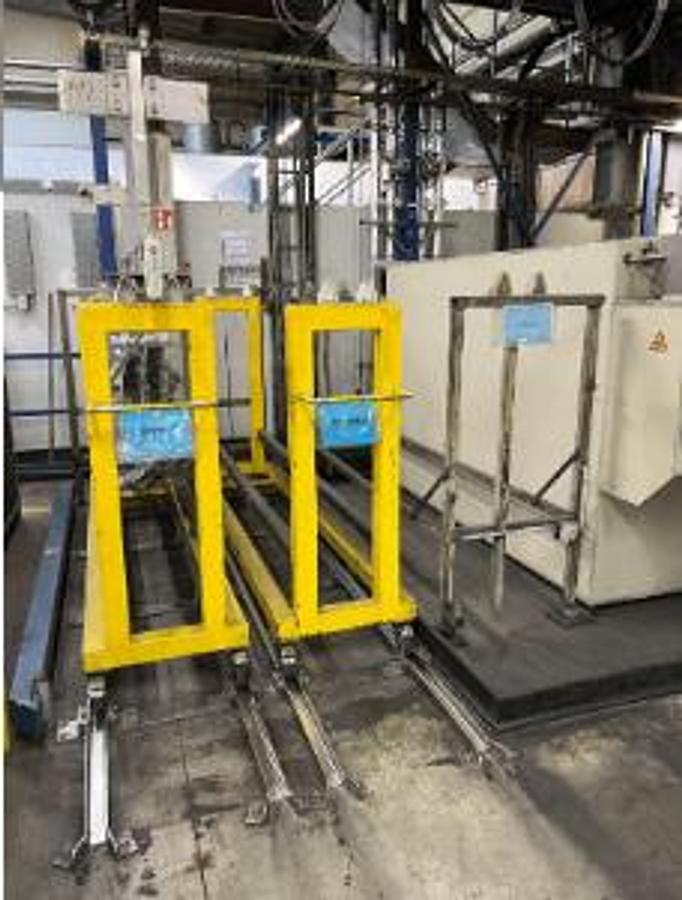

  • 20 rack trolleys
  • 20 product racks

Refurbishment Works Carried Out 2013 to 2018

  • Bath line extended and partially renewed
  • Second transport carriage installed
  • Harter Airgenex dryer installed
  • Process filter technology renewed

Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerHeiche
ModelHEIS05
Year2003
ConditionUsed
Stock Number758123
