2015 Longitudinal Beam Welding System

2015 Longitudinal Beam Welding System

Contact us for price

Location:Münster, Germany

Description

We are offering for sale a complete used longitudinal beam welding line, comprising the following equipment:

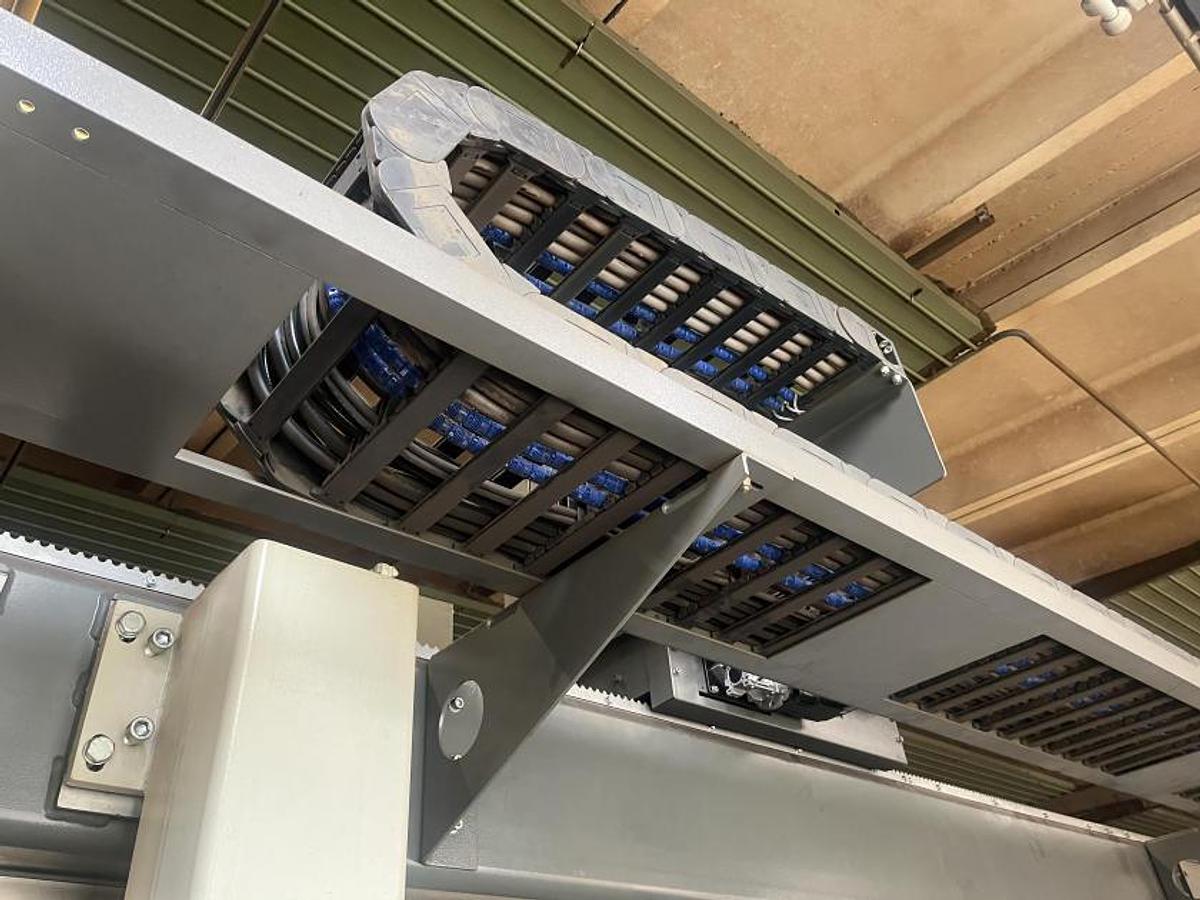

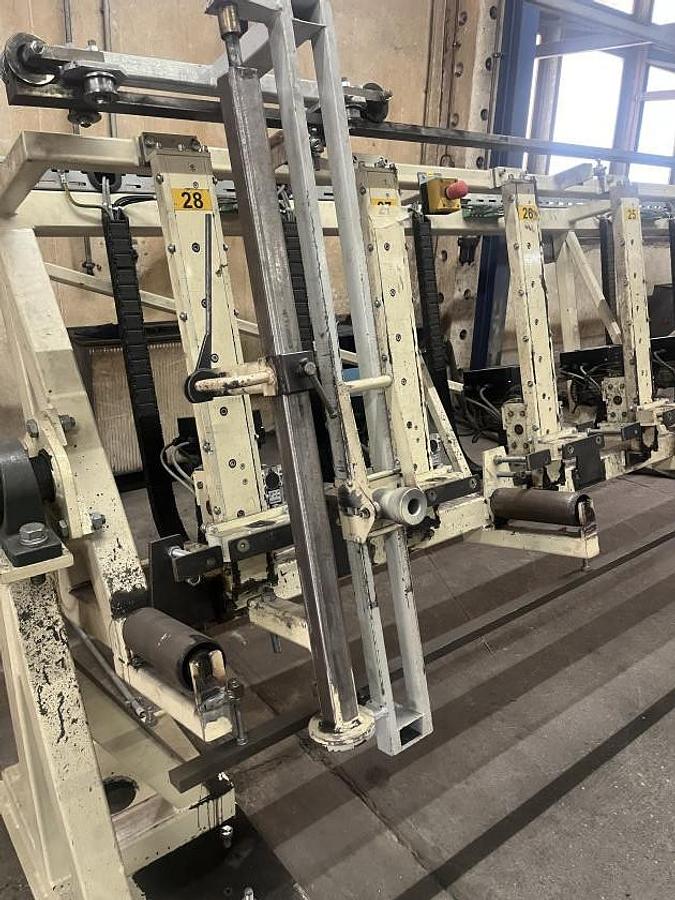

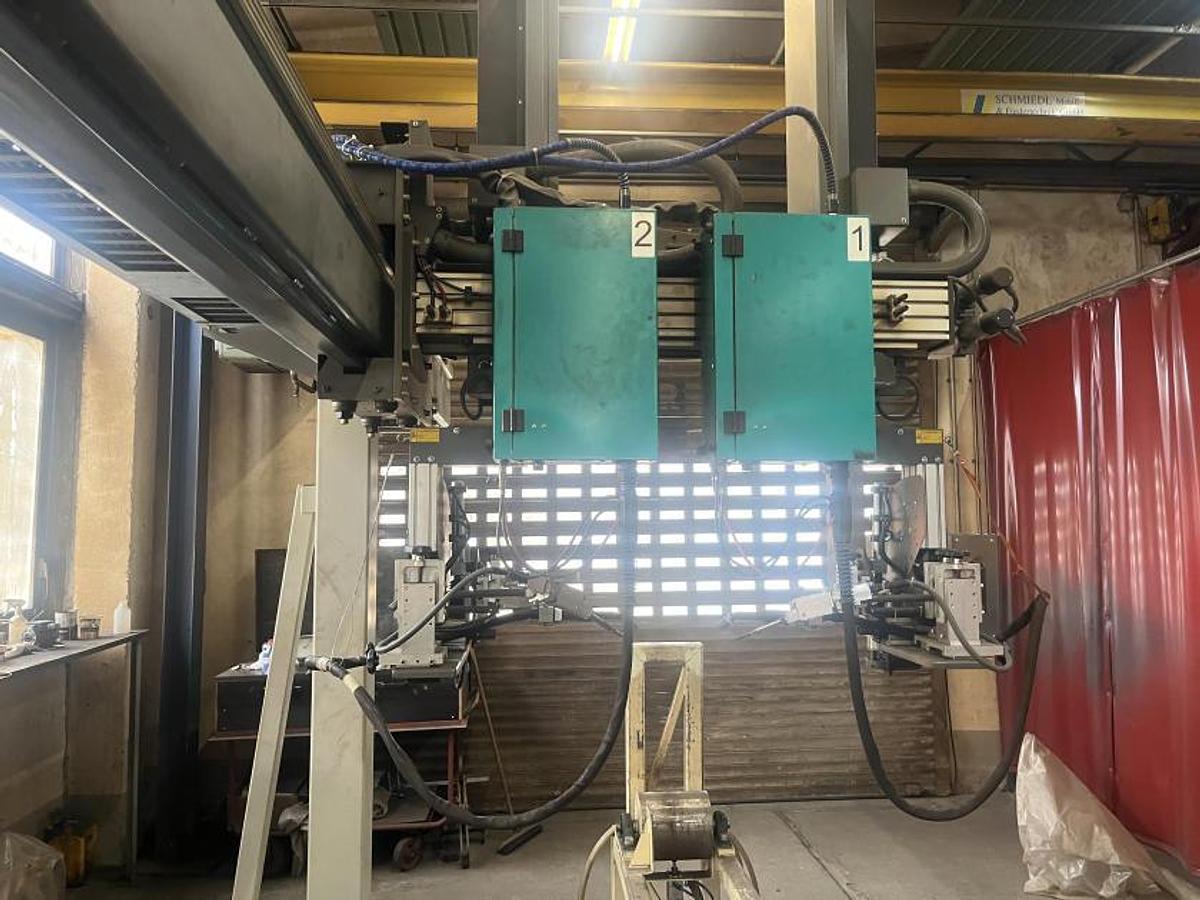

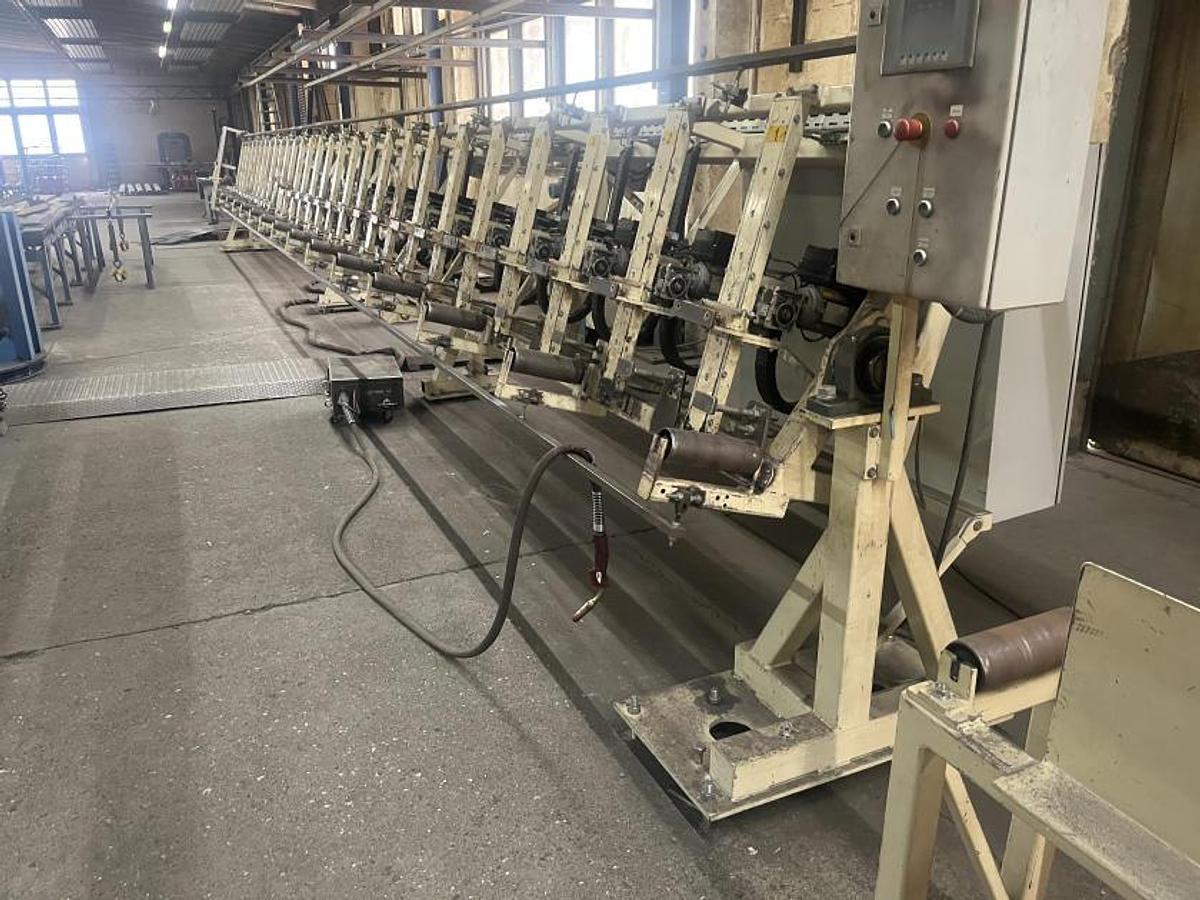

MACHINE 1 - TACK WELDING DEVICE

  • Manufacturer: Wehling
  • Type: Heftvorrichtung Langsträger
  • Year of Construction: 2015
  • Power: 0.25 kW + 28 x 0.06 kW
  • CE Marked: Yes

Technical Specifications:

  • Maximum beam length: 13,700 mm
  • Beam height range: 70 to 500 mm
  • Flange width: 150 mm and 120 mm (after conversion)
  • Flange thickness: 5 to 20 mm
  • Web plate thickness: 5 mm (to DIN 2768-1 tolerances)
  • Tack position: trough position, 45 degrees
  • Changeover time per beam pair: max. 10 minutes
  • Total unit length: 14,300 mm

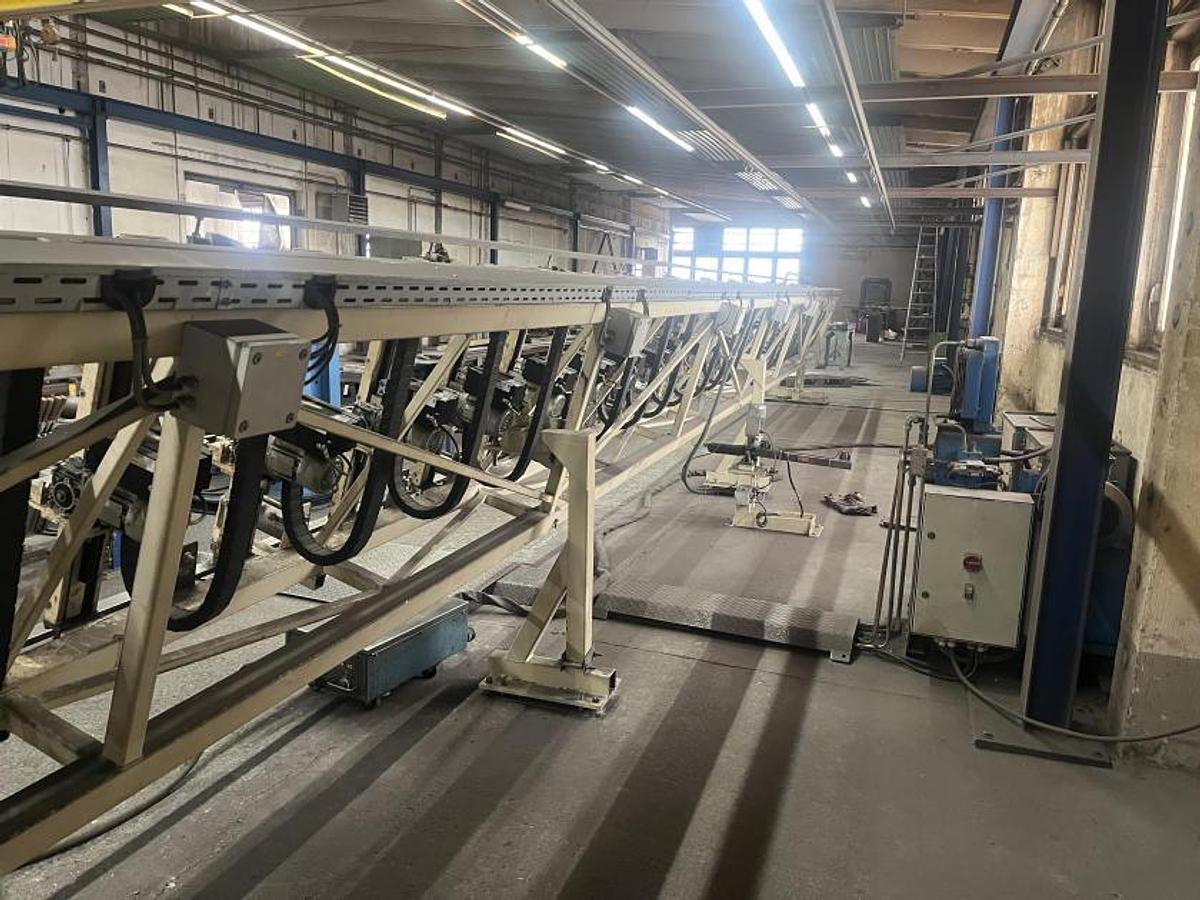

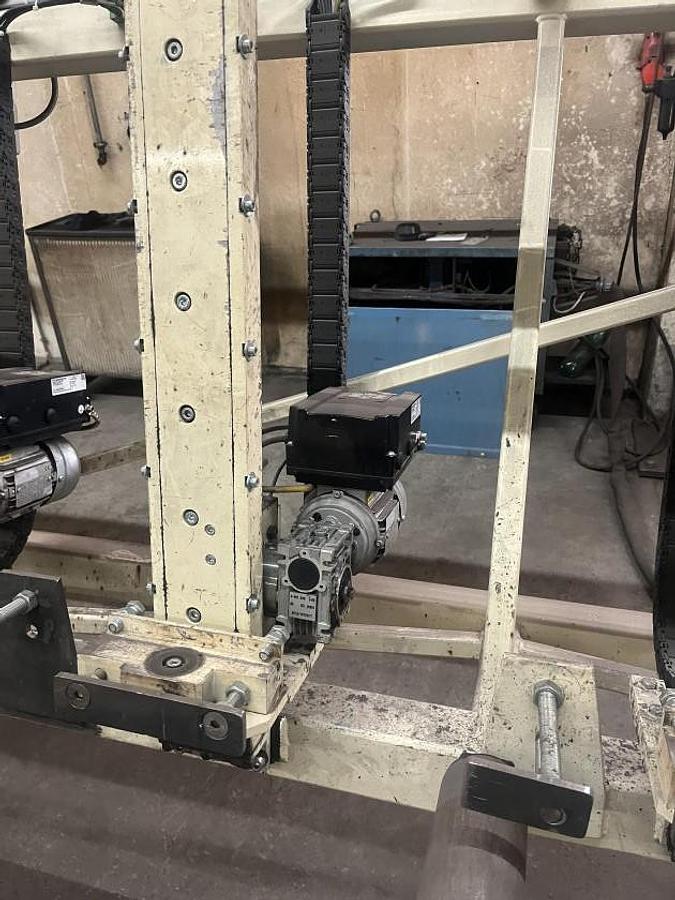

  • 28 servo motors for individual height adjustment of beam supports
  • Rotatable base frame: 0 to 45 degrees
  • Permanent magnet clamping of the top flange

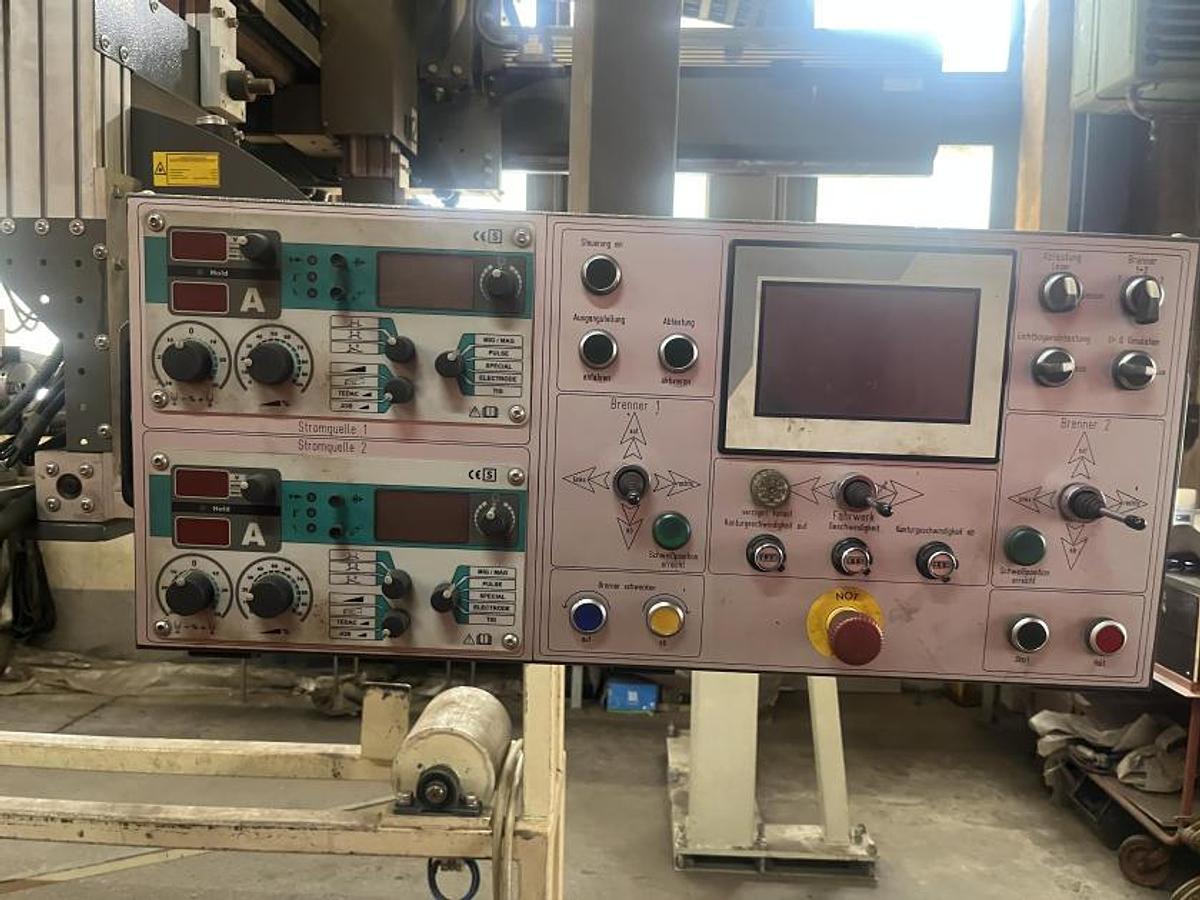

  • Siemens S7 control system

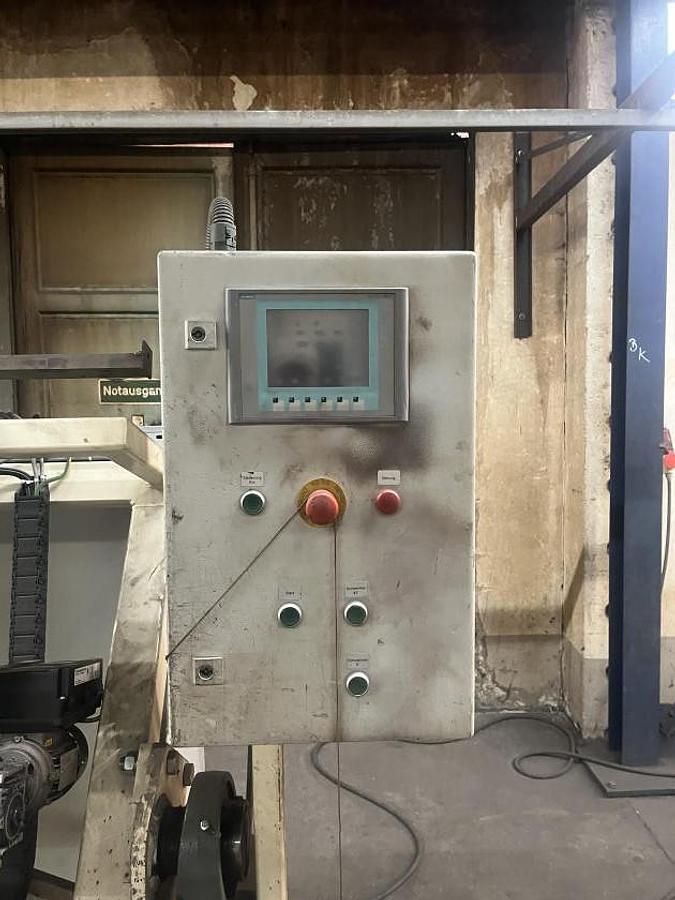

  • Touch screen operator interface
  • NC axis with programmable software switch positions
  • Compatible beam profiles: I-beams, double-T beams, longitudinal vehicle carriers
  • Compatible materials: S355MC, S420MC, S690QL

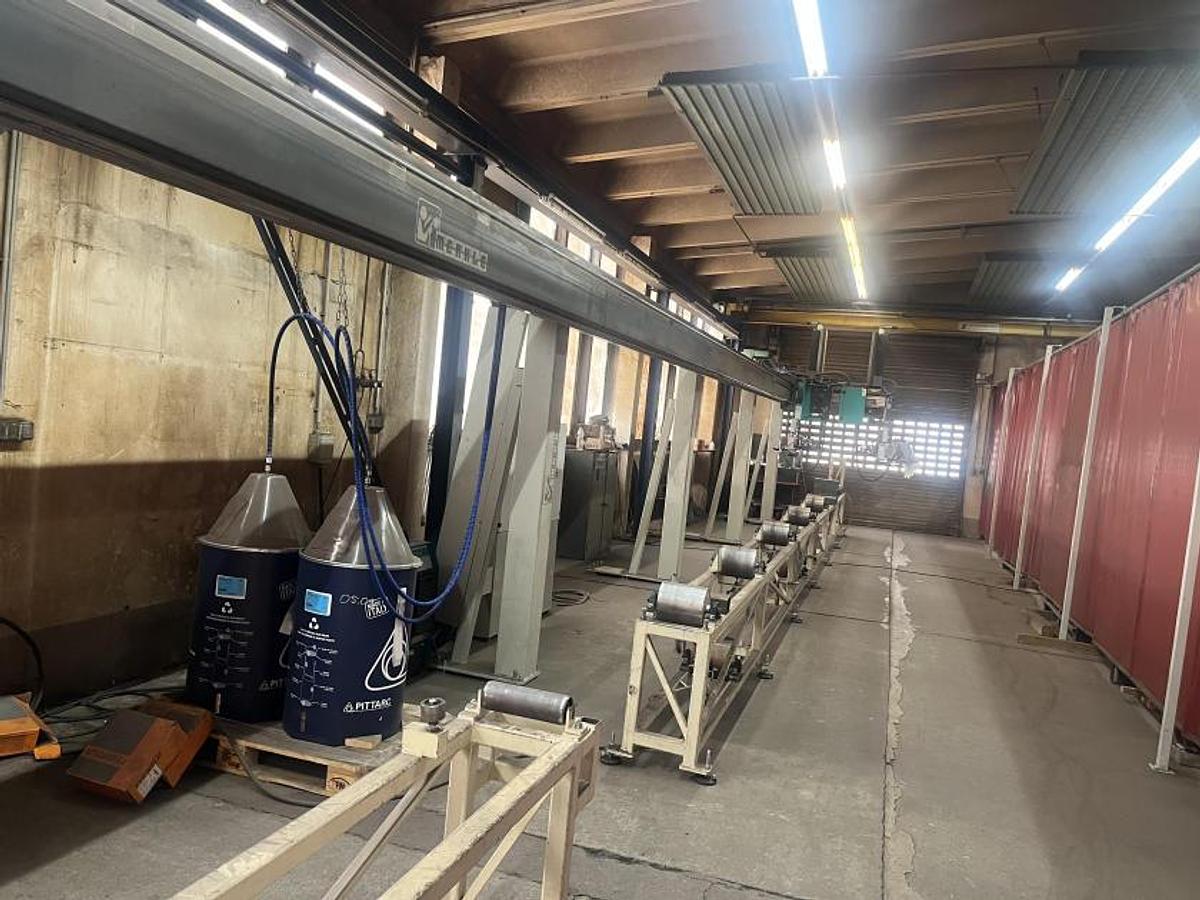

MACHINE 2 - ROLLER CONVEYORS / COOLING AND BUFFER

STATIONS

  • Manufacturer: Wehling
  • Year of Construction: 2015

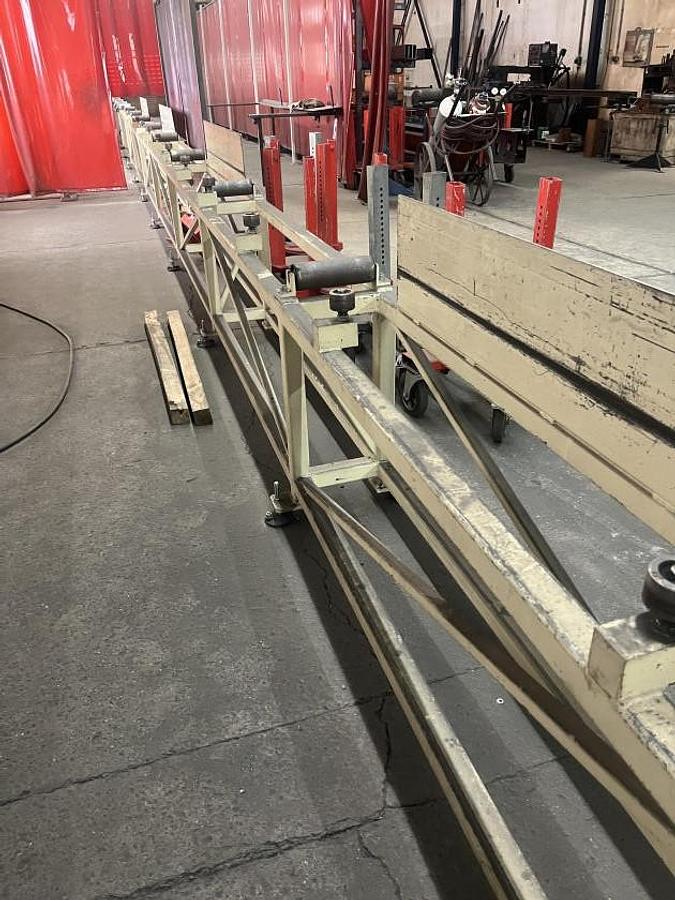

  • Buffer/Infeed Roller Conveyor:
  • Total length: approx. 15,180 mm
  • Roller spacing: 1,870 mm
  • Roller diameter: 80 mm
  • Roller length: 245 mm
  • Roller conveyor height (top of rollers to floor): 800 mm
  • Rollers mounted at an angle for guided beam transfer
  • Guide rollers on rear side
  • Swiveling end stop, self-closing after beam removal

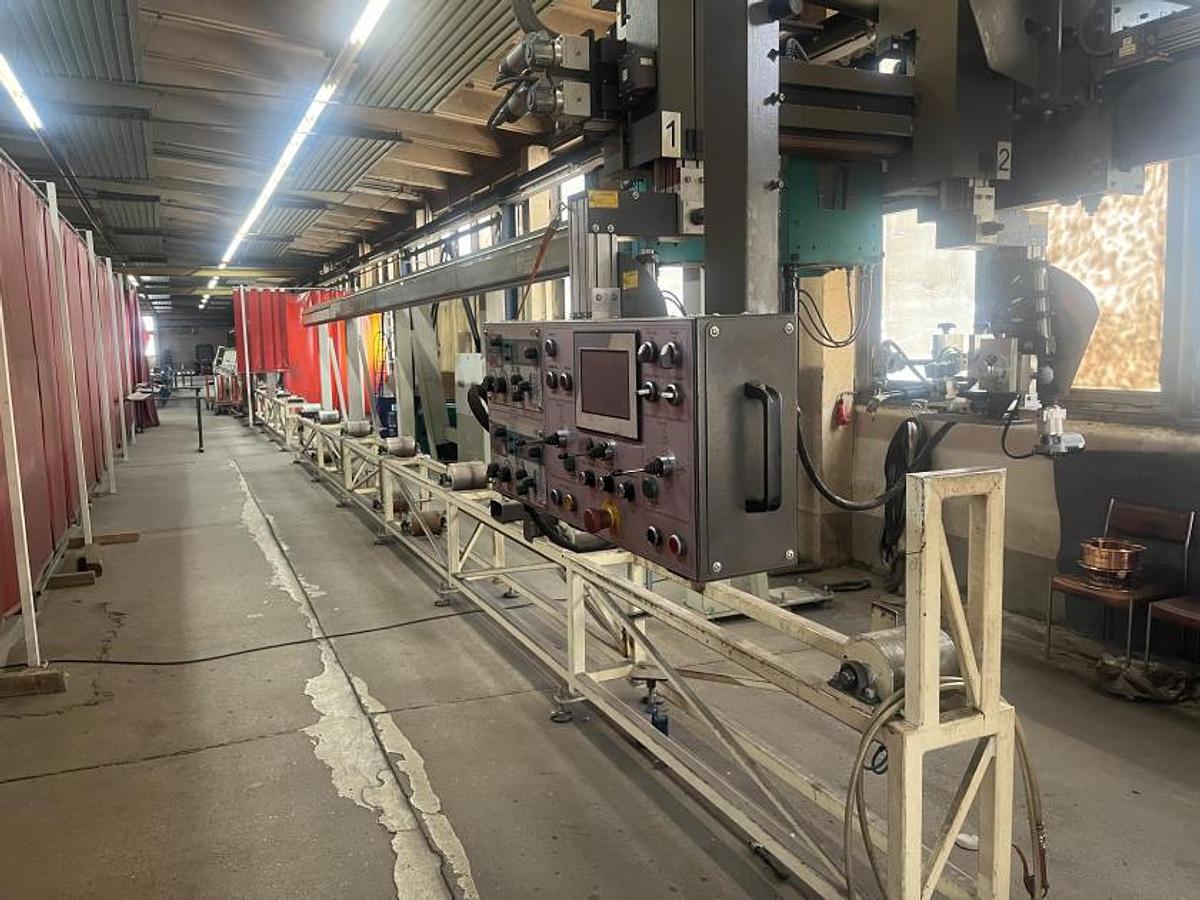

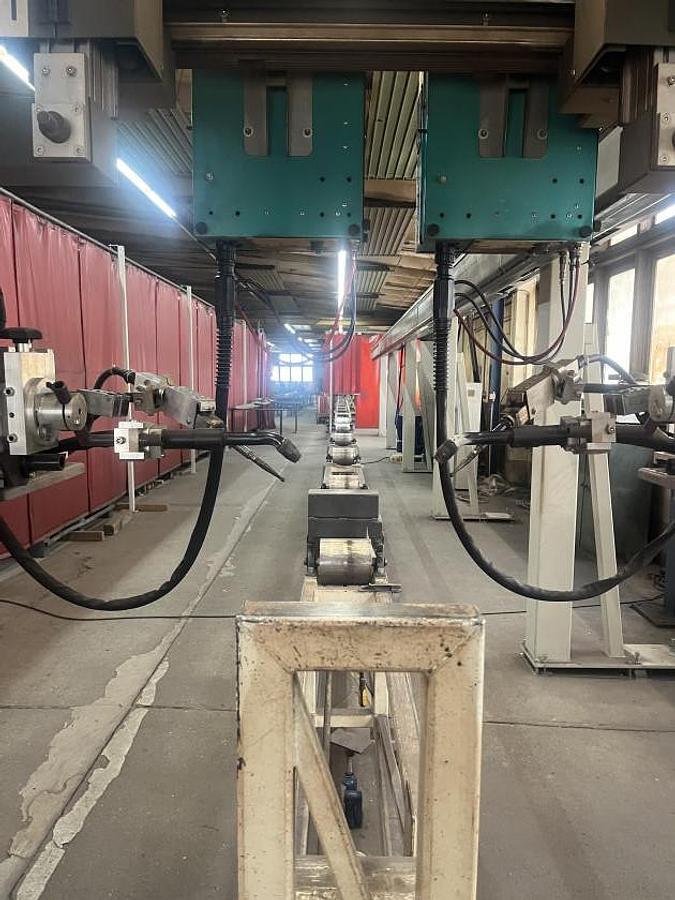

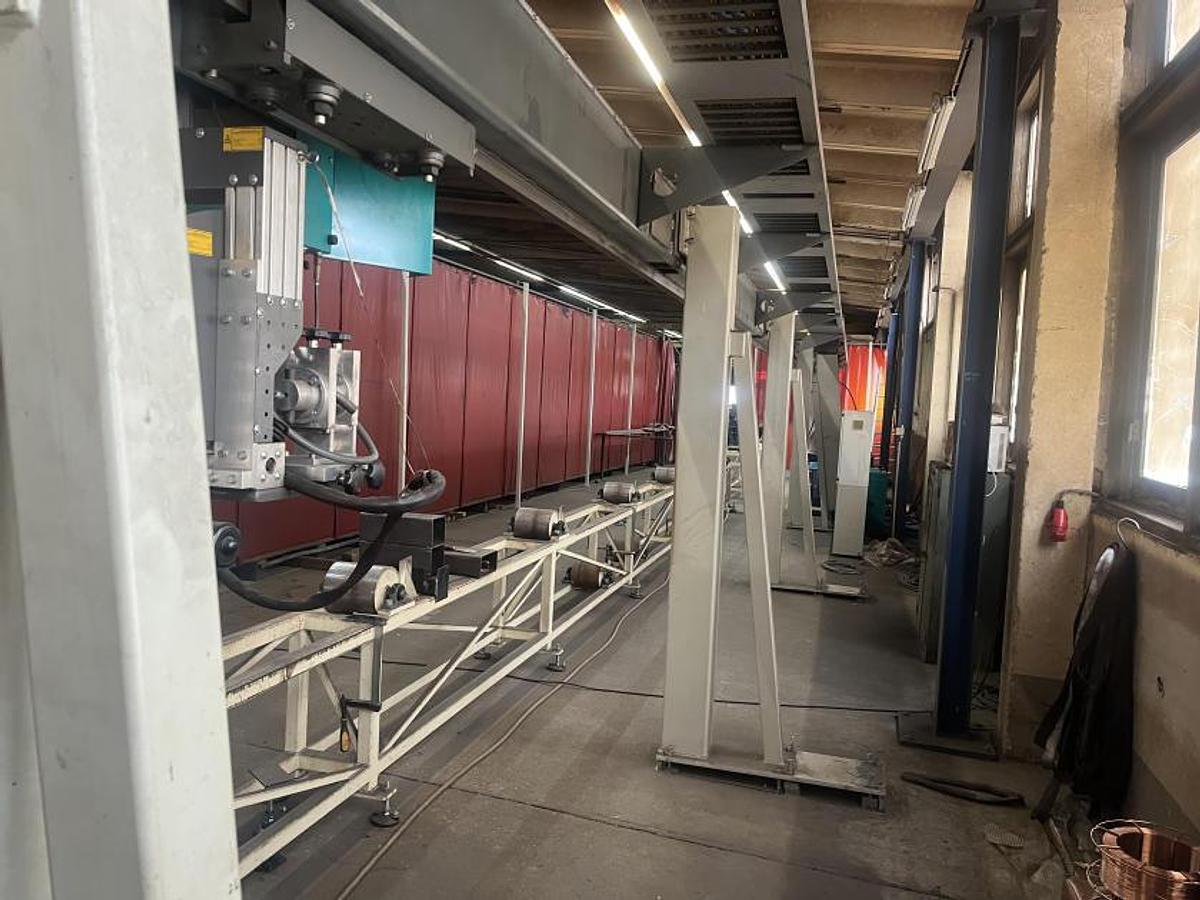

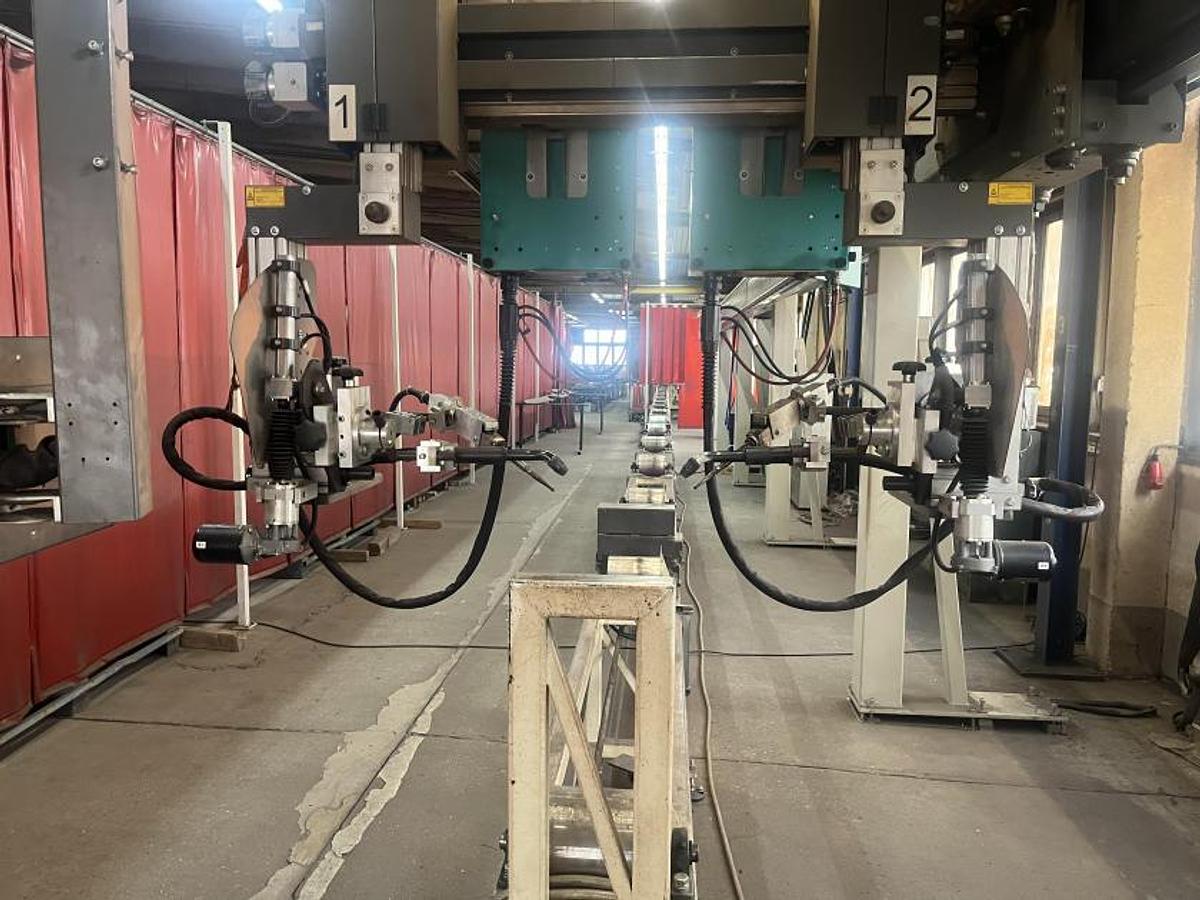

  • Welding Station Roller Conveyor:
  • Total length: 18,055 mm (two separate conveyors joined by profiles)
  • Roller conveyor 1 length: 12,060 mm
  • Roller conveyor 2 length: 4,395 mm
  • Spacing between the two conveyors: 1,600 mm (for wire drum access)
  • Roller spacing: max. 2,000 mm
  • Roller width: 220 mm
  • Roller diameter: 200 mm
  • Steel bearing housings
  • Roller conveyor height (top of rollers to floor): 800 mm
  • Central braking system for all rollers
  • End stop height: 420 mm above roller top, width 260 mm

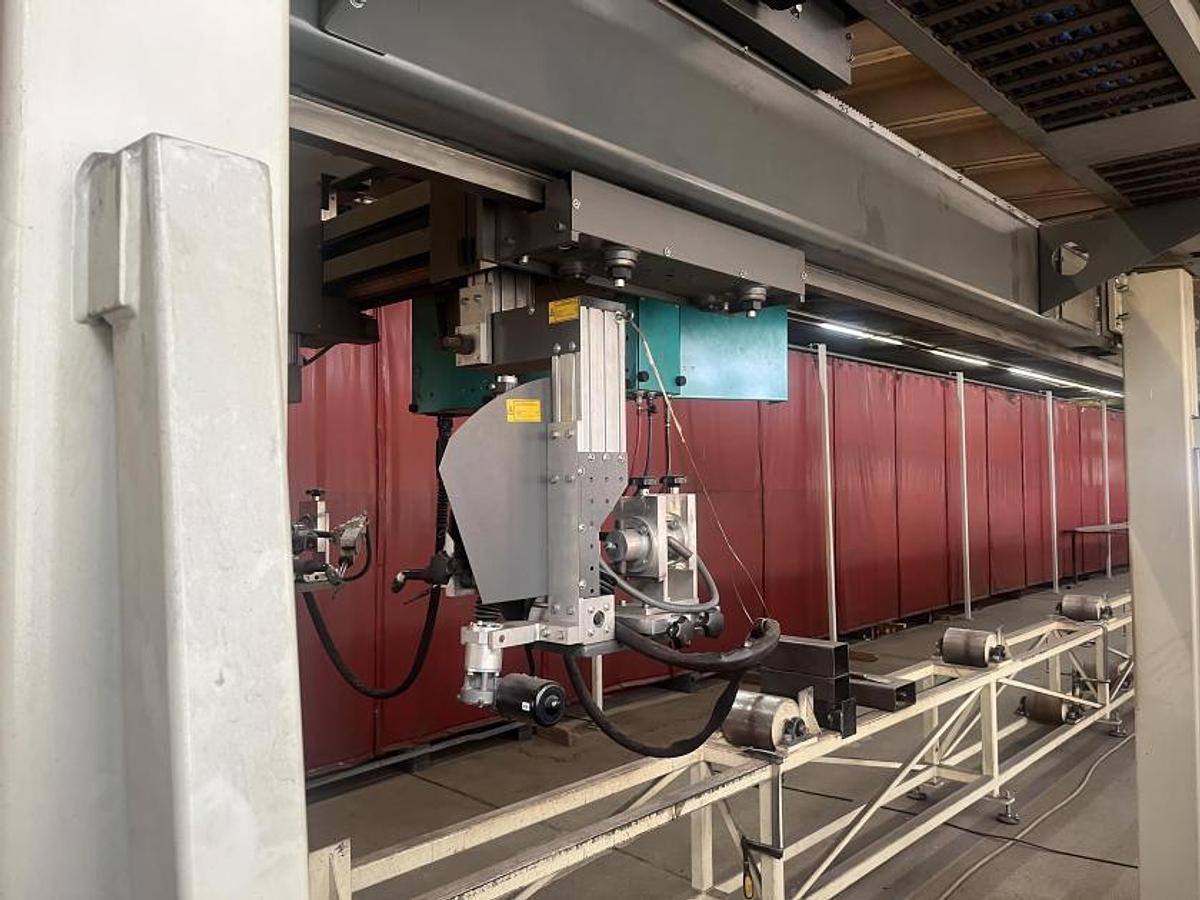

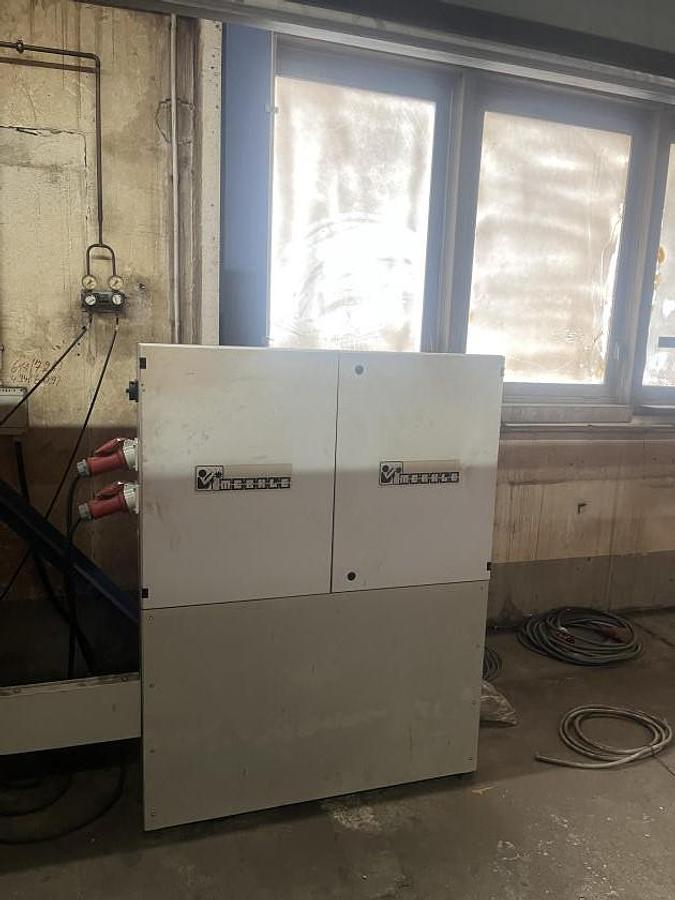

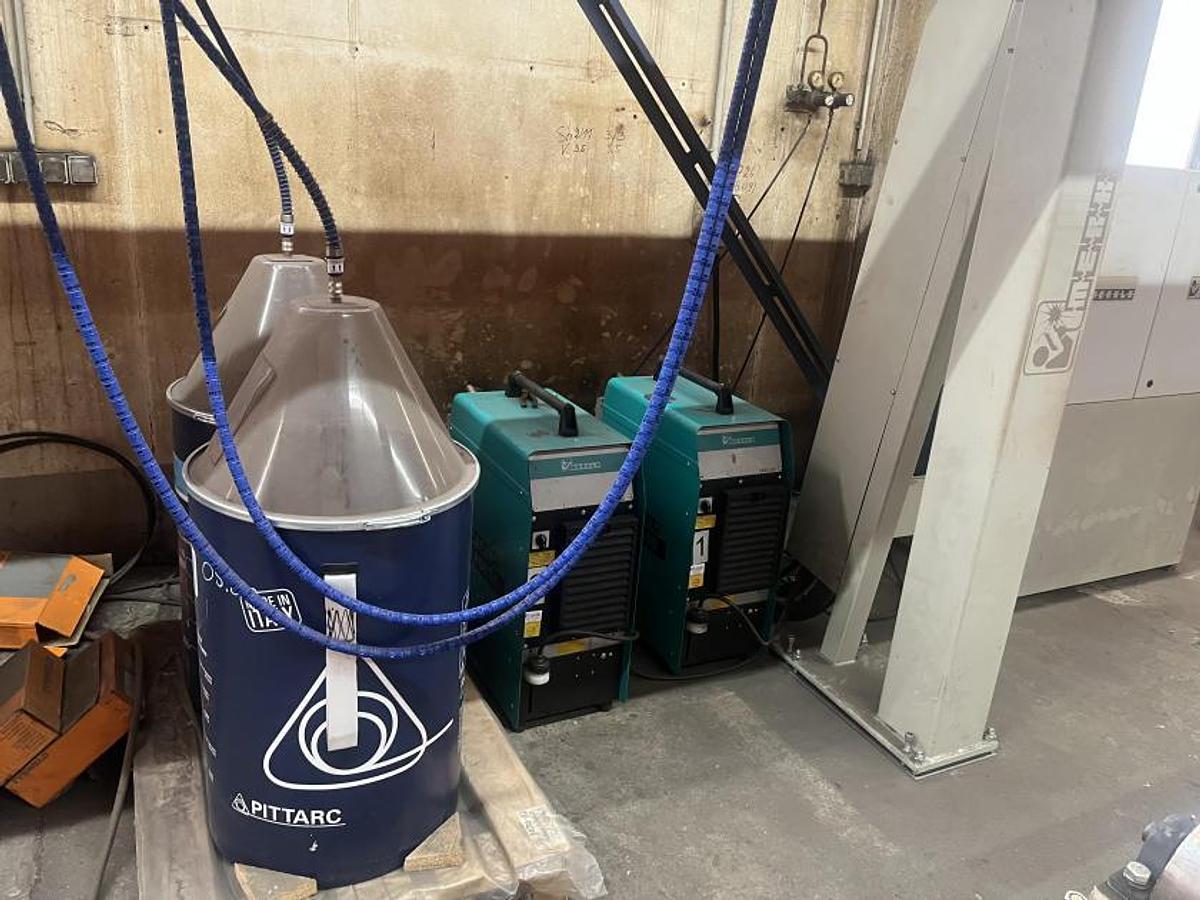

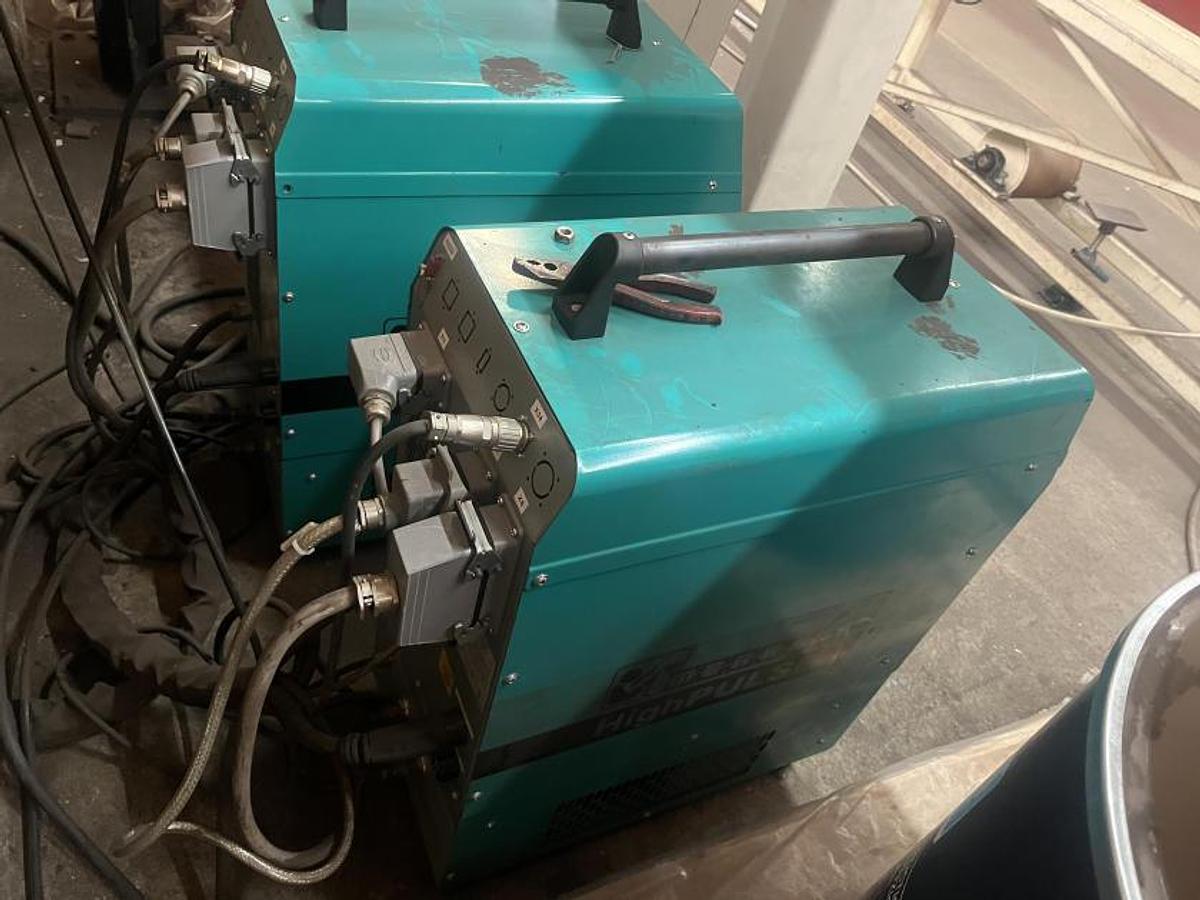

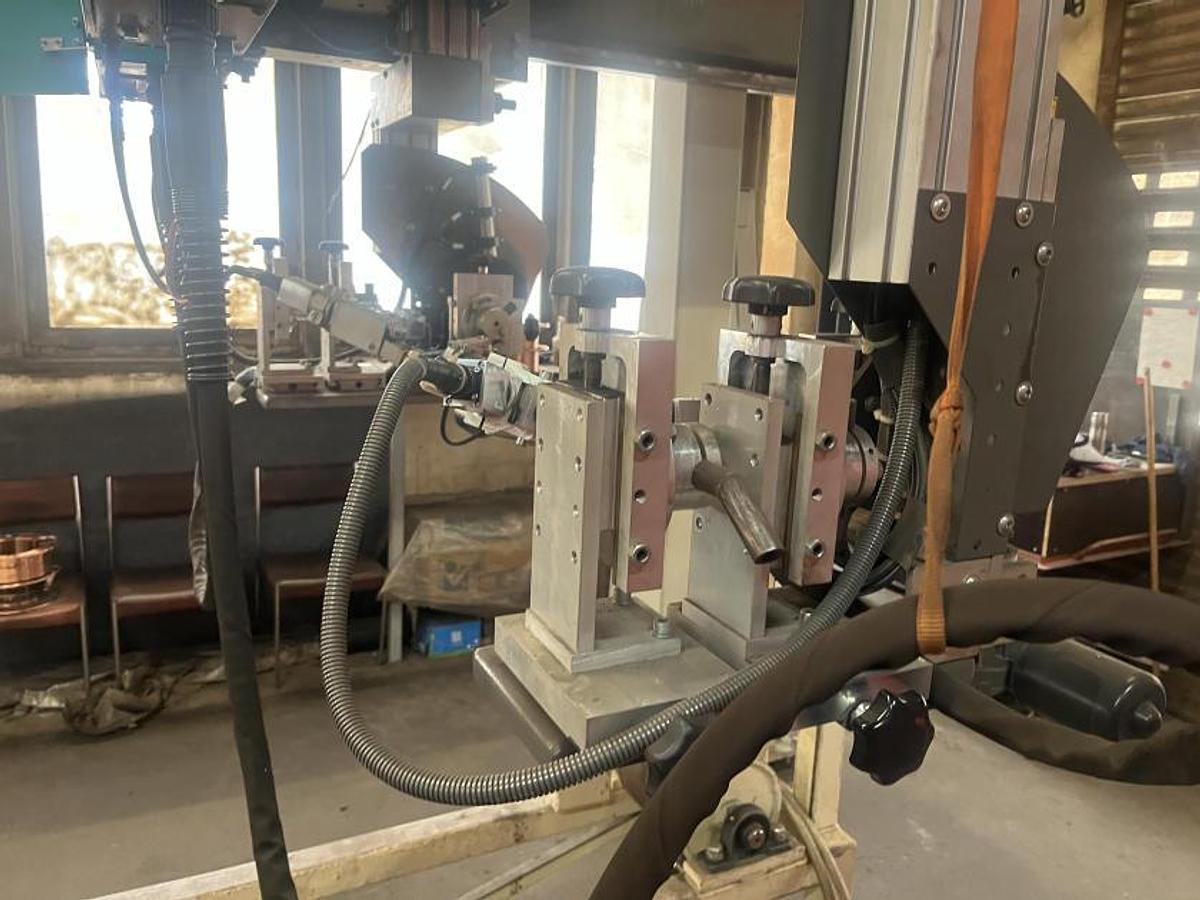

MACHINE 3 - MERKLE HIGHPULSE 551 RS WELDING MACHINE

  • Manufacturer: Merkle
  • Type: HighPulse 551 RS
  • Year of Construction: 2015
  • Standard: EN 60974-1 / VDE 0544
  • Made in Germany
  • Electrical Data:
  • Supply voltage: 3-phase, 400 V
  • Fuse: T 35 A
  • Power factor (cos phi): 0.98
  • Open circuit voltage: 72 V
  • Welding Output (at 40 degrees C ambient):
  • At 40% duty cycle: 550 A / 41.5 V - primary current 45 A - power 31.1 kVA
  • At 60% duty cycle: 470 A / 37.5 V - primary current 37 A - power 25.6 kVA
  • At 100% duty cycle: 400 A / 34 V - primary current 28 A - power 19.3 kVA
  • Welding current range: 30 A / 15 V to 550 A / 41.5 V
  • Cooling: Air-cooled (AF)
  • Protection class: IP 23

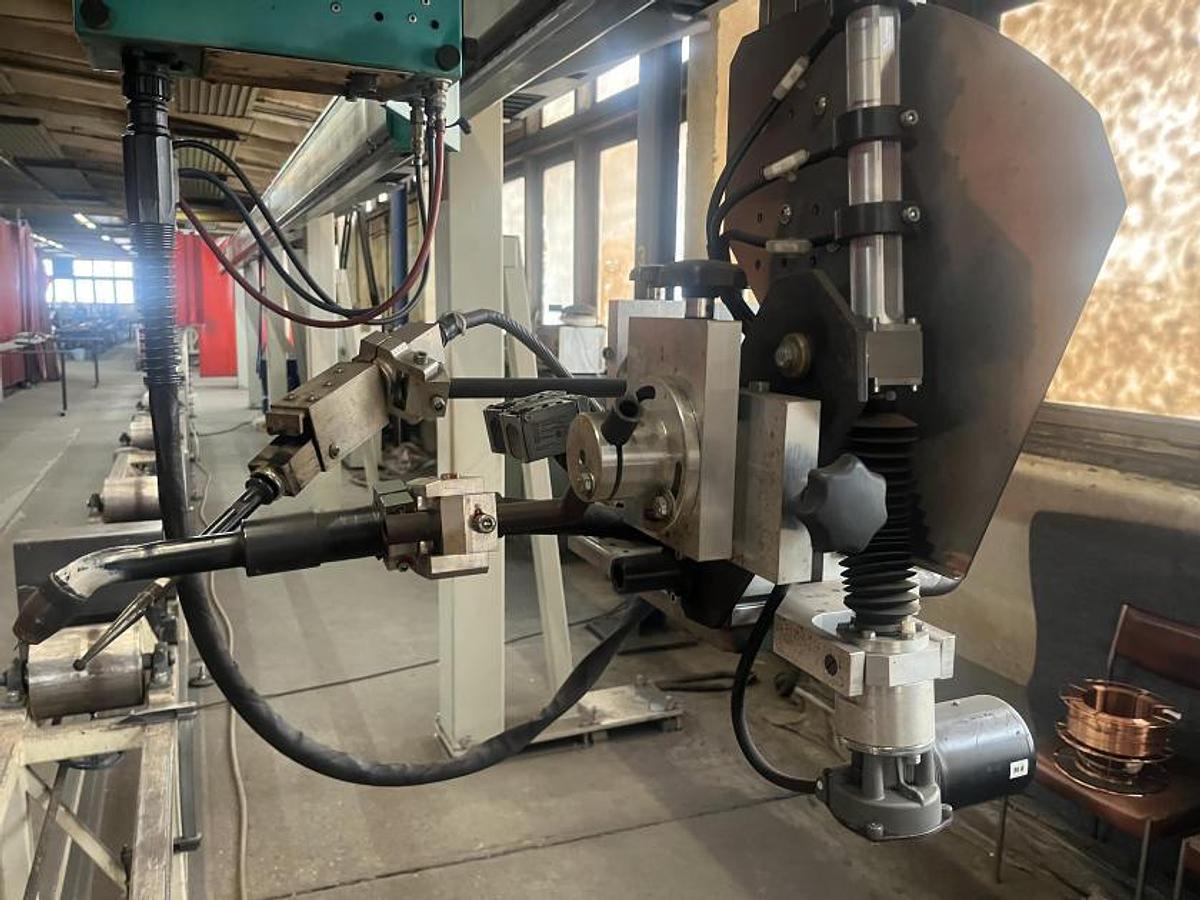

  • Process: MIG/MAG Pulse Arc (Roboter-Pulse-Arc-Schweissanlage)


Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ModelLongitudinal Beam Welding System
Year2015
ConditionUsed
Stock Number758137
