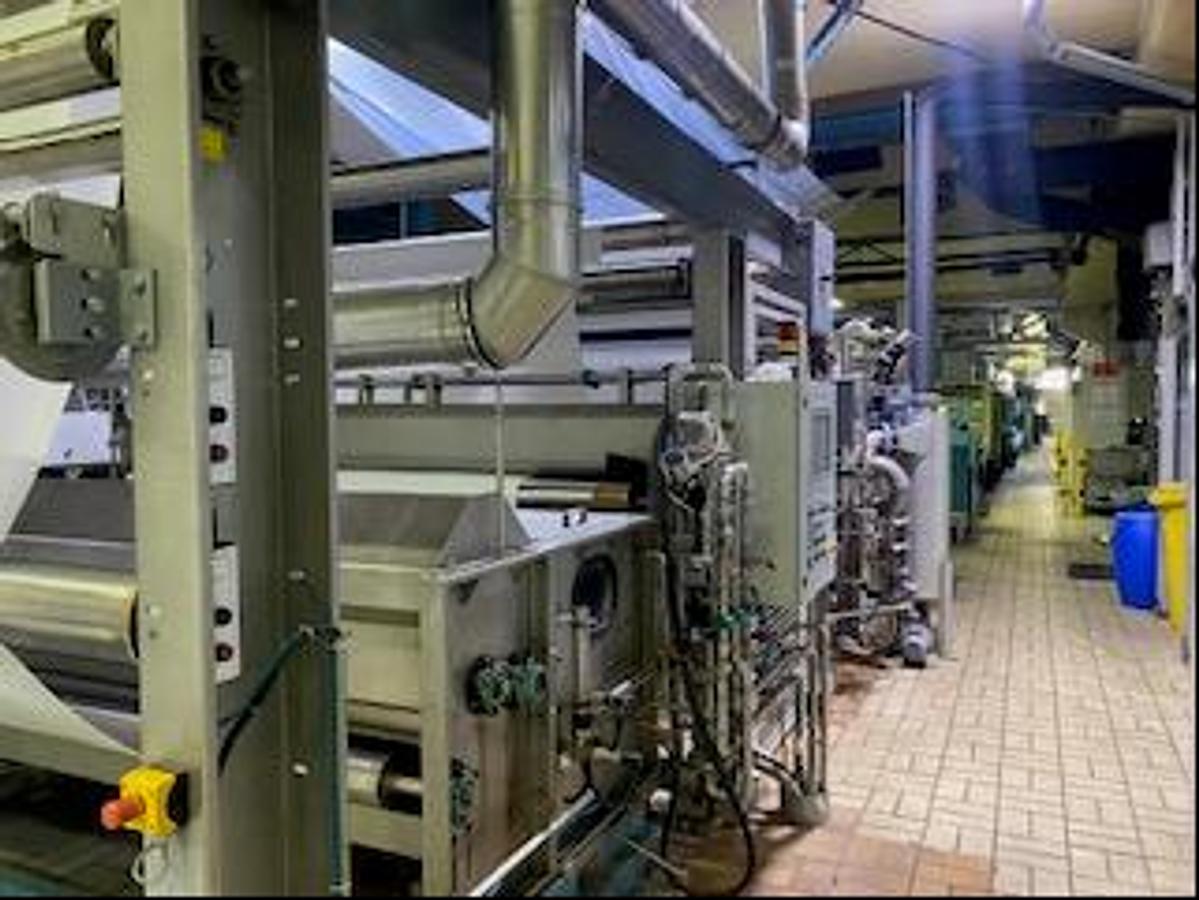

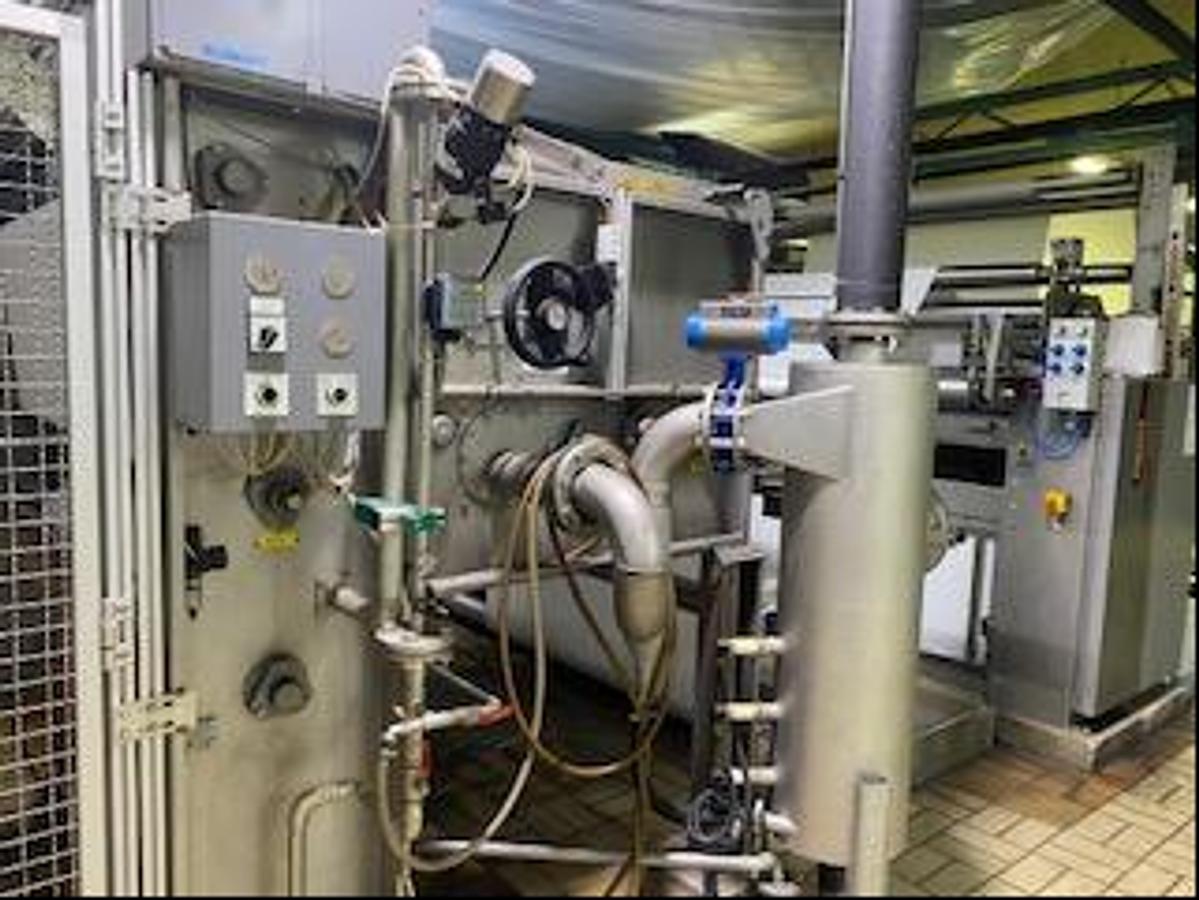

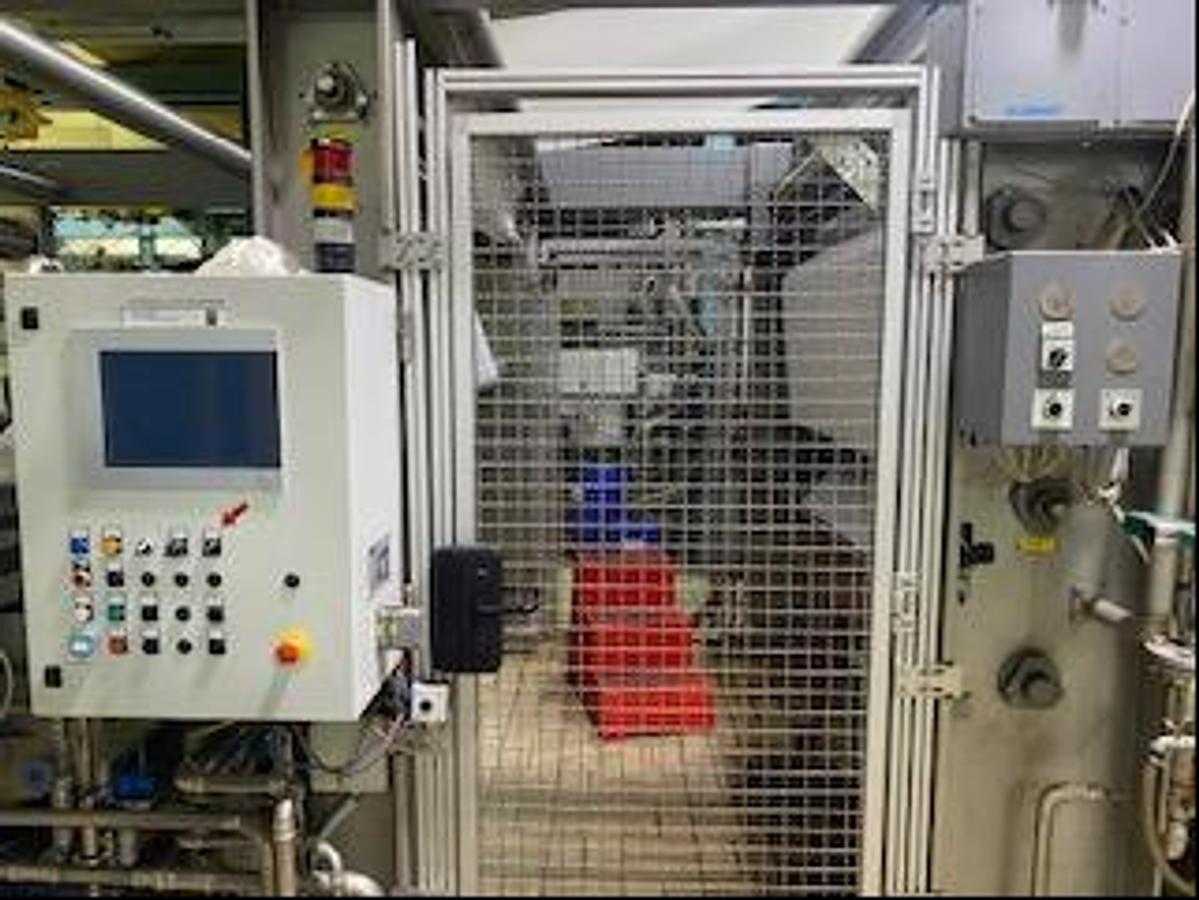

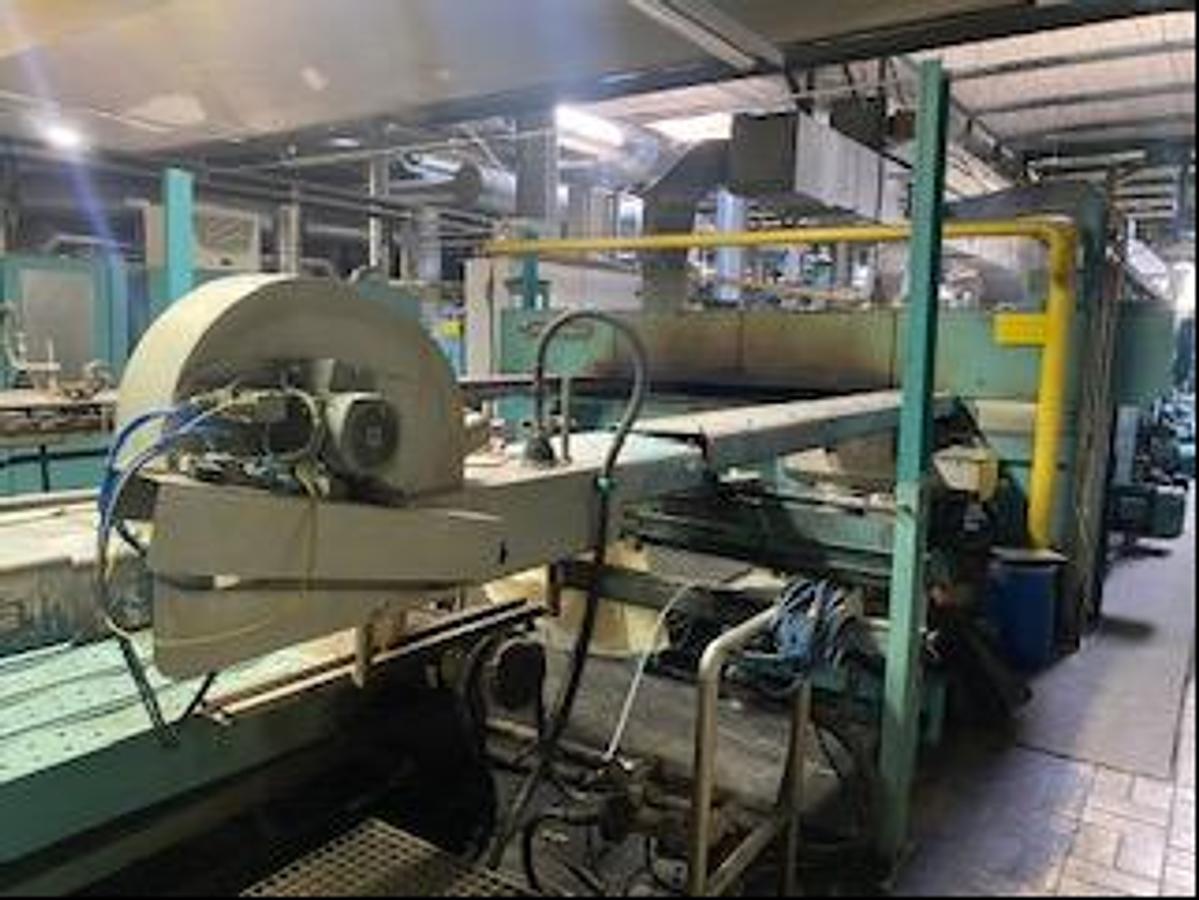

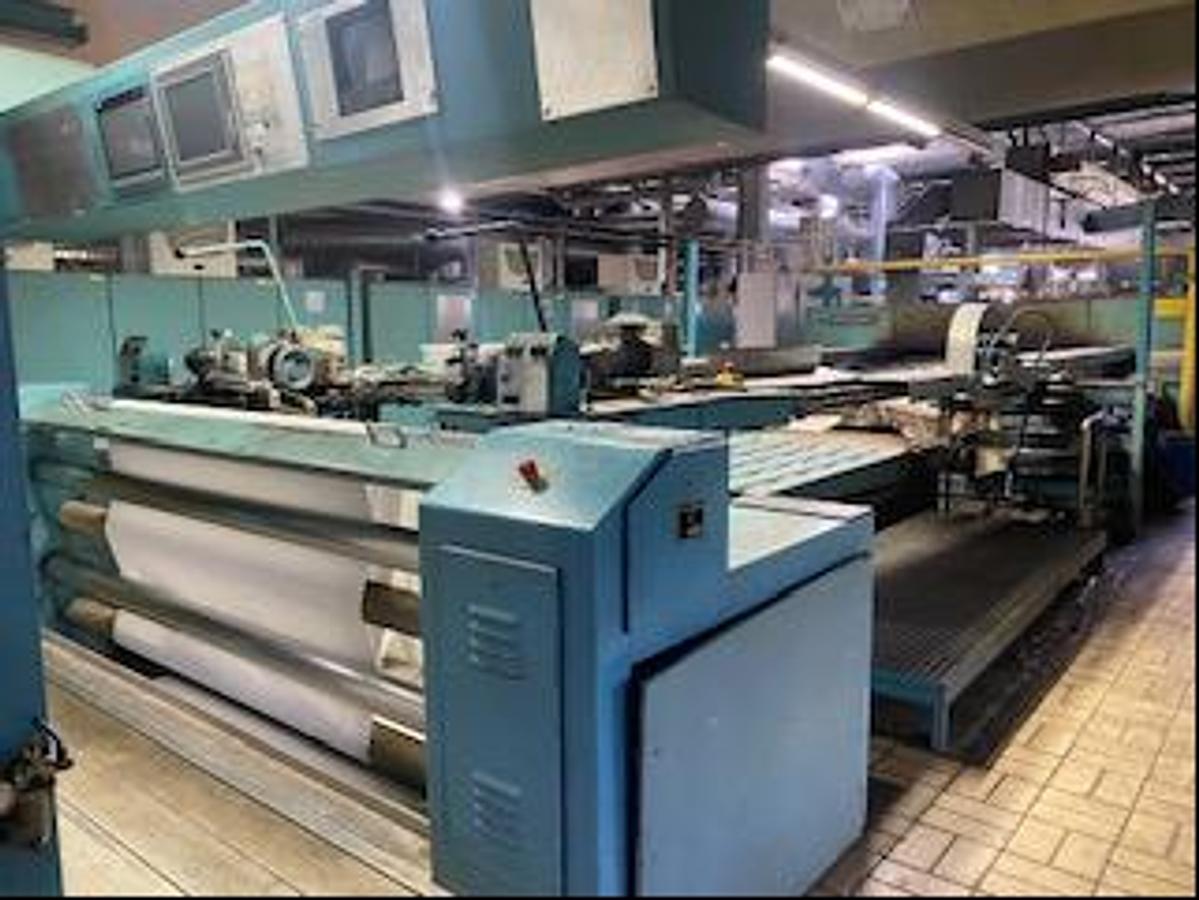

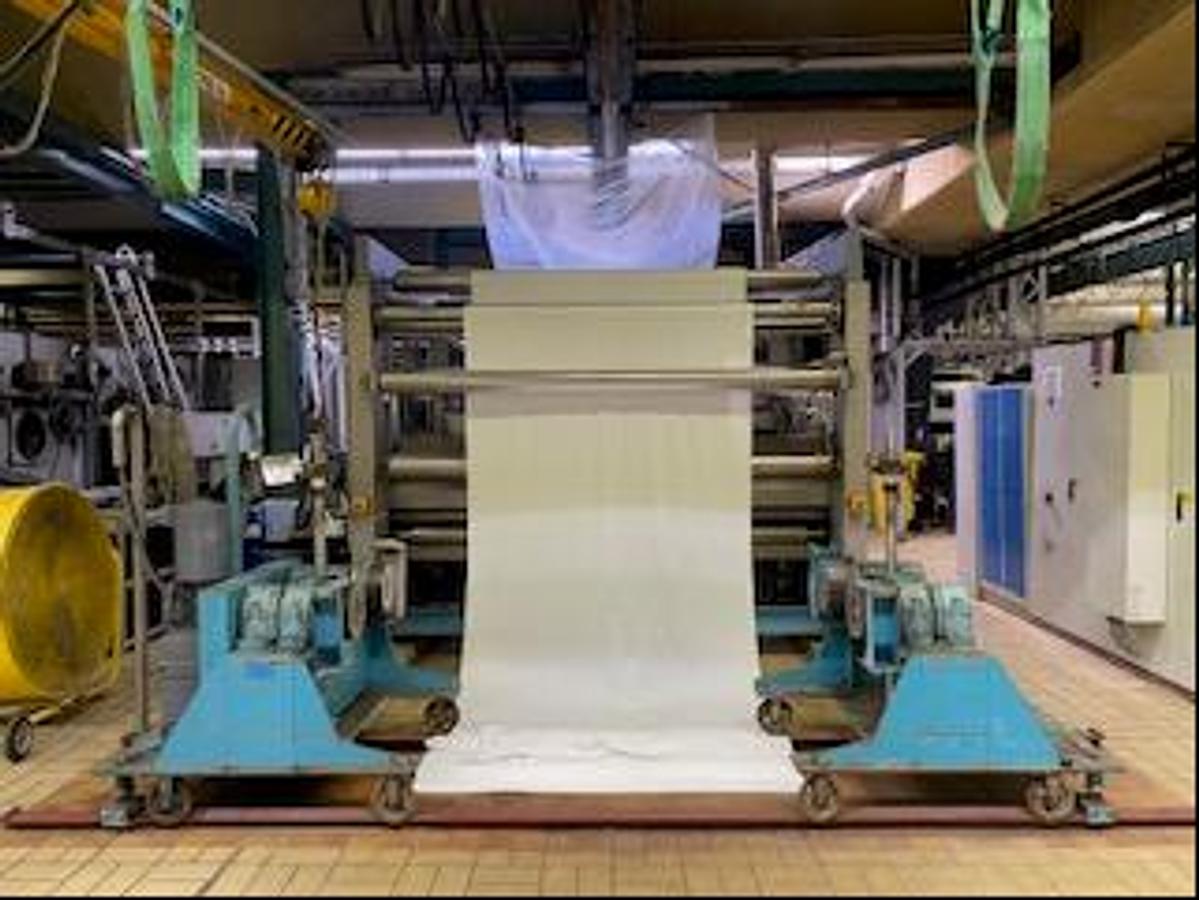

1988 Bruckner Stenter Frame SP5 - Textile Finishing Line

Bruckner stenter frame with 6 fields and a working width from 100 to 240 cm, complete with washing section, padder application, dyeing beam unwinding and moisture monitoring system.Control and drive technology upgraded in 2018 by Bruckner.

Manufacturer: Bruckner

Working width: 100 cm to 240 cm

Configuration: 6 field stenter frame

Year of Manufacture : 1988

Extra Features

• Dyeing beams unwinding
• Finishing application through padder
• Pleva moisture pickup monitoring and controlling system

Technical Data

• Minimum working width: 1000 mm
• Maximum working width: 2400 mm
• Infeed expansion shafts: 40x40 mm
• Infeed dyeing beams diameter: 400, 500, 600 mm, outer diameter up to 1500 mm
• Infeed expansion shaft max weight: 250 kg
• Infeed dyeing beams max weight: 3500 kg
• Outfeed winding shaft length: 2700 mm
• Outfeed dyeing beams diameter: 400, 500, 600 mm
• Outfeed winding shaft max weight: 500 kg
• Outfeed dyeing beams max weight: 1200 kg

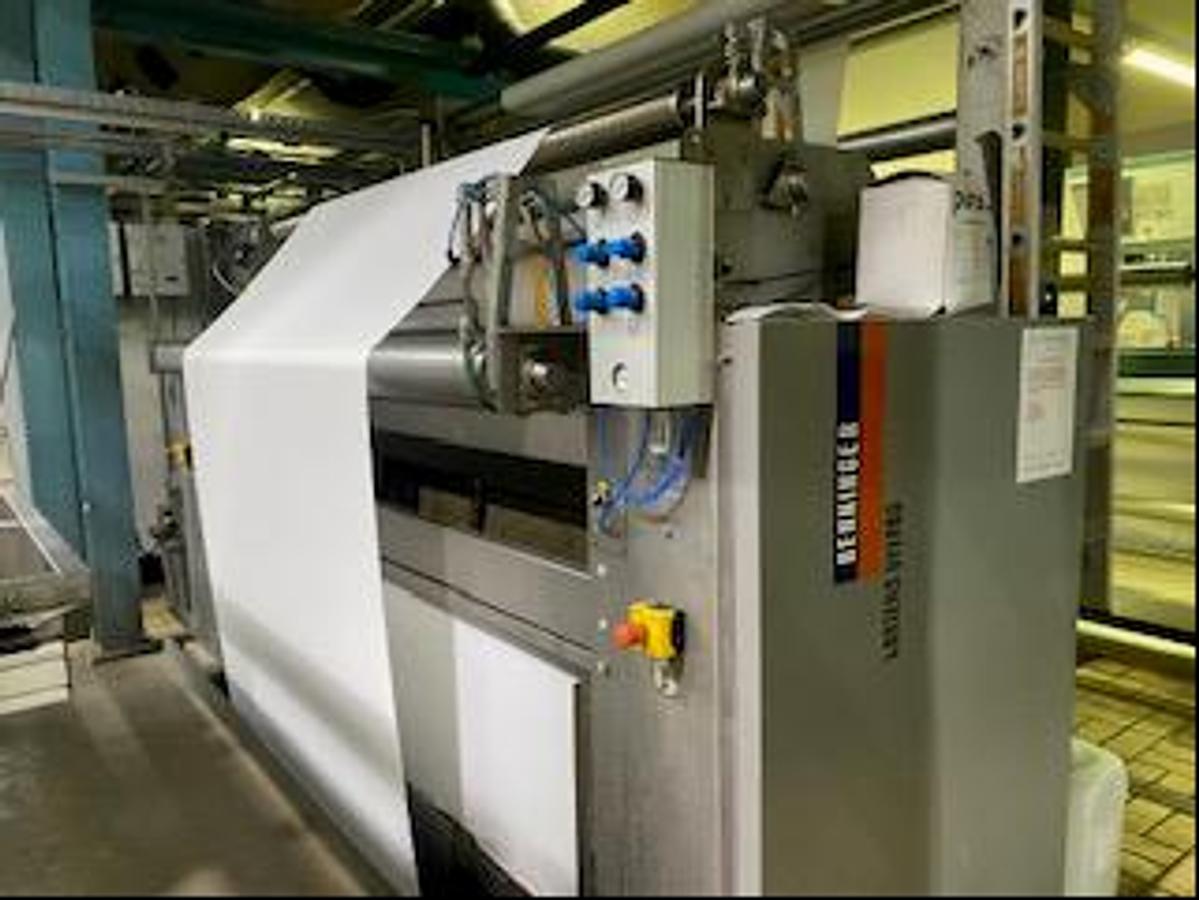

• Washing machine manufacturer: Benninger
• Washing configuration: 1 wash compartment
• Padder type: Zwickelfoulard
• Padder manufacturer: Kusters
• Moisture measurement manufacturer: Pleva
• Winder type: reversing winder (Wendewickel)
• Winder manufacturer: Bruckner
• Technical renewal: 2018, control and drive technology upgrade by Bruckner
