2005 Finn-Power F6 SV

Manufacturer: Finn-Power OY, Kauhava, Finland

Model: F6 SV

Year of manufacture: 2005

Machine weight: 13500 kg

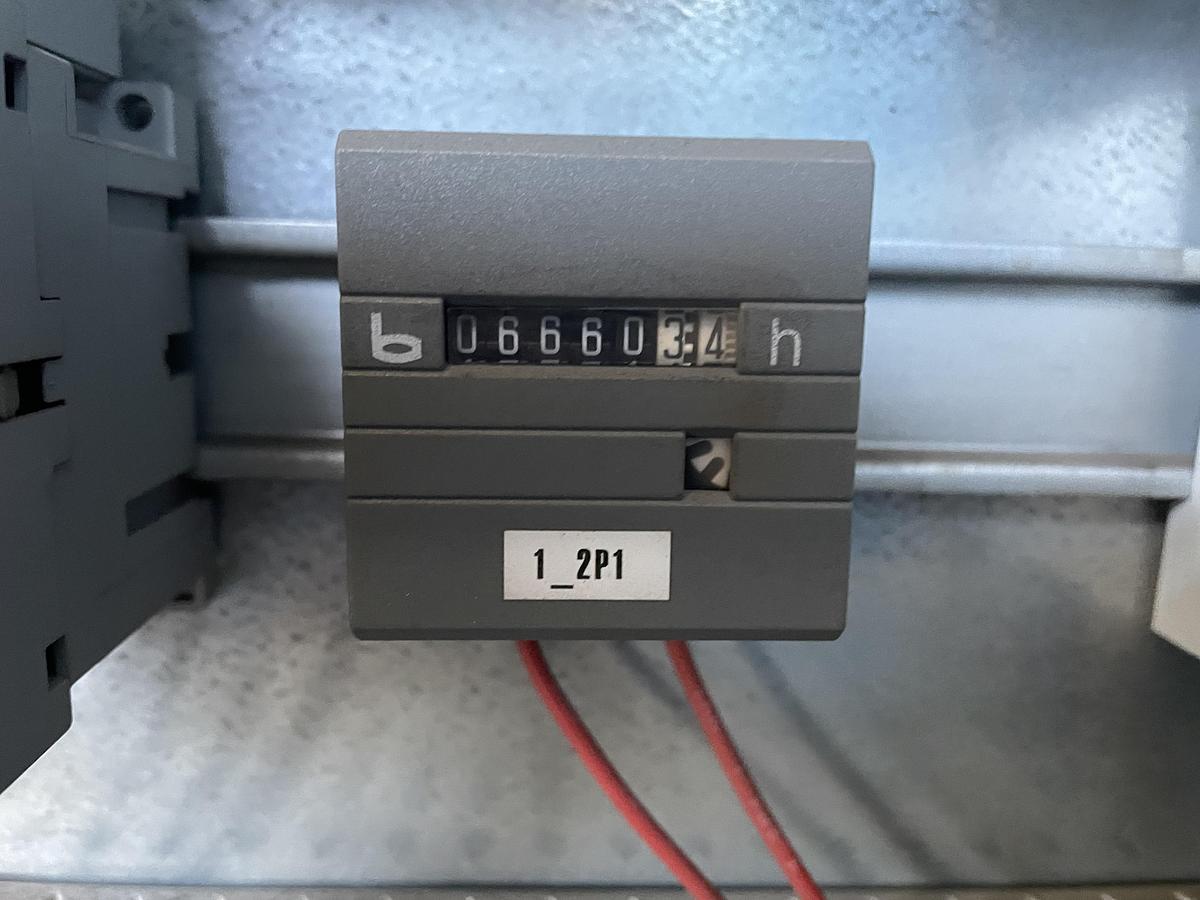

Operating hours: approximately 66,603 hours

Note: housing is not included in the purchase

Technical Data

• Punching force: 30 t (300 kN)
• Maximum workpiece size (L x W): 4061 x 1528 mm
• Maximum workpiece thickness: 8 mm
• Maximum workpiece weight: 200 kg
• Rapid traverse X axis: 80 m/min
• Rapid traverse Y axis: 60 m/min
• Number of turret stations: 20
• Turret rotation speed: 30 rpm
• Tool type: thick turret
• Maximum tool diameter: 89 mm
• Tool change time: 1 to 3 seconds
• Maximum CNC rotating tool diameter: 89 mm
• Maximum CNC rotating tool speed: 58 rpm
• Maximum travel speed: 100 m/min
• Drilling accuracy: 0.1 mm
• Positioning accuracy: 0.08 mm
• Power supply: 47 kVA
• Average power consumption: 24 kW

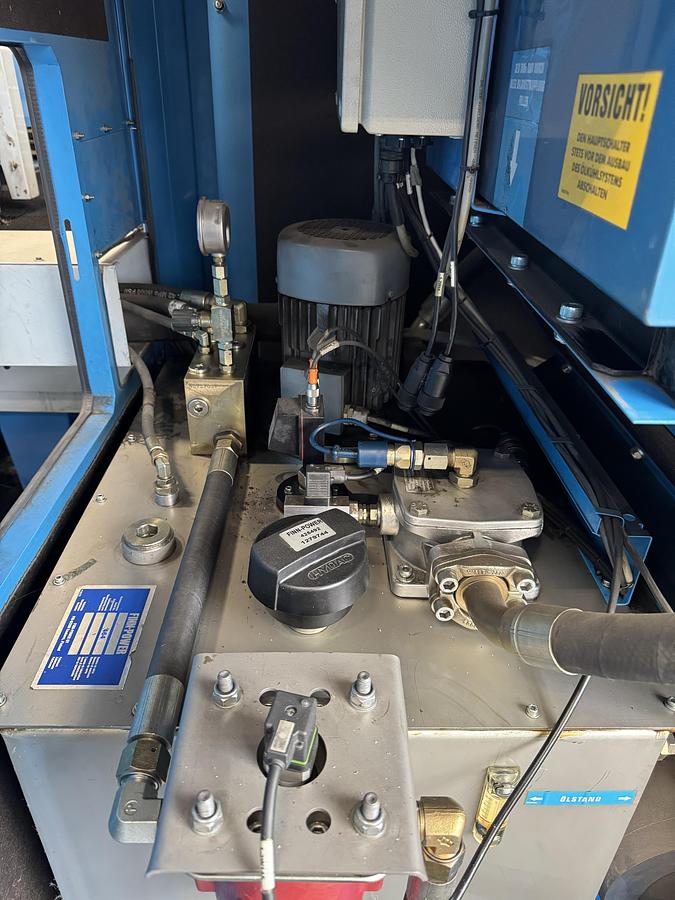

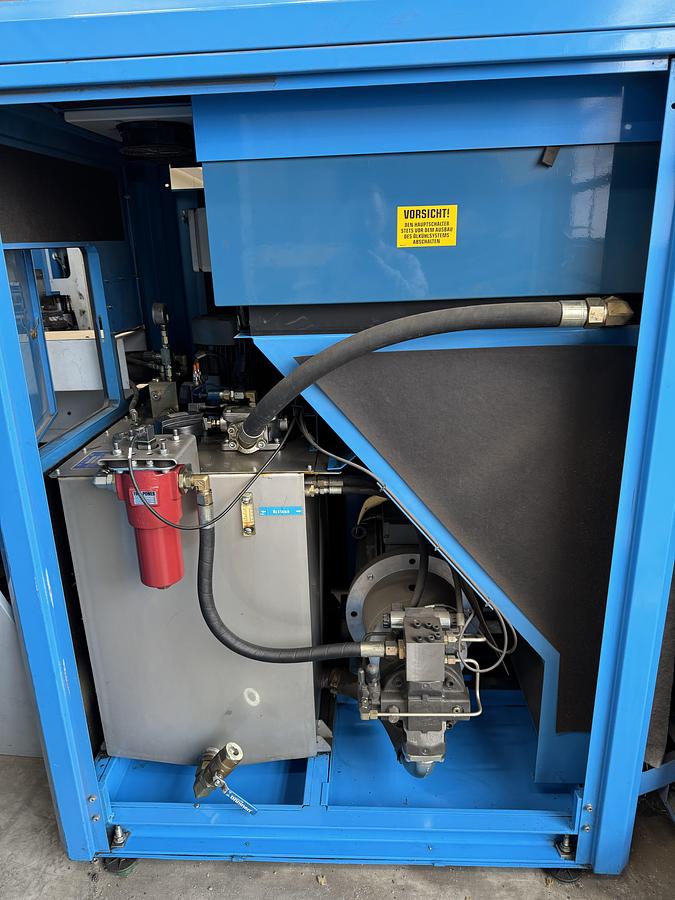

• Oil tank capacity: 330 l
• Maximum operating pressure: 300 bar
• Dimensions (L x W x H): 5900 x 6300 x 2500 mm
• Total machine weight: 13500 kg
• Tables: extended
• CNC control: Siemens Sinumerik 840D
• Pneumatic clamps: 3 pieces
• Turret head: 20 stations
• Multitool head: 24 stations
