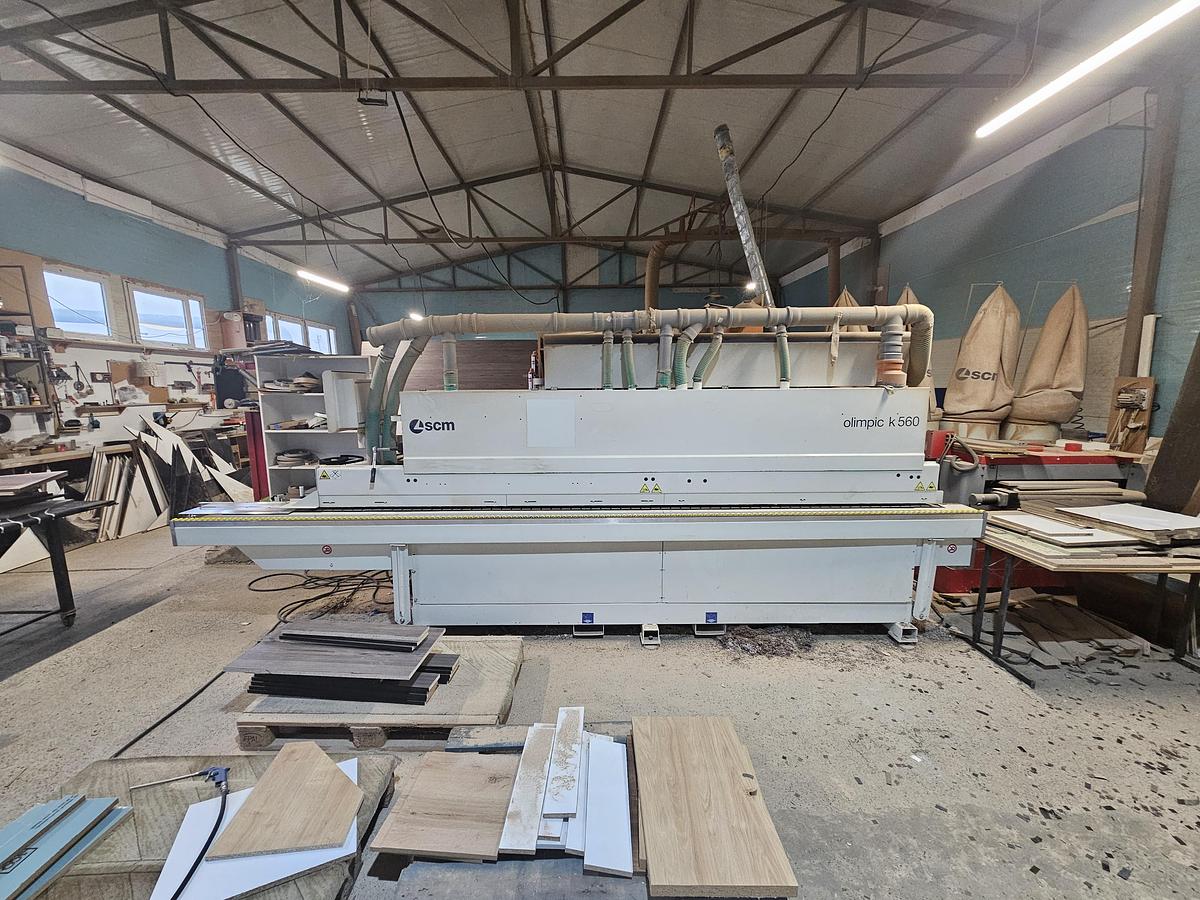

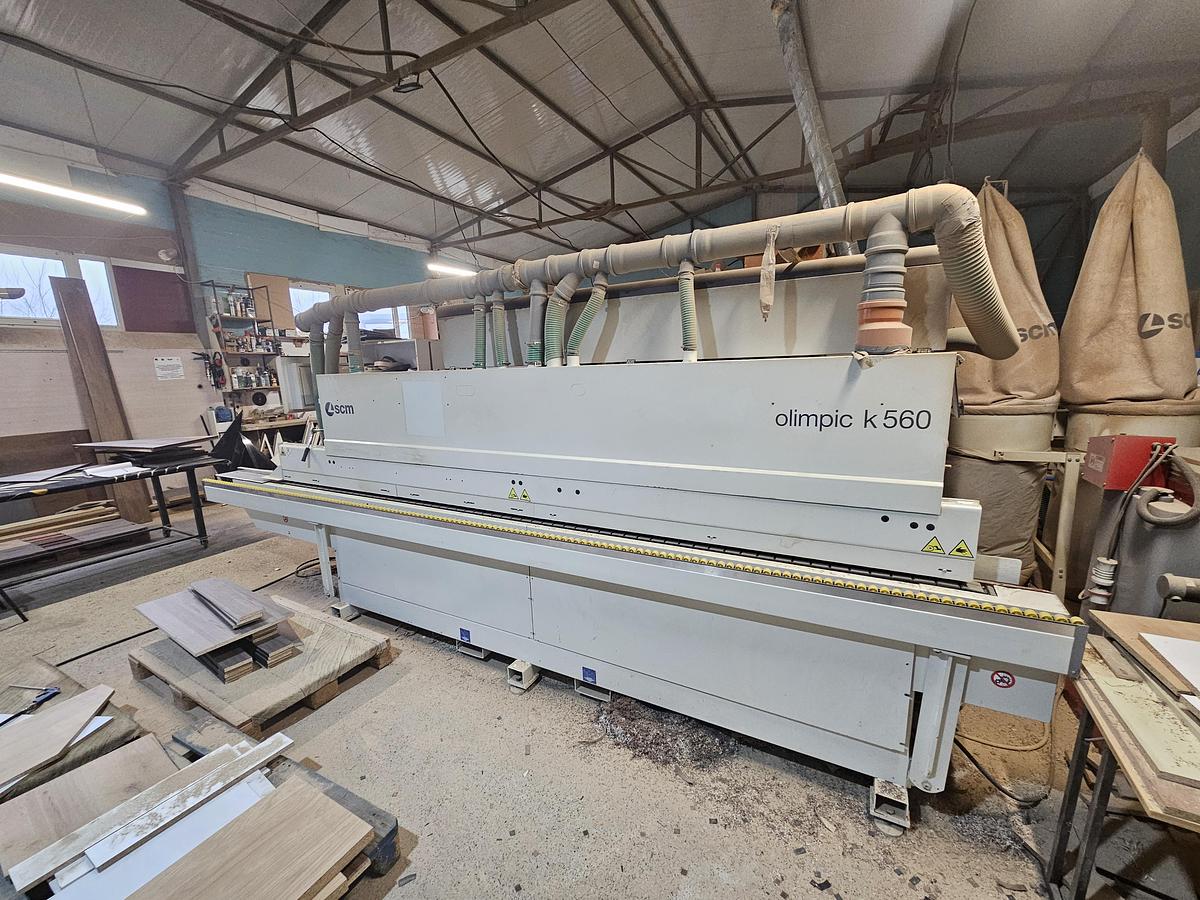

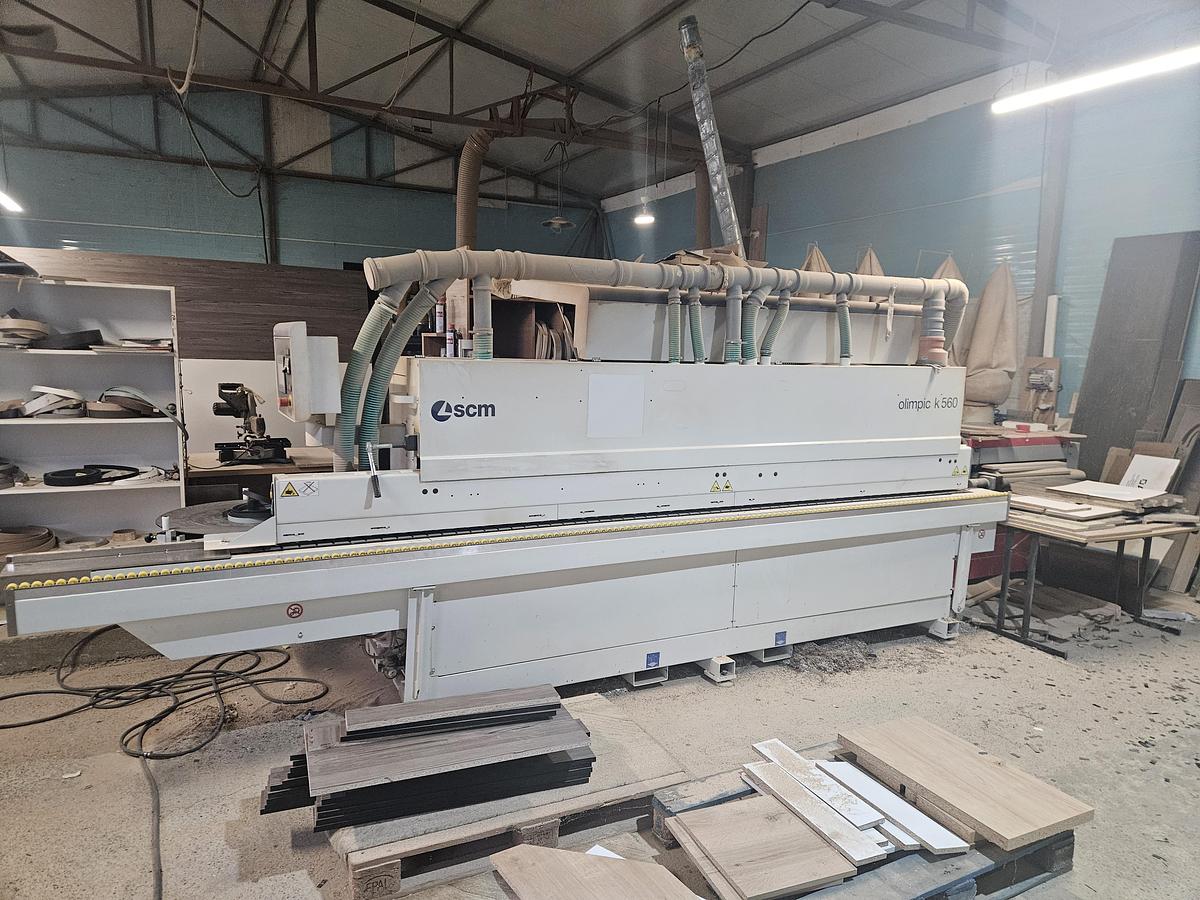

2019 SCM Olimpic K560 T-ER2 ABS Edgebanding Machine

Manufacturer: SCM

Model: SCM Olimpic K560 — Composition T-ER2 (40)

Year of Manufacture: 2019

Type of Machine: ABS Edgebanding Machine / Single-Sided Edgebander

Technical Data:

• Feed chain speed: 12–18 m/min
• Panel thickness: 8–60 mm
• Edge thickness in strips: 0.4–6 mm
• Edge thickness in rolls: 0.4–3 mm
• Maximum roll diameter: 800 mm
• Spacing between panels: 600 mm
• Minimum panel length (with minimum width 100 mm): 140 mm
• Minimum panel width (with minimum length 210 mm): 95 mm
• Working table height: 900 mm
• Installed power: 23 + 28.5 kVA
• Compressed air consumption: 450 NL/min
• Dust extraction air consumption: 4,500 m3/h
• Extraction outlet diameter: 250 mm

Control System — Touch 7:

• 7-inch colour touchscreen, 16:9 wide format; graphic representation of all operating groups; 60 modifiable work programmes; complete machine automation via PLC and encoder; glue temperature control and regulation; diagnostics with guided error suggestions; processing statistics
