STEAM TURBINE GENERATOR SET - OVERVIEW & SPECS

==================================================

• Manufacturer: AG KK&K (Aktiengesellschaft Kühnle, Kopp & Kausch)

• Turbine Model: KK&K TWIN-CA 36

• Plant Type: Steam Turbine Generator Set (Dampfturbogeneratorenanlage)

• Color: Gentian Blue (RAL 5002)

==================================================

OPERATING & PERFORMANCE PARAMETERS

==================================================

• Power Output (Guaranteed Terminal Output): 1,600 kWe (1.6 MW)

• Live Steam Pressure: 27.0 bara

• Live Steam Temperature: 370 °C

• Max Live Steam Flow Rate: 9,000 kg/h

• Intermediate Pressure: 2.4 bara

• Condensing Pressure: 0.1 bara (at 21 °C ambient temperature)

• Air-Cooled Condenser Steam Flow Rate: 8,000 kg/h

• Noise Level (Turbogenerator): 93 dB(A) ± 3 dB(A) measured at 1 m distance

• Noise Level (Air Condenser): 80 dB(A) measured at 1 m distance

==================================================

GENERATOR & ELECTRICAL SPECIFICATIONS

==================================================

• Generator Type: Synchronous Generator (Synchrongenerator)

• Frequency: 50 Hz

• Voltage: 0.4 kV (400 V)

• Protection Class: IP 44R

• Bearings: Sleeve bearings (Gleitgelagert)

• Control Cabinet: IP 42 protection class, includes VDE/IEC synchronization and 400V power section

==================================================

MAIN COMPONENTS & EQUIPMENT INCLUDED

==================================================

• Turbine & Gearbox: KK&K TWIN-CA 36 steam turbine with integrated gearbox

• Speed Control: Electronic speed control with pressure control & live steam limit pressure control

• Safety System: Electronic trip device (Schnellschlußeinrichtung) with separate valve

• Valve System: Automatic nozzle group valves for optimized part-load performance

• Oil System: Integrated lubrication system per KK&K standards

• Coupling: Flexible coupling based on torsional vibration analysis

• Condenser System: Complete Air-Cooled Condenser Plant (Luftkondensationsanlage)

• Accessories Included: Drainage steam traps, hat strainer (Hutsieb), pressure reducing station with water injection

==================================================

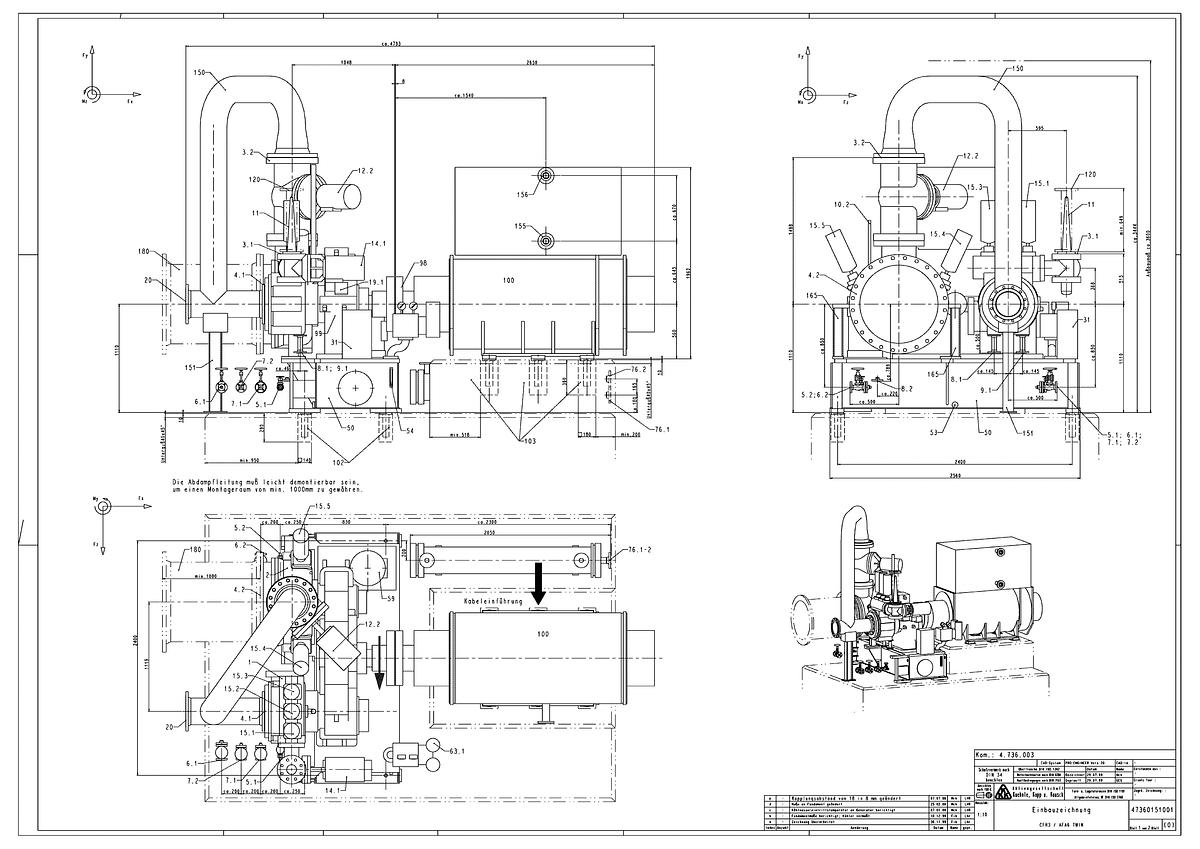

DIMENSIONS (PER GENERAL ARRANGEMENT DRAWING)

==================================================

• Overall Length: approx. 4,793 mm

• Overall Width: approx. 2,560 mm

• Overall Height: approx. 3,600 mm
