2006 MAKA PA 37 CNC 5-Axis Machining Center
2006 MAKA PA 37 CNC 5-Axis Machining Center
Contact us for price
Location:Augsburg, Germany
Available quantity:1
Specifications
| Manufacturer | MAKA |
| Model | PA 37 |
| Year | 2006 |
| Condition | Used |
| Serial Number | 21030606 |
| Stock Number | 758445 |
| Year of Manufacture | 2006 |
| Operating Hours | 23,792 h |
| Machining Length | 11 m |
| Travel X-Axis | approx. 12,100 mm |
| Travel Y-Axis | approx. 2,350 mm |
| Travel Z-Axis | approx. 800 mm |
| A-Axis (Swivel Axis) | +/- 98° |
| B-Axis | Rotary axis |
| Rapid Traverse X/Y-Axis | 45 m/min |
| Rapid Traverse Z-Axis | 24 m/min |
| Rapid Traverse A/C-Axis | 10,000 mm/min |

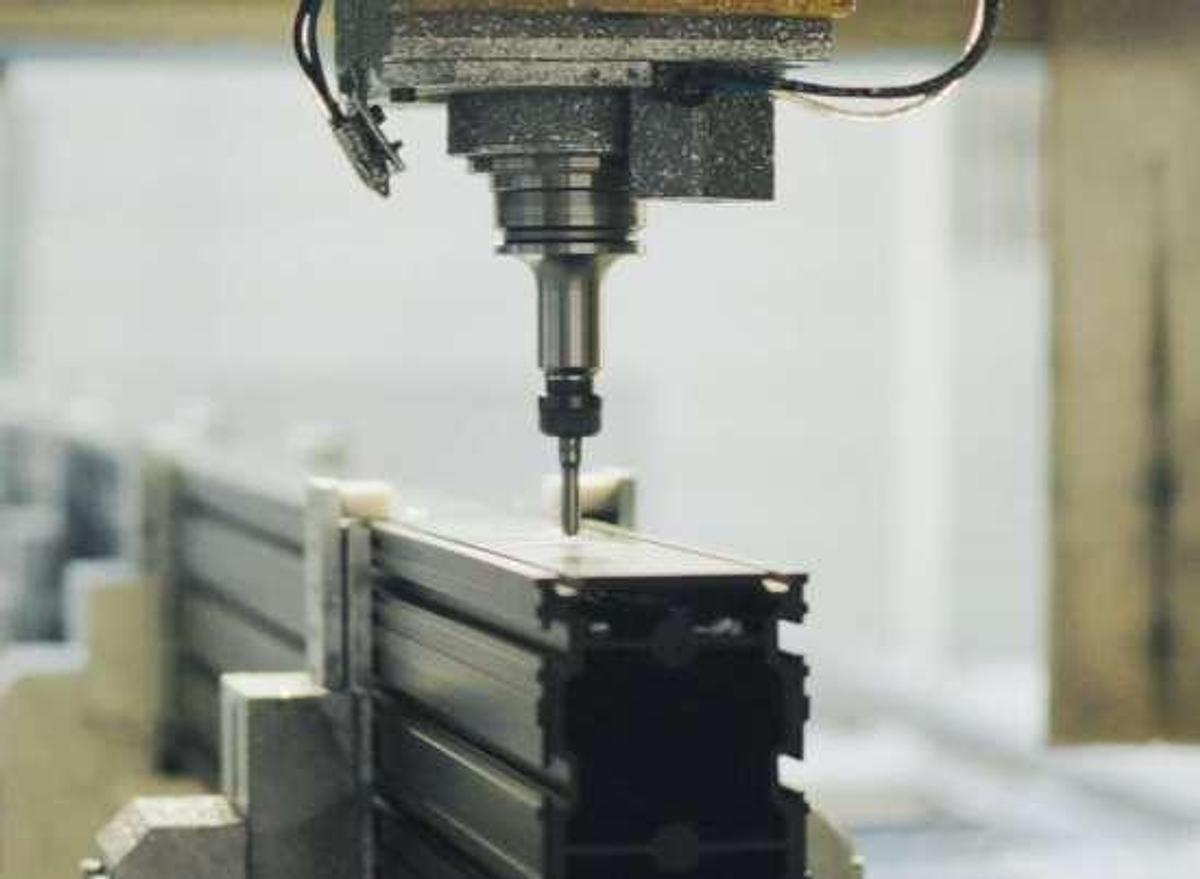

| Milling Spindle | Water-cooled, rated power 20 kW from 12,000 rpm, integrated swivel and rotary axis, left/right rotation |
| Spindle Speed | Infinitely variable up to 24,000 rpm |

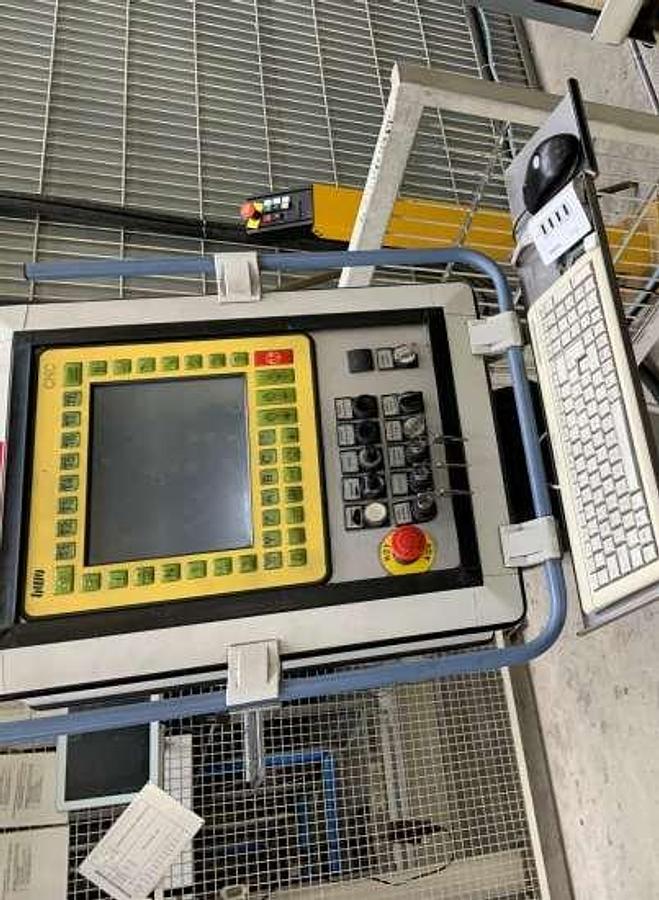

| Control System | BWO 930, in mobile control desk |
| Rated Power | 34 kW |
| Voltage | 400 V / 50 Hz |
| Control Voltage | 24 V |
| Fuse Protection | 80 A |
| Pneumatic Pressure | 5 bar |
| Hydraulic Pressure | 100 bar |
| Drive | Travelling gantry design with drive on both sides (gantry drive) |
| Workpiece Clamping | Hydraulic |
| Clamping Surface | For aluminium sheets / plates |

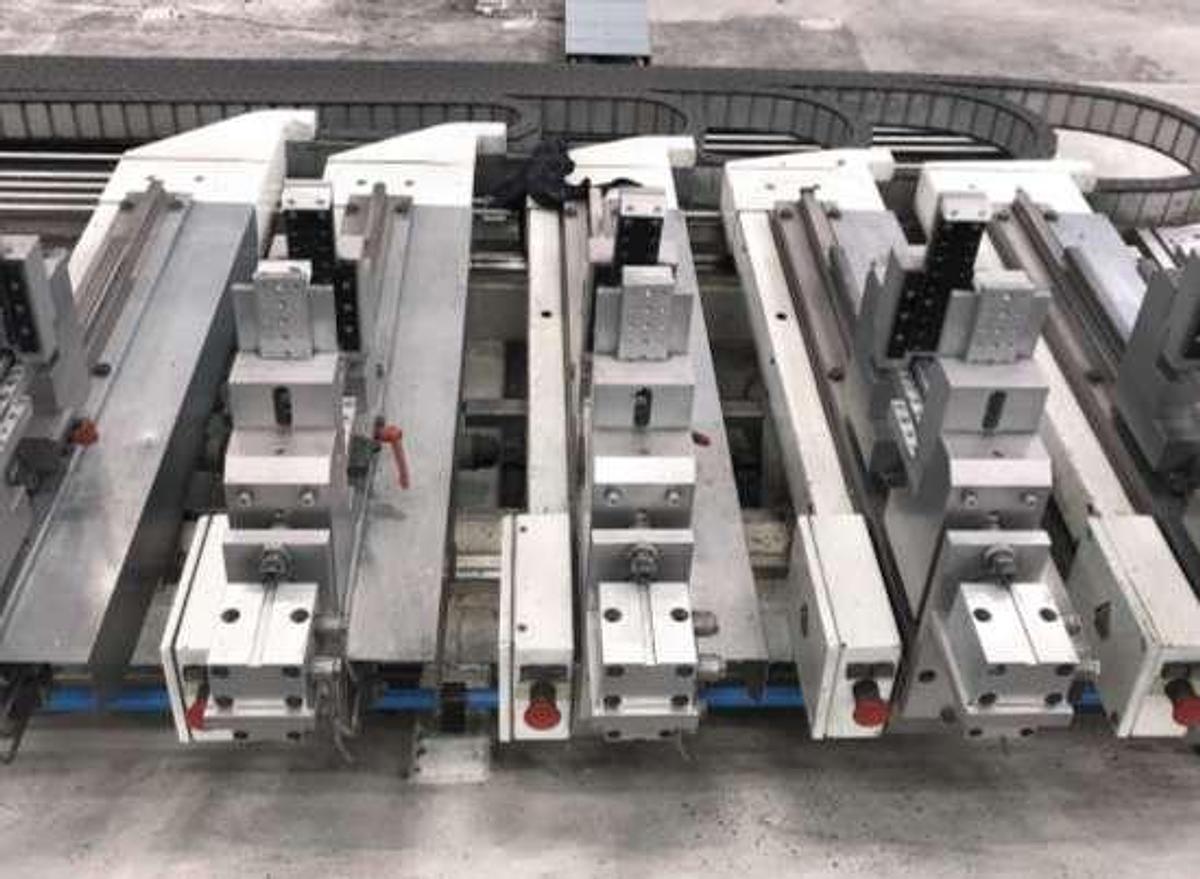

| Machine Table | 10 support traverses, 4 hydraulically swivelling workpiece stops, NC support-traverse positioning |
| Coolant System | Coolant spray system with minimum-quantity misting |
| Software Interface | NC data format; 3D data converted via STEP files and CAD/CAM software |
| Last Maintenance | 08.12.2022 |
| Maintenance History | 2019-2023: milling motor and Z-axis ball screw replaced; hollow shaft drive incl. brake replaced; safety screens renewed; harmonic drive replaced; Z-axis motor replaced; water recooling unit renewed; new oil mist extraction; controller assembly and X/U-axis motors replaced; new measuring carriage on Y-axis (20.04.2023) |
| Condition | Machine is dismantled and in storage; cannot be inspected in operating condition |
