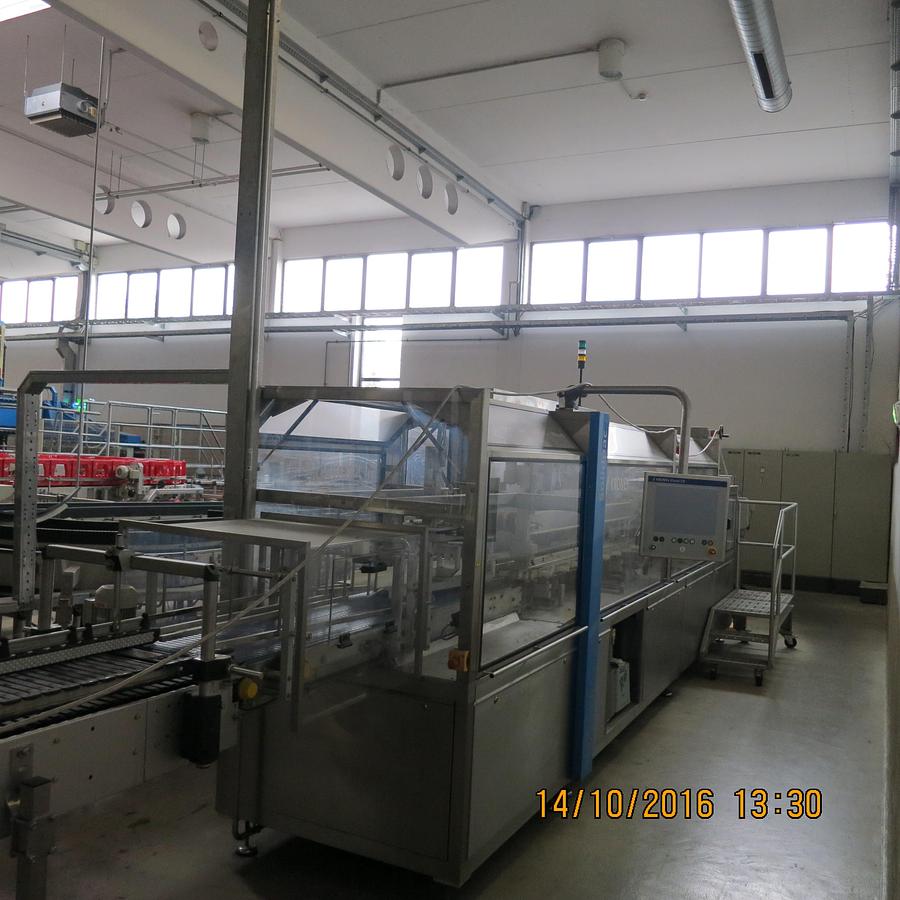

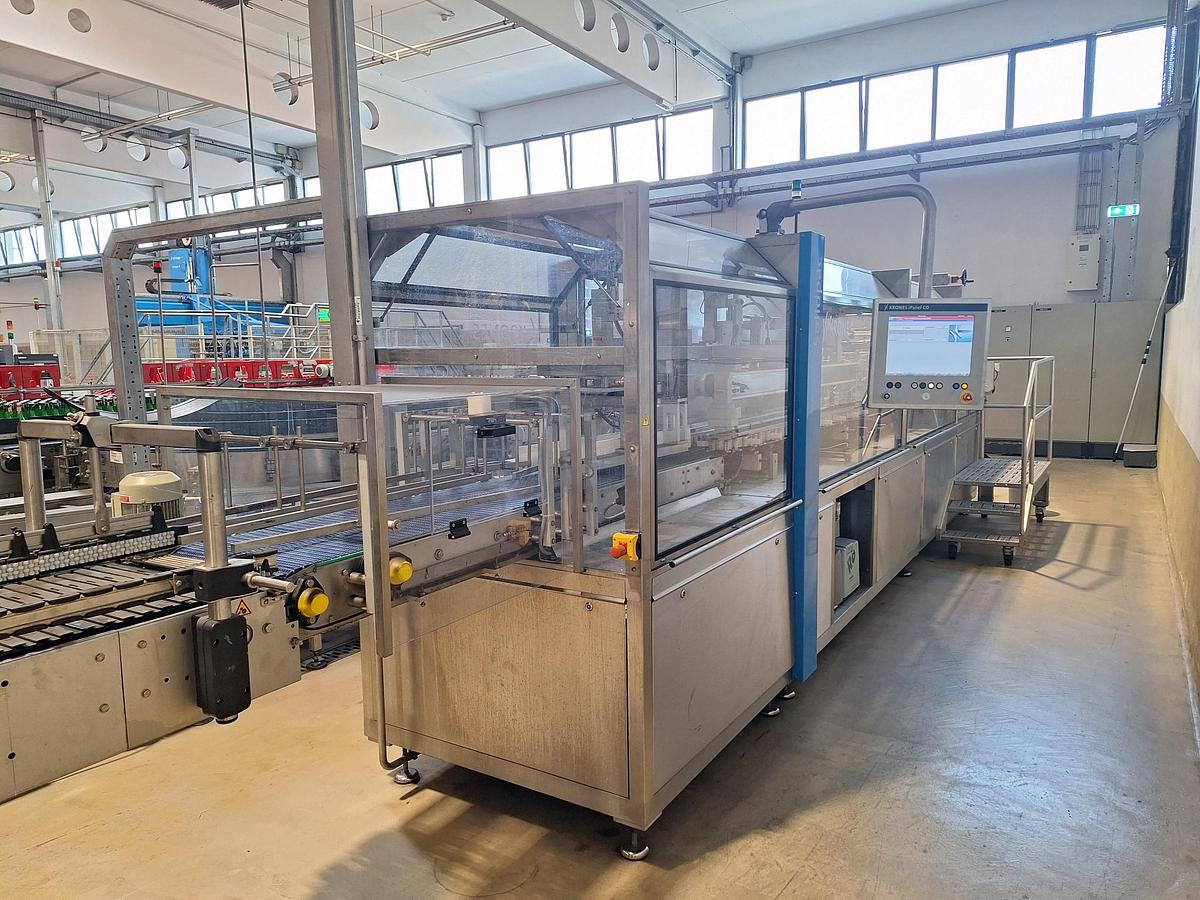

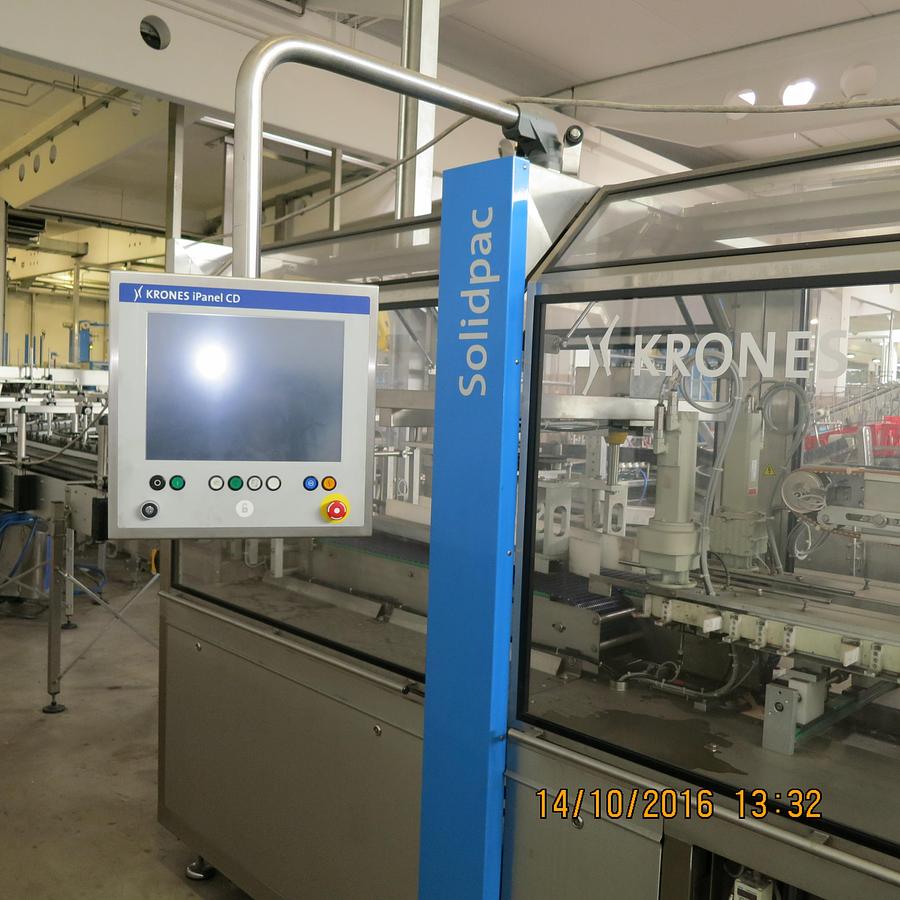

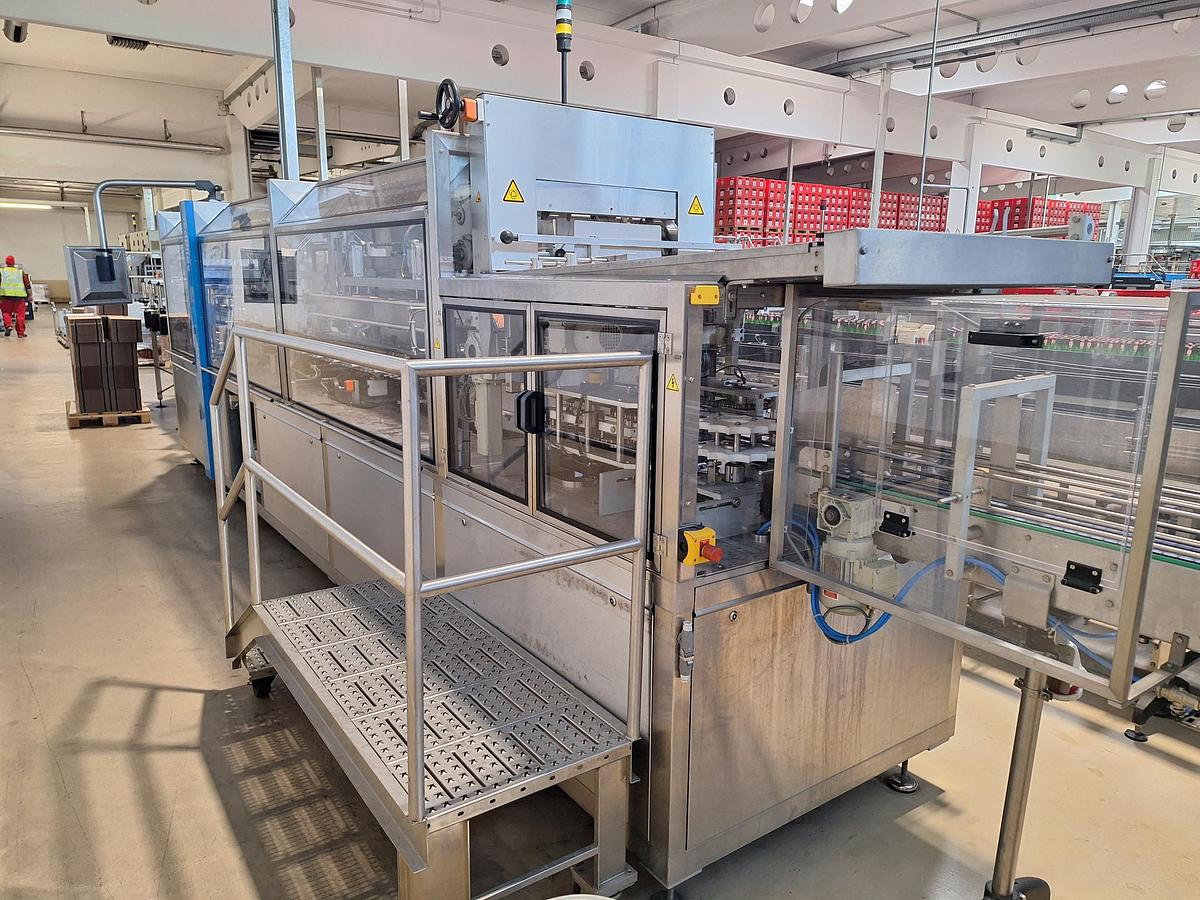

2006 Krones Solidpac Packaging Machine

Manufacturer: Krones

Model: Solidpac

Year of manufacture: 2006

Machine type: Packaging machine (wrap-around case/carton packer)

Condition: Currently not in operation

Product used with machine: Single-use glass bottles 0.33 L, diameter 61.5 mm, height 217 mm, packed in wrap-around cardboard, pack arrangement 2x3

Reference product specification per manufacturer data sheet: Glass bottle diameter 78 mm,height 276 mm, 710 ml

Pack arrangement per manufacturer data sheet: 2x3

Technical Specifications:

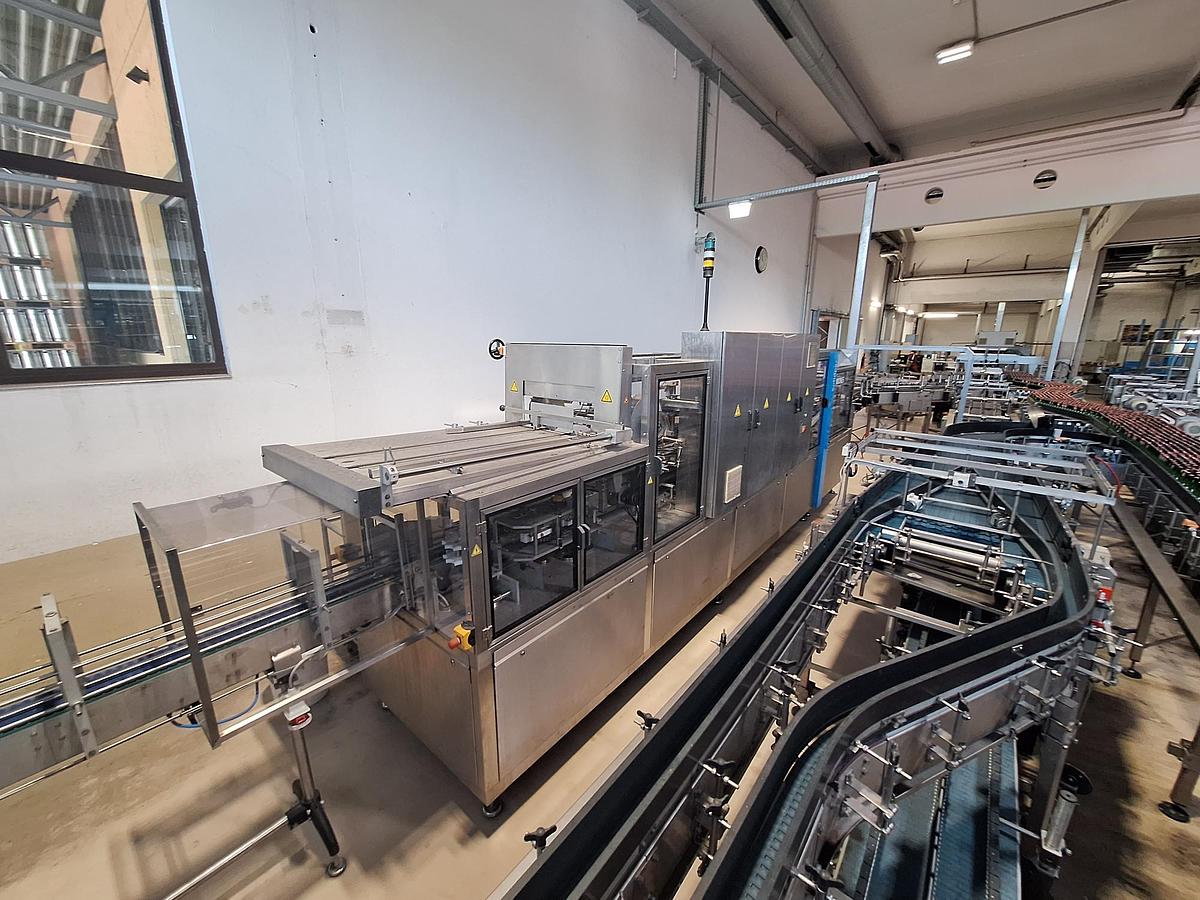

• Dimensions without conveyor: Length 10,900 mm
• Width 1,500 mm (with doors closed)
• Width 3,500 mm (with doors open)
• Height 2,400 mm (with control cabinet)
• Walking height 1,200 mm from the floor
• Maximum speed: 150 packs per minute

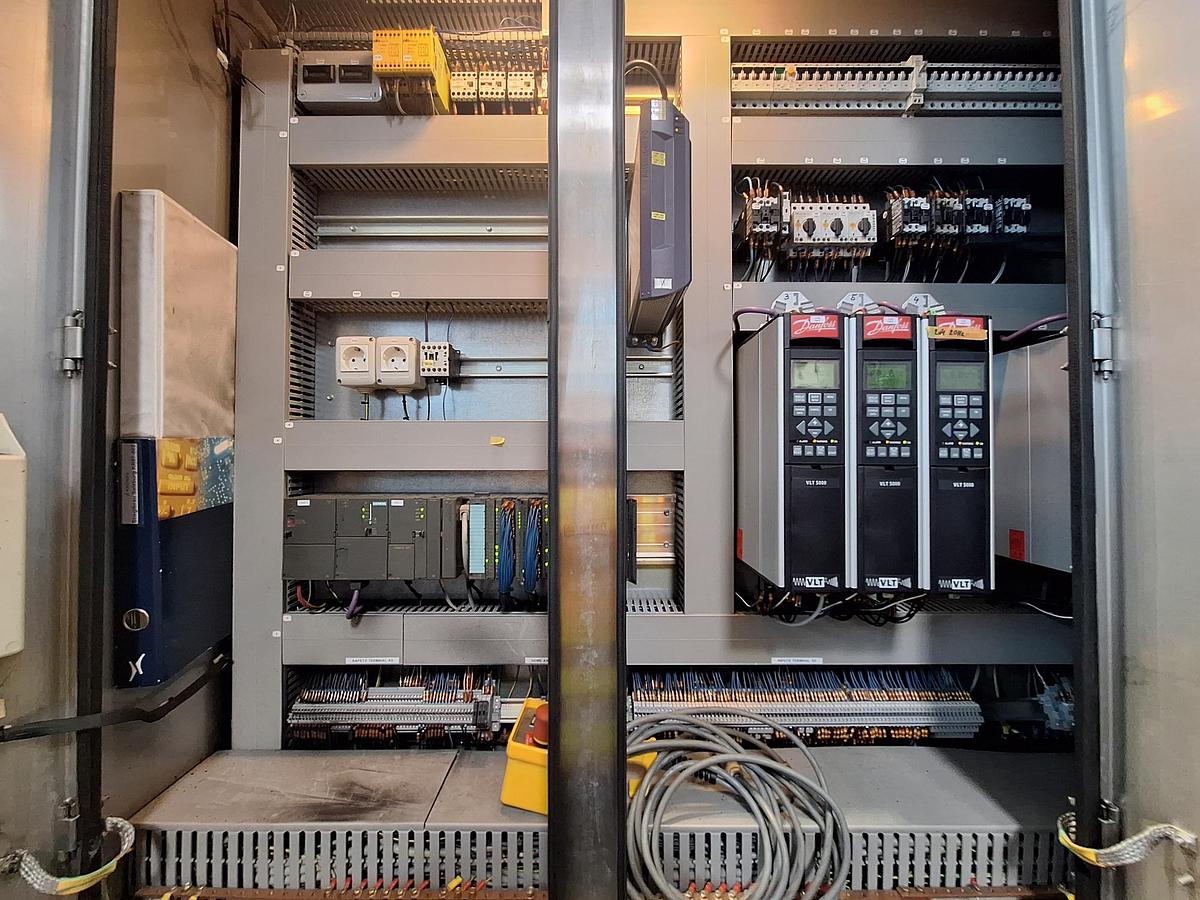

• Power supply: 400 V three-phase plus neutral, 50 Hz, 8 kVA
• Air supply: 5 bar
• Noise level: less than 75 dBa at 1 meter distance
• Electrical connection per machine plan drawing: 400 V three-phase plus neutral, 40 A
• Pneumatic connection per machine plan drawing: 6 bar, diameter 10/12 mm
• Weight: 3,500 kg

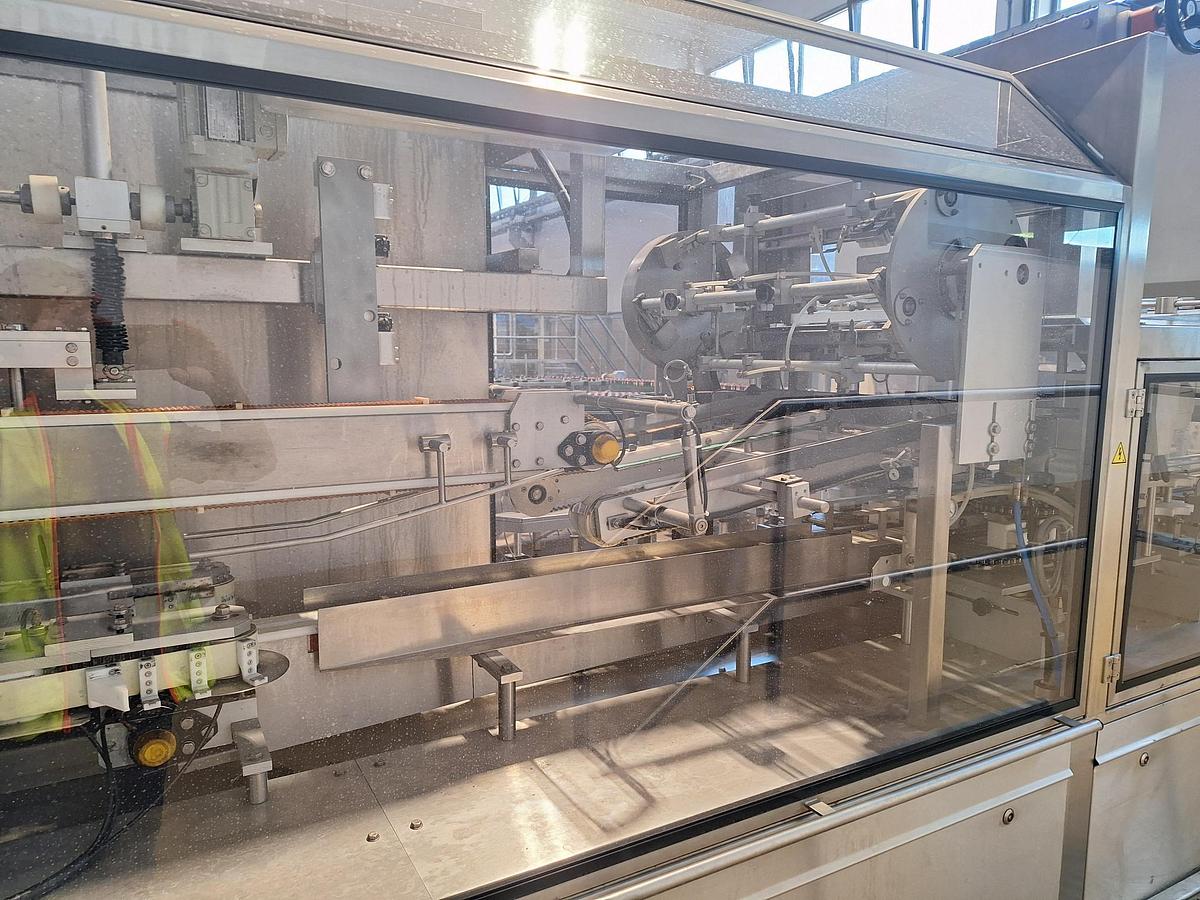

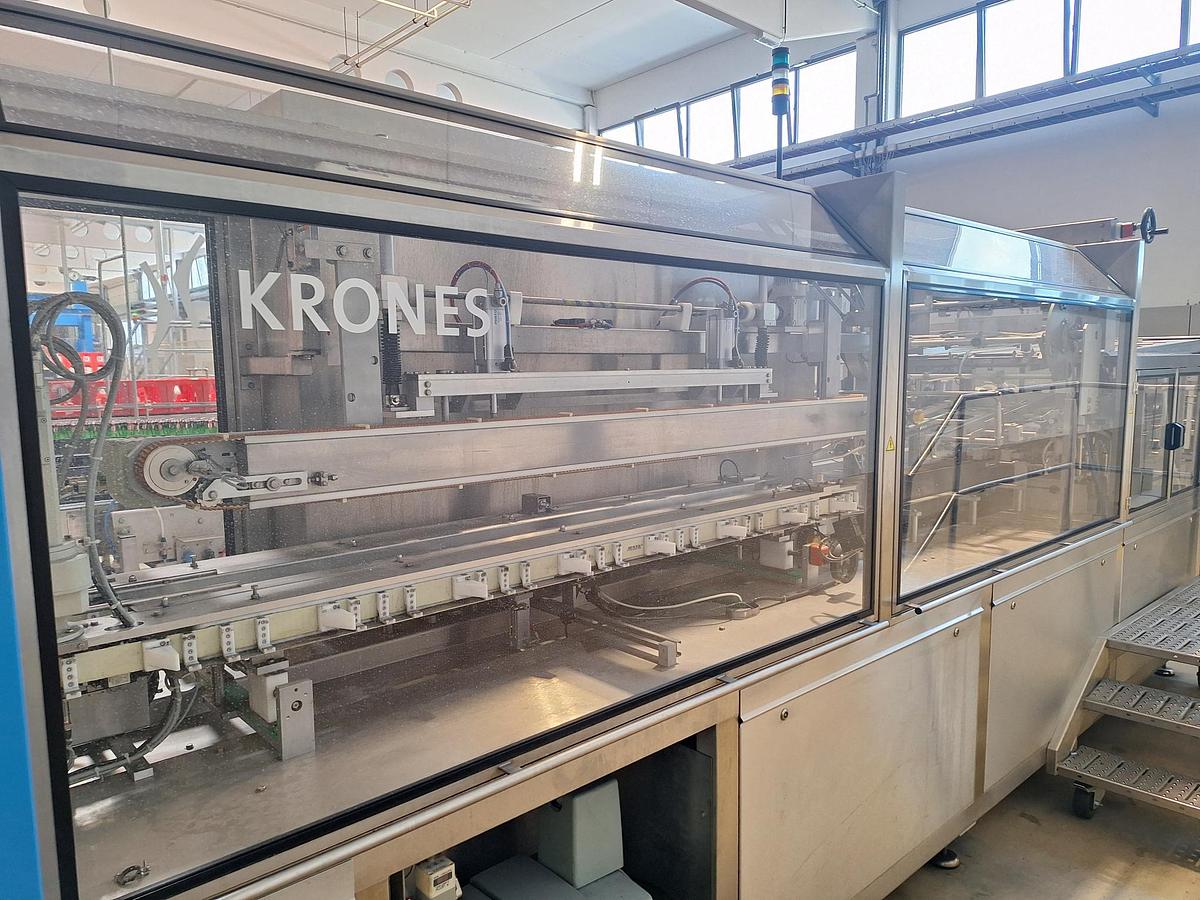

Main components and functions:

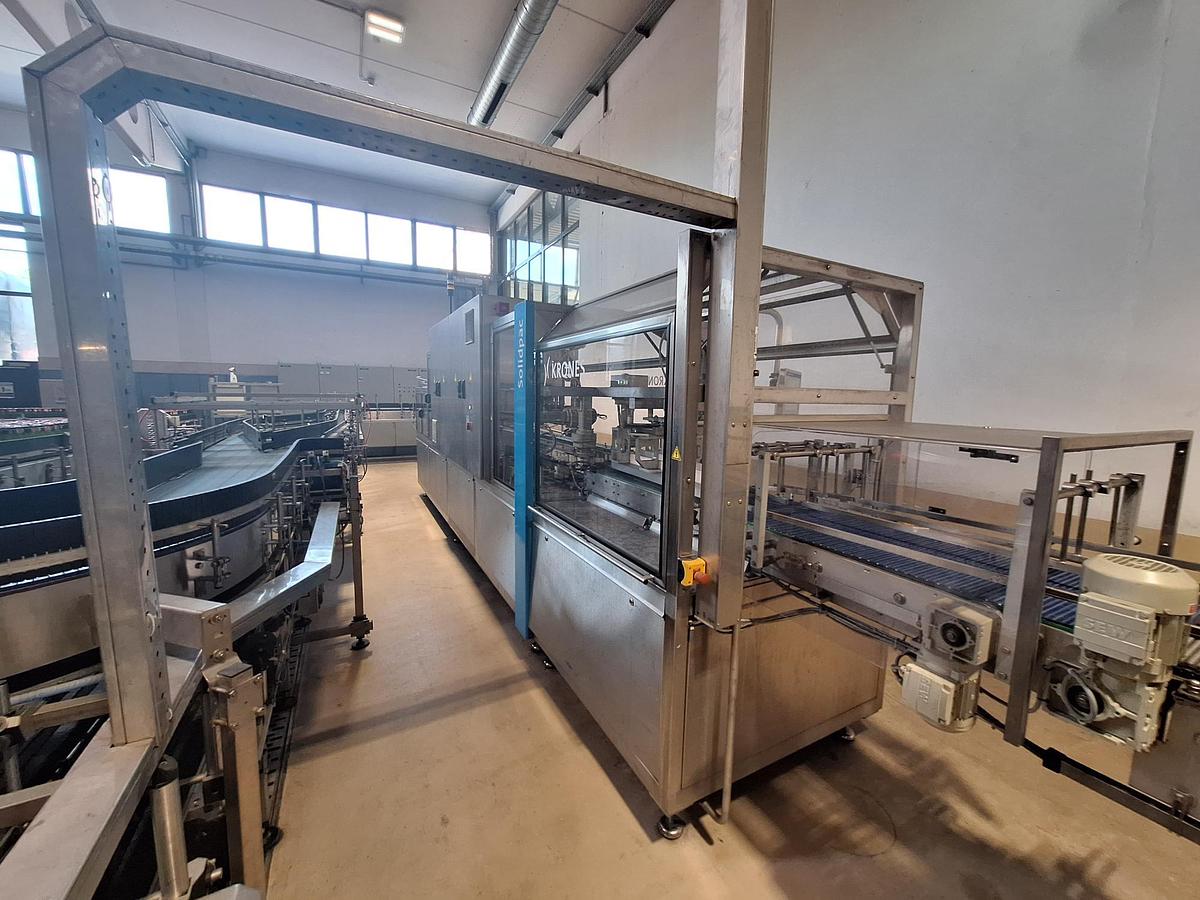

• Infeed conveyor: Ensures a constant product supply to the machine. The conveyor has 3 sensors per lane to detect product presence, allowing the machine speed to be adjusted.
• Metering wheels: Synchronize the product flow with the machine.
• Grouping module: Assembles the product packages.
• Front conveyor: Transports the products and cartons from the grouping module to the rear conveyor.
• Carton magazine: Holds the cartons, which are then removed individually by the carton separator. Carton feed is driven by belts and a gear motor, controlled by a sensor in the lower front area.
• Carton separator: Removes individual cartons from the magazine and places them on the belt onveyor when the presence of a product is detected by a photoelectric sensor. Cartons are picked up using vacuum suction cups supplied by a vacuum pump.
• Carton transport: Consists of two belts fitted with drivers, ensuring the carton is conveyed in phase with the product package. A photoelectric sensor detects a carton that has been placed.
• Upper transport device: Conveys the products and carton from the front conveyor to the outfeed belt. Height adjustment is automatic, using a photoelectric sensor and a counting disc.
• Rear conveyor: Transports the products together with the cartons from the front conveyor to the outfeed belt, and aligns the two side flaps of the carton to each other.

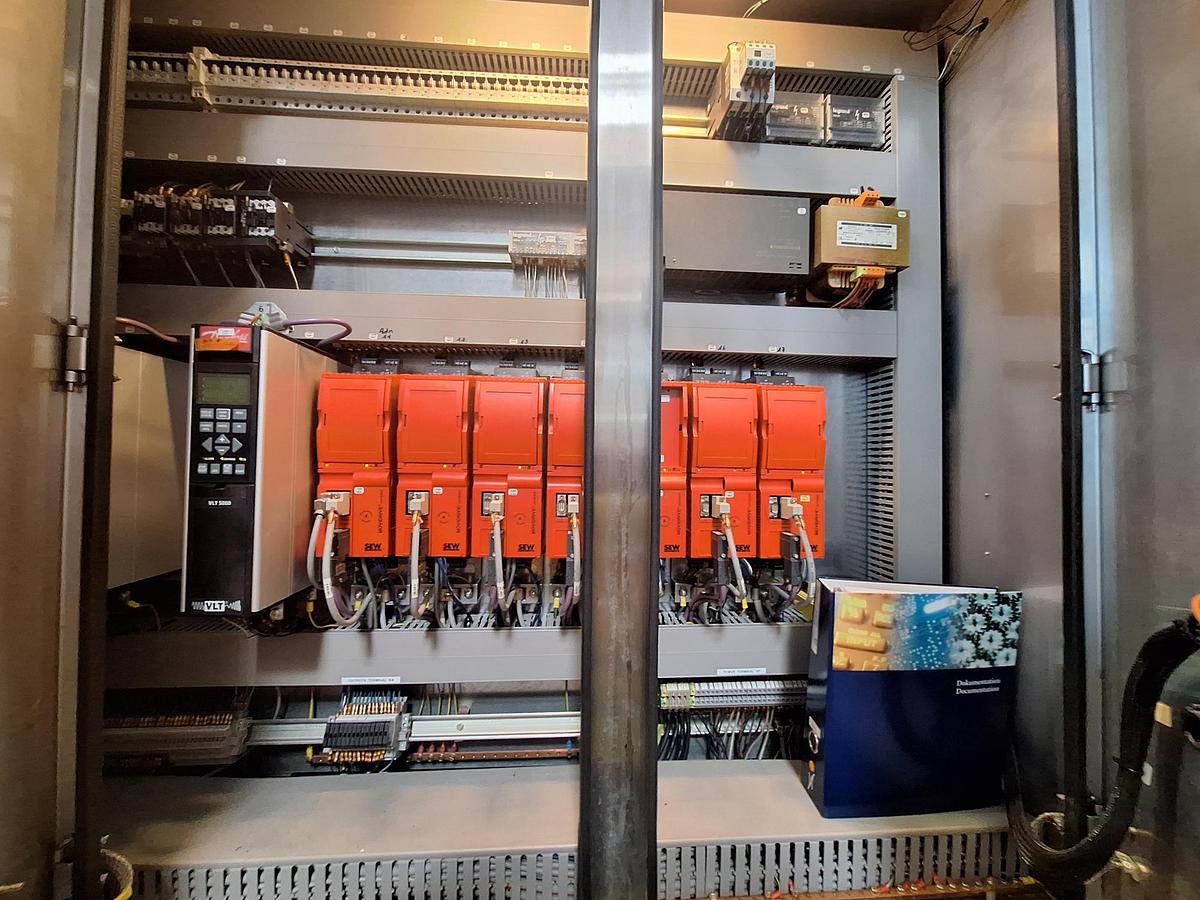

• Drive unit: Provides the mechanical drive for the various machine modules and their synchronization. Mechanical protection of the modules is ensured by a torque limiter.

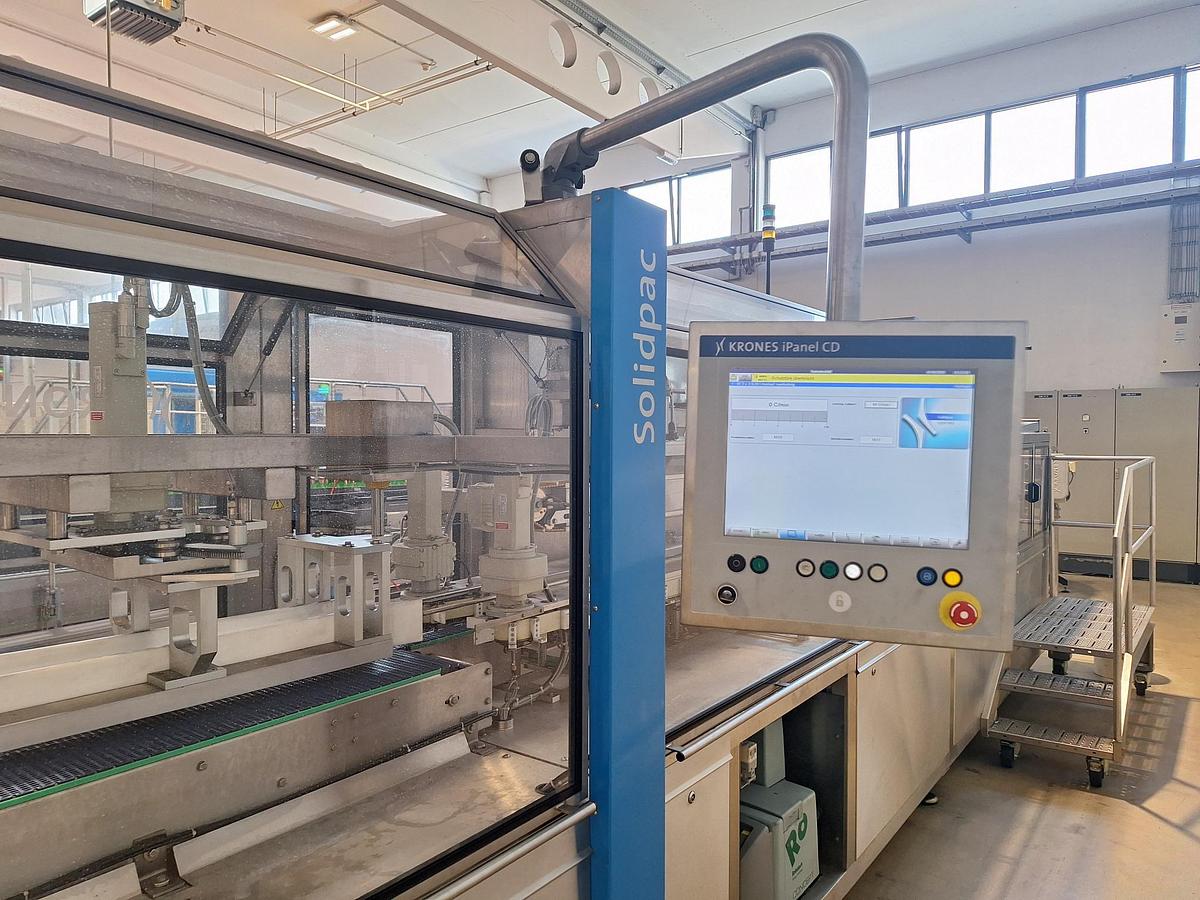

• Hot glue unit: Applies a hot glue track. Glue is only applied when the motor is running and a pack is present, as detected by a photoelectric sensor. Heat-up time for the hot glue unit is approximately 45 minutes. The position and length of the glue track are controlled via the PLC in the control cabinet and can be set on the touch panel.
• Gluing when machine is stopped: If the machine is stopped during a processing cycle, the last glued pack is still closed by a pneumatic cylinder.
• Dividing switch: Divides the packs from one lane into two lanes according to the format. Can be adjusted in width according to the format.
