2013 Wissner GAMMA 605 eco CNC 5-axis Milling Machine

2013 Wissner GAMMA 605 eco CNC 5-axis Milling Machine

Contact us for price

Location:Germany

Description


Manufacturer: Wissner

Model: GAMMA 605 eco

Year of manufacture: 2013

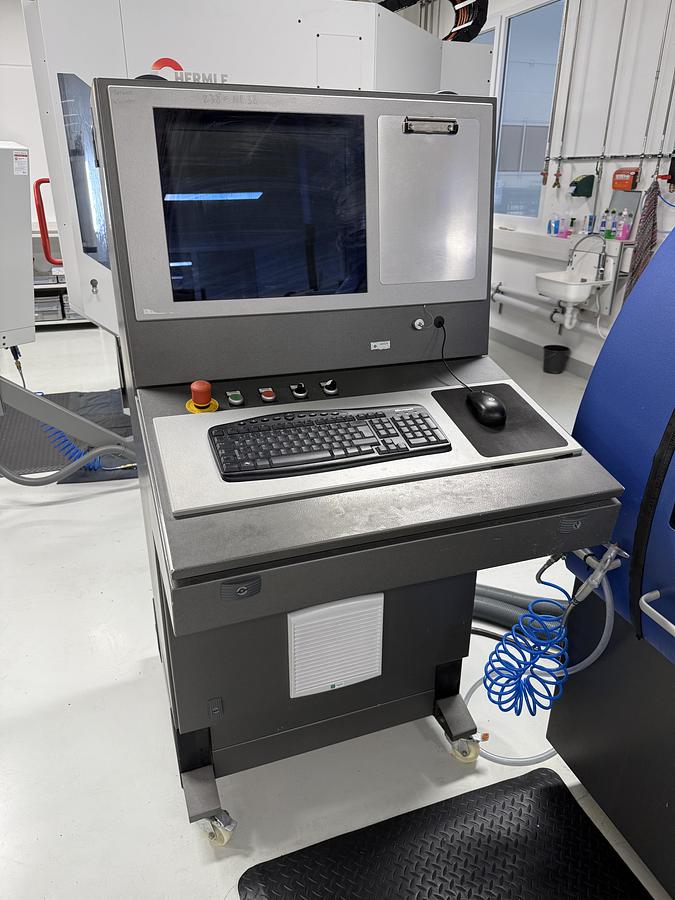

Control: CNC HSC 6000

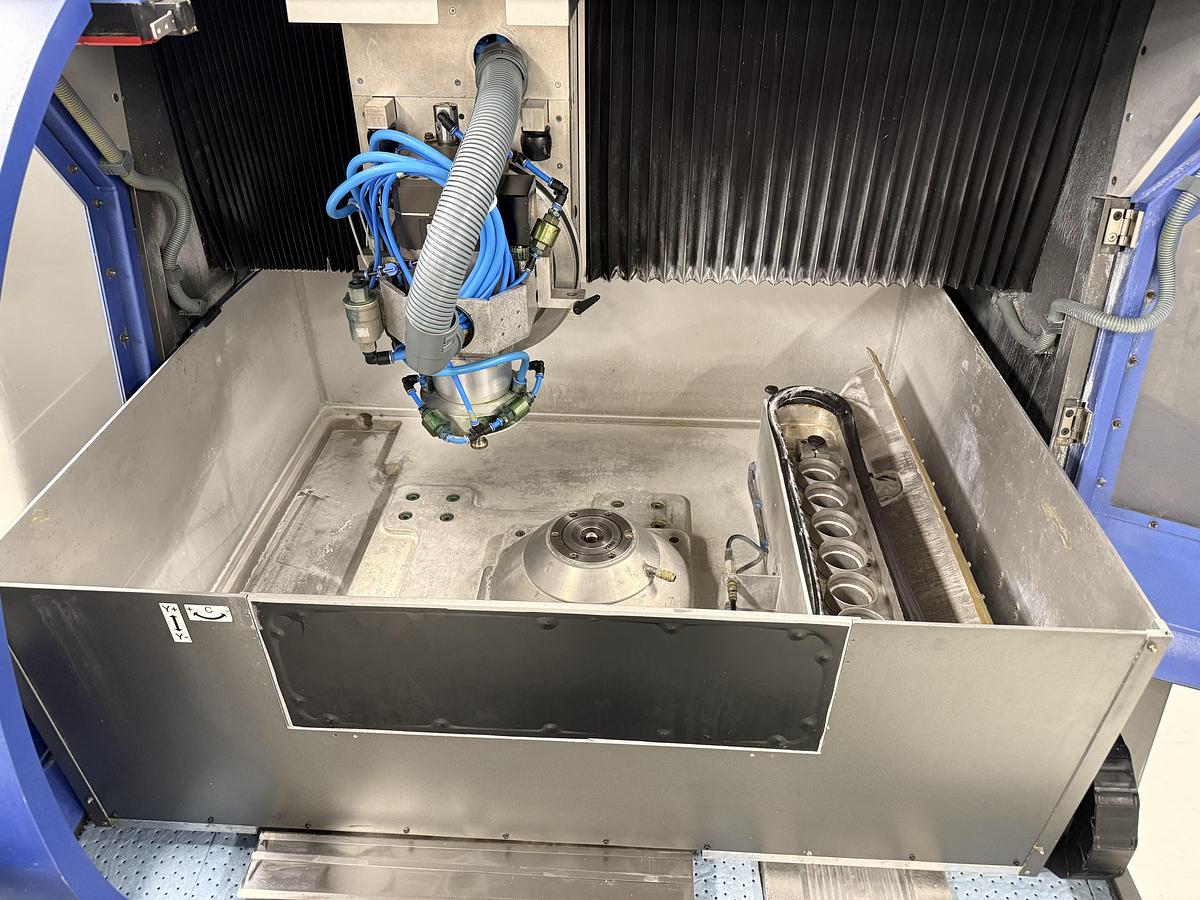

Machine type: CNC 5-axis high-speed milling machine

Technical Specifications:

  • Travel path X/Y/Z: 600mm / 500mm / 350mm
  • Max. workpiece weight: 460 kg
  • Table dimensions X/Y: 700mm / 600mm
  • Tool holder: HSK-F63
  • Machine dimensions X/Y/Z: approx. 2500mm / 2950mm / 1850mm
  • Weight: approx. 3500 kg per the machine description; the nameplate states a total weight of 3700 kg

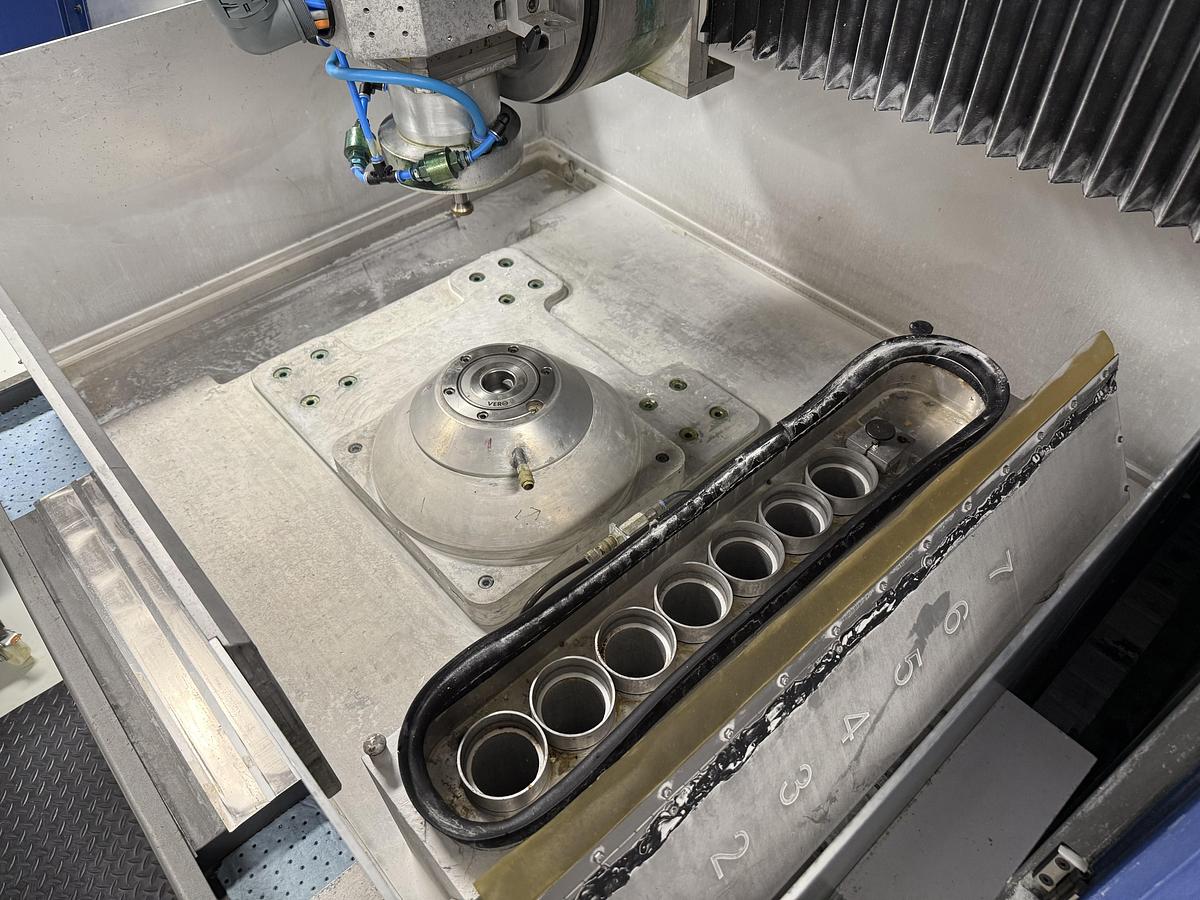

  • Zero-point clamping system: Schunk NSE Plus 138-V1
  • Clamping pins: SPA 40 RF

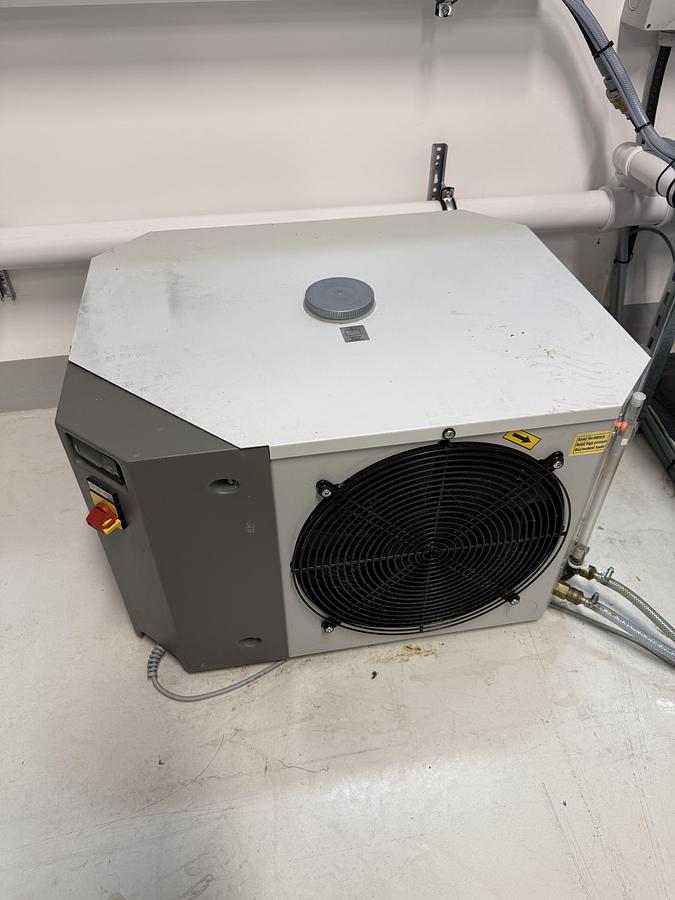

  • Cooling system: Hyfra Chilly 35
  • Air blast function: Included
  • Tool measuring system: Included

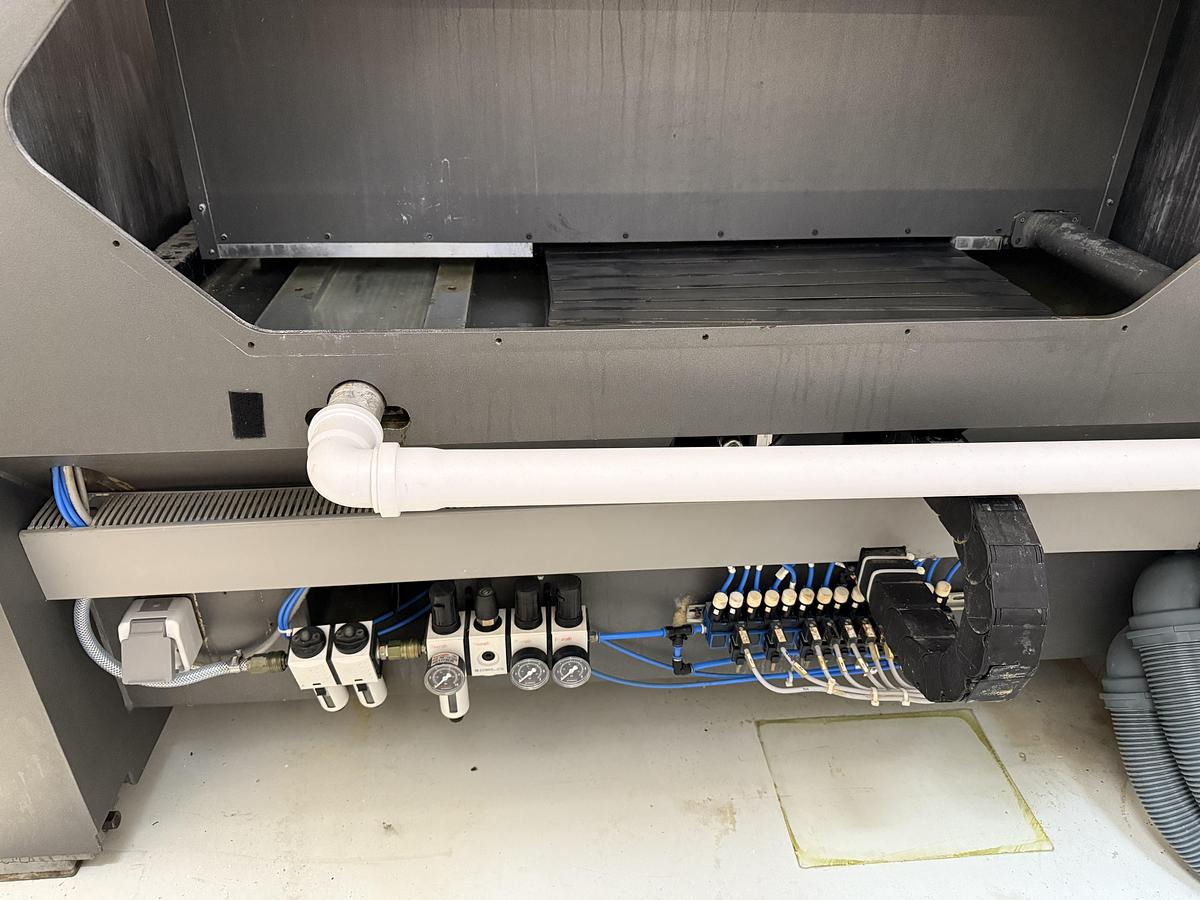

  • Operating pressure: 6 bar
  • Cone cleaning: max. 2.0 bar
  • Blocking air spindle: 0.3-0.5 bar
  • Rated voltage: 400 V
  • Fuse rating: 63 A
  • Frequency: 50 Hz
  • Max. permissible tool diameter: 50 mm
  • Made in Germany, CE marked
  • Documentation: Available
  • Inspection: On-site inspection is possible




Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerWissner
ModelGAMMA 605 eco
Year2013
ConditionUsed
Stock Number758469
