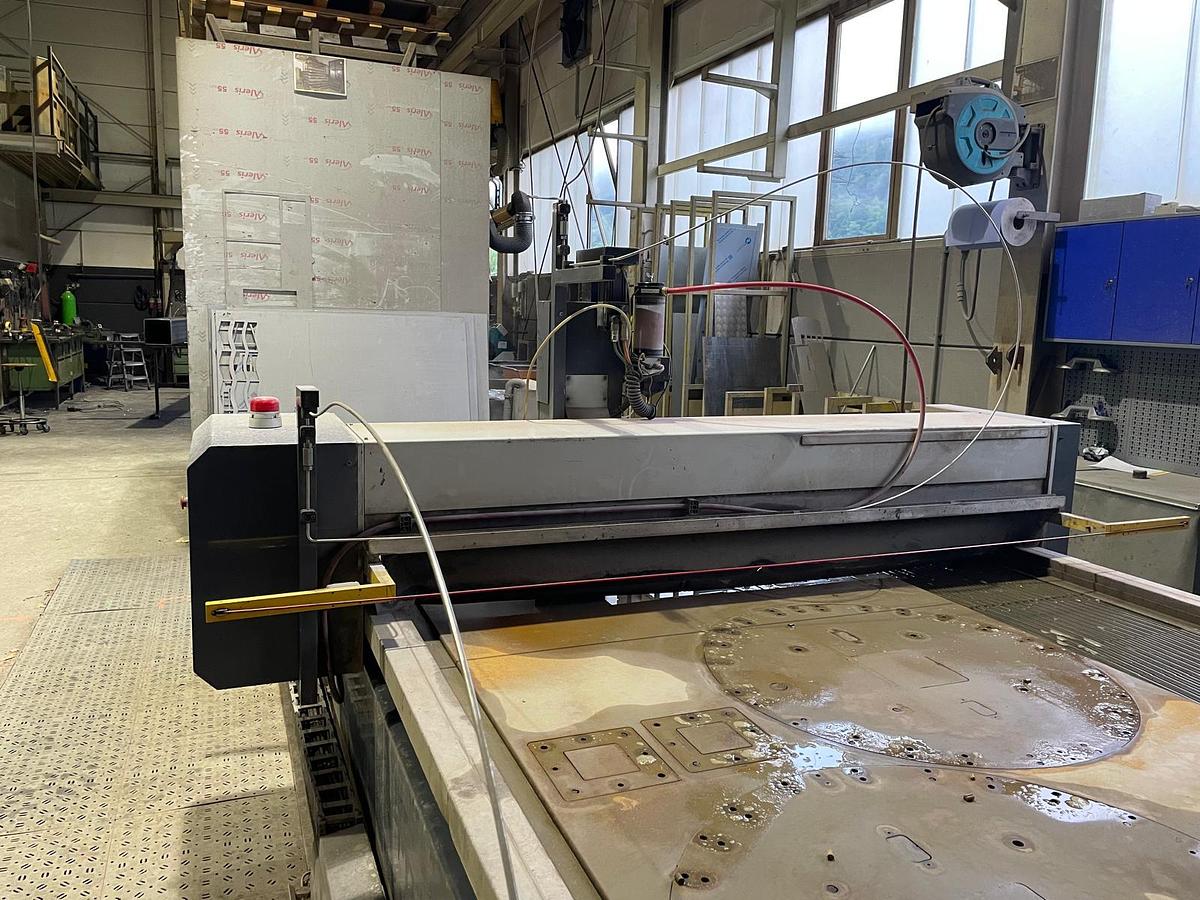

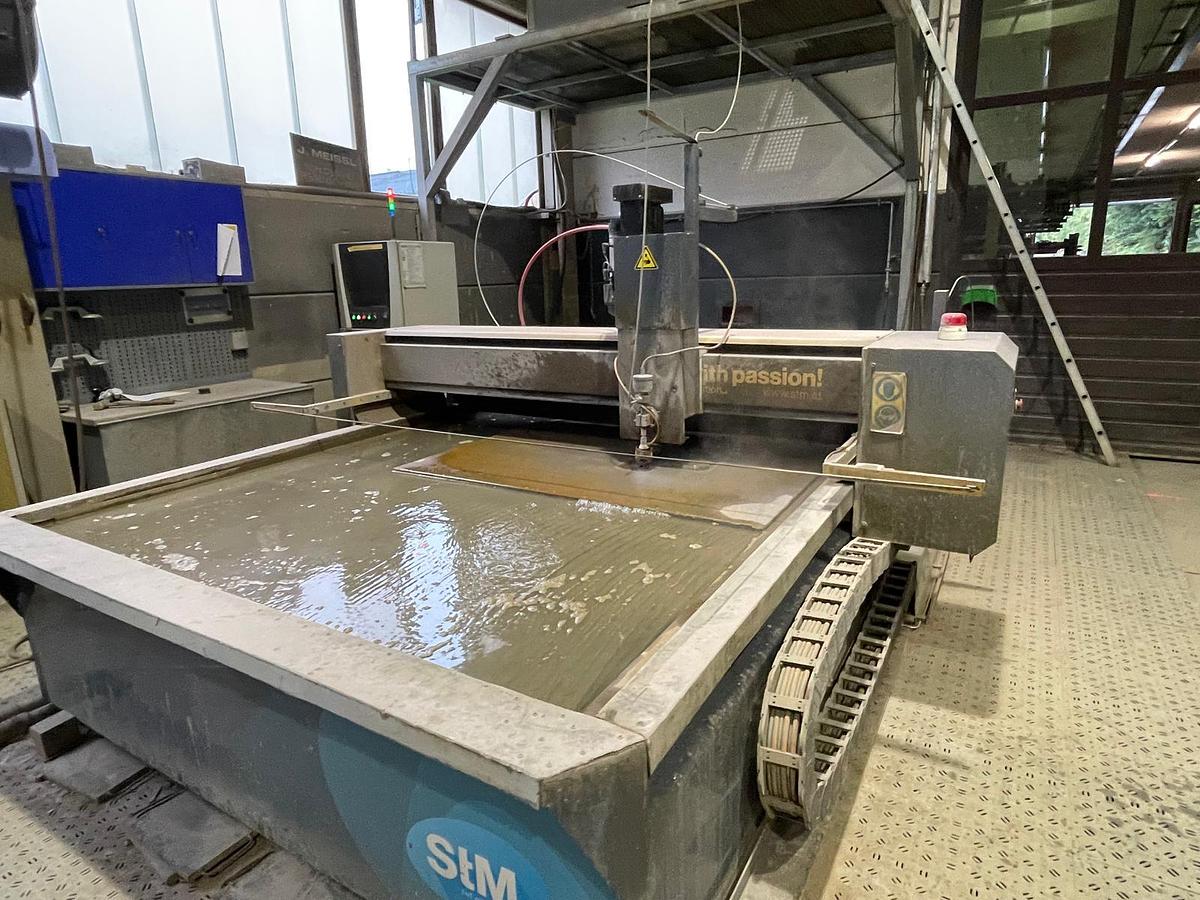

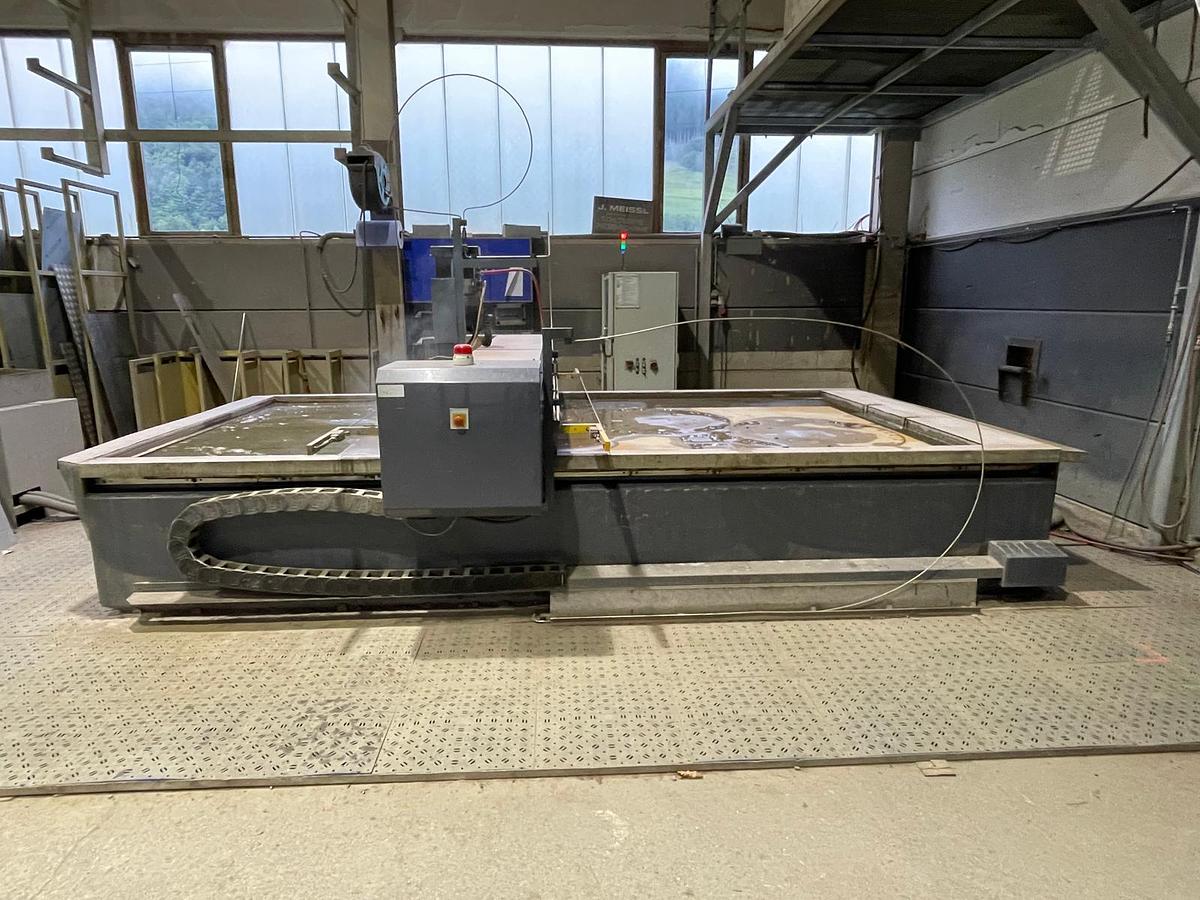

2013 STM Waterjet 4020 PremiumCut 2D Waterjet Cutting System

2013 STM Waterjet 4020 PremiumCut 2D Waterjet Cutting System

Contact us for price

Location:Germany

Description


Manufacturer: STM

Model: 4020 PremiumCut

Type of Machine: Waterjet Cutting System

Year of Manufacture: 2013

Condition: Used, Fully Functional

Operating Hours: approx. 10,700 h

Technical Specifications:

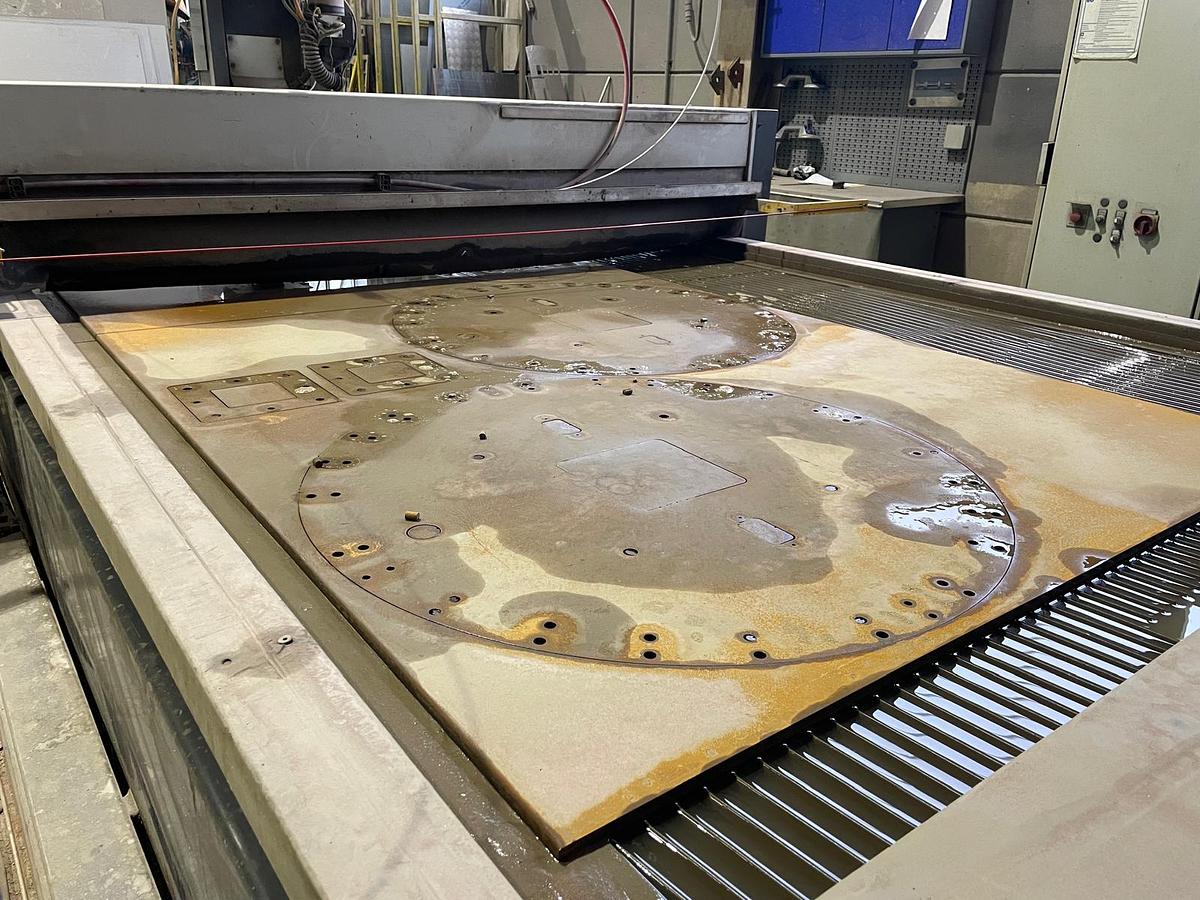

  • Effective cutting area: 4000 x 2000 mm
  • Heavy duty slats for workpieces up to 1,000 kg per square metre
  • CNC control NUM Axium Power, up to 30 m per minute
  • Z-axis CNC clearance height: 180 mm

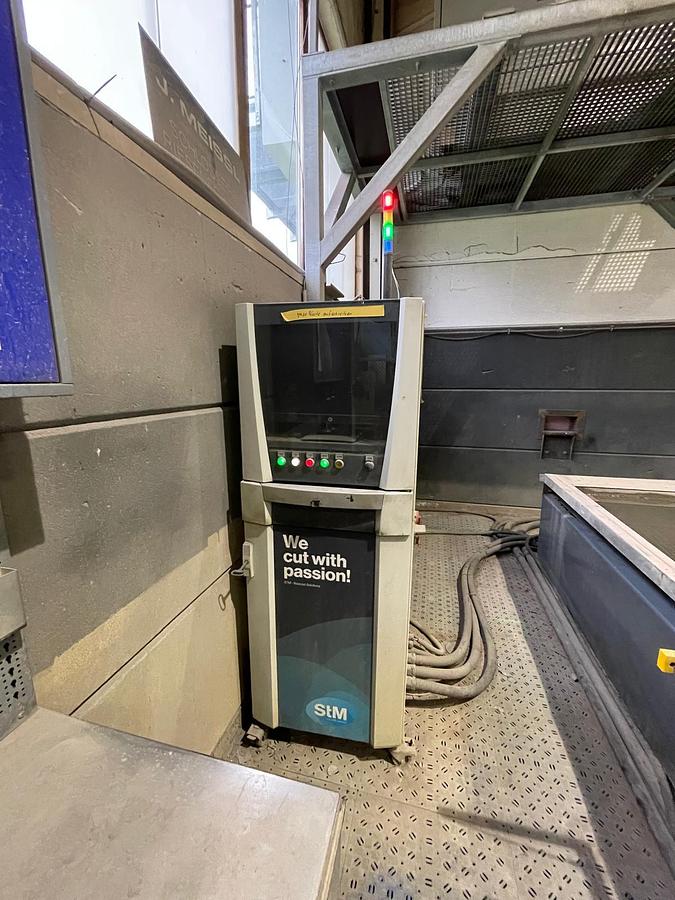

  • Control cabinet: Premium console
  • Waterjet software: SmartCut
  • Computer with 20 inch LED monitor and splash-proof keyboard and mouse

Main Components and Their Function:

  • Waterjet cutting valve
  • Abrasive cutting head
  • Positioning laser
  • Abrasive metering unit, CNC controlled, with intermediate container
  • Abrasive supply container, 250 kg
  • Abrasive minihopper system with pressure container
  • Double cable pull system to secure the working area

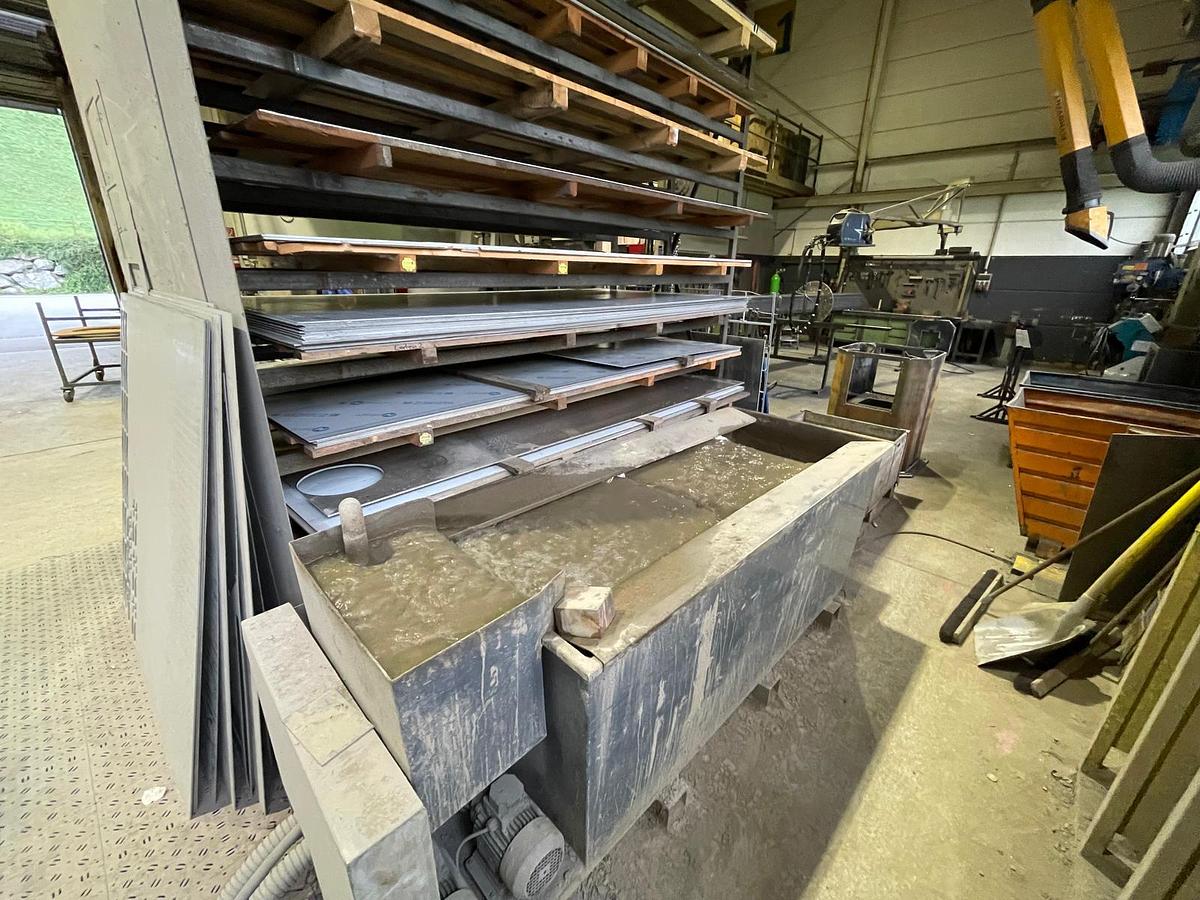

  • Automatic Abrasive Rinsing System:
  • 1-stage settling tank including BigBag
  • Special ceramic-coated, long-life high-performance pumps
  • Piping and PLC control

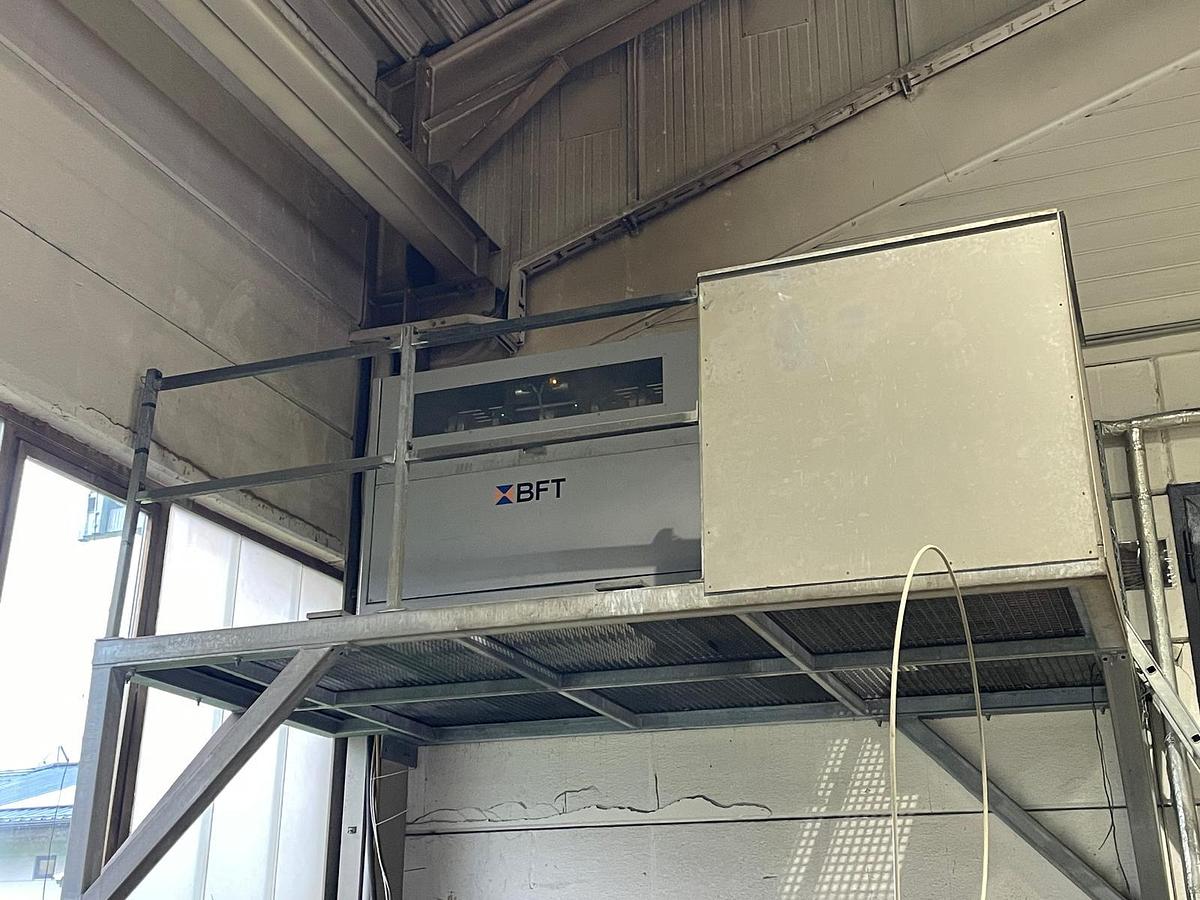

Included High-Pressure Pump:

  • Manufacturer: BFT
  • Model: Ecotron 38.37
  • Year of Manufacture: 2016
  • Condition: Used, Fully Functional
  • Operating Hours: approx. 13,100 h

Additional Information:

  • The entire system, including the rinsing unit and pump, can be inspected fully operational.


Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerSTM Waterjet
Model4020 PremiumCut 2D
Year2013
ConditionUsed
Stock Number758476
