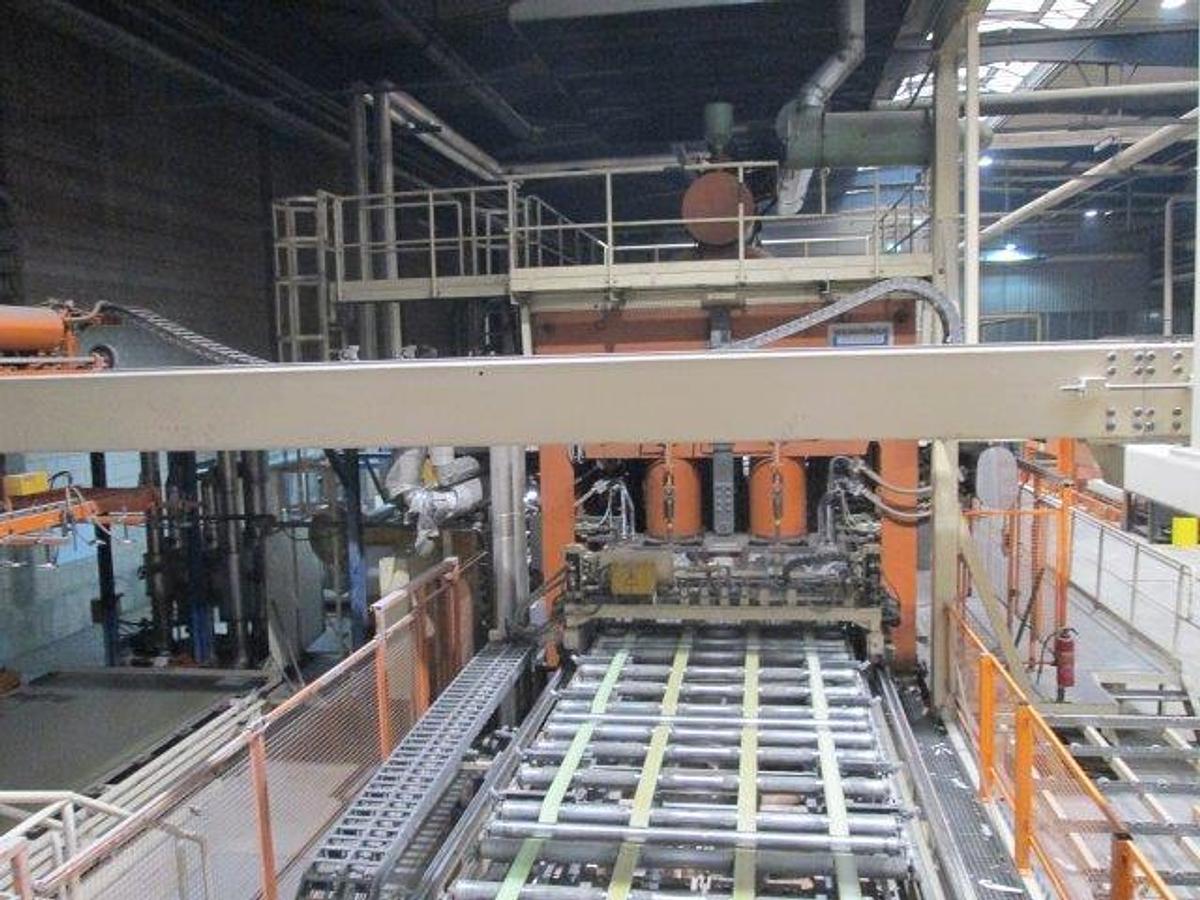

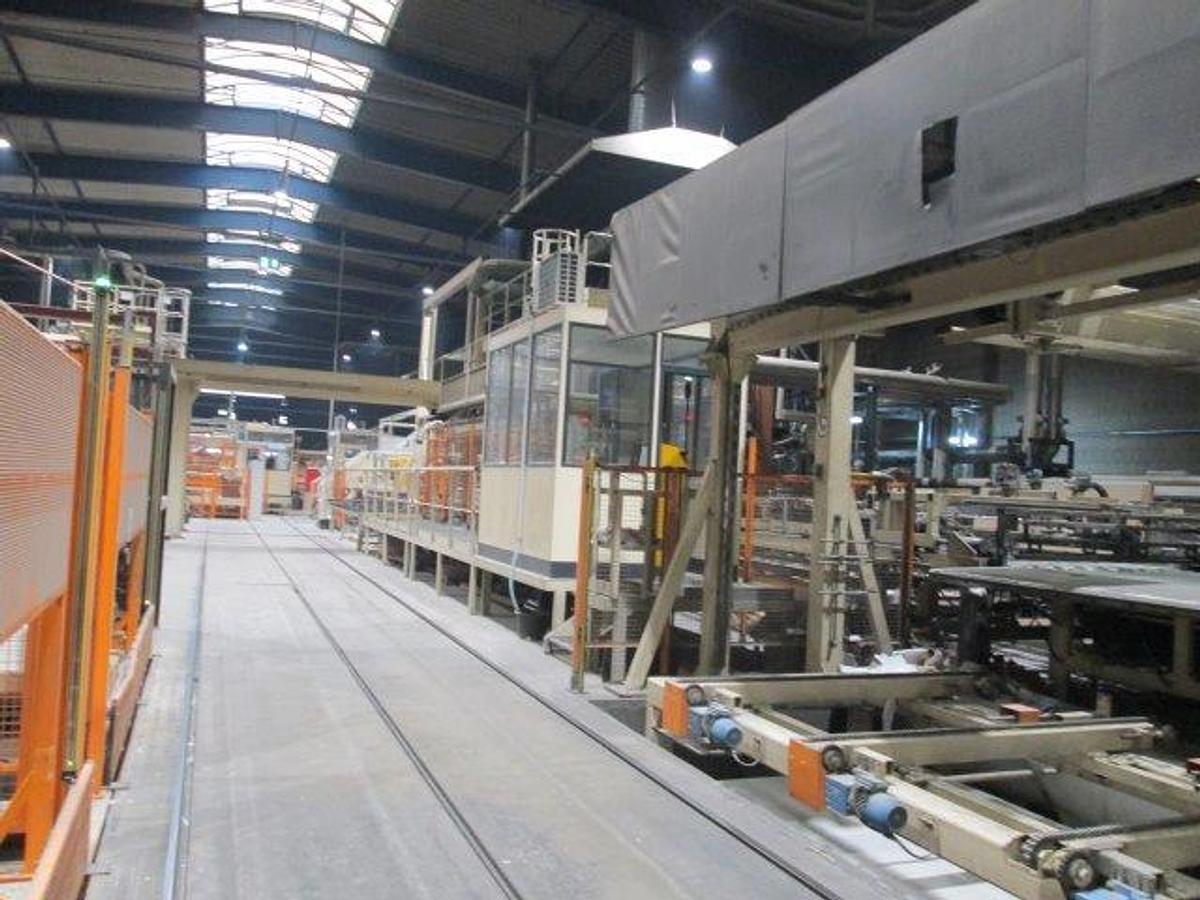

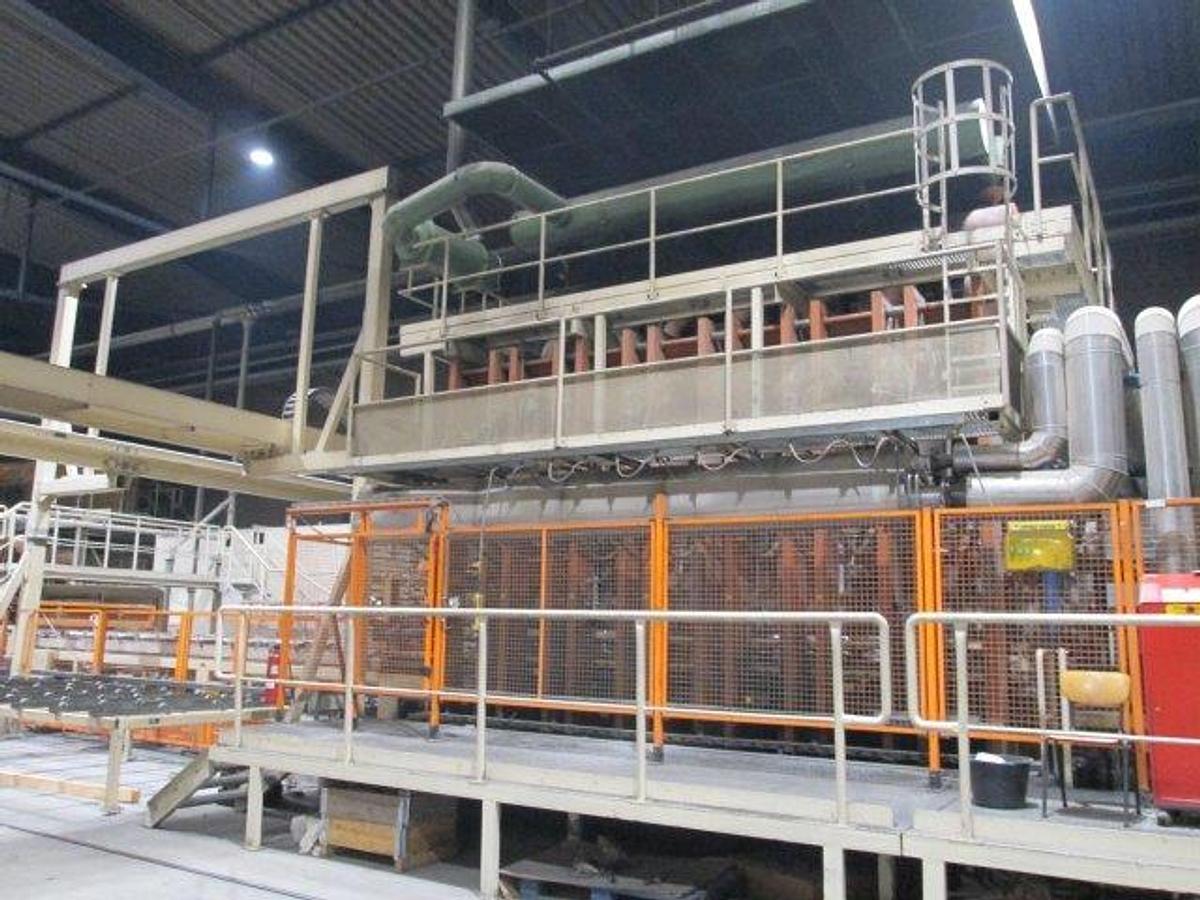

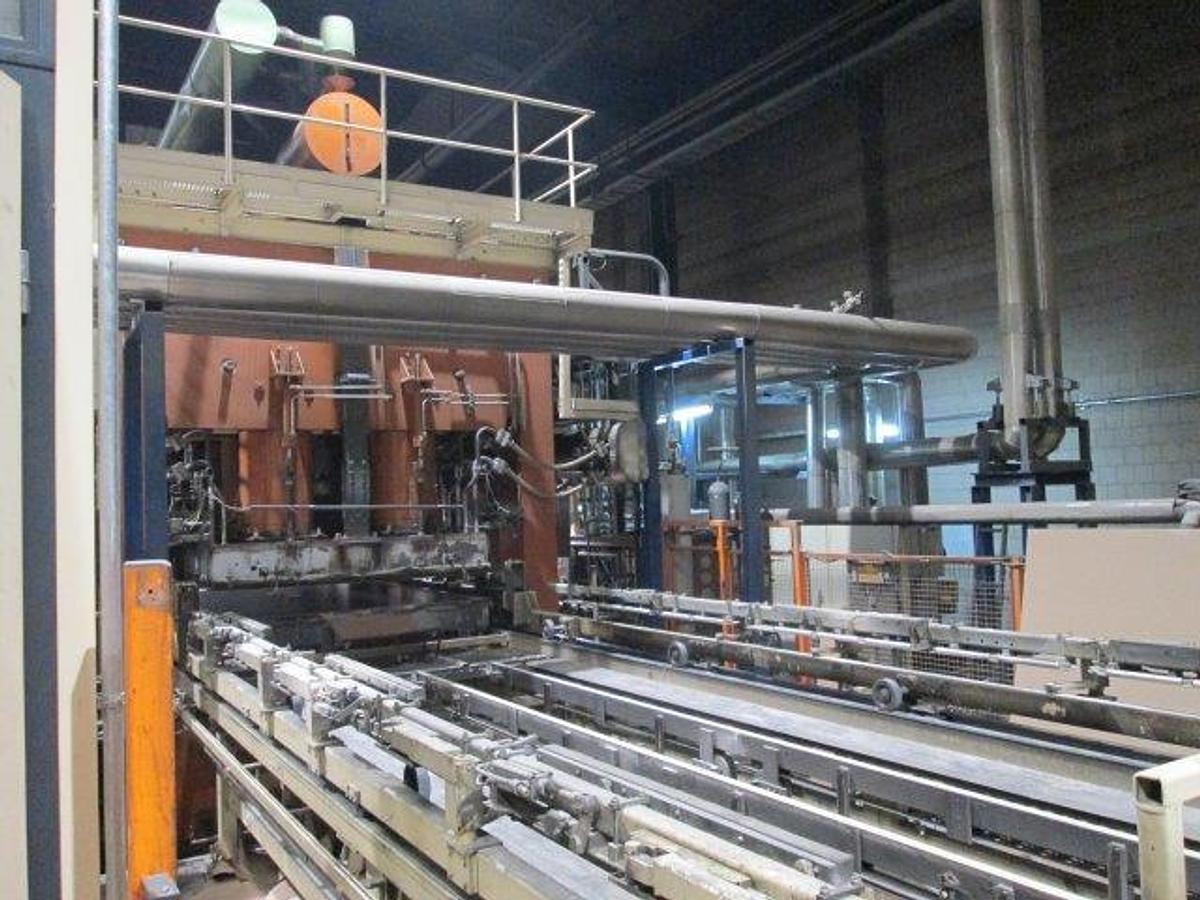

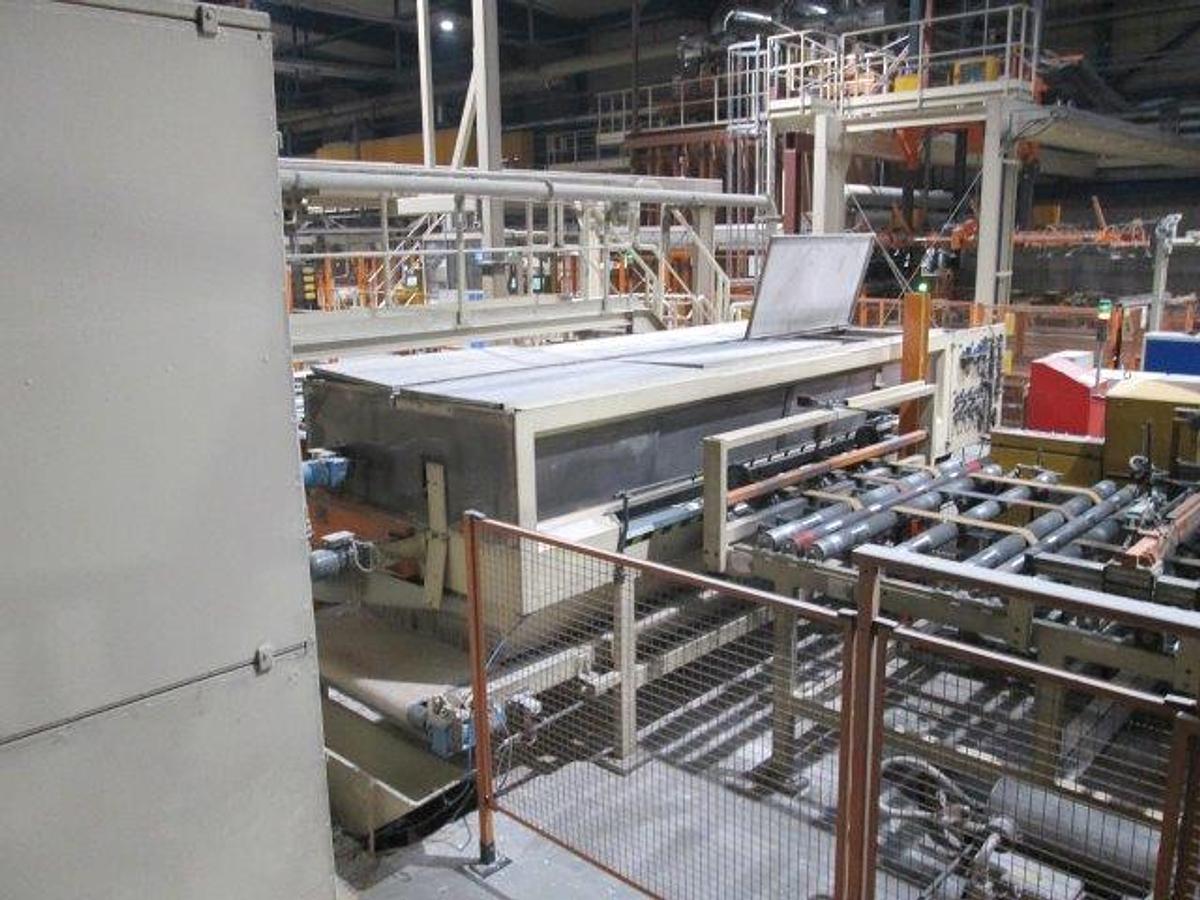

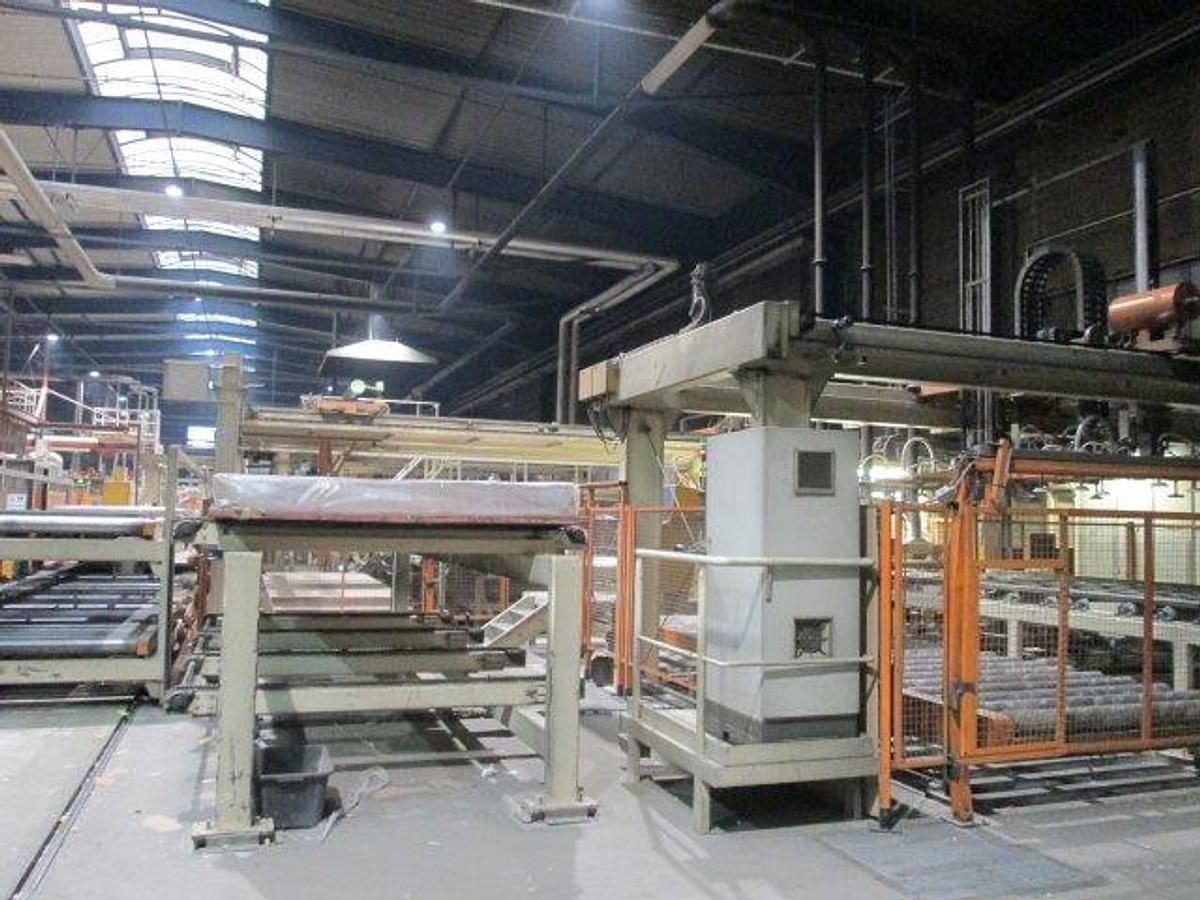

2001 Wemhoener DEK 06 Single-Level Short-Cycle Press

Manufacturer: Wemhoener

Model: DEK 06

Type of Machine: Single-Level Short-Cycle Press

Year of Manufacture: 2001

Condition: Good condition, still produces occasionally

Press Counter: currently 13.65 million pressings

Technical Specifications:

• Heating plate format: 5,700 x 2,300 mm
• Plate format capacity: 5,600 x 2,220 mm
• Total press pressure: 49,728 kN
• Specific press pressure: 400 N per square centimetre
• Working pressure: 320 bar
• Maximum operating temperature: 220 degrees Celsius
• Required drive power: 63 kW
• Operating voltage: 400 V, 50 Hz
• Tank filling: 2,000 / 4,000 litres
• Pump type: 2xA2F032/61L-P6H4-2x/050R

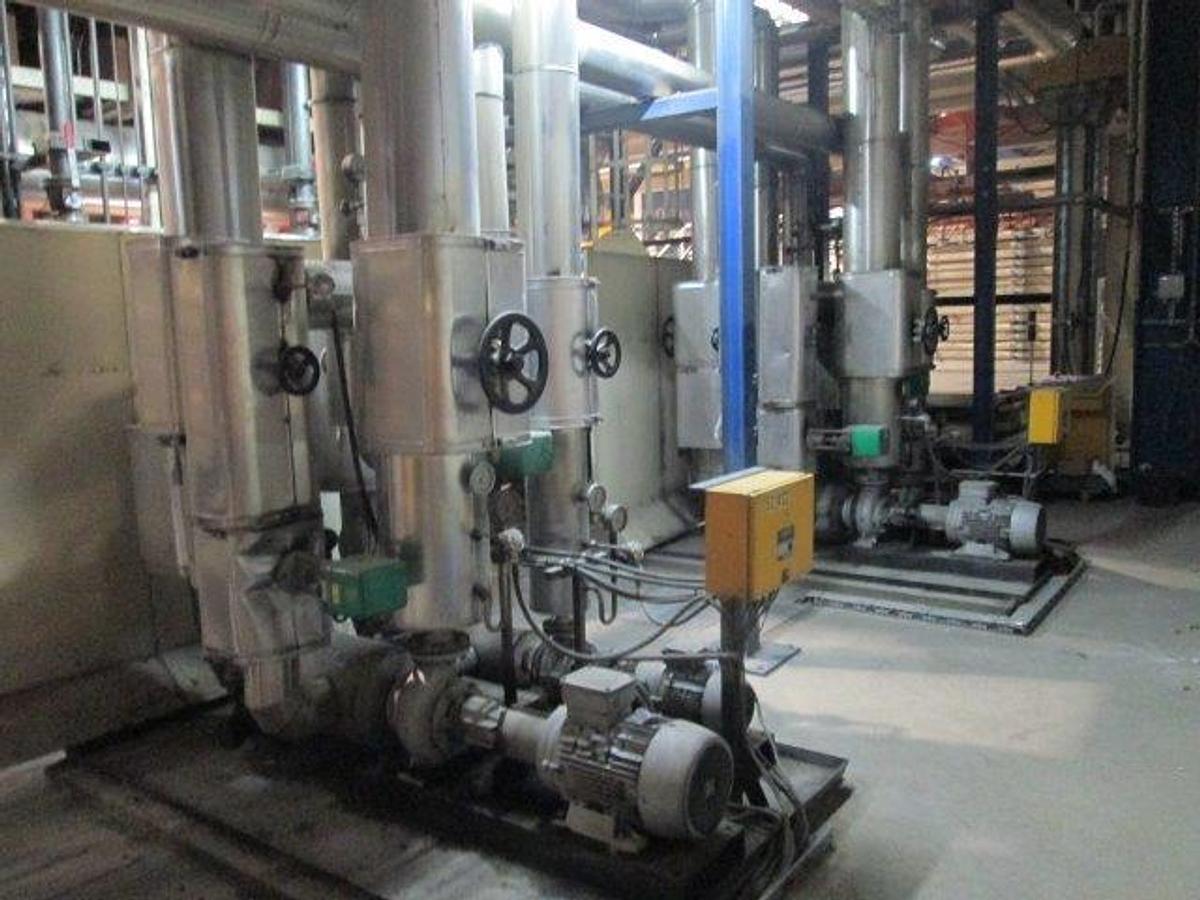

• Secondary heating medium: thermal oil

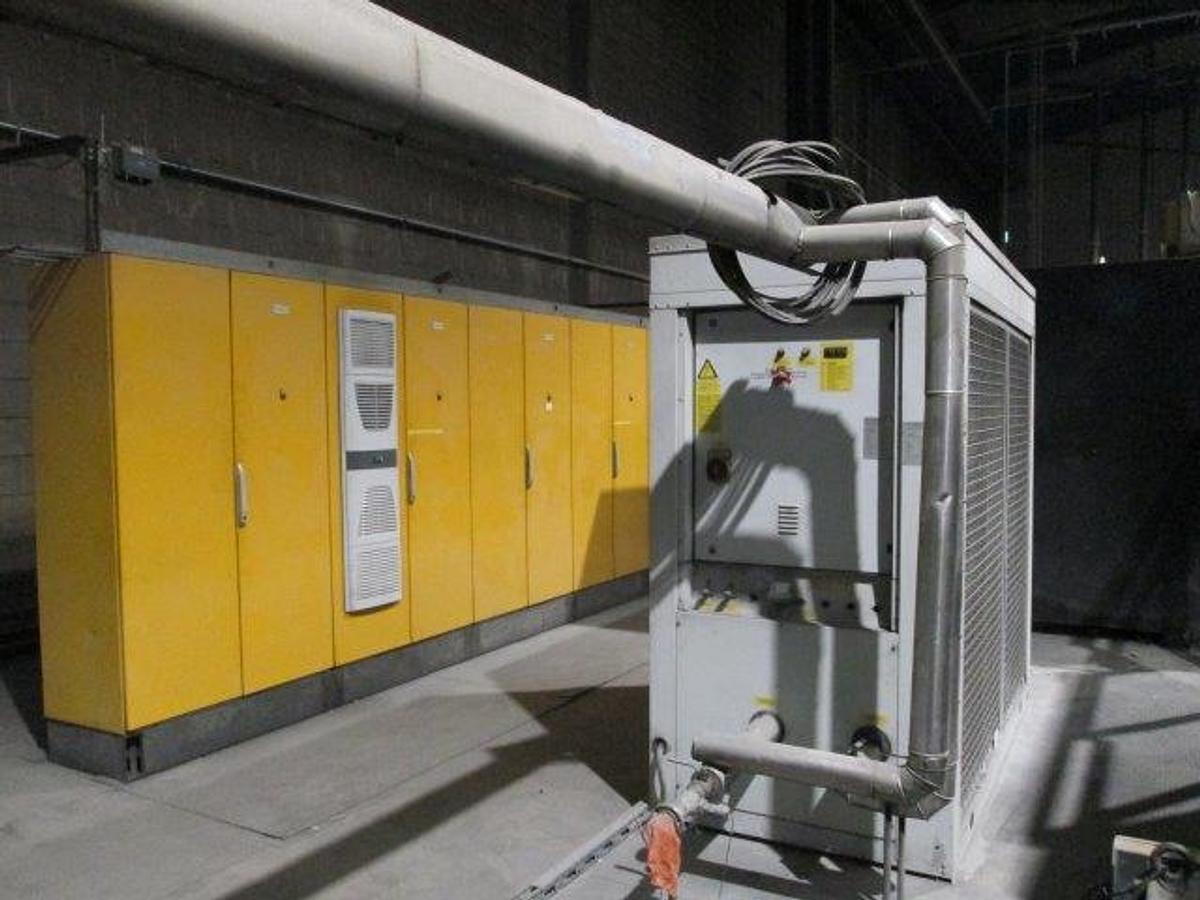

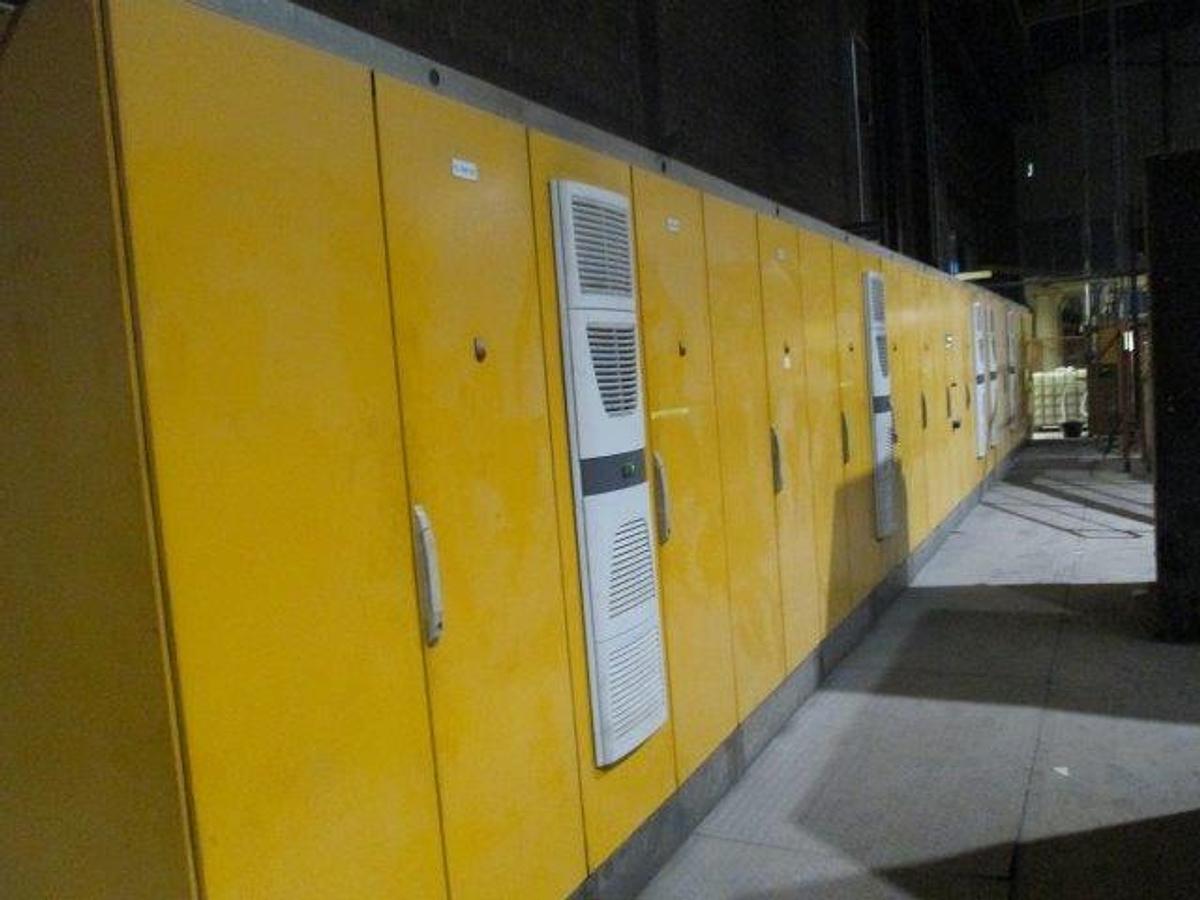

• Electrical control: Siemens S7/400 PLC

Output and Capacity:

• Minimum cycle time: 20 seconds, equal to 180 cycles per hour in single-format setup
• Minimum cycle time: 25 seconds, equal to 144 cycles per hour in double-format setup
• Pressure build-up time to 120 N per square centimetre: 8.0 seconds
• Pressure-free dwell time: 1.2 seconds
• Complete press plate change: 15 minutes with trained personnel

Main Components and Their Function:

• Heating plates, format 5,700 x 2,300 mm, heated by thermal oil to press and coat the panels

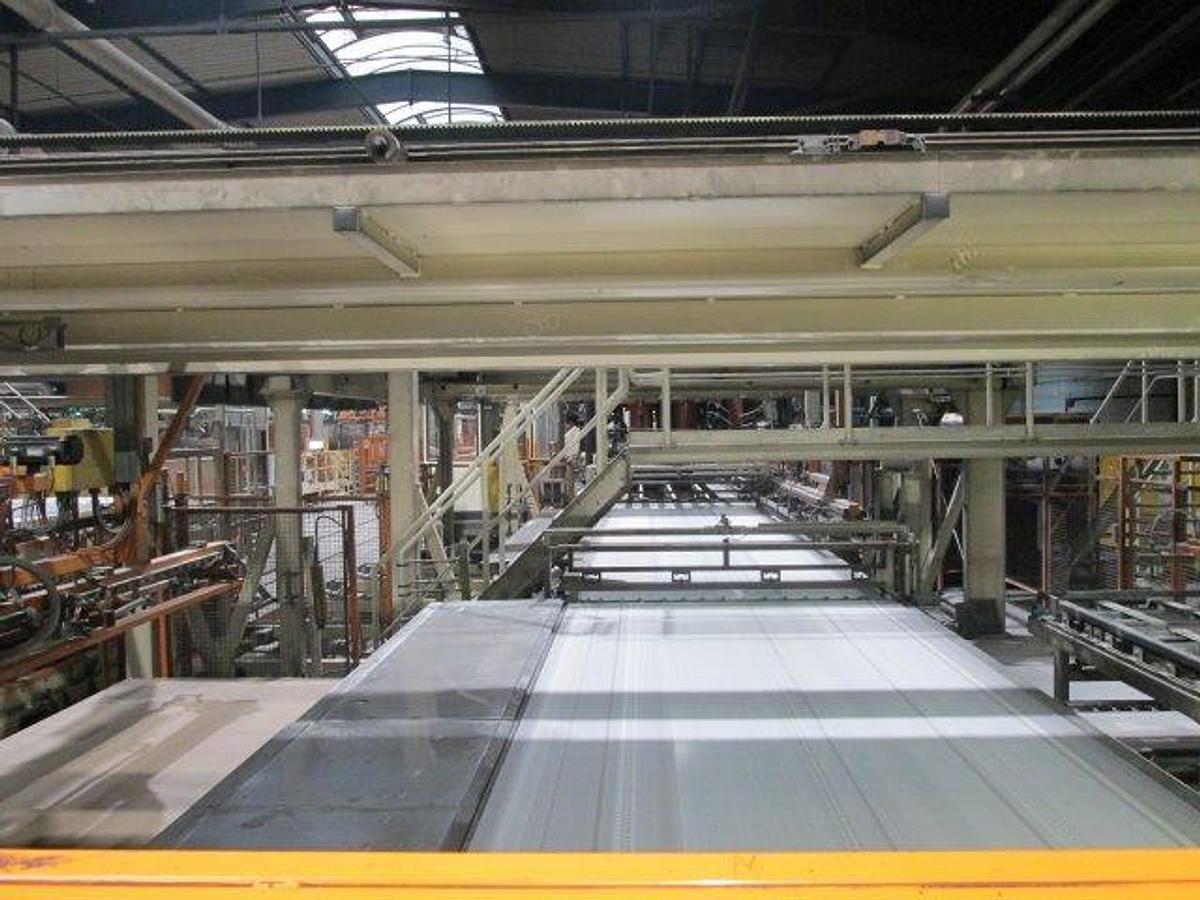

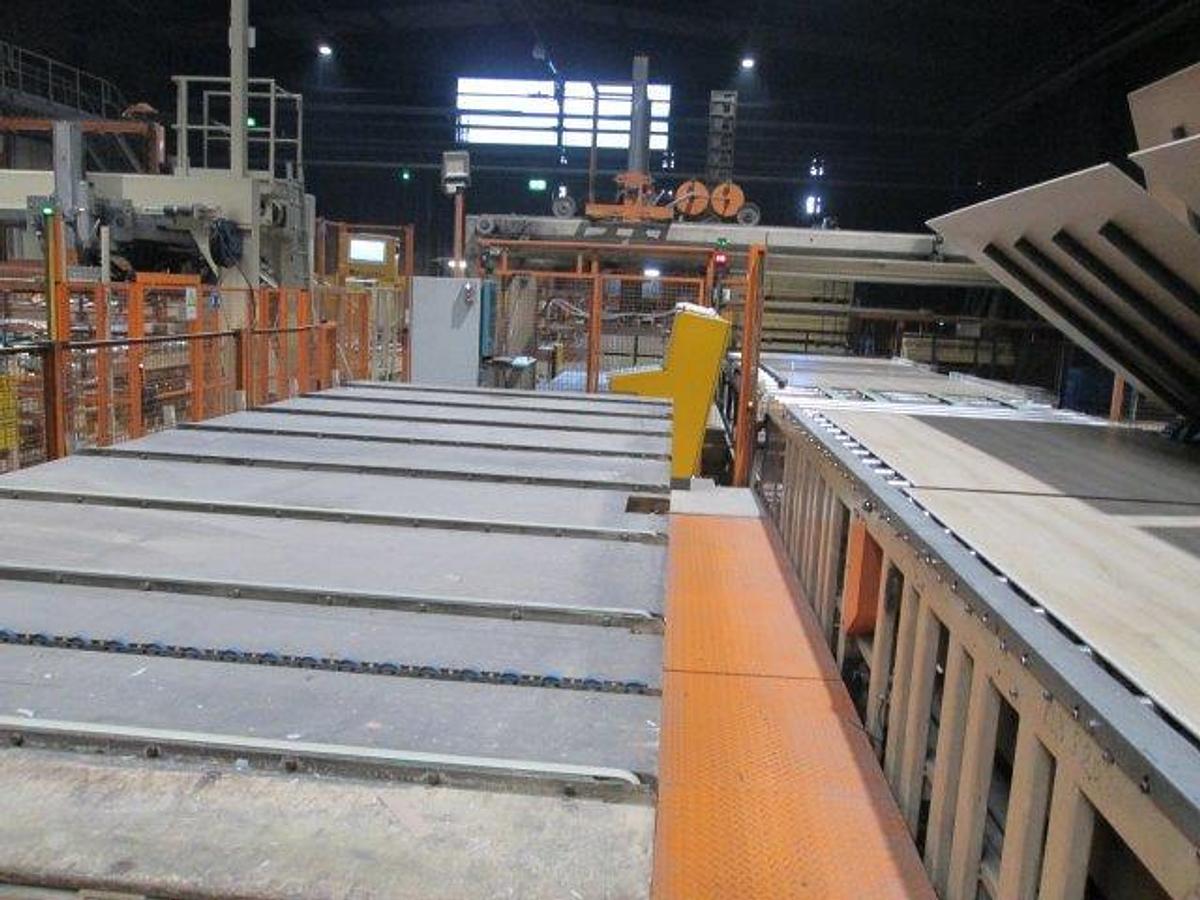

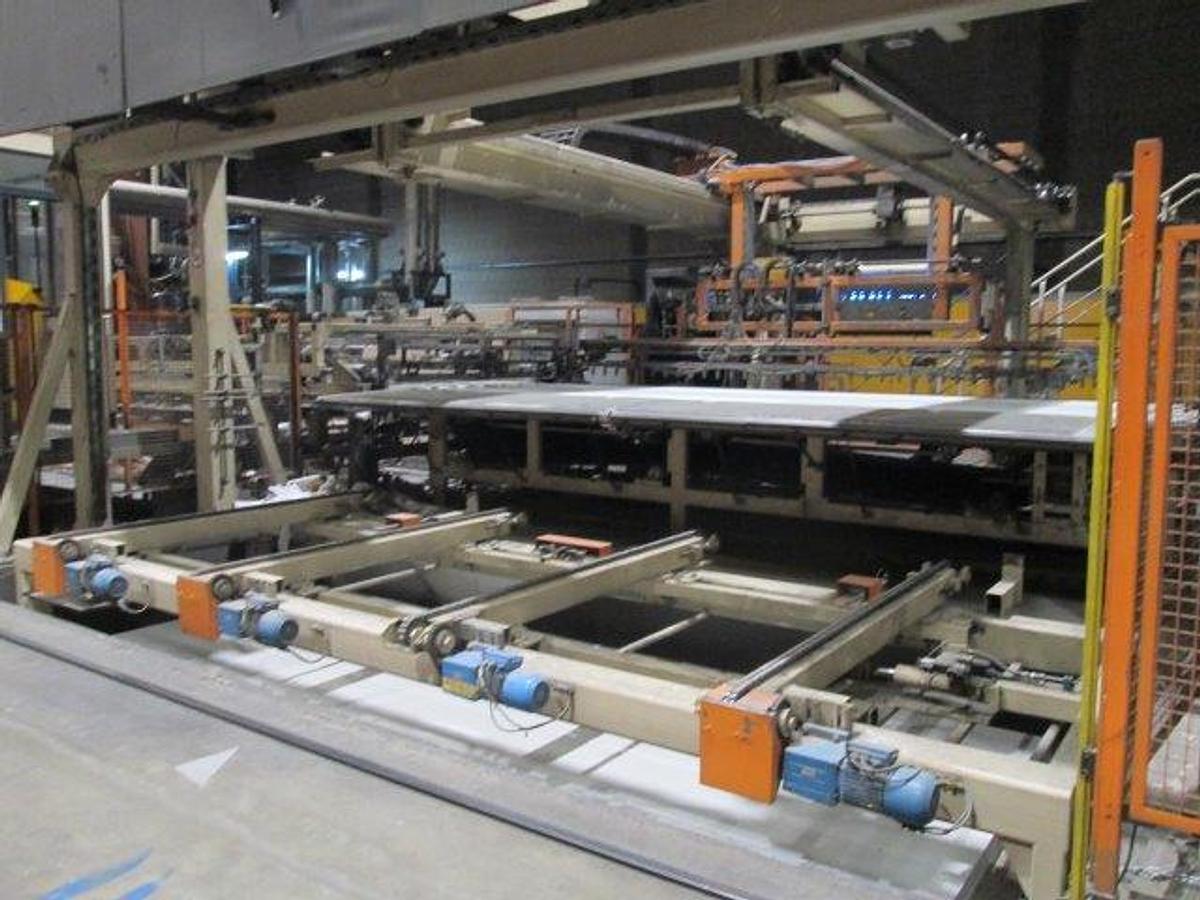

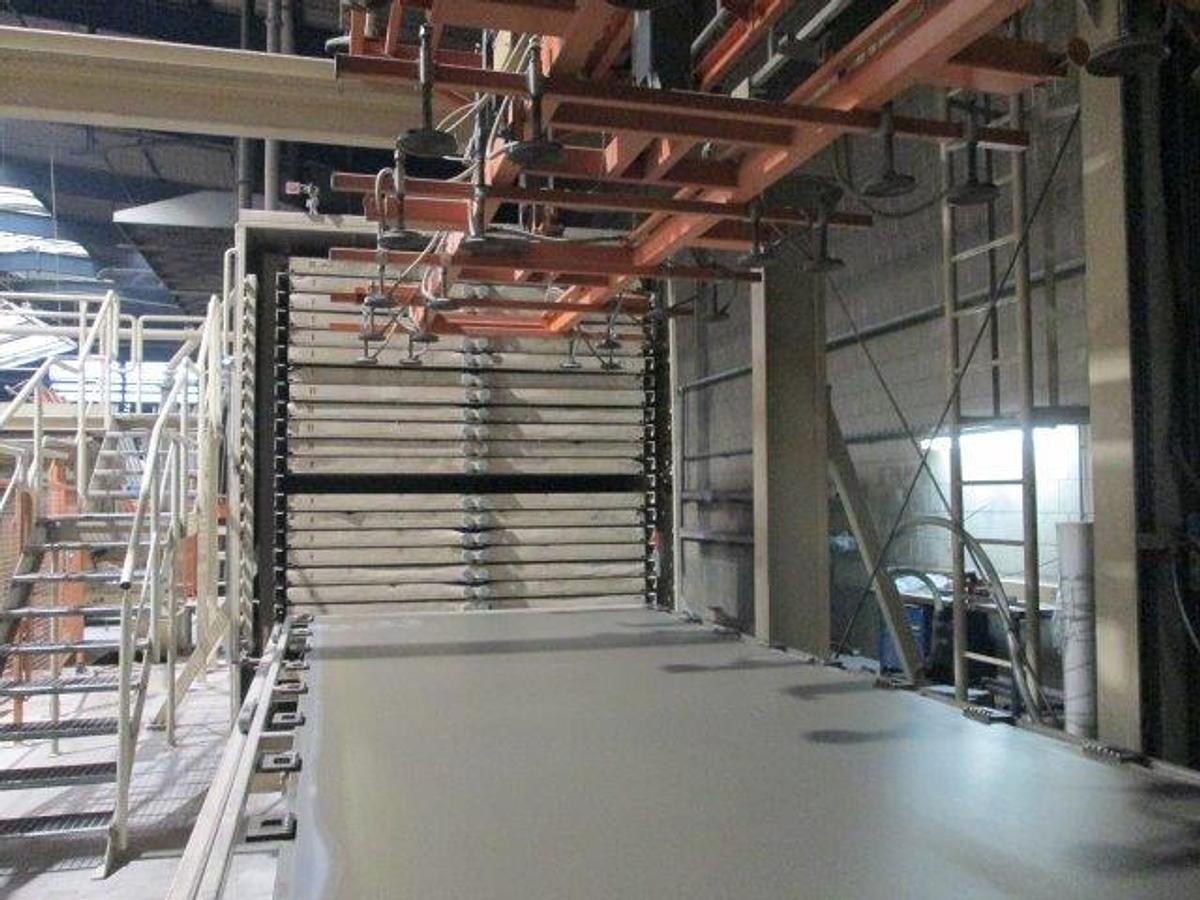

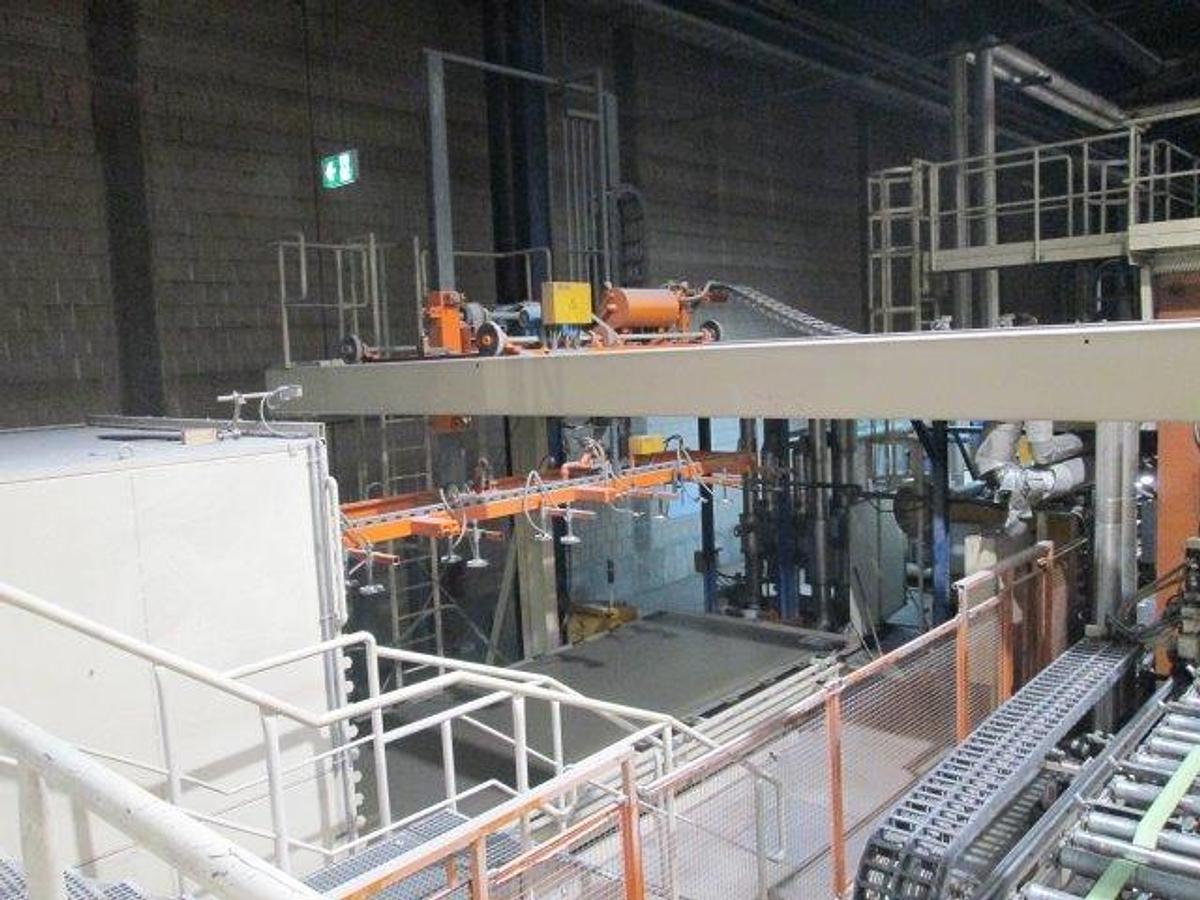

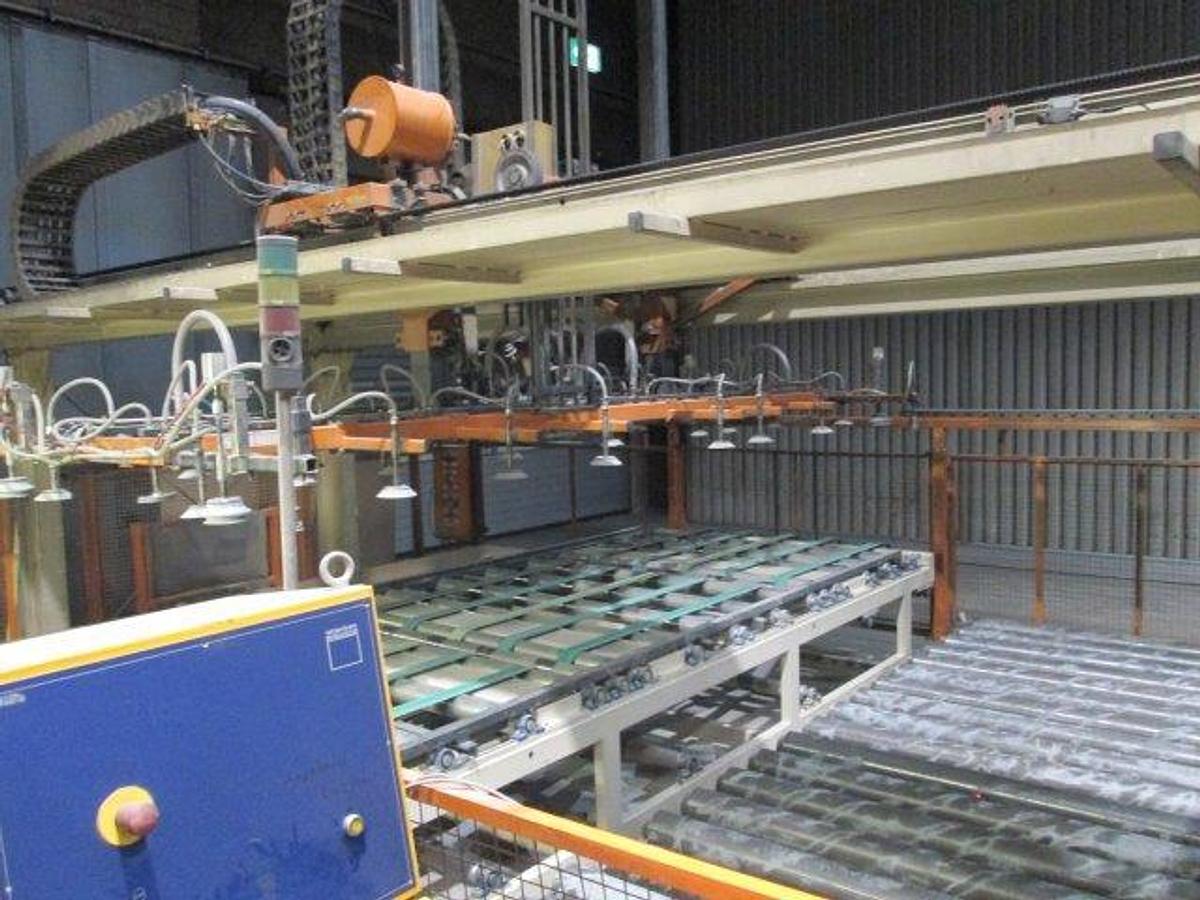

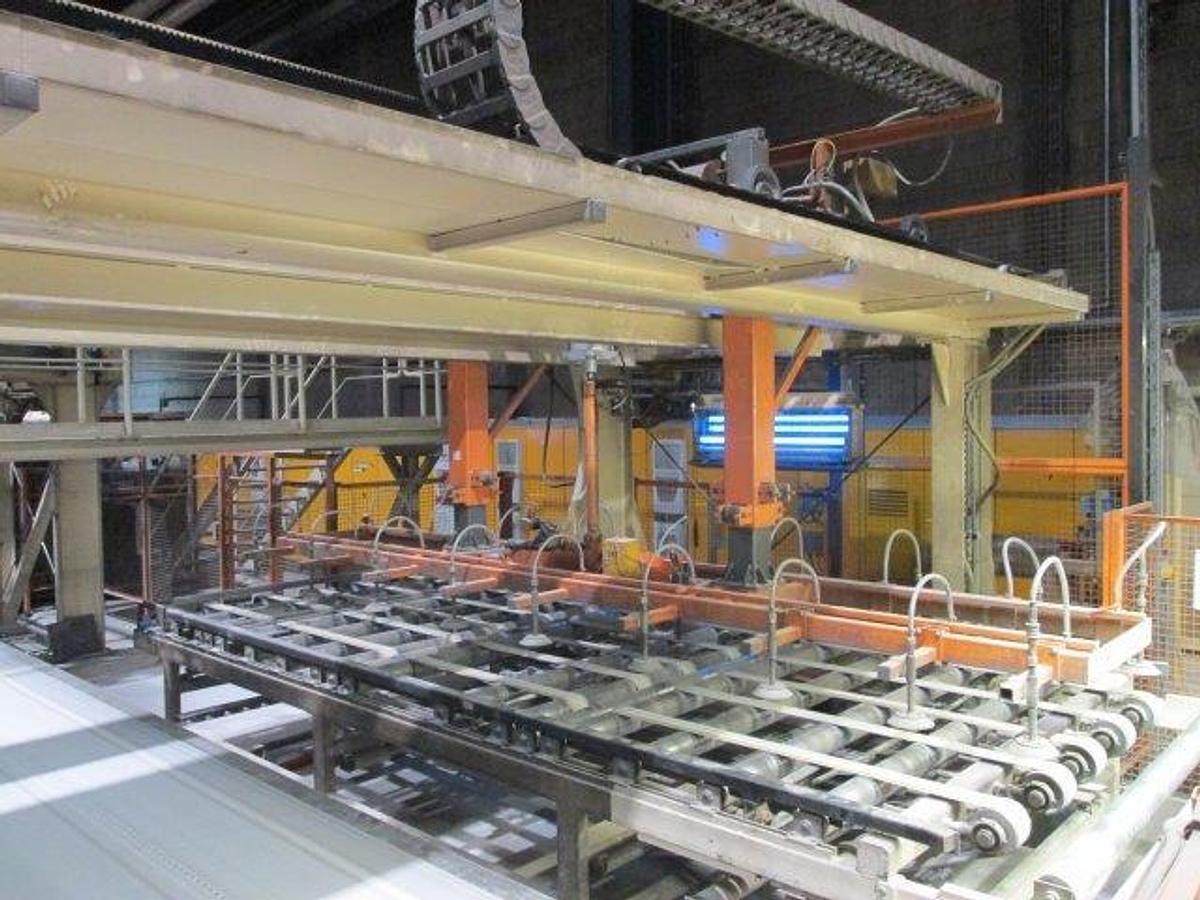

• Loading device with combined vacuum swivel-arm unloading device, for feeding raw boards and removing finished panels
• Press plates, hard-chrome plated steel, service life up to 100,000 pressings, form the surface finish of the coating
• Press pads, textile fabric with woven bronze threads, placed between heating plates and press plates to equalise tolerances and improve heat transfer
• Press cylinders, coated with tungsten carbide, generate the press pressure, last overhauled in October 2018 at 12.12 million pressings
• Vacuum transport unit, moves the press plates during plate changes

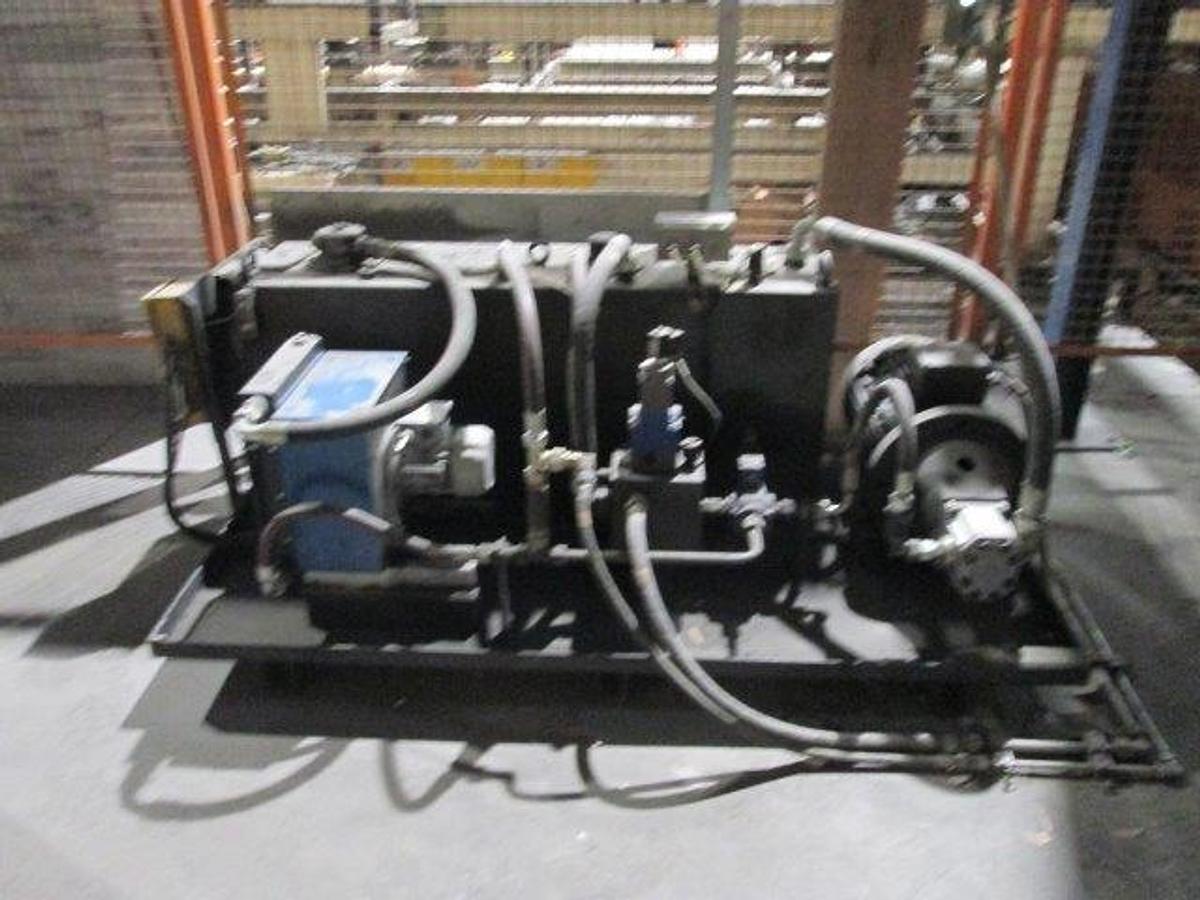

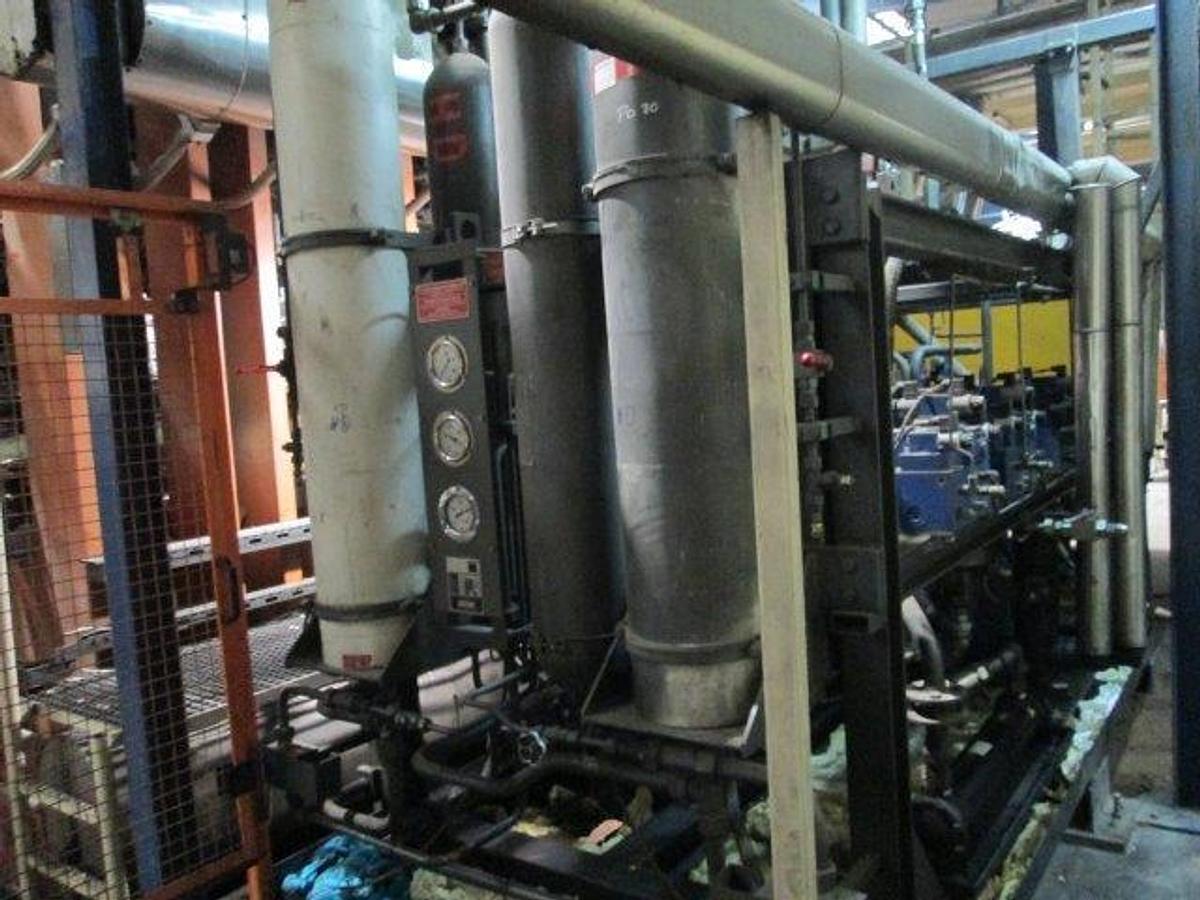

• Cooling unit for the press hydraulics, approximately 40 kW

Scope of Delivery:

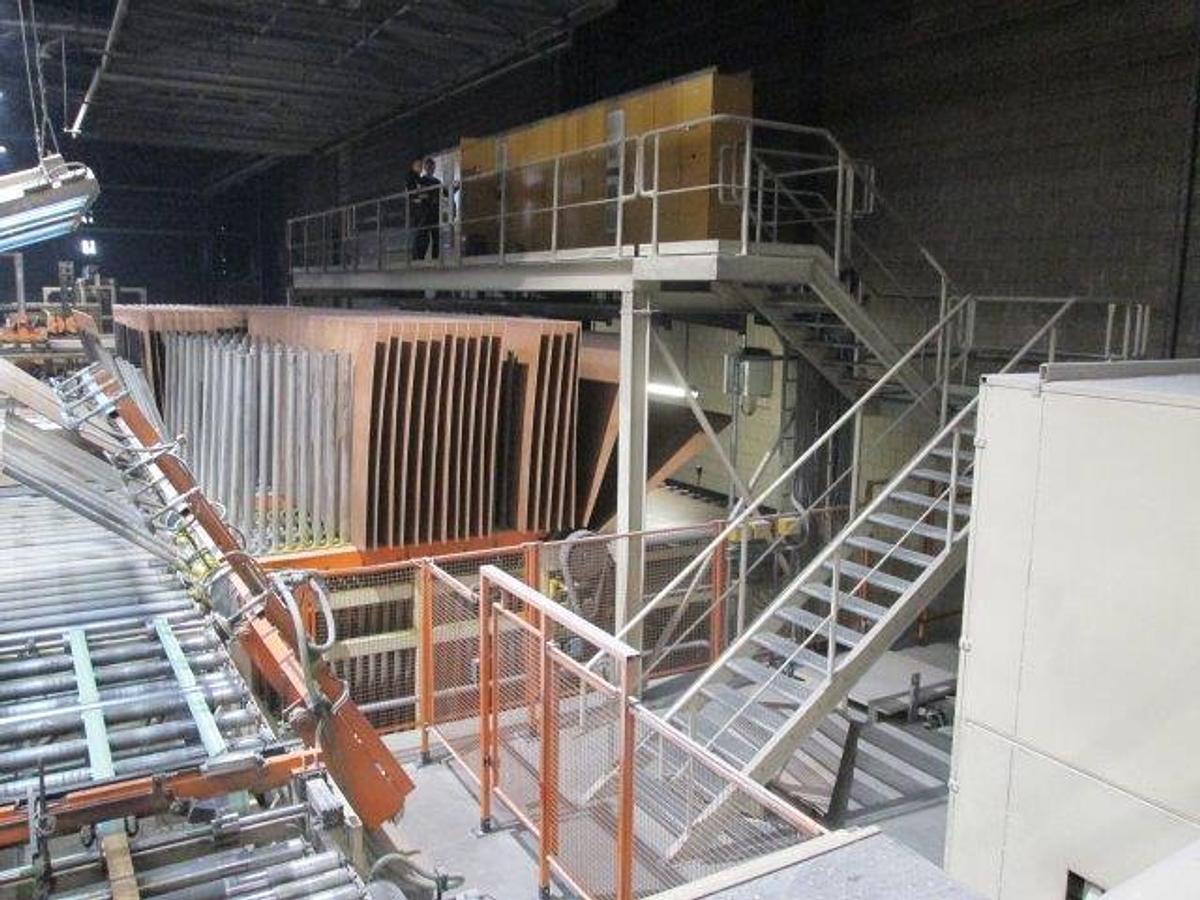

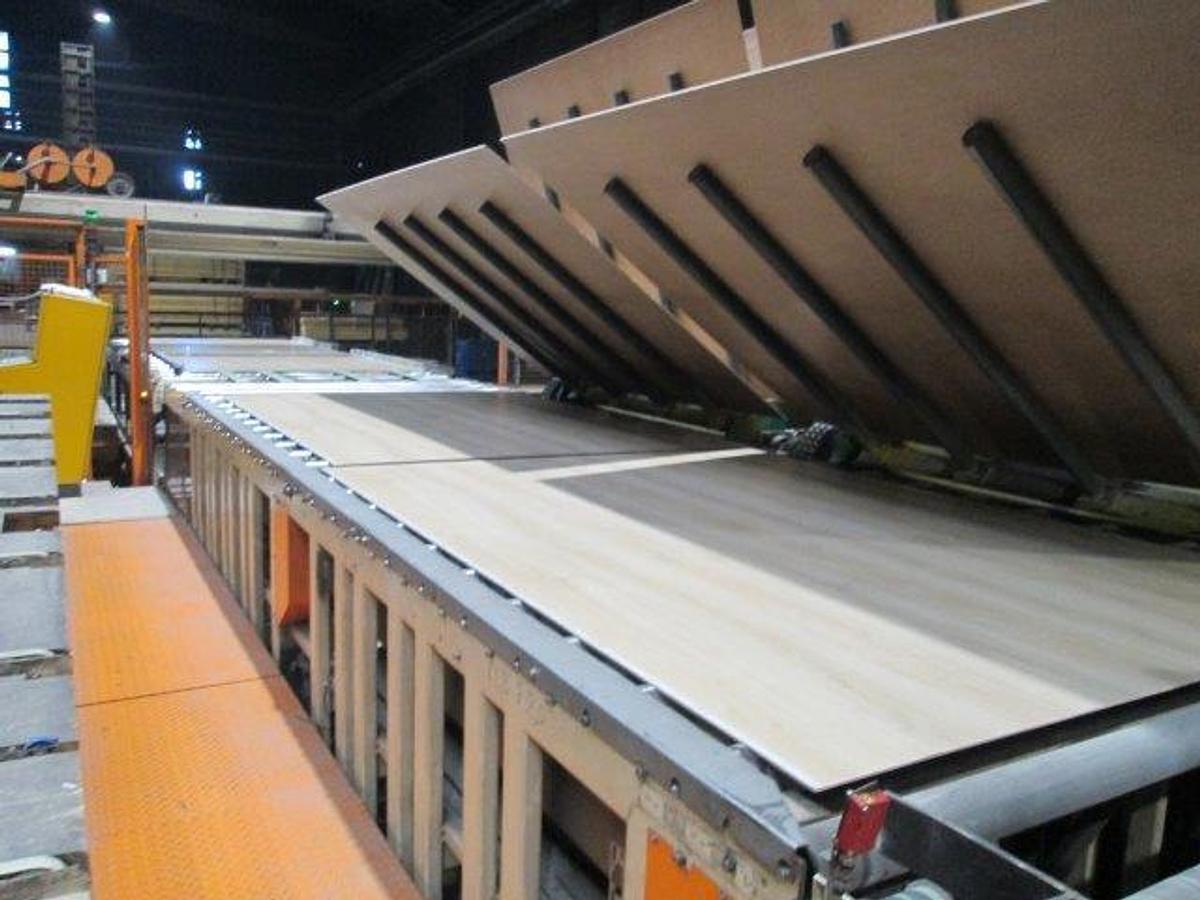

Platforms, walkways, extraction hoods, sheet magazine and documentation. Software is included.

Additional Information:

The machine will remain in production until dismantling. It is sold as seen, without warranty or

guarantee.
