1999 Kemmerich VD 3000 UF-SH-520-S

1999 Kemmerich VD 3000 UF-SH-520-S

Contact us for price

Location:Stuttgart, Germany

Description


Manufacturer: Kemmerich

Model: VD 3000 UF-SH-520-S

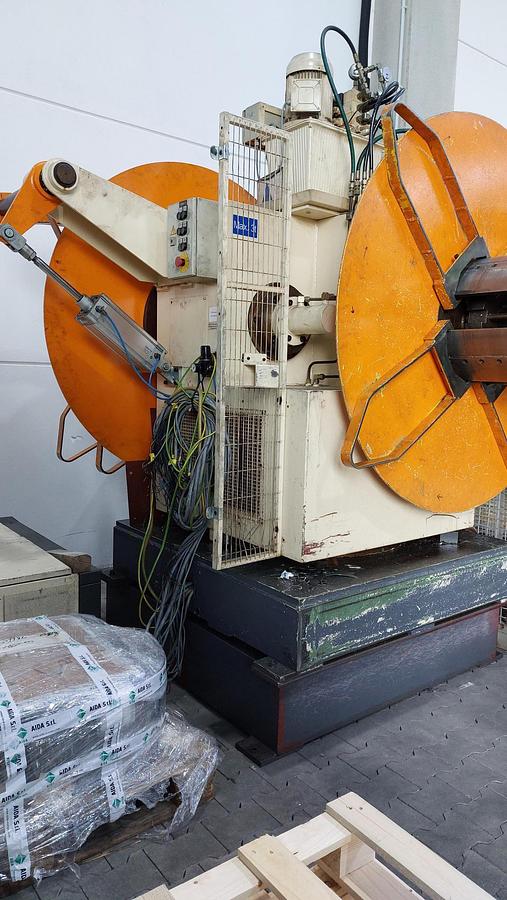

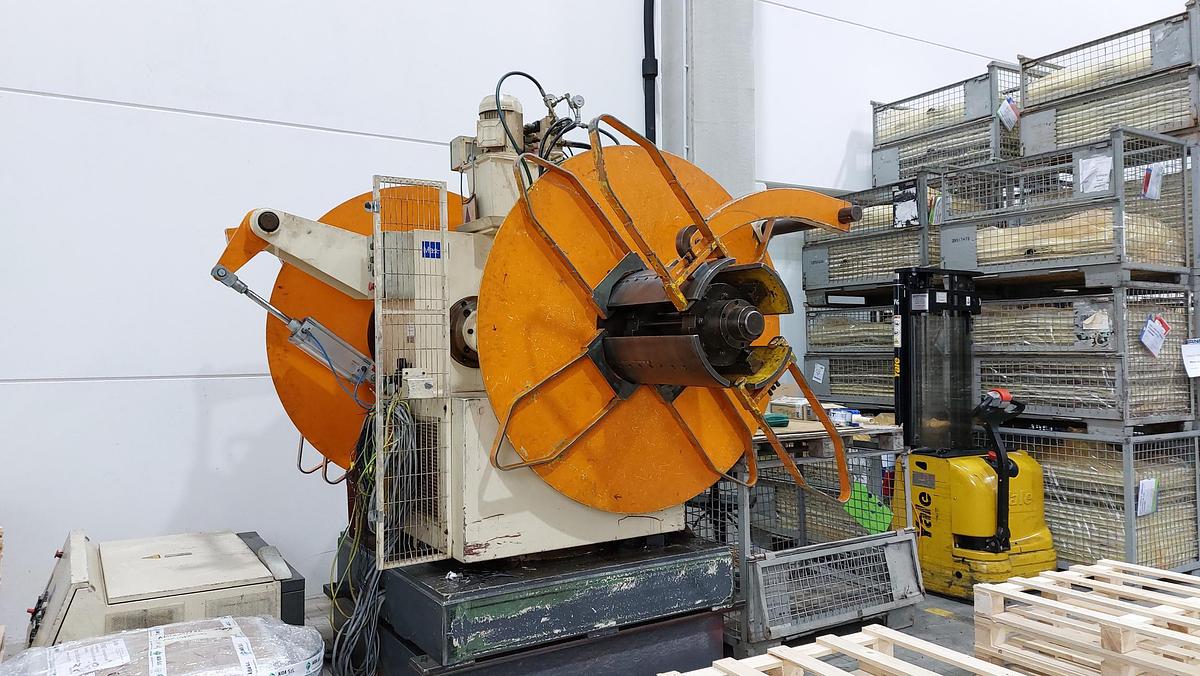

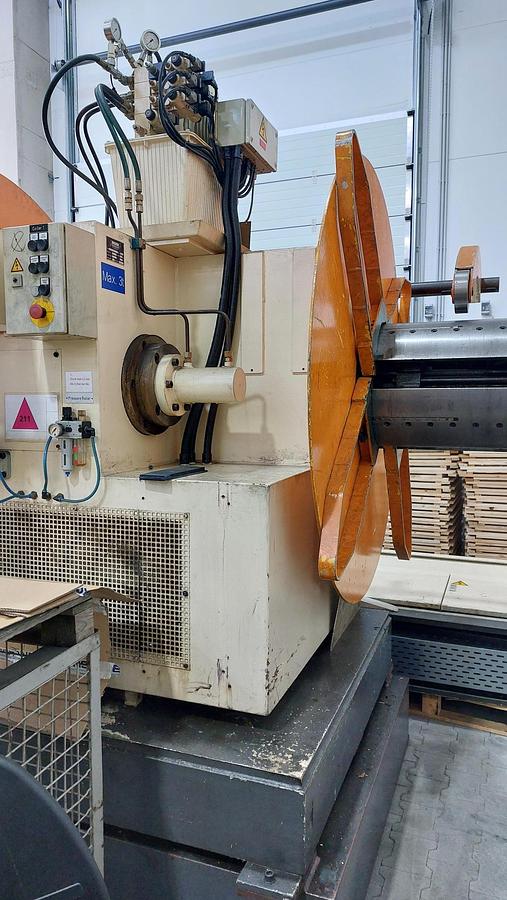

Type of Machine: Double Decoiling Reel / Uncoiler

Year of Manufacture: 1999

Technical Specifications:

  • Band width: 100 to 520 mm
  • Band thickness: 0.5 to 2.5 mm
  • Maximum coil weight: 3,000 kg
  • Spreading range diameter: 470 to 520 mm
  • Maximum coil outer diameter: 1,600 mm
  • Maximum band speed: 25 metres per minute
  • Reel crown rotation speed: 1 to 15 rpm
  • Drive power: 2.6 kW
  • Connection voltage: 480 V AC, 60 Hz
  • Rated current: 16 A
  • Control voltage: 24 V DC
  • Cross shaft height: approximately 1,250 mm
  • Maximum load capacity per nameplate: 3,000 kg




Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerKemmerich
ModelVD 3000 UF-SH-520-S
Year1999
ConditionUsed
Stock Number758478
