Panel saw

Type: CLASS SI 400

Manufacturer: SCM

Year: 2023

panel sizing capacity: 3200 × 3200 mm

sliding carriage length: 3200 mm

cutting width with parallel fence: 1270 mm

maximum main saw blade diameter: 400 mm

maximum cutting height at 90°: 140 mm

maximum cutting height at 45°: 97 mm

blade tilting: up to 45°

main saw blade speed: 3000 / 4000 / 5000 rpm

scoring saw blade speed: 8500 rpm

main motor power: 7 kW

scoring motor power: 1.3 kW

machine weight: approx. 1070 kg

EQUIPMENT

independent scoring unit

professional 3200 mm SCM sliding carriage

eccentric clamp

extendable frame for angular cuts

parallel fence with micrometric adjustment

direct main motor start

dust extraction from main unit and overhead guard

CE safety equipment

Machine in good condition, fully functional, under power

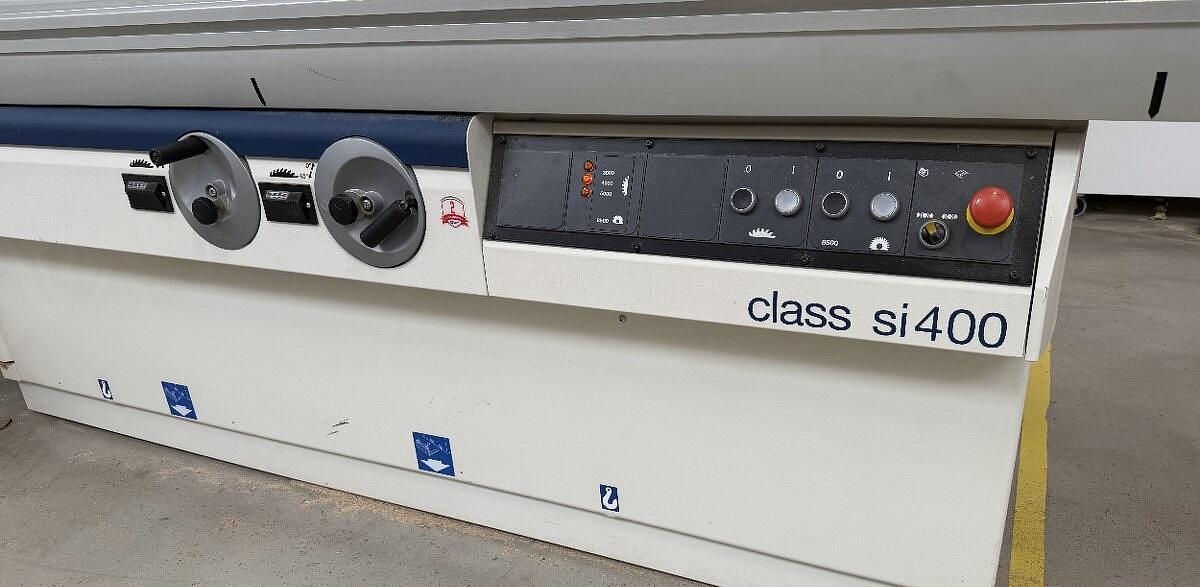

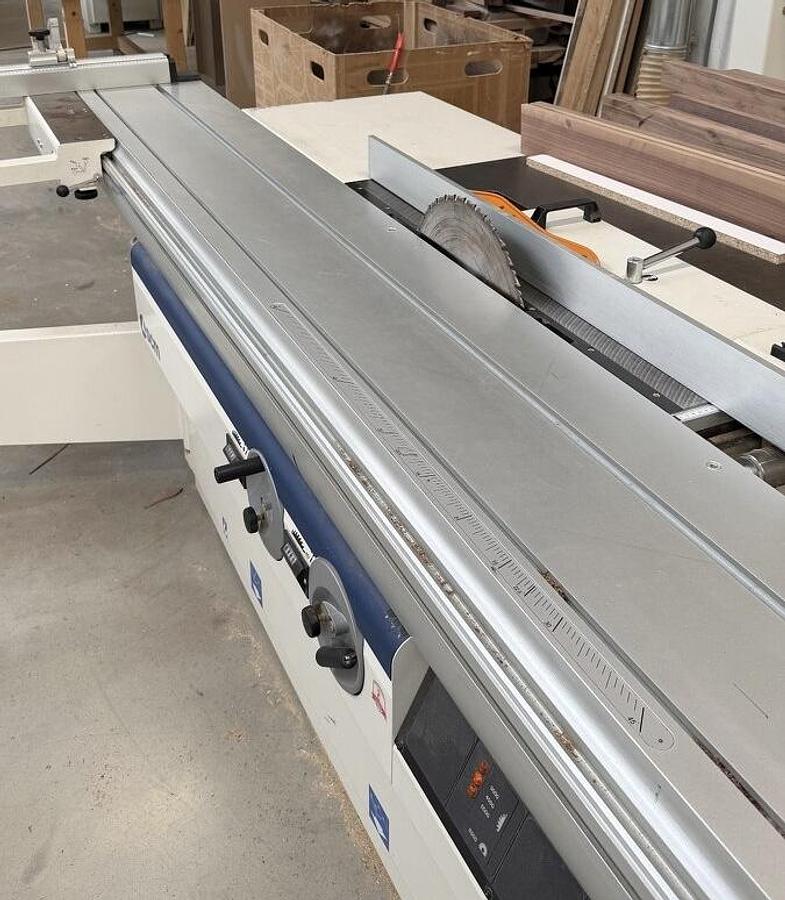

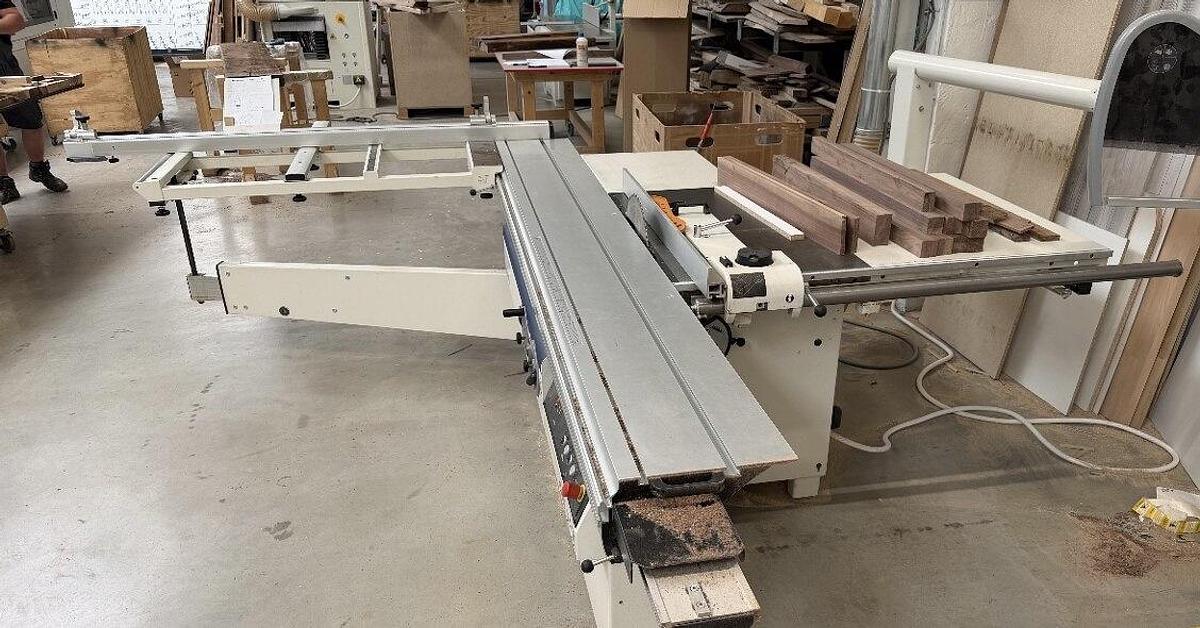

2023 SCM CLASS SI 400
