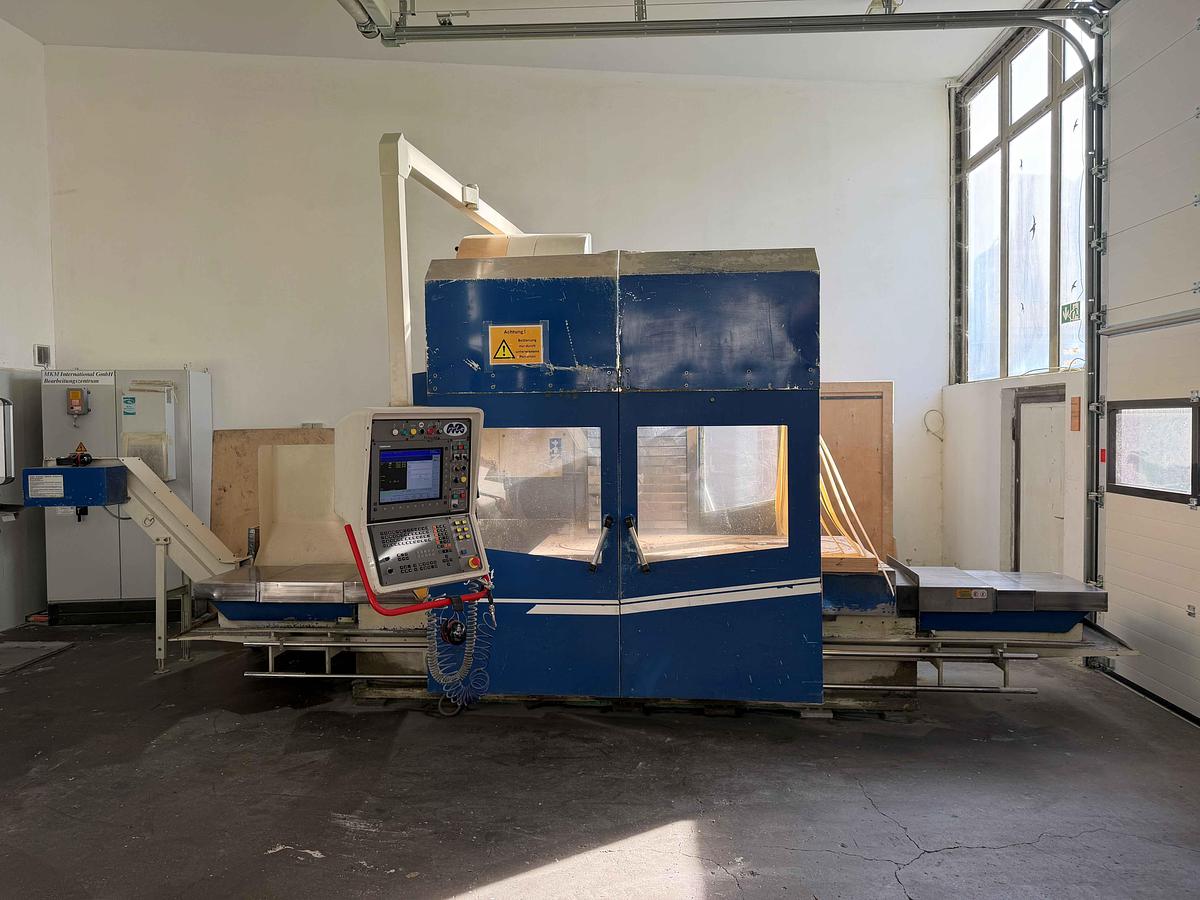

2004 MTE Kompakt Plus CNC Bed Milling Machine
2004 MTE Kompakt Plus CNC Bed Milling Machine
Contact us for price
Location:Dortmund, Germany
Available quantity:1
Description
Known defects: X-axis start fault for approx. 10 years, error C380 - Motor X nicht regelbar; X motor may need to be moved by hand and the start repeated; runs reliably once started
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
| Manufacturer | MTE |
| Model | Kompakt Plus |
| Year | 2004 |
| Condition | Used |
| Stock Number | 758710 |
| Year of Manufacture | 2004 |

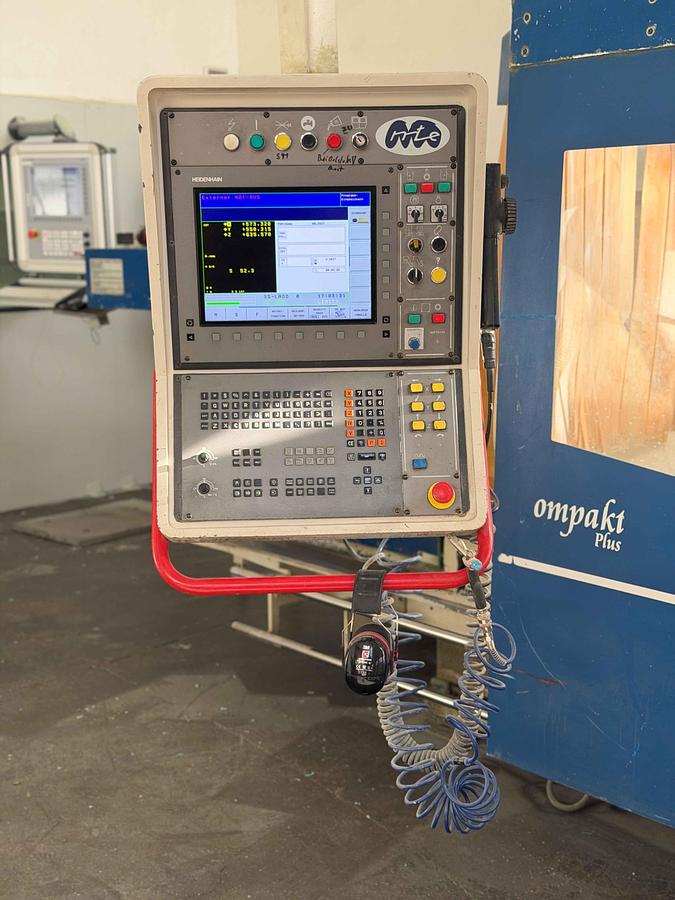

| Control System | Heidenhain iTNC 530 |
| Table Size | 2,200 x 750 mm |
| Travel X | approx. 2,000 mm |
| Travel Y | approx. 895 mm |
| Travel Z | approx. 895 mm |
| Spindle | FAEMAT water-cooled electric spindle, type FA 250 CUV |
| Max. Spindle Speed | 12,000 rpm |
| Tool Holder | SK 50 |

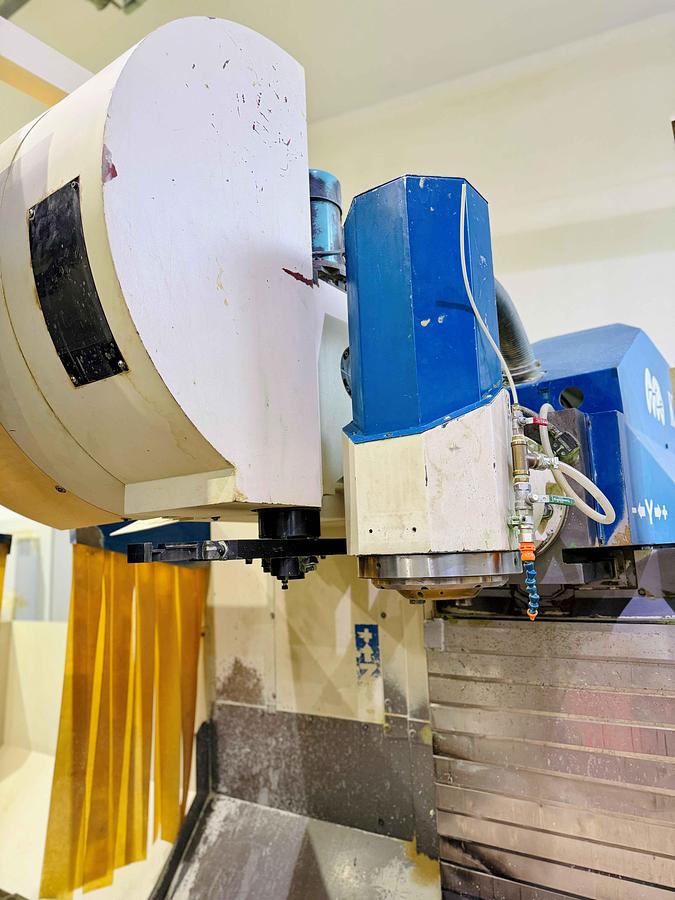

| Milling Head | automatic universal milling head |

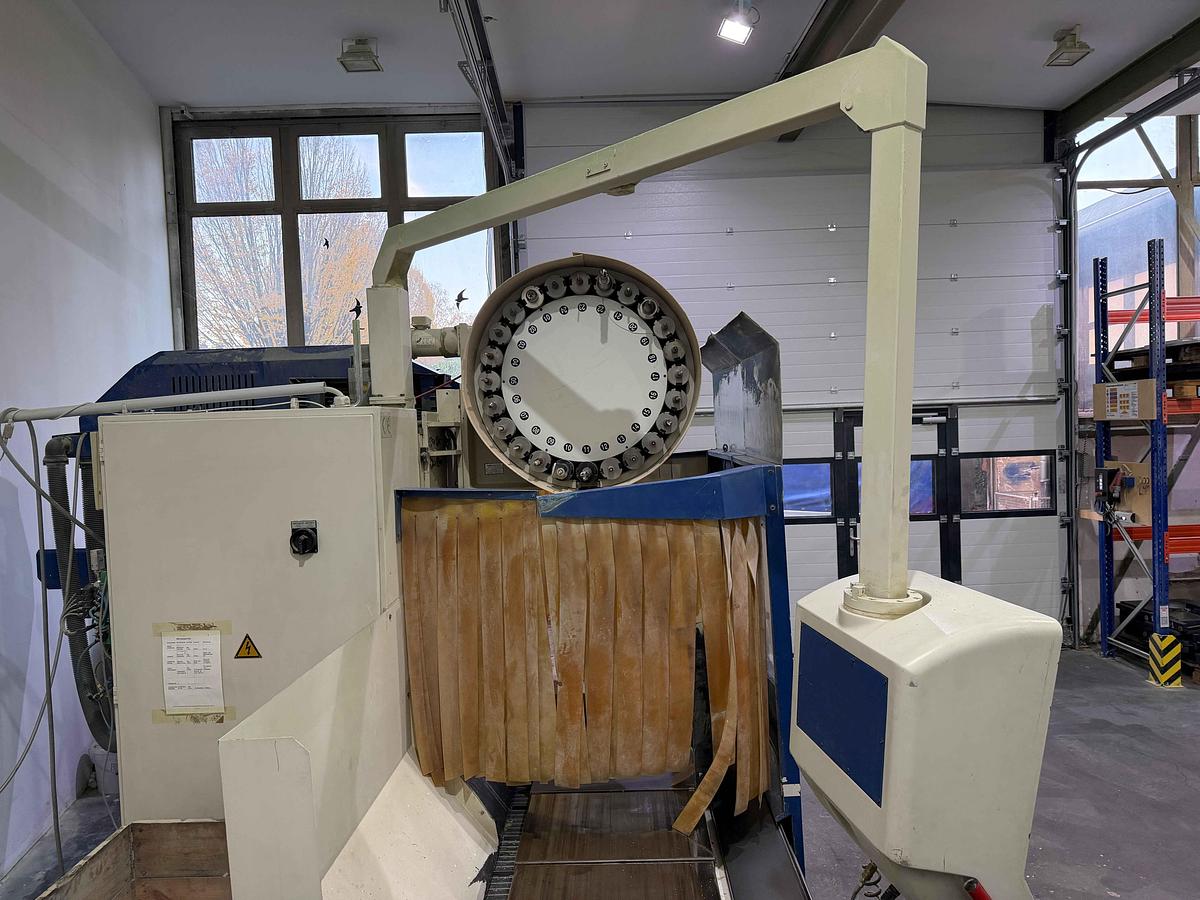

| Tool Changer | automatic tool changer |
| Enclosure | fully enclosed |

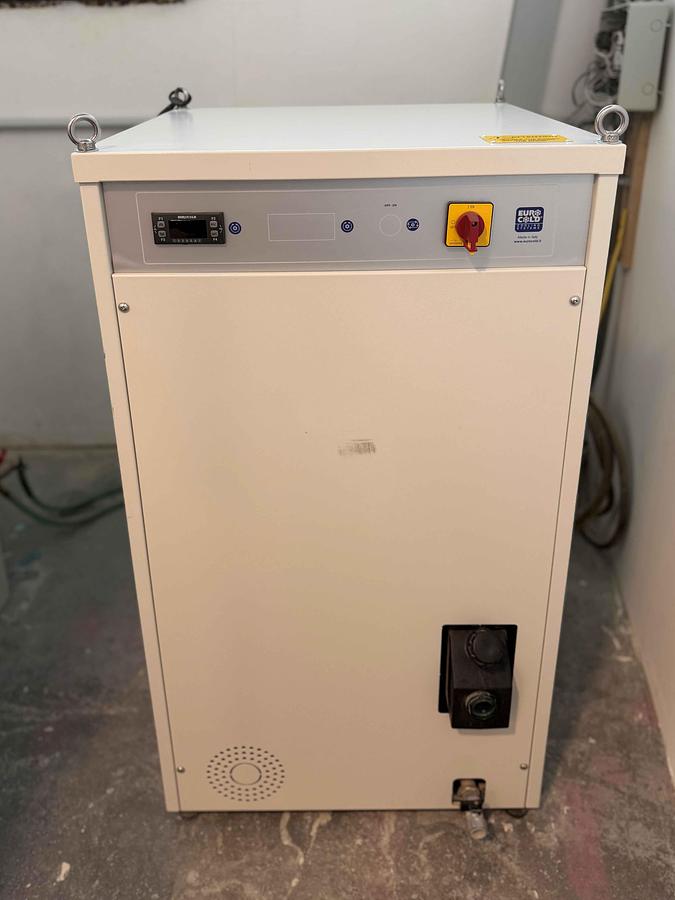

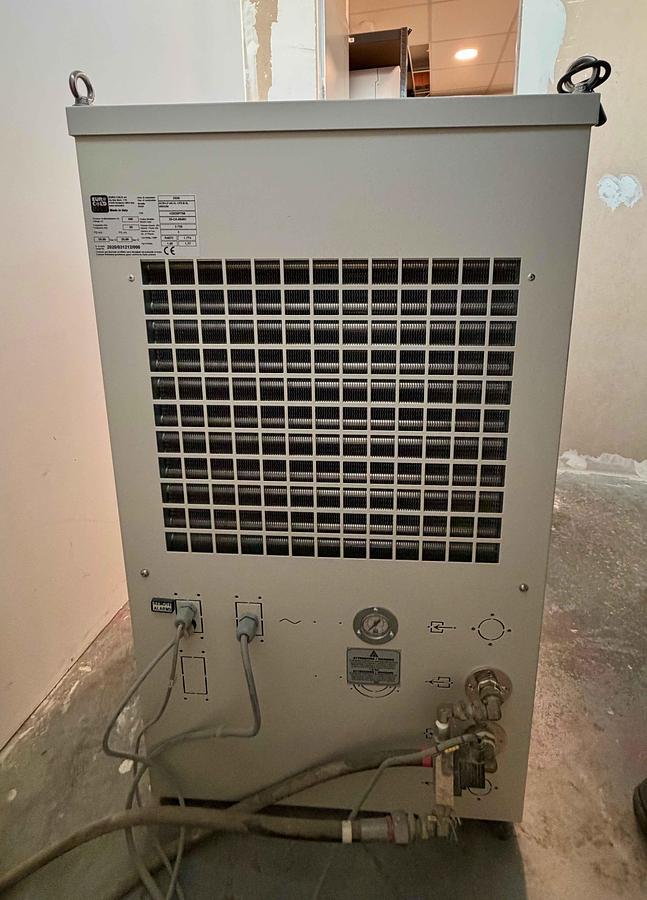

| Cooling Unit | separate unit, Euro Cold ACW-LP 45t AL CP2-B SL, built 2020 |
| Cooling Unit Electrical Data | 400 V, 50 Hz, 3 phases, 2,735 W absorbed power |
| Cooling Unit Refrigerant | R407C |

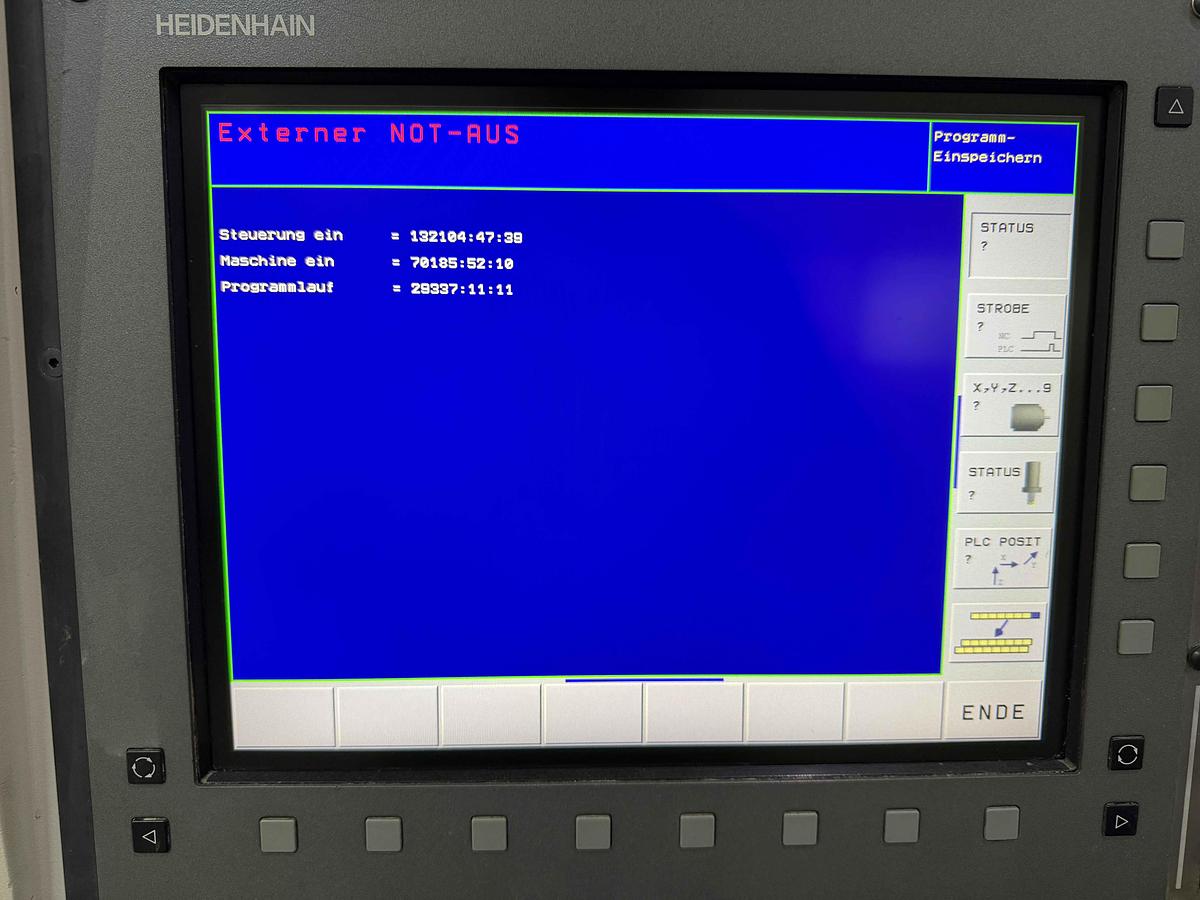

| Operating Hours (Program Run) | 29,337 h |
| Machine On Hours | 70,185 h |
| Control On Hours | 132,104 h |
| Total Power | 30 kW |
| Voltage | 380 V |
| Frequency | 50 Hz |
