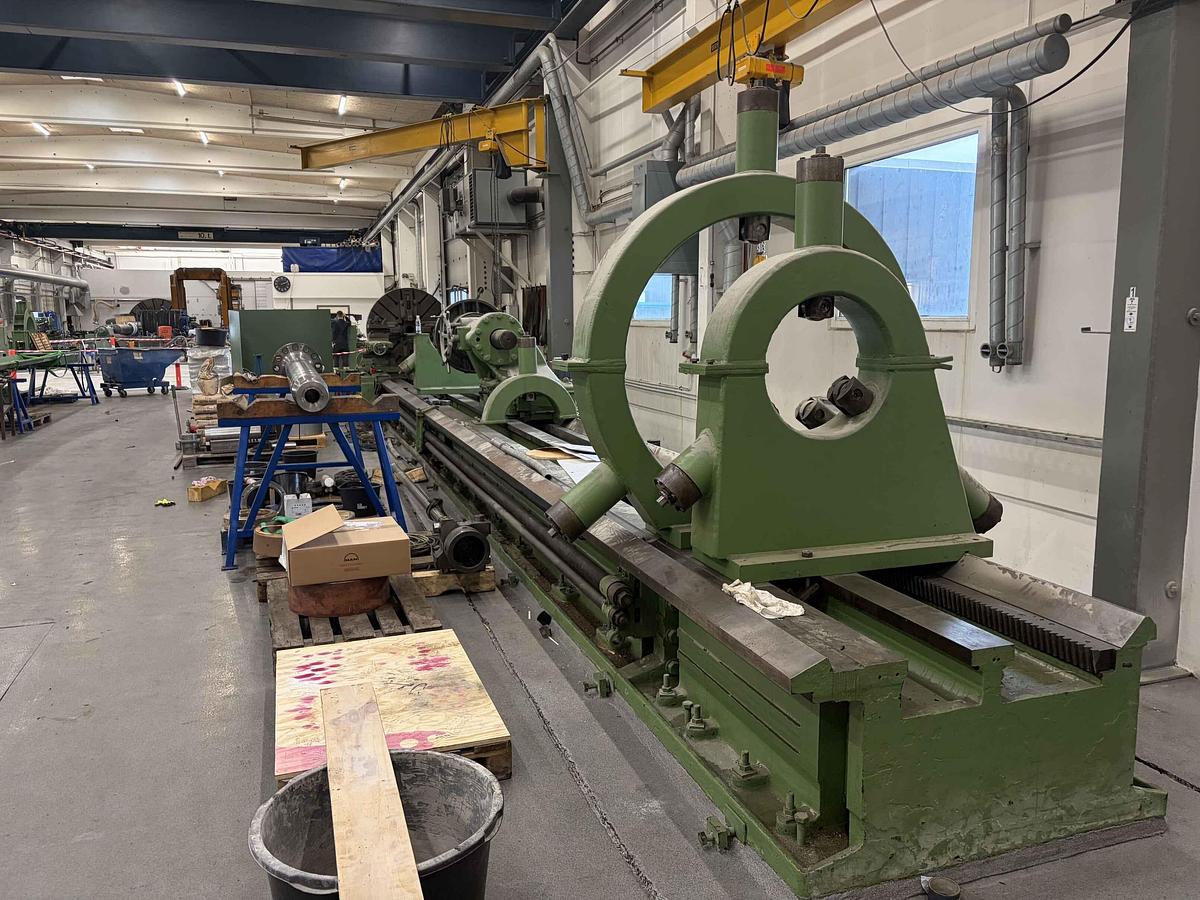

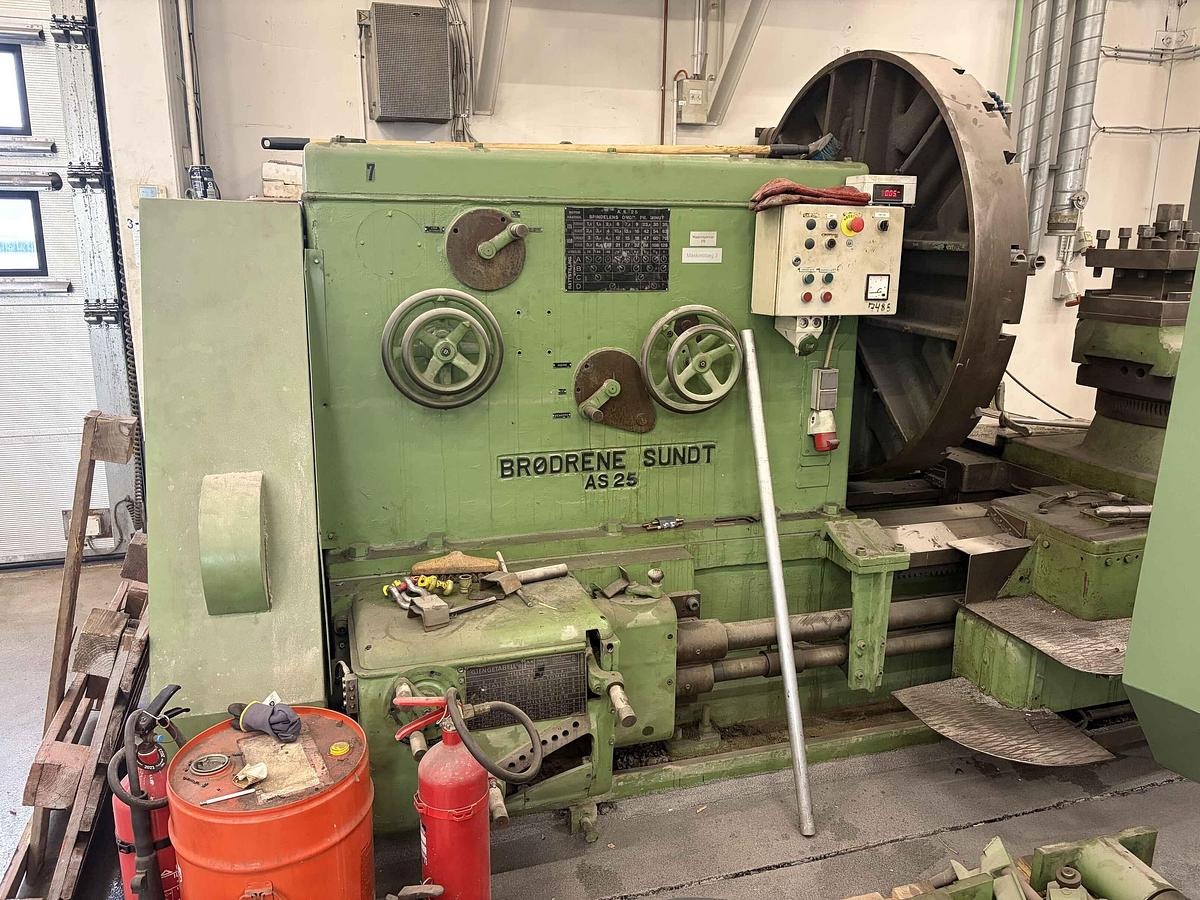

Brødrene Sundt AS25 Lathe
Brødrene Sundt AS25 Lathe
Contact us for price
Location:Copenhagen, Denmark
Available quantity:1
Description
Year of Manufacture: Estimated 1930-1960
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
| Manufacturer | Brødrene Sundt |
| Model | AS25 |
| Condition | Used |
| Stock Number | 758720 |
| Turning Length | 11,800 mm |
| Swing Over Cross Slide | Ø1,160 mm |
| Maximum Turning Diameter | Ø1,480 mm |
| Spindle Bore | Ø135 mm |
| Spindle Speed Range | 200 RPM |
| Spindle Motor Torque | 840 Nm |
| Tailstock Four-Jaw Chuck | Ø800 mm |
| Tailstock Quill | Ø179 mm |
| Tailstock Centre | Ø119 mm |
| Tailstock Travel | 500 mm |
| Faceplate | 1 unit, Ø1,395 mm |
| Steady Rests | 2 units, Ø480 mm and Ø1,180 mm |
| Roller Steady Rest | 1 unit, Ø400 mm |
| Tailstock | 1 unit |
| Machine Length | 15,360 mm |
| Machine Width | 2,700 mm |
| Machine Height | 2,120 mm |
| Weight | 22,000 - 25,000 kg (estimated) |
