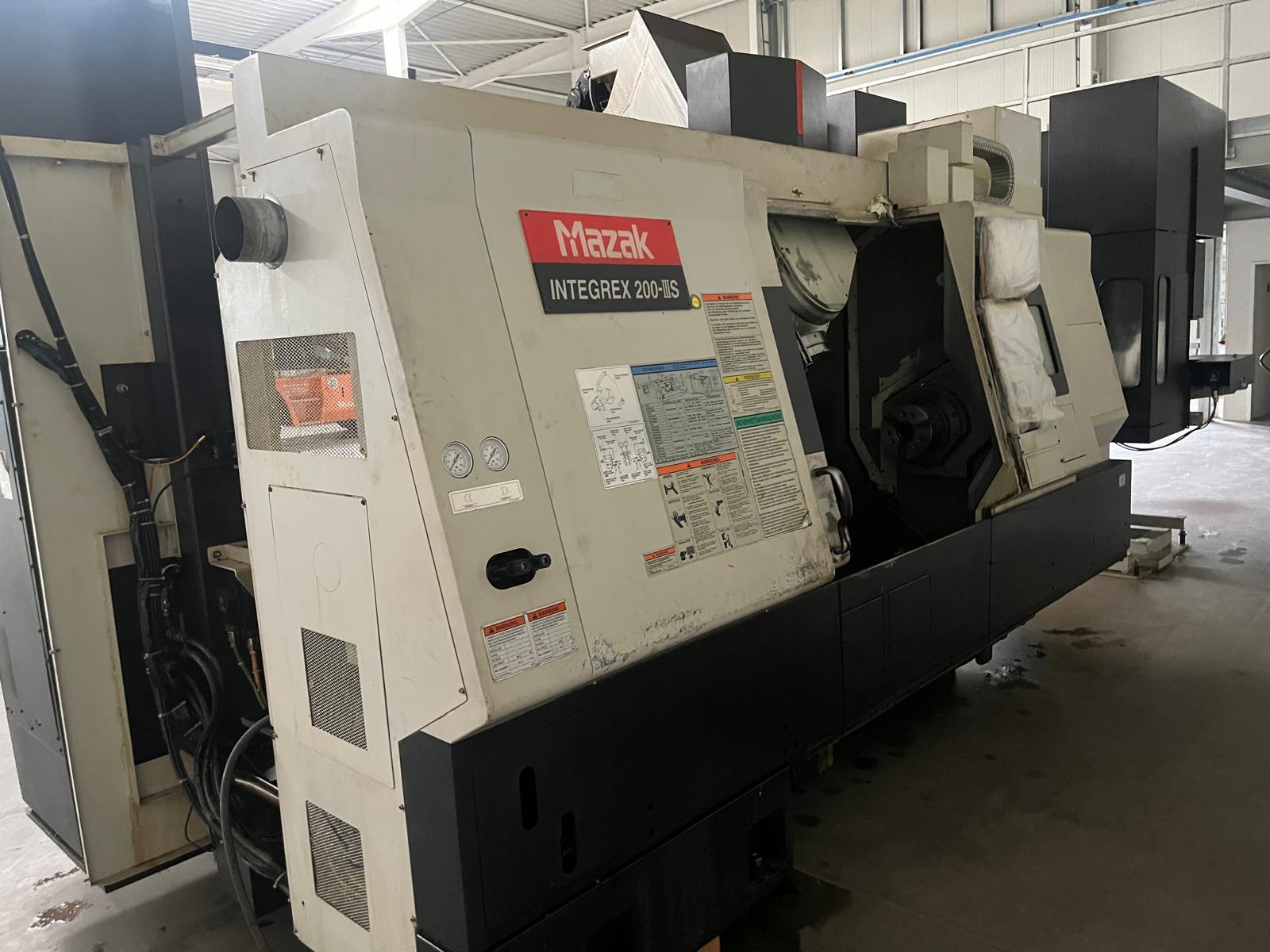

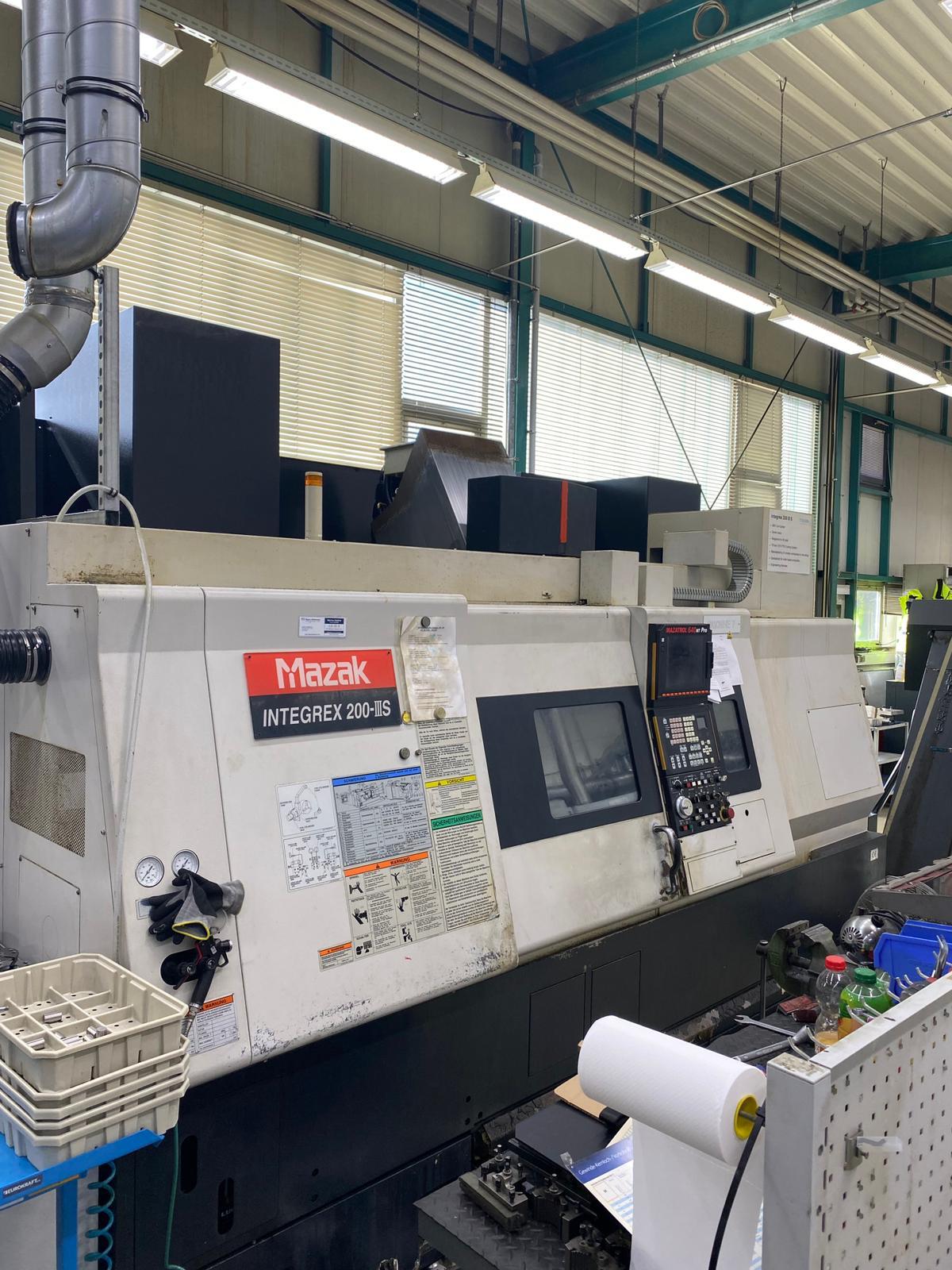

2004 MAZAK INTEGREX 200 III S

2004 MAZAK INTEGREX 200 III S

Contact us for price

Location:Munich, Germany

Description

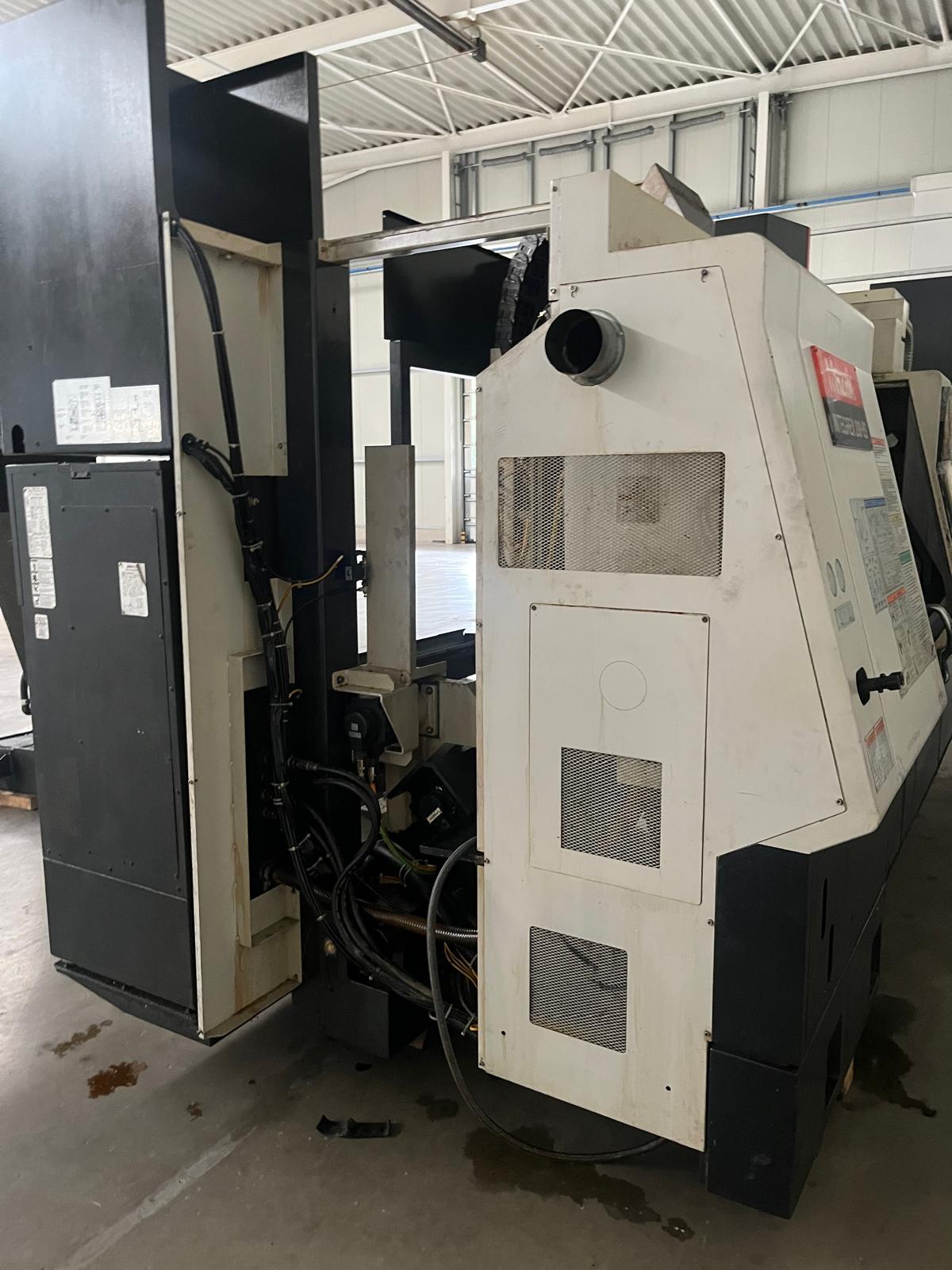

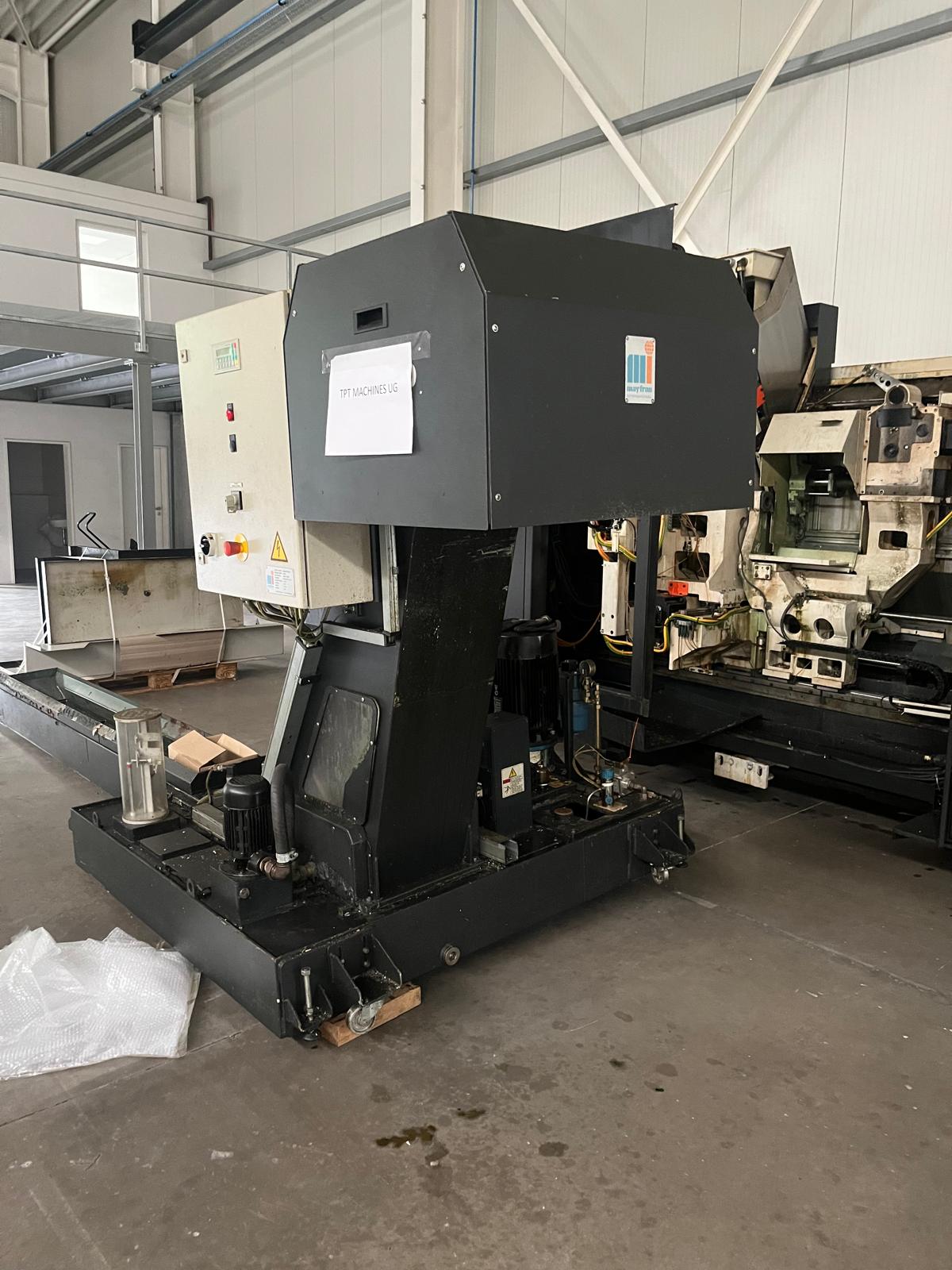

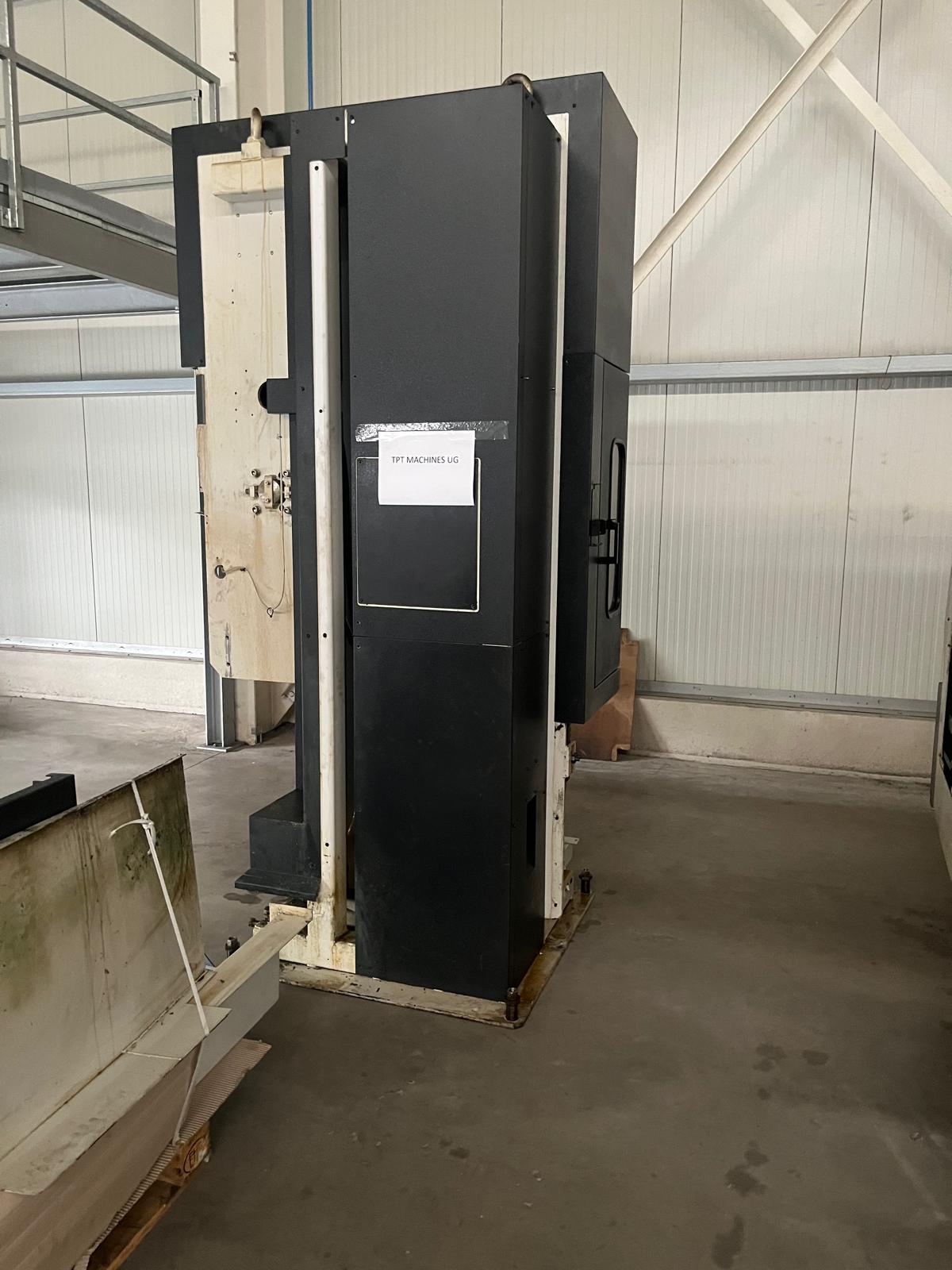

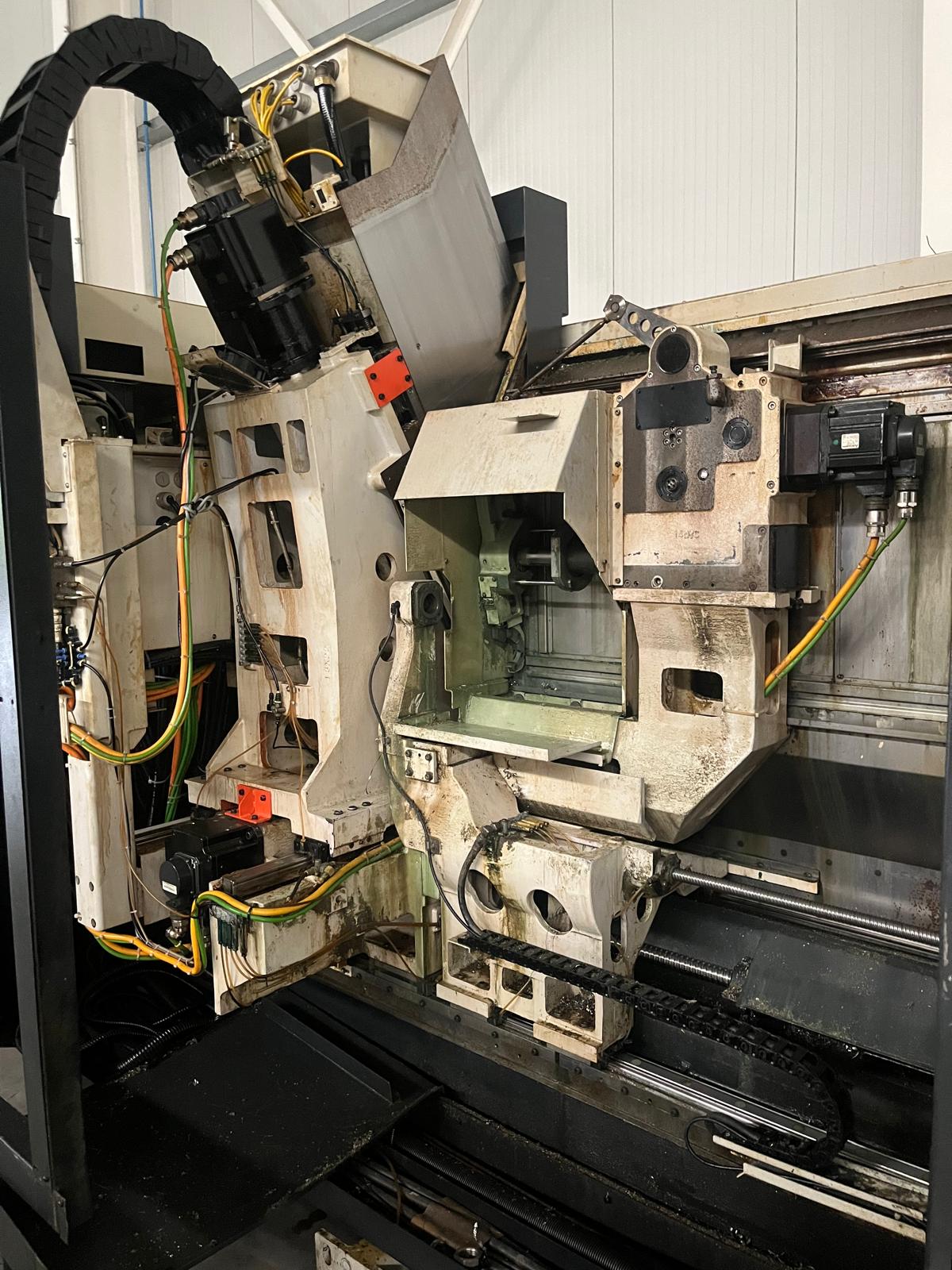

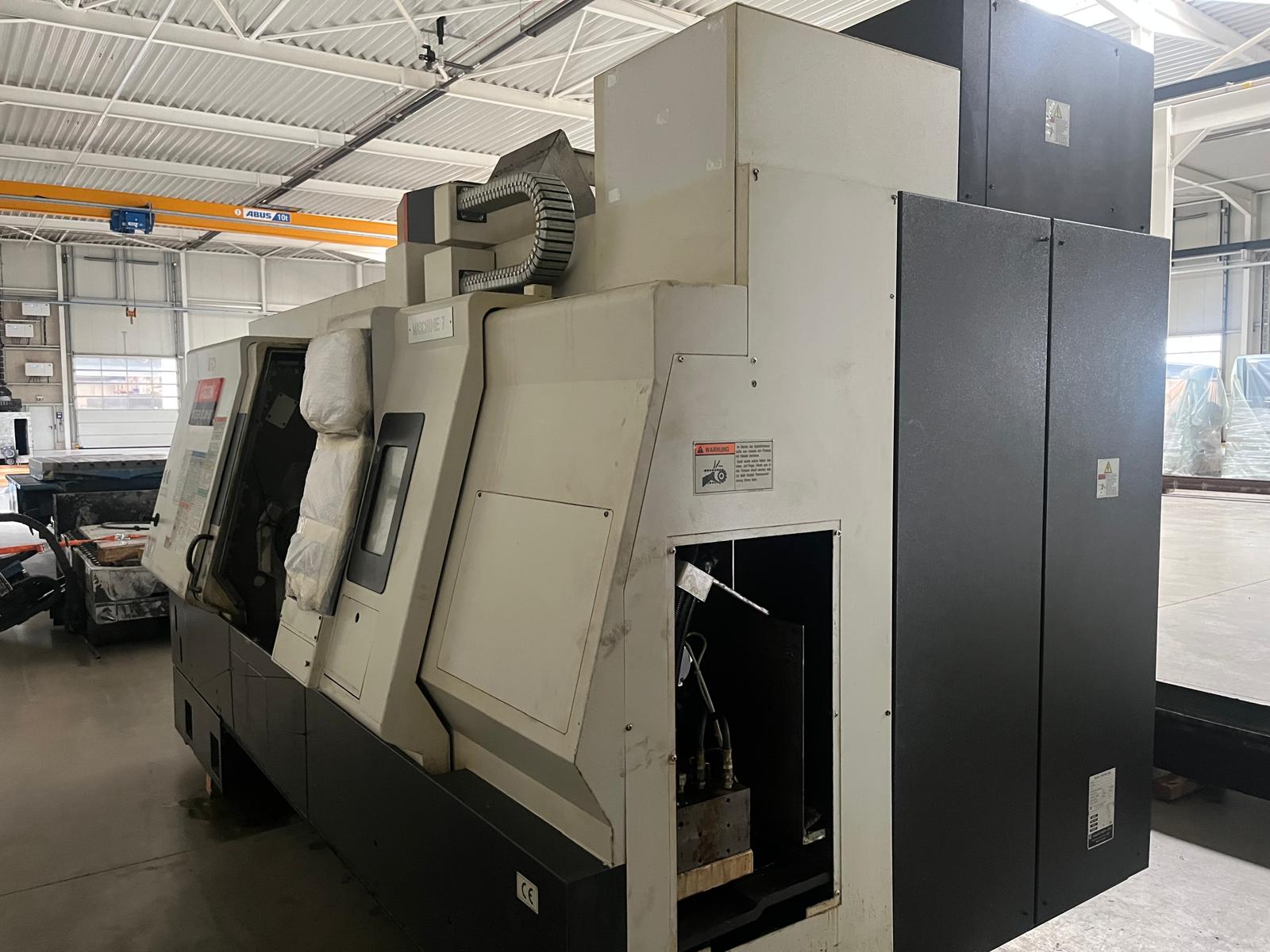

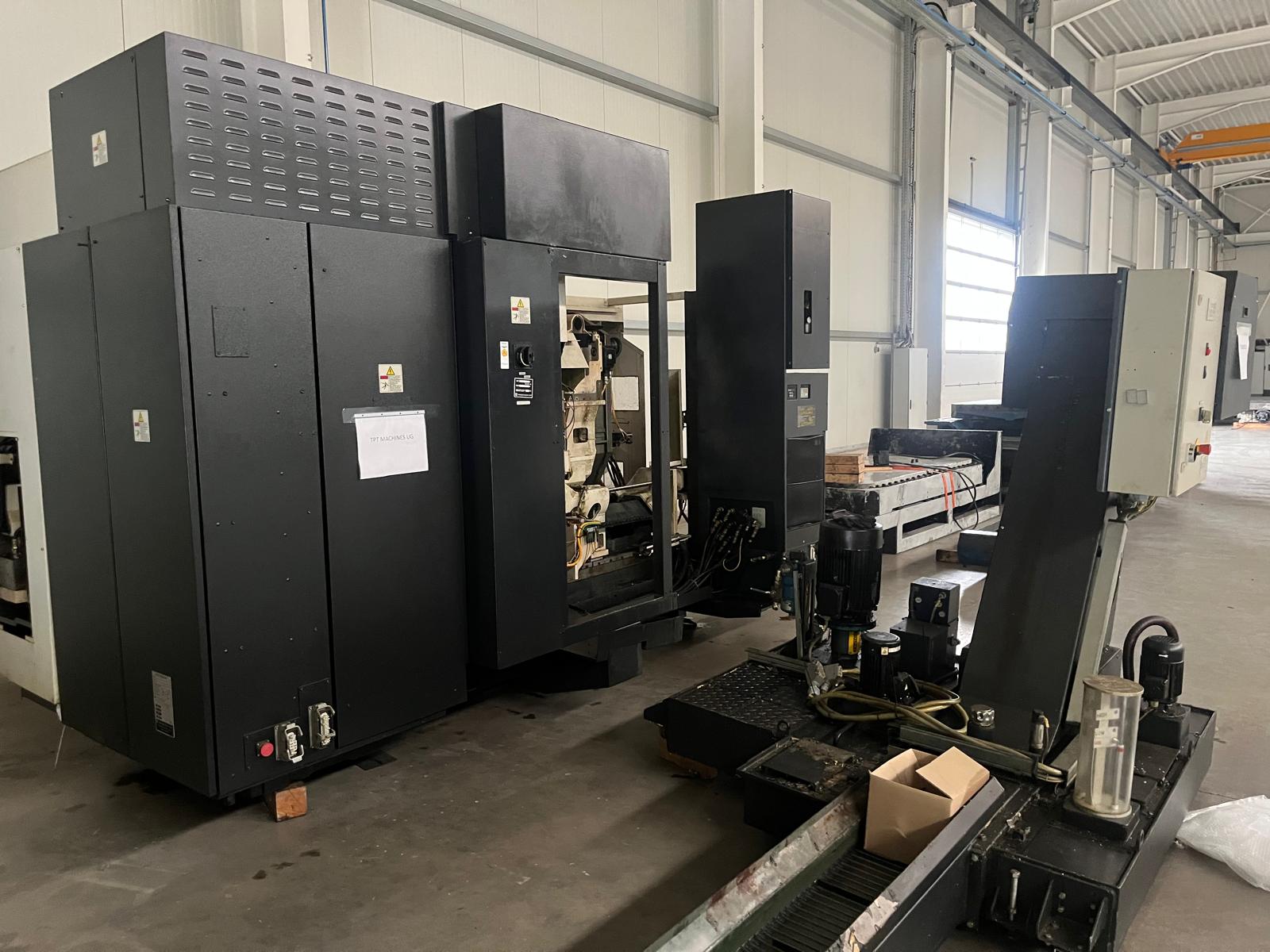

Machine is already dismantled.

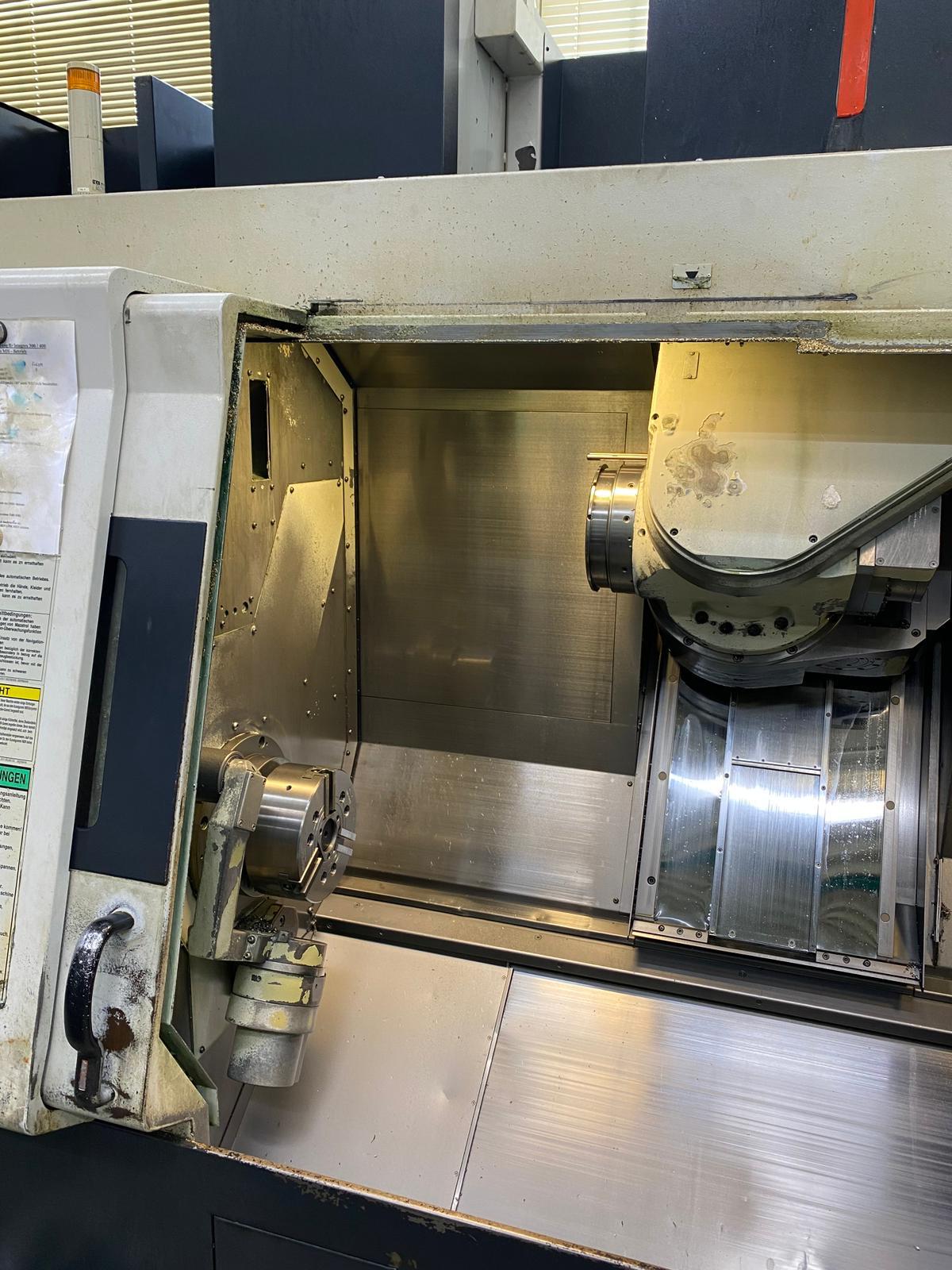

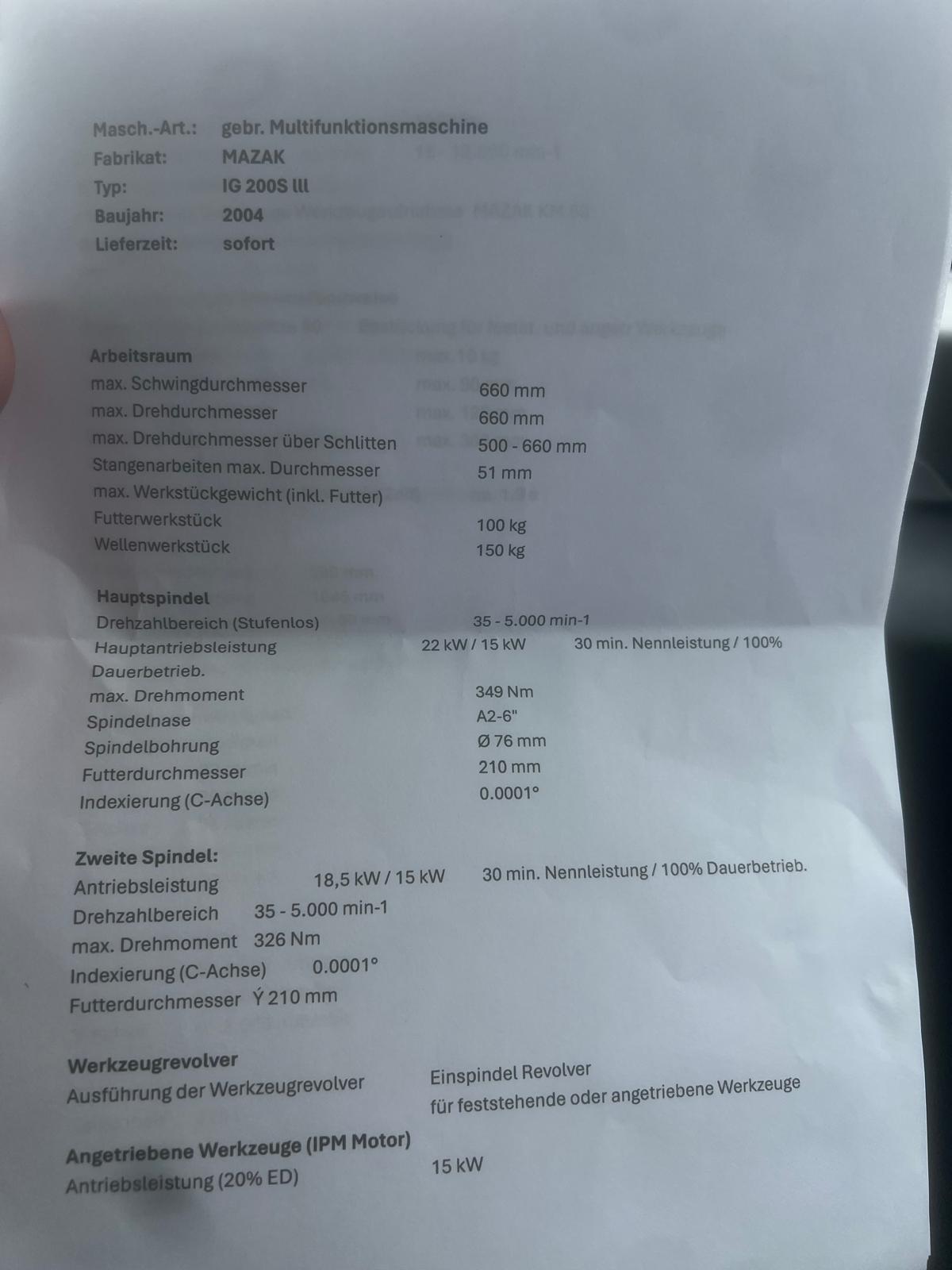

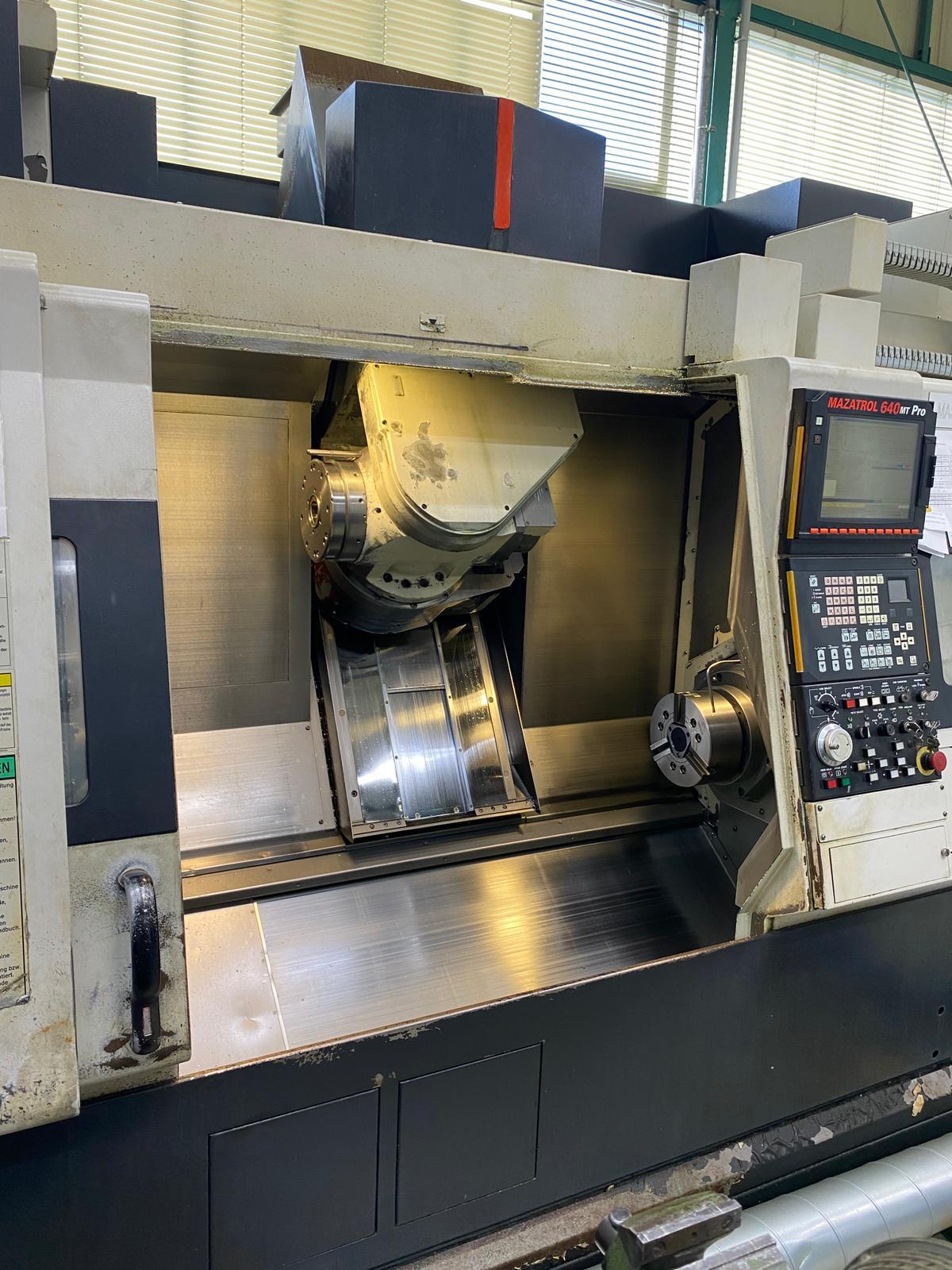

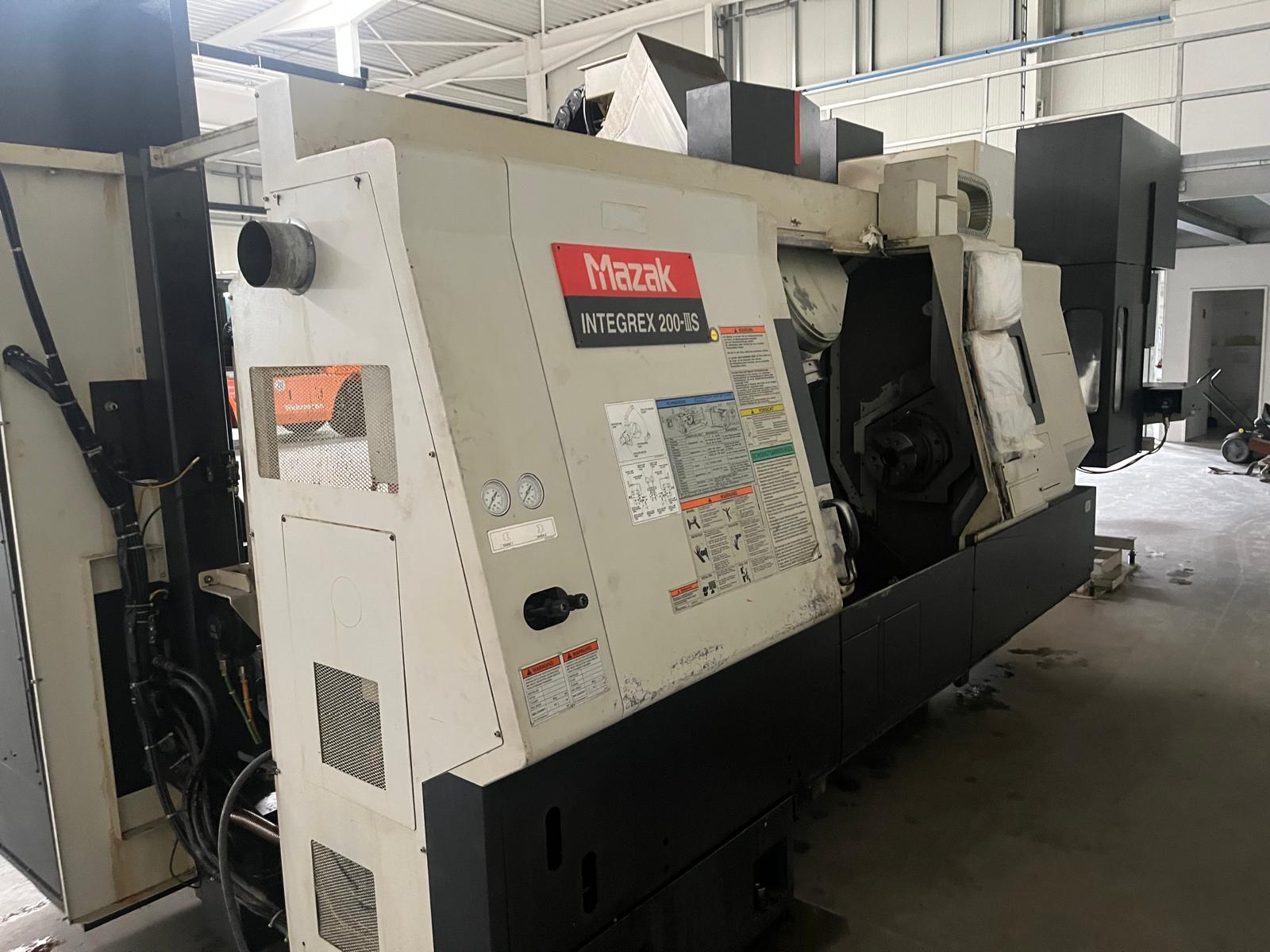

Machine Type: Used Multi-Tasking CNC Lathe / Turning Center

• Manufacturer: MAZAK

• Model: INTEGREX 200S III (IG 200S III)

• Year of Manufacture: 2004

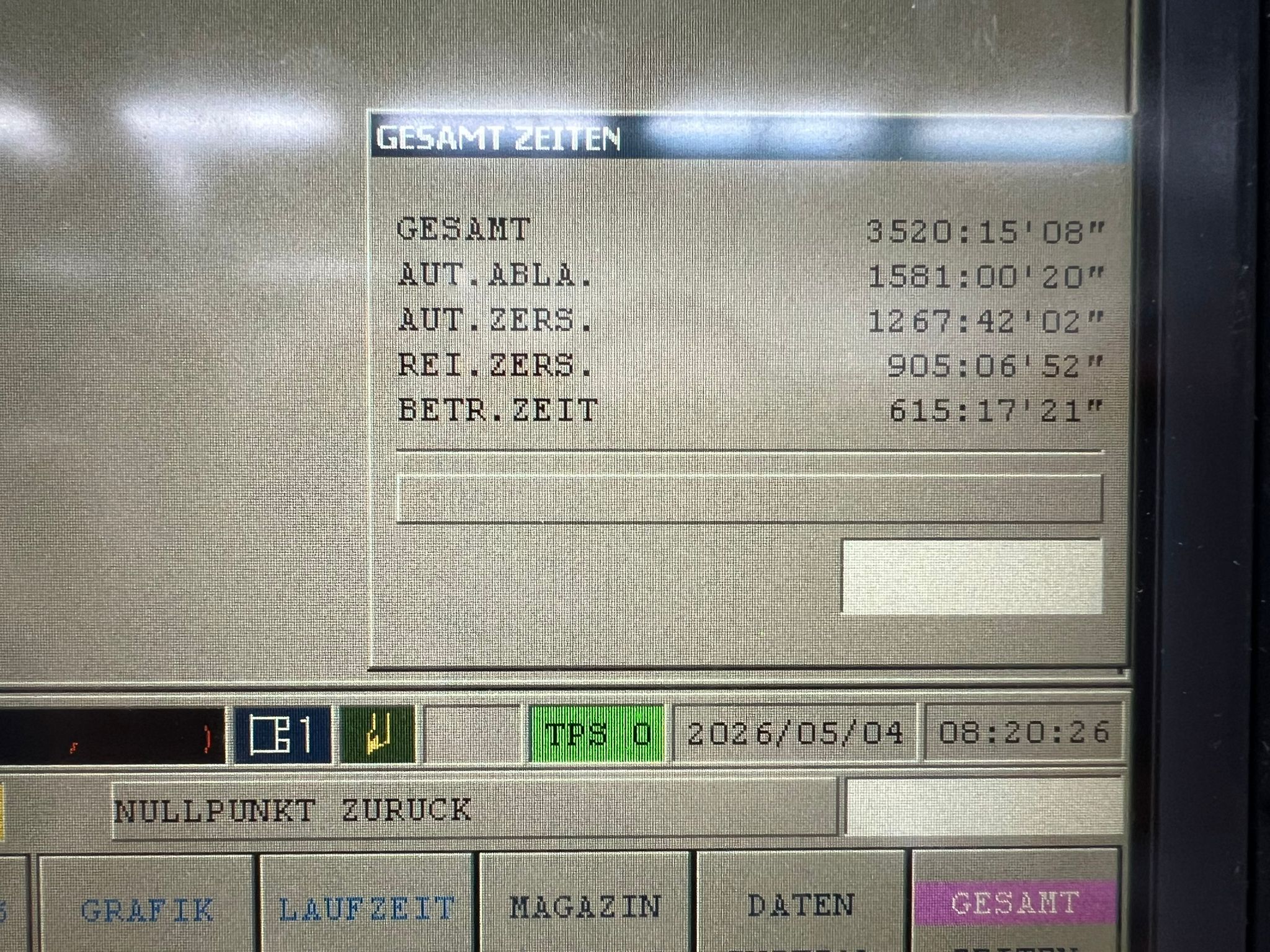

• CNC Control: Mazatrol PC FUSION CNC 640MT Pro


• Connected Load: 61.4 kVA

• Operating Voltage: 400 V / 50 Hz

• Pneumatic Pressure: 5 bar (500 l/min)

• Machine Dimensions (L x W x H): 3,820 x 2,060 x 2,597 mm

• Machine Weight: approx. 9,700 kg

• Machine Color: Light Gray / Light Blue / Dark Gray / Gray


==================================================

WORKING CAPACITY & DIMENSIONS

==================================================


• Max. Swing Diameter: 660 mm

• Max. Turning Diameter: 660 mm

• Max. Turning Diameter Over Carriage: 500 - 660 mm

• Bar Capacity (Max. Diameter): 51 mm

• Max. Workpiece Weight (incl. Chuck):

 - Chuck Workpieces: 100 kg

 - Shaft Workpieces: 150 kg


==================================================

MAIN SPINDLE

==================================================


• Speed Range (infinitely variable): 35 - 5,000 rpm

• Drive Power: 22 kW (30 min rating) / 15 kW (100% continuous operation)

• Max. Torque: 349 Nm

• Spindle Nose: A2-6"

• Spindle Bore Diameter: 76 mm

• Chuck Diameter: 210 mm

• C-Axis Indexing: 0.0001°


==================================================

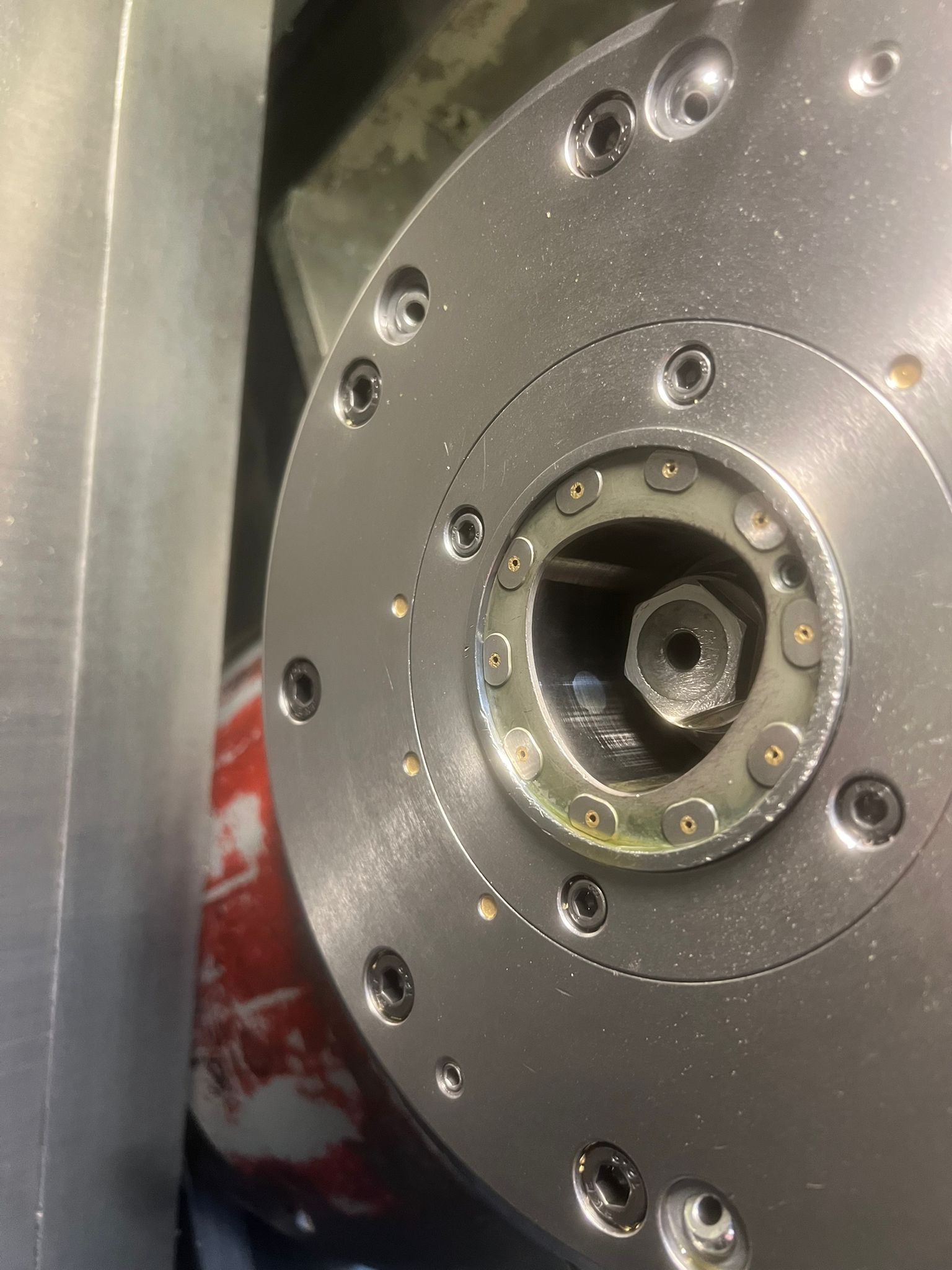

SECOND SPINDLE (SUB-SPINDLE)

==================================================


• Speed Range: 35 - 5,000 rpm

• Drive Power: 18.5 kW (30 min rating) / 15 kW (100% continuous operation)

• Max. Torque: 326 Nm

• C-Axis Indexing: 0.0001°

• Chuck Diameter: 210 mm


==================================================

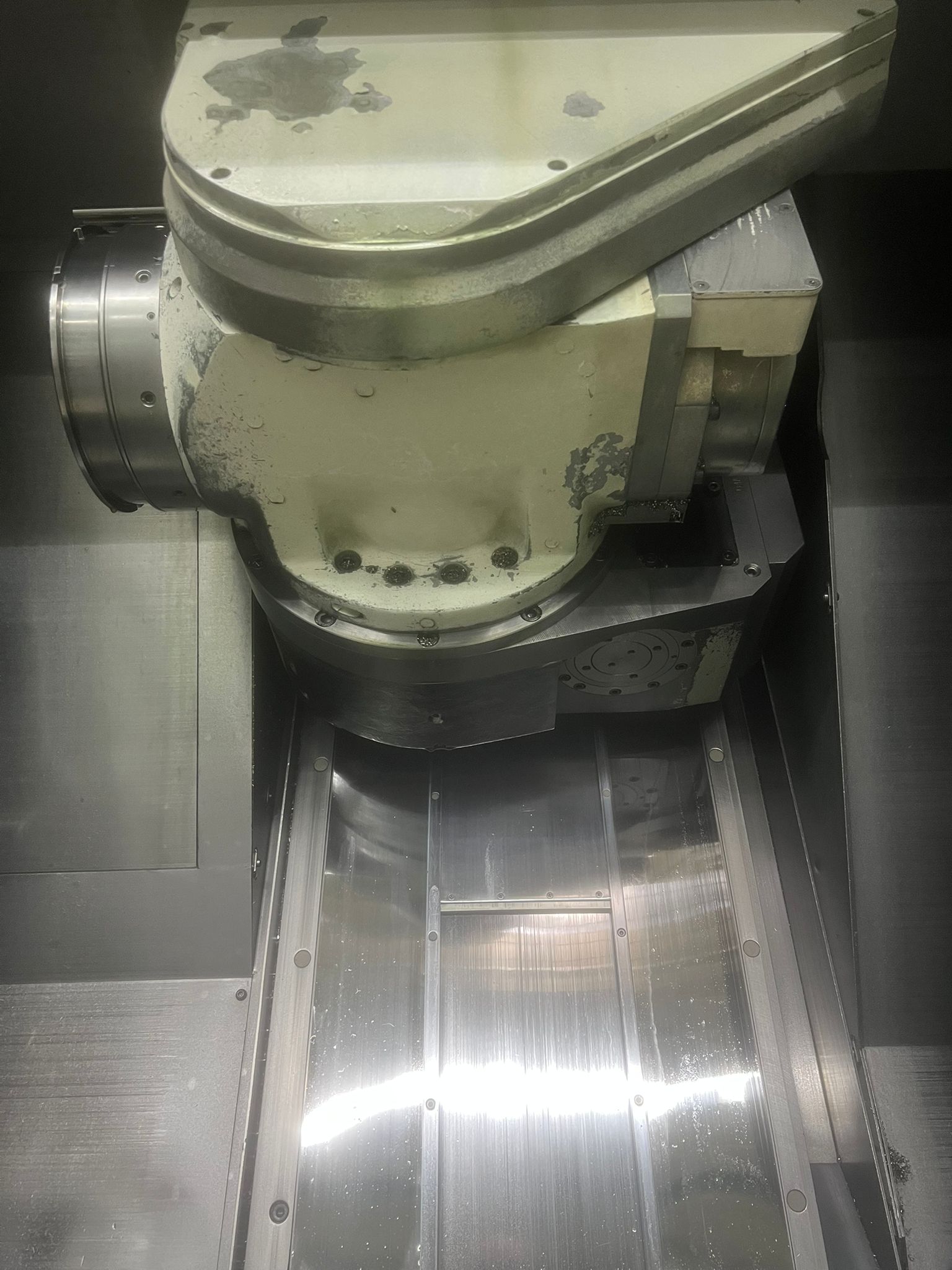

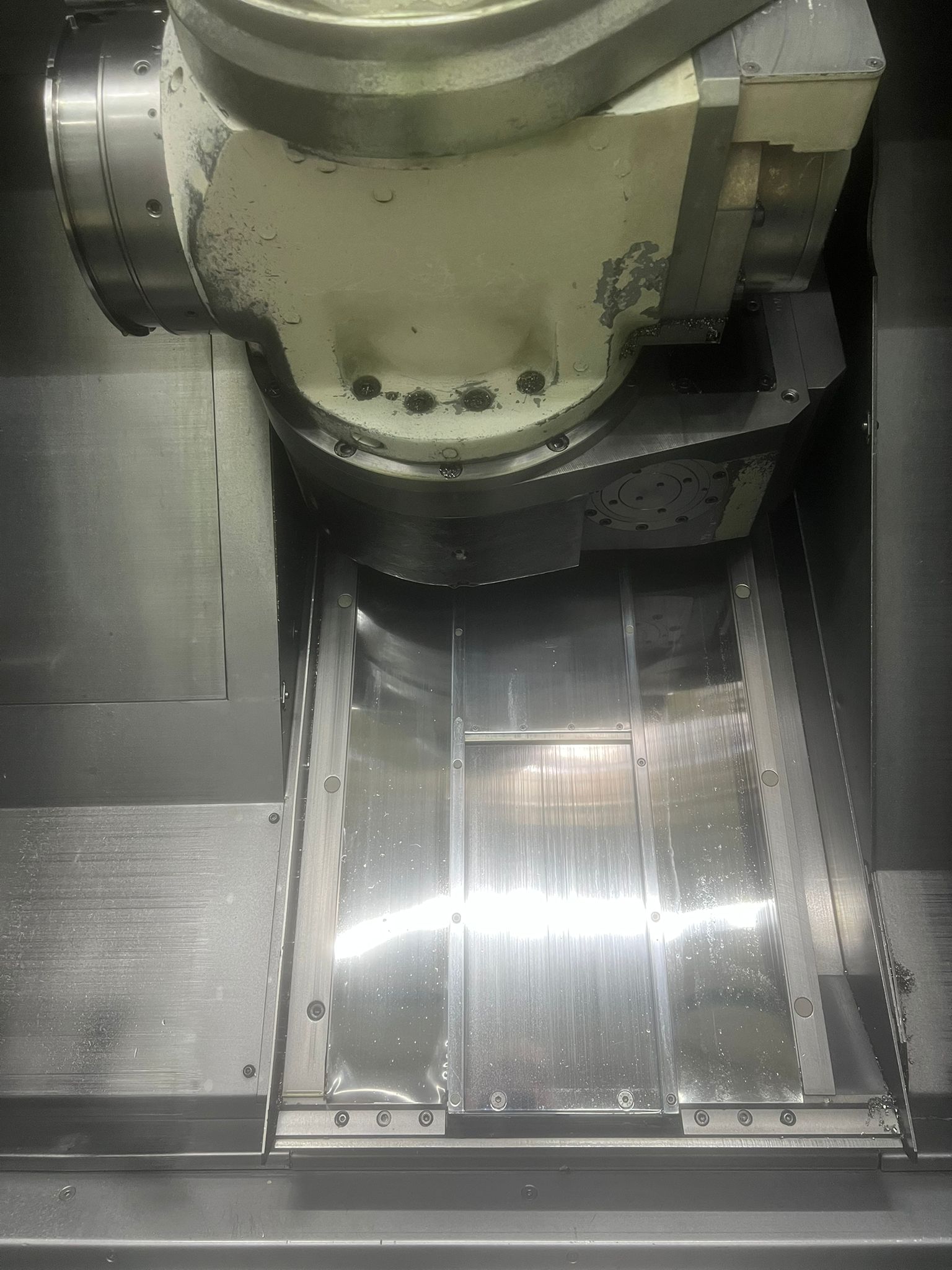

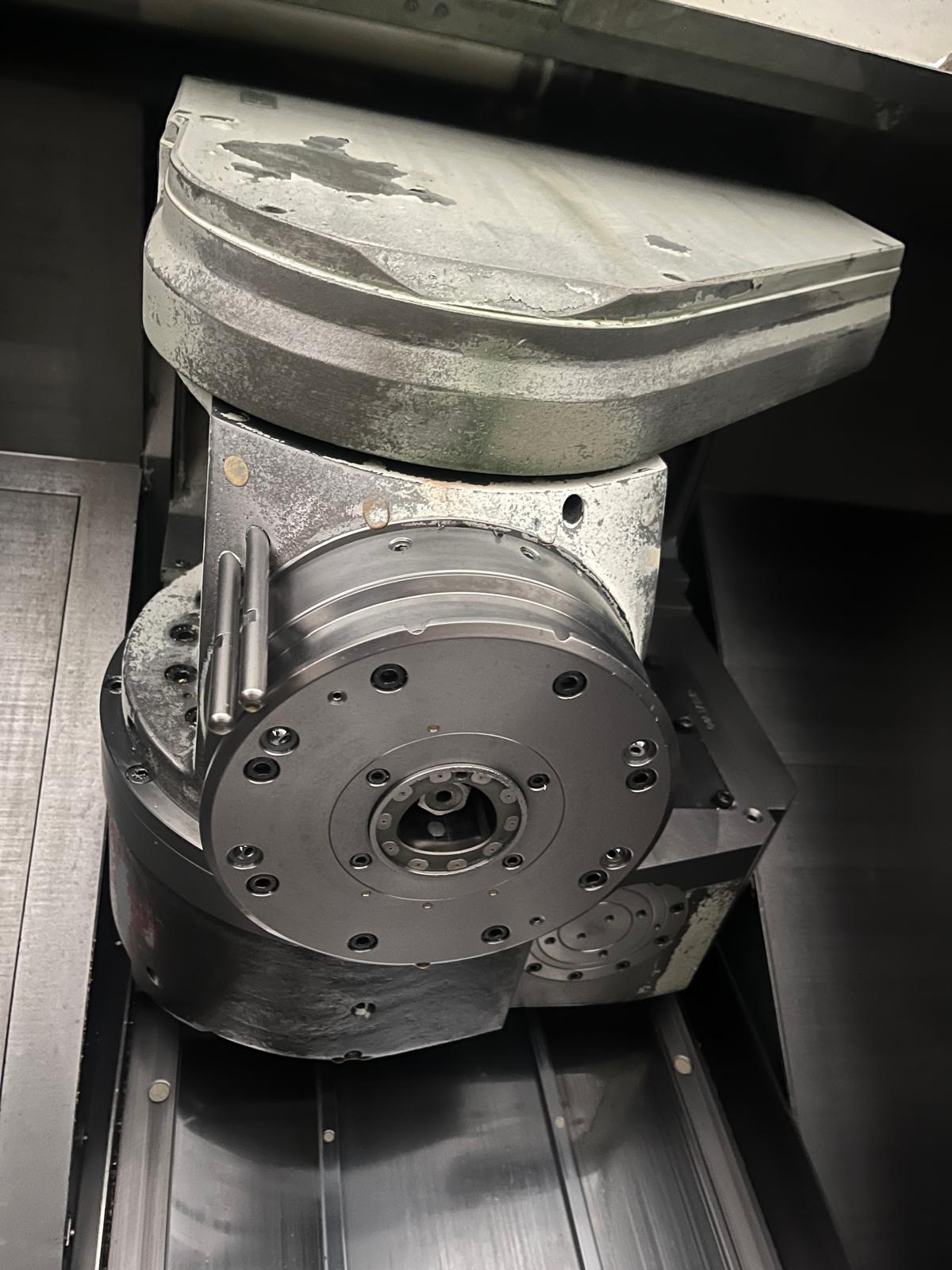

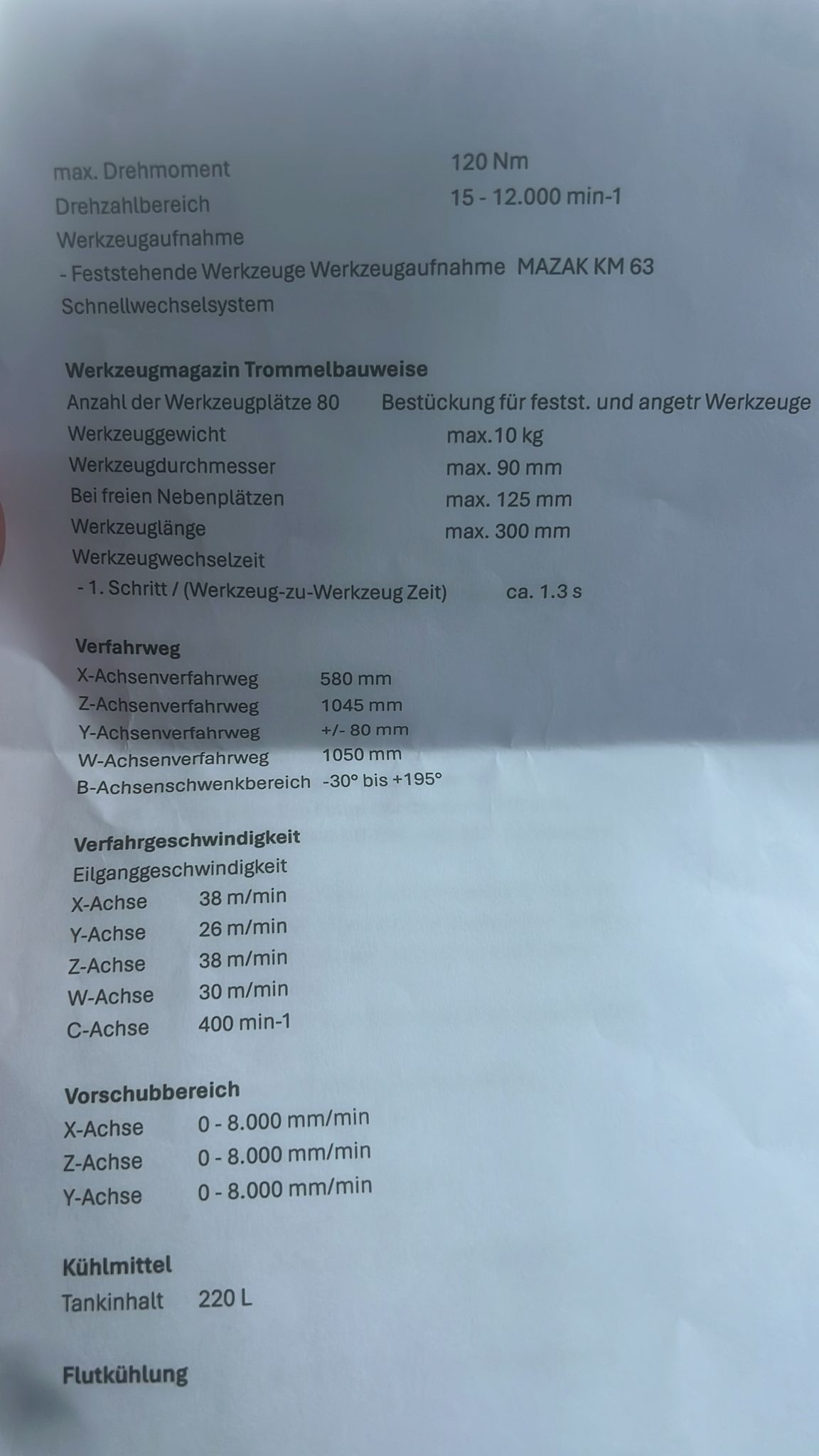

TOOL TURRET & DRIVEN TOOLS

==================================================


• Tool Turret Design: Single-Spindle Turret (for stationary or driven tools)

• Driven Tools Drive Power (20% Duty Cycle / ED): 15 kW (IPM Motor)

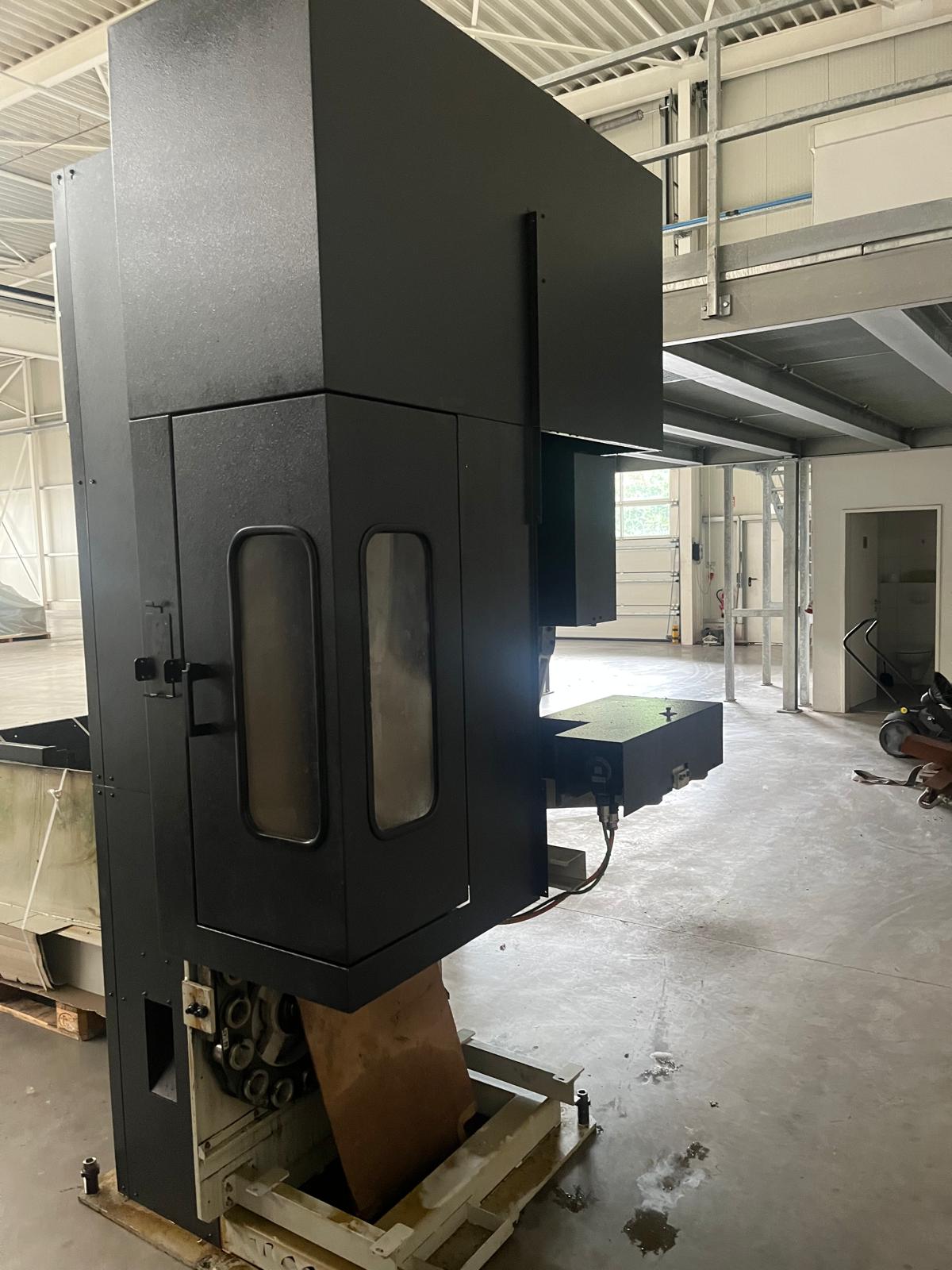

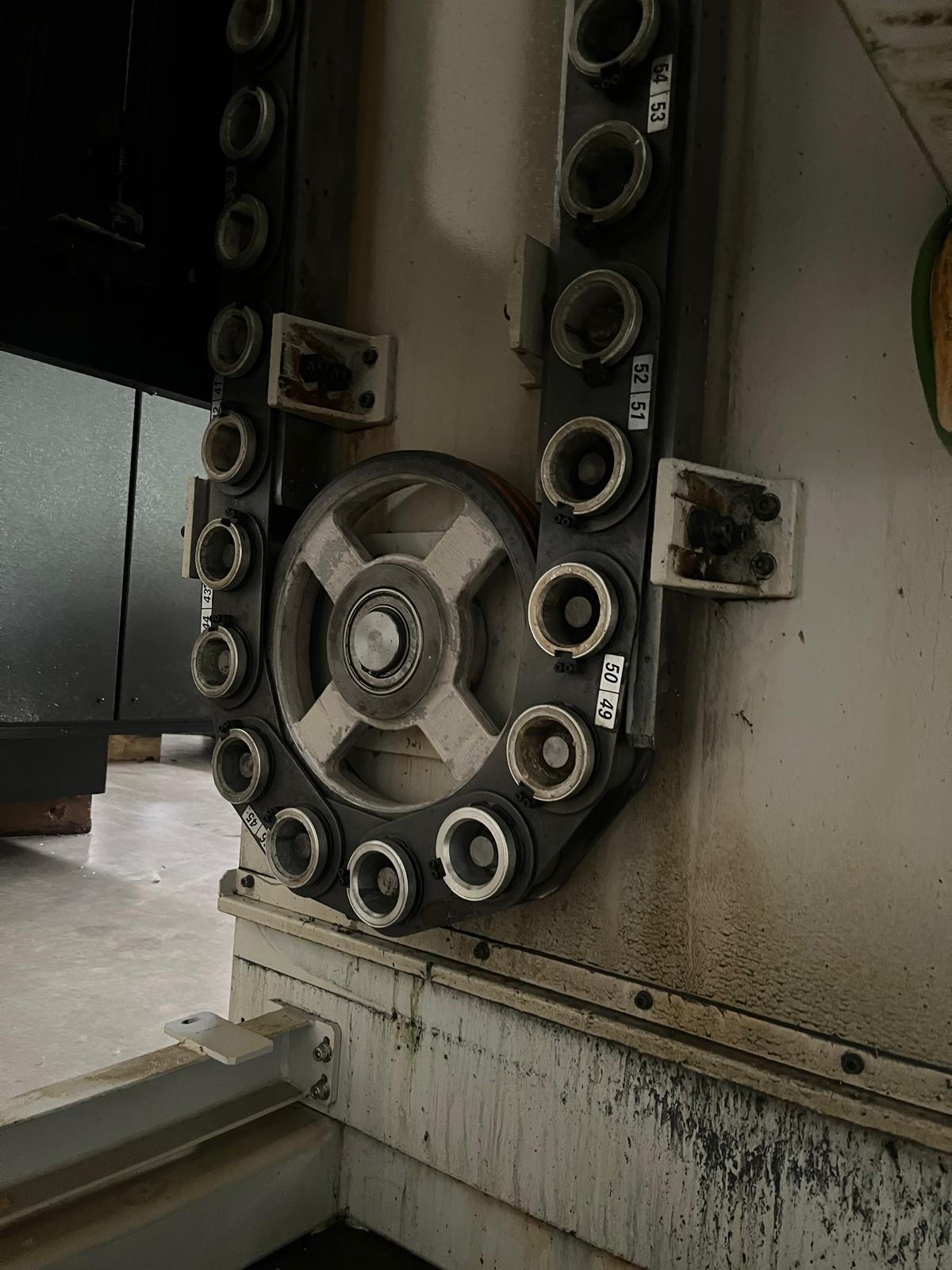

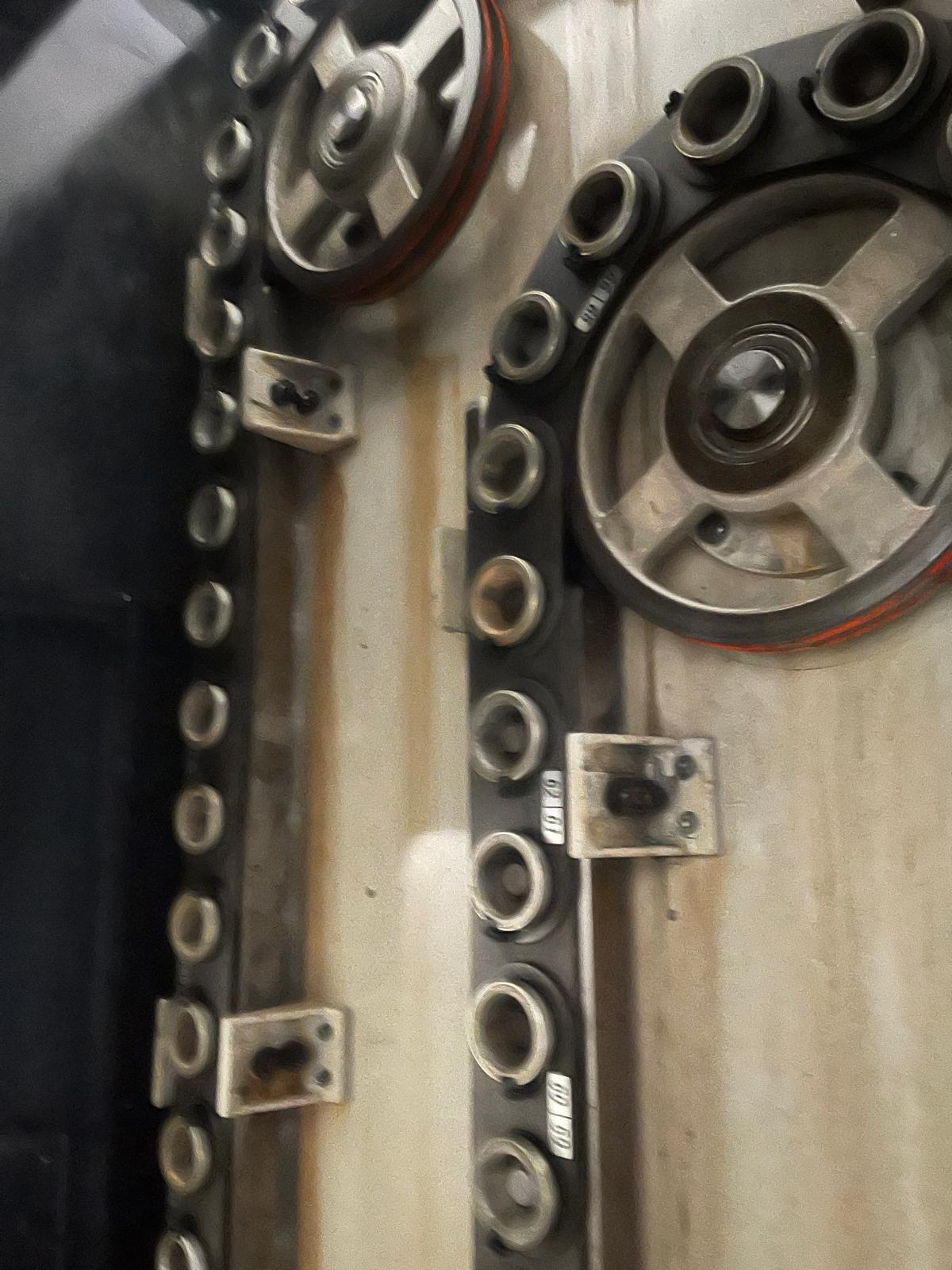

• Tool Magazine Capacity: 20 Tools


==================================================

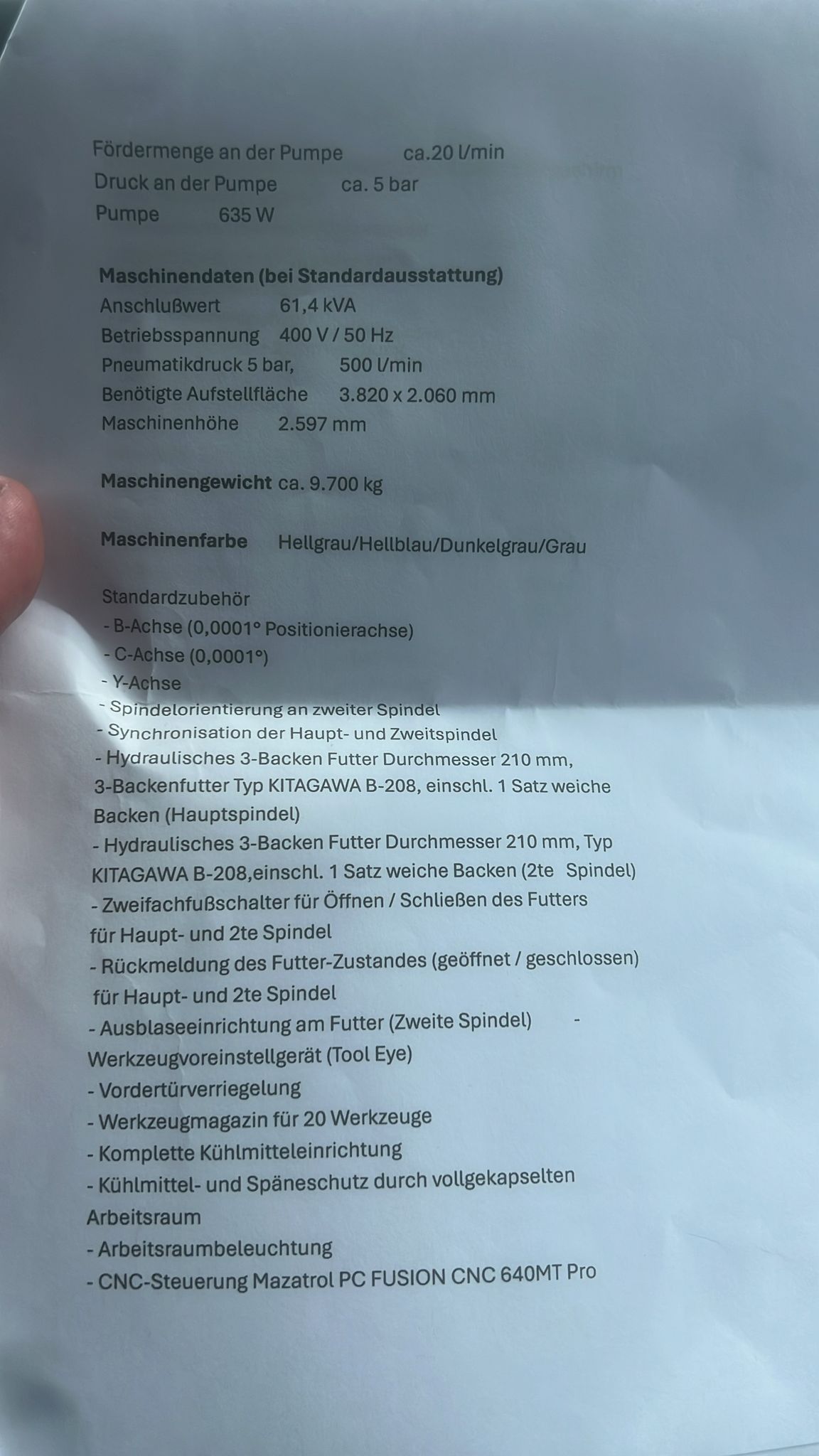

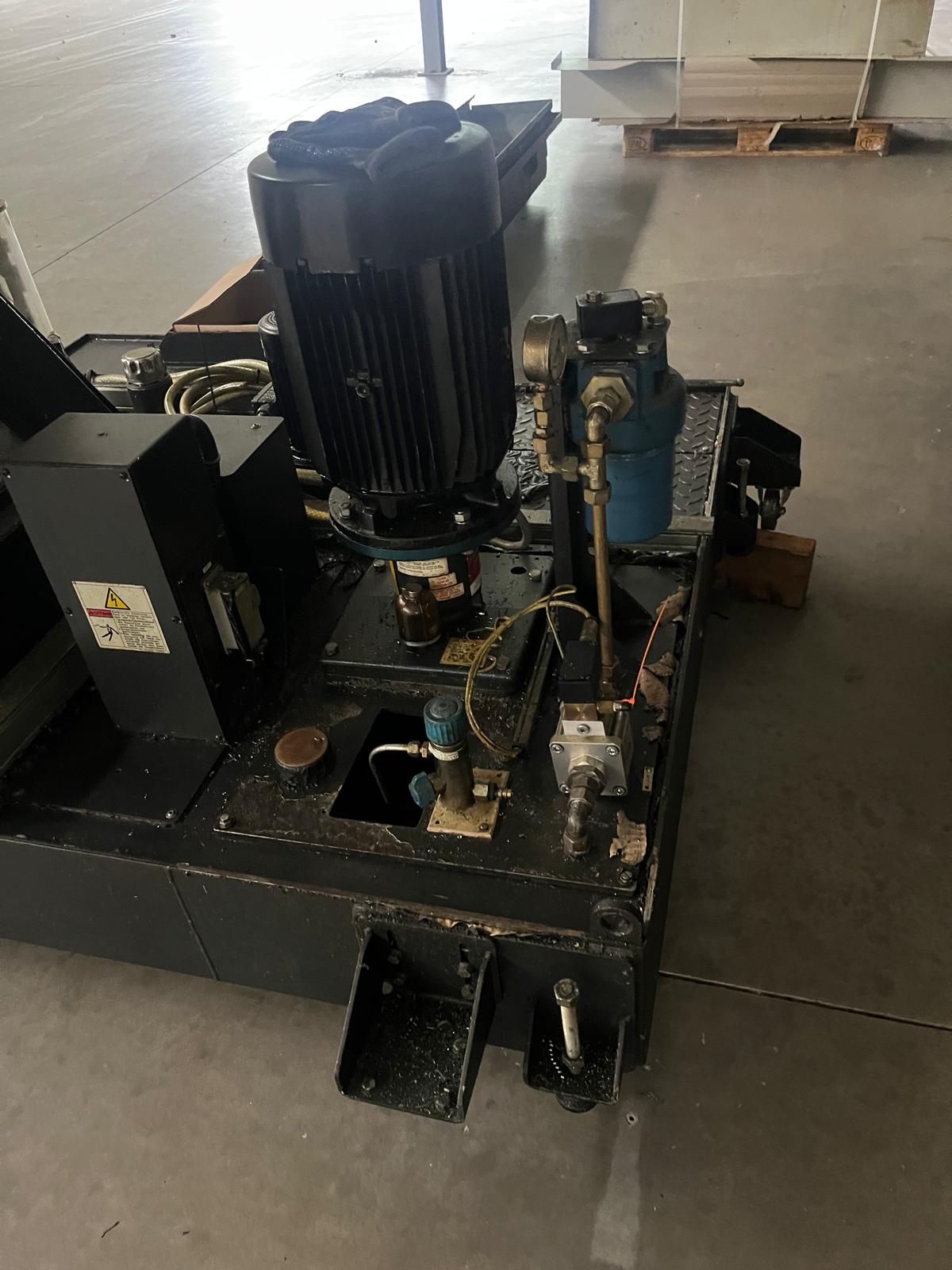

PUMP & COOLANT SYSTEM

==================================================


• Pump Delivery Rate: approx. 20 l/min

• Pump Pressure: approx. 5 bar

• Pump Power: 635 W


==================================================

STANDARD EQUIPMENT & FEATURES

==================================================


• B-Axis (0.0001° positioning axis)

• C-Axis (0.0001°) & Y-Axis

• Spindle orientation on second spindle

• Synchronization of main and second spindle

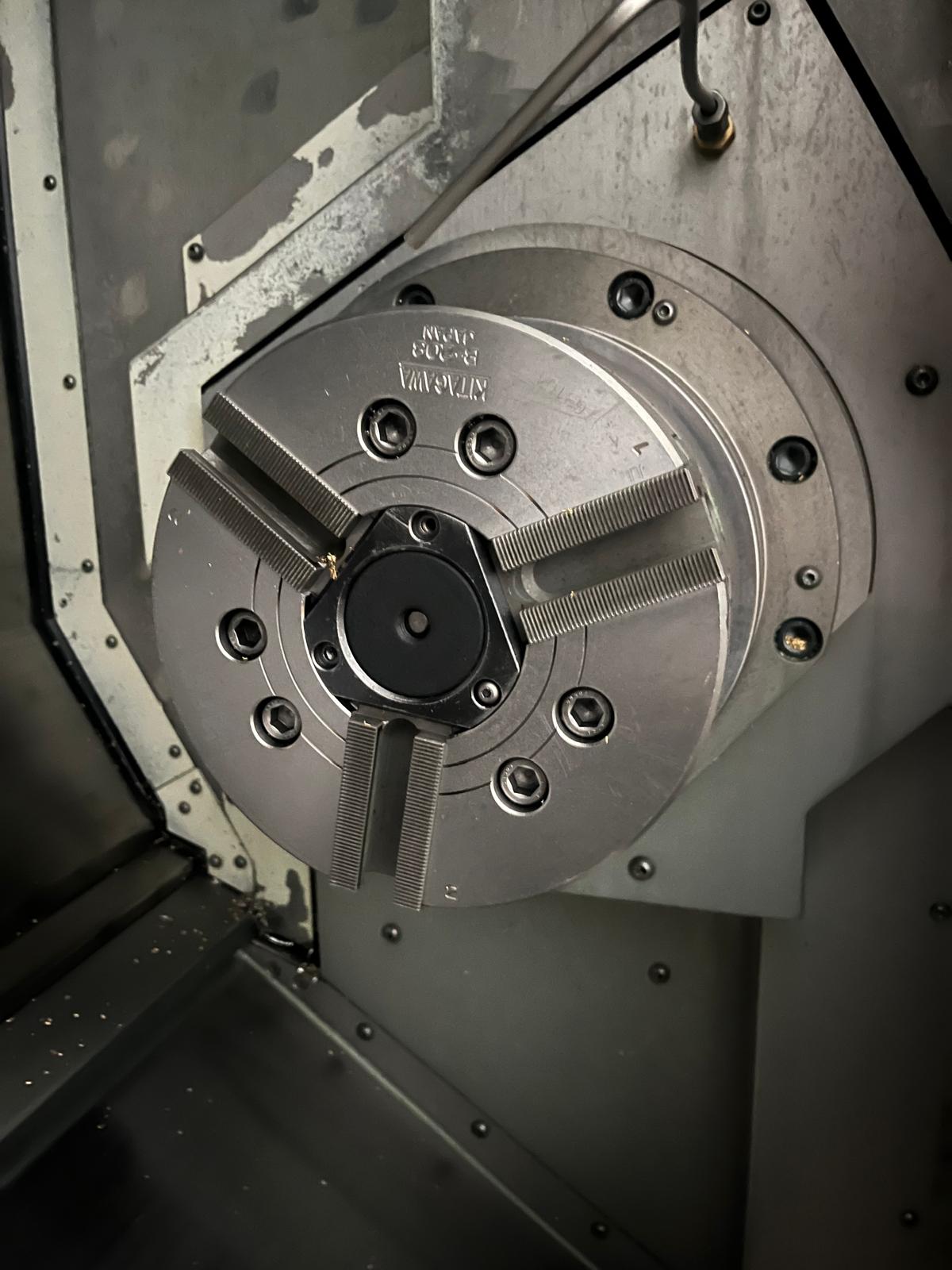

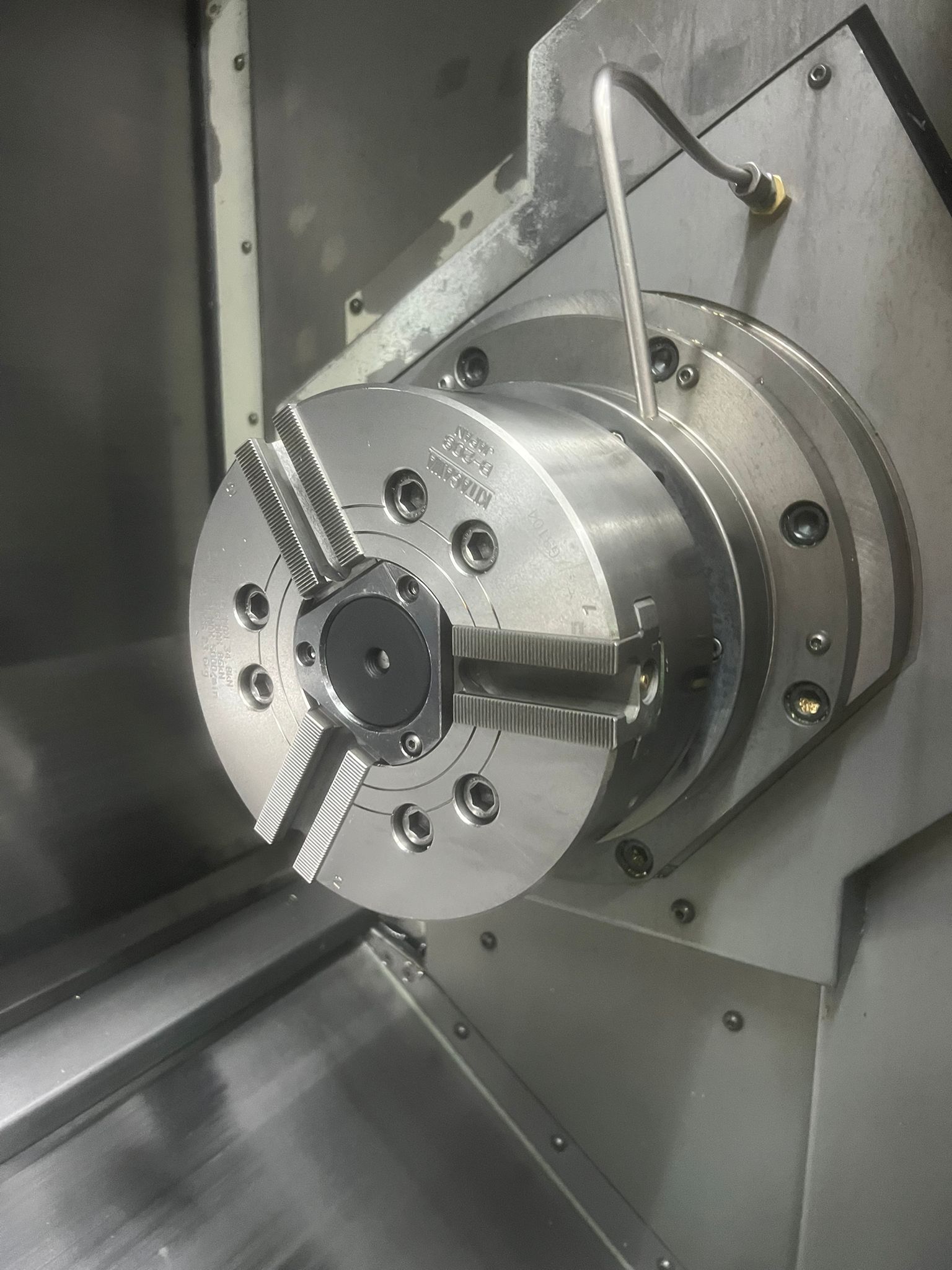

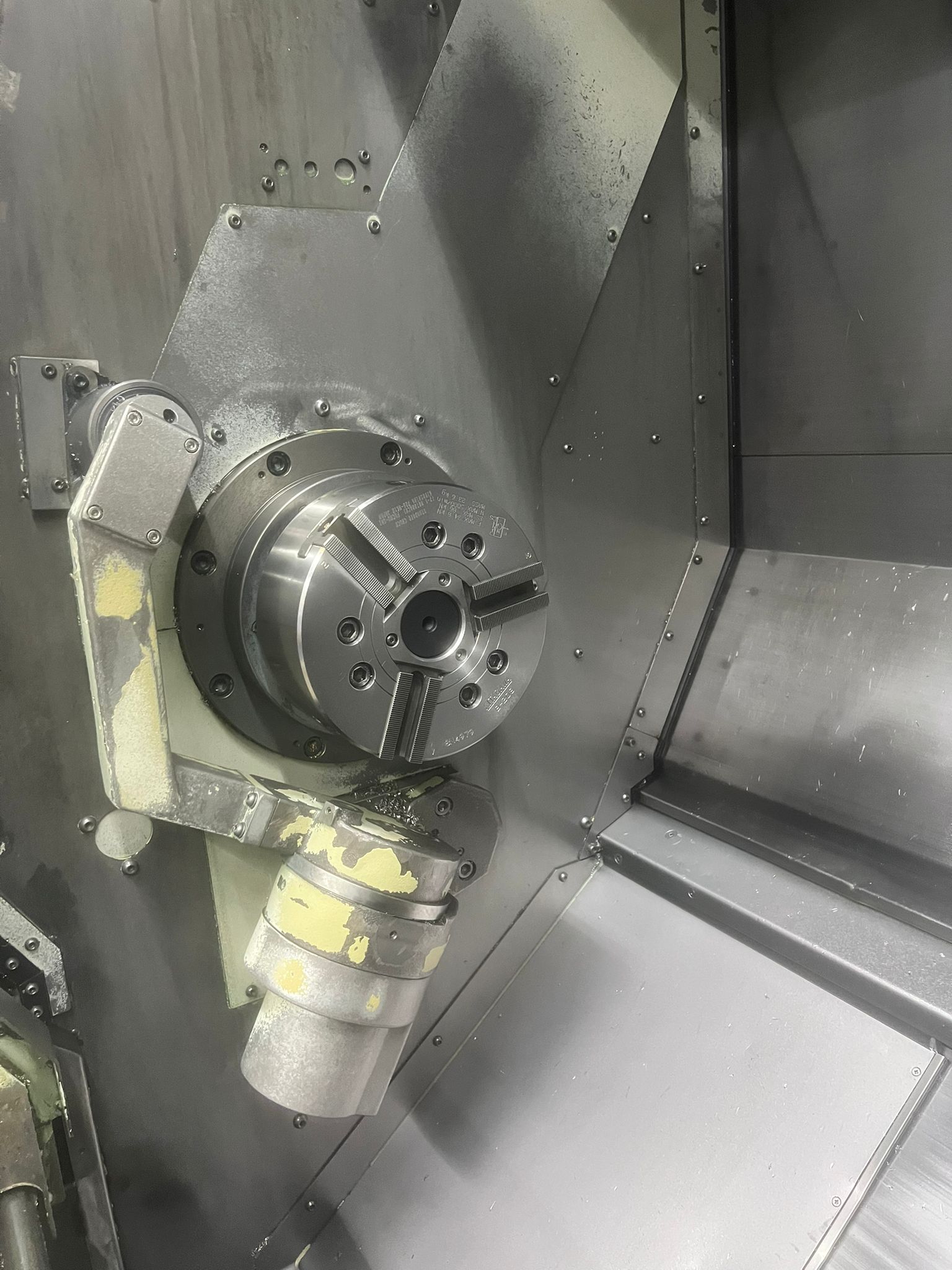

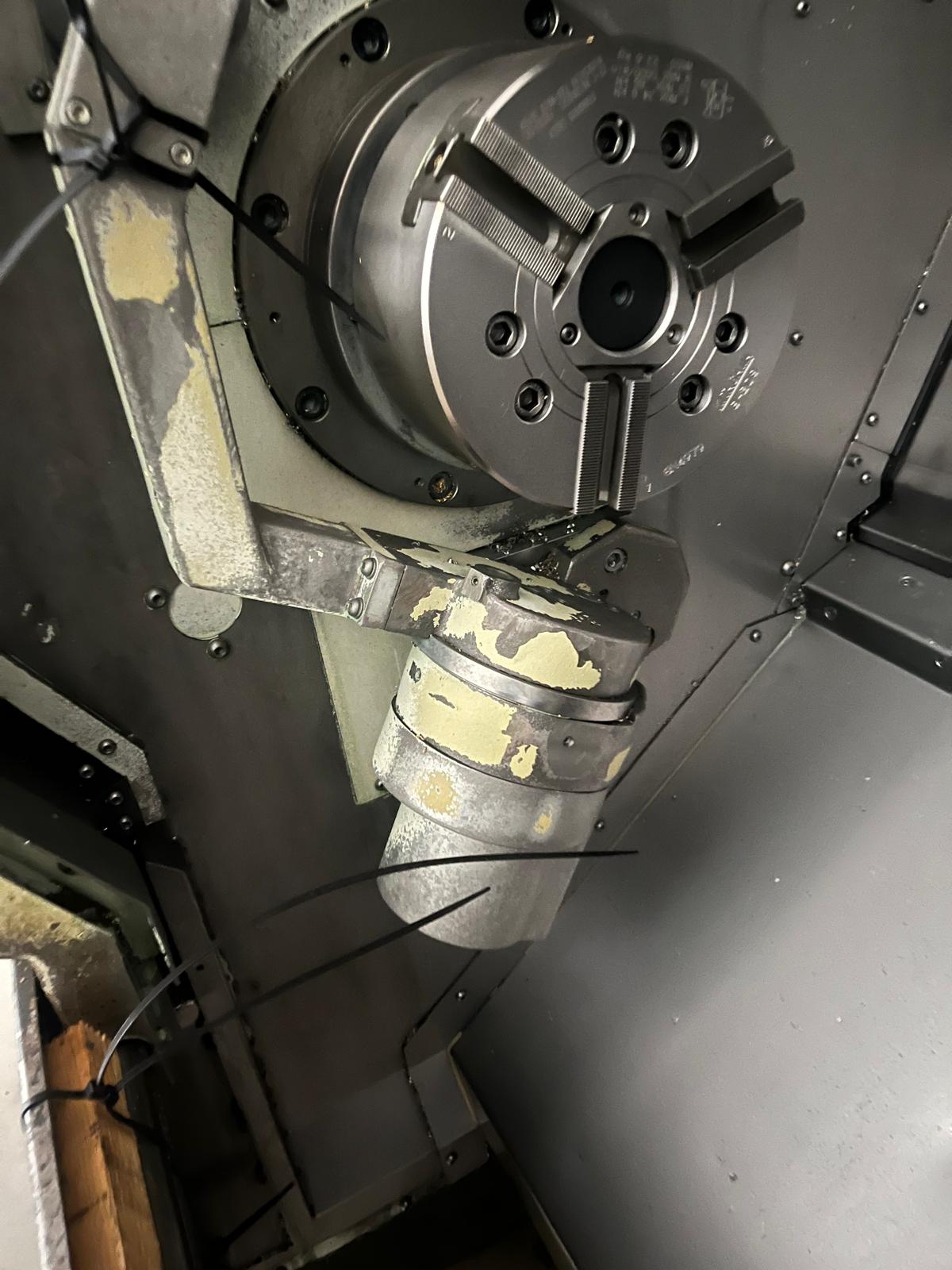

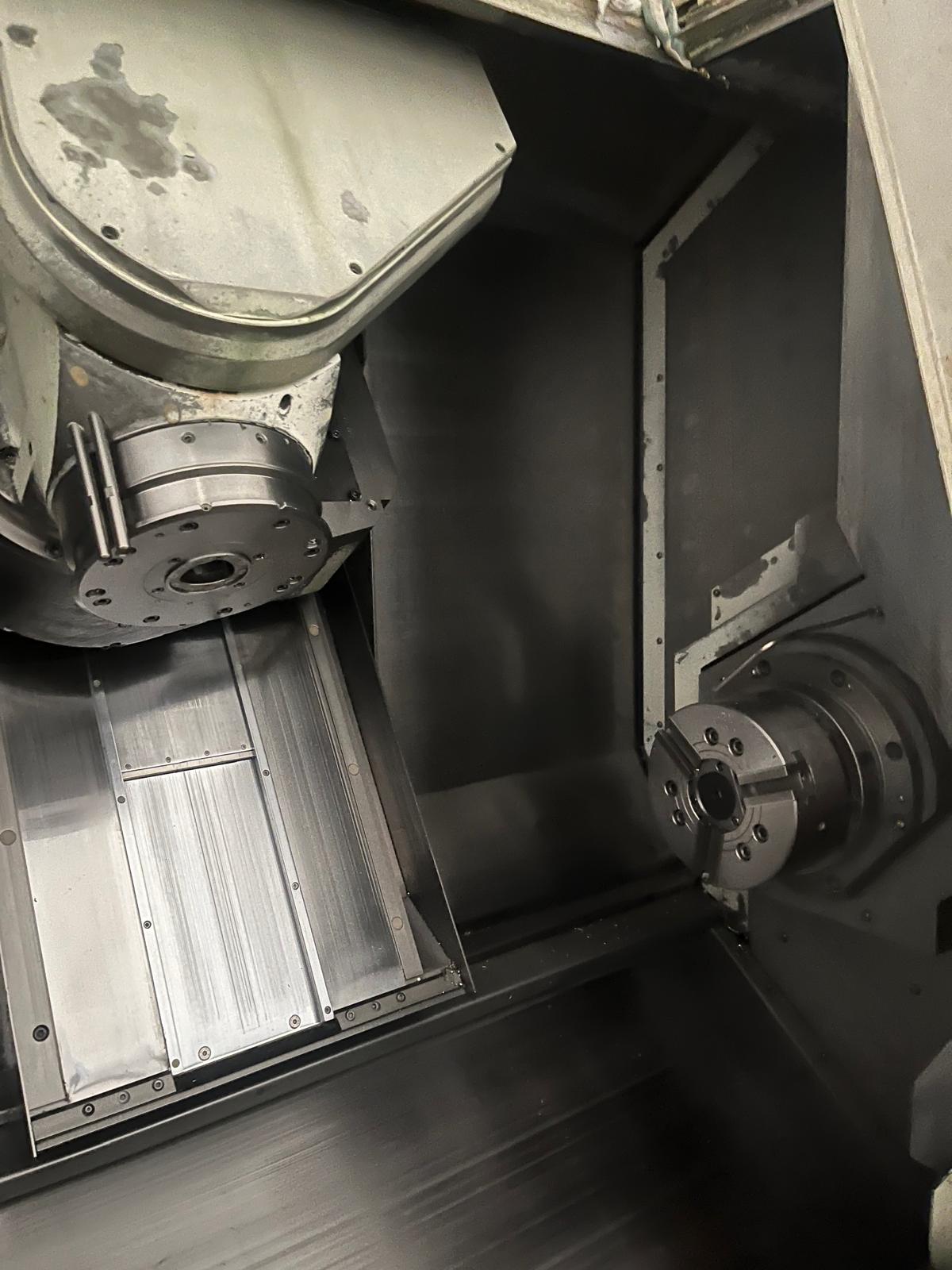

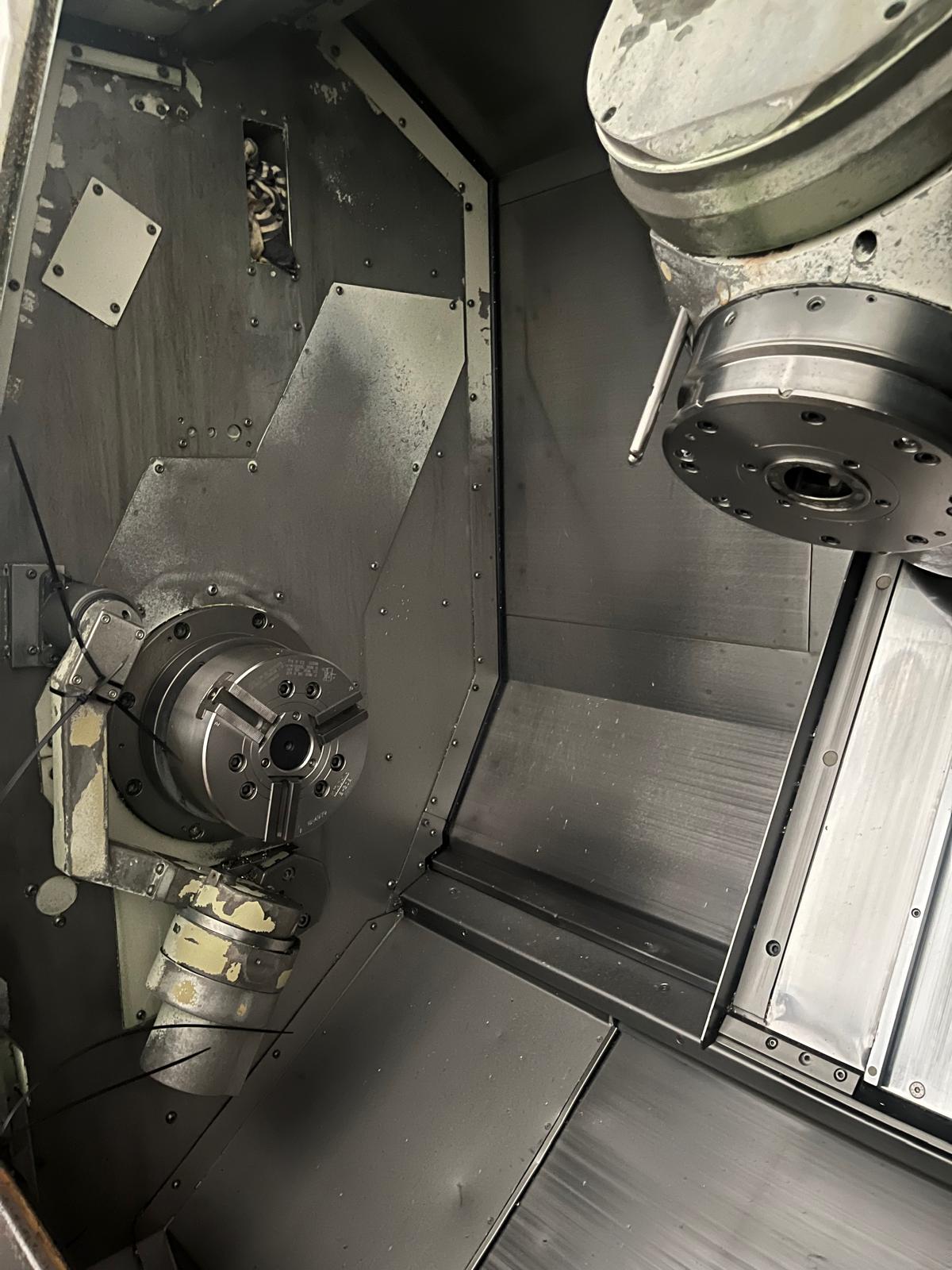

• Hydraulic 3-jaw chuck (210 mm diameter, KITAGAWA B-208) incl. 1 set of soft jaws (Main Spindle)

• Hydraulic 3-jaw chuck (210 mm diameter, KITAGAWA B-208) incl. 1 set of soft jaws (Second Spindle)

• Dual foot switch for opening/closing chucks (Main & Second Spindle)

• Chuck status feedback (open/closed) for both spindles

• Air blast device at chuck (Second Spindle)

• Tool Pre-setter (Tool Eye)

• Front door interlock / safety locking

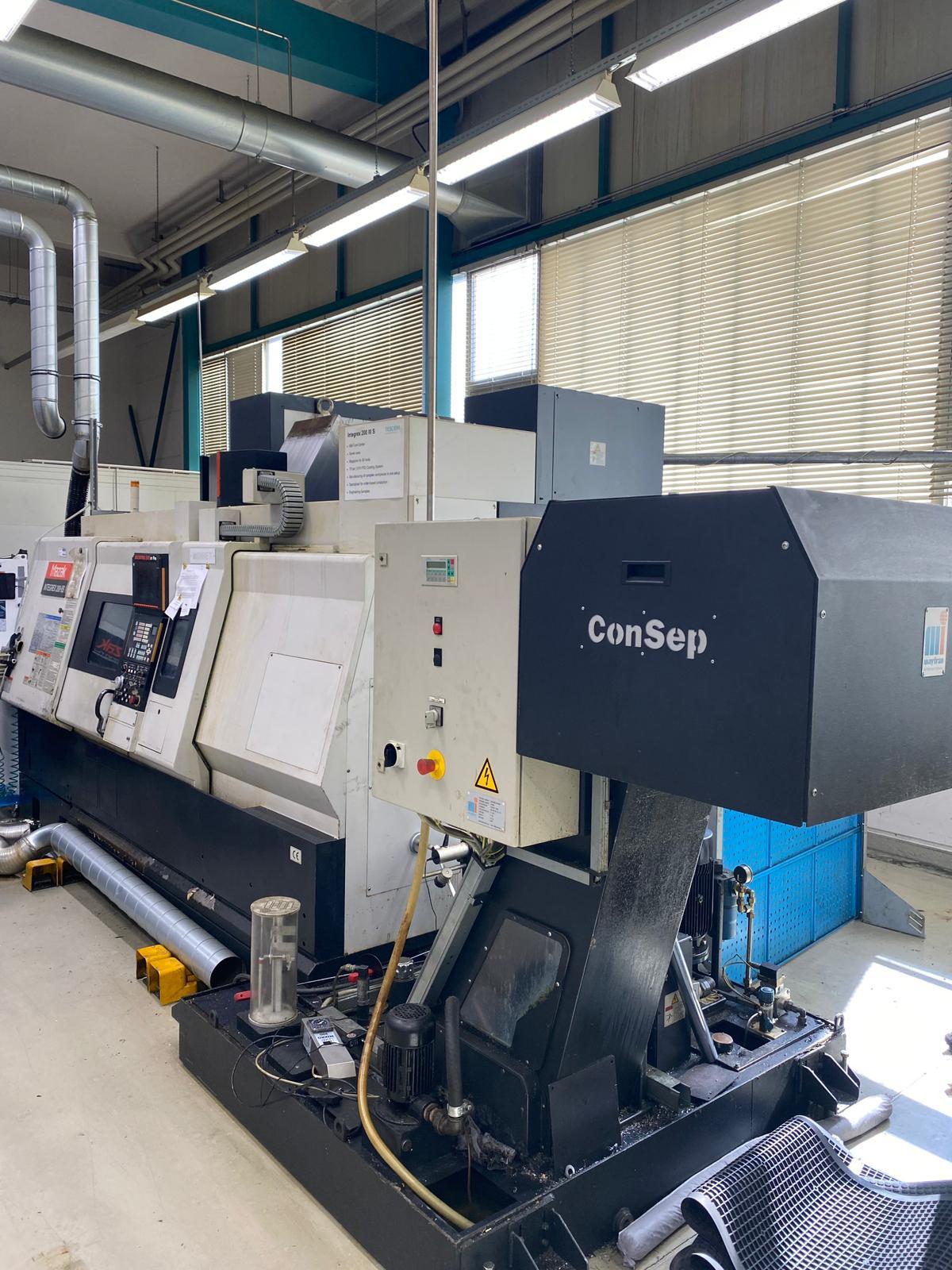

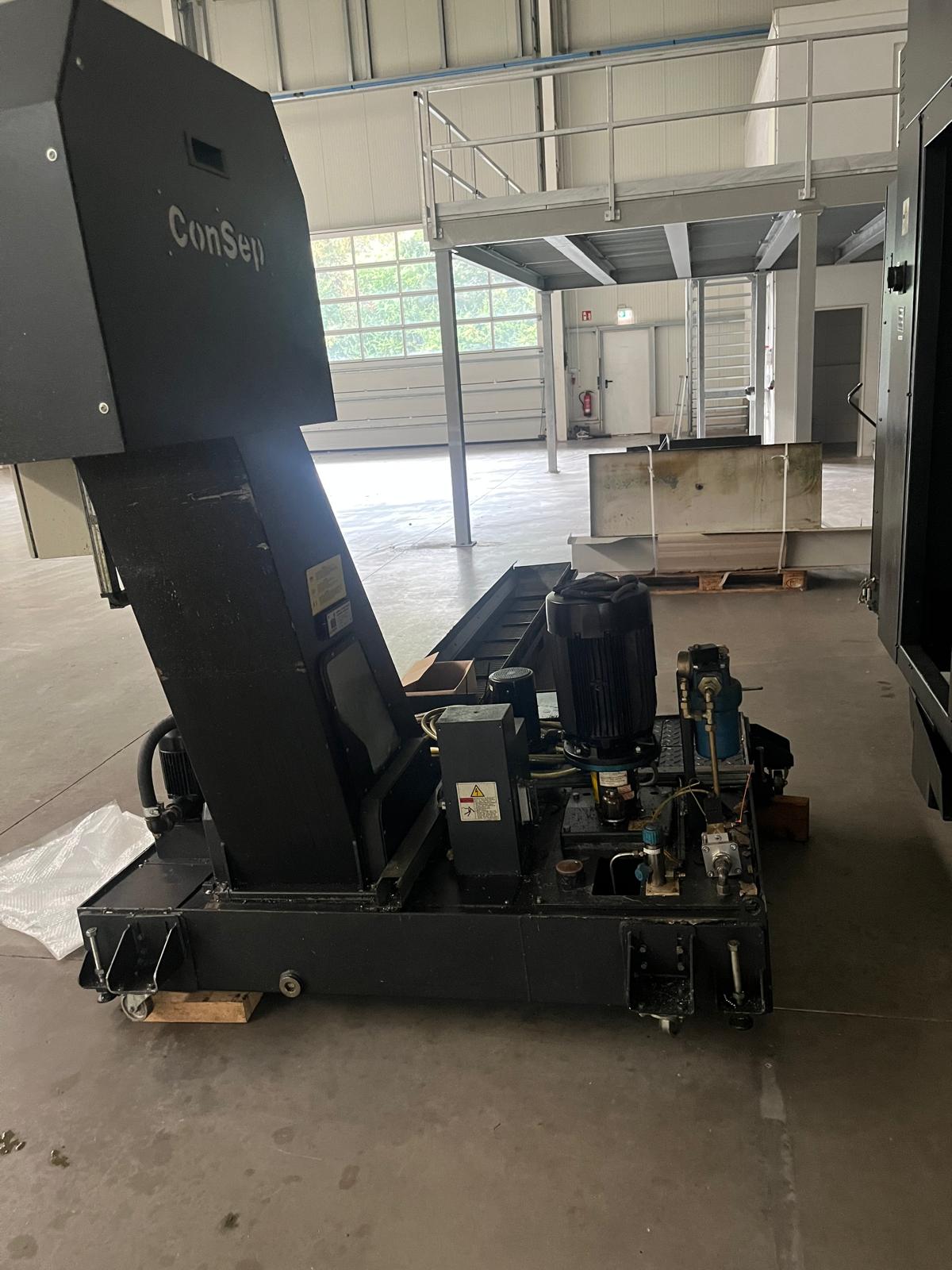

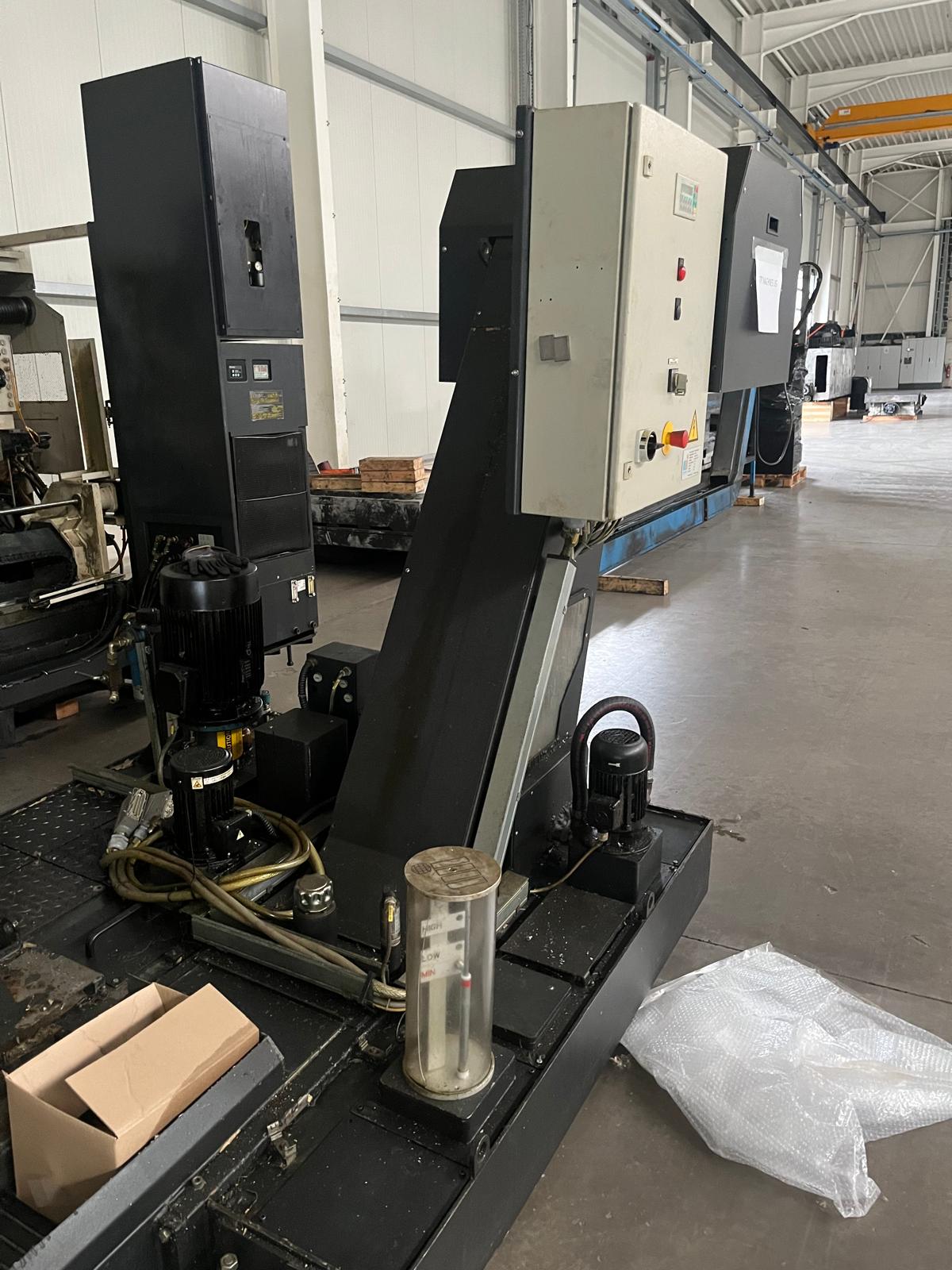

• Complete coolant equipment & full enclosure (coolant and chip guard)

• Working area light


Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerMazak
ModelINTEGREX 200 III S
Year2004
ConditionUsed
Stock Number758739
