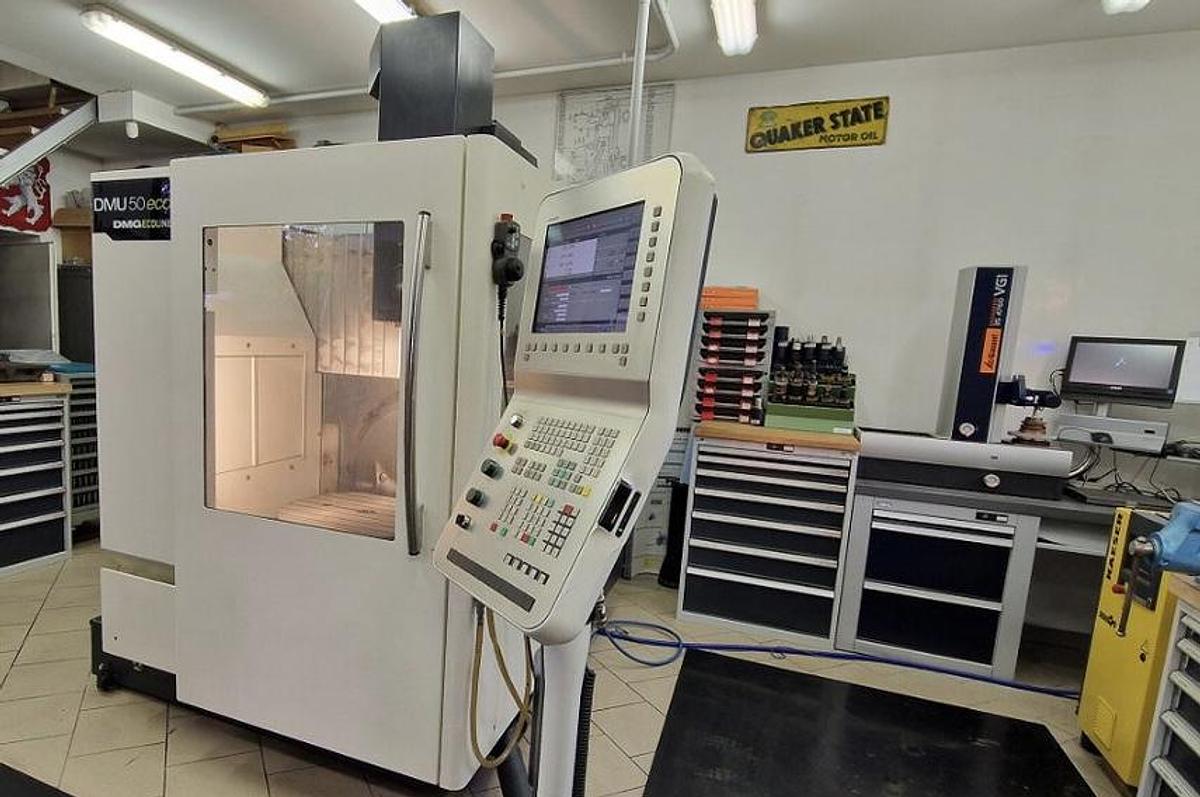

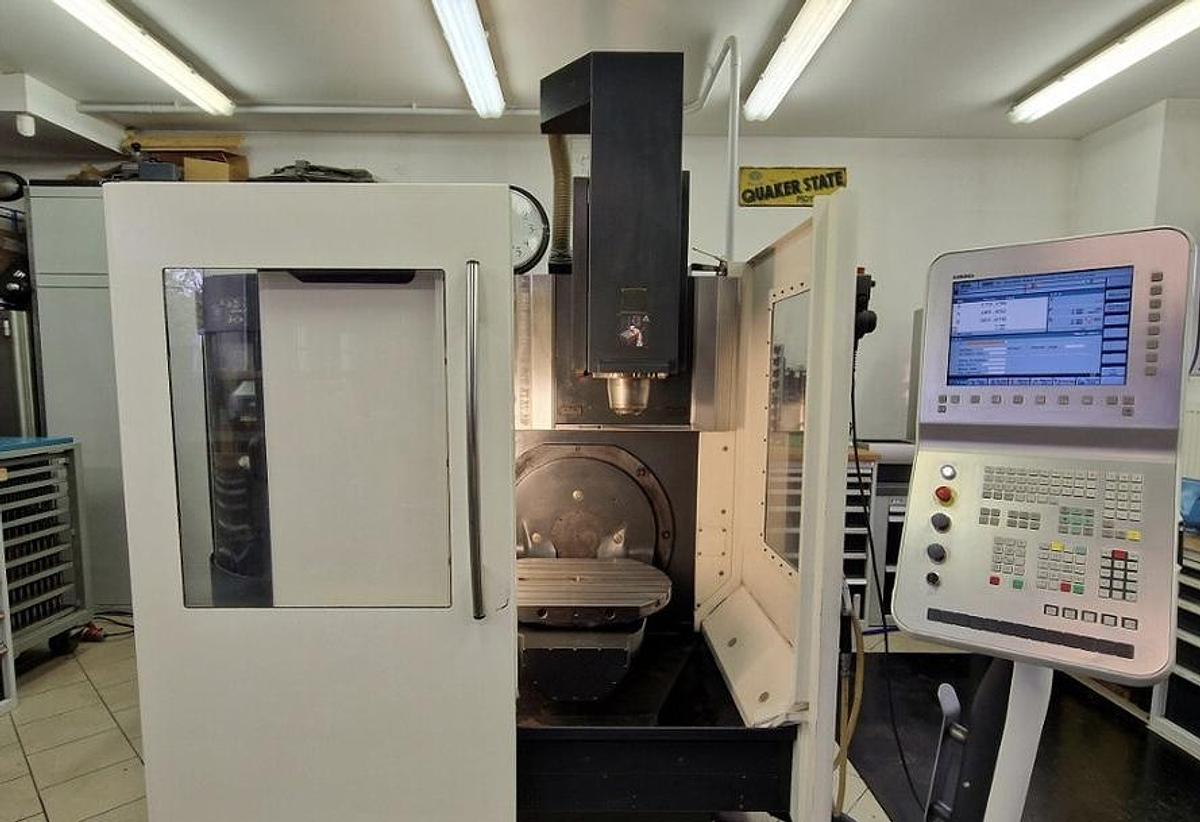

5-axis CNC machining center

Type: DMU 50 eco

Manufacturer: DMG

Year: 2011

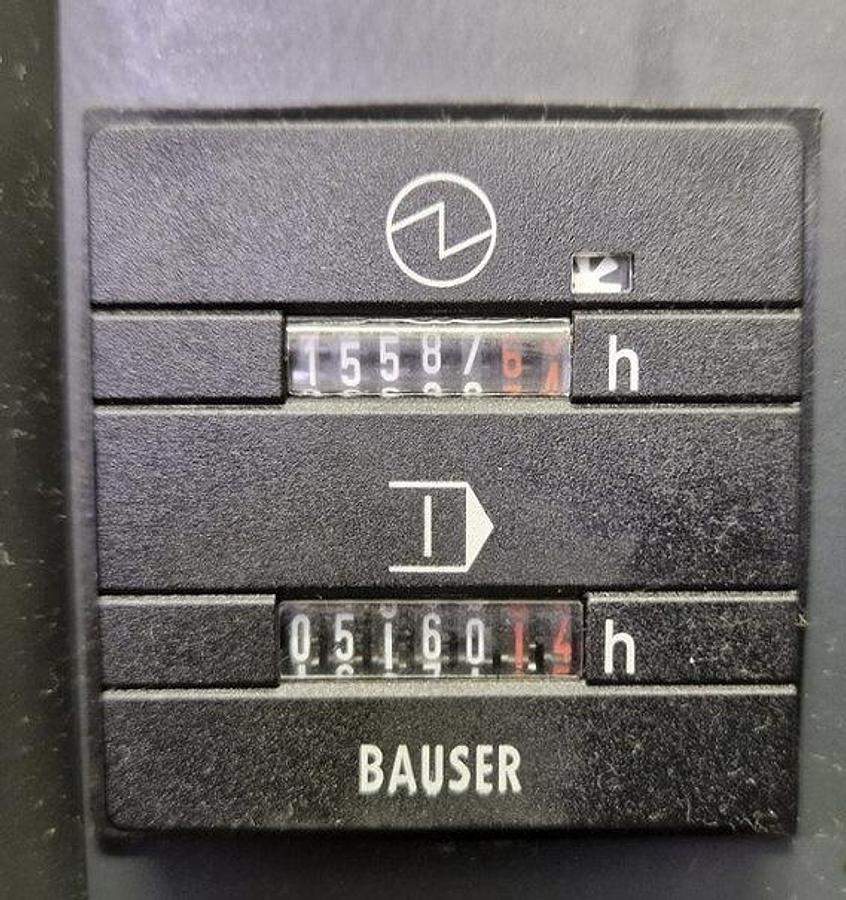

Spindle hours: 5160

Precise Heidenhain absolute rulers in all axes + integrated thermal compensation

X: 500 mm

Y: 450 mm

Z: 400 mm

Tilting range (axis B): -5° to +110°

Rotation range (C-axis): 360° (integrated rotary folding table)

Table clamping surface: 630 x 500 mm

Max. table load: 200 kg

Spindle taper: SK 40

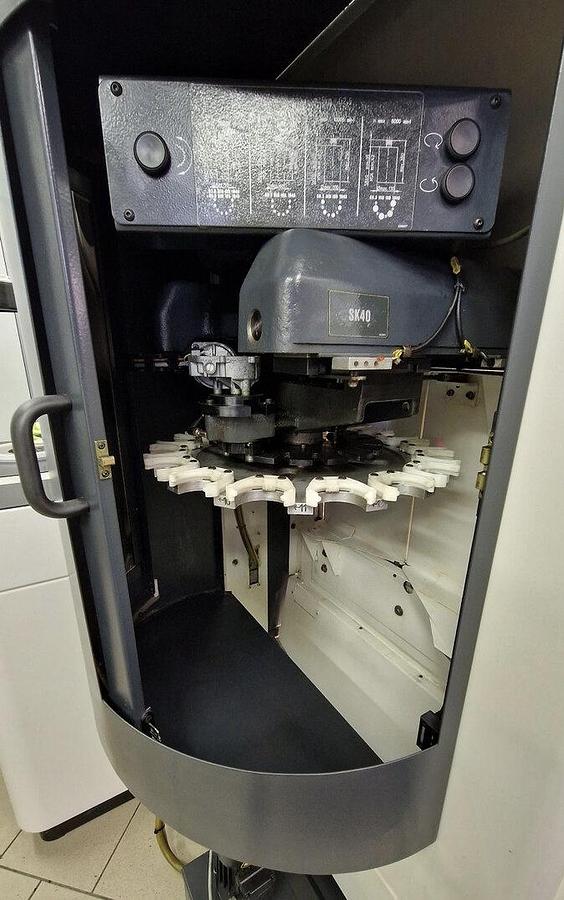

Tool magazine: 16 positions

Max.spindle speed: 8000 rpm

Equipment and accessories included

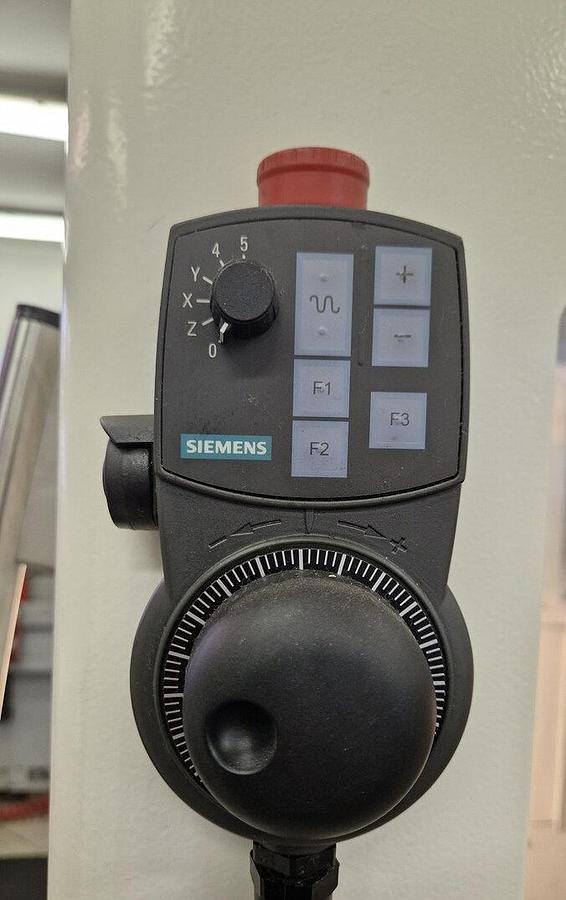

Hand wheel for easy and precise adjustment

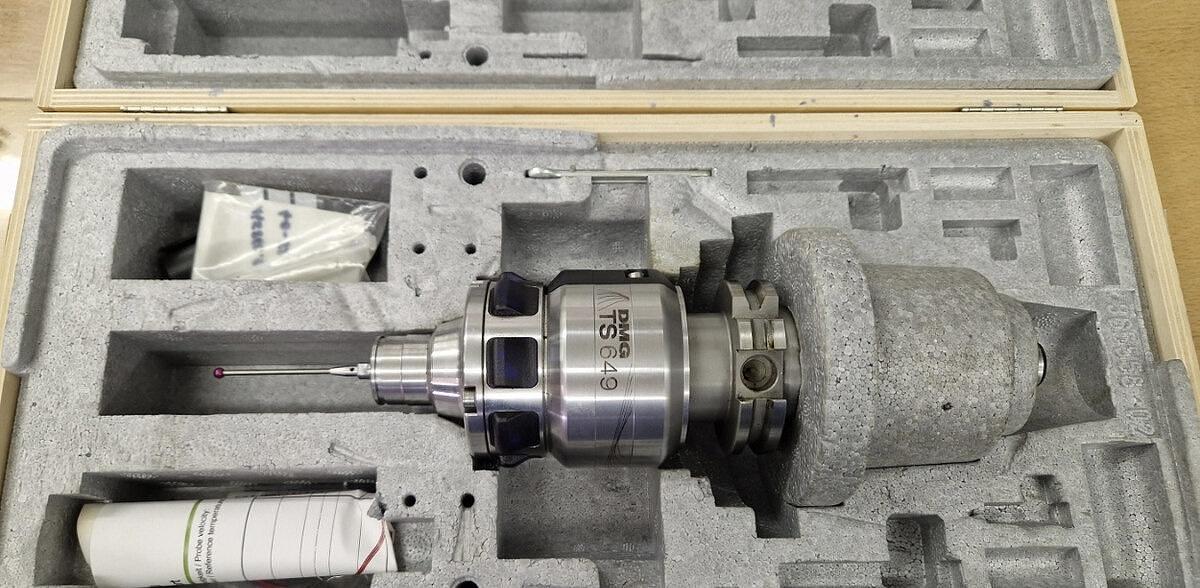

Wireless touch probe Heidenhain TS649

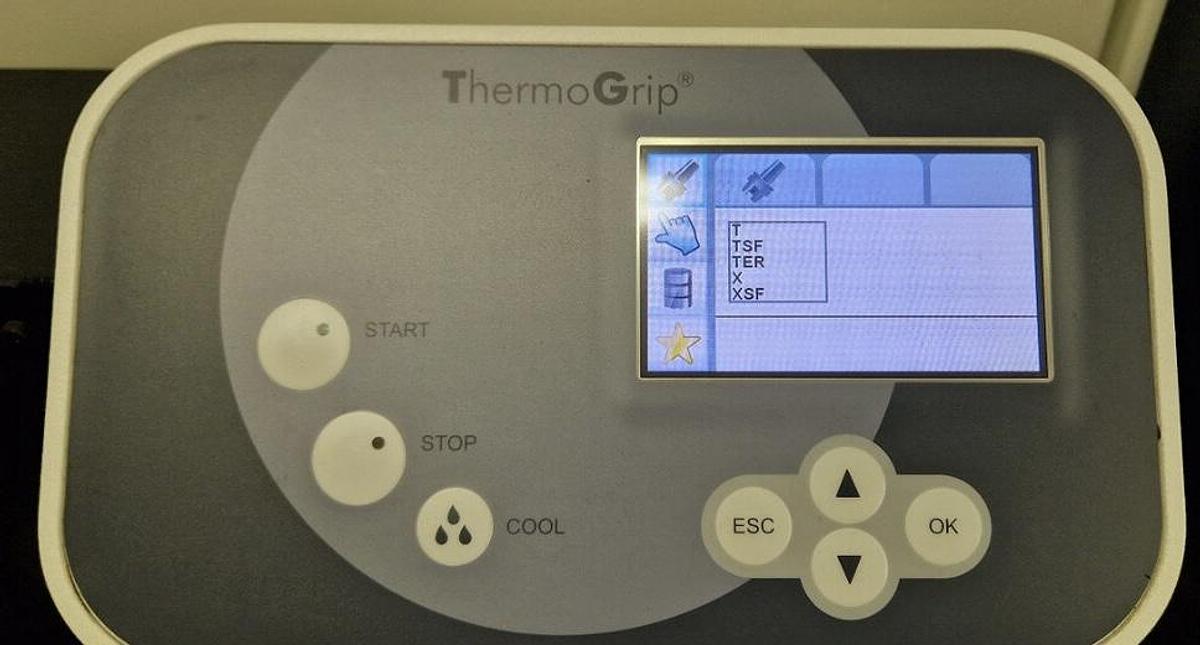

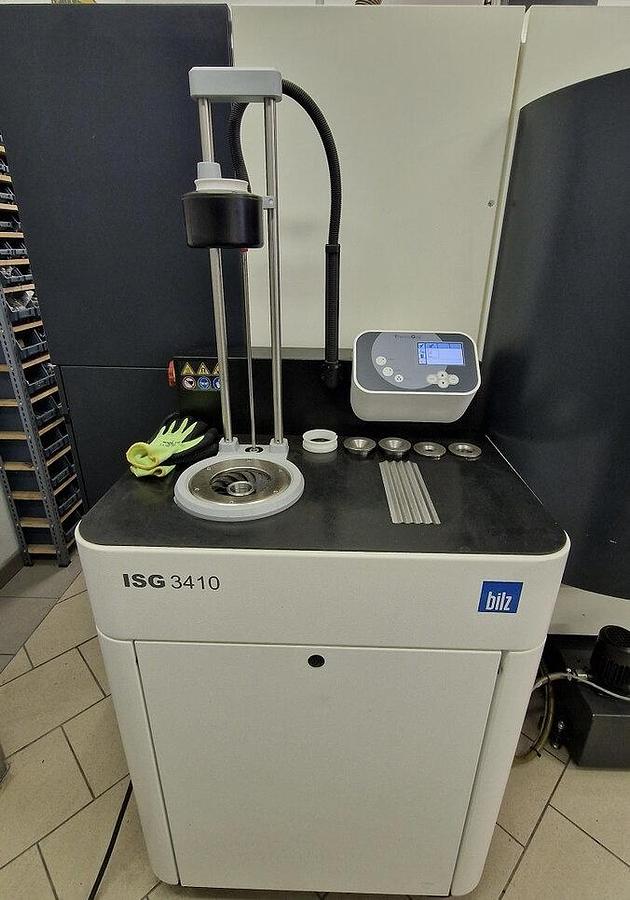

Bilz ISG 3410 heat shrink device for quick clamping of tools

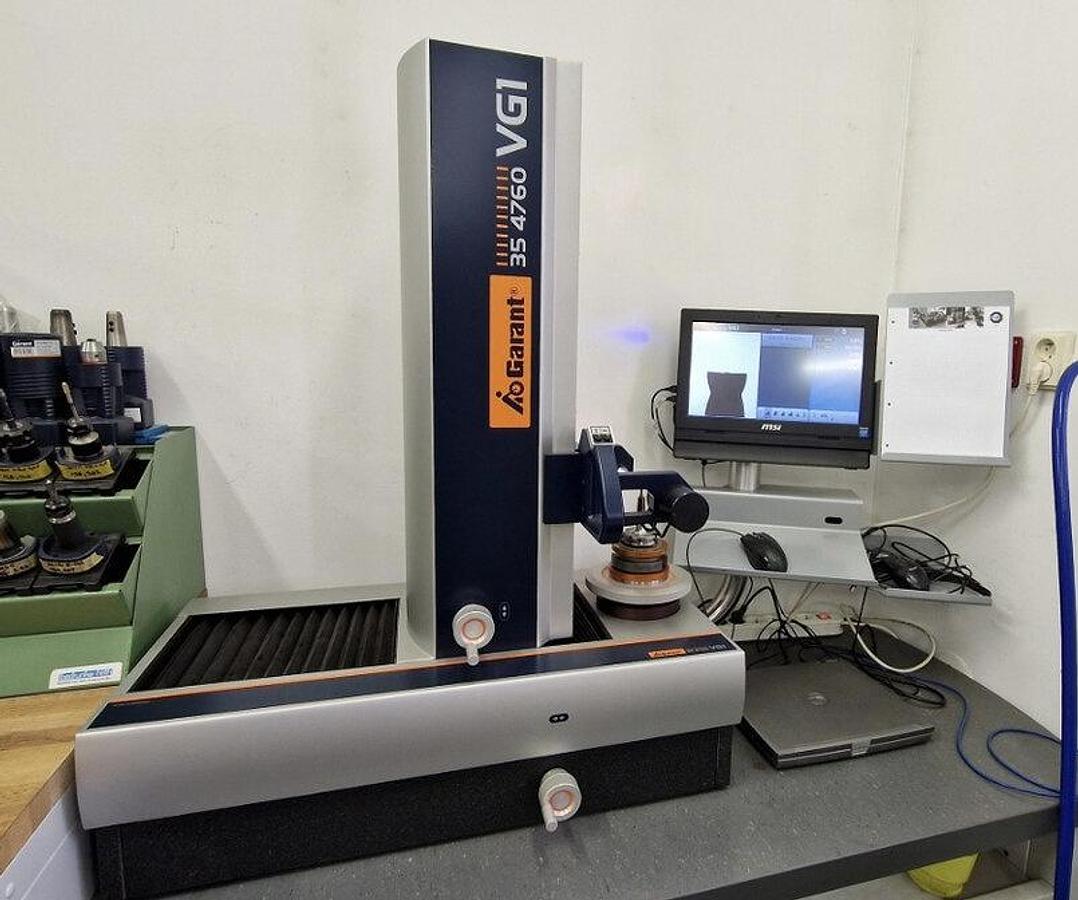

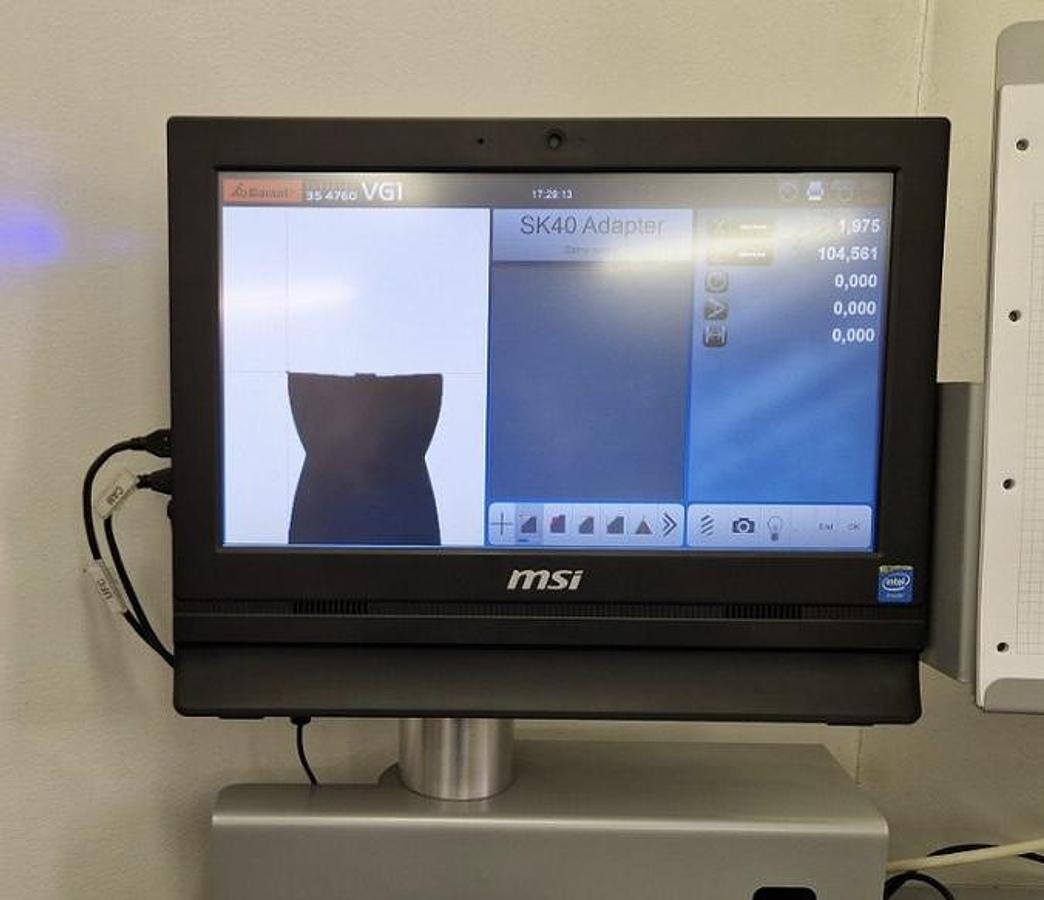

Hoffmann Group VG1 preset device

CAM software CamWorks

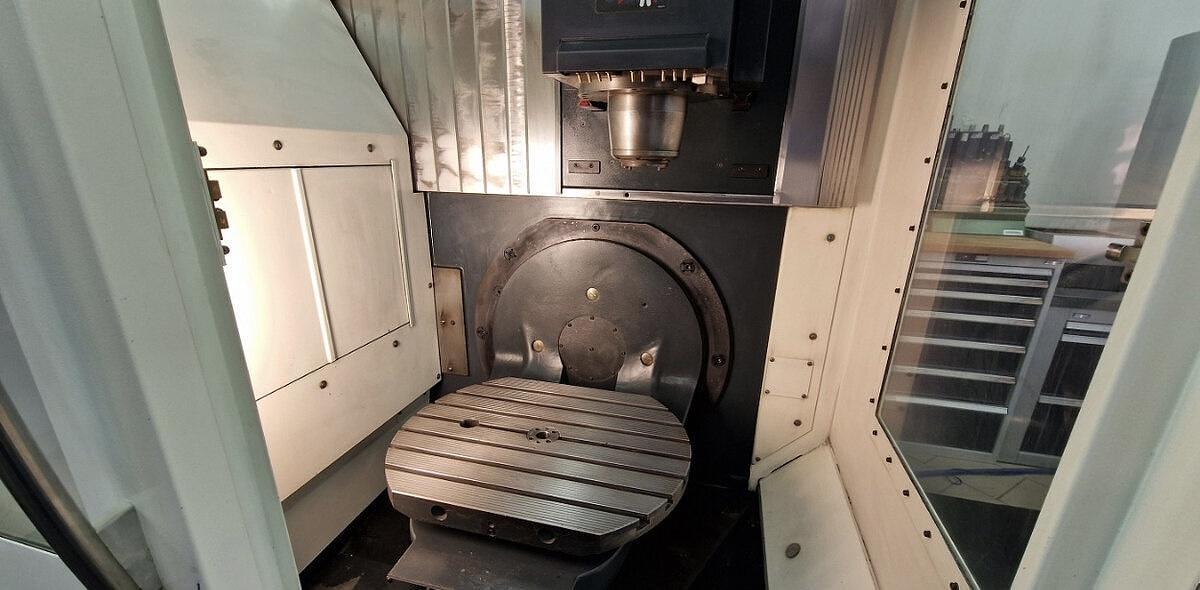

Integrated NC rotary and folding table

Cooling system and complete technical documentation

Additional accessories (according to agreement):

5-axis vise GARANT Xpent (top clamping for 5-axis machining)

A set of thermal and other tool clamps

Machine in very good condition, fully functional, under power

2011 DMG DMU 50 eco
