2017 VDF BOEHRINGER VDF 800 DUS / 2000
2017 VDF BOEHRINGER VDF 800 DUS / 2000
Contact us for price
Location:Stuttgart, Germany
Description
Specifications
| Manufacturer | VDF BOEHRINGER |
| Model | VDF 800 DUS / 2000 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 758836 |
| Year of Manufacture | 2017 |

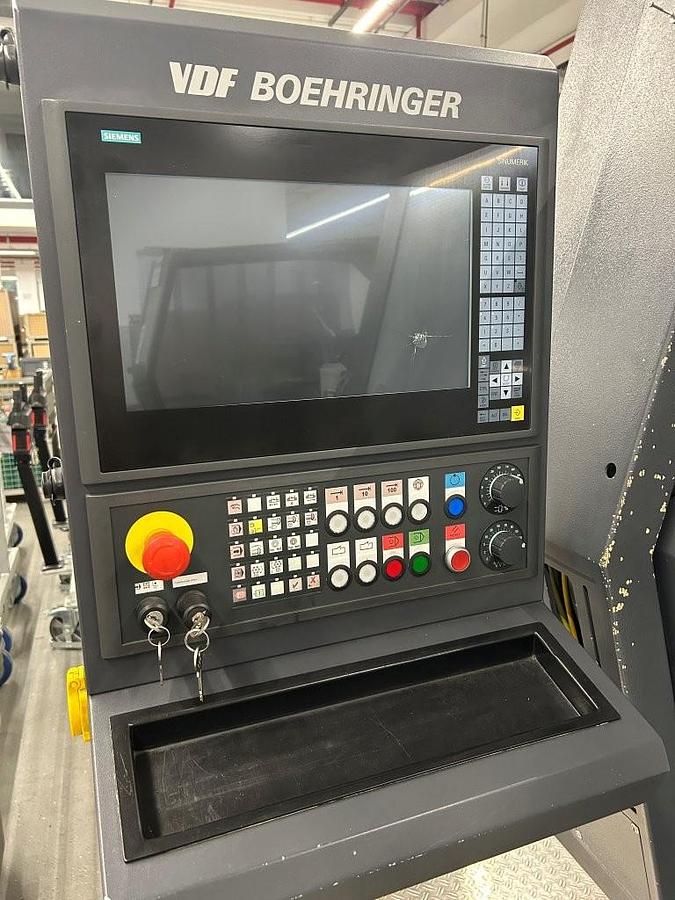

| Control System | Siemens Sinumerik 840D sl |
| Swing Over Bed | 820 mm |
| Swing Over Bed Gap | 890 mm |
| Swing Over Cross Slide | 500 mm |
| Turning Length | 2,000 mm |
| X-Axis Travel | 540 mm |
| Main Drive Power | 37 kW (100% duty cycle) / 46 kW (60% duty cycle) |
| Main Drive Torque | 4,069 Nm (100% duty cycle) / 5,073 Nm (60% duty cycle) |
| Spindle Speed Range | 6.4 - 1,600 rpm |
| Main Gearbox | 2-stage |
| Main Spindle Nose | DIN 55027 size 11 |

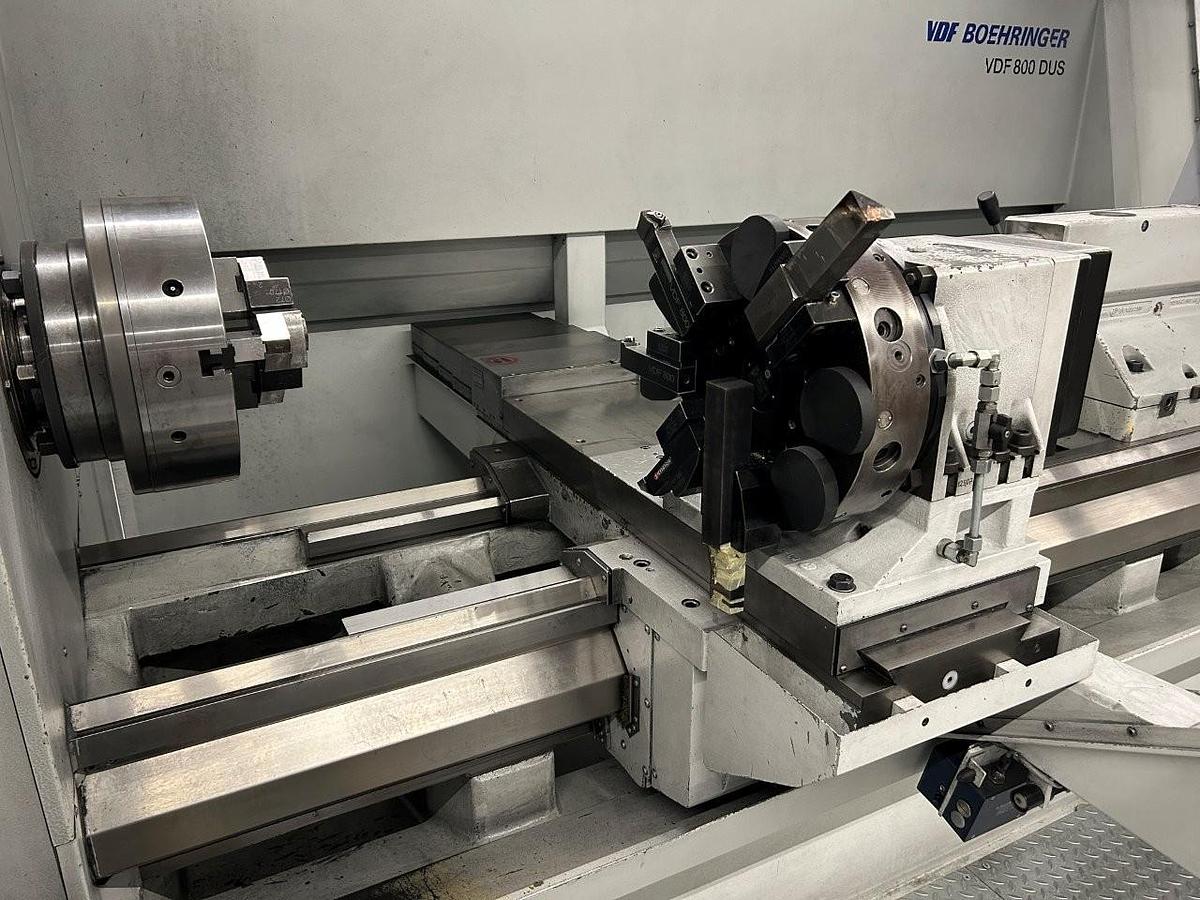

| Tool Turret | 8-station disc turret, VDI 50, with internal coolant supply |
| Tailstock Quill Stroke | 280 mm |
| Tailstock Quill Diameter | 125 mm |
| Chuck | SCHUNK ROTA THW 400-120 J11, 400 mm diameter, 120 mm bore, quick jaw change system |
| Coolant Pump | pole-changing: 15 l/min at 7.2 bar / 30 l/min at 5 bar |
| Coolant Filtration | HYDAC double cartridge filter |
| Chip Conveyor | BMF, with integrated cooling unit |
| Operating Hours | 8,780 h (working hours booked on this machine in the seller's SAP system; no mechanical hour counter fitted) |
| Weight | 9,000 kg |
| Operating Voltage | 400 V AC |
| Control Voltage | 24 V DC / 230 V AC |
| Valve Voltage | 24 V DC |
| Ampere Rating Largest Motor | 82 A |
| Nominal Full-Load Current | 100 A |
| Main Supply Fuse | 125 A |
| Short Circuit Rating | 50 kA |
| Electrical Connection Rating | approx. 60 kVA |
| Compressed Air Connection | 2 - 6 bar |
| Type Plate Designation | DUS 800 ti / 2000 |
| Type Plate Manufacturer | FFG Werke GmbH, Marienberger Strasse 17, D-09125 Chemnitz, Germany |
| Equipment | second chip guard door with safety monitoring; holding brake; programmable machining cycles; travelling control panel on the carriage; hydraulic power unit; hydraulically actuated full clamping cylinder; 2 additional LED work lights; full enclosure with safety equipment; tailstock |
| Scope of Delivery | machine as described; SCHUNK ROTA THW 400-120 J11 power chuck; tailstock; chip conveyor with cooling unit; hydraulic system; LED lighting; operating documents as far as available |
| Paint Finish | machine cladding RAL 7035 light grey; doors RAL 7024 graphite grey; control panel RAL 7024 graphite grey; control cabinet RAL 7035 light grey |
| Condition | used; only light machining of polyurethane; machine already disconnected from the power supply |
