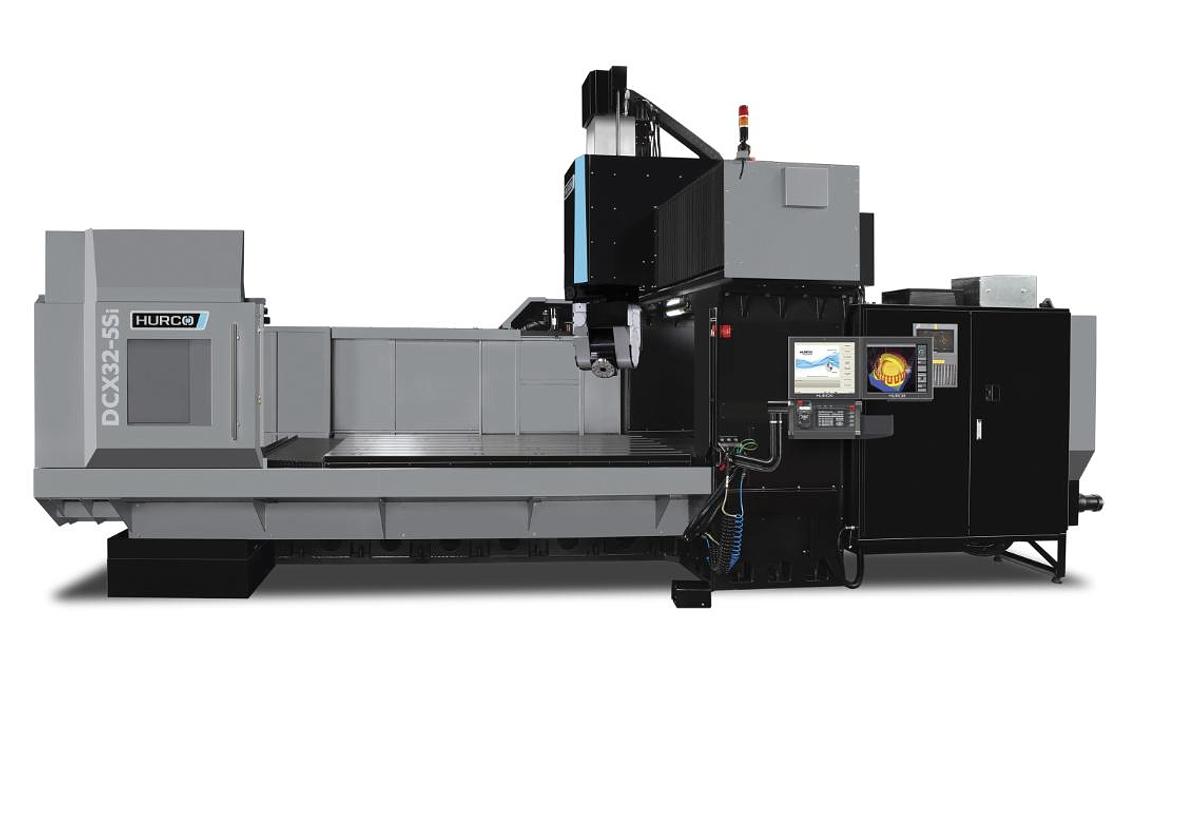

HURCO DCX 32-5Si
HURCO DCX 32-5Si
Contact us for price
Location:Germany
Specifications
| Manufacturer | HURCO |
| Model | DCX 32-5Si |
| Condition | Used |
| Stock Number | 758838 |
| X-Axis Travel | 3,200 mm |
| Y-Axis Travel | 2,100 mm |
| Z-Axis Travel | 900 mm |
| B-Axis Travel | +100 / -110 ° |
| C-Axis Travel | ±360 ° |
| Spindle Taper | HSK63-A |
| Max. Spindle Speed | 18,000 rpm |
| Max. Spindle Power | 63 kW |
| Spindle Power (S6 40%) | 56 kW |
| Spindle Power (S1) | 45 kW |
| Max. Spindle Torque | 106 Nm |
| Spindle Torque (S6 40%) | 94 Nm |
| Spindle Torque (S1) | 75 Nm |
| Spindle Acceleration 0 to n max | 5.8 s |
| Spindle Braking n max to 0 | 5.8 s |
| Table Clamping Surface | 3,000 x 1,700 mm |
| Table Load (evenly distributed) | 11,000 kg |
| T-Slots (DIN 650) | 7 x 22 H8 x 220 |
| Spindle Nose to Table | 66 - 966 mm |
| Rapid Traverse X / Y / Z | 15 / 15 / 10 m/min |
| Rapid Traverse B / C | 120 / 80 rpm |
| Working Feed X / Y / Z | 10 / 10 / 10 m/min |
| Feed Force X / Y / Z | 61 / 41.5 / 40.6 kN |
| Tool Magazine Positions | 40 (60 optional) |
| Max. Tool Diameter | 76 mm |
| Max. Tool Diameter with Free Adjacent Pockets | 120 mm |
| Max. Tool Length | 300 mm |
| Max. Tool Weight | 7 kg |
| Tool Change Time | 5 s |
| Chip-to-Chip Time (VDI 2852) | 36 s |
| Positioning Accuracy Pmax (VDI/DGQ 3441) | 0.025 mm |
| Positioning Accuracy B / C Axis | 14 / 7 arcsec |
| Repeatability Ps (VDI/DGQ 3441) | 0.015 mm |
| Repeatability B / C Axis | 14 / 7 arcsec |
| Circular Accuracy (150 mm dia.) | 0.013 mm |
| Direct Measuring System | B / C axis |
| Indirect Measuring System | X / Y / Z axis |
| Electrical Connection | 113 kVA / 175 A / 400 V |
| Compressed Air Requirement | 7 bar / 140 l/min |
| Machine Bed Material | GJS |
| Linear Guides | Roller guides X (2) / Y (3), ball guides X (2), slide guides Z |
| Ball Screw Drives | Direct drive Y / Z, belt drive X |
| Machine Weight | 37,700 kg |
| Transport Weight | 43,000 kg |
| Coolant Tank Capacity | 1,470 l |
| Chip Conveyor | Scraper conveyor and screw conveyor (standard) |
| Operating Dimensions (W x D) | 9,982 x 6,815 mm |
| Overall Height | 5,250 mm |
