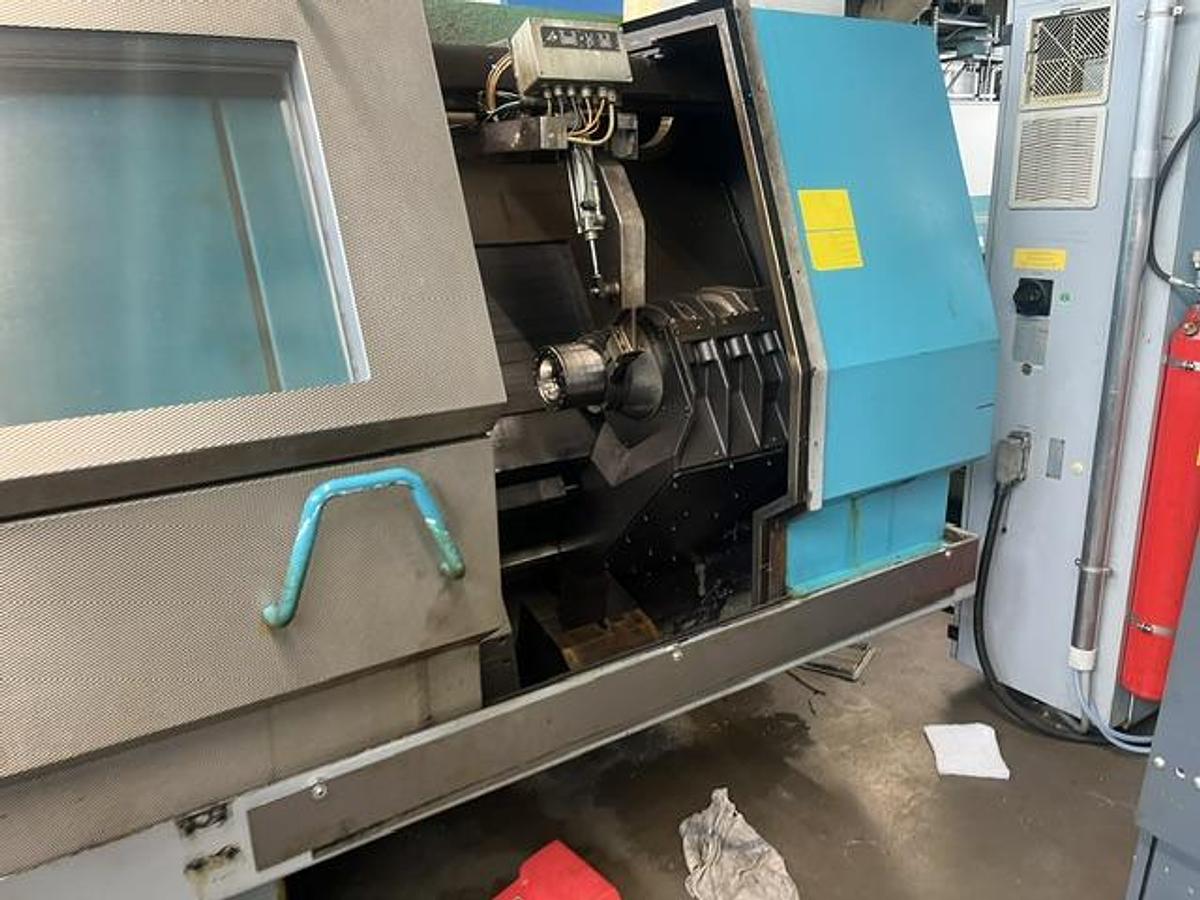

1998 Index G200 Y

Manufacturer: INDEX

Model: G200 Y/B

Year of manufacture: 1997

Control: INDEX C200-4 / Siemens 840 C, colour flat screen

Programming system: TURBO H200

Main spindle:

- D60 (bar capacity 60 mm), mount AD 140, ID 85

- Power: 20 kW (100% duty cycle)

- C-axis

- Hollow clamping cylinder for collet and chuck clamping

- Indexing device, 2.5° division

Counter spindle:

- D60, mount AD 140, ID 85

- Power: 13 kW (100% duty cycle)

- C-axis

- Hollow clamping cylinder for collet and chuck clamping

- Indexing device, 2.5° division

- Workpiece stop

- Coolant through the counter spindle

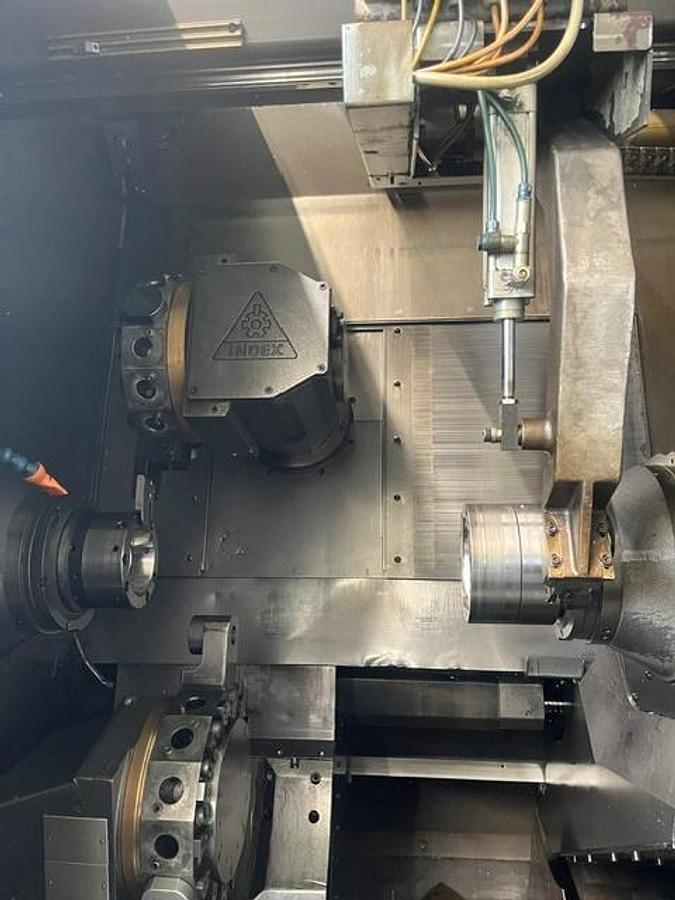

Tool carriers:

- Cross slide 1: X, Y, Z, B axes, live tool drive with 2 couplings

- Additional milling spindle with HSK D-50 tool holder (manually operated)

- Cross slide 2 (right): X, Z axes, 14-station turret, live tool drive with 1 coupling

Equipment:

- Coolant pumps: 60 l/min at 7 bar / 20 l/min at 18 bar

- 18 bar coolant on both tool carriers

- Rigid tapping (without compensating chuck)

- Electronic shaft for spindles and drive units

- Portal unloading device with gripper (gripper fingers for Ø 4–45 mm and Ø 40–60 mm)

- Parts conveyor belt to the right, cycle-controlled

- Remnant container

- Hinged belt chip conveyor (discharge height 840 mm) with magnetic filter plate

- UNIMAG interface for third-party equipment

- Blue signal light (material end / fault)

Electrical data:

Mains voltage: 400 V, 50 Hz

Total connected load: 38 kW / 47 kVA

Rated current: 68 A

Control cabinet: 1300 x 2000 mm (W x H)
