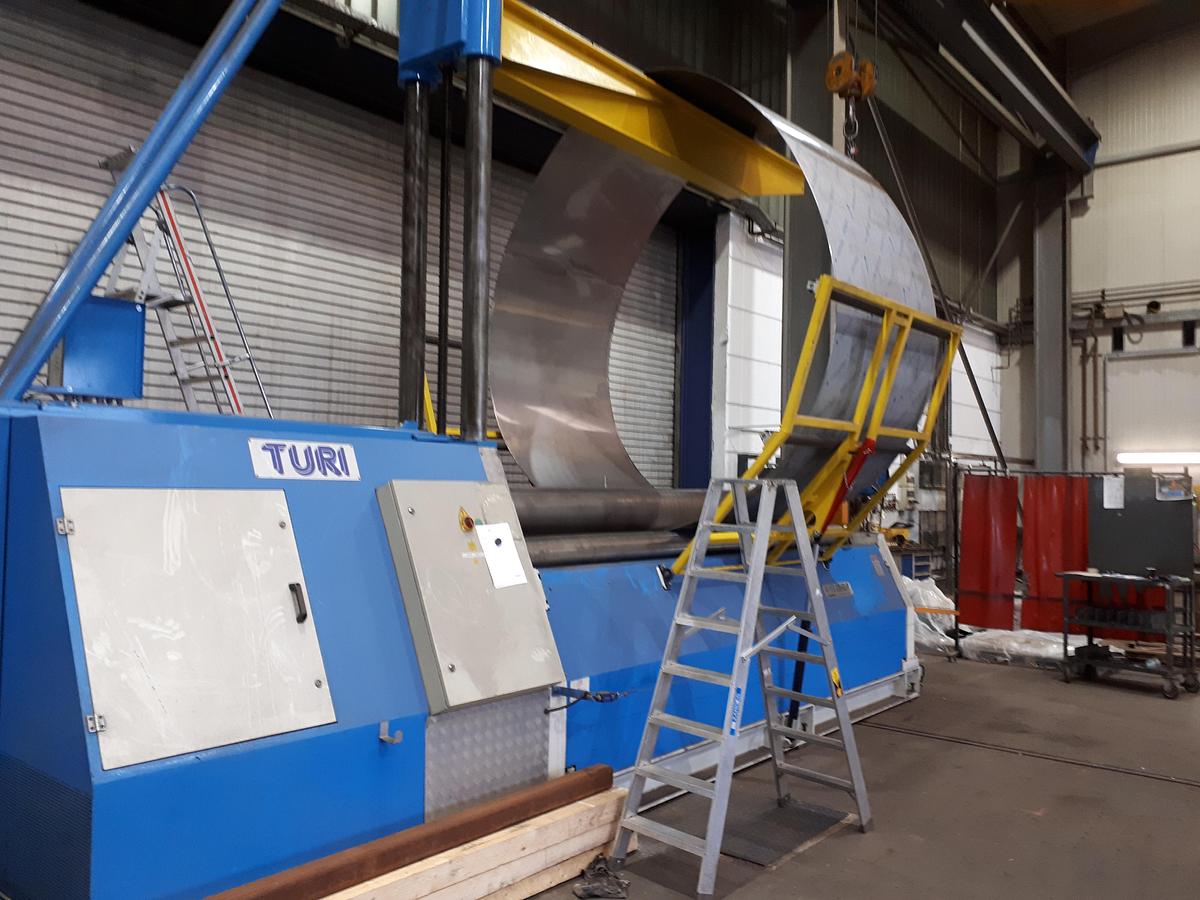

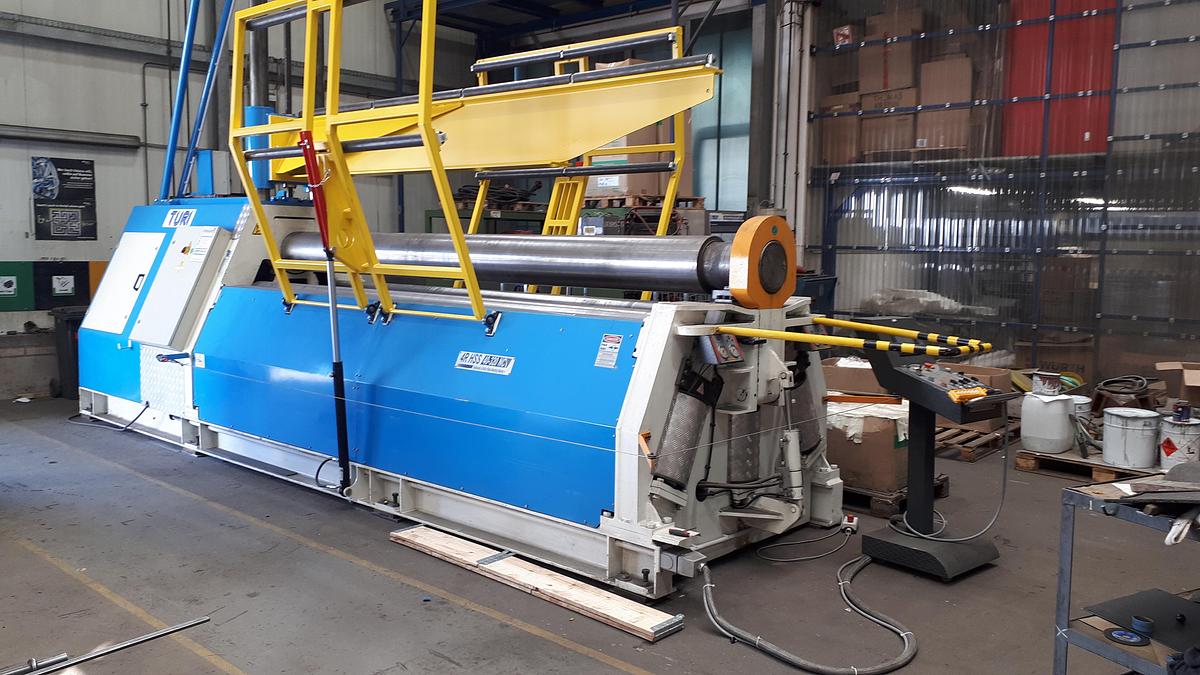

TURI 4R HSS 40-320 NC Hydraulic 4-Roll Plate Bending Machine
TURI 4R HSS 40-320 NC Hydraulic 4-Roll Plate Bending Machine
Contact us for price
Location:Cologne, Germany
Available quantity:1
Description
The TURI 4R HSS 40-320 NC is a hydraulic 4-roll plate bending machine designed for precision and efficiency in industrial applications. This used machine, in good condition, offers a working length of 4,000 mm and a roll length of 4,100 mm, accommodating substantial material handling. The top roll diameter is 320 mm, while the side roll diameter measures 240 mm, providing robust support for a variety of bending tasks. Equipped with an 18.5 kW motor, the machine features a bending speed range of 1.5 to 5 mm/min, ensuring precise control over the bending process. It has a bending capacity of 10 mm without pre-bending and 8 mm with pre-bending, allowing for the manipulation of a wide range of material thicknesses and diameters. The overall machine dimensions are approximately 6,700 x 1,800 x 1,900 mm, with a weight of 16,000 kg, making it a solid presence in any workshop setting. Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
| Manufacturer | TURI |
| Model | 4R HSS 40-320 NC |
| Condition | Used |
| Stock Number | 759019 |
| Type of Machine | Hydraulic 4-roll plate bending machine |
| Bending Capacity without Pre-Bending (Ø x5) | 10 mm |
| Bending Capacity Pre-Bending (Ø x5) / without Pre-Bending (Ø x1.5) | 8 mm |
| Bending Capacity Pre-Bending (Ø x1.5) | 6 mm |
| Top Roll Diameter | 320 mm |
| Side Roll Diameter | 240 mm |
| Motor Power | 18.5 kW |
| Bending Speed | 1.5 - 5 mm/min |
| Roll Length | 4,100 mm |
| Working Length | 4,000 mm |
| Machine Dimensions | approx. 6,700 x 1,800 x 1,900 mm |
| Weight | 16,000 kg |
| Condition | Good condition; can be inspected and tested at the seller's site |
