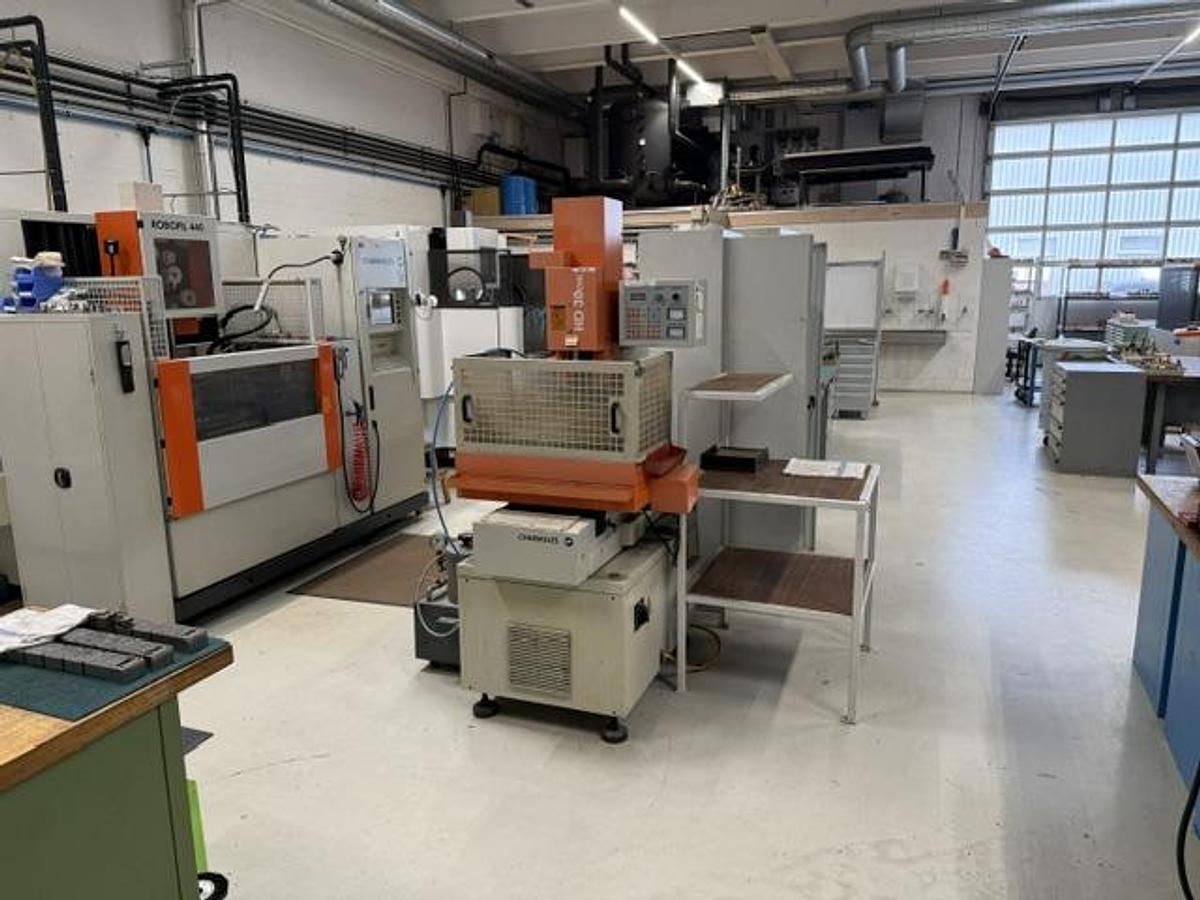

2005 Charmilles HD 30CNC CNC Start Hole Drilling EDM Machine
2005 Charmilles HD 30CNC CNC Start Hole Drilling EDM Machine
Contact us for price
Location:Zürich, Switzerland
Description

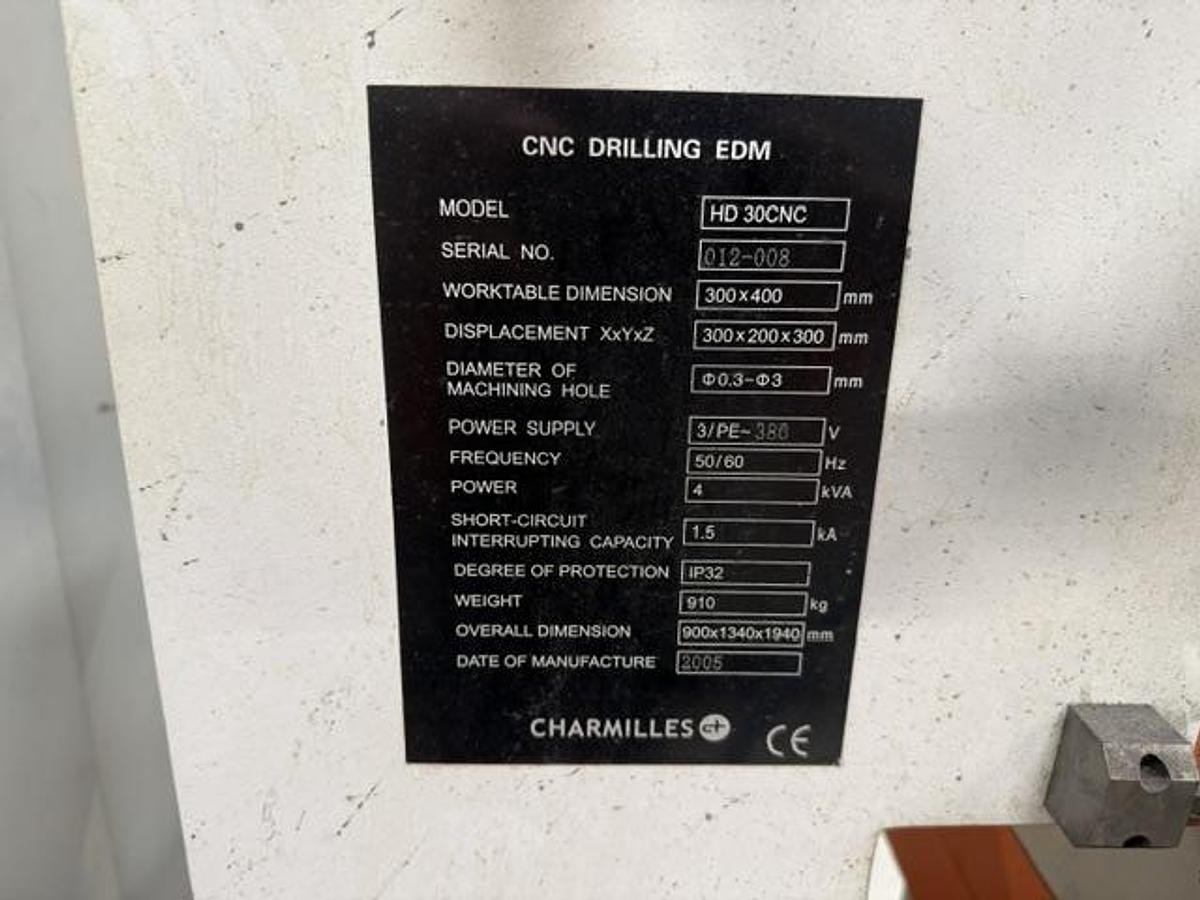

MANUFACTURER: Charmilles.
MODEL: HD 30CNC.
YEAR OF MANUFACTURE: 2005.
TYPE OF MACHINE: CNC start hole drilling EDM machine (EDM hole driller).
CONDITION: Used. Everything works perfectly.
WORKTABLE SIZE: 300 x 400 mm.
TRAVELS (X x Y x Z): 300 x 200 x 300 mm.
MACHINING HOLE DIAMETER: 0.3 to 3 mm.
ELECTRICAL DATA: 3 phase plus PE, 380 V, 50/60 Hz. Power 4 kVA. Short-circuit interrupting capacity 1.5 kA.
DEGREE OF PROTECTION: IP32.
WEIGHT: 910 kg.
OVERALL DIMENSIONS: 900 x 1340 x 1940 mm.
CE MARKED.
Find more here - https://www.ucymachines.com/
Contact us at - sales@ucymachines.com
Specifications
| Manufacturer | Charmilles |
| Model | HD 30CNC |
| Year | 2005 |
| Condition | Used |
| Stock Number | 759062 |
