2007 EMAG VSC 250 DS

CNC vertical lathe

Type: VSC 250 DS

Manufacturer: Emag

Year: 2007

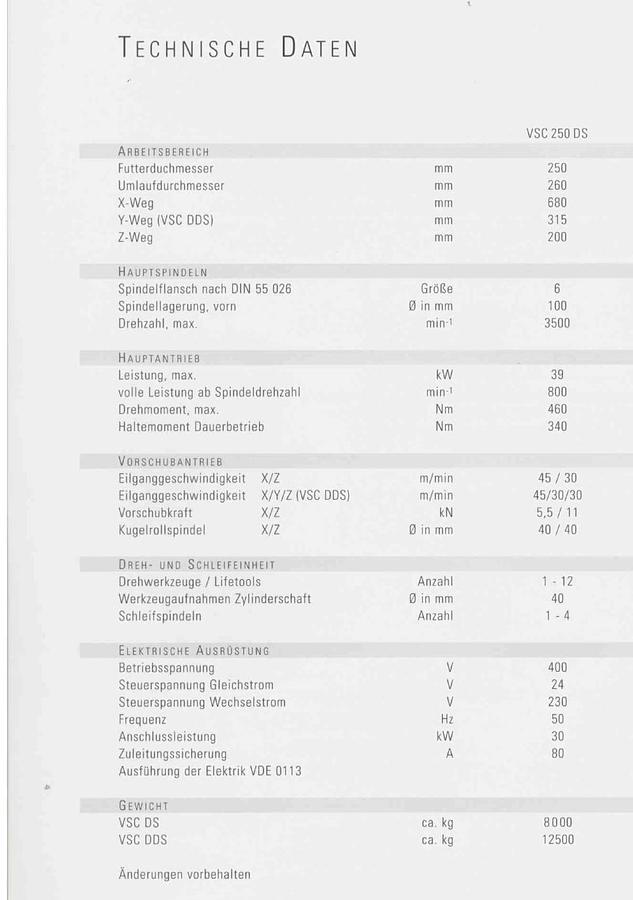

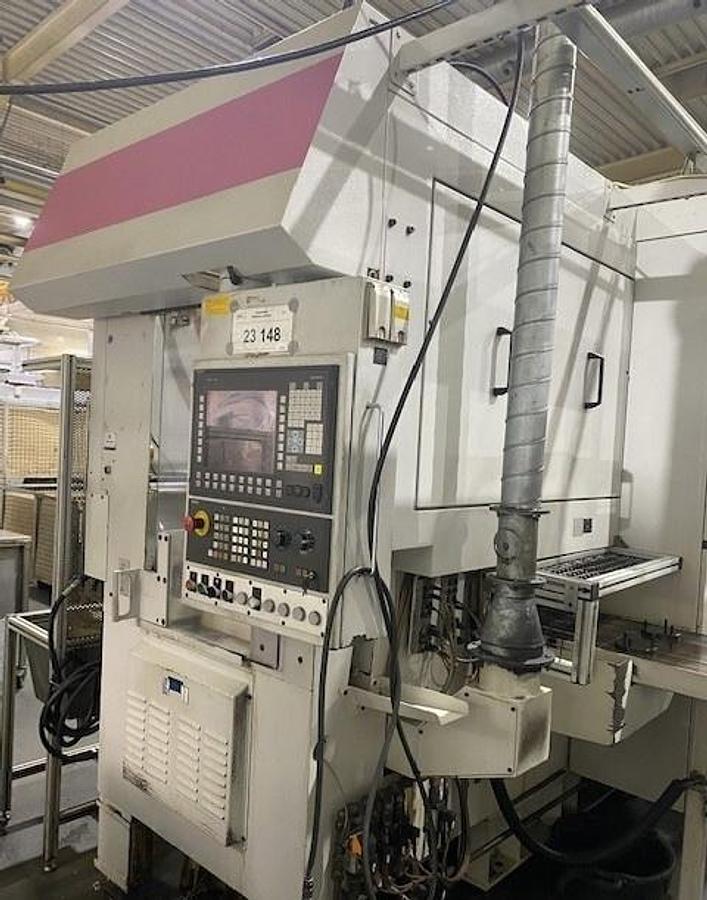

Control: Siemens Sinumerik 840 SL

Chuck diameter: 250 mm

Swing diameter: 260 mm

X-axis travel: 680 mm

Y-axis travel (VSC DDS): 315 mm

Z-axis travel: 200 mm

Spindle flange according to DIN 55026 Size 6

Front spindle bearing diameter: 100mm

Maximum spindle speed: 3,500 rpm

Maximum power: 39 kW

Full power available from spindle speed 800 rpm

Maximum torque: 460 Nm

Continuous holding torque: 340 Nm

Rapid traverse speed X/Z m/min 45 / 30

Rapid traverse speed X/Y/Z (VSC DDS) m/min 45 / 30 / 30

Feed force X/Z kN 5.5 / 11

Ball screw diameter X/Z mm 40 / 40

Turning tools / tool stations: 1–12 pcs

Cylindrical-shank tool holders: 40 mm

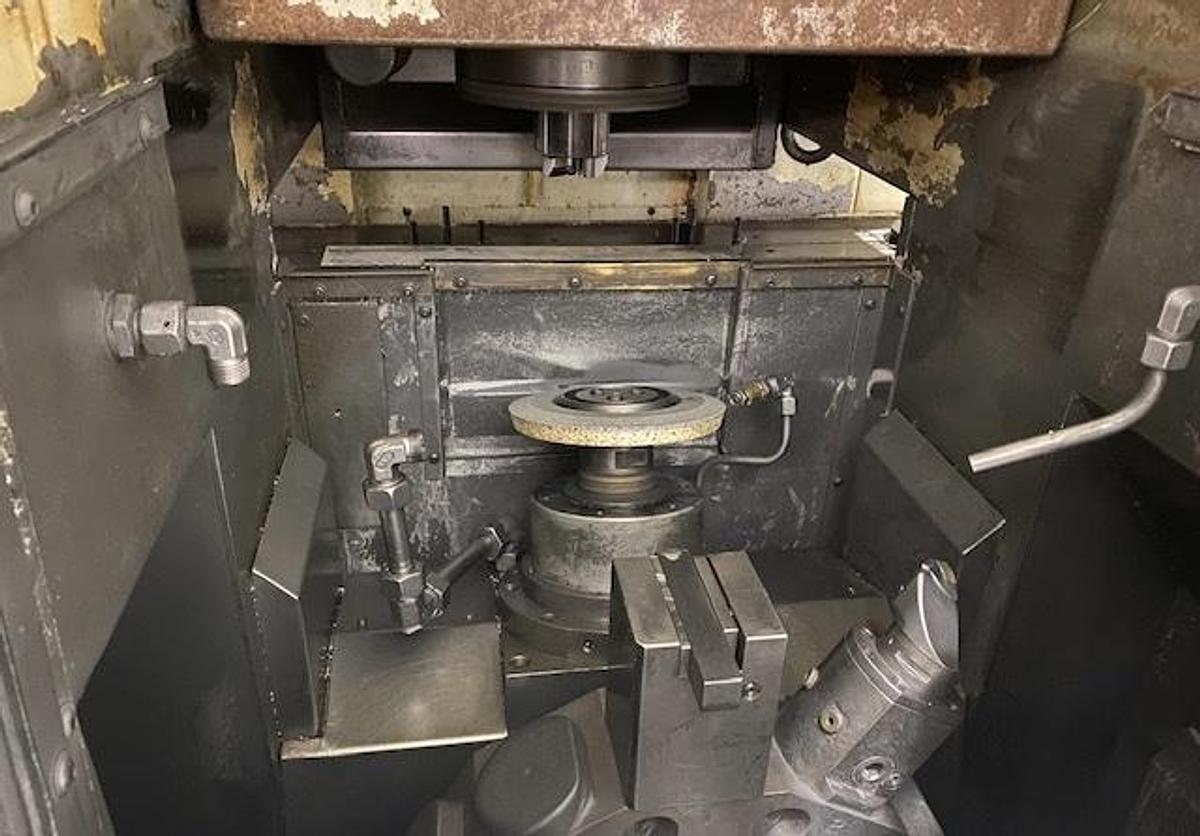

Grinding spindles: 1–4 pcs

Revolver head

Additional grinding disc

Chip conveyor

Air-conditioned emulsion tank

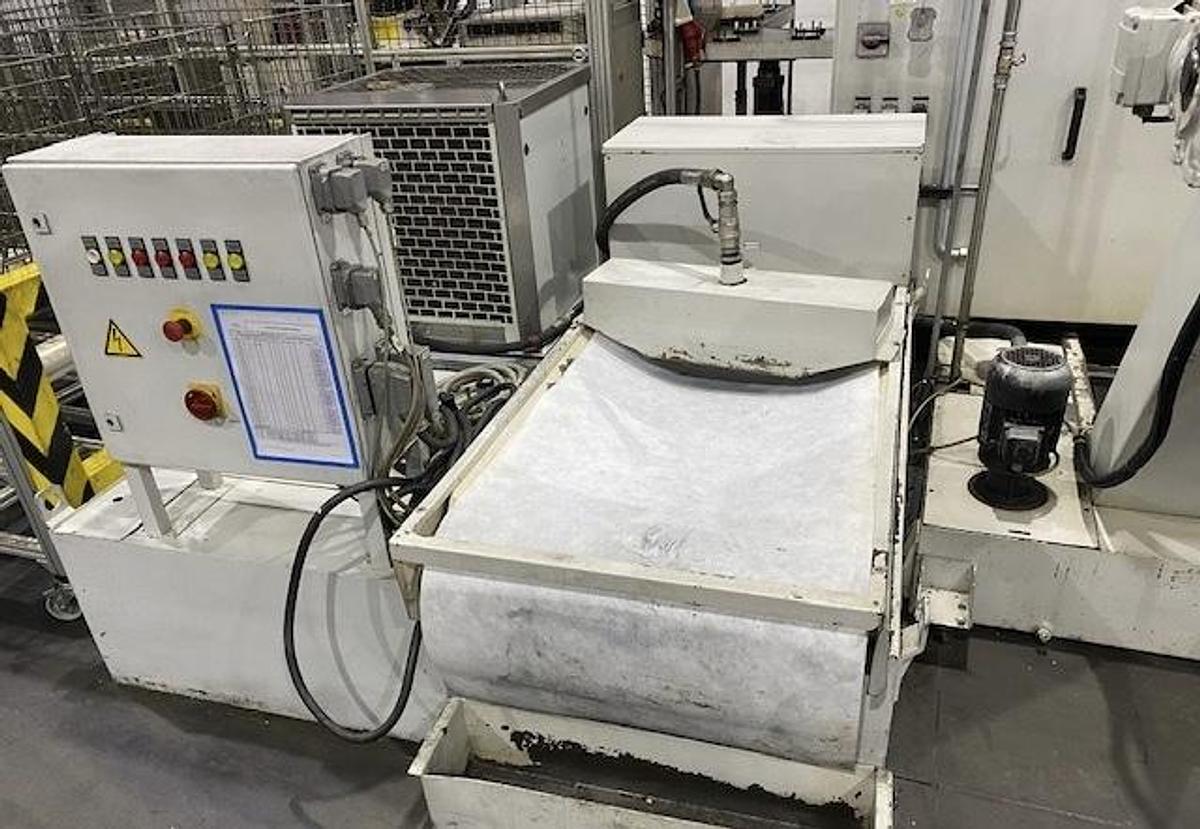

Filtration through canvas

Machine in good condition, fully functional, under power
