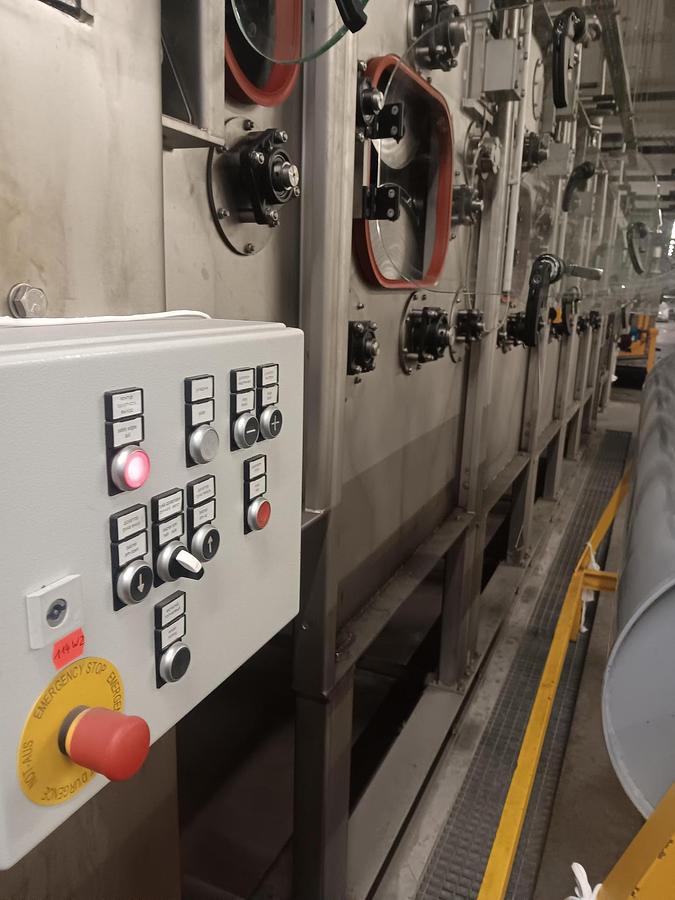

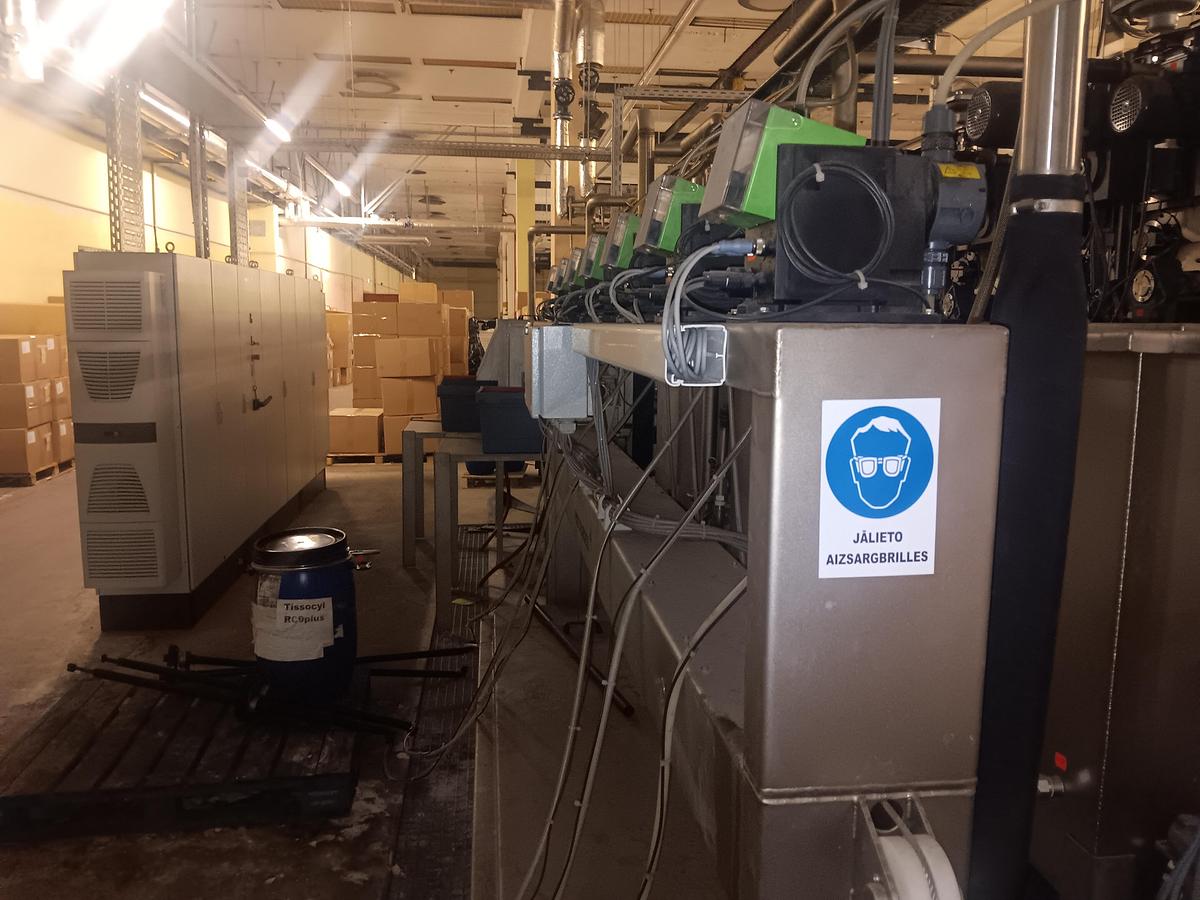

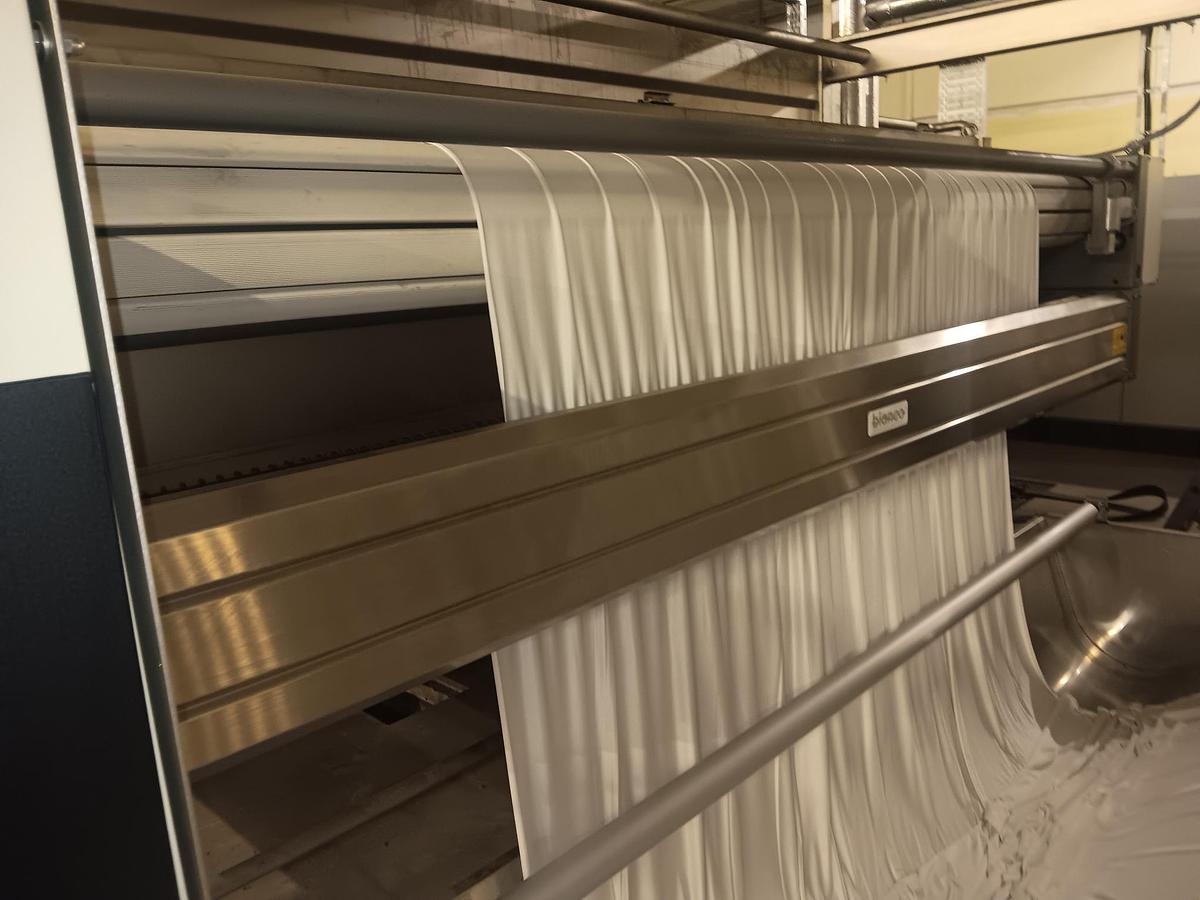

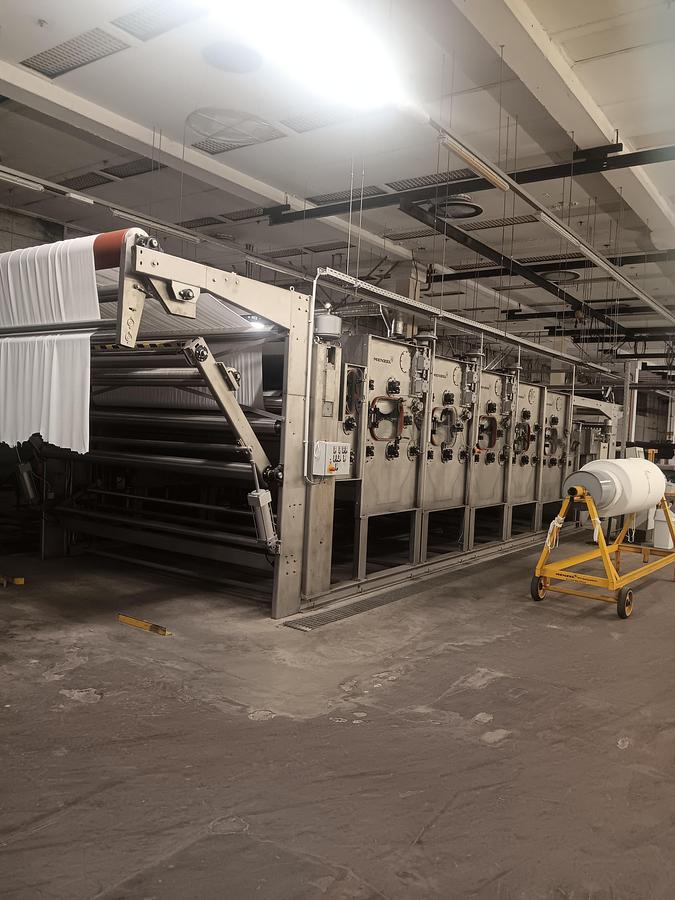

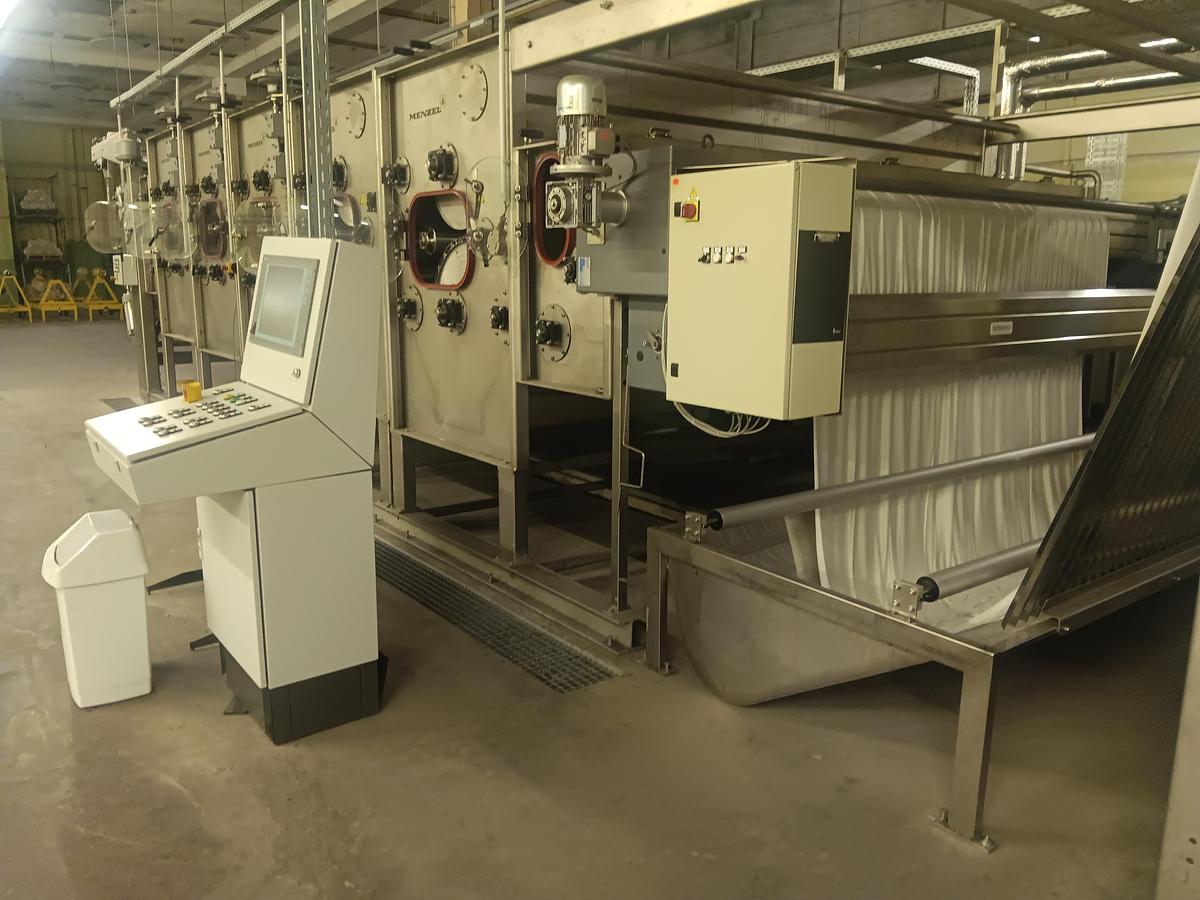

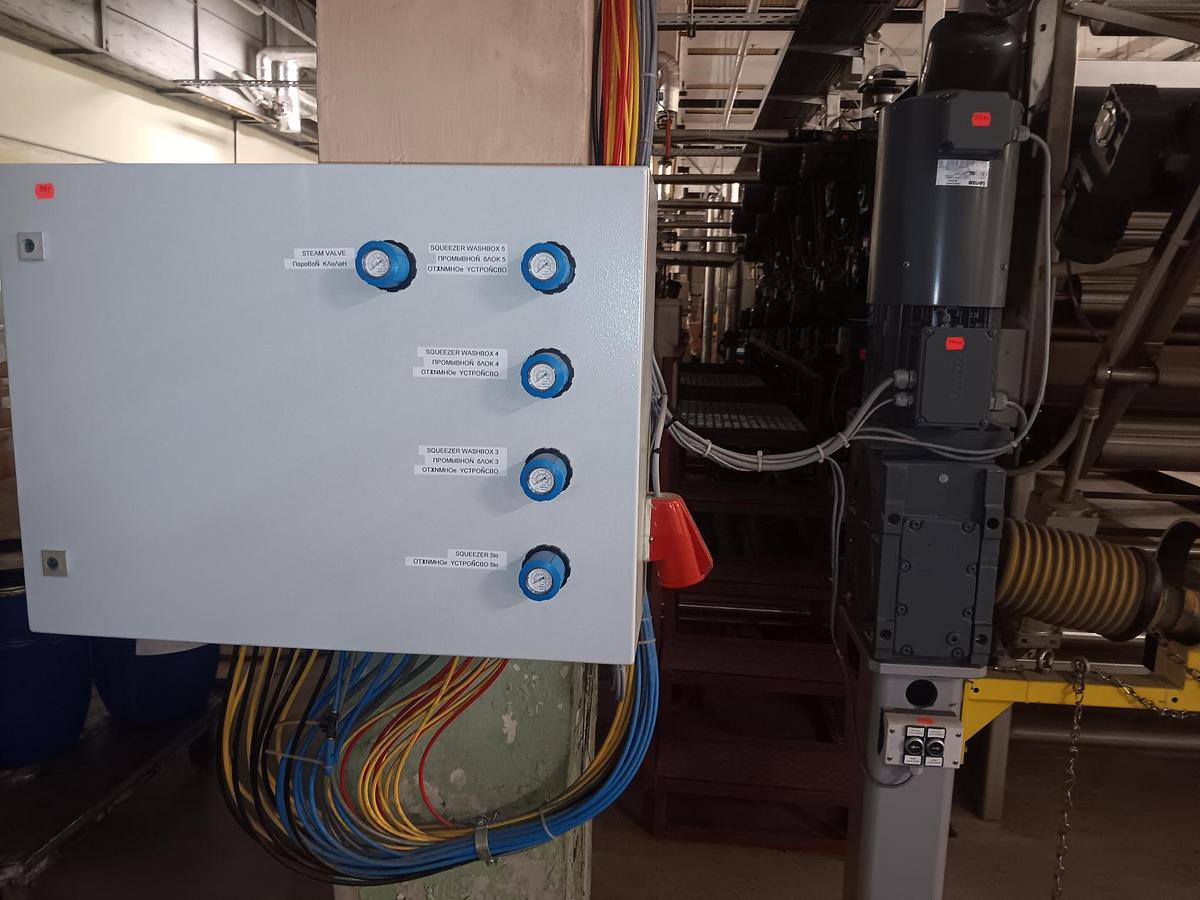

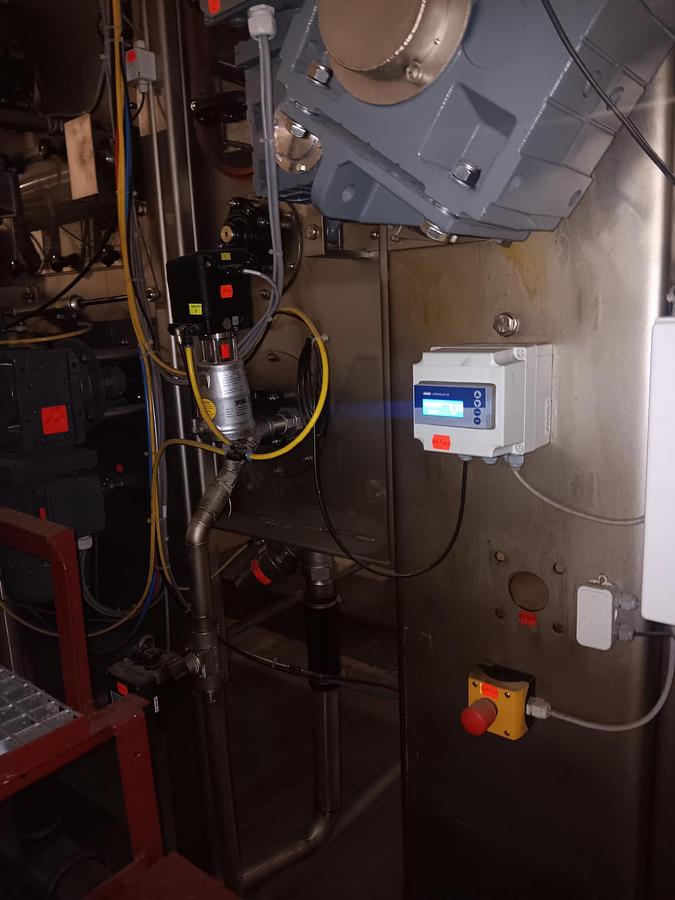

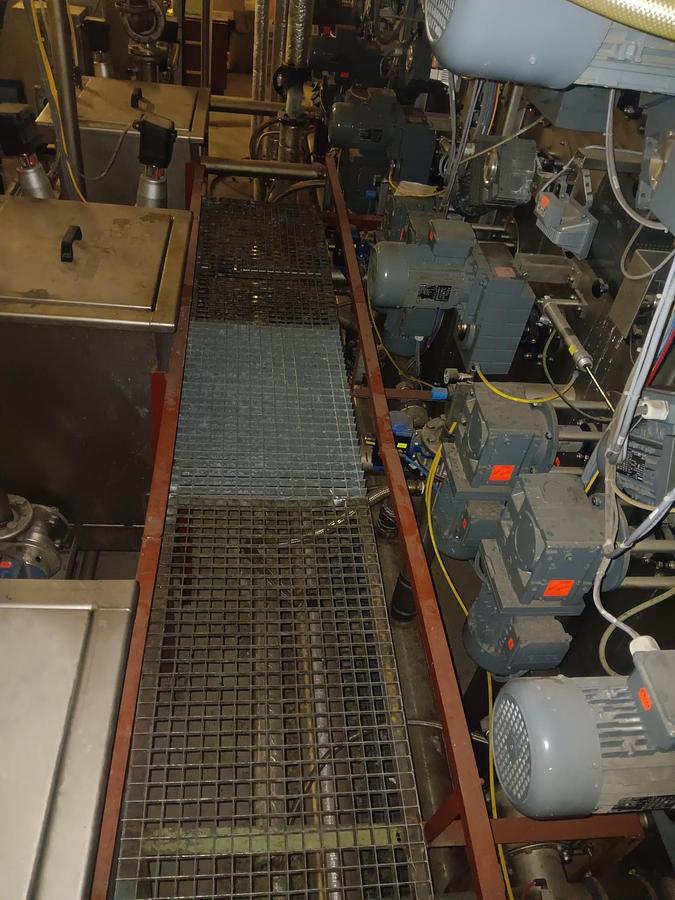

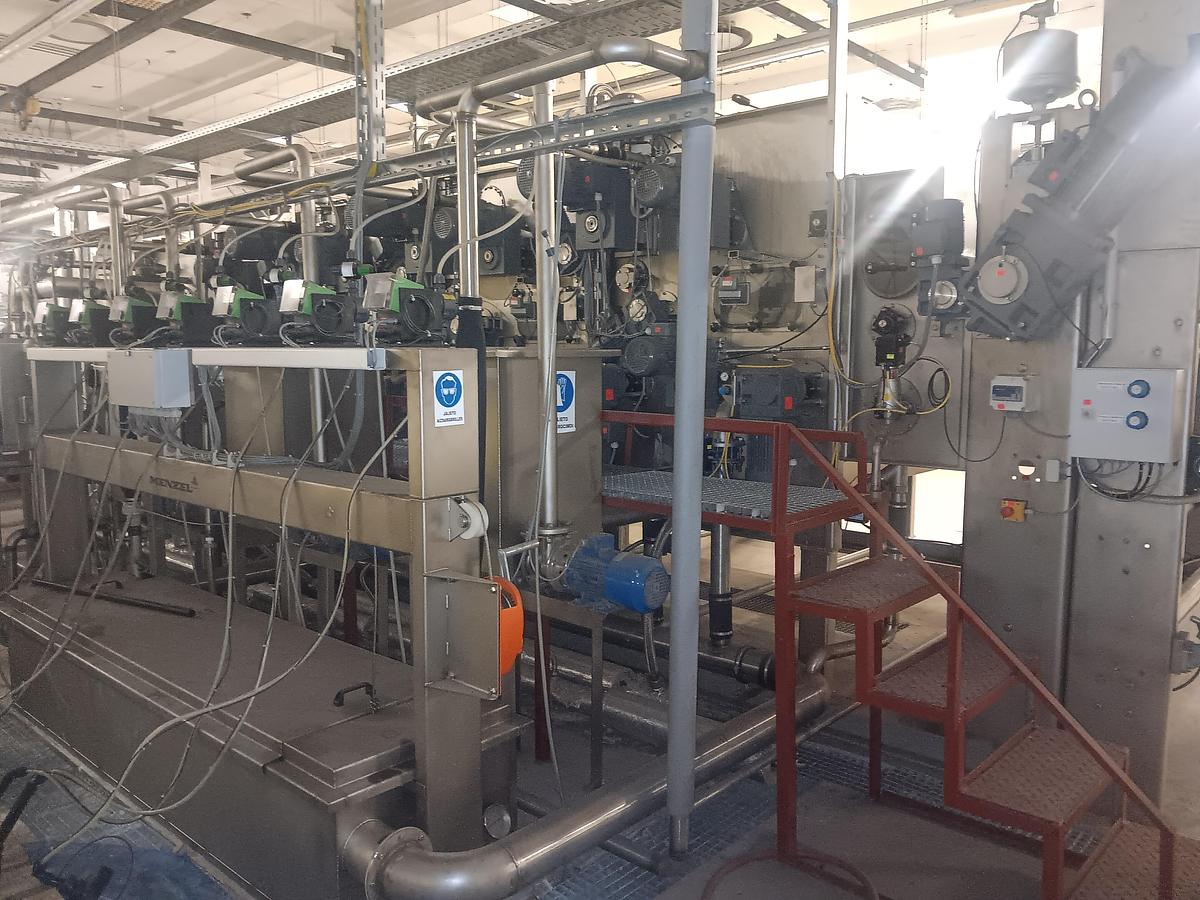

2013 Menzel Washing Line

Manufacturer: Menzel

Type of Machine: Washing Line

Year of Manufacture: 2013

Technical Data

Fabric Type: Warp knit, lace, Raschel goods, tricot

Material Composition:

• 100% Polyamide
• 100% Polyester
• Polyamide/Spandex (Elastane up to 30%)

Dimensions & Weight:

• Material Width: 2,200 – 3,200 mm
• Roller Width: 3,400 mm
• Fabric Weight: 50 – 265 g/m²

Performance:

• Production Speed: up to 40 m/min
• Process: Spun oil removing, water-based washing

Chemicals Used:

• Oil-emulsifier
• Washing/wetting agent
• Alkali
• Acetic acid for pH neutralization

Steel Grades:

• Lateral Frames: AISI 304 (V2A)
• Parts in Contact with Media: AISI 316 (V4A)

Machine Specs:

• Unwinder Diameter: 1400 mm
• Winder Diameter: 1800 mm

Power & Utilities:

• Voltage: 230/400 V, 50 Hz, 3 Phase
• Steam Pressure: 4 – 6 bar
• Compressed Air (Oil-Free): 6 – 7 bar
• Water Pressure: 2 – 3 bar
• Water Consumption: Approx. 5 – 8 l/kg (depending on procedure)

Other Details:

• Operation Side: Left
• Drive Side: Right
• Color of Range: Grey / Steel
