Used PY-D Waste Oil to Diesel Distillation Plant

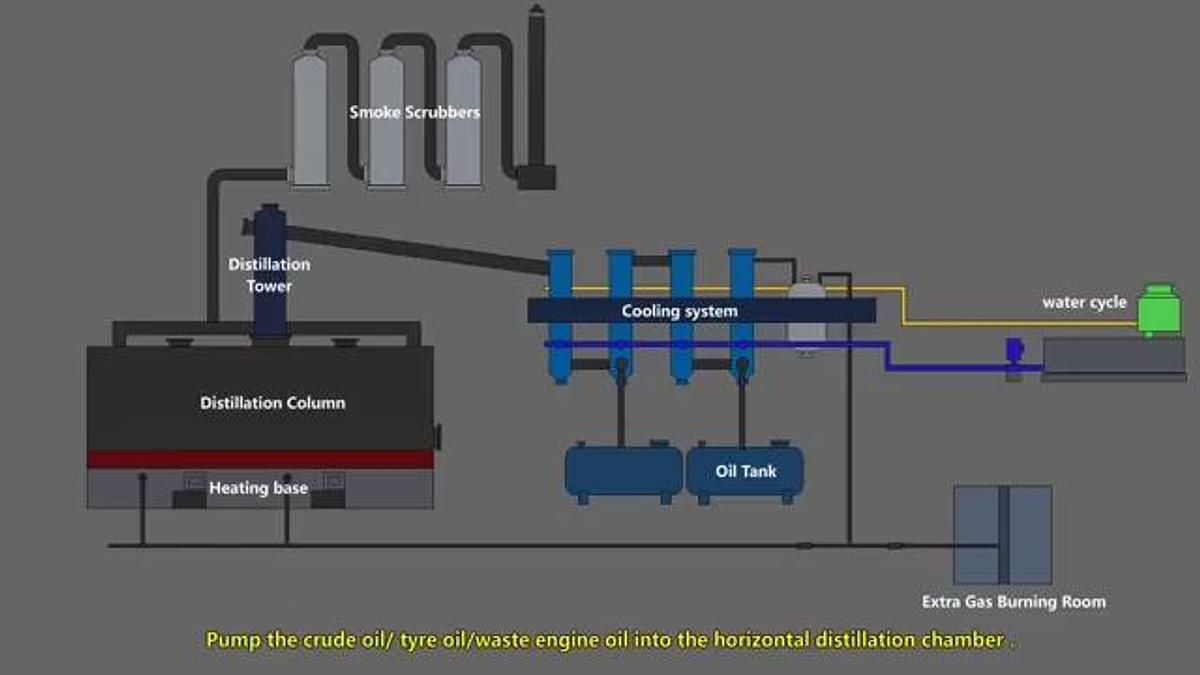

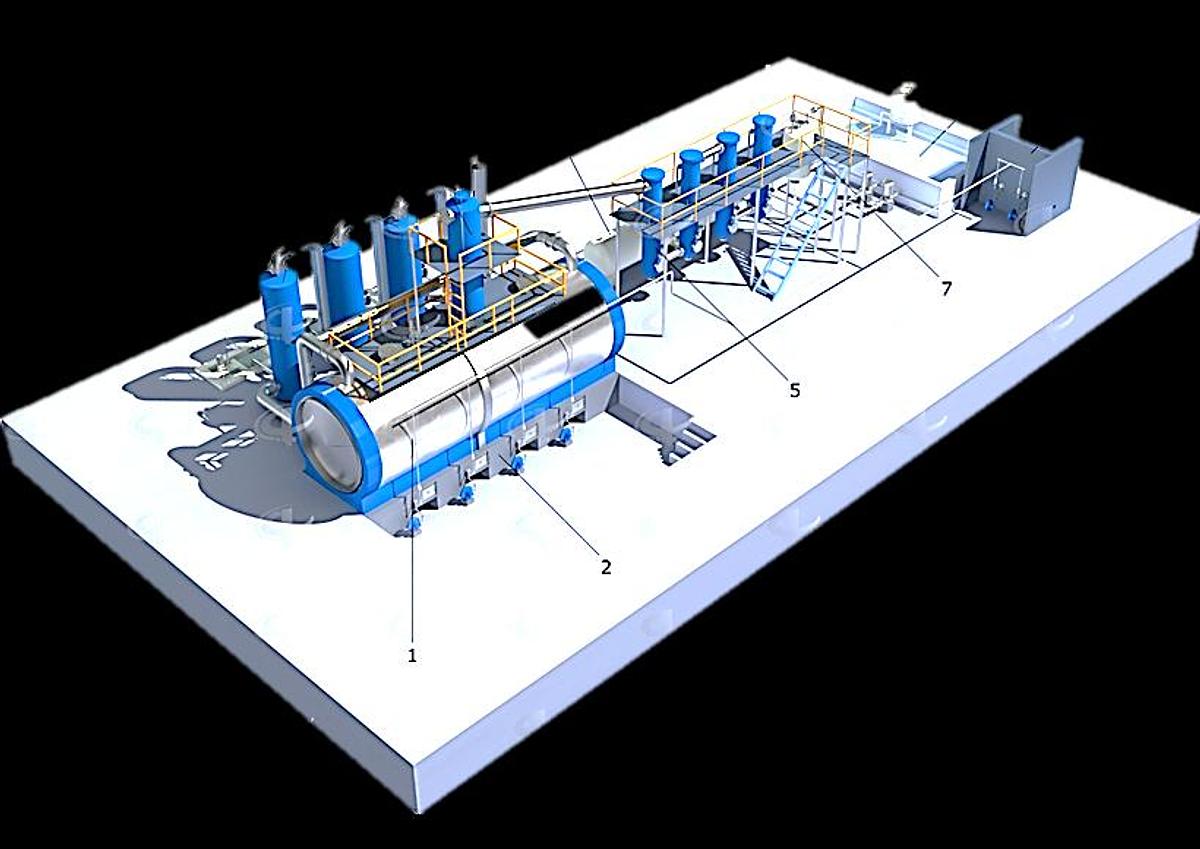

This used PY-D continuous distillation unit converts waste engine oil, pyrolysis fuel oil, and heavy crude oil into non-standard diesel fuel with a high yield of 80–90%. The horizontal-type reactor operates at normal pressure using a hot-air heating method and cycle-water cooling, making it a reliable, low-maintenance solution for industrial waste oil recycling. Emission control is handled by a new DE-sulfurization smoke scrubber system.

Full Technical Specifications

• Equipment Model: PY-D
• Suitable Raw Materials: Waste engine oil, Pyrolysis fuel oil, Crude oil
• Structure: Horizontal Type
• Daily Capacity: 5 – 6.5 MT
• Work Pressure: Normal Pressure
• Oil Yield: 80% – 90%
• Power Consumption: 18 kW/H
• Cooling Method: Cycle water
• Condensers: 4 pieces of Vertical condensers
• Emission Treatment: DE-sulfurization Smoke Scrubbers
• Heating Method: Hot Air
• Type of Installation: With Foundation
• Noise Level: ≤ 85 dB (A)
• Reactor Dimensions: Phi 2200 x 6000 mm / Phi 2500 x 8800 mm
• Operating Mode: Semi-continuous
• Main Chamber Weight: 10 – 13 MT
• Total Weight: 25 – 35 MT
• Installation Space Required: 35 m x 15 m
• End Product: Non-standard diesel oil
• Manpower Required: 1 – 2 operators per shift
• Shipment (smaller reactor): 2 x 40HC (Phi 2200 x 6000)
• Shipment (larger reactor): 1 x 40HC + 1 x 40FR (Phi 2500 x 8800)
