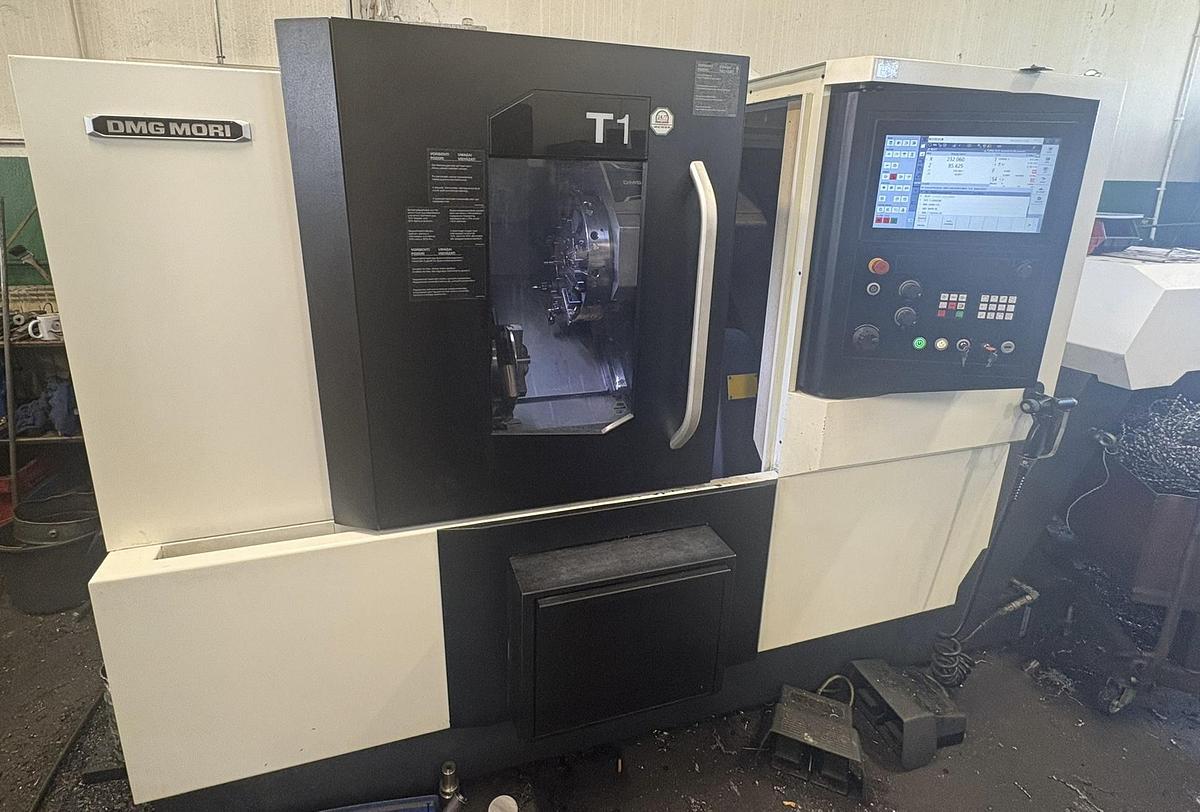

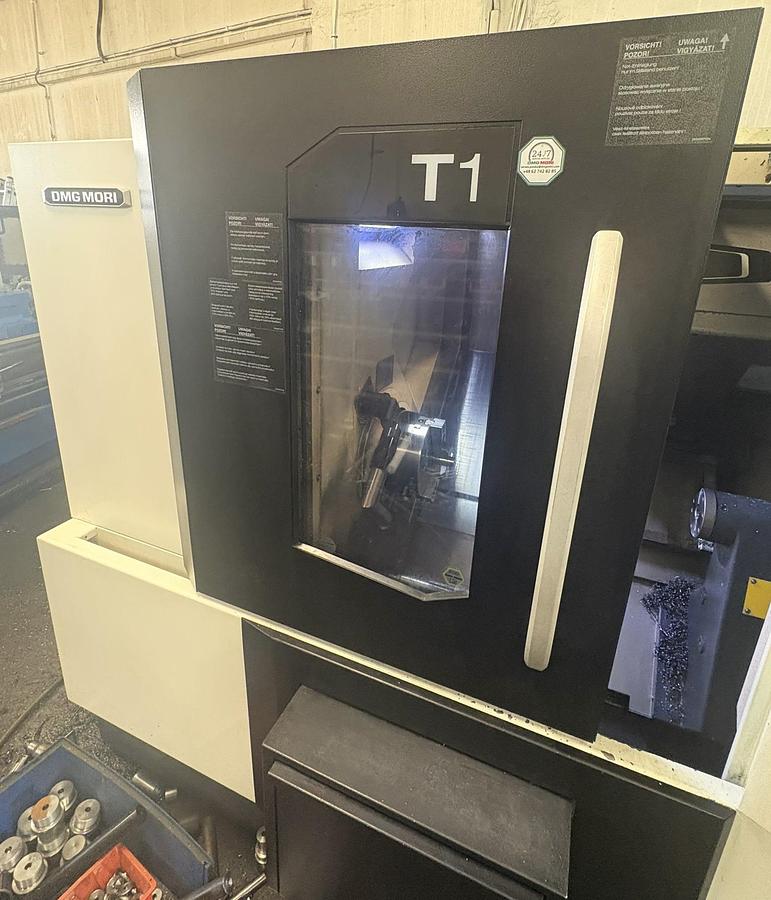

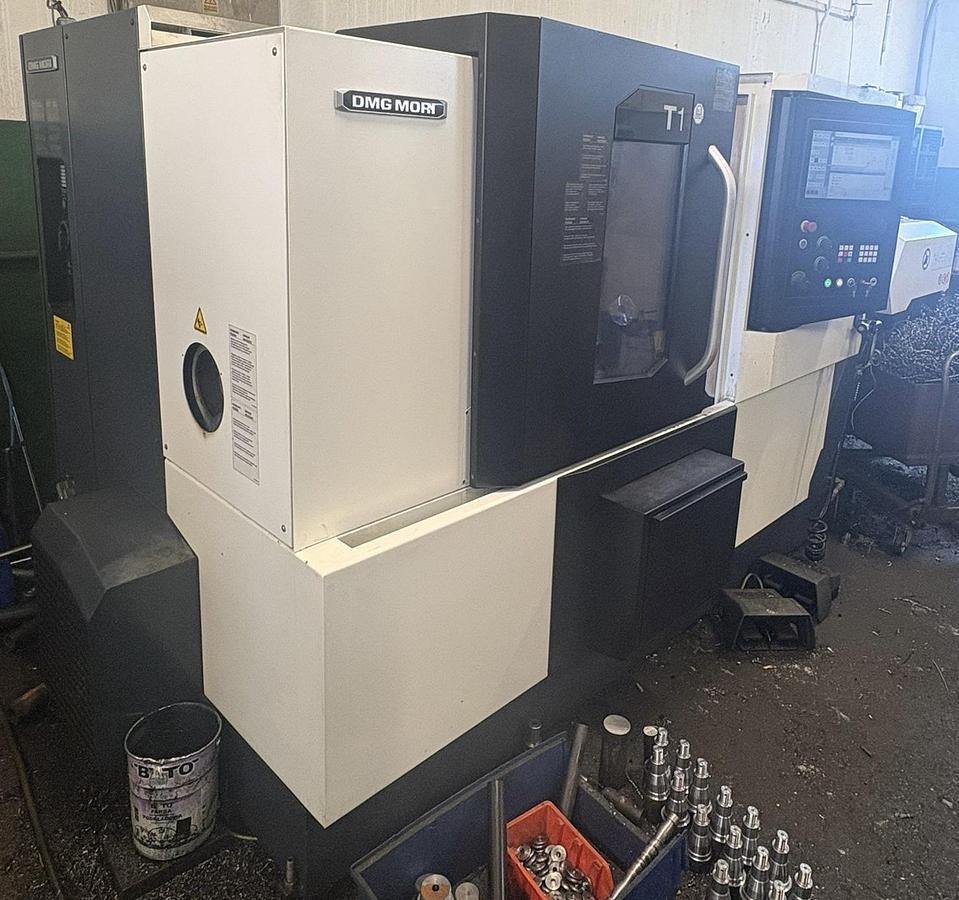

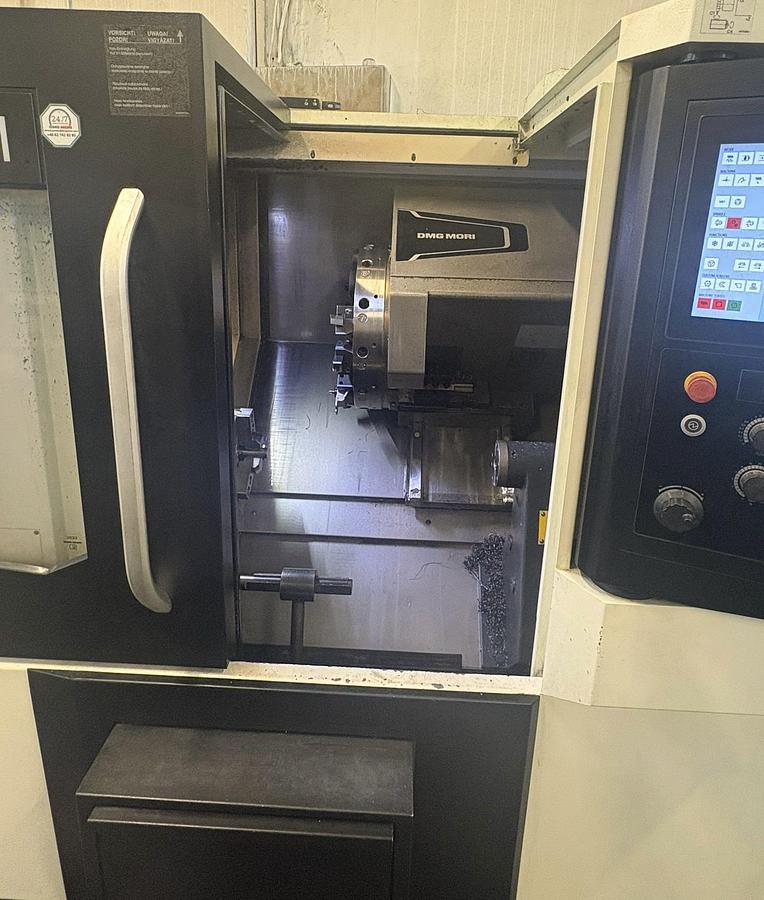

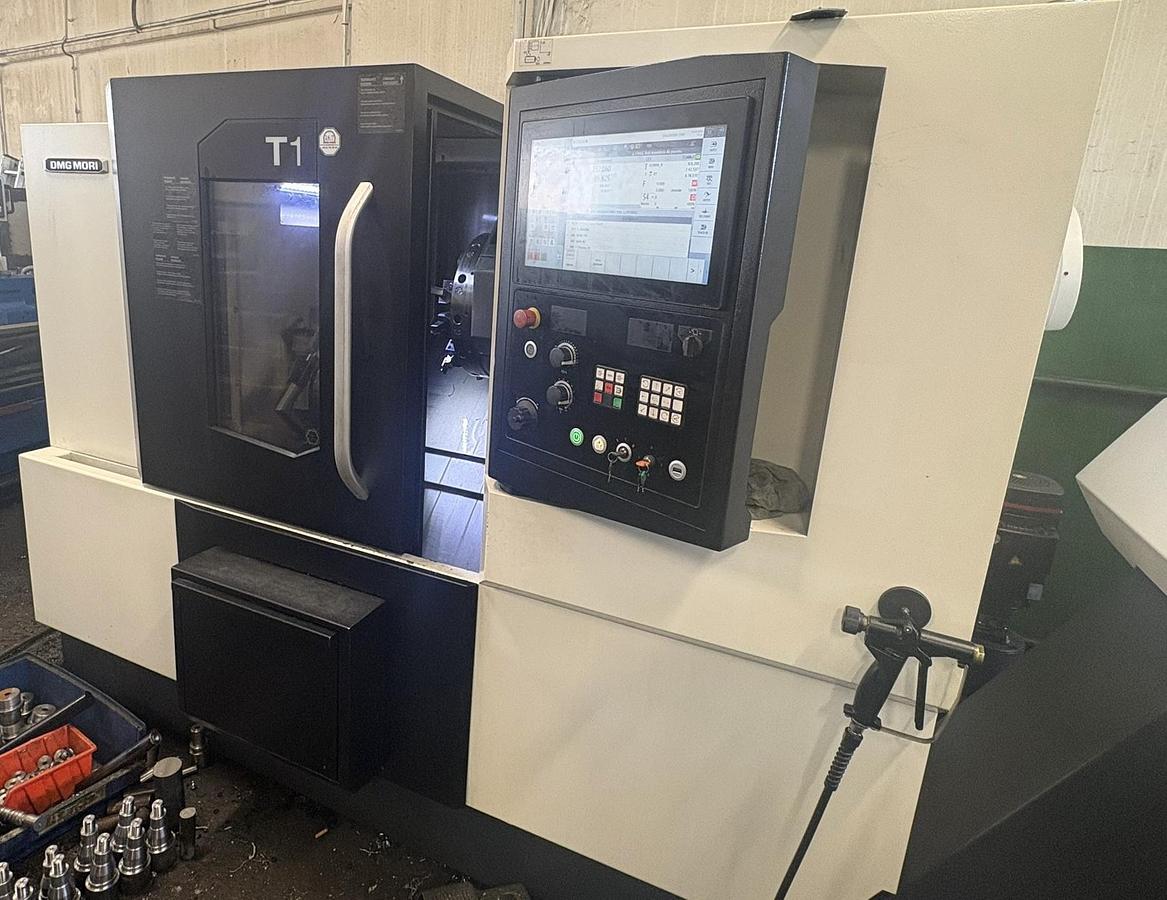

2023 DMG MORI T1

CNC lathe

Type: T1

Manufacturer: DMG MORI

Year: 2023

Control: Siemens Sinumerik One + JobShop and ShopTurn

Swing over bed: 550 mm

Swing over support: 320 mm

Max. turning diameter: 300 mm

Diameter of clamping chucks – main spindle: 210 mm

X: 232.5 mm

Z: 410 mm

Rapid traverse X/Z axes: 30/36 m/min

Spindle nose: A2-6

Inner diam. of front bearing: 120 mm

Spindle bore: 73 mm

Max. diam. of machined bar: 65 mm

Max. spindle speed: 4500 rpm

Turret VDI: 12 positions

Number of driven tool stations: 12

Max. speed: 5500 rpm

Hydraulic tailstock

Automatic tailstock travel range: 410 mm

Tailstock sleeve taper: MK 4

Chip conveyor

Machine weight: 3400 kg

In very good condition, fully functional, under power
