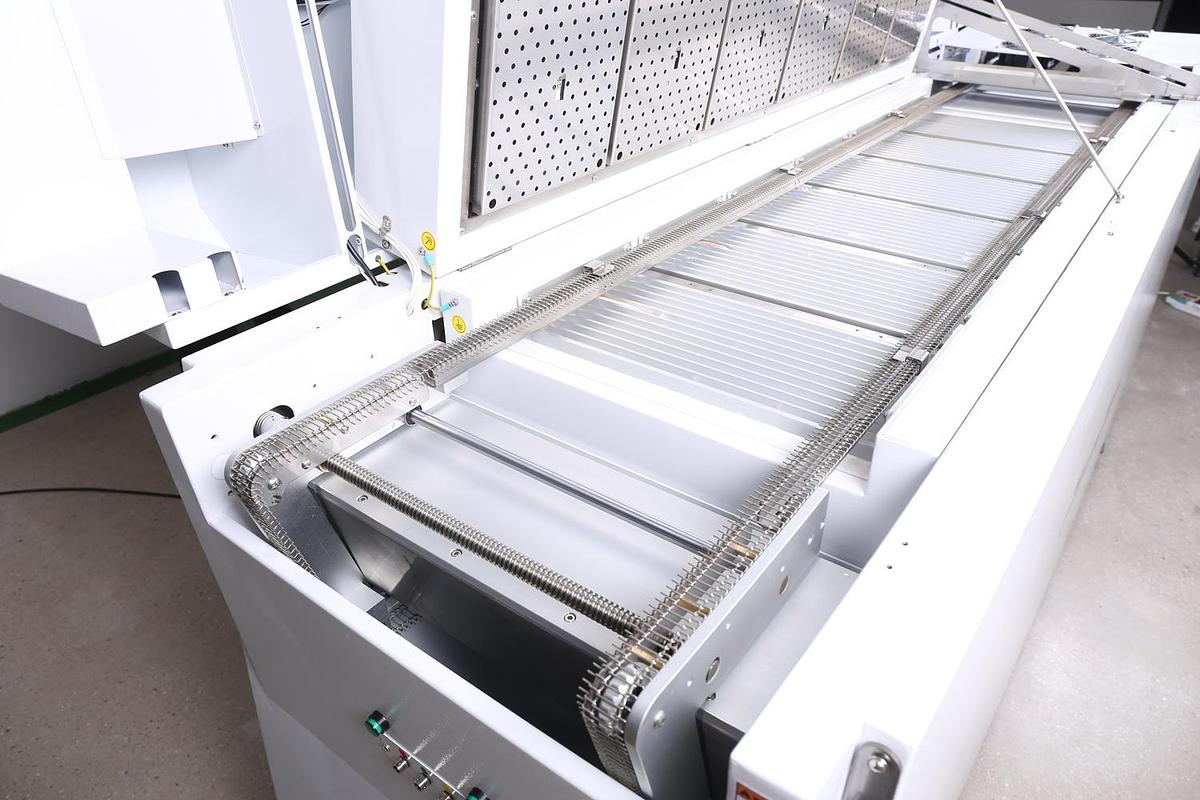

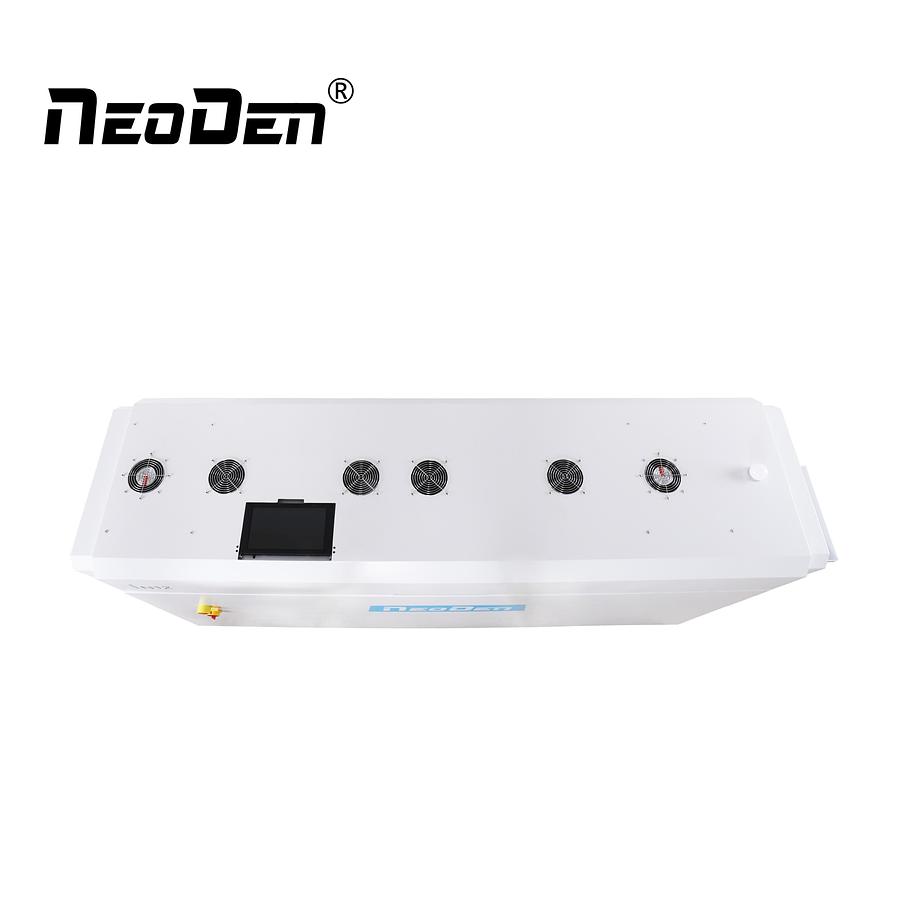

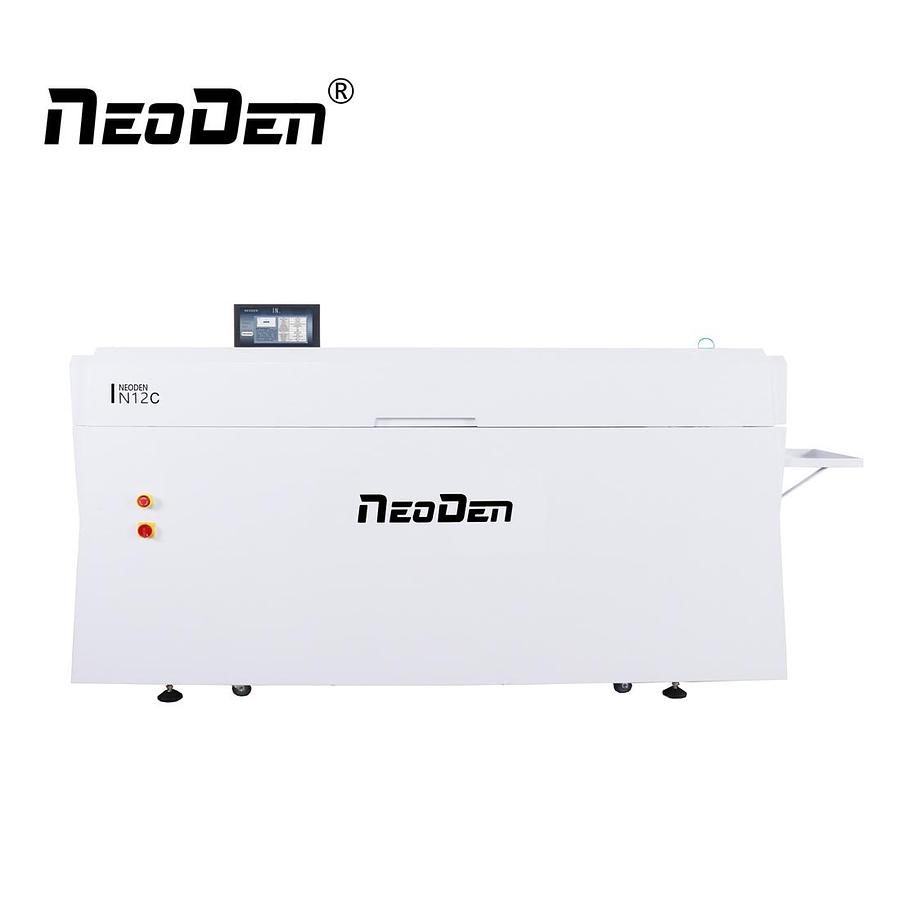

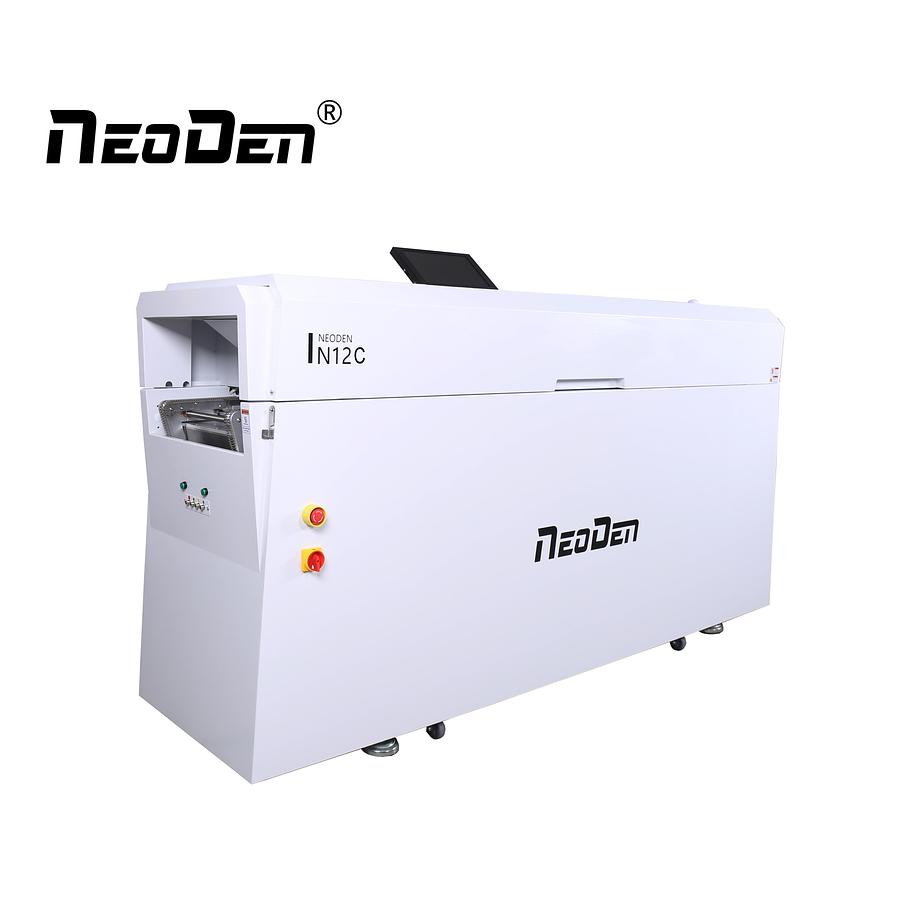

2026 NeoDen IN12C Reflow Oven

Manufacturer:  NeoDen

Model:  IN12C

Type of Machine : Reflow Oven

Technical Specifications

 -Heating zones: 12 total (6 upper / 6 lower)

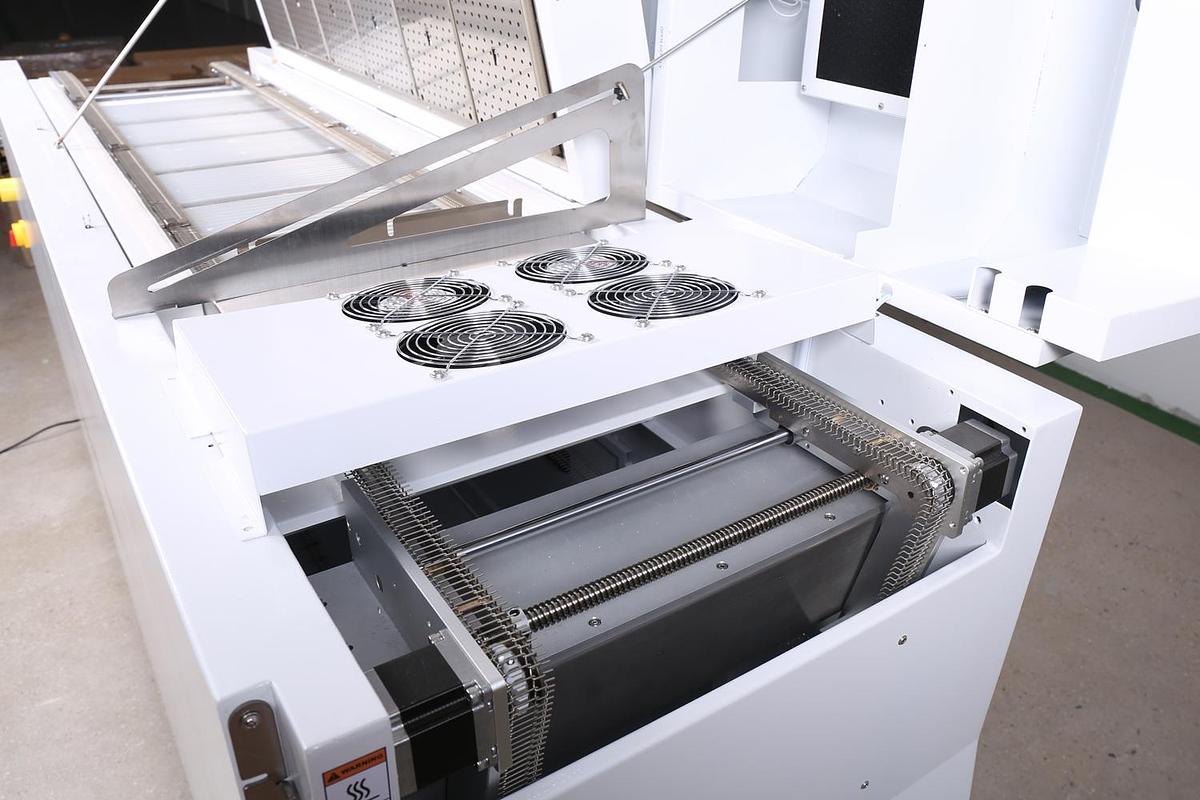

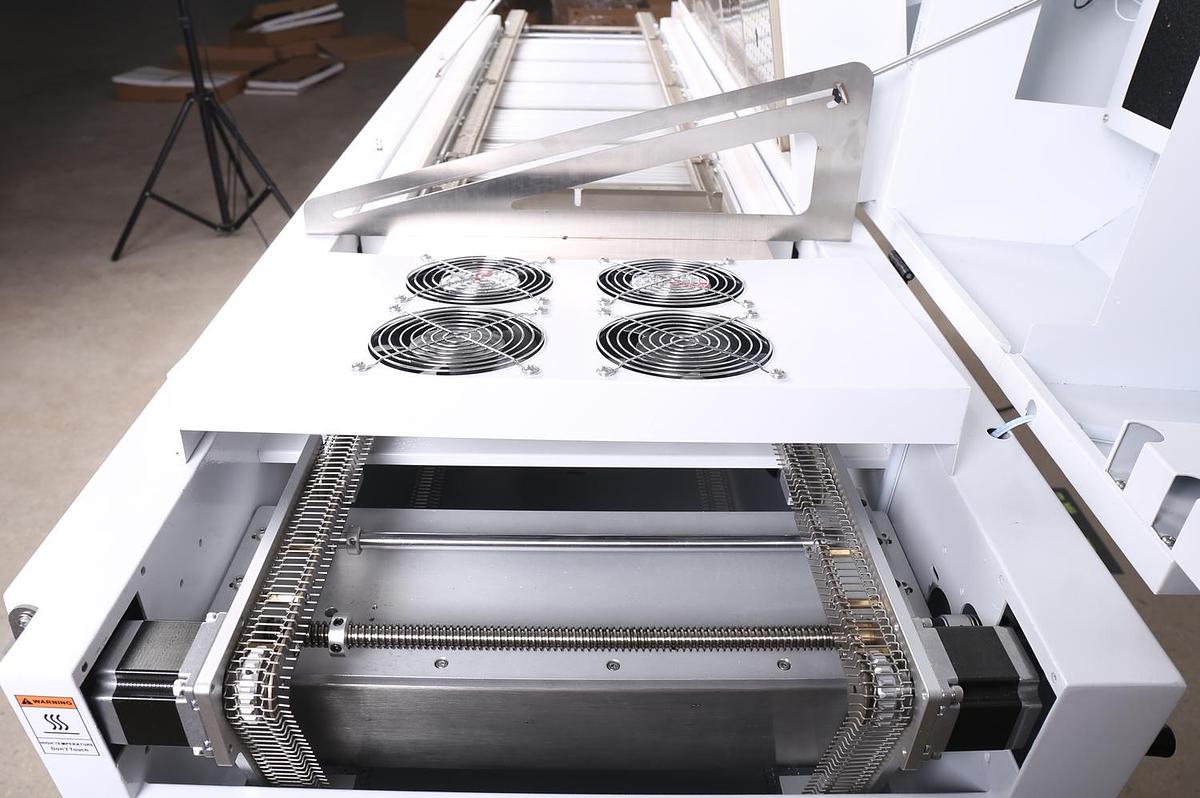

- Cooling fan: upper 4

- Controller: VGUS Microcomputer

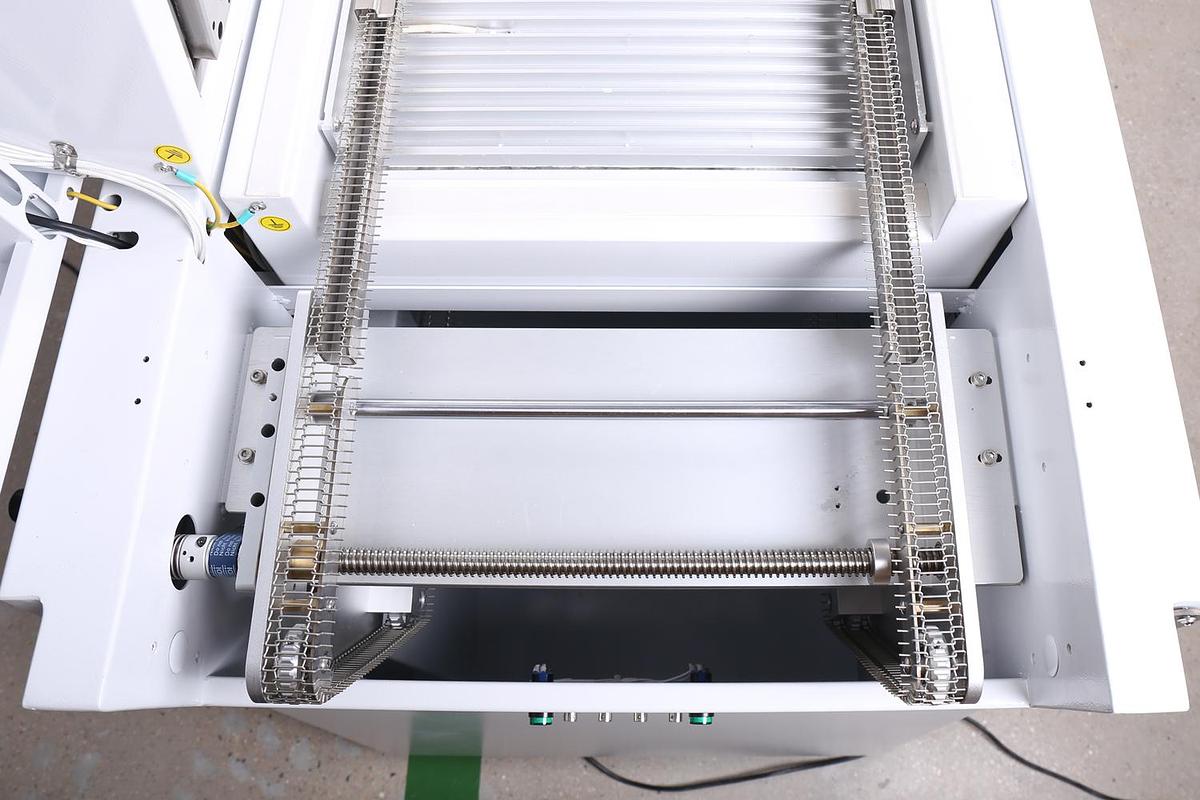

- Transmission: guide rails drive

- Heating type: nichrome wire and aluminum alloy heating

- Conveyor speed: 50 to 600 mm/min

- Temperature range: room temperature up to 300 degrees C

- Temperature accuracy: +/- 1 degree C

- PCB temperature deviation: +/- 2 degrees C

- Maximum soldering width (PCB width): 300 mm

- Maximum soldering height: 30 mm upper / 15 mm lower

- Length process chamber: 1354 mm

- Heat-up time: 20 to 30 minutes

- Operation direction: left to right

- Power supply: AC 220 V, single phase

- Starting power: approximately 4.8 kW

- Typical working power: approximately 2.2 kW

- Machine dimensions: 2300 x 650 x 1280 mm (L x W x H)

- Net weight: 300 kg

- Gross weight: 414 kg

Standard Accessories Included

- User Manual

- Smoke filtering system replacement set

- ESD tray (360 x 300 mm)

- Flange exhaust pipe, diameter 120 mm (x2)

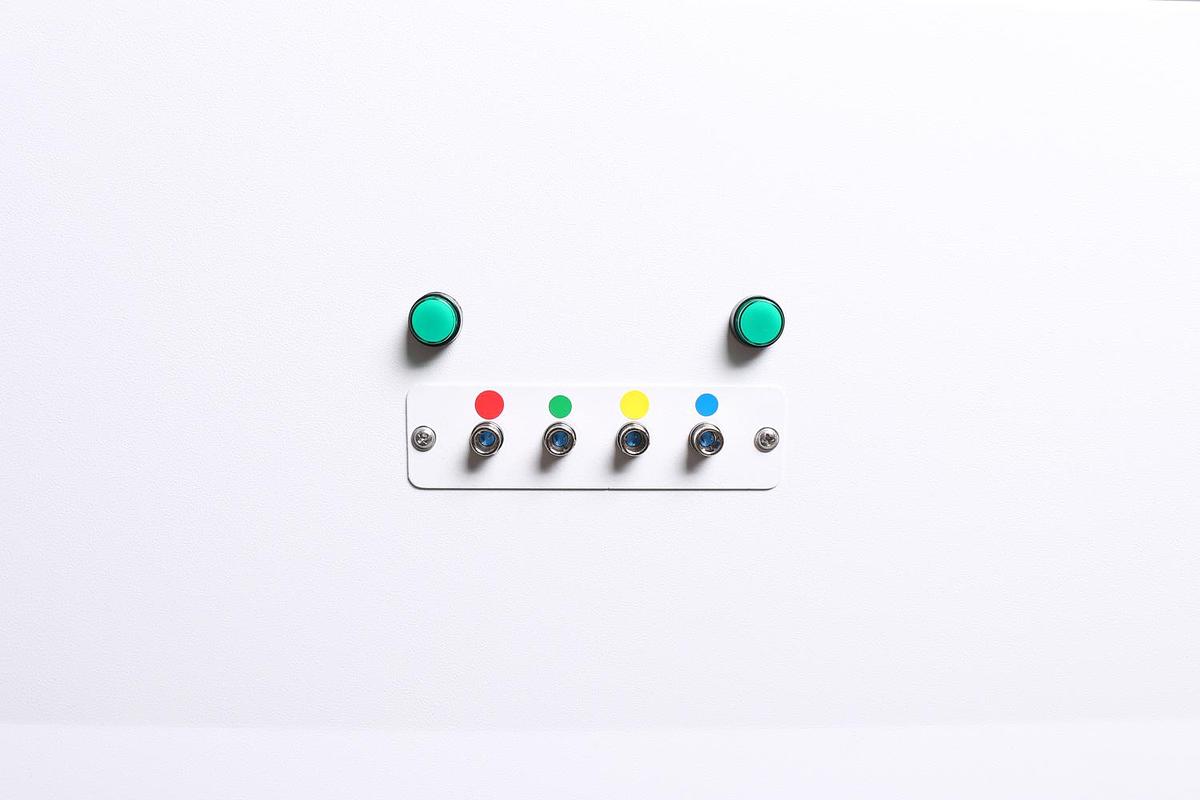

- Temperature test wire, 4 routes, 2.3 m length

- Spare screws M4 x 6 (x12)

- Hex wrench 22# (x1)

- Power cord

- Rail width adjust handle
