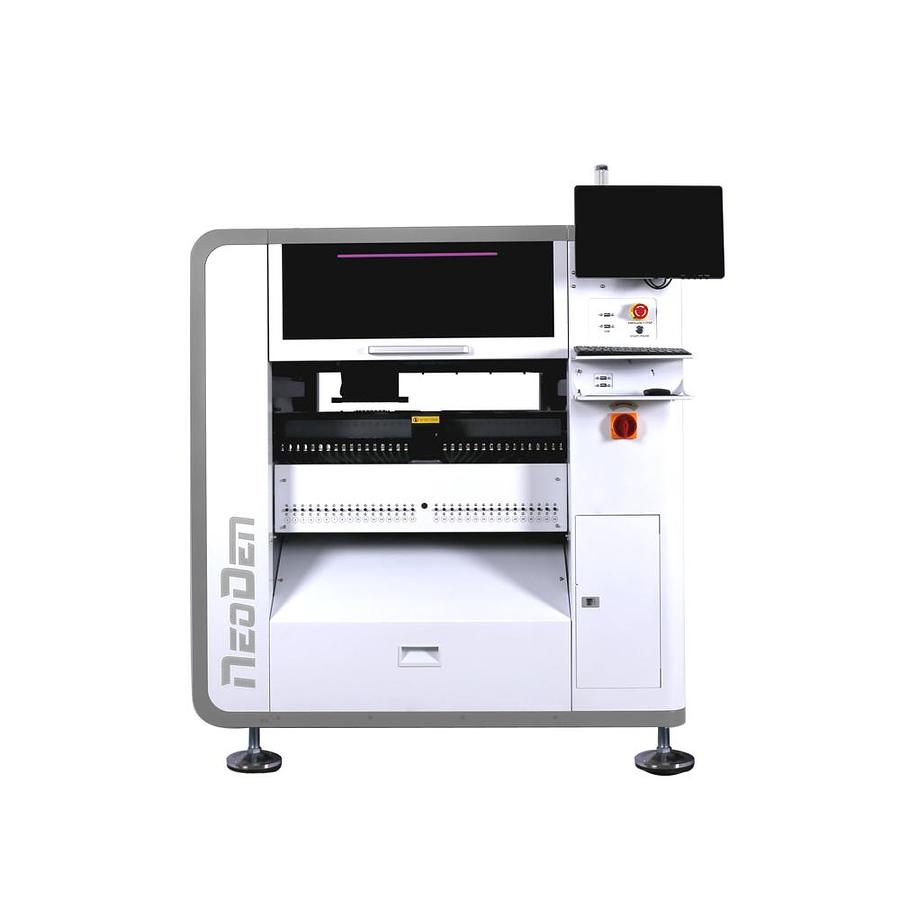

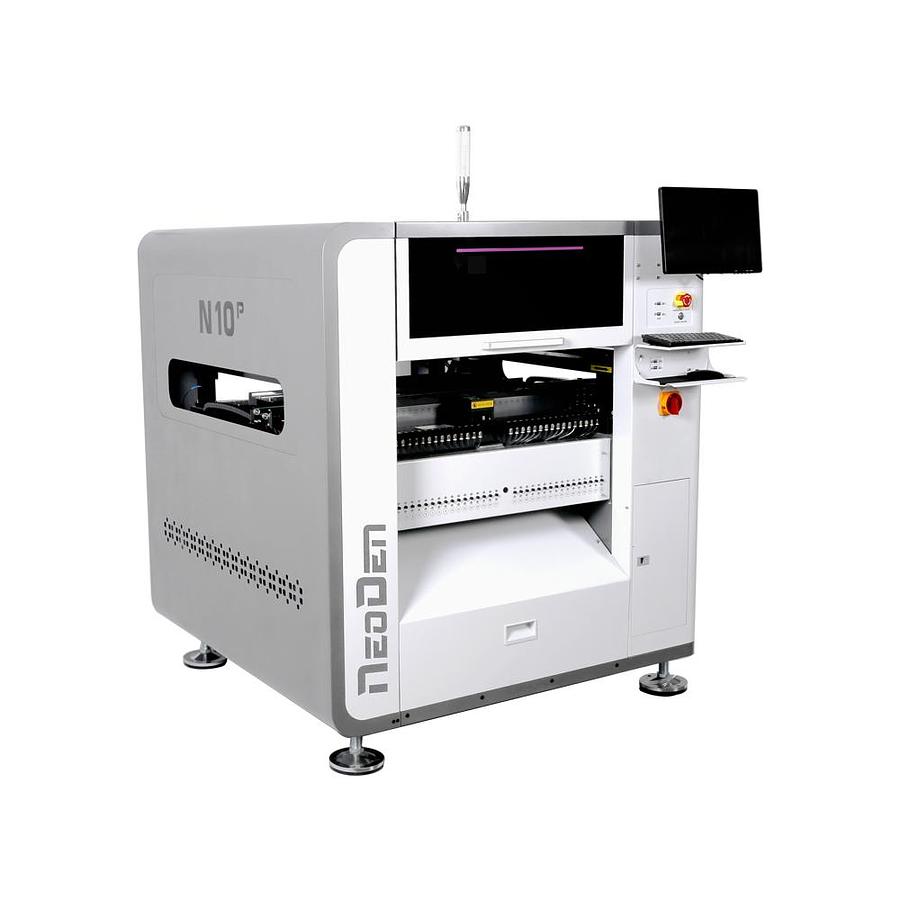

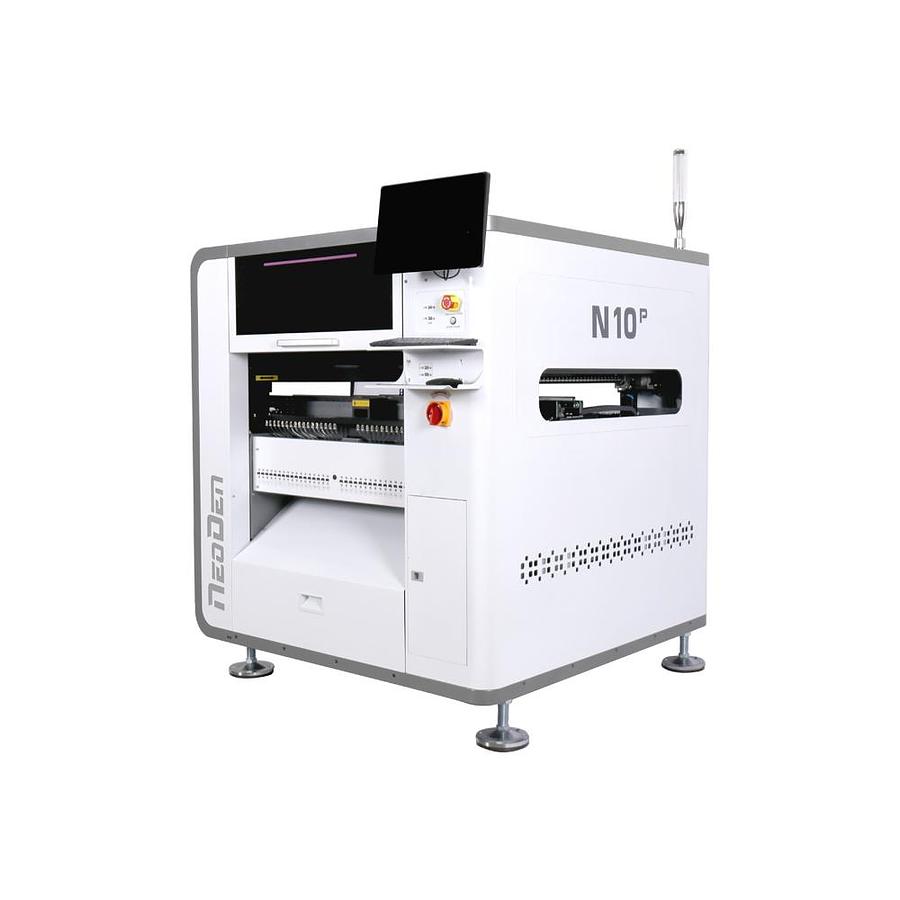

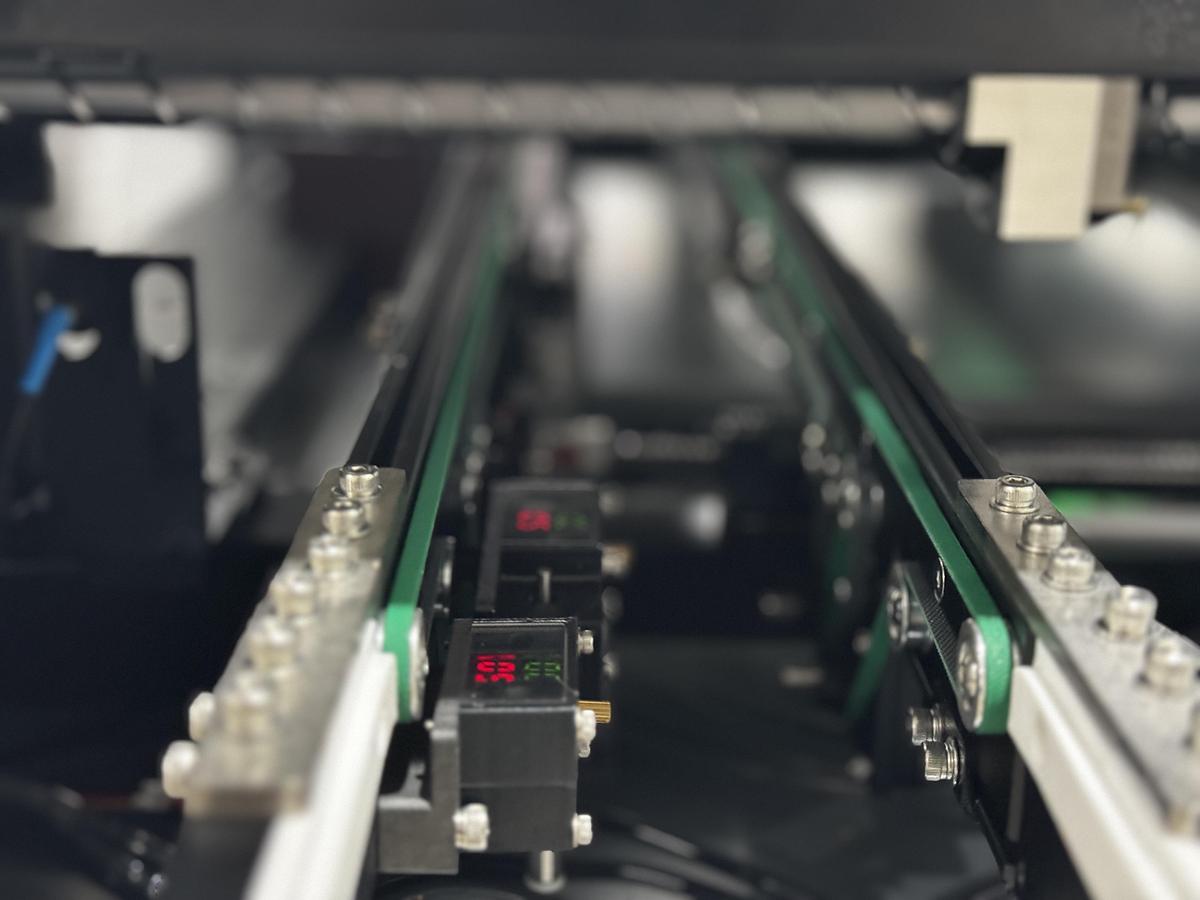

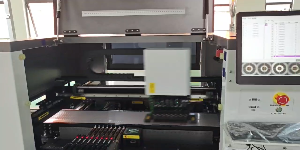

2026 NeoDen N10P Pick and Place Machine

Manufacturer:  NeoDen

Model: N10P

Year of Manufacture: 2026

Type of Machine : Pick and Place Machine

Technical Specifications

- Number of heads: 8 (fully closed-loop control system)

- Maximum placement speed: 20,000 CPH

- Position accuracy: +/- 0.01 mm

- Camera configuration: dual mark camera + front flying camera + IC camera

- Component range (flying camera): 0201 to 22x22 mm

- Component range (IC camera): 0201 to 40x40 mm

- Maximum component height: 16 mm

- PCB size minimum: 50x50 mm

- PCB size maximum (without IC tray): 450x1500 mm

- PCB size maximum (with IC tray): 395x1500 mm

- PCB thickness: 0.2 mm to 3.5 mm

- Feeder capacity (tape and reel): 80 positions (33 front + 47 rear)

- IC tray feeder: 1

- Automatic nozzle change: yes, 39 nozzle positions

- Support pins to hold PCB: optional

- Power: 600 W, single phase, 220V/110V, 50Hz/60Hz

- Air source: 0.6 to 0.8 MPa

- Flow rate: 37 L/min

- XY drive type: WON linear guide / THK grinding screw C5-2040

- XY drive motor: Panasonic A6 750W servo motor

- XY motion feedback control: SPM/IBG magnetic linear encoder

- Machine dimensions: 1289 x 1254 x 1386 mm

- Weight: 1,000 kg

- Packing size: 1320 x 1290 x 1456 mm

Key Features and Highlights

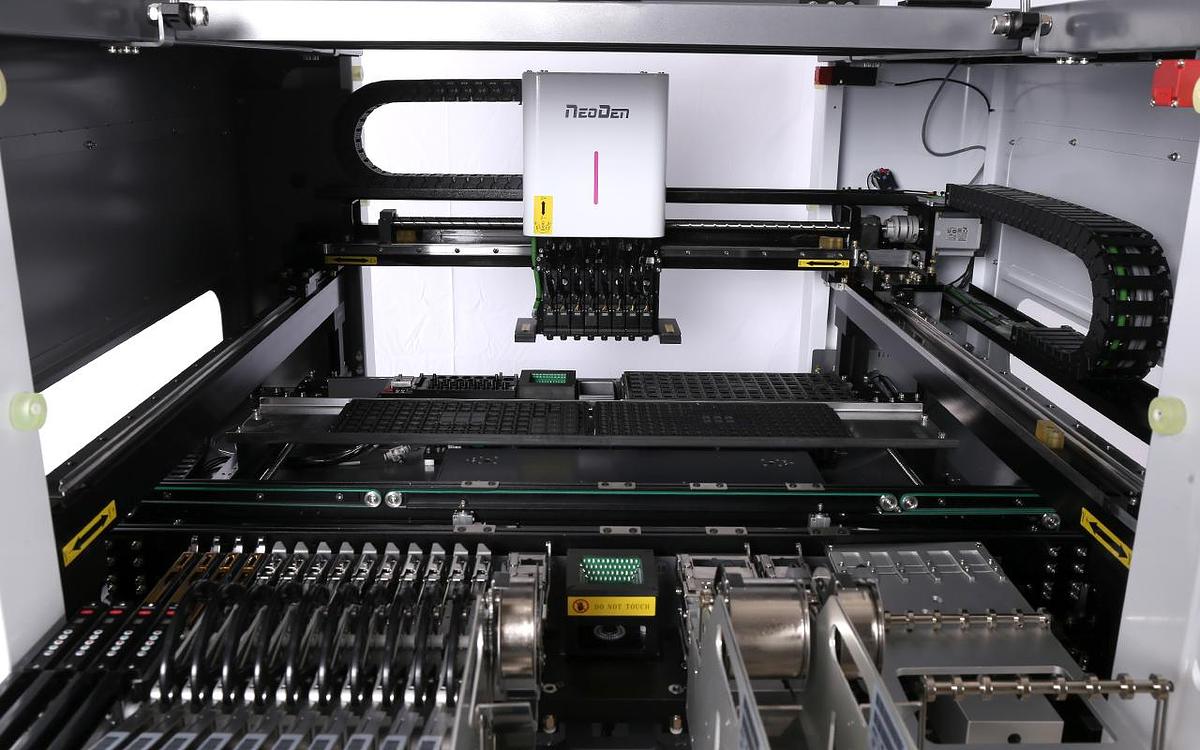

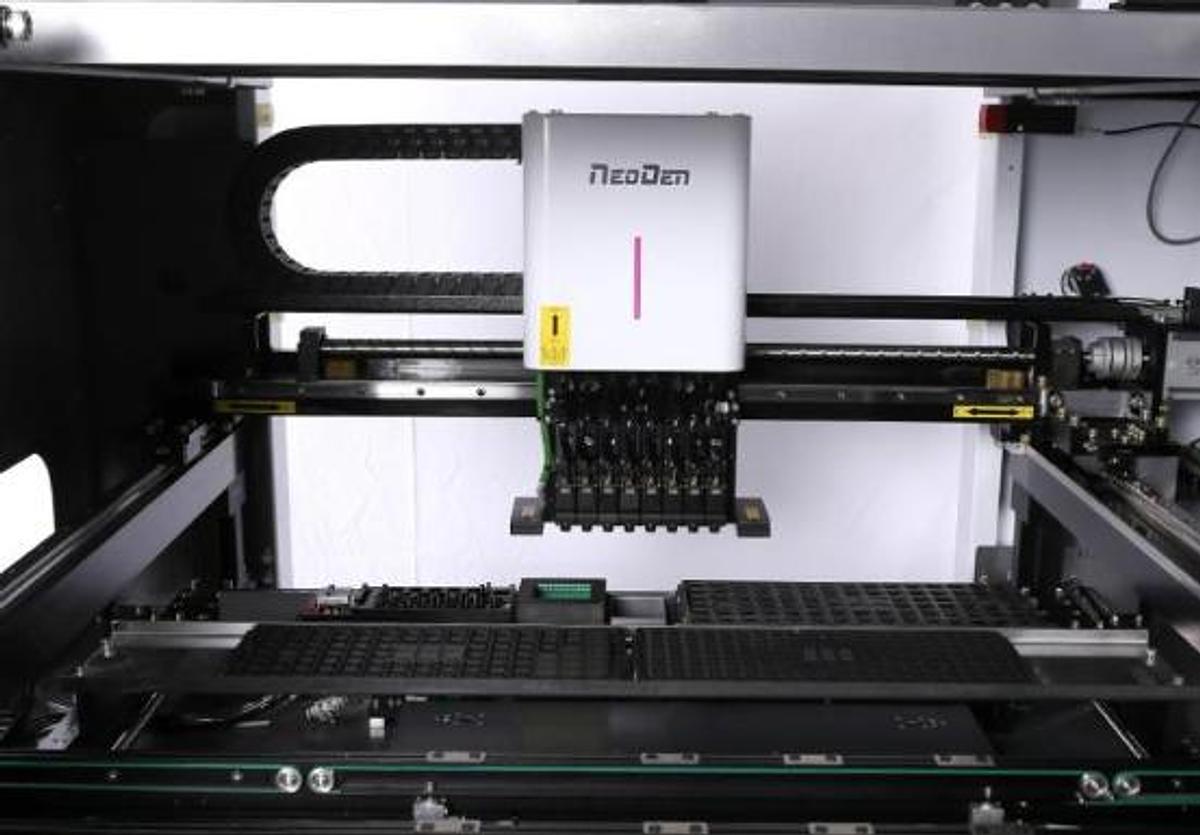

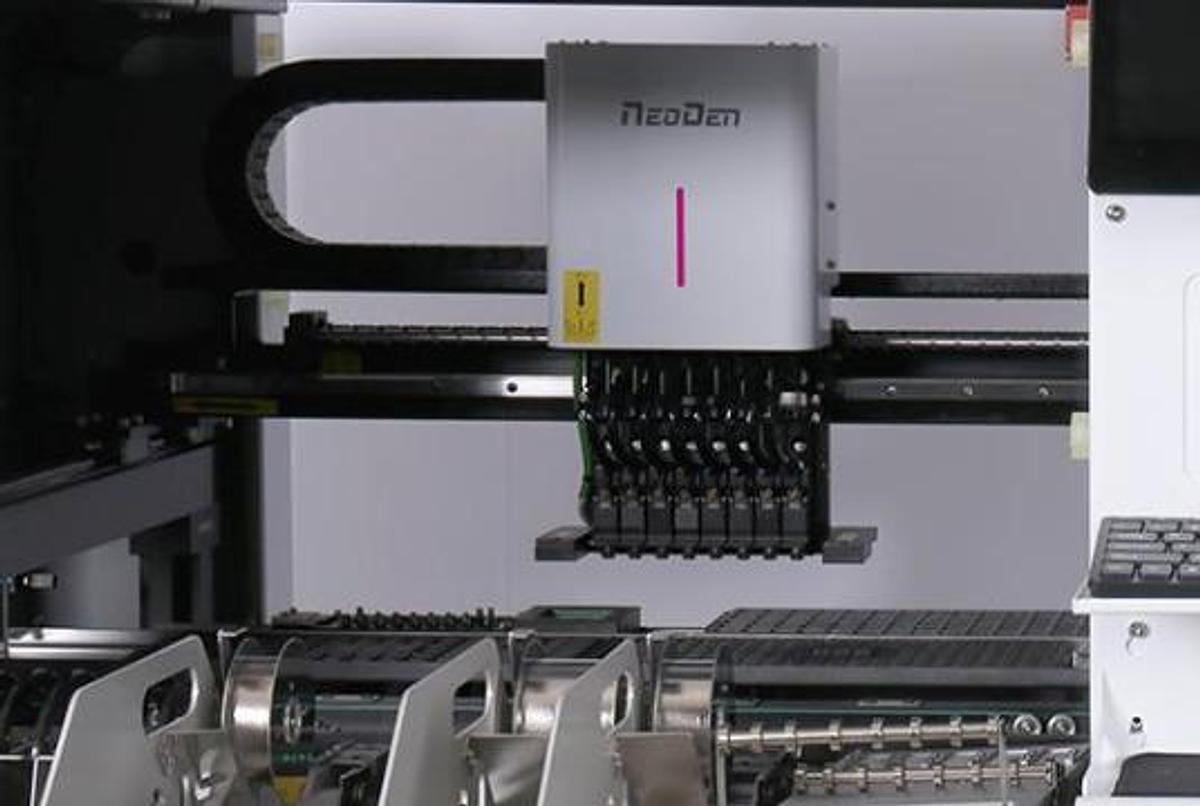

- 8 heads with fully closed-loop control system for simultaneous component pick-up at maximum

speed

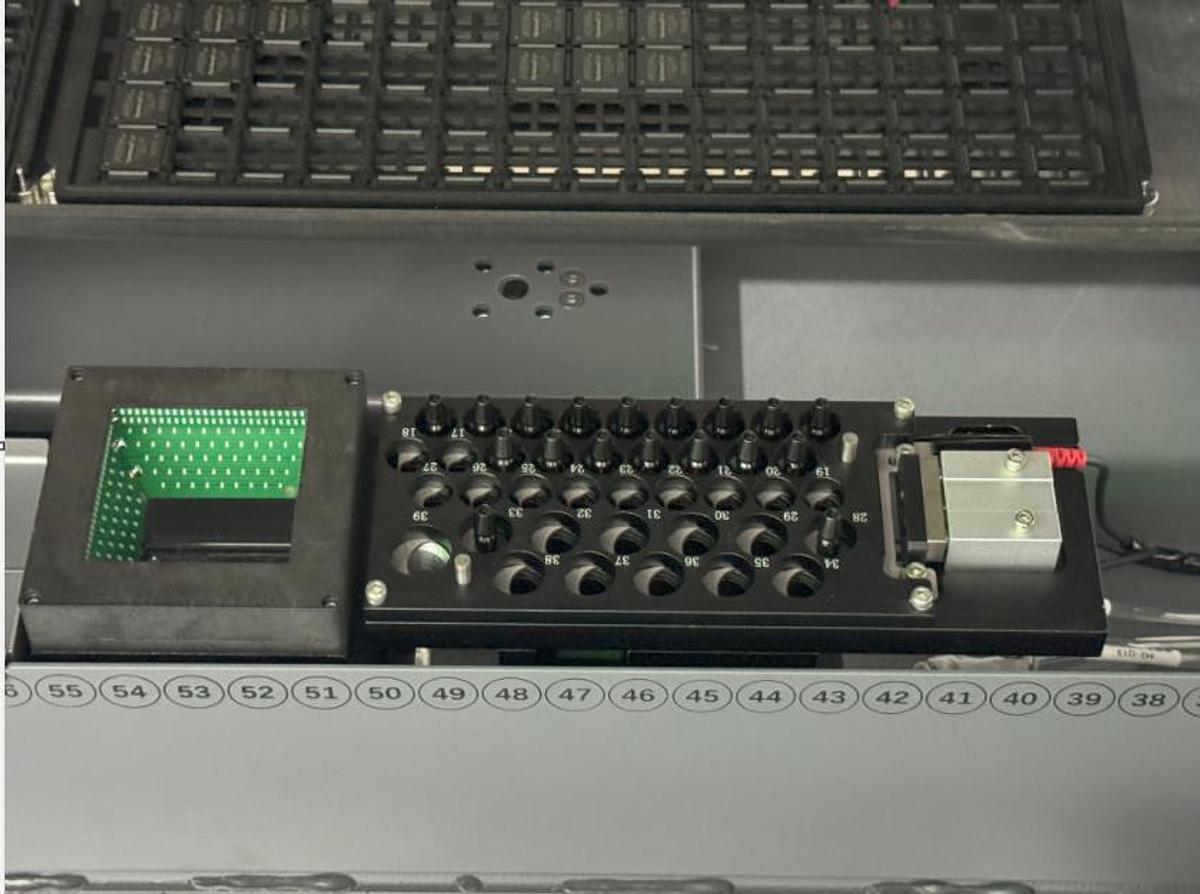

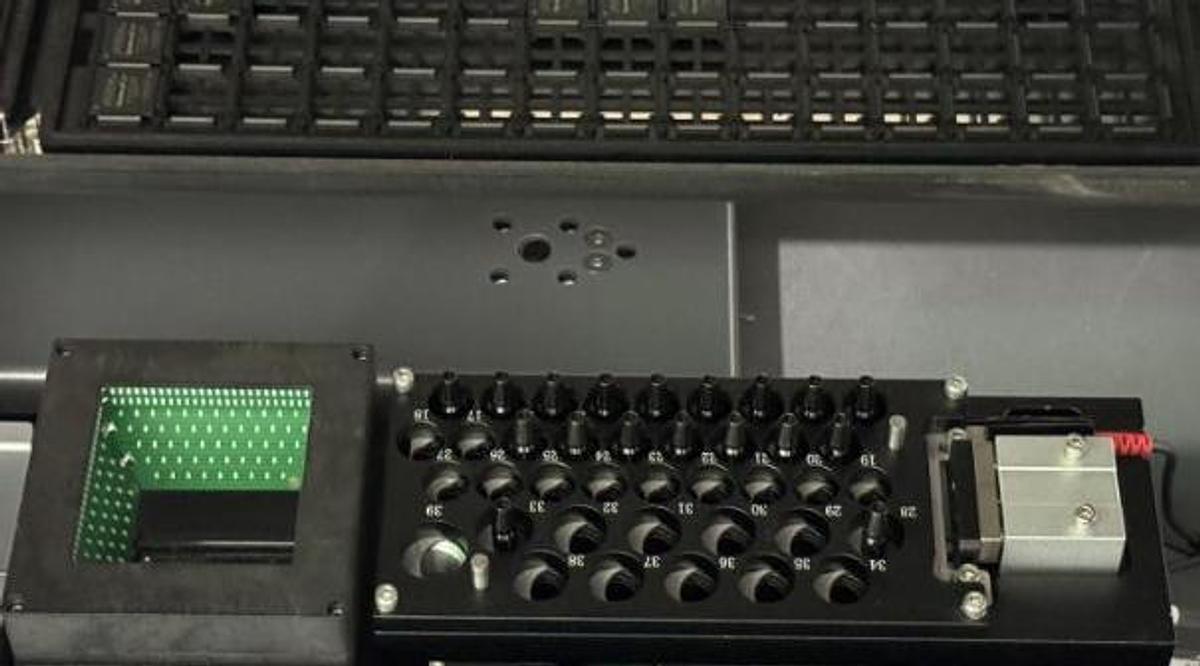

- Automatic nozzle change with 39 nozzle slots for increased placement speed and flexibility

- Automatic calibration of nozzle height for efficient operation with minimal manual intervention

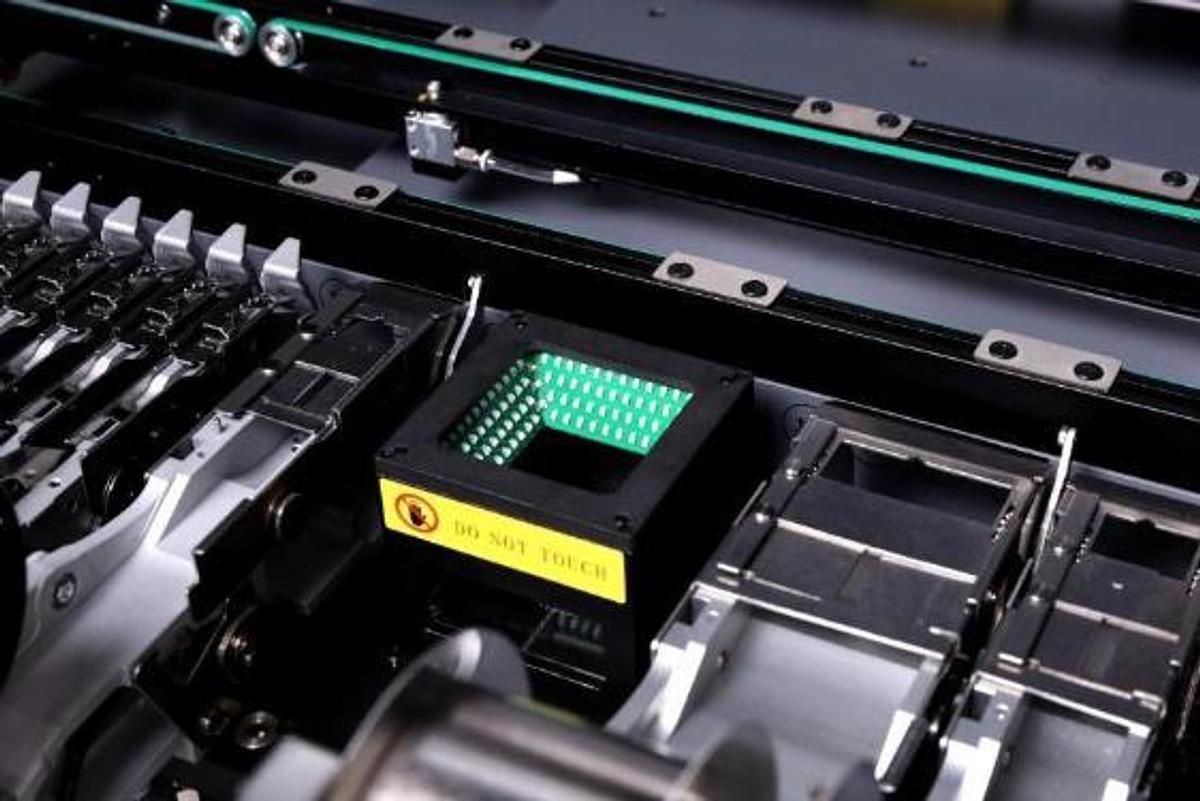

- Front and rear dual 4th generation high-speed flying camera recognition systems with US ON

sensors and 28mm industrial lens

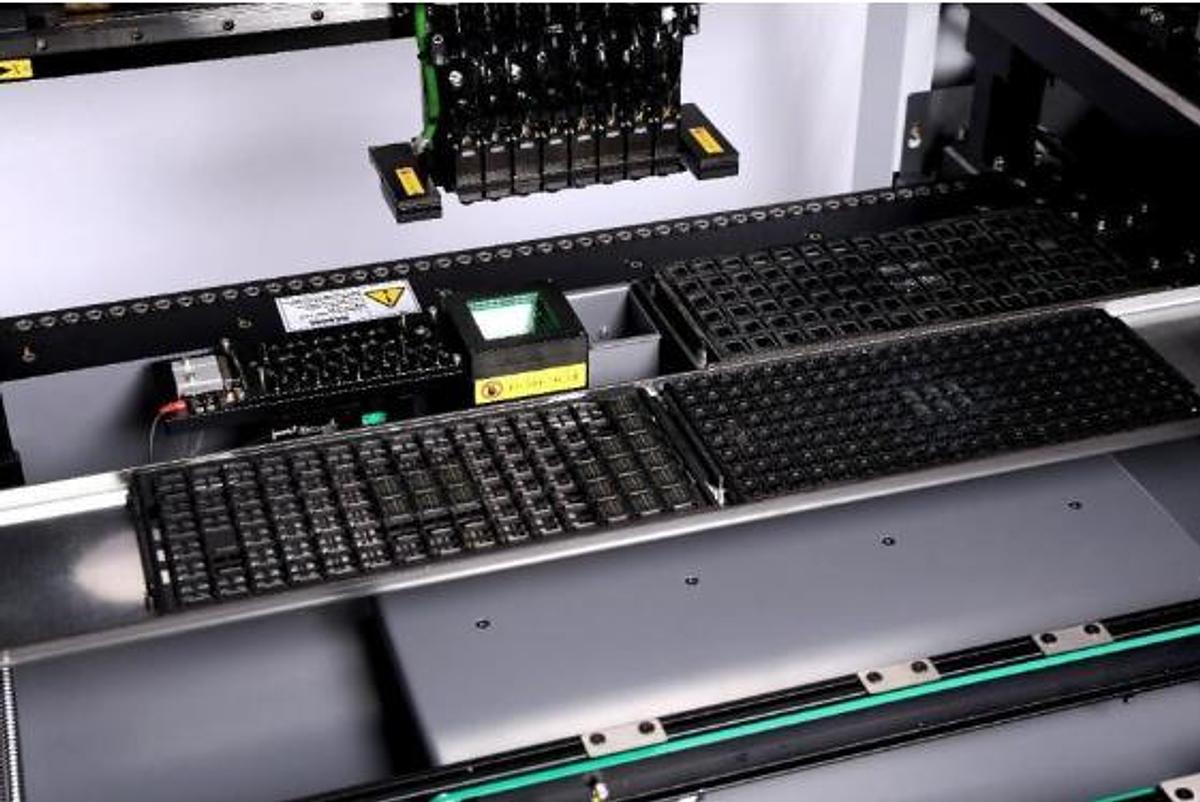

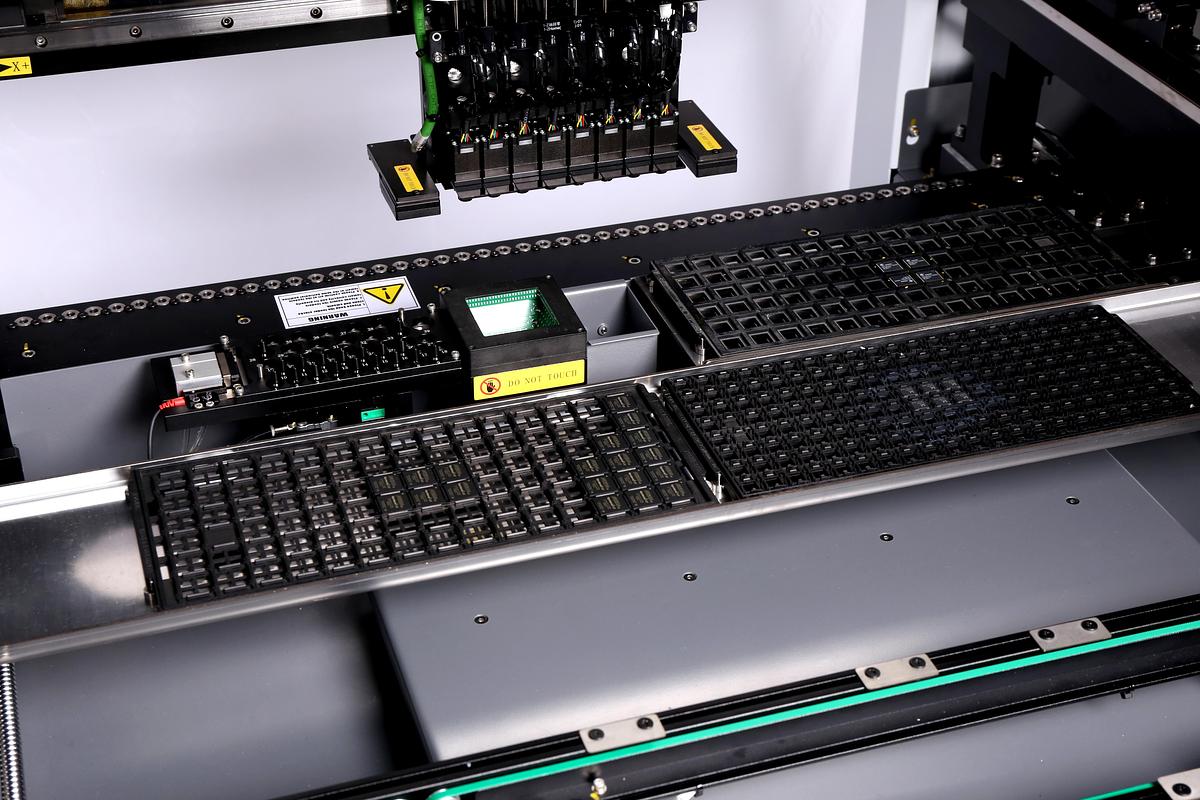

- IC camera for improved recognition of large IC components with automatic calibration

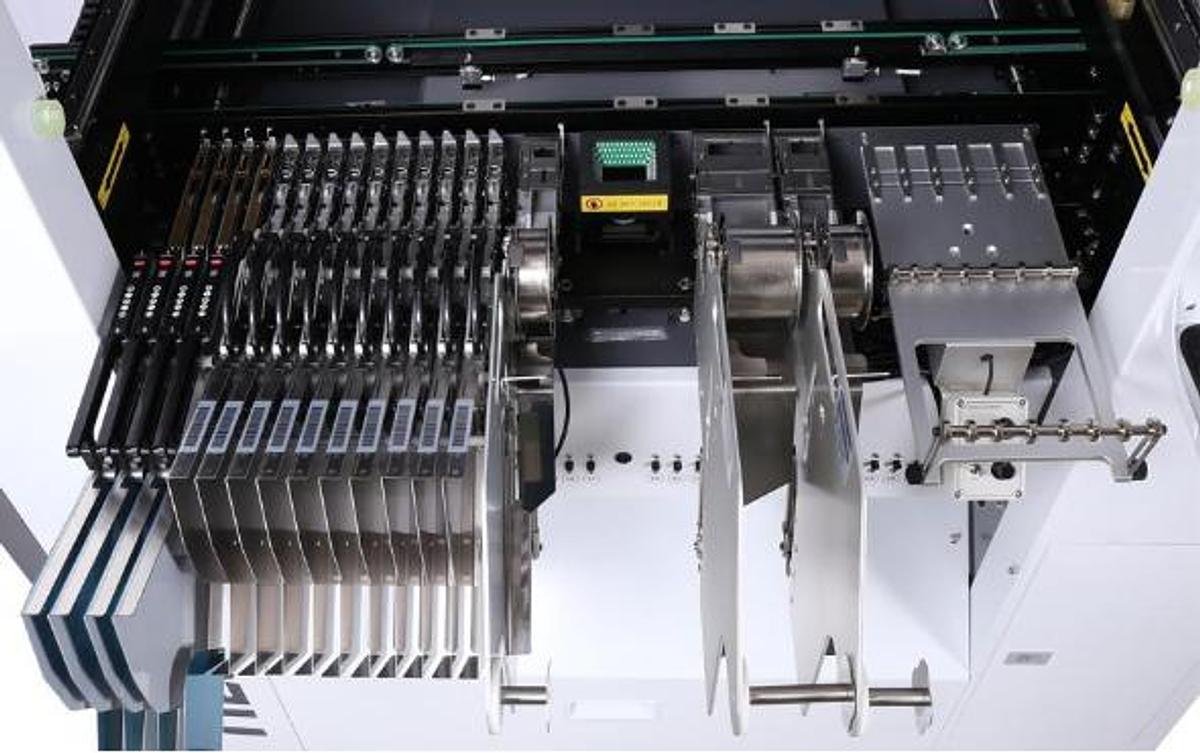

- Support for 80 tape feeders, 20 stick feeders, and 60 tray feeders

- Mixed use of electric and pneumatic feeders in the same feeder base

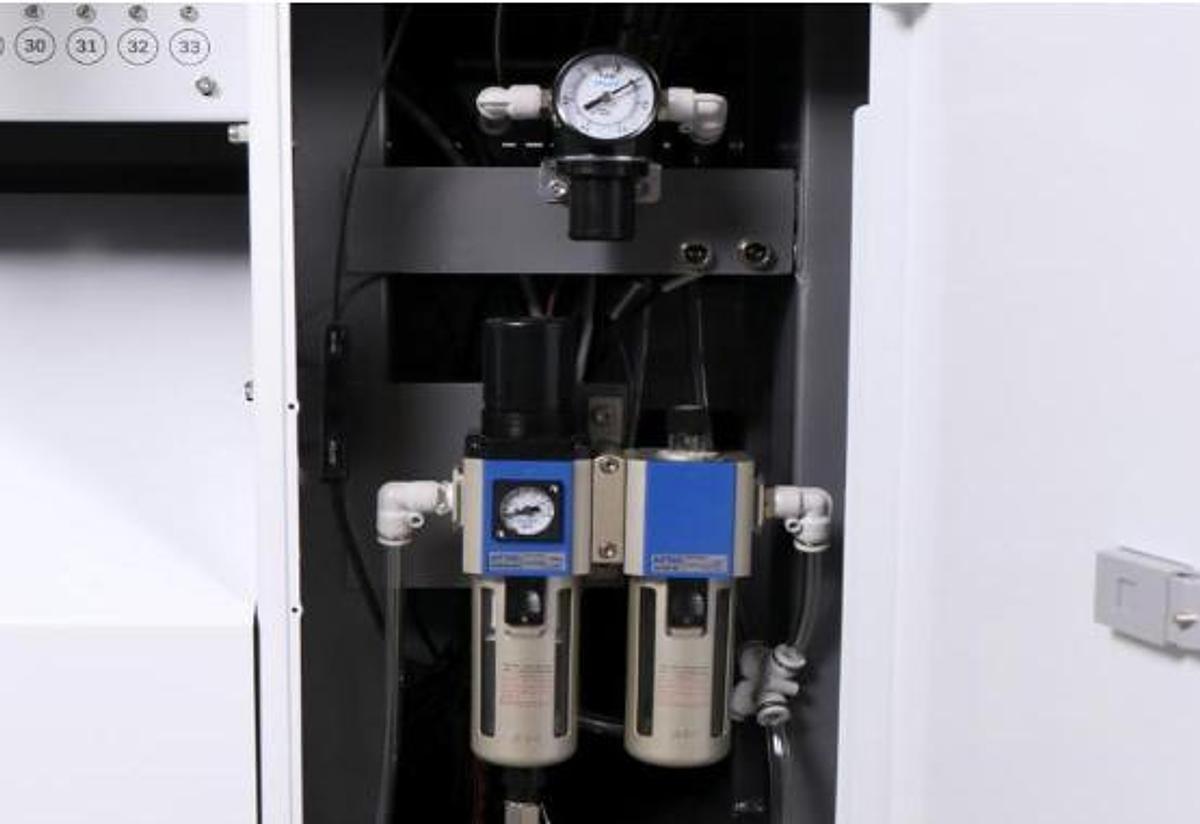

- Nozzle air pressure measurement to improve work stability and eliminate placement obstacles

- Abnormal air pressure detection triggers automatic placement pause to prevent damage and

material waste

- Compatible with PCBs up to 1500 mm long using optional extension conveyor

- Material recycling throw box for increased convenience

- Optimized software design for ease of use and stability
