2026 NeoDen 4 Pick and Place Machine

NeoDen4, the brand new and long-awaited model of NeoDen, is a desktop Pick and Place machine with vision system.NeoDen4 is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle 0201, BGA, QFN and 0.8m/1.2m/1.5m LED strip.NeoDen4 is the best choice to satisfy all demands of high precision, high capacity,stable performance and low cost.

Manufacturer:  NeoDen

Model:  4

Year of Manufacture: 2026

Type of Machine : Pick and Place Machine

Technical Specifications

- Number of heads: 4 (with vision enabled)

- Placement rate: 4,000 CPH

- Feeder capacity - tape reel feeders: 48

- Feeder capacity - vibrating feeders: 5

- IC tray capacity: 5

- Component range - smallest: 0201

- Component range - largest: TQFP240

- Maximum component height: 5 mm

- Resolution X/Y axis: 0.01 mm

- Resolution Z axis: 0.1 mm

- Rotation: +/- 180 degrees (360 degrees)

- Positioning accuracy: +/- 0.02 mm

- X-Y repeatability: +/- 0.02 mm

- Applicable PCB area with internal conveyor: 290x1500 mm

- Applicable PCB area without internal conveyor: 350x400 mm

- Placement area without waffle tray: 290x1500 mm

- Placement area with 1 waffle tray: 140x1500 mm

- Programming: software automatic and manual mechanical

- Power supply: 110V/220V

- Power: 180 W

- Machine dimensions: 870x680x480 mm (L x W x H)

- Net weight: 60 kg

- Gross weight: 80 kg

Key Features and Highlights

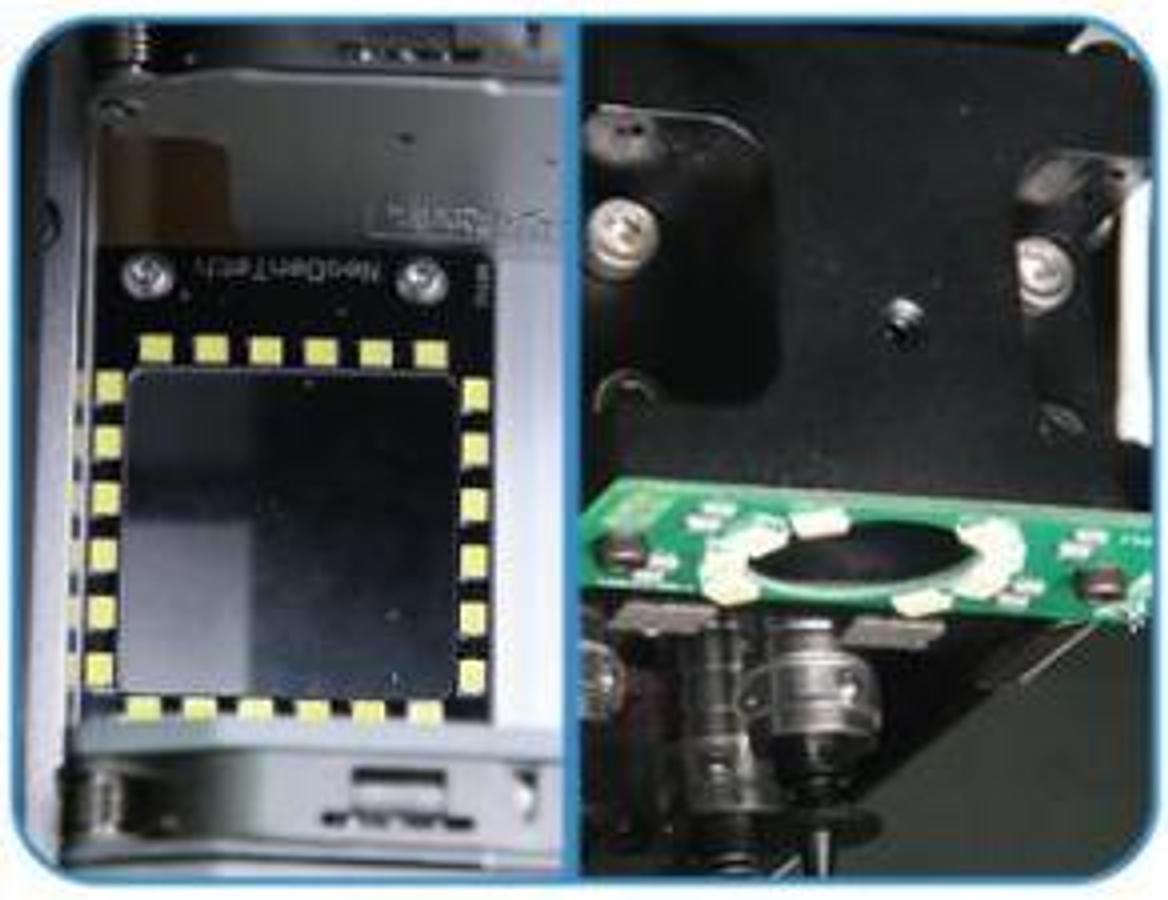

- Dual vision system with up-looking and down-looking high-speed industrial CCD cameras,

identifying and calibrating all four components simultaneously for superior placement accuracy

from 0201 to BGA

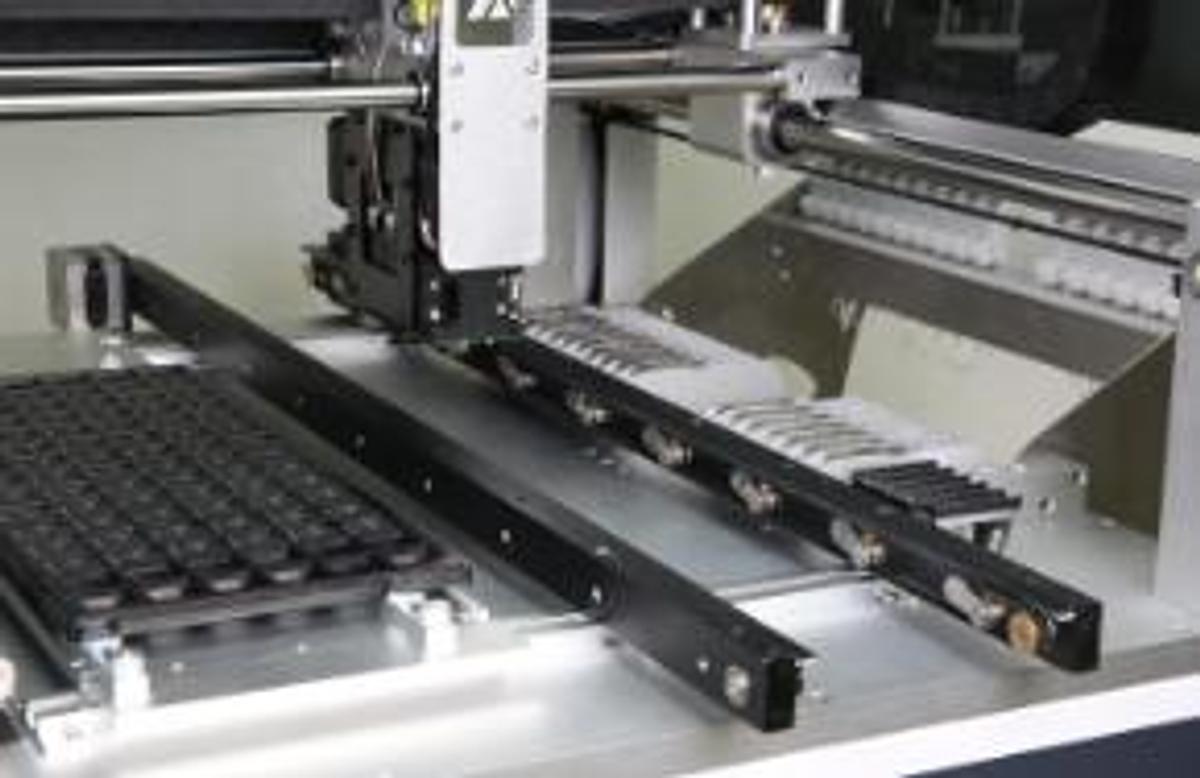

- NeoDen independently developed on-line dual rails supporting direct connection to

conventional conveyors for continuous automatic board feeding, adjustable feeding position, and

overlong board handling via Mark point relocated technology

- Electronic feeders with feeding error correction technique for smooth component picking and

reduced deviation

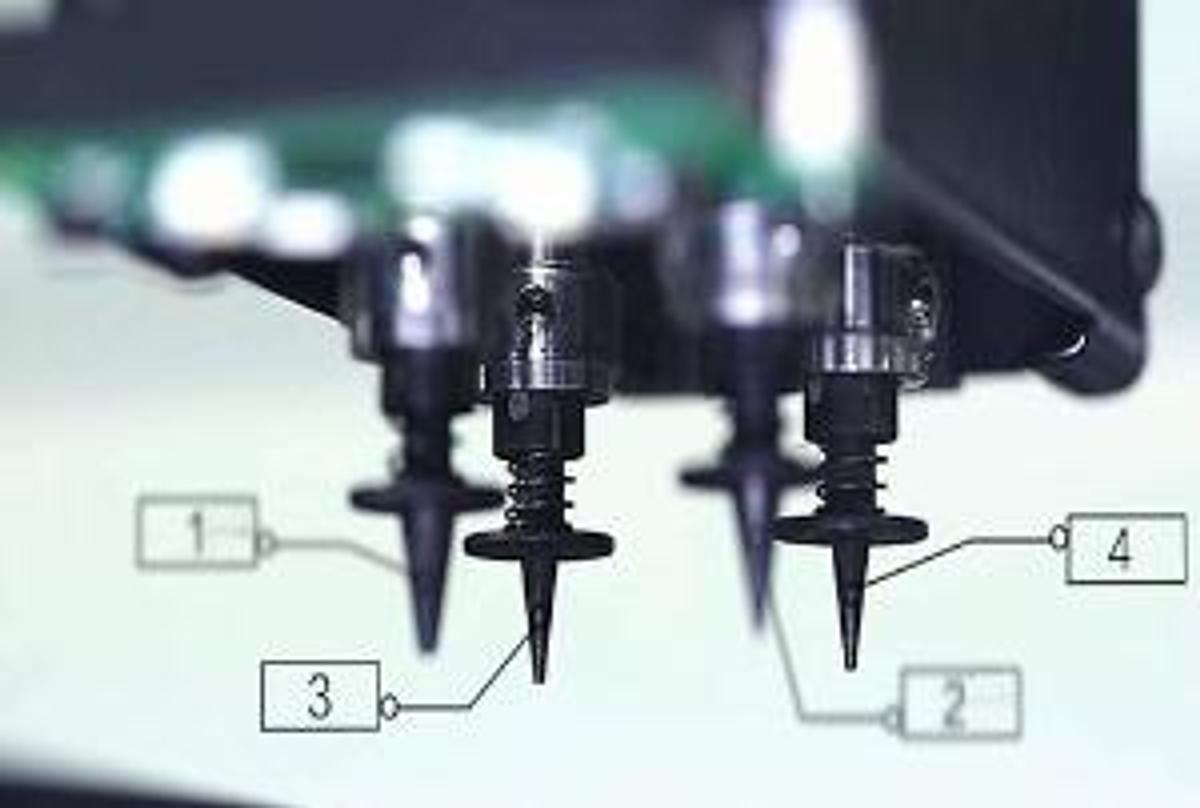

- Four high precision nozzles calibrated by vision software, picking and placing four components

simultaneously with 360 degree rotation

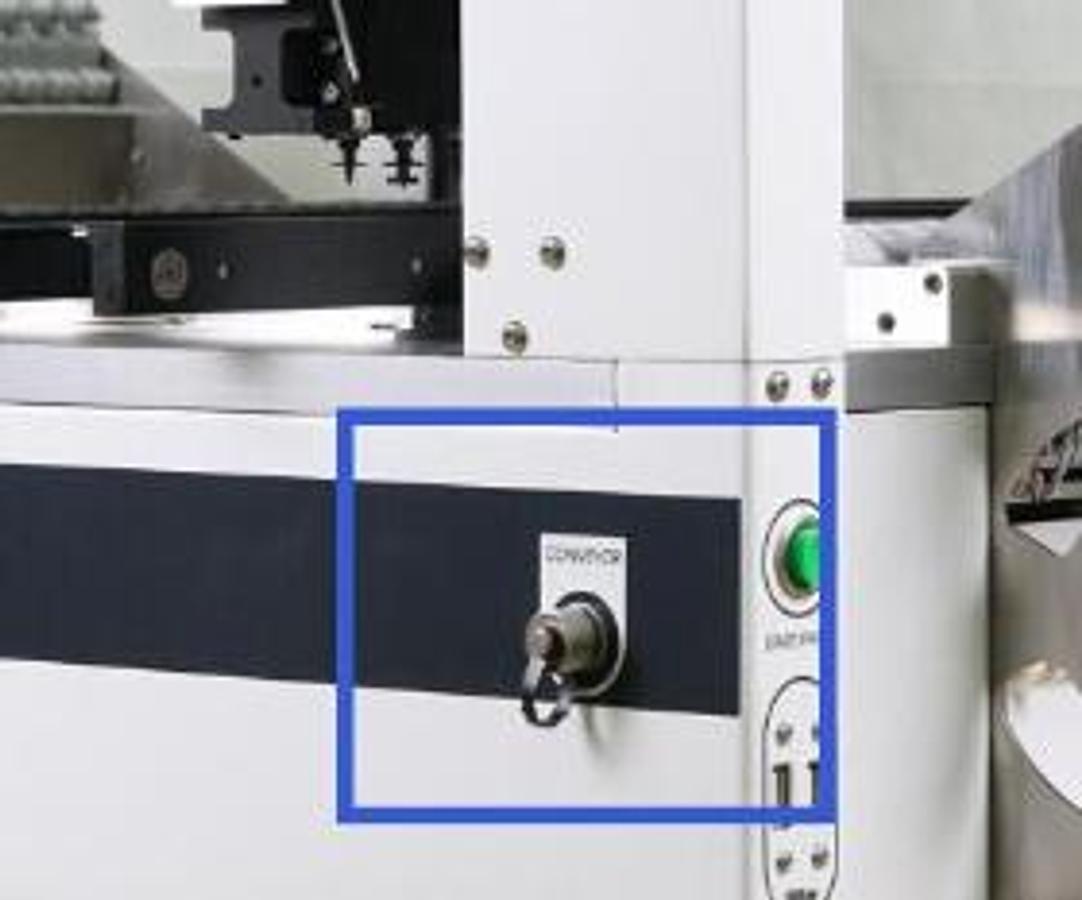

- General conveyor support for fully automatic production without manual labor

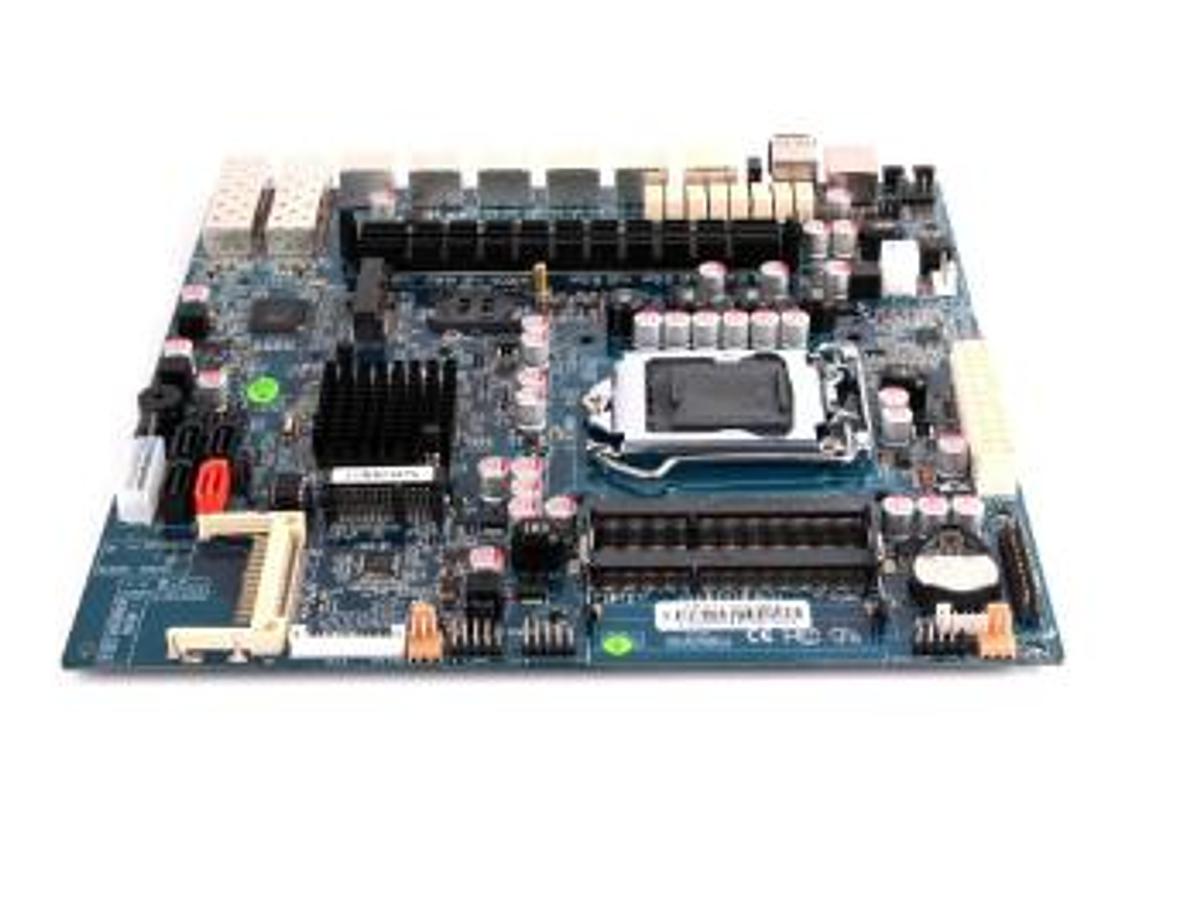

- Industrial PC motherboard with 32G solid state drive for faster read/write speed, greater

stability, and power-off protection

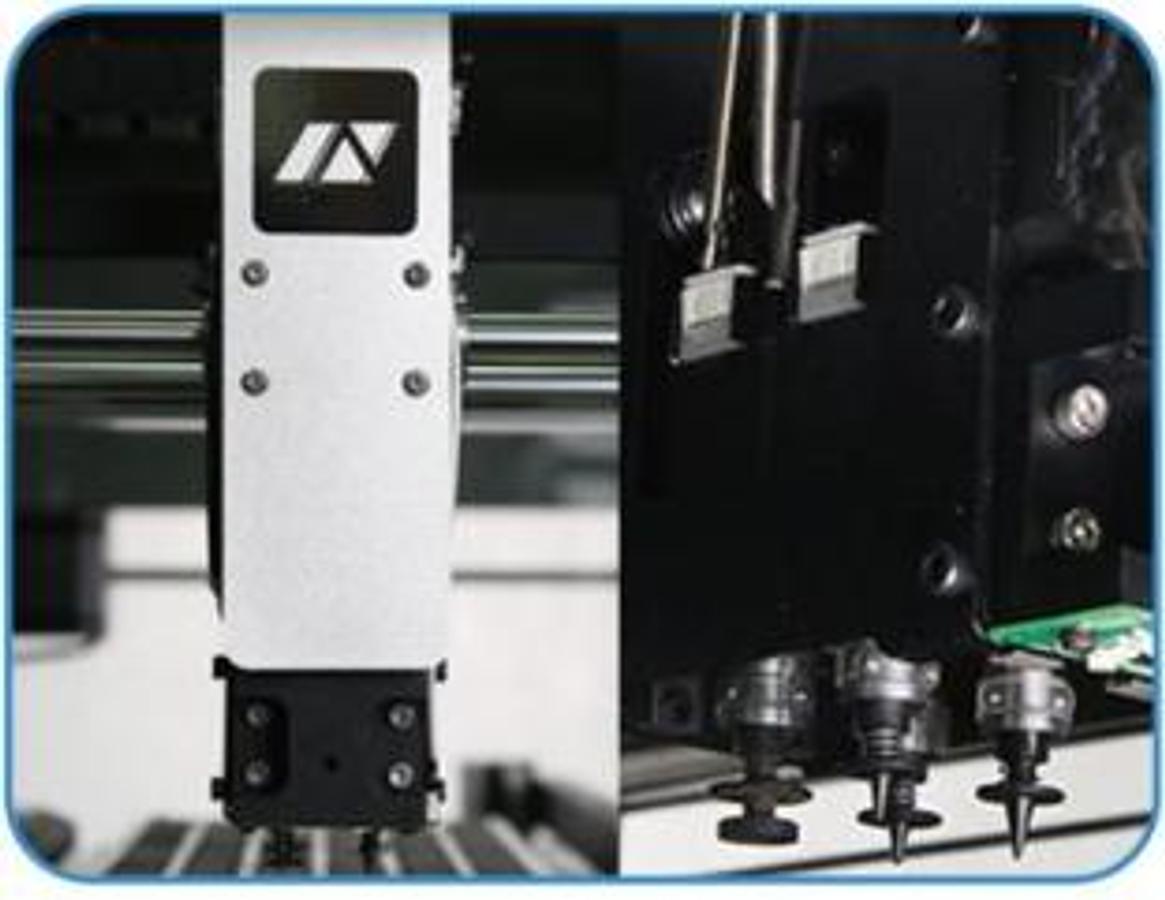

- Newly designed mounting head with suspended, fully symmetric, high coupling design for

greater precision and gentler component handling

- Remote system upgrade support with lifelong technical service from NeoDen

- Lightweight and compact body, no extra pump or supporting facility required

- User friendly interface, no professional SMT engineer required to operate
