2026 NeoDen ND2 Fully Automatic Visual Printer

The NeoDen ND2 is an advanced SMT automatic screen printer designed for easy operation, high precision, and high stability PCB solder paste printing.With a repeat position accuracy of +/- 10.0 micron at 6 sigma and Cpk of 2.0 or greater, the ND2 delivers superior precision over its predecessor the ND1.

Manufacturer:  NeoDen

Model:  ND2 Fully Automatic Visual Printer

Year of Manufacture: 2026

Type of Machine : Stencil Printer

Technical Specifications

- Maximum PCB size: 450x350 mm

- Minimum PCB size: 50x50 mm

- PCB thickness: 0.4 mm to 6 mm

- Maximum PCB weight: 3 kg

- Transmission speed: 1500 mm/s maximum

- Transfer height from ground: 900 +/- 40 mm

- Transfer direction: left-right, right-left, left-left, right-right

- Template frame size: 470x370 mm to 737x737 mm

- Maximum print area: 450x350 mm

- Print head: floating intelligent printing head with two independent direct connected motors

- Scraper type: steel or rubber, angles 45 / 50 / 60 degrees

- Scraper length: 300 mm standard (optional 200 mm to 500 mm)

- Scraper blade thickness: 0.25 mm diamond-like carbon coating

- Print mode: single or double squeegee

- Print speed: 0 to 200 mm/s

- Print pressure: 0.5 kg to 10 kg

- Demoulding length: 0.02 mm to 12 mm

- Printing stroke: +/- 200 mm from center

- Field of view (FOV): 8x6 mm

- Platform adjustment range: X +/- 5.0 mm, Y +/- 7.0 mm, theta +/- 2.0 degrees

- Repeat position accuracy: +/- 10.0 micron at 6 sigma, Cpk 2.0 or greater

- Printing repeatability: +/- 20.0 micron at 6 sigma, Cpk 2.0 or greater

- Cycle time: less than 7 seconds (excluding printing and cleaning)

- Product changeover time: less than 5 minutes

- Power: AC 220V +/- 10%, 50/60Hz, 15A

- Compressed air: 4 to 6 kg/cm2

- Operating system: Windows 7

- Machine dimensions: 1152x1415x1540 mm (L x W x H)

- Machine weight: approximately 1000 kg

Key Features and Highlights

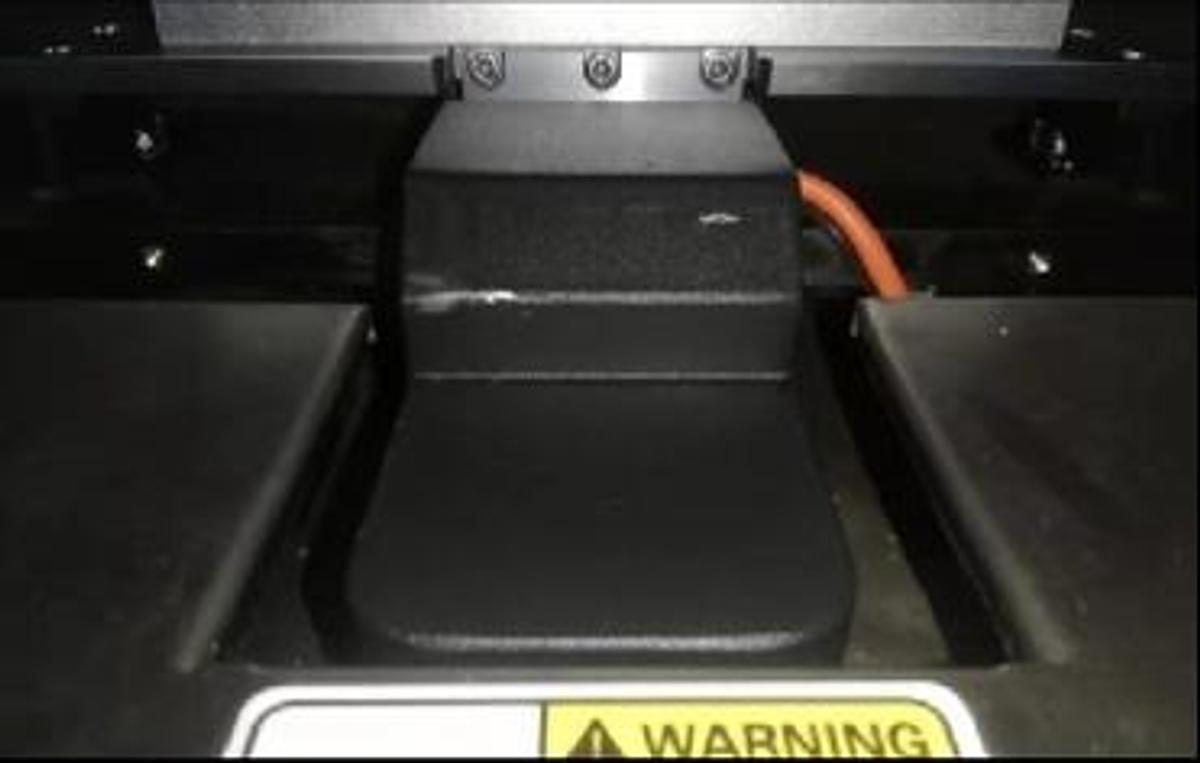

- Floating intelligent printing head with two independent direct-connected servo motors for higher

accuracy, stability and extended service life

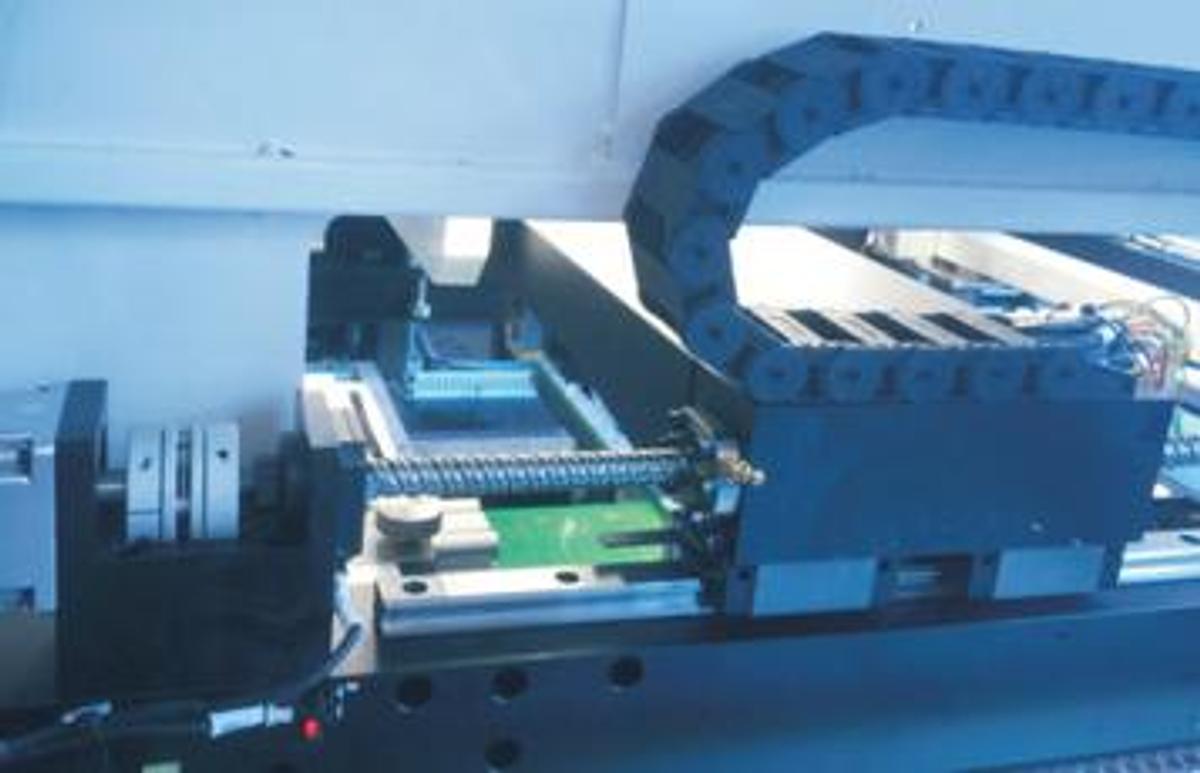

- Scraper Y axis servo motor with screw drive for improved accuracy, operational stability, and

longer lifespan

- Special PCB thickness adaptive system with automatic platform height calibration based on

PCB thickness setting

- Programmable elastic side clamp with automatic plate thickness adjustment and edge locking

- Board support via magnetic thimble and equal height blocks, with optional vacuum suction

cavity and special workpiece fixture

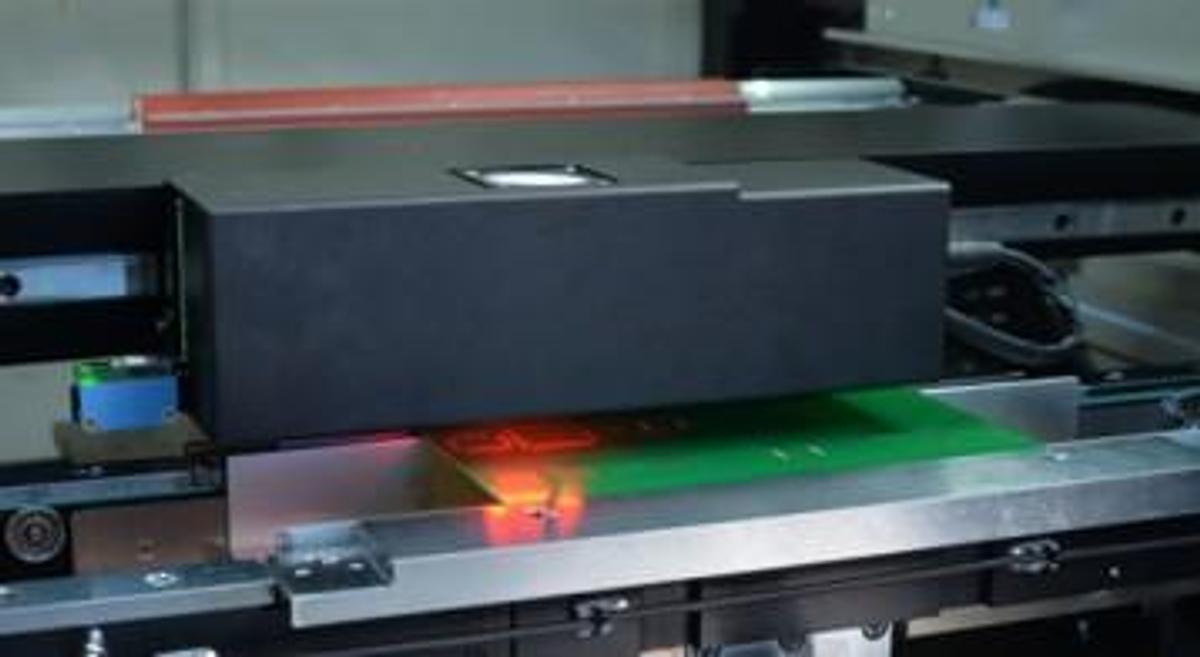

- Four-way adjustable light source with uniform illumination for perfect mark point identification

on tinning, copper plating, gold plating, tin spraying, and FPC PCB types including uneven mark

points

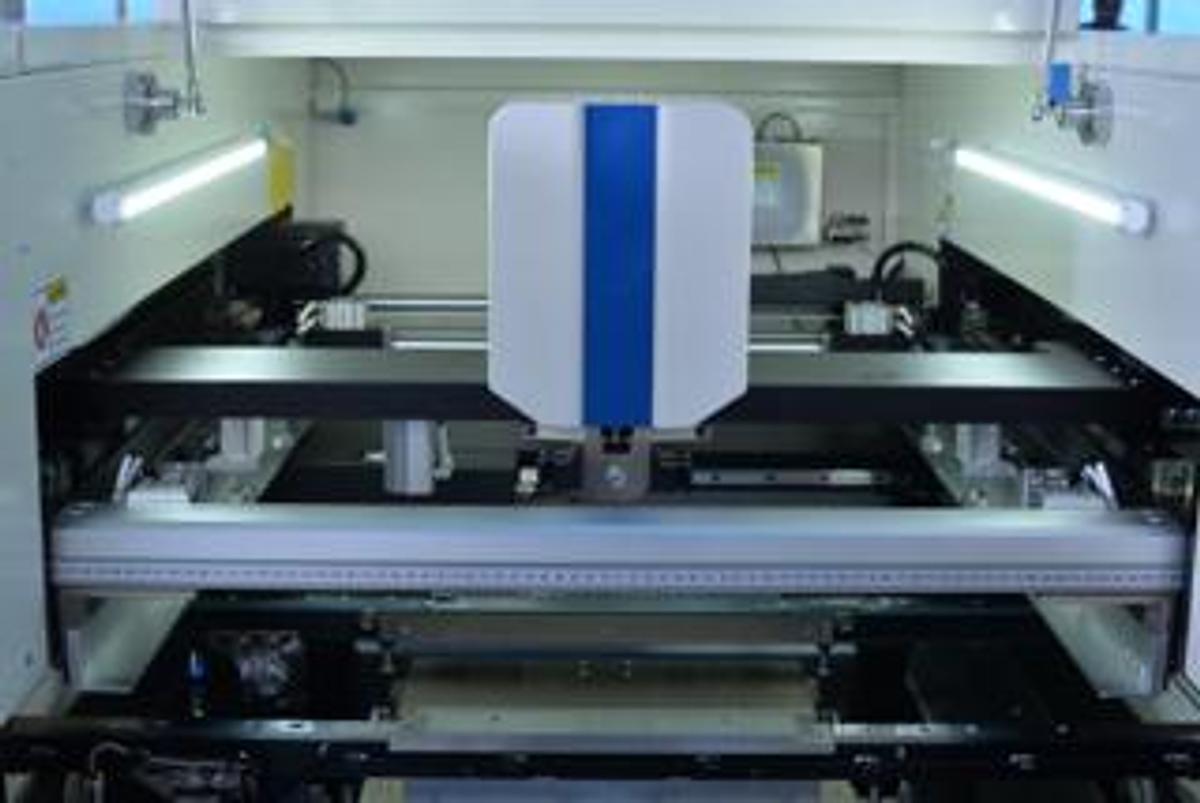

- Independent up and down CCD camera vision system with geometric matching positioning

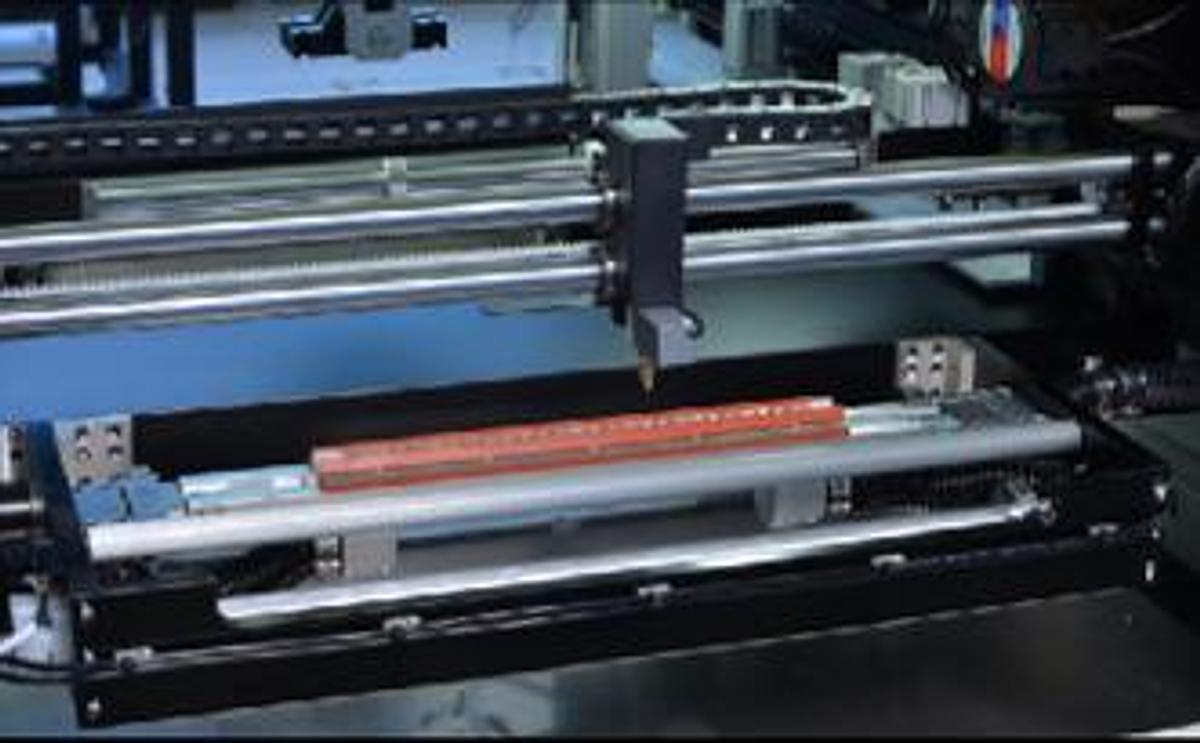

- High efficiency stencil cleaning system with dry, wet, and vacuum modes in any combination,

with soft wear-resistant rubber wiping plate and universal length wiping paper

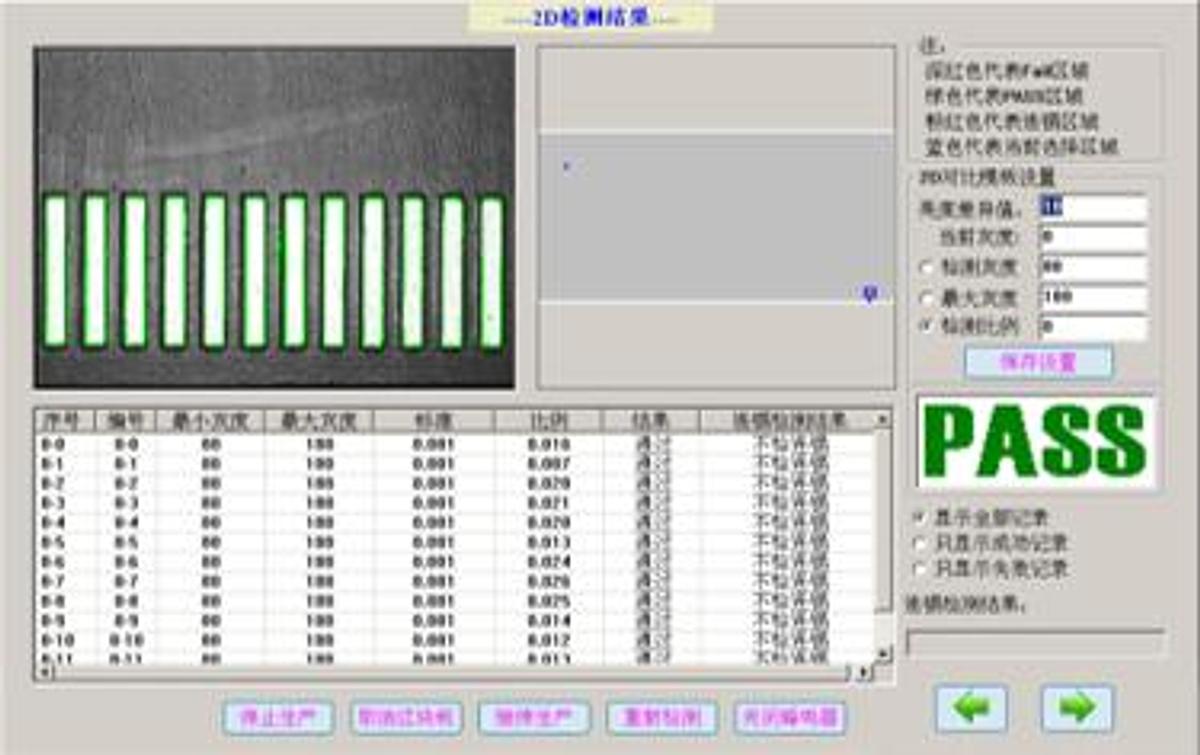

- 2D solder paste printing quality inspection detecting offset, insufficient tin, missing print, and

connecting tin defects with unlimited detection points

- SPC software for CPK index analysis ensuring consistent printing quality

- PCB clamping with optional overall bottom suction vacuum and bottom multi-point local vacuum

- Product changeover in under 5 minutes for fast line change efficiency
