2026 NeoDen YS350 Semi-Automatic Stencil Solder Printer

Manufacturer: NeoDen

Model:  YS350

Year of Manufacture: 2026

Type of Machine : Semi-Automatic Stencil Solder Printer

Application: Belong to SMT Machines,use to do solder paste apply to PCB surface

Technical Specifications

- Maximum PCB size: 400x240 mm

- Printing area: 500x320 mm

- PCB fixed system: pin positioning

- Frame size: L 550-650 mm x W 370-470 mm

- Table adjustment: front/rear +/- 10 mm, left/right +/- 10 mm

- Printing accuracy: +/- 0.2 mm

- Repeating accuracy: +/- 0.2 mm

- PCB thickness: 0.2 mm to 2.0 mm

- Air source: 4 to 6 kg/cm2

- Power supply: AC 220V, 50Hz

- Machine dimensions: 900x700x1700 mm (L x W x H)

- Net weight: 230 kg

- Gross weight: 280 kg

Key Features and Highlights

- Precision motor and linear rail system for stable and accurate scraper printing

- Double scraper printing with independent pressure control per scraper, with cylinder fine throttle

for scraper lifting speed to eliminate resonance

- Printing seat raises to 45 degrees and locks for easy blade loading, unloading, and stencil

cleaning

- Printing seat moves forward to align with stencil pattern for faster and more efficient printing

- Fine digital pole reference adjustment for double scraper level setting

- Fine adjustment pole for printing plate and steel plate spacing level display

- Machine arm adjustable for stencil frames from 470 mm to 750 mm

- Combined printing press groove and positioning PIN system for fast setup, compatible with

single-sided and double-sided substrate production

- X, Y, Z correction adjustment via stencil arm movement for precise alignment

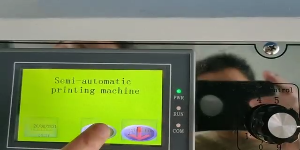

- Microcomputer PLC control with touch screen man-machine interface

- Freely selectable single or double scraper mode with manual and foot pedal operation
